How to Detect Risks with a Formal Approach?

From Property Specification to Risk Emergence

Vincent Chapurlat, Saber Aloui

LGI2P - Laboratoire de Génie Informatique et d’Ingénierie de Production

Parc Scientifique Georges .Besse, Site EERIE de l’EMA

30035 Nîmes cedex 5, France

Abstract. The research work presented in this paper has two goals and is

currently in progress. The first goal is to define a modelling framework

allowing representing a system by using multi views and multi languages

paradigms in a unified way and including knowledge and model enrichment by

defining properties. The second goal consists to define some formal properties

verification mechanisms in order to help a modeller to detect and to avoid

dangerous situations and inherent risks which can occur to the system. The

same mechanisms are then used to improve the quality of the representation

which is the classical verification goal. This paper focuses on the set of formal

properties modelling concepts and analysis mechanisms mainly based on

Conceptual Graphs, which are proposed. The resulting approach is currently

dedicated here to the risk assessment in healthcare organisations.

1 Introduction

A socio-technical system such as a hospital unit, a business process or a production

line in a factory is a complex system where interact technical and human resources,

flows and processes, etc. and which has to be considered under different points of

view: the customer as the designer or the manager. Some of these interactions and

points of view can be identified and then modelled because of their evidence or their

necessity. However, some other interactions remain difficult to understand. They

often make emerge some unpredictable and unforeseen events, unexpected behaviours

and situations. Those emerging characteristics can have harmful consequences i.e.

they induce risks. So, the willing to design, to improve or more simply to control

more efficiently the behaviour of a socio-technical system during its life cycle needs

to dispose of modelling and analysis techniques. It allows users to describe, to detect

or to make emerge these risks, their causes and their possible consequences taking

into account the complexity of the pointed out system. Analytical methods

particularly for industrial plant [1] are mainly based on probabilities of occurrences

and statistics of passed events. That is why these methods are still difficult to use in a

predictive way. Simulation, for example, based on multi-agent paradigm, can be used

in order to visualize auto-organisation capabilities of the system components and to

make emerge some new organisation’s behaviour. At last, there are few formal

concepts of models analysis for the risk assessment, starting from system

representation. The research work presented below intents to complete the existing

Chapurlat V. and Aloui S. (2006).

How to Detect Risks with a Formal Approach? From Property Speciﬁcation to Risk Emergence.

In Proceedings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

134-146

DOI: 10.5220/0002484201340146

 SciTePress

tool box in risk assessment by using formal verification mechanisms for detecting and

avoiding dangerous situations and inherent risks. A modelling framework has been

developed and is briefly presented and argued in the following. Then verification

mechanisms are described and illustrated considering the chosen application domain

of healthcare organisations.

2 Requirements

The following summarizes modelling and analysis requirements which are at the

origin of the proposed approach.

Considering the engineering system approach [2], a system must be modelled

taking into account functional (What?), behavioural (How?) and structural (With

what?) views and taking into account detail refinement and decomposition rules. So

existing enterprise modelling languages [3], [4], approaches [5], and systemic

concepts issued from the SAGACE method [6], [7] have been studied and discussed.

The three aspects described above, corresponding to a given point of view have to

be coherent with the other ones i.e. to be interoperable and to share the same

conceptual data model without any ambiguity. So it is necessary to define a unique

meta model allowing to pass from one modelling language to another without any

misinterpretation [8]

Different users are involved during modelling tasks taking into account their own

objectives (to control, to reuse existing parts, to optimise a given criteria, etc.). Each

user has then a point of view about the system which has to be coherent (multi view

modelling) also with the other ones and avoiding different viewpoints. It is necessary

to define a common and unique set of concepts and relations between the concepts,

i.e. ontology [9]. This one gathers commonly used and shared terms by all users for

describing the main characteristics of the pointed out system.

At last, some characteristics of the model must be checked in order to assume the

quality i.e. the consistence, the completeness and the coherence of the different

obtained models regarding the pointed out system [10].

3 System Modelling

Taking into account those requirements and the application domain of healthcare

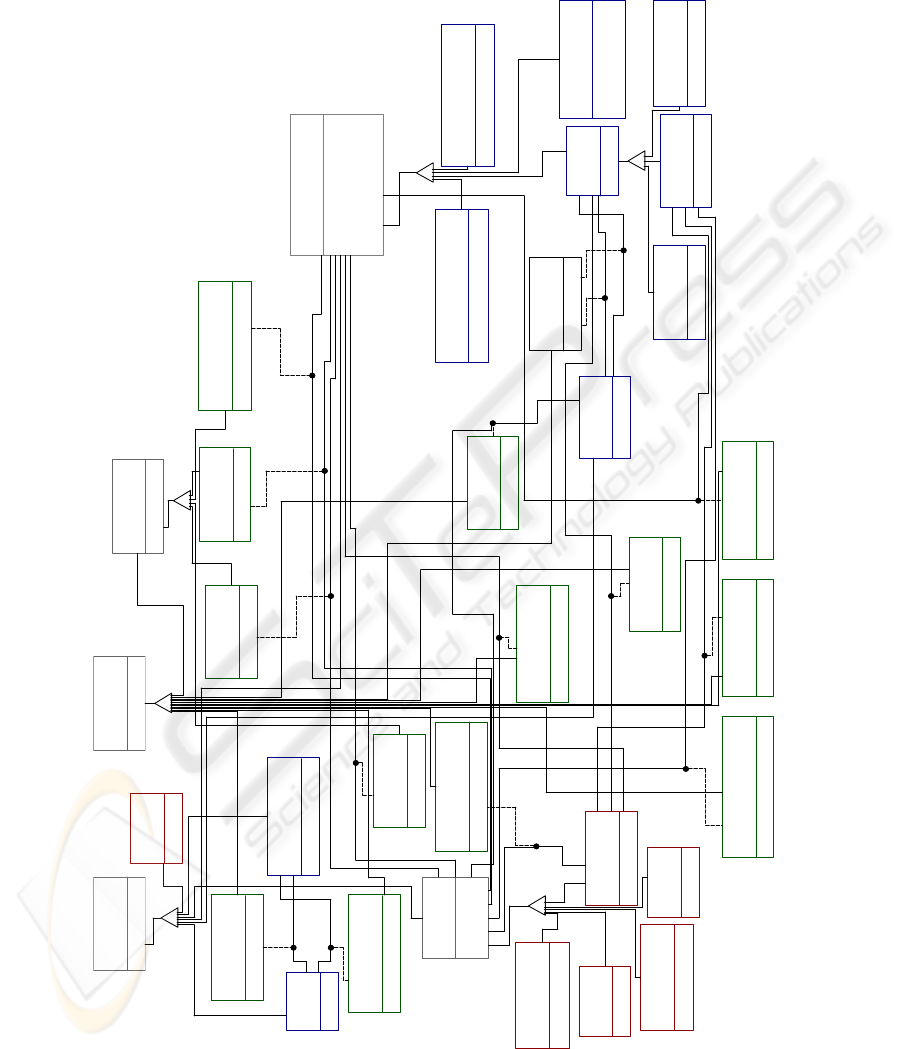

organisations, a modelling framework has been developed. A partial view of the

modelling language meta model supported by the modelling framework is given in

annex. This modelling language has been implemented by using a meta modelling

environment called GME [11] allowing to dispose of a modelling tool.

This one unifies the modelling concepts and relations from a coherent and

interoperable manner. The term unified means that all the concepts of the language

result from the same meta model. So, there is not inherent problem of interoperability

classically due to the use of several modelling languages, each one defining its own

concepts and semantic. In parallel, a method guiding the modeller (not described in

the continuation but more detailed in [12]) has been developed and is now under

validation by end users.

135

The resulting modelling framework highlights five views under which the system

has to be modelled:

- Functional view: The user describes the finality (Why does the system exist?),

the mission (what does the system make? What are its functions, processes and

flows?), and the objectives of the system (what are the efficiency, the level of stability

and of integrity which have to be reached in order to fulfil this mission?). The used

modelling language is inspired here by the KAOS [13], [14] modelling approach and

the IDEF-0 [15] functional modelling language.

- Structural view: In this view, the goal is to define without ambiguity how the

mission will be done (what are the processes, activities and flows?), and what is the

organisation in charge or fulfil this mission (who/what is getting involved i.e. what

are the resources? What are the involved organisation units – i.e. departments or

services? What are their capabilities and skills? What are they doing?). The modelling

paradigms used here are inspired by Binary Relational Model of NIAM [16], by the

class concept from the class diagram of UML [17] for resource and organisation

description and by the UEML language [5] in order to support capabilities, processes

and activity description.

- Behavioural view: The system, due to the numerous interactions between

resources, processes has a wide range of behaviours. The interrogations relate to what

are the possible operational scenarios or the ones already encountered (what is the

history of the system?). What are the states or situations reached of the system? (a

situation is defined as a set of states from several entities). What are the events or

conditions and their effects allowing the entities going from one state to another one?

Finally, what are the functioning modes (nominal and non nominal) of the system?

The used modelling languages are directly an extension of the eFFBD (enhanced

Functional Flow Block Diagram) [18] for scenario and configuration description (i.e.

behaviours in which several entities must be involved) and classical states diagram

(for entities behaviour description).

- Ontological view: The definition of [19] “ontology is a formal, explicit

specification of a shared conceptualization” indicates that ontology is the result of a

consensus between actors concerning terms related to professional, management,

decision and information aspects. Indeed, the system modelling calls upon several

actors from various cultures (modellers, engineers, specialists in the field to study

here pharmacist, doctor, nurses, etc.). Each actor or groups of actors has its own

mental representation of the system and its components. This diversity of discourses

universes may induce misinterpretations of sense and ambiguities on the chosen

terms, and eventually a lack of knowledge for some group of actors. So, ontology

allows defining a common discourse universe and then a description language of the

domain shared by all actors as an Esperanto of the domain. Its design is made from a

gradual manner all along the system modelling phase by the various groups of actors

and by experts of the domain. It allows groups of actors integrating their own

vocabulary and knowledge in the different modelling views and models. The result is

of a higher level of confidence around the models and facilitates their analysis during

the next phase.

- Property view: On one hand the property view allows users to enrich their

knowledge and thus enrich by the same occasion the information already contained in

each model coming from any view or any aspect. This is done by specifying

properties highlighting for example a given scenario of execution of a process. On the

other hand, it allows covering analysis requirements as shown in the following.

136

Property P1

(∀ A ∈ System.Activities), [nature(A) = Type.Diagnosis]

⇒

[∃ O ∈ System.InformationFlows, (outputs(A) ⊃ O) ∧

(nature(O)=Type.Prescription]

Activity:

Diagnosis

Resource:

Doctor X

Supports

patient

report

Process model PM1

(partial)

(from system process view)

Activity:

Diagnosis

Resource:

Doctor X

Supports

patient

report

Process model PM1

(partial)

(from system process view)

Process model PM2 (partial)

(from system process view)

Activity:

Transcription

Ability:

Assume

transcription

Resource:

Nurse X

Supports

Ability:

Interpret

transcription

Needs ability

Has

Ability

Has abilities

Ability:

Obstetric

Resource:

Nurse X

OrganisationUnit:

Radiology

Is member of

Resource nurse X abilities

(from system organisation view)

Property P2 (identified risk)

((∀ A ∈ System.Activities, (nature(A) =

Type.Transcription), (∃ O ∈ System.Flows, (outputs(A) ⊃

O)∧ (nature(O)=Type.Prescription)) , [(∃ R ∈

System.Ressources, (nature(R)=Type.Nurse) ∧

(resourcesOf(A) ⊃ R))]

Î (influences)

[relevance(O)]

data

pres

cripti

Property P3

(∀ A ∈ System.Activities), (∀ R ∈ System.Resources,

[resources(A) ⊃ R] ⇒ [neededAbilities(A) ⊃ abilities(R)]

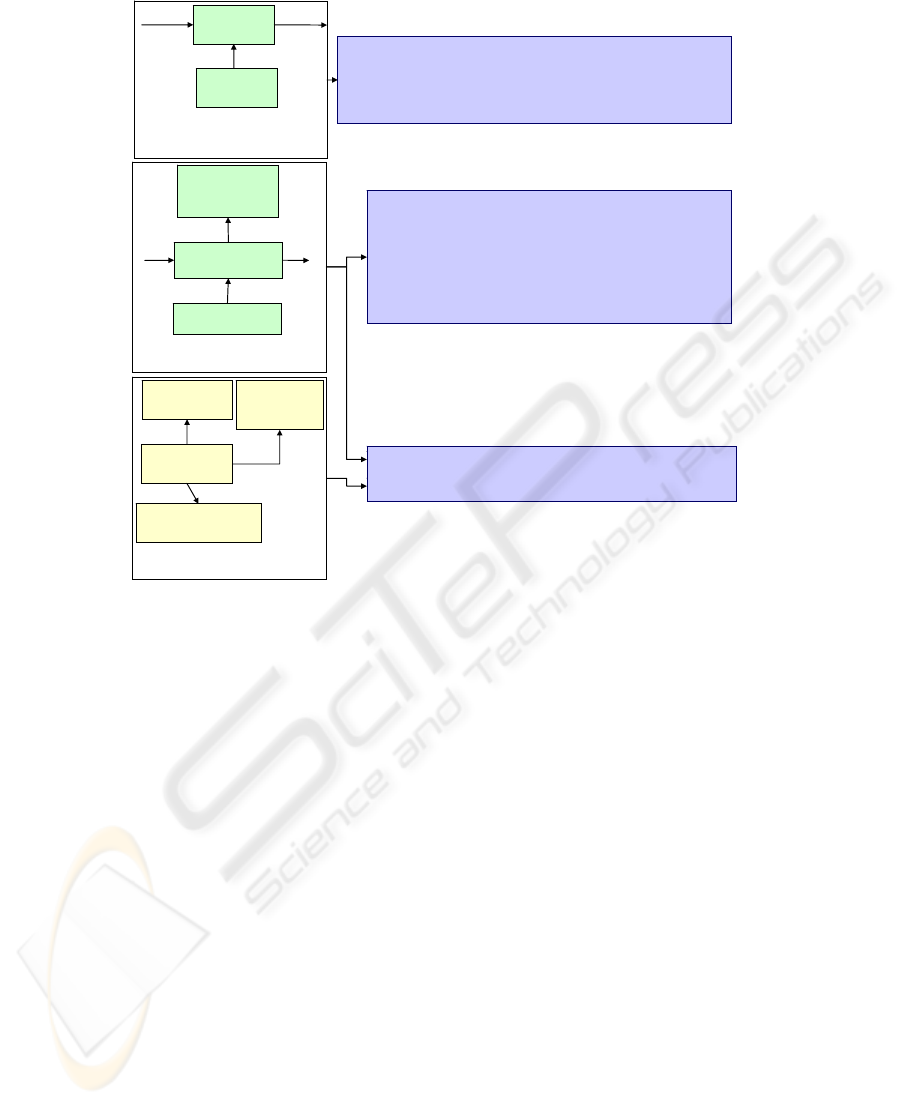

Fig. 1. Example of modelled Properties for each of the three kinds of requirements.

4 Property Modelling

As proposed before, the approach analysis is based on verification mechanisms.

Taking into account the definition given for example in [20], verification must

provide rigorous arguments (for example properties proofs) in order to convince

users of the correct functioning and reliability of a model and of model-based

systems.

In this case, it is not a question of complying with syntactic rules (already

commonly verified by any modelling tool and without interest here) but of making

sure that the semantics of the concepts and the relations contained into the meta

model are strictly respected. The aim is to assume a high level of confidence in the

models by specifying and verifying properties.

So, the proposed meta model includes a property description language called

LUSP (French acronym of Unified Specification Property Language [21]). This

modelling language follows the model proposed in [22] very close to those proposed

by [23] or [24]. A property is here considered as a causal, constrained and typed

relation linking a set called causes and a set called effect. Each set is composed of

events and data extracted from the model to be analysed. Each pre condition, post

condition and constraint describing the relation between causes and effects is then

137

described by using predicates and functions respecting the meta model structure (i.e.

each role of each relation between two concepts of the meta model is translated into a

predicate or a function). An example of property modelling is shown in

Fig. 1 in

which for example the predicate named “neededAbilities” translates the relation role

called “needed abilities” between an instance of concept named “Activity” and an

instance of concept named “ResourceRole” as shown in Annex.

At last, the Properties Reference Repository (PRR) [22] gathers a set of generic

properties described by using LUSP. It allows helping the modeller to select and to

specify properties (that is to say to interpret generic properties) he wants to prove all

along the model life cycle.

The properties are modelled taking into account the three following requirements:

• Users want to trust and to share the models contents.

• Users want to assume absence of identified but potential risks.

• Users want to make emerge new potential risks

4.1 Trusting The Model

In this first step of verification, it is a question of modelling properties making it

possible to ensure itself of the coherence of each system component (scenarios,

activities, processes, etc.):

• The models representing different viewpoints of the same system must share

and must agree with the definition of the entities. A consensus is therefore needed

between the different actors involved in a process. The properties allow to fix the

ideas and to assume each viewpoint which describes the same behaviour of this

process. If a consensus stays impossible to establish, then there are some potential

dissonances between actors such as detailed in section 4.3.

• Models representing a higher detail level of another one. It is necessary to

guarantee that refinement mechanisms respect some rules.

• Facing to the moving environment, to ensure that structural, functional and

behavioural aspects of the system stay coherent considering all possible described

scenarios.

4.2 Tracking Identified Risks

The concept of property is used during this step in order to model a risk clearly

identified by using the model of risk suggested by the MADS-MOSAR approach [25].

Indeed this approach describes a risk as a causal relation between a potential cause

called source state and its effect on the system called sink state. The source’s state

describes what the states of each entity, data and events are like at a given time. The

sink state describes what can be the resulting state of each entity in the system. These

last entities may of course be different from those which are involved into the causes.

Going from the source state to the sink state needs to describe occurring events (from

different types such reinforcing event, initial event and so on). So the proposed

property concept allows describing causes, effects and set of events which allow the

system to go from a source state to a sink state. When a modeller encounters some

risk which has occurred in the past he can use a property in order to describe it and to

test if this risk can occur again.

138

The PRR is then used in order to gather some classical properties modelling

identified risks in the medical domain. For example, delivering some kind of

medicine such as drug to a patient needs to control the patient state every time. Does

one scenario on which the case is described exist? Is there a procedure corresponding

to this constraint?

A medical organisation has to face numerous identified risks and they have to

respect some standards such as [26] but also internal procedures and so on. An

analysis of these documents allows modeller and experts to add some properties to the

PRR.

4.3 Making Emerge Possible Risks

A property is then used to model situations considered generally as potential

generators of risks and dysfunctions in all kinds of systems. These situations and

these risks are described by Cindynic [27]. However, these proposals remain more

easily usable for analyzing known and passed cases and to formalize a kind of

experience feedback. They are unfortunately regarded as not very usable a priori

helping to detect emergent risks.

The goal is to model some of these propositions as property and to use formal

verification tool presented below in order to make emerge some new but non

identified risk.

Cindynic is based on a theoretical representation called “hyperspace of the

danger” as shown in

Fig. 2. This representation abstracts 5 information domains

allowing to describe a system or a situation observed through the point of view of a

group of actors. The members of this group share a common set of knowledge, of

know how, position or job, role and responsibilities about the system. They have then

a point of view about the system that is to say they own a particular and dedicated

hyperspace of danger which may be very different from another group of actors.

Model

Rules

Objectives

Statistics,

etc.

Shared

representations

of the system

(formal or not)

What has to be

done by the

system?

Standards,

norms, rules of

thumb, etc. to

be respected

Fairness,

Equity,

etc.

Model

Rules

Objectives

Statistics,

etc.

Shared

representations

of the system

(formal or not)

What has to be

done by the

system?

Standards,

norms, rules of

thumb, etc. to

be respected

Fairness,

Equity,

etc.

Fig. 2. Hyperspace of the danger.

Cindynic defines then two interesting concepts. First, the concept of dissonance is

defined as the variation between each axis of two hyperspaces describing each one the

same system seen by two groups of actors. It may be then possible to make emerge

some possible conflict between actors (and then some risks which are not taken into

consideration for the moment). It may also be possible to detect positive and negative

interactions between some actors or a group of actors.

Second, the concept of deficiency (called Cindynogenic Structural Deficiencies

DSC) is defined as a possible lack of knowledge on one or several of the 5 axes of

139

each hyperspace of danger. It can be for example a behaviour which is not completely

defined, a scenario which do not take into account a possible incident, etc. This lack

can be established by comparing the models issued from the system representation of

each group of actors. Deficiencies were experimentally classified by [27], into three

main categories (cultural deficiency, organizational deficiency and management

deficiency).

Organisational Unit : Clinical activity

Diagnosis Prescription

Monitoring

Administering

Organisational Unit :

Pharmacy

Patient

Doctor

Interoperability

deficiency: Loss

of information

Prescription

Analyse

Transcription

Nurse’s role:

- Assume transcription

from oral orders or manual

writing orders coming from

doctor to electronic

prescription to pharmacist

Nurses

Preparation

Chemist assistant’s role:

- Dose verification

- In tablet form / in liquid

form

Pharmacist role:

-Drugs interaction

- Use of generic drugs for

economic reasons

Communication deficiency:

no traceability of the

prescription

Doctor

NursesNurses

Compartmentalization deficiency

Transport

NursesNurses

Patient Patient

NursesNurses

Chemist

assistant

Pharmacist

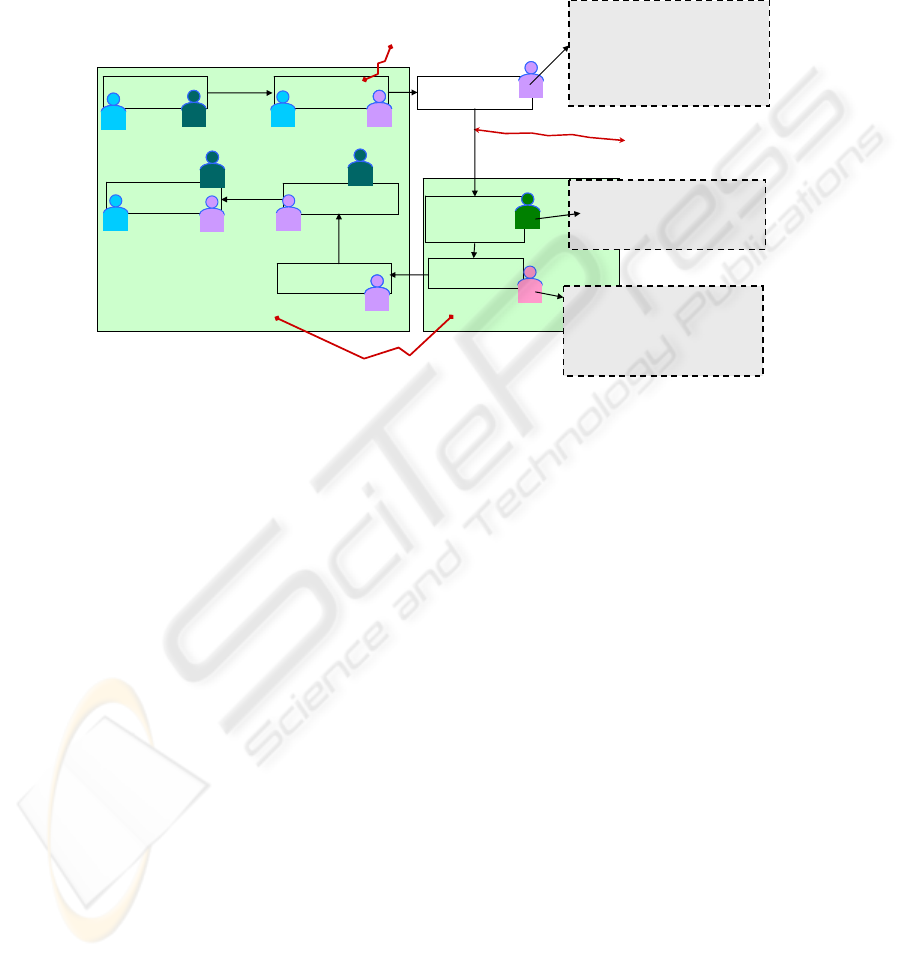

Fig. 3. Modelling example (simplified view).

Fig. 3 shows an example of system model in which three kinds of deficiencies are

highlighted. The deficiency called ‘Loss of information’ brings a lack of

interoperability between two organizational units. This lack exposes the organization

and especially the patient to risk (risk of error in medicine, in dose, etc.). This

identification of the deficiency can allow the modeller to decrease the system

vulnerability by reformulating and improving the activity named ‘Transcription’ for

example by the use of ICT tools.

5 Verification Mechanisms

On one hand, when modelled, a property P has to be proven (checked or verified)

when a model M of a system S must satisfy P whatever may be the resources

configuration, the available scenarios in which S may be considered and so on. On the

other hand, knowing in which condition or for which scenario the property P cannot

be verified allows detecting a modelling error or a mistake during modelling phase or

even a real dysfunction and then a risk opportunity.

Even partial, the checking up of the properties resulting from each of the 3

requirements described above makes it possible to handle a knowledge each time

more relevant, and especially more consensual between the actors. Models can be

modified as correct in each iteration possible errors or gaps. They are enriched by a

whole of properties which cannot be objected thereafter. However, by assumption,

140

any new modification of whole or part of the models requires to check again all the

properties. That requires having tools making it possible to manage a great quantity of

information and allows applying, if it is possible in an autonomous and not guided

way. Theorem provers or model checkers are generally used at this stage [28].

However a formal operational semantic is then needed. E.g. the operational semantic

of a state diagram can be formally described and then used by a model checker in

order to prove behavioural properties. At the opposite, the proposed approach is based

on several interacting models and paradigms which have to be merged with a

common set of verification mechanisms. So, property proof is done by adapting and

using a conceptual graphs [29] analysis approach as proposed by [30].

A conceptual graph is a formal knowledge representation. It is a finite, connected,

directed and bipartite graph composed of an alternation of nodes called concepts and

nodes called relations.

A concept is a double

[<type>: <marker>]

Where:

- type represents the occurrence of the object’s class. They are grouped in a

hierarchical structure called concepts lattice. The concepts lattice is obtained by

translating each object class and each attribute described in the meta model by using

translating rules summarised in

Fig. 4.

- marker specifies the meaning of a concept by specifying an occurrence (i.e. an

instance) of the type of concept. For example, the concept [Scenario: ‘to deliver

medicine’] describes an object of type scenario identified by ‘to deliver medicine’.

These markers correspond to the instances of each object (the marker description is

provided by the name of the instance) contained into the system models. A relation

binds two concepts according to the following diagram:

[Concept1]←(relation)←[Concept2]

For example, the following relation means that the object of type Configuration

called ’C1’ authorizes the object of type Scenario called ‘S1’:

[Scenario: ‘S1’] ]←(Authorize)←[Configuration: ‘C1’]

As for the concepts, all the possible relations between concepts are gathered into a

relations lattice. This relations lattice is obtained by translating each relation role

between object of the meta model in a relation between concepts described in the

concept lattice.

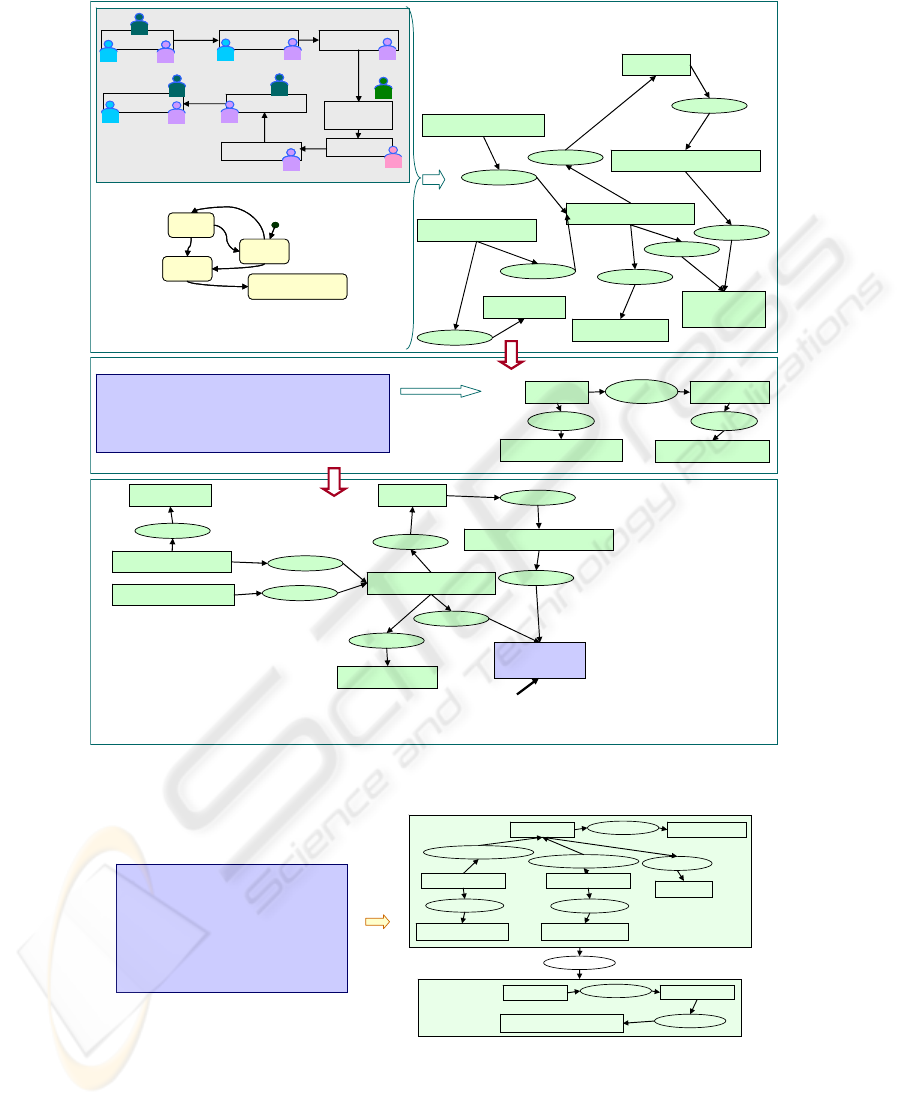

The verification approach (see

Fig. 5) can be summarised as follows:

1 - Taking into account the concepts and relations lattices translated from the meta

model, each model of the system is translated into conceptual graphs in which all the

knowledge is then available and formalised by using an unique modelling language:

the conceptual graphs. A set of formal translation rules (not presented here) has been

developed aiming to transform the different system models on a (set of) conceptual

graphs upon which formal reasoning mechanisms can be applied. Conceptual graphs

may then be used to prove the previous presented properties.

2 – Analysis mechanisms allowed by conceptual graphs can be used. These

analysis mechanisms are:

• Projection: This involves comparing the obtained conceptual graph coming

from the translation of the model with another one translating the property. If the

projection fails, then the modelled property cannot be verified and the causes are

highlighted.

141

• Constraint: a property describes what the links and/or constraints are between

facts. In this case, the property is translated on a positive or negative conceptual

graph constraint. A positive constraint between two facts A and B must be

interpreted as: “If A is true, then B must also be true”. Conversely, a negative

constraint must be interpreted as: “If A is true then B must be false” (if B is true, A

must be true or false).

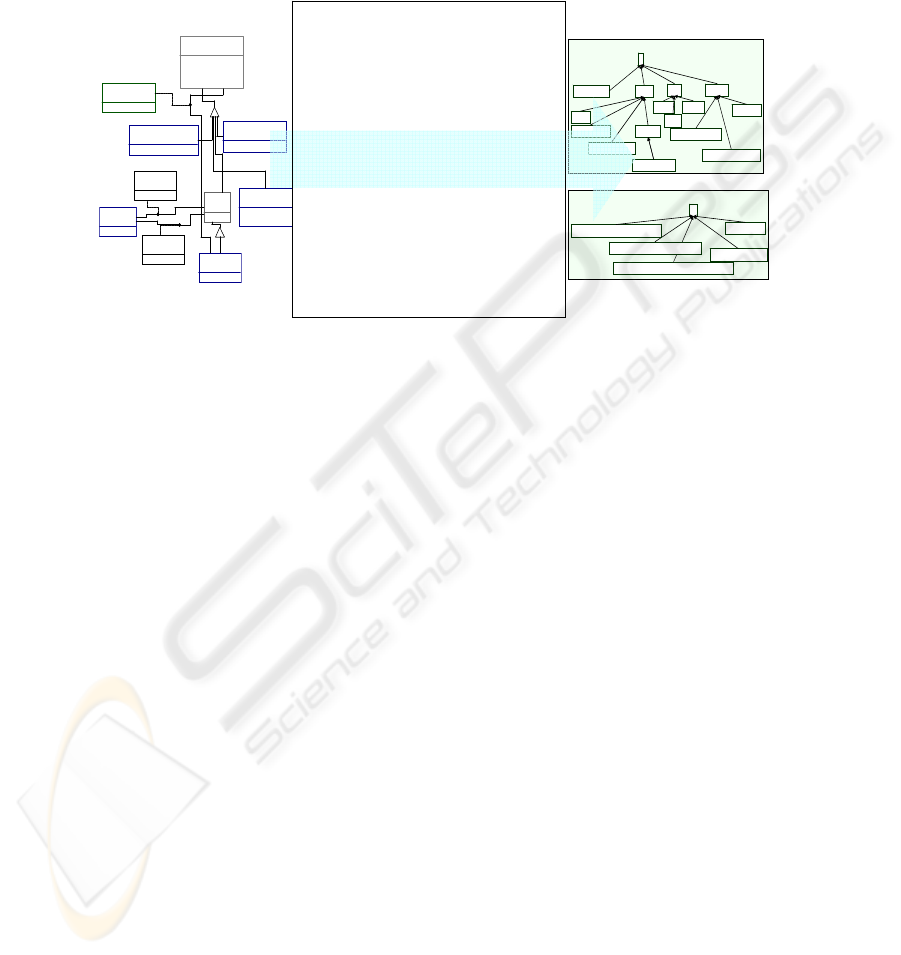

Object

Concepts lattice (partial view)

Resource

HumanResource

Patient

ResourceRole

InformationObject

Relations Lattices (partial view)

AttributeOf(T,T)

PlayARole(Resource,ResourceRole)

isResponsibleOfObject(HumanResource,Object)

Attribute

MedicalFile

InformationObjectType

TangibleObjectType

IsPlayedBy(ResourceRole,Resource)

TangibleObject

ofType(Attribute,Type)

Type

Boolean

String

Number

Object

Concepts lattice (partial view)

Resource

HumanResource

Patient

ResourceRole

InformationObject

Relations Lattices (partial view)

AttributeOf(T,T)

PlayARole(Resource,ResourceRole)

isResponsibleOfObject(HumanResource,Object)

Attribute

MedicalFile

InformationObjectType

TangibleObjectType

IsPlayedBy(ResourceRole,Resource)

TangibleObject

ofType(Attribute,Type)

Type

Boolean

String

Number

Patient

<<Atom>>

MedicalFile : field

CurrentPathology : field

PlayARole

<<Connection>>

Resource

<<Atom>>

TangibleObject

<<Atom>>

TanglibleObjectType : enum

Ob je ct

<<FCO>>

DisposabilityPlanning : field

UpdatingPeriod : field

LifeDuration : field

ExigenceLevel : field

is PlayedBy

<<Connection>>

IsRes ponsibleOfObject

<<Connection>>

Res ou rceRole

<<Atom>>

InformationObject

<<Atom>>

InformationObjectType : enum

HumanResource

<<Atom>>

dst

0. .*

dst 0. .*

dst

0.. *

src

0.. *

src

0. .*

src 0..*

Meta model (partial

view)

Patient

<<Atom>>

MedicalFile : field

CurrentPathology : field

PlayARole

<<Connection>>

Resource

<<Atom>>

TangibleObject

<<Atom>>

TanglibleObjectType : enum

Ob je ct

<<FCO>>

DisposabilityPlanning : field

UpdatingPeriod : field

LifeDuration : field

ExigenceLevel : field

is PlayedBy

<<Connection>>

IsRes ponsibleOfObject

<<Connection>>

Res ou rceRole

<<Atom>>

InformationObject

<<Atom>>

InformationObjectType : enum

HumanResource

<<Atom>>

dst

0. .*

dst 0. .*

dst

0.. *

src

0.. *

src

0. .*

src 0..*

Meta model (partial

view)

/* Initialise the hierarchy of concepts */

GenerateConcept(‘T’, nil)

GenerateConcept(‘Attribute’, ‘T’)

GenerateConcept(‘Type’,‘T’)

GenerateConcept(‘Boolean’,‘Type’)

GenerateConcept(‘Number’,‘Type’)

GenerateConcept(‘String’,‘Type’)

GenerateRelation(‘T2’,nil)

Signature (‘T2’,2,’T’,’T’)

GenerateRelation(‘AttributeOf’,’T2’)

Signature (‘AttributeOf’,2,’Attribute’,’T’)

GenerateRelation(‘ofType’,’T2’)

Signature (‘ofType’,’Attribute’,’Type’)

/* begin of the generation

For each Object::object where object.class in {FCO, Model, Atom, AtomProxy, ModelProxy,

FCOProxy, Set, SetProxy}

GenerateConcept (object.name, object.inheritFrom)

End do

For each Connection::connection

GenerateRelation (connection.name, connection.inheritFrom)

Signature(connection.name,2,connection.conceptOrigin,connection.conceptDestination)

End do

For each Attribute::attribute

GenerateConcept(attribute.name, ‘Attribute’)

GenerateRelation( attribute.name+’ofType’, ‘ofType’)

if attribute.type=Boolean then Signature(attribute.name+’ofType’, 2, Attribute.name,

‘Boolean’)

if attribute.type=Enum(String) or attribute.type=Field(String) then

Signature(attribute.name+’ofType’, 2, Attribute.name, ‘String’)

if attribute.type=Enum(Number) or attribute.type=Field(Number) then

Signature(attribute.name+’ofType’, 2, Attribute.name, ‘Number’)

End do

/* end

Fig. 4. From meta model to lattices (translating rules).

• Dynamic and static rules: A property is directly modelled as a rule composed

of a cause and an effect as shown in

Fig. 6. If the graph corresponding to the causes

matches with a part of the conceptual graph translating the system models, then the

effect must be checked in the same way.

For some specific modelling languages used in the modelling framework

particularly the state diagrams used for describing state of each entities all along its

life cycle, another verification approach can consist to translate the state diagram into

input language of existing model checkers [28], [31]. This can allow to prove some

behavioural properties such as state attainability or absence of deadlock and to

highlight some model improvement or limitation.

6 Conclusion

The proposed methodology for verification is now under development. The modelling

framework is still under validation by partners from Hospital of Nice in France. This

approach can be a significant benefit for one in charge of risk management in a

hospital. The modelling phase is currently used by some medical specialists. The

analysis phase has now to define translation rules for obtaining dynamic rules and to

define how projection must be automated by using Cogitant tool [32].

A possible development consists on using this approach in order to help the

modeller not only to detect risk, but also to test different alternatives of organisation

allowing to reduce the vulnerability of a healthcare organisation [33] and to improve

the performance of this organisation.

142

Properties translation

System Models translation

Each property P

is translated as

a conceptual

graph

State diagram of

‘Diagnosis’ activity

Resource: ‘Doctor Z’

ResourceOf

Activity: ‘Diagnosis D”

result

Resource: ‘Nurse X’

ResourceOf

Capability

Role: ‘Nurse’

stateOf

State: ‘S4’

action

Action: ‘FurnishDiagnosis’

output

Document:

‘MedicineList’

A process

Diagnosis D Prescription

Monitoring

Administerin

Patient

Prescriptio

n Analysis

Transcription

Nurses

Preparation

Doctor NursesNurses

Transport

Nurses

Patient

Nurses

Operator

Doctor Z Doctor

Nurse X

A process

Diagnosis D Prescription

Monitoring

Administerin

Patient

Prescriptio

n Analysis

Transcription

Nurses

Preparation

Doctor NursesNurses

Transport

NursesNurses

Patient

NursesNurses

Operator

Doctor Z Doctor

Nurse XNurse X

Ev1

Condition

FurnishDiagnosis

action

Ev1

Condition

FurnishDiagnosis

action

nature

Activity: *

result

Document: *

nature

Type: ‘Diagnosis’

Type: ‘Prescription’

Property P1

(∀ A ∈ System.Activities), [nature(A) =

Type.Diagnosis] ⇒

[∃ O ∈ System.InformationFlows, (outputs(A) ⊃ O)

∧ (nature(O)=Type.Prescription]

Projection

nature

Type: ‘Diagnosis’

Resource: ‘Doctor Z’

ResourceOf

Activity: ‘Diagnosis D”

result

Resource: ‘Nurse X’

ResourceOf

Capability

Role: ‘Nurse’

stateOf

State: ‘S4’

action

Action: ‘FurnishDiagnosis’

output

Document:

‘MedicineList’

nature

Type: ‘Diagnosis’

Projection fails: output of this activity must be a prescription and a

prescription is not a document: is it a mistake? Is it a real risk in case

of medical error to not deliver a prescription?

Fig. 5. Overview of the verification approach and mechanisms.

Property P5

(∀ A ∈ System.Activities,

card(resourcesOf(A))<>1),

[roles(resources(A)) ⊃ (Role: Nurse) ∧

roles(Resources(A)) ⊃ (Role: Doctor)]

⇒

[∃E∈states(A)], output(action(E)) =

result(A) ∧ result(A)∈System.Forms]

Translation

Effect

Cause

Activity: A

result

Document: F

implies

State: E

action

Action: Act

ResourceOf

Resource: *

Capability

Role: Doctor

ResourceOf

Resource: *

Capability

Role: Nurse

stateOf

State: E

Form: Prescription

output

Fig. 6. Example of translation of a property specified by using LUSP in a dynamic rule.

143

References

1 Tixier J., Dusserre G. (2002) Review of 62 risk analysis methodologies of industrial plants,

journal of Loss Prevention in the Process Industries

2 INCOSE (2004) System Engineering (SE) Handbook Working Group, System Engineering

Handbook, A « How To » Guide For All Engineers

3 Vernadat F. B., (1996), Enterprise Modelling and Integration: Principles and Applications,

Chapmann & Hall

4 Petit M., Doumeingts G. (2002) Enterprise Modelling State of the Art, Deliverable D1.1 of

the UEML Project, Unified Enterprise Modelling Language UEML Thematic Network,

IST-2001-34229 (www.ueml.org)

5 UEML (2003) Deliverable D3.1: Requirements analysis: initial core constructs and

architecture, Unified Enterprise Modeling Language UEML Thematic Network - IST-2001-

34229 (www.ueml.org)

6 Chapurlat V., Montmain J., Gharbit D. (2005a) A proposition for risks analysis in

manufacturing and enterprise modelling, Knowledge sharing in the integrated enterprise:

Interoperability strategies for the enterprise architect, Springer IFIP (P.Bernus & M.Fox

ed., p 193-202

7 Penalva, J-M (1997). La modélisation par les sytèmes en situations complexes, PhD Thesis,

Université de Paris Sud. (in french)

8 EICTA (2004) Interoperability white paper, European Industry Association for Information

Systems, Communication Technologies, and Consumer Electronics

9 Uschold M., Gruninger M. (1996) Ontologies: Principles, Methods and Applications,

Knowledge Engineering Review, vol.11:2, pp. 93-136

10 Popkin (2003) Enterprise modelling: Aligning Business and Information Technology,

White paper, Popkin Software (see http://www.telelogic.com/campaigns/popkin/index.cfm)

11 GME (2004) Generic Modelling Environment (GME) User’s Manual, Release 4-11,

Institute for Software Integrated Systems (ISIS) Vanderbilt University

12 Aloui S., Chapurlat V., Penalva J.-M. (2006) Linking interoperability and Risk assessment:

A methodological approach for Socio-technical systems, to be appear in Proceedings of

INCOM’2006, 12th IFAC Symposium on Information Control Problems in Manufacturing,

Saint-Etienne, May 17 to 19, France

13 Bertrand P., Darimont R., Delor E., Massonet P.,Van Lamsweerde (1998) A.

GRAIL/KAOS: an environment for goal drivent requirements engineering Proceedings

ICSE'98 - 20th International Conference on Software Engineering, IEEE-ACM, Kyoto,

april

14 Van Lamsweerde A. (2003) From System Goals to Software Architecture. In Formal

Methods for Software Architectures, M. Bernardo & P. Inverardi (eds), LNCS 2804,

Springer-Verlag, 25-43

15 Menzel C.P., Mayer R.J. (1998) The IDEF Family of Languages in Handbook on

architectures of information systems, Bernus P., Mertins K. et Schmidt G. ed., Berlin,

Springer

16 Habrias H. (1988) Le modèle relationnel binaire. Méthode Niam, Paris, Eyrolles [in

French]

17 Booch G., Rumbaugh J., Jacobson I. (1999) The Unified Modelling Language User Guide.

Addison-Wesley

18 Oliver D.W., Kelliher T.P., Keegan J.G. Jr (2004) Engineering complex systems with

Models and Objects, McGraw-Hill

19 Studer, R., Benjamins, V. Fensel, D. (1998). Knowledge Engineering: Principles and

Methods, Data and Knowledge Engineering n°25, 161-197.

20 ISO 8402 (1994): Quality management and quality assurance – Vocabulary, Second edition

1994-04-01, International Standard Organization.

144

21 Lamine E. (2001) Définition d’un modèle de propriété et proposition d’un langage de

spécification associé : LUSP, Ph.D. Thesis, Montpellier II University [in French]

22 Chapurlat V., Kamsu-Foguem B., Prunet F (2005b), A Formal Verification Framework and

Associated Tools for Enterprise Modelling: Application to UEML, Computers in Industry,

Elsevier

23 Chatel V., Feliot C. (2004) Principe de conception système certifiée par la preuve,

Journées Francophones des Langages Applicatifs, JFLA 2004 (in French)

24 Accelera (2004), PSL Property Specification Language Reference Manual, Accelera

Formal Verification Technical Committee (FVTC), Version 1.1 (http://www.eda.org/vfv/)

25 Perilhon, P. (2003). MOSAR: présentation de la méthode, Techniques de l’Ingénieur, traité

Sécurité et gestion des risques (in french)

26 HAS (2005) Normative reference available on the HAS web site (Haute Autorité de Santé),

see www.anaes.fr

27 Kervern G.Y. (1994) Latest Advances in Cindynics. Economica Paris.

28 Yahoda (2003) web site presenting an overview of formal verification tools (see

http://anna.fi.muni.cz/yahoda/)

29 Sowa J.F (1984) Conceptual structures: information processing in mind and machine, New

York (U.S.A.): Addison-Wesley

30 Kamsu-Foguem B. (2005) Modélisation et Vérification des propriétés de systèmes

complexes: Application aux processus d’entreprise, July 2004, PhD Thesis University

Montpellier II [in French]

31 Bérard B., Bidoit M., Finkel A., Laroussinie F., Petit A., Petrucci L., Schnoebelen Ph.

McKenzie P. (2001) Systems and Software verification: model checking techniques and

tools, Springer

32 Cogitant (2005) CoGITaNT Version-5.1 – Reference Manual (see

http://cogitant.sourceforge.net )

33 ISDRD (2005), International Strategy for Disaster Reduction,

http://www.unisdr.org/isdrindex.htm)

145

ANNEX: Partial meta model of the main modelling concepts and

relations for multi view system modelling (GME 2004)

IsResponsibleOfProcessor

<<Connection>>

Patient

<<Atom>>

MedicalFile : field

CurrentPathology : field

Scenario

<<Model>>

IsResponsibleOfOUnit

<<Connection>>

Ressource

<<Atom>>

ModellingConcept

<<FCO>>

ModellingRelation

<<Connection>>

Environment

<<Model>>

Obj ecti ve

<<Atom>>

ObjectiveHighLevel

<<Connection>>

DecomposedObjective

<<Connection>>

DecomposeObjective

<<Atom>>

System

<<Model>>

Flow

<<Connection>>

NeedAbility

<<Connection>>

TangibleObject

<<Atom>>

TanglibleObjectType : enum

Ob ject

<<FCO>>

DisposabilityPlanning : field

UpdatingPeriod : field

LifeDuration : field

ExigenceLevel : field

PlayARole

<<Connection>>

IsComposedOf

<<Connection>>

IsResponsibleOfObject

<<Connection>>

HasAuthorityOnObject

<<Connection>>

ResourceRole

<<Atom>>

OrganisationUnit

<<Model>>

ApplicationResource

<<Atom>>

ControlFlow

<<Connection>>

ControlFlowType : enum

Ma t e r i a l R e s o u r c e

<<Atom>>

InformationObject

<<Atom>>

InformationObjectType : enum

HumanResource

<<Atom>>

Processor

<<Model>>

Finality : field

Mission : field

Activity

<<Model>>

ActivityNature : enum

OuputFlow

<<Connection>>

InputFlow

<<Connection>>

ResourceFlow

<<Connection>>

HasAuthorityOnProcessor

<<Connection>>

Process

<<Model>>

ProcessType : enum

dst

0.. *

src

0.. *

dst 0..*

dst

0.. *

dst 0.. *

src 0..*

dst

0.. *

src

0.. *

src

0.. *

src

0.. *

dst

0.. *

dst

0..*

src

0..*

src

0..*

src

0..*

src

0..*

dst

0.. *

dst 0..*dst 0.. *

dst

0.. *

src

0.. *

dst 0..*

src

0.. *

dst

0.. *

dst

0.. *

src

0.. *

src

0.. *

src

0.. *

src

0.. *

dst 0..*

146
