Secure Deployment of Applications to Fielded Devices

and Smart Cards

William G. Sirett, John A. MacDonald, Keith Mayes and Konstantinos Markantonakis

Smart Card Centre – Information Security Group

Royal Holloway, University of London, UK

Abstract. This work presents a process of deploying applications securely to

ﬁelded devices with smart cards whilst taking into consideration the possibility

that the client device could be malicious. Advantages of the proposed process in-

clude; caching functionality upon the device, optimal use of resources, employ-

ment of nested security contexts whilst addressing ﬁelded infrastructures and a

homogeneous solution. This work outlines a targeted scenario, details existing

malicious device activity and deﬁnes an attacker proﬁle. Assumptions and re-

quirements are drawn and analysis of the proposal and attack scenarios is con-

ducted. Advantages and deployment scenarios are presented with an implemen-

tation the process using Java and speciﬁc standards.

1 Introduction

Consider the situation of having a large ﬁeld base of equipment which interact with

secure elements such as smart cards. Examples of these infrastructures are 3GPP mo-

bile network [1] and satellite TV Set-Top-Boxs (STB) [2, 3]. Functionality can be split

across two applications; ﬁelded host device (referred to as device) application and smart

card application. This can effectively use the resources available. For example, the de-

vice’s greater storage capacity and processing power or the smart card’s tamper resistant

qualities [4,5]. New applications sometimes need to be distributed in response to emerg-

ing security problems or the deployment of new functionality. The ﬁeld base could be

recalled or new smart cards issued but the costs could be prohibitive. Replacing the circa

260m GSM cellular phones in Western Europe and accompanying Subscriber Identity

Module (SIM) cards would be an expensive undertaking.

New device and smart card applications need to be securely deployed to remotely

ﬁelded devices whilst maintaining integrity, conﬁdentiality and authenticity. This work

demonstrates, using speciﬁc technologies, how to securely deploy a device application

that is capable of securely installing a smart card application in the ﬁeld. The device and

smart card applications are separated and each maintains individual security contexts

maintaining integrity and conﬁdentiality. As device functionality increases so does the

scope for user modiﬁcation and subversion of security measures, therefore, the device

can be considered less trusted than the smart card [6]. The approach uses a homoge-

neous solution to utilise the device as a high capacity cache whilst protecting the smart

card. Our solution considers resource use in a constrained environment by maintaining

G. Sirett W., A. MacDonald J., Mayes K. and Markantonakis K. (2006).

Secure Deployment of Applications to Fielded Devices and Smart Cards.

In Proceedings of the 4th International Workshop on Security in Information Systems, pages 195-206

 SciTePress

two security contexts to separate device from smart cards and not only provides a se-

cure method of deploying smart card applications but couples of device and smart card

applications.

The structure of the work is as follows; the architecture of the problem area is in-

troduced and assumptions and requirements drawn against it. Existing approaches are

presented and evaluation is conducted concerning their suitability to the problem area.

Our own solution is introduced; including architecture, overview and detailed explo-

ration of process. The advantages of this solution are presented followed by examples

of industrial implementation and possible scenarios of deployment. Finally, concluding

remarks are provided on the work conducted and future research direction.

2 Scenario Speciﬁcation

In this section we graphically represent the targeted scenario, explore the possible mali-

cious behaviour of the user device and outline an attacker proﬁle alongside assumptions

and requirements for a solution.

2.1 Targeted Scenario

Fig 1 shows the entities involved; server, device and smart card. Although this paper

focuses upon smart card technology the smart card entity could be replaced by other

technologies that offer tamper resistant abilities and a programmable operating system

such as a USB token or dongle. Each entity in Fig 1 is shown holding one application

but are capable of storing multiple applications.

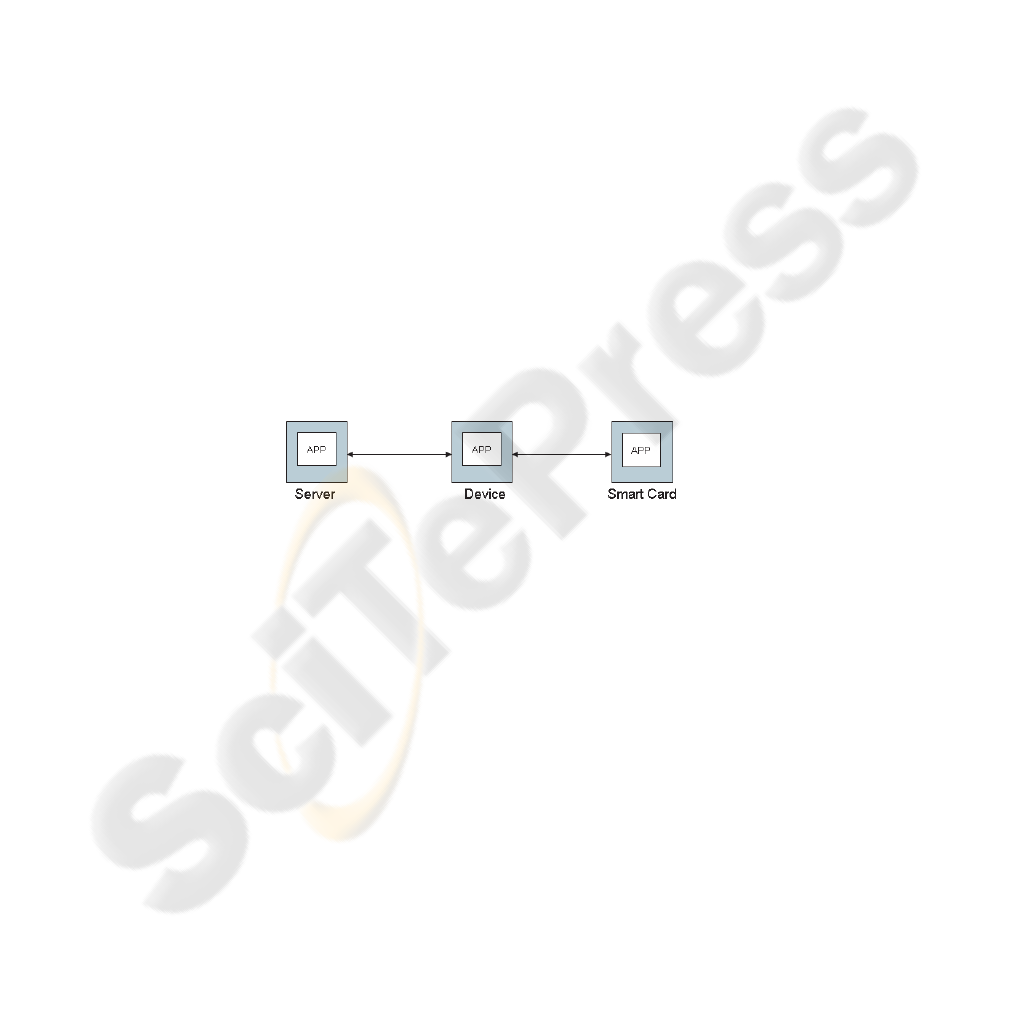

Fig.1. Scenario Architecture.

The presence of the secure entity, or smart card, in this system implies the need for a

tamper resistant device at the client site – this is due to the possible malicious or subver-

sive activities of the remote user. In this targeted scenario the remote user is consuming

some type of service. The network provider must provide legitimate clients across a

hostile network to a user that cannot be assumed to be trusted [7]. The network/service

provider must place trust in the security mechanisms present at the client site to protect

its interests. However, the user has full control and access to both hardware and soft-

ware on the remote device and that unlimited amount of time and resources to attack the

system [7]. The identiﬁed attacker is capable of reading, modifying, creating or deleting

any communication between the device and smart card.

The most typical attacker considered by this work is the malicious user, educated

by Internet communities, that is seeking a simple method of circumnavigating security

measures on their mobile device. It is common for remote users of a system to attempt to

break security measures; common examples demonstrated in the satellite television [8],

digital music and mobile telecommunication industries [9]. Smart card are susceptible

to side channel attacks but this attack is beyond the scope of the standard user and is

often only a plausible option for security labs or highly funded organisations. However,

it is worth noting the falling costs and increased automation of side channel attacks and

this will make them a more frequently employed tool [10–14].

2.2 Assumptions

The deﬁnition of assumptions allow us to eliminate issues that have been addressed else-

where and to focus upon key problems. The ﬁrst assumption (A1) states that the smart

card or security entity employed is tamper resistant. No element is tamper proof [4]

but a degree of tamper resistance can be attributed to a smart card. It is assumed that a

secret securely placed into a smart card remains private. Assumption 2 (A2) refers to an

existing shared secret between card and server; this not only infers a shared symmetric

key but also any equivalent Public Key Infrastructure (PKI) mechanisms. Assumption 3

(A3) states that the server is capable of placing a key or certiﬁcate upon the device. This

is possible in some existing architectures; for example the Satellite TV industry has the

ability to alter ﬁelded smart cards [15] and the mobile industry has similar functionality

via the GSM standard and the 03.48 mechanism [16]. These mechanisms are looked

at in Section 3 and have some limiting features. Assumption 4 (A4) states that all en-

tities can handle multiple applications; this is fairly straightforward but addresses any

ambiguity in the capability of the smart card entity. This assumption allows the consid-

eration of handling multiple device and smart card applications within the architecture

and validates the aims of this work. Assumption 5 (A5) assumes the smart card is ca-

pable but unprepared, this is to deﬁne that the card is compatible with all standards that

the solution may require. In practice not all smart cards in the ﬁeld will have the stor-

age, processing or adherence to industry standards required. The ﬁnal assumption (A6)

declares that the device is open to malicious interference and considered less trusted

than the smart card:

(A1) Smart card is tamper resistant,

(A2) Secret exists between smart card and server,

(A3) Server can place certiﬁcate and keys onto smart card securely,

(A4) All entities can handle multiple applications,

(A5) Smart card is considered capable but unprepared,

(A6) Device could be malicious and considered less trusted than smart card.

2.3 Requirements

The ﬁrst requirement (R1) demands that the secure deployment of device and accompa-

nying smart card applications is possible with a solution. R2 takes this further in stating

that the solution arrived at must be applicable to ﬁelded equipment. Fielded equipment

refers to a remote host device and smart card in the hands of the user. The server is

inclined to place a greater degree of trust in the smart card than the device; as the smart

card has tamper resistant qualities (A1) and was issued by a trusted source. The level

of trust that exists between the smart card and server must not be afforded to the device

(R3). The literature [17, 8] has examples of the possible malicious nature of devices in

the ﬁeld and it is a reasonable requirement to keep it one step removed from the server

smart card security context. The smart card applications must be kept conﬁdential and

arrive on-card with integrity intact (R4, R5). The smart card is a secure environment

and anything arriving in it must be handled securely prior to and during installation.

These requirements also place constraints on what the device can do whilst handling

the smart card application and must be cryptographically enforced. A successful solu-

tion will minimise demands on the resources of the system where possible (R6) and

be homogeneous (R7) in nature. This will simplify the solution as procedures will be

optimised for the constrained environment of a smart card [9] and the mechanisms used

will interact in a uniform manner:

(R1) Secure deployment of device and smart card applications,

(R2) Applicability to ﬁelded equipment,

(R3) Device not to be afforded level of trust that exists between smart card and server,

(R4) Conﬁdentiality assured of smart card applications,

(R5) Integrity assured of smart card applications,

(R6) Optimised resource usage,

(R7) Homogeneous solution.

3 Existing Approaches

Several industries address individual problems and these are discussed in this section.

The ETSI TS03.48 [16] provides end to end security for any Short Message Service

(SMS) going to and from a SIM to network operator [18, 19]. However, the payload

and performance are limited and applications are restricted [20]. It also only addresses

the mobile industry needs and a broader solution is required. A secure device appli-

cation installation procedure is deﬁned using J2ME [21, 22] with the MIDP2.0 proﬁle

[23]. The GlobalPlatform Card Speciﬁcation [24] deﬁnes a card application installation

protocol and the GlobalPlatform Device API V2.0 [25] could be used to implement a

bespoke solution.

Finally, a pragmatic approach remains; equipment could be recalled and updated in

a trusted environment or new equipment deployed. Applying this to large ﬁeld bases

of devices could prove prohibitively expensive in terms of time and costs in compari-

son to a deployable software solution. No overall homogeneous solution is deﬁned for

our targeted scenario (section 2.1) but some individual aspects are provided for. The

standards or protocols that exist to securely deploy applications to ﬁelded devices are

limited; either in industry applicability, bandwidth or performance. However, some of

the speciﬁcations will prove useful in an implementation or proof of concept model but

further enhancements are required.

4 Proposed Solution

This section introduces the solution architecture and fully explores both the process and

advantages.

1 Server

2 Device

3 Smart Card

4 Secret Key or equivalent PKI

5 Device Application

6 Smart Card Application

7 Communication channel:

Server ←→ Device

8 Communication channel:

Device ←→ Smart Card

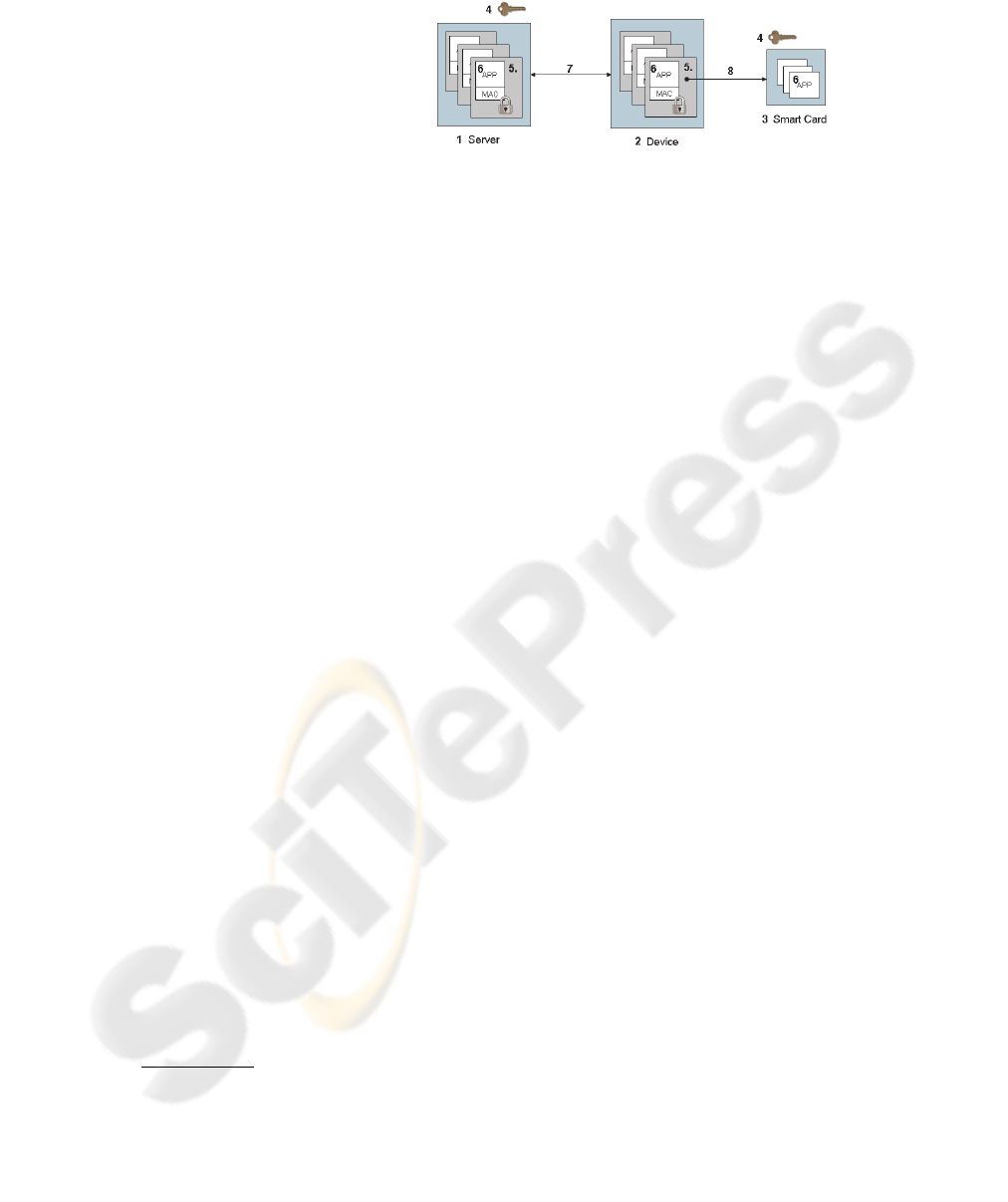

Fig.2. Architecture of Solution deﬁnition.

4.1 Architecture

Fig 2 shows the architectural solution

. The system shows multiple applications running

on each entity and an overall residing secret between server and smart card. The device

is the only entity that can communicate with the card in the ﬁeld and has been shown to

be susceptible to malicious modiﬁcation.

4.2 Process

(P1) Preparation of Smart Card Application:

The server prepares the smart card application using the shared secret between the

card and server. It encrypts and hashes the application code knowing that the smart

card can conﬁrm origin and conﬁdentiality. The server must know the smart card’s

unique identiﬁer to be able to ascertain the corresponding secret to be used. This

is achieved either through an initial authentication of the card or the knowledge is

already known via another means.

(P2) Preparation of Device Application:

The server prepares the device application; the ﬁrst stage is to embed the secure

smart card application into the body of the device application. The encrypted smart

card byte code becomes an integral part of the device application. The server then,

using whatever security context that exists between itself and the device, signs the

prepared device application.

(P3) Server to Device Transfer:

The Server uploads the device application with its embedded encrypted smart card

application to the device. This process can be initiated by the device or the server

can request the upload or a whole host of prepared device applications could be pre-

installed on the device before deployment. However, this third option is in violation

of R2 as it does not addressed the ﬁelded device scenario.

(P4) Device Application Installation:

The device runtime environment, using the security context between itself and the

server, authenticates the device application before installation. This conﬁrms a le-

gitimate server sent the application and that the code has its integrity intact. As a

byproduct the embedded bytes of the smart card application are also veriﬁed as it

is an integral part of the device application code. The device does not have pos-

session of the secret used to protect the smart card application and therefore can

Please note that the label MAC refers to Message Authentication Code.

only securely store the encrypted information for later use. It stores the smart card

application whilst having its own access rights restricted.

(P5) Smart Card Installation Initiation:

As it stands the device has an application installed and the protected smart card

application stored locally. The card has not installed anything up to this point. When

required either by the server or user direction the device can initiate smart card

application installation.

(P6) Server Authentication

As the smart card is a secure entity and only trusts the server, the server’s authenti-

cation must ﬁrst be received before any installation can take place. Only once this

is received will the card continue the process.

(P7) Checking of Smart Card Application:

The shared secret between smart card and device allows for the on-card veriﬁcation

of the smart card application. Once conﬁrmed the encrypted bytes are decoded on-

card and installed successfully. The architecture now has new device and smart card

applications installed whilst maintaining given security requirements.

4.3 Advantages

This solution provides a caching function which allows smart card applications to be

installed, when required, from the device without downloading from the server. For ex-

ample, a device could have multiple applications available for use by the user and the

smart card element is only installed when required. It could be that the application is

seldom used or that storage constraints upon the smart card are called into play. Addi-

tionally, communication from the server is optimised as only one download is required

to deliver two applications to the client side. To install a new smart card application

from the device, the server need only perform one authentication. The device has much

greater capacity compared to the smart card in terms of storage and could hold many

device applications (and therefore the embedded smart card applications). This allows

the device and smart card to provide a greater amount of functionality as not all appli-

cations will need to be on the card at any given time. The storage strengths of the device

are used to fully exploit the capacity of the smart card.

The device becomes a secure holding area as the smart card application is protected

using a shared secret known only to smart card and server or PKI mechanism. Two com-

bined layers of security allow the compartmentalisation of the security requirements of

the different entities. The device is trusted to store and deliver the smart card applica-

tion but does not install its own applications or read/modify the smart card applications.

The card can independently conﬁrm the integrity of any application before installation.

Furthermore, this solution can be implemented on ﬁelded devices and negates the need

for device recall or replacement.

Finally, the combination of applications into one entity provides a much simpler so-

lution than some alternatives that use separate download events and, sometimes, mech-

anisms. For example, the mobile network may employ GSM 03.48 to securely install a

It should be noted that the necessity of this stage is not ideal and off-line authentication would

present greater value. This could not be achieved with the available standards at present.

smart card application onto a SIM using SMS messages whilst downloading the device

application via a higher bandwidth channel. The server is under additional pressure in

terms of communication overheads and complexity.

5 Implementation

This section proposes an industrial implementation that utilises a range of technologies,

standards and practises to demonstrate the functionality of the proposed solution. This

section introduces the technologies involved and then goes onto discuss the implemen-

tation of the process detailed previously.

5.1 Platform

The platform chosen was the Java, which is pervasive in the marketplace [26] and the

technology and tools are widely available. The smart card used supports the Java Card

standards [27, 28] and GlobalPlatform 2.1.1 [24]. The device has a J2ME Java Run-

time Environment (JRE) and supports two enabling speciﬁcations; JSR-118: Mobile

Information Device Proﬁle 2.0 [23] and JSR-177: Security and Trust Services API for

J2ME [29]. JSR-118 extends the device proﬁle and provides key security functionality

[30]. Whereas, the JSR-177 provides J2ME applications with additional APIs which

includes the provision of cryptographic functionality and the ability to communicate

with a security element using the ISO standards [31,32].

5.2 Process Implementation

This section shows how to realise the proposed solution in Section 4 (S=Server, D=Device

and C=Smart Card).

(P1) Preparation of Smart Card Application

The GlobalPlatform standard deﬁnes a secure smart card application (Applet) in-

stallation protocol that allows for an encrypted and hashed Applet to be installed

onto a smart card. The Applet is then decrypted and veriﬁed on-card before instal-

lation. At this stage the server generates a Message Authentication Code (M AC)

and encrypts (E) the CAP ﬁle (format used to distribute Applets [33]) using the

shared secret between server and smart card (K

)(1).

S : CAP = MAC

S C

(Applet)kE

S C

(Applet) (1)

(P2) Preparation of Device Application

This step of the process represents two actions; Applet injection and device ap-

plication (MIDlet) security preparation. The Applet injection involves taking the

byte code of the protected Applet and embedding the code into the body of the

MIDlet (2). This could, for example, be done by inserting an array of byte arrays

where each row represents a smart card (APDU) command. The MIDlet function-

ality when delivering the Applet would be to blindly send the APDUs in order. As

the Applet is encrypted and hashed the conﬁdentiality and integrity of the item is

assured.

S : JAR = M IDletkCAP (2)

The MIDlet must be prepared for the secure MIDlet installation procedure deﬁned

by J2ME MIDP2.0 and implements the second security context between server and

device. The server generates a RSA X.509(v3) certiﬁcate or requests one from a

Certiﬁcate Authority (CA). The certiﬁcate (Cert(M IDlet)) is inserted into the

application descriptor of the MIDlet application (3). The path of the descriptor

holds all certiﬁcates necessary to validate the application except the root certiﬁcate.

The Domain Protection Root Certiﬁcate (Cert(DP RC)) resides on the smart card

and is called into play during MIDlet installation (P4). Finally, the signature of the

ﬁle used to distribute MIDlets (JAR) (S

(JAR)) is generated with the private key

(K) of the RSA certiﬁcate, Cert(MIDlet), according to the EMSA-PKCS-v1

encoding method of PCKS#1 version 2.0 standard. This signature is then inserted

into the application descriptor (3) and the MIDlet is considered prepared.

S : JAR = JARkCert(MIDlet)kS

(JAR) (3)

(P3) Server to Device Transfer

The server can communicate to the device in a number of ways, the chosen method

was to use HTTP supported by MIDP2.0.

(P4) Device Application Installation

This phase of the process continues to use the security context between server

and device as deﬁned in the MIDP2.0 proﬁle. The J2ME JRE must authenticate

the MIDlet application for installation into a secure domain. First the certiﬁcate

(Cert(MIDlet)) is retrieved from the application descriptor and validated (V )

against the Cert(DP RC) held upon the smart card (4). The JRE then veriﬁes the

MIDlet JAR ﬁle; by taking the public key (P K) from the veriﬁed signer certiﬁ-

cate along with a fresh SHA-1 digest (Hash) of the JAR ﬁle and comparing it to

signature deﬁned in the application descriptor (5). The JRE can install the MIDlet

into the security domain deﬁned by the access control model once veriﬁcation is

complete.

D : V(Cert(M IDlet), Cert(DP RC)) (4)

D : V(S

(JAR), Hash(JAR), P K

Cert(MI Dlet)

) (5)

(P5) Smart Card Installation Initiation

The device now has a MIDlet installed in a secure domain and can communicate

with the smart card. When required the Applet needs installing the device initiates

communication using commands deﬁned by the ISO 7816 speciﬁcation. The device

needs to authenticate itself to the card before installation can take place and the ﬁrst

stage is to send an APDU that issues a GET CHALLENGE command (6). Which

returns a random challenge (r

) from the smart card (7) [9]. The random challenge

is sent to the server (8) as the response requires knowledge of the security context

between server and card (K

D → C : GET CHALLENGE (6)

C → D : r

(7)

D → S : r

(8)

(P6) Server Authentication

The server encrypts K

and r

with K

and returns the byte string to the device

(9) who sends it to the card (10) to complete a ISO7816 EXTERNAL AUTHENTICATE (EA)

command. Once the Server Authentication as required by the GlobalPlatform has

been completed the card can continue with a secure installation.

S → D : E

S C

) (9)

D → C : EA(E

S C

)) (10)

(P7) Checking of Smart Card Application

The device has no knowledge of K

but does have an array of encrypted byte code

representing the Applet protected by K

. The device simply sends of the APDU

commands deﬁned in this array to the smart card (11). From the smart card’s per-

spective, a trusted card terminal has successful authenticated itself and is now, in

accordance with the GlobalPlatform installation protocol, receiving an application.

The on-card manager (Card Manager) receives the byte code and veriﬁes its in-

tegrity using the Data Authentication Pattern (DAP) speciﬁed in GlobalPlatform.

The veriﬁed CAP ﬁle is decrypted and installed.

D → C : MAC

S C

(Applet)kE

S C

(Applet) (11)

6 Analysis

This section will examine the success of the proposed solutions in meeting the require-

ments deﬁned in Section 2.3. In addition we present two scenarios that this solution

could be applied to.

6.1 Requirement Analysis

All requirements deﬁned were met by the proposed solution and industrial implemen-

tation. The ﬁrst requirement was the secure deployment of device and smart card appli-

cations (R1), this has been attained. Security concerns were addressed as each element

was securely transferred and installed via an individual security context. The solution is

applicable to ﬁelded devices (R2) although some conﬁgurations could be made to ap-

ply the same technology to non-ﬁelded devices; such as pre-loading a number of device

applications before devices are issued. Requirement 3 is adhered to by not affording the

device the level of trust maintained between the server and smart card. The device is

ignorant of the protecting secret throughout the procedure. The smart card application

is encrypted at the server, decrypted on-card and it is stored as encrypted byte code

whilst in the device. The conﬁdentiality and integrity of the smart card application is

maintained (R4, R5) and further opportunities exist to take advantage of this beneﬁt.

For example, the smart card application could be used as a key distribution mechanism

by the server embedding encrypted keys when preparing the smart card application for

deployment.

The industrial implementation is based upon one programming language and nests

existing speciﬁcations inside one another. The device application ﬂows once to the de-

vice and once to the smart card and authenticates both entities simultaneously, when

possible, by treating them as a one element. This provides a homogeneous solution

(R7) and optimises resource use (R6).

6.2 Usage/Deployment Scenarios

Addressing Emerging Security Problems. Addressing an emerging security problem

in the ﬁeld is one usage scenario. For example, some sources [34] state that in Australia

approximately 4-5% of all satellite TV subscriptions are illegal resulting in an estimated

cost of $50m. The marginal increase of malicious activity [17] results in considerable

ﬁnancial loss for the satellite TV provider. The provider could update the security mech-

anisms and deploy new STB and/or smart card equipment to close the security hole but

prohibitive in terms of cost and time. It would be a better option to employ the solu-

tion presented in this work to deploy a software based solution [8]. The costs involved

would be lower in contrast to replacing millions of devices and the solution could be

deployed at a far greater rate. The revenue streams would be secured quicker and the

problem addressed. The implications of having the ability to remotely deploy complex

functionality, comprising of both device and smart card applications to the ﬁeld, are

wide ranging.

Enhancing System Functionality. The second example exploits our solution’s ad-

vantage of secure caching. A smart card is a capable entity but storage and processing

power are limited. The hardware continues to improve but most cards are able to support

only a limited number of third party applications and a mechanism to help manage these

restricted resources would be valuable. The device can store substantially more applica-

tions depending on its storage capacity. New phones can store gigabytes compared with

smart cards offering kilobytes. There is no requirement for applications that are seldom

used to have its smart card application installed. When the user tries to access the unin-

stalled functionality, the device could install the smart card application and remove it

afterwards. The server’s involvement is minimal and the apparent functionality capacity

of the smart card would be greatly increased. Meanwhile, the smart card application in

the device cache it is protected by a higher level security context that is not available to

the device or malicious attacker. Therefore, an architecture provider could roll out new

functionality as the market demands and cultivate new revenue streams (m-commerce

etc).

7 Conclusions

The work conducted resulted in a proposed solution that met all of the requirements

deﬁned. The method could be used for the deployment of smart card and device ap-

plications or the device element could be reduced to work purely as a deployment

mechanism for smart card applications across high bandwidth channels. Advantages

and deployment scenarios were presented and it is concluded that this work has posed

some interesting questions for future research. For example, the concept of remotely

deploying security countermeasures to ﬁelded equipment is intriguing and could have

serious application in addressing problems that may rise in the satellite TV and 3GPP

mobile network in the future. This should be further explored by implementing and as-

sessing how applicable the proposed solution is to these existing infrastructures. From

an academic perspective the cryptographic processes should be fully distilled and the

deﬁnition of an abstract protocol for remote application deployment outlined.

References

1. Vall

ee, P.: 2004 simalliance market status and 2005 outlook (2004) Presented at SIM 2005

in Amsterdam, Chairman of the Board, SIMalliance. http://www.simalliance.org/.

2. Peyret, P., Lisimaque, G., Chua, T.: Smart cards provide very high security and ﬂexibility

in subscriber management. In: IEEE Transactions on Consumer Electronics. Volume 36(3).

(1990) 744–752

3. Song, W.J., Kim, W.H., Kim, B.G., Ahn, B.H., Choi, M., Kang, M.: Conditional access

module systems for digital contents protection based on hybrid/ﬁber/coax catv networks. In:

Lecture Notes in Computer Science. Volume 2869., Springer-Verlag (2003) 155–162

4. Anderson, R., Kuhn, M.: Tamper resistance - a cautionary note. In: The Second USENIX

Workshop on Electronic Commerce Proceedings, Oakland, California, USENIX Association

(1996) 1–11 http://citeseer.ist.psu.edu/400120.html.

5. K

ommerling, O., Kuhn, M.: Design principles for tamper-resistant smartcard processors. In:

Proceedings of the USENIX Workshop on Smartcard Technology (Smartcard 99), USENIX

Association (1999) 9–20 Chicago, Illinois, USA.

6. Gobioff, H., Smith, S., Tygar, J., Yee, B.: Smart cards in hostile environments. In: Sec-

ond USENIX Workshop on Electronic Commerce, USENIX Association (1996) Oakland,

California.

7. Cheng, S., Litva, P., Main, A.: Trusting DRM software. In: Workshop on Digital Rights

Management for the Web, World Wide Web Consortium (2001) INRIA - Sophia-Antipolis,

France.

8. Francis, L., Sirett, W.G., Mayes, K., Markantonakis, K.: Countermeasures for attacks on

satellite tv cards using open receivers. In Buyya, R., Coddington, P., Montague, P., Naini,

R., Sheppard, N., Wendelborn, A., eds.: ACSW Frontiers 2005 – Australian Information Se-

curity Workshop (AISW2005). Volume 44 of Conferences in Research and Practise in Infor-

mation Technology., Australian Computer Society Inc (2005) 153–158 Newcastle, Australia.

ISBN: 1-920682-26-0.

9. Rankl, W., Efﬁng, W.: Smart Card Handbook. 3rd edn. John Wiley & Sons, Ltd (2003)

10. Aigner, M., Oswald, E.: Power analysis tutorial. Institute for Applied Information Processing

and Communication, University of Technology Graz - Seminar (2000)

11. Alhussein, M.A.: Differential power analysis attack on smart card running DES. Master’s

thesis, Information Security Group – Royal Holloway, University of London (2004)

12. Kocher, P., Jaffe, J., Jun, B.: Differential power analysis. In Wiener, M., ed.: Advances in

Cryptology CRYPTO ’99. Volume 1666 of Lecture Notes in Computer Science., Springer-

Verlag (1999) 388–397

13. Matthews, A.: Low cost attacks on smart cards: Investigating the electromagnetic side-

channel. Master’s thesis, Information Security Group – Royal Holloway, University of Lon-

don (2005)

14. Messerges, T.S., Dabbish, E.A., Sloan, R.H.: Investigations of power analysis attacks on

smartcards. In: 1st USENIX Workshop on Smartcard Technology (Smartcard ’99), USENIX

(1999) 151–162 Chicago, Illinois, USA.

15. Poulsen, K.: DirectTV zaps hackers. Online Security Magazine (2001) Security Focus.

http://www.securityfocus.com.

16. 3GPP TS 03.48: Technical Speciﬁcation Group Terminals; Security Mechanisms for the

SIM Application Toolkit; stage 2, http://www.3gpp.org. (2001)

17. Kuhn, M.: Attack on pay-TV access control systems (1997) Security seminar talk, University

of Cambridge, Computer Laboratory, London, UK. http://www.cl.cam.ac.uk/ mgk25.

18. Venkatraman, J., Raghavan, V., Das, D., Talukder, A.: Trust and security realization for

mobile users in gsm cellular networks. Lecture Notes in Computer Science 3285 (2004)

302–309 Springer-Verlag.

19. Badra, M., Urien, P.: Toward SSL integration in SIM smartcards. In: IEEE Wireless Com-

munications and Networking Conference. Volume 2., IEEE (2004) 889– 893 IEEE WCNC

2004, Atlanta-Georgia USA.

20. MacDonald, J.A., Sirett, W.G., Mitchell, C.J.: Overcoming channel bandwidth constraints

in secure SIM applications. In Sasaki, R., Qing, S., Okamoto, E., Yoshiura, H., eds.: 20th

IFIP International Information Security Conference (SEC 2005) - Small Systems Security

and Smart cards. Volume 181 of IFIP International Federation for Information Processing.,

Springer Science and Business Media (2005) Chiba, Japan.

21. JSR-68 JCP: Java 2 Platform, Micro Edition (J2ME) (JSR-68). Sun Microsystems,

http://java.sun.com. (2002)

22. Topley, K.: J2ME In a Nutshell. In a Nutshell Series. O’Reilly (2002)

23. JSR-118 JCP: Mobile Information Device Proﬁle, v2.0 (JSR-118). Sun Microsystems,

http://java.sun.com. (2002)

24. Global Platform: Card Speciﬁcation v2.1.1, http://www.globalplatform.org. (2003)

25. Global Platform: Globalplatform Device API v2.0, http://www.globalplatform.org. (2003)

26. Braentsch, M., Buhlier, P., Eirich, T., Horing, F., Oestreicher, M.: Javacard – from hype to

reality. Mobile Computing - IEEE Concurrency (1999) IBM Zurich Research Labaoratory.

27. Sun Miscrosystems Inc: Runtime Environment Speciﬁcation; Java Card Platform, Version

2.2.1, http://java.sun.com. (2003)

28. Sun Miscrosystems Inc: Runtime Environment Speciﬁcation; Java Card Platform, Version

2.1.1, http://java.sun.com. (2003)

29. JSR-177 JCP: Security & Trust Services API (SATSA) (JSR-177). Sun Microsystems,

http://java.sun.com. (2004)

30. Block, C., Wagner, A.C.: MIDP 2.0 Style Guide. The Java Series. Addison-Wesley, London

(2003)

31. ISO/IEC 7816-3: Information technology - Indentifcation cards – Integrated circuit(s) cards

with contacts – Part 3: Electronic signals and transmission protocols. International Organi-

zation for Standardization, http://www.iso.org. 2 edn. (1997)

32. ISO/IEC 7816-4: Information technology - Indentifcation cards – Integrated circuit cards –

Part 4: Organisation, security and commands for interchange. International Organization for

Standardization, http://www.iso.org. 2 edn. (2005)

33. Chen, Z.: Java Card Technology for Smart Cards: Architecture and Programmer’s Guide.

The Java Series. Addison-Wesley (2000)

34. Kalina, P.: No-Pay TV Costs Industry $50m. The Age Journal, http://www.theage.com.um.

(2002)
