A Defeasible Deontic Model for Intelligent Simulation
Kazumi Nakamatsu
School of H.S.E., Univ. Hyogo, HIMEJI 670-0092 Japan
Abstract. We introduce an intelligent drivers’ model for traffic simulation in
a small area including some intersections, which is formalized in a paraconsis-
tent annotated logic program EVALPSN. The intelligent drivers’ model can infer
drivers’ speed control actions such as “slow down” based on EVALPSN defeasi-
ble deontic reasoning and deal with minute speed change of cars in the simulation
system.
1 Introduction
We have already developed EVALPSN(Extended Vector Annotated Logic Program)
[4,5] that can deal with defeasible deontic reasoning [10], and applied it to various
kinds of control such as traffic signal control [9] and robot action control [7, 8,6]. In
order to evaluate the traffic signal control [9], we made a traffic simulation system
based on the cellular automaton method that simulates each car movement around a few
intersections. Basically, in the cellular automaton method, roads are divided into many
cells and each cell is supposed to have one car, and car movement is simulated based on
a simple cell transition rule such that “if the next cell is vacant, the car has to move into
the next cell”. Therefore, it does not seem that the usual cellular automaton method can
simulate each car movement minutely, even though it has many other advantages such
as it does not cost long time for traffic simulation.
In this paper, we introduce an intelligent drivers’ model to infer drivers’ speed con-
trol by EVALPSN defeasible deontic reasoning, which can be used for simulating each
car movement minutely in the traffic simulation system.
Generally, car speed control actions by human being such as putting brake to slow
down the car can be regarded as the result of defeasible deontic reasoning to resolve
conflicts. For example, if you are driving a car, you may catch conflicting informations
“there is enough distance from your car to the precedent car for speeding up your car”
and “I am driving the car at the speed limit”. The first information derives permission
for the action “speed up” and the second one derives forbiddance from it. Then the
forbiddance defeats the permission and you may not speed up your car. On the other
hand, if you catch the information “I am driving the car at much less than the speed
limit” as the second one, then this information derives permission for speeding up your
car and you may speed up your car. Therefore, as shown in the example, human being
decision making for action control can be done by defeasible deontic reasoning with
some rules such as traffic rules We formalize such a defeasible deontic model for car
speed control action in the paraconsistent logic program EVALPSN and introduce a
traffic simulation system based on the drivers’ model.
Nakamatsu K. (2006).
A Defeasible Deontic Model for Intelligent Simulation.
In Proceedings of the 3rd International Workshop on Computer Supported Activity Coordination, pages 35-44
DOI: 10.5220/0002486500350044
Copyright
c
SciTePress
This paper is organized as follows : first, we review EVALPSN briefly and introduce
defeasible deontic reasoning for the drivers’ model in EVALPSN ; next, we describe
some sample drivers’ rules to control car speed and how those rules are translated into
EVALPSN cluases ; and introduce the traffic simulation system based on the EVALPSN
drivers’ model.
2 EVALPSN
Generally, a truth value called an annotation is explicitly attached to each literal in
annotated logic programs [1]. For example, let p be a literal, µ an annotation, then p :µ
is called an annotated literal. The set of annotations constitutes a complete lattice. An
annotation in VALPSN [3] that can deal with defeasible reasoning is a 2-dimensional
vector called a vector annotation such that each component is a non-negative integer
and the complete lattice T
v
of vector annotations is defined :
T
v
= { (x, y) | 0 x n, 0 y n, x, y
and n are non-negative integers }.
The ordering of the lattice T
v
is denoted by a symbol
v
and defined : let v
1
=
(x
1
, y
1
) T
v
and v
2
= (x
2
, y
2
) T
v
,
v
1
v
v
2
x
1
x
2
and y
1
y
2
.
For each vector annotated literal p:(i, j), the first component i of the vector annotation
denotes the amount of positive information to support the literal p and the second one
j denotes that of negative information. For example, a vector annotated literal p :(2, 1)
can be intuitively interpreted that the literal p is known to be true of strength 2 and
false of strength 1. In order to deal with defeasible deontic reasoning we have extended
VALPSN to EVALPSN. An annotation in EVALPSN called an extended vector annota-
tion has a form of [(i, j), µ] such that the first component (i, j) is a 2-dimentional vector
as a vector annotation in VALPSN and the second one,
µ T
d
= {⊥, α, β, γ,
1
,
2
,
3
, ⊤},
is an index that represents deontic notion or paraconsistency. The complete lattice T
e
of extended vector annotations is defined as the product T
v
× T
d
. The ordering of the
lattice T
d
is denoted by a symbol
d
and described by the Hasse’s diagrams in Fig.1.
The intuitive meaning of each member in the lattice T
d
is ; (unknown), α (fact), β
(obligation), γ (non-obligation),
1
(both fact and obligation),
2
(both obligation and
non-obligation),
3
(both fact and non-obligation) and (paraconsistency). Therefore,
EVALPSN can deal with not only paraconsistency between usual knowledge but also
between permission and forbiddance, obligation and forbiddance, and fact and forbid-
dance. The Hasse’s diagram(cube) shows that the lattice T
d
is a tri-lattice in which the
direction
γβ represents deontic truth, the direction
⊥∗
2
represents the amount of deon-
tic knowledge and the direction
α represents factuality. Therefore, for example, the
annotation β can be intuitively interpreted to be deontically truer than the annotation
36
@
@
@
@
@
@
@
@
@
@
@
@
q q
q
q
q
q
q
q
q
11
(0, 0)
(0, 2) (2, 0)
(2, 2)
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
α
βγ
1
2
3
Fig.1. Lattice T
v
(n = 2) and Lattice T
d
.
γ and the annotations and
2
are deontically neutral, i.e., neither obligation nor not-
obligation. The ordering over the lattice T
e
is denoted by a symbol
e
and defined as :
let [(i
1
, j
1
), µ
1
] and [(i
2
, j
2
), µ
2
] be extended vector annotations,
[(i
1
, j
1
), µ
1
]
e
[(i
2
, j
2
), µ
2
] (i
1
, j
1
)
v
(i
2
, j
2
) and µ
1
d
µ
2
.
There are two sorts of epistemic negations ¬
1
and ¬
2
in EVALPSN, which are
defined as mappings over T
v
and T
d
, respectively.
Definition 1 (Epistemic Negations, ¬
1
and ¬
2
)
¬
1
([(i, j), µ]) = [(j, i), µ], µ T
d
,
¬
2
([(i, j), ]) = [(i, j), ], ¬
2
([(i, j), α]) = [(i, j), α],
¬
2
([(i, j), β]) = [(i, j), γ], ¬
2
([(i, j), γ]) = [(i, j), β],
¬
2
([(i, j),
1
]) = [(i, j),
3
], ¬
2
([(i, j),
2
]) = [(i, j),
2
],
¬
2
([(i, j),
3
]) = [(i, j),
1
], ¬
2
([(i, j), ]) = [(i, j), ].
These epistemic negations, ¬
1
and ¬
2
, can be eliminated by the above syntactic opera-
tion. On the other hand, the ontological negation(strong negation ) [2] in EVALPSN
can be defined by the epistemic negations, ¬
1
or ¬
2
, and interpreted as classical nega-
tion.
Definition 2 (Strong Negation) [2] Let F be a formula and ¬ be ¬
1
or ¬
2
.
F =
def
F ((F F ) ¬(F F )).
Definition 3 (well extended vector annotated literal) Let p be a literal. p : [(i, 0), µ]
and p : [(0, j), µ] are called well extended vector annotated literals(weva-literals for
short), where i, j {1, 2, · · ·}, and µ { α, β, γ }.
Definition 4 (EVALPSN) If L
0
, · · · , L
n
are weva-literals,
L
1
· · · L
i
L
i+1
· · · L
n
L
0
is called an Extended Vector Annotated Logic Program clause with Strong Negation
(EVALPSN clause for short). An Extended Vector Annotated Logic Program with Strong
Negation is a finite set of EVALPSN clauses.
Note : if an EVALPSN or an EVALPSN clause contain no strong negation, they may
be just called an EVALP or an EVALP clause, respectively.
Deontic notions and fact are represented by extended vector annotations in EVALPSN
as follows :
37
“fact of strength m”, “obligation of strength m”, “forbiddance of strength m
and “permission of strength m are represented by extended vector annotations
[(m, 0), α], [(m, 0), β], [(0, m), β] and [(0, m), γ], respectively, where m is a posi-
tive integer.
Therefore, for example, a weva-literal p : [(2, 0), α] can be intuitively interpreted as “it
is known that the literal p is a fact of strength 2”, and a weva-literal q : [(0, 1), β] can be
intuitively interpreted as “the literal q is forbidden of strength 1”.
3 Defeasible Deontic Drivers’ Model
Suppose that a man is driving a car. Then, how does the car driver decide the next action
for controlling car speed such as braking or acceleration ? It is easily supposed that, for
example, if the traffic light in front of the car is red, the driver has to slow down the
car, or if there is enough distance from the driver’s car to the precedent car, the driver
may speed up the car. If we model such drivers’ car speed control, we should consider
conflicting informations such as “traffic light is red” and “enough distance to speed up”,
and its conflict resolving. It also should be considered that car drivers reason car speed
control based on not only detected physical information such as the current car speed
but also traffic rules such as “keep driving at less than speed limit”. For example, if a
driver is driving a car over the speed limit of the road, the driver would slow down the
car even if there is no car ahead of the car, then, it is supposed that there exists strong
forbiddance from driving over the speed limit, and eventually it may turn into obligation
to slow down the car. On the other hand, if a driver is driving a car at very slow speed,
the driver would speed up the car even if the traffic light far ahead of the car is red, then,
it is also supposed that there exist both strong permission and weak forbiddance to
speed up the car, then only the permission is obtained by defeasible deontic reasoning,
and eventually it may turn into obligation to speed up the car. Therefore, we can easily
model such drivers’ decision making for car speed control by EVALPSN defeasible
deontic reasoning as described in the above example. In this section, we introduce the
EVALPSN drivers’ model that can derive the three car speed control actions, “slow
down”, “speed up”, or “keep the current speed” in EVALPSN programming. We define
the drivers’ model in the following subsections.
3.1 Framework for EVALPSN Drivers’ Model
1. Forbiddance or permission for the car speed control action, “speed up” are derived
based on the traffic rules,
it is obligatory to obey traffic signal,
it is obligatory to keep the speed limit, etc.,
and the following detected information,
the object car speed,
the precedent car speed,
the distance between the precedent and objective cars,
the distance to the intersection or the curve ahead of the objective car ;
38
2. obligation for one of the three car speed control actions, “speed up”,“slow down”
and “continue the current speed” is derived by defeasible deontic reasoning in
EVALPSN programming ;
3. basically, a similar method to the cellular automaton method is used as the traffic
simulation method.
3.2 Annotated Literals
In the EVALPSN drivers’ model, the following annotated literals are used to represent
various information,
mv(t) represents one of the three car actions, “speed up”, “slow down”, or “keep the
current speed” at the time t ; this predicate has the complete lattice T
v
of vector
annotations,
T
v
= { (0, 0)“no information” , (1, 0)“weak speed up” ,
(0, 1)“weak slow down” , (2, 0)“strong speed up” ,
(0, 2)“strong slow down”, · · · , (2, 2) },
for example, if we have the EVALP clause mv(t):[(0, 1), β], it represents the weak
forbiddance from the action “speed up” at the time t, on the other hand, if it has
the annotation [(2, 0), γ], it represents the strong permission for the action “slow
down”, etc. ;
v
o
(t) represents the speed of the objective car at the time t, then we suppose the com-
plete lattice of vector annotations for representing the objective car speed,
T
v
= {(i, j)|i, j {0, 1, 2, 3, 4, 5}},
we may have the following informal interpretation, if we have the EVALP clause
v
o
(t) : [(2, 0), α], it represents that the car is moving forward at the speed of over
20km/h at the time t, on the other hand, if we have the EVALP clause v
o
(t) :
[(0, 1), α], it represents that the car is moving backward at the speed of over 10km/h
at the time t, etc. ;
v
n
(t) represents the speed of the precedent car at the time t ; the complete lattice
lattice structure and informal interpretation of the vector annotations are the same
as the case of the predicate v
o
(t) ;
d
p
(t) represents the distance between the precedent and the objective cars at the time
t ; the complete lattice of vector annotations for representing the distance,
T
v
= {(i, j)|i, j {0, 1, 2, . . . , n}},
if we have the EVALP clause d
p
(t):[(2, 0), α], it represents that the distance is more
than 2 cells at the time t, moreover, if we have the EVALP clause d
p
(t):[(5, 0), β],
it represents that the distance has to be more than 5 cells at the time t , on the other
hand, if we have the EVALP clause d
p
(t): [(0, 3), β], it represents that the distance
must not be more than 3 cells at the time t, etc. ;
39
d
c
(t) represents the distance from the objective car to the curve in front of the car at
the time t ; the complete lattice structure and informal interpretation of the vector
annotations are the same as the case of the predicate d
p
(t) ;
go(t) represents the direction where the objective car turns to at the time t ; this pred-
icate has the complete lattice of vector annotations,
T
v
= { (0, 0)“no information”, (1, 0)“right turn” ,
(0, 1)“left turn” , (2, 0)“right turn” ,
(0, 2)“left turn” , · · · , (2, 2) },
if we have the EVALP clause go(t): [(2, 0), α], it represents that the car turns to the
right at the time t, if we have the EVALP clause go(t): [(0, 2), β], it represents that
the car must not turn to the right, that is to say, must turn to the right, etc..
3.3 Inference Rules
We also have some inference rules to derive the next car control action in the EVALPSN
drivers’ model and introduce the basic three inference rules, Traffic Signal Rule,
Straight Road Rule and Curve and Turn Rule. We suppose that there is a cross inter-
section with a traffic light in front of the objective car in the following rules.
Traffic Signal Rule If the traffic light indicates
red, it is considered as there is an obstacle on the stop line before the traffic
light, that is to say, there is strong forbiddance from entering into the intersec-
tion ;
yellow, it is considered as the same as the red light rule except that if the dis-
tance between the car and the stop line is less than 2 cells, it is weakly permitted
for entering into the intersection ;
green, it has no forbiddance from going into the intersection except that if the
car turning at the intersection, it is described in Curve and Turn Rule.
Straight Road Rule If the road is straight, the objective car behavior is inferred by
distance between the precedent car and the objective car ;
each speed of the precedent car and the objective car ;
obeying the traffic rule, speed limit of roads and traffic signal, etc..
Curve and Turn Rule If the objective car is headed to the curve or going to turn at the
intersection, forbiddance to speed up the car is derived.
Basic idea of the EVALPSN Drivers’ model based simulation is as follows : as the
first step, forbiddance or permission for one of the car actions, “speed up” or “slow
down”, are derived by EVALPSN defeasible deontic reasoning ; as the next step, if the
forbiddance for a car action is derived, the objective car has to do the opposite action
; if the permission for a car action is derived, the objective car has to do the action ;
if neither forbiddance nor permission is derived, the objective car does not have to do
any action, that is to say, it has to keep the current speed. We show an example for the
EVALPSN drivers’ model.
40
3.4 Example
suppose that the objective car is moving at the speed of 1, then we have the following
EVALP clauses to reason the next action of the objective car according to the current
information.
Case 1 If the distance between the precedent car and the objective car is longer than 2
cells, we have permission to accelerate the car at the time t. This rule is translated
into the EVALP clause,
v
o
(t):[(1, 0), α] d
p
(t):[(2, 0), α] mv(t):[(0, 1), γ]. (1)
Case 2 If the precedent car stopped at the next cell and the objective car is moving at
the speed of 1, we have strong forbiddance from speed up at the time t, which means
strong obligation to slow down. This rule is translated into the EVALP clause,
v
o
(t):[(1, 0), α] v
n
(t):[(0, 0), α] d
p
(t):[(0, 0), α]
mv(t) :[(0, 2), β]. (2)
Case 3 If the precedent car is faster than the objective car whose speed is 1, we have
permission to accelerate the objective car at the time t. This rule is translated into
the EVALP clause,
v
o
(t):[(1, 0), α] v
n
(t):[(2, 0), α] mv(t):[(0, 1), γ]. (3)
v = 2 v = 1 v = 0 v = 1
object object
Case 1 Case 2

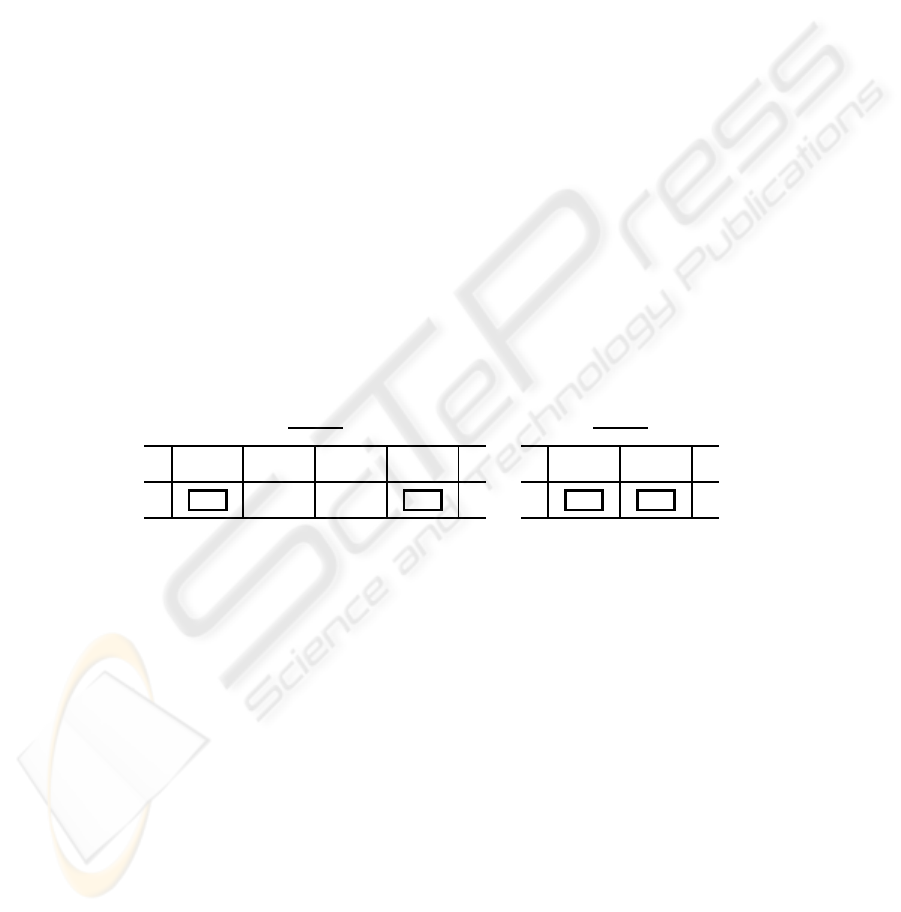

Fig.2. Cell States in the Case 1 and 2.
Case 4 If the car is moving at the speed of 3 and the distance between the car and the
curve is 2 cells at the time t. This rule is translated into :
v
o
(t):[(3, 0), α] d
c
(t):[(2, 0), α] go(t) : [(2, 0), α ]
mv(t) :[(0, 1), β] (4)
If both the permission mv(t) : [(0, 1), γ] and the forbiddance mv(t) : [(0, 2), β] from
speed up are derived, we have obligation to slow down the objective car at the next step
by defeasible deontic reasoning, since the forbiddance is stronger than the permission.
41
v = 3
6
object
Case 4

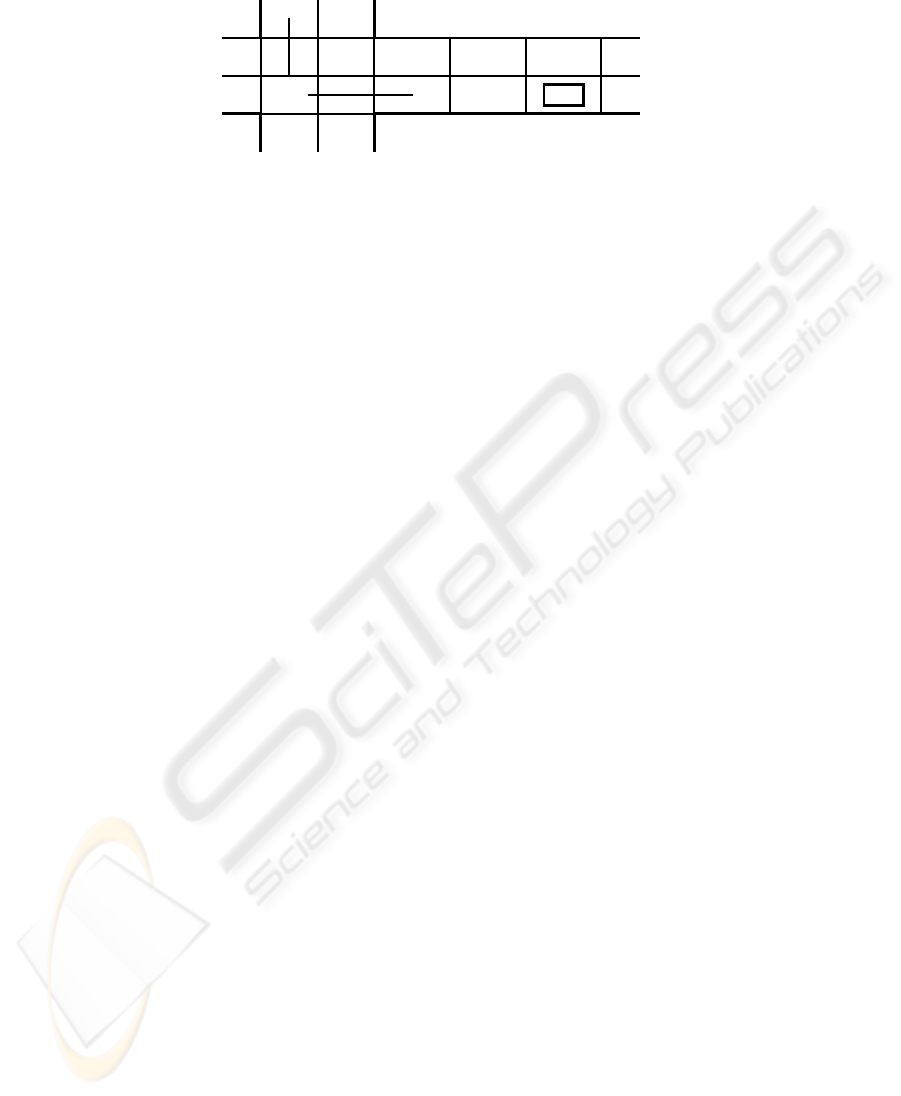

Fig.3. Cell States in the Case 4.
3.5 Traffic Signal Simulation System

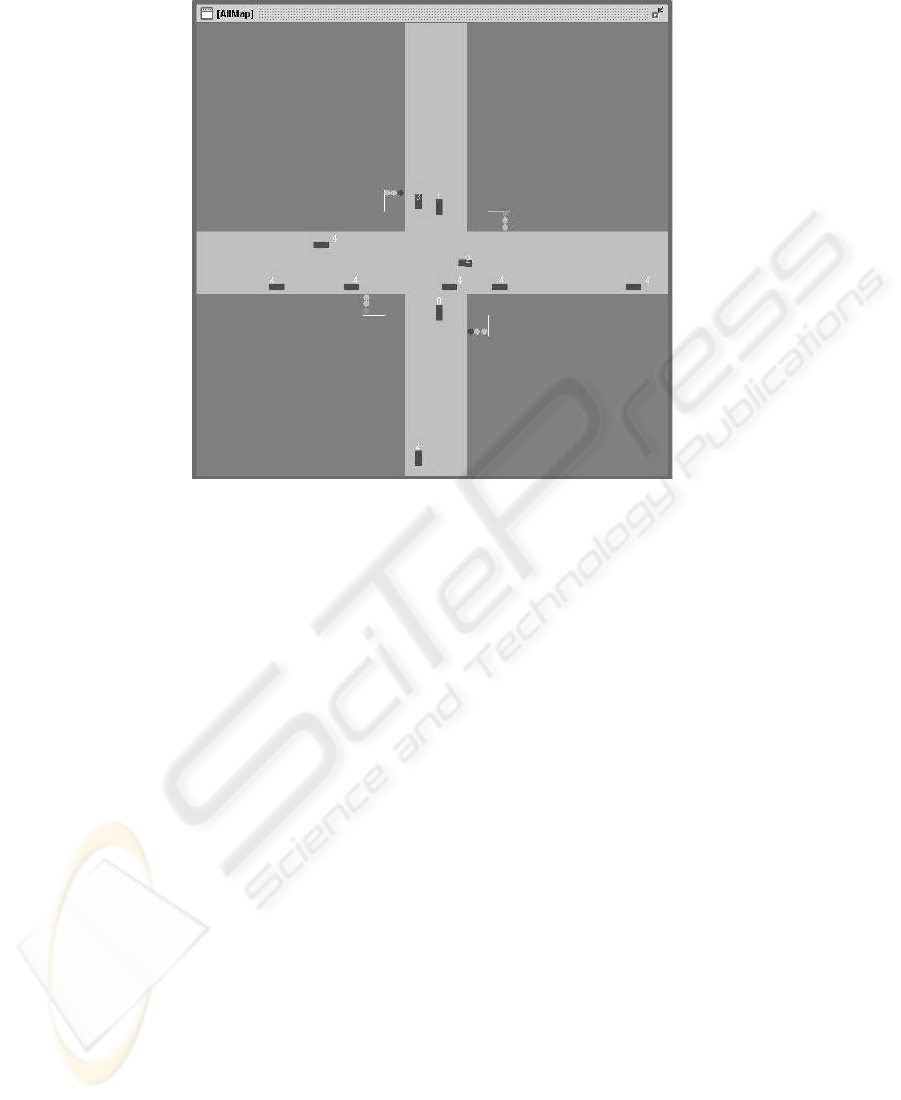

Fig. 4 shows the drivers’ model based traffic signal simulation around a typical cross
intersection with traffic lights. In the figure, each square box with an integer 0 to 4
indicates a car, and the integer indicates its speed at that time. For example, if the integer
2 is attached to the car, it indicates that the car is moving at the speed of 20km/h. In the
traffic signal simulation based on the drivers’ model, one of the three car control actions
is reasoned for each car. For example, suppose that the objective car is moving at the
speed of 20km/h at the time t, then if the drivers’ model reasons defeasibly the action
“slow down” as obligation, the objective car will be moving at the speed of 10km/h
at the next time t + 1. Moreover, the simulation system can simulate the traffic signal
control based on EVALPSN defeasible deontic reasoning [9] in which the length of
each traffic light (red, yellow, green, etc.) is controlled by EVALPSN programming.
Comparing to usual cellular automaton model based simulation, although the drivers’
model based simulation can simulate each car movement more minutely, it costs much
time to reason each car speed due to EVALPSN programming time for each car in
the simulation stage. Therefore, if we implement large scale simulation based on the
drivers’ model, it should be necessary to consider simulation time reduction.
4 Conclusion
In this paper, we have introduced an intelligent drivers’ model based on EVALP- SN as
one applicable example of EVALPSN defeasible deontic model. We also have a similar
problem in terms of developing a precise simulation system in railway train operation.
Actually, we have already developed train operators’ model as another applicable ex-
ample of EVALPSN defeasible deontic model and developed a railway train simulation
system, which is utilized for simulating train speed presicely and recovering delayed
train schedules. We could not construct the precise railway operation simulator without
the train operators’ model based on EVALPSN defeasible deontic reasoning. Although
the drivers’ model based simulation can simulate each car movement minutely, it costs
much time to reason each car speed. Therefore, it is necessary to consider simulation
time reduction when the drivers’ model is implemented.
42
Fig.4. Traffic Simulation at Intersection.
