A NEW FRAMEWORK FOR THE SUPPORT OF

SOFTWARE DEVELOPMENT COOPERATIVE ACTIVITIES

Arnaud Lewandowski, Grégory Bourguin

Laboratoire d’Informatique du Littoral, 50 rue Ferdinand Buisson, 62228 Calais Cedex, France

Keywords: Software development support, CSCW, tailorability, inter-activities, Eclipse.

Abstract: Software development is a cooperative activity, since it implies many actors. We focus on CSCW integrated

global environments. Many studies have already shown, for a long time, that a ‘good’ cooperative environ-

ment should be able to take into account the users’ emergent needs, and should be adaptable. Of course,

such properties should also be found in environments supporting software development. However, our study

of some existing platforms points out their lacks in terms of tailorability and cooperative support. Eclipse is

one of these broadly used platforms. But even if it presents some shortcomings, its underlying framework

offers some features particularly interesting for our purpose. Upon results previously obtained in the CSCW

field, we propose to extend the Eclipse platform, in order to offer a new support for software development

by creating a cooperative context for the activities supported in Eclipse by each integrated plug-in.

1 INTRODUCTION

Following the continuous growth of information

technologies, users are looking for systems able to

support their intrinsically cooperative activities. And

today, these activities tend towards being realized

through complex systems supporting this coopera-

tion of actors, distributed through space and time.

The software development (SD) domain, which

provides such tools as well as uses them, does not

derogate from this rule. Systems are more and more

complex, their development requires the cooperation

of many actors, with different roles and cultures.

Many studies of common practices in SD show how

this cooperative dimension holds a strong place in

this field (Lethbridge & Singer, 2002)(Pavlicek,

2000). Actually, the necessity to take into account

this dimension in SD environments has been under-

lined for a long time (Kraut, 1995). However, the

current systems do not bring to the fore, or accord-

ing to recent work on CSCW, poorly support the

cooperative dimension of these activities.

We have been working for several years on the

problems tied to the creation of global and integrated

CSCW environments. Our work is inspired by re-

sults coming from the Social and Human Sciences

(SHS), especially the Activity Theory (AT), and

aims at proposing tailorable models and systems

according to the expansive properties of every hu-

man activity. These thoughts led us to define the

Coevolution principle (Bourguin et al, 2001).

This paper presents a proposition to better take

into account the cooperative dimension in SD tools.

Our approach proposes an extension of the Eclipse

platform to integrate a cooperative dimension in

accordance with the Coevolution principle. The first

part of this paper presents the implications tied to the

support of SD cooperative activities, by integrating

the results of our work in the CSCW domain. Then

we present the solution we propose, through a coop-

erative extension to the Eclipse platform.

2 COOPERATIVE SOFTWARE

DEVELOPMENT

Software development environments generally pro-

vide a poor support to the cooperative dimension of

this activity. From our point of view, adding a coop-

erative dimension does not simply consist in adding

specific communication tools that will bring a new

coloration in the environment; rather, it seems more

valuable to integrate in a more fine-grained way

such tools in the environment, but it raises also

many questions. We have been working since years

in the CSCW field, and we have to integrate as many

results we obtained in this field as possible, if we

want our cooperative SD environment to be a ‘good’

CSCW environment too. We present now the under-

lying elements of our work in this domain.

Lewandowski A. and Bourguin G. (2006).

A NEW FRAMEWORK FOR THE SUPPORT OF SOFTWARE DEVELOPMENT COOPERATIVE ACTIVITIES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 36-43

DOI: 10.5220/0002493100360043

 SciTePress

2.1 CSCW, Tailorability,

Coevolution

For years, CSCW research has identified the need

for tailorability in the systems. This necessity has

been brought to the fore by many empirical and

theoretical results, based on theories coming from

the Social and Human Sciences, like Situated Action

(Suchman, 1987), Ethnomethodology (Dourish &

Button, 1998), or Activity Theory (AT) (Bedny &

Meister, 1997). Besides, our research is founded on

AT, which has been broadly used in the domain over

the last ten years (Kuutti, 1993)(Nardi, 1996).

The AT gives information that can help systems

designers to better understand the human activities

they try to support. We cannot explain here all the

results we obtained by founding our research on this

theory, neither detail the reasons of our choices.

More information can be found in (Bourguin, 2003).

However, in order to facilitate the understanding of

the paper, we briefly remind some basic elements of

the AT on which we based our reasoning.

We use the basic structure of an activity pro-

posed by (Engeström, 1987). This structure presents

the human activity as an interdependent system in-

volving a subject that realizes the object of the activ-

ity, and the community of subjects who are con-

cerned with this realization. Relations between the

subject, the object and the community are mediated.

In particular, the subject uses tools to realize the

object of his activity. Rules determine what means

belonging to the community, and a division of labor

describes how the work is shared up by the members

of the community. Furthermore, this structure as a

whole is dynamic and continually evolves during the

realization of the activity. For example, subjects may

transform the mediating elements, such as tools, as

new needs emerge. Subjects themselves evolve dur-

ing the activity, acquiring skills and developing

some experience of its realization. Thus, when sub-

jects transform the elements participating in their

activity, the experience they acquired crystallizes in

these elements. This experience, ‘written’ in the

transformed artifacts, becomes available for others,

which can benefit from it in other activities.

From our point of view, a system that supports a

specific activity is a mediator of it. The system does

not contain the activity, but rather takes part in it. A

particular system supports a particular activity and

this is why we call it an Activity Support (AS). In-

spired by the AT, we have defined a set of concepts

representing the elements participating in an AS.

These concepts are represented in Figure 1. In an

AS, a set of subjects are part of a community and

realize a task. As defined by Leont’ev and taken up

by (Bedny & Meister, 1997), a task is “a situation

requiring the realization of a goal in specific condi-

tions”. The realization of the task corresponds to the

activity supported by the system. Then, in our ap-

proach, the task specifies the object and a set of tools

and roles involved in the activity. The role repre-

sents a part of the division of labor and some rules

existing in the activity supported by the system. It

defines how a subject may use the tools allowing it

to act in the system. As it has been underlined by

(Christiansen 1996), the tool enables and limits the

actions that may be performed by a subject. This fact

is even more true with computer tools that may im-

plement a part of the rules guiding the activity. A

task may specify another task. For example, a task

may need the realization of another task by other

subjects to be completed. This link is useful to rep-

resent networks of activities as it has been proposed

by (Kuutti, 1993). Finally, when a task specifies

another one, a role in the task may imply another

role for a subject in the other task.

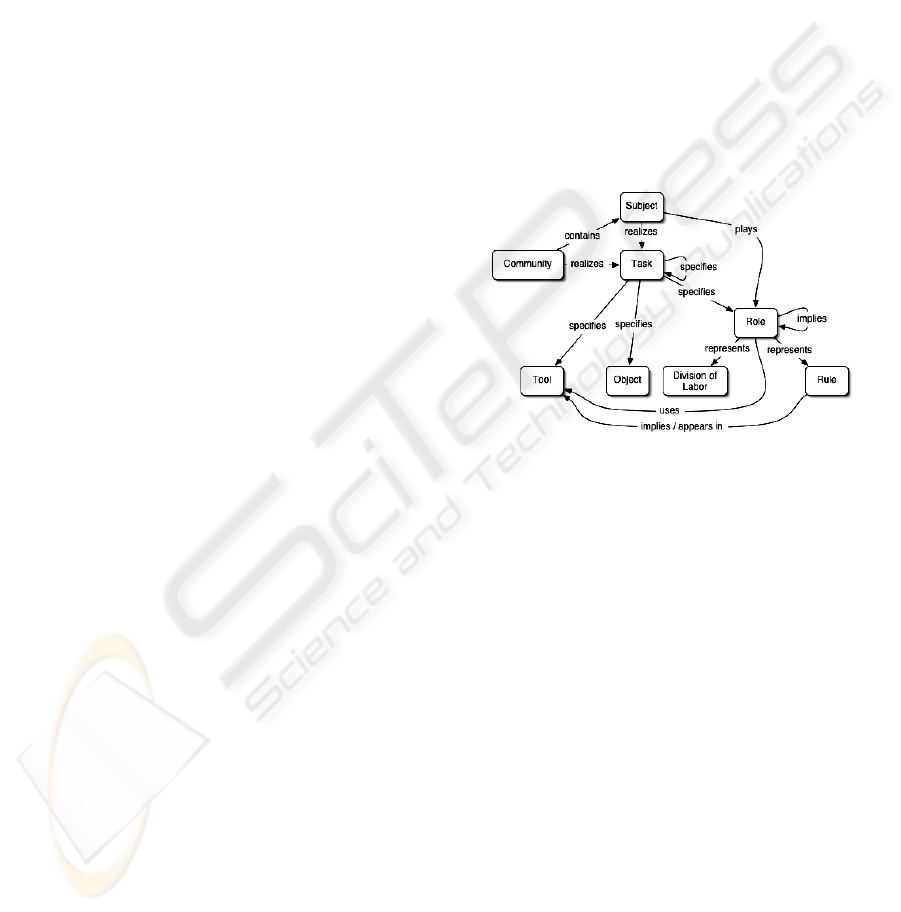

Figure 1: The elements participating in an Activity sup-

port.

These elements help us to define an AS. Inspired

by the AT, we know (as we underlined before) that

all these elements should evolve during the realiza-

tion of the activity. Therefore, the AS has to be tai-

lorable: it must provide the means to adapt it during

the activity it is involved in. This is why we define

the AS as a reflective system. In our approach, the

task that is supported by the system is made avail-

able from the AS. This is realized by introducing

particular tools we call meta-tools. The meta-tools

allow the subjects to access to the activity definition,

i.e. the task specification. In our approach, an AS is

considered as the instance of a task. The task can

then be inspected and/or transformed from the AS.

We define a causal relationship between the task and

the AS: transformations of the task have direct re-

percussions on the system. For example, modifying

a role defined in the task directly affects the way the

subjects playing this role will perform their activity

in the corresponding AS.

This model underlines that, according to the

mechanisms described in the AT, a part of the hu-

man activity is a meta-activity whose object is to

A NEW FRAMEWORK FOR THE SUPPORT OF SOFTWARE DEVELOPMENT COOPERATIVE ACTIVITIES

reflect on the activity itself for solving contradic-

tions that may appear in its constituting elements. In

our AS model, using the meta-tools correspond to a

meta-activity. As the meta-tools are managed in the

AS as any other tool, the role of the subjects will

affect the way they participate in the meta-activity

too and then, the meta-activity is a real cooperative

activity that is also supported by the system. This is

a simple definition of our approach of tailorability

that we have called the Co-evolution (Bourguin et

al, 2001): the system supports a particular coopera-

tive activity like the development of a particular

software, but it also supports its own cooperative

(meta-)activity of (re)design.

Finally, this tailorability can be associated with

some mechanisms of experience crystallization and

reuse. These mechanisms are synthesized in figure 2.

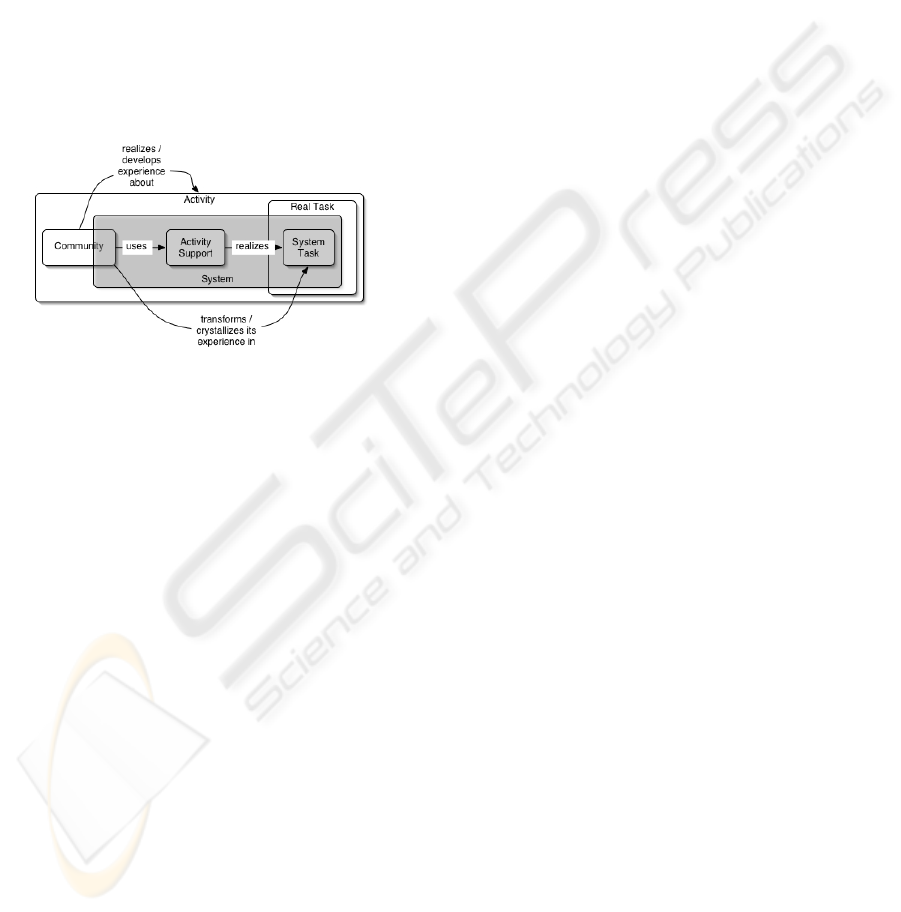

Figure 2: Experience crystallization through the system

and in the system task.

The community realizes an activity in the real

world. This activity is supported by the system. The

system task is the part of the real task that has been

specified inside the system to create an AS. The

community acquires some experience while per-

forming its activity. This experience can be made

explicit through the system by making its task

evolve. For example, an evolution in the division of

labor in the real activity may result in a new set of

roles specified in the system task and that will affect

the corresponding AS. This new evolved task corre-

sponds to a new AS model that can also be instanti-

ated for another community that needs a computer

tool support for realizing a similar task. The crystal-

lized experience developed while the realization of a

task can then be transmitted through the tailorable

system thus supporting an important mechanisms

underlined in AT.

2.2 Shortcomings of Existing SDEs

Today, many platforms support SD cooperative ac-

tivities. Actually, many studies have already been

conducted on the evaluation of SD tools and envi-

ronments. For example, (Barthelmess & Anderson,

2002) focus on process-centered SD environments

(PCSDE) found in the literature, analyzing and

evaluating them from an AT viewpoint. What

emerges from that study is that even if presenting

positive aspects, “PCSDEs suffer from the produc-

tion-oriented philosophy of software engineering”,

assuming that the routine steps in a process model

are sufficient for the execution of an activity. Con-

sequently, they observe a lack of tailorability in such

systems. This observation is relevant not only for

PCSDEs, as we will see by examining other envi-

ronments. In this part, we have chosen to particu-

larly focus on web portals and Integrated Develop-

ment Environments (IDE) that are widely used by

communities of developers during the SD process, in

order to point out some of their general drawbacks.

Web portals, like SourceForge (http://source

forge.net) and Freshmeat (http://freshmeat.net), pro-

vide a global environment that integrates many

tools, such as planning tools, concurrent versions

systems, forums, bug reporting tools, etc. These in-

tegrated tools aim at supporting some cooperative

activities tied to the SD process. A positive aspect is

that these portals mostly take into account the major

elements constituting an AS, as we defined them

before. Especially, we find in such solutions some

mechanisms that define, for example, the role of

each community member (by granting them rights

on the integrated tools). However, those web envi-

ronments present some drawbacks, especially with

regards to tailorability. Indeed, the latter is in most

cases greatly reduced, since the available tools are

defined a priori in the system. The dynamic integra-

tion of new tools is generally not possible. And

when it is, this integration remains at a graphical

interface level, which actually does not differ very

much from using such tools outside the environ-

ment. In their study of such Collaborative Develop-

ment Environments (CDE), or virtual spaces on the

web, (Booch and Brown, 2003) recognize that “there

are a number of substantial barriers to successful

adoption of a CDE”, especially because “no CDE

supports all the features” that should be found in an

ideal environment. As we underlined before, we

think that it is not possible to conceive such an

‘ideal’ AS a priori. Instead, a better solution – even

if not easy – is to provide a tailorable environment

able to be adapted to the needs emerging during the

activity. The last important point we emphasized is

that the artifacts constituting the AS should crystal-

lize the experience of the subjects. It is especially

true for the tools used in SD activities. For instance,

developing a web site in php and developing a j2ee

application – even if both are SD activities – may

imply different development methods, tools, and

even roles. The experience acquired during each

activity may differ from one to another (methods,

tools, etc.). An environment supporting the SD

global activities should be able to crystallize these

kinds of experience that could be useful in other

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

similar projects. However, this feature seems to be

missing in the web-based solutions examined, where

it is not possible to reuse the experience developed

during a project in another one.

Integrated Development Environments (IDEs),

such as NetBeans or Eclipse, also integrate sets of

tools dedicated to support producing code activities.

Unfortunately, most IDEs only focus on these pro-

ducing code activities, and avoid or forsake their

cooperative dimension. As underlined by (Sarma,

2005), “coding has traditionally been considered the

most important activity of a developer in software

engineering. As a result, tool builders have focus on

creating better programming languages and envi-

ronments that facilitate coding, while ignoring other

activities”. Therefore, the many elements identified

that constitute an AS are mostly missing from such

environments. Actually, IDEs provide gates towards

a common repository – such as CVS (Concurrent

Versions System) – that supports and manages

documents sharing, but not the communication be-

tween developers. Some collaborative extensions to

Eclipse try then to palliate this lack (Chen et al,

2003). But from our point of view, even if needed,

this kind of extensions – that provides some collabo-

rative functionalities – still remains superficial, and

does not tend to take into account the cooperation at

a global level. Eclipse has not been designed in that

orientation, and it does not manage any notion of

role, or something like this that takes into account

the status of a user in the global cooperative activity

he participates in. As a result, the user has to inte-

grate the tools (plug-ins) he needs himself, and to

configure them according to his role in the real sup-

ported activity. Despite this drawback, some of these

environments provide functionalities that foster tai-

lorability: for example, Eclipse provides a powerful

extension mechanism that allows the platform to be

adapted (by integrating new plug-ins) to support new

needs. In most environments, like in NetBeans and

Eclipse, experience crystallization is reduced to pat-

terns (supporting the creation of different projects)

that will configure the environment in a way that

seems suitable for such a project. Eclipse gives to

the user other means to customize their environ-

ments: it manages ‘perspectives’ that are specific

views, or visual arrangements of the tools in the en-

vironment. People can create their own perspectives

that can be reused later, in similar projects. This fea-

ture could be improved by taking into account the

cooperative dimension that constitutes an AS.

As we see, lacks remain in the existing global

environments supporting some SD practices. Even if

the many kinds of environment present interesting

features and mechanisms, we note that none of them

seems to meet the main ‘requirements’ of an AS we

have identified. In practice (Webster, 2003), due to

these lacks in commonly used platforms, the actors

of SD use in a complementary way many tools or

environments (IDE, PCSDE, web portals, synchro-

nous discussion tool, etc.), each one supporting one

or more (sub-) activities. Faced with such state-

ments, we aim at proposing an AS that palliates

these needs: a tailorable platform supporting SD

cooperative activities, inspired by our previous work

on the Coevolution principle.

3 COOLDEV: COOPERATION

UNDER ECLIPSE

The CooLDev project (Cooperative Layer for soft-

ware Development) is directly inspired by results

obtained during the DARE project that evolved until

becoming CooLDA (Cooperative Layer supporting

Distributed Activities) (Bourguin, 2003), the generic

underlying platform on which CooLDev lays.

3.1 The Inter-activities Approach

A major choice in our reasoning to design a CSCW

environment is to consider that many tools already

exist, which are useful in supporting some activities

we are interested in. Thus, our main goal is not to

create such tools, like a new code editor. Rather, we

want to create an environment that integrates these

many tools. From our point of view, detailed in

(Bourguin & Lewandowski, 2005), each tool sup-

ports one kind of activity. When several tools are

used in parallel by a group of actors, they generally

serve a more global activity than the original activity

they were designed for. For example, a group may

use in parallel an IRC, a CVS, and a code editor.

Each of these tools supports a particular activity

(discussion for the IRC, etc.) but they do not know

each other. However, they are used in a complemen-

tary way by the group since they are used in the con-

text of a global cooperative activity: software devel-

opment. In such a case, the coherence of the envi-

ronment is mainly mentally managed by the users.

Then, our purpose is to provide an environment that

can create a context for the use of the different tools

involved in a global cooperative activity (e.g. a SD

activity), managing the links between its different

(sub-)activities. Assuming that each tool supports a

specific activity, our environment is intended to

manage what we call the inter-activities.

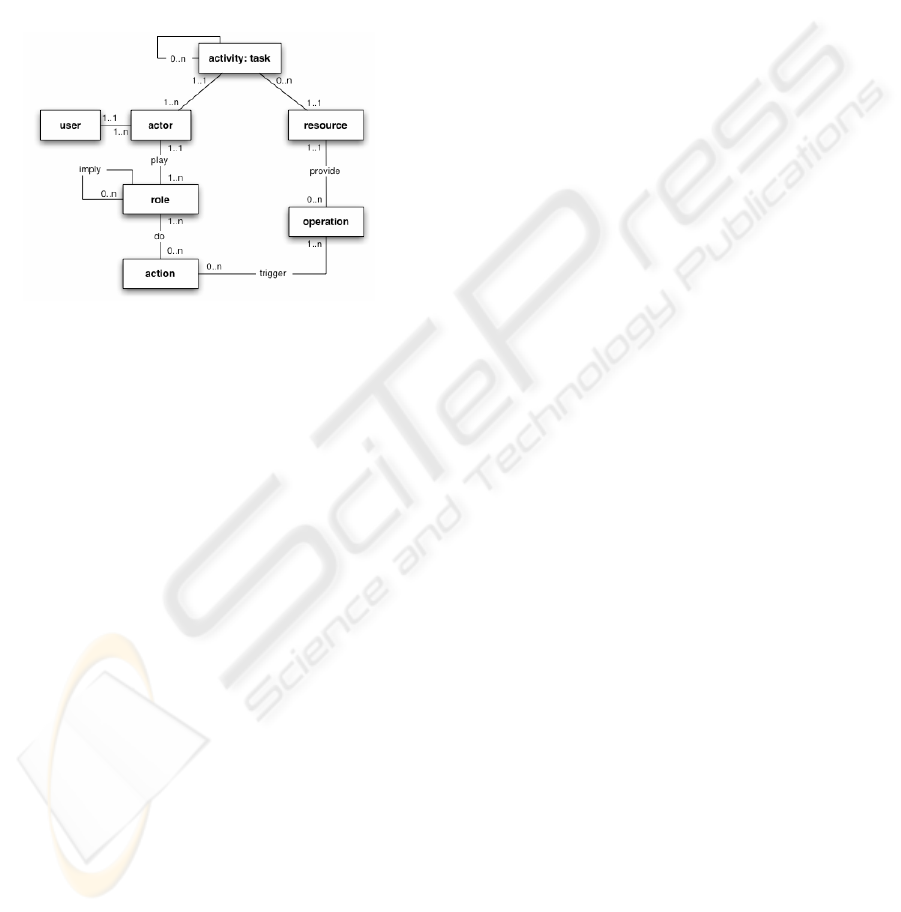

To achieve this, we have created an activity

model (Figure 3)(Bourguin & Lewandowski, 2005)

– inspired by the elements presented before – that

conceptualizes the elements constituting an AS and

that allows the specification of the links of the inter-

activities. Each activity is linked to a resource that

proposes operations. A resource corresponds to a

A NEW FRAMEWORK FOR THE SUPPORT OF SOFTWARE DEVELOPMENT COOPERATIVE ACTIVITIES

software tool (an IRC client for example). A user is

an actor in the activity, as he plays a role in it, role

that allows him to do actions. An activity can be

linked to other ones, when the role of one of its ac-

tors implies that this user plays another role in an-

other activity. The fact that a user plays a particular

role in an activity also has an impact on the configu-

ration of his tools. Finally, an activity is an instance

of a task, which constitutes an activity model, or

pattern. As we said before – and as we will illustrate

later – the task is intended to crystallize the experi-

ence developed by the actors.

Figure 3: The activity model of CooLDA.

3.2 Choosing Eclipse

Our work in the SD field led us to look closer at the

Eclipse platform, which has been adopted by many

developers. The success of Eclipse has been a driv-

ing force for the development of many tools that can

be integrated into the platform as plug-ins. As we

have underlined before, we do not aim at developing

new tools, but at giving the means to articulate them

in a global cooperative activity. From this viewpoint,

Eclipse is very interesting since many integrable

plug-ins exist.

Basically, the platform is constructed around a

core of services called run-time that supports the

dynamic discovery, installation and activation of

plug-ins. A plug-in is a component that provides a

certain kind of service and respects Eclipse’s plug-in

specification. It may extend existing features (pro-

vided by other plug-ins), implements its own fea-

tures, and provide extension points (in order to be

eventually extended by other plug-ins). This frame-

work allows plug-ins to integrate finely with the

environment and other plug-ins. Thus, from our

viewpoint, what makes the success of Eclipse is that

it has been principally conceived in terms of tailora-

bility. The end-user can adapt the environment ac-

cording to his emergent needs. He can discover and

dynamically integrate tools that can help him to real-

ize his activity.

Another element in Eclipse, which is in tune

with our work inspired by the AT, is the perspec-

tives mechanism. A perspective corresponds to a

particular visual point of view on the working envi-

ronment (and the activated plug-ins) during the re-

alization of a kind of activity. This perspective man-

ages the plug-ins activation and arrangement at the

user interface level. Eclipse lets the user create and

modify his own perspectives, thus saving his prefer-

ences for a kind of activity. From our viewpoint, the

perspectives mechanisms provide a powerful mean

to crystallize the user’s experience. However, one

can notice that Eclipse’s perspectives can only acti-

vate plug-ins that are available on the user’s station.

In other words, if a plug-in is referenced by a per-

spective but is not installed, it will be skipped. An-

other point to notice is that these perspectives are not

intended to be shared by users. Even if some people

may work with the same perspective because it has

been packaged within a specific plug-in, no mecha-

nism has been set up in the environment to give

these users the means to share their perspective.

Finally, thanks to its introspection mechanisms,

and as we will present it thereafter, Eclipse frame-

work provides very useful means to specify and to

support the inter-activities. These mechanisms let us

dynamically create the links, until now not sup-

ported, that exist between the (sub-)activities sup-

ported by the plug-ins in a global cooperative activ-

ity. Finally, one must keep in mind that at the time

we are writing, as mentioned before, Eclipse does

not provide the cooperative dimension we need.

3.3 Managing Inter-activities

Our contribution lies within several levels: first, it

consists in extending the Eclipse framework by inte-

grating the elements of our model of activity. Ac-

cording to this model, each plug-in supports one

activity. The architecture of the solution we propose

is presented in Figure 4. We propose to manage the

inter-activities thanks to a meta plug-in named

CooLDev, whose role is to articulate the other plug-

ins in the context of global cooperative activities.

This meta plug-in is connected to a CooLDA server,

that manages the persistence of the instances of our

model. However, each other plug-in – if distributed

– is free to use its own communication protocol,

server(s), etc. independently.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

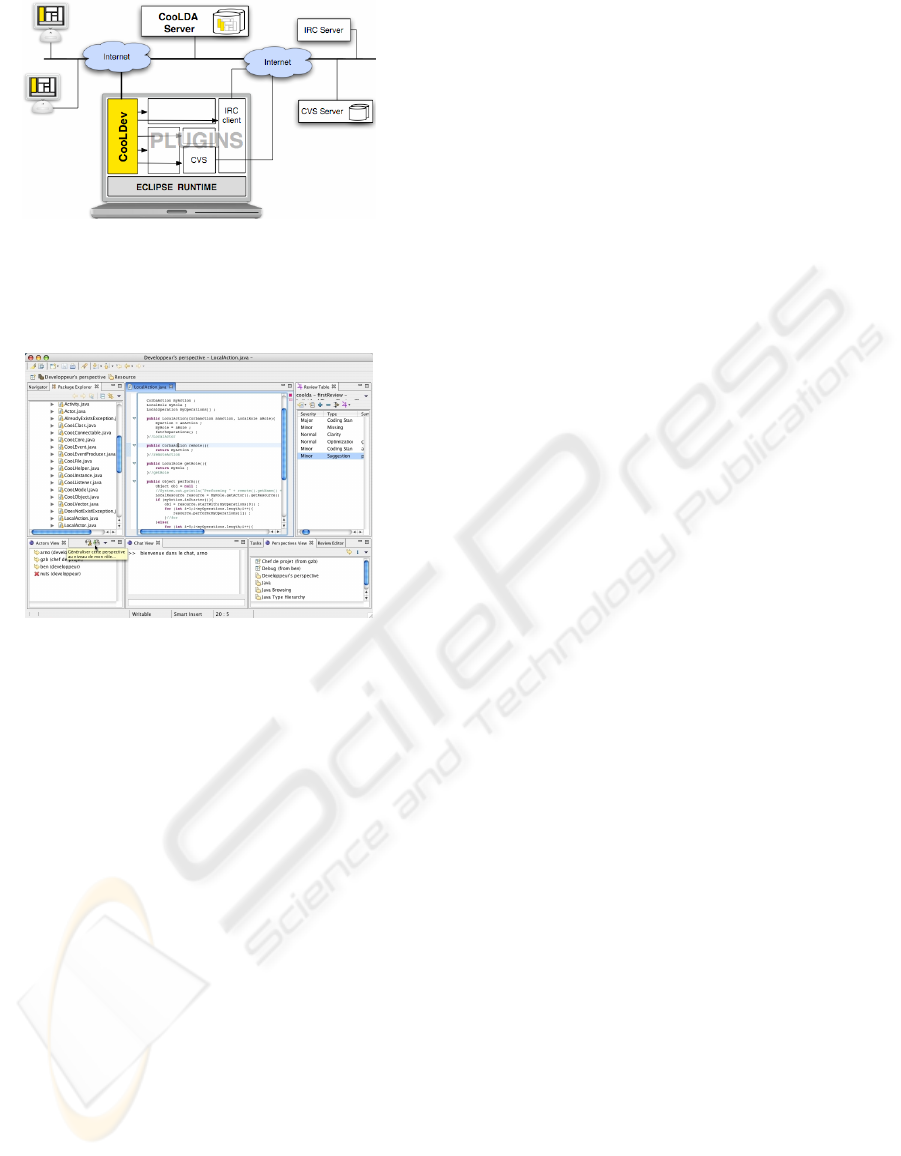

Figure 4: CooLDev’s architecture.

The Figure 5 presents an example of such a coop-

erative global environment for SD that integrates the

mechanisms we will describe now.

Figure 5: CooLDev from a particular actor viewpoint.

Because of our meta plug-in, the user has first to

identify himself to launch Eclipse, in the same way

as classical CSCW tools. Thanks to this, we can re-

trieve information from our CooLDA server con-

cerning the role of the user in the appropriate global

activity. This role is an instance of a type of role that

can be shared by several actors. It allows then the

meta plug-in to configure the user’s working envi-

ronment. To do this, we have extended Eclipse per-

spectives, in the context of a cooperative activities

management: users that play the same role in a par-

ticular activity retrieve an instance of the same

CooLDev’s perspectives. In other words, users play-

ing the same role can get the same environment con-

figuration thanks to CooLDev’s perspectives. How-

ever, once they have retrieved their perspective, us-

ers can adapt it during the activity. As we will see

later, these extended perspectives can also reflect the

user’s preferences in his role. Moreover, as we un-

derlined in previous part, when an Eclipse perspec-

tive was trying to activate an unavailable plug-in,

this latter was skipped. In case of a standard use of

Eclipse, this is acceptable, since things go otherwise:

installed plug-ins are packaged with some perspec-

tives, suitable for their use. In our context, it is the

role of the user, and consequently his perspective,

which determines which plug-ins will be used in a

particular activity. Thus, we have extended the basic

perspective mechanism so that it can automatically

download plug-ins that are specified in the perspec-

tive but not installed on the user’s station.

Even if the tools that support the user’s activities

are instantiated by these extended perspectives, it is

not enough to support the inter-activities as we de-

fine it. We use our model to specify the actions that

have to be processed by a role when its user joins the

activity. These actions configure the plug-ins for this

user. For example, when a user joins a code review-

ing activity, in a development project, CooLDev

plug-in uses the user’s role to instantiate a CVS

plug-in, an IRC plug-in, a code editor and an annota-

tion tool. For the user to avoid identifying another

time in the IRC (he has already identified himself

while connecting to our environment), we have to

indicate to this plug-in what is its configuration

(pseudo, server, etc.). From our model’s point of

view, the user’s role realizes actions that trigger op-

erations on the linked plug-in. Technically speaking,

the operations are mapped on methods provided by

the plug-in and discovered by CooLDA, using intro-

spection mechanisms. We will move later in this

paper on the way these links can be set up by users.

3.4 Managing Tailorability and

Experience Crystallization

As CooLDev focuses on the inter-activities man-

agement, the tailorability it provides sits at this level.

First, we take benefit from the tailorability in

Eclipse, and we extend it in a cooperative context.

Thanks to the plug-ins and perspectives mecha-

nisms, each user can customize the AS by adding,

removing and arranging tools that serve his activity.

However, in the global cooperative activity, a par-

ticular perspective reflects not only the user’s pref-

erences, but also his role. Thus, it crystallizes the

experience developed in his function. We have set

up a mechanism that allows the user to generalize

this perspective at the task level, i.e. in his role

model. A particular view (Figure 6) we have devel-

oped shows the many actors implied in the activity,

their role in it, and whether they are online or not.

Behind that, this view proposes the mechanism we

have described above: the crystallization of the cur-

rent user’s perspective in his role model. Technically

speaking, the CooLDev perspective is sent to the

CooLDA server that modifies the appropriate activ-

ity model also called task by associating this per-

spective to the user’s role instance. Of course, in the

framework of the Coevolution principle (that is a

cooperative management of the system adaptation),

this action can be proposed only to users with a spe-

cific role. One can also imagine that the decision to

generalize a particular extended perspective in a role

CVS

Editor

Annota-

tion

hared

Pers

ectives

CoolDev

A NEW FRAMEWORK FOR THE SUPPORT OF SOFTWARE DEVELOPMENT COOPERATIVE ACTIVITIES

has to be negotiated between actors. Thus, when a

new user joins an activity with a particular role, he

retrieves the experience of users that have already

played the same role, experience that has been

gradually constructed and crystallized by these us-

ers. Finally, if the scenario of the activity allows it,

the user can again modify his own perspective.

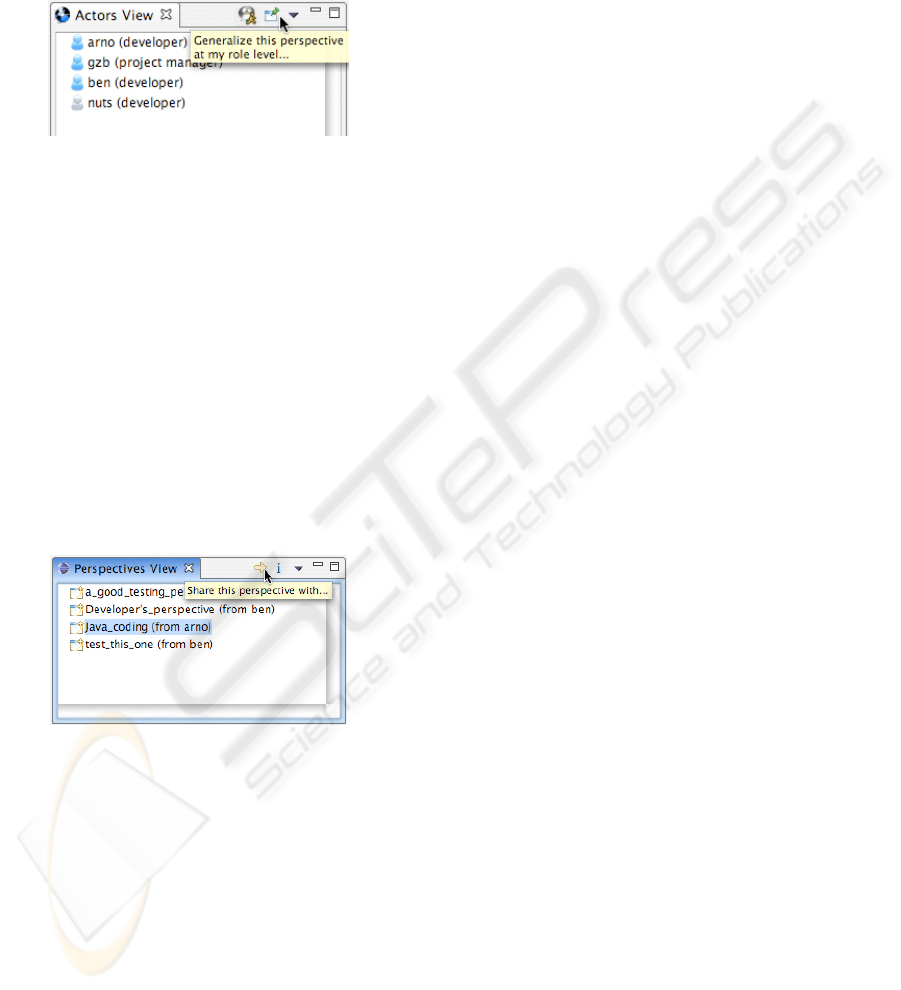

Figure 6: Zoom on the “Actors view” and on its mecha-

nism that generalizes a perspective at the role level.

In order to complete the mechanism that general-

izes a perspective in the role model, we have devel-

oped a tool (Figure 7) allowing actors to share their

perspectives. This view shows the perspectives

shared with others, and allows the users to ‘try’ the

perspectives they receive and to send their perspec-

tives to others. Thus, actors can share extended per-

spectives without having to crystallize them in their

role model, which would be constraining for actors

who just want to test perspectives, or to share a

viewpoint before deciding to crystallize it. Indeed,

the experience crystallization in the roles is an im-

portant mechanism, since it may have an impact on

all the other actors playing roles that are based on

the same model.

Figure 7: Zoom on the shared perspectives view.

We have also introduced tools that provide tai-

lorability at finer levels of the inter-activities man-

agement and help creating links between the tools in

our activity model. Thanks to the introspection

mechanism, it is possible to (re)define the task dur-

ing the activity, i.e. the elements that participate in it

(for example the actions for each role). The lowest

abstraction level is the one of operations that define

the links between the actions (of a role) and the

methods (provided by a plug-in). CooLDA is able to

dynamically retrieve these methods, allowing to

(re)define the operations used in the specification of

the roles’ actions. We are aware that the abstraction

level of this kind of tailorability is still hardly within

the reach of every end user. However, implementing

these mechanisms helps us, at first, to verify the

technical feasibility of such an approach. We are

now working on user interfaces of higher abstraction

level, to give end users the means to access this

really fine-grained inter-activities management.

More generally speaking, the evolution of an ac-

tivity – its tools (integrated plug-ins, operations) and

roles (extended perspectives, actions) – is synthe-

sized in the model of activity presented that consti-

tutes the task. A task forms thus a model that has

crystallized the experience developed cooperatively

by users during their global activity, and that can be

re-instantiated in order to support other similar ac-

tivities. These latter, evolving in turn, will be able to

modify their task, or to create new ones. This reflex-

ive approach – even if promising – raises also many

problems. We cannot develop them here, but one

can refer to (Bourguin, 2003) to discover the many

stakes in it that we have already identified.

The mechanisms described here present the tai-

lorability and crystallization currently provided in

our AS. These mechanisms are not at the same ab-

straction level. As underlined by (Morch, 1997), the

tailorability level increases proportionately with the

difficulty for end-users to access it. The basic inte-

gration of tools and the mechanisms tied to the ex-

tended perspectives are more directly aimed at end

users. The evolution of roles and actions are aimed

at CooLDev specialists (understanding the AS

model), and the definition of operations by intro-

spection on methods at developers (understanding

object-oriented concept). At first, we will package

CooLDev with a set of predefined tasks. Users will

then be able to adapt these tasks according to their

needs and to their abstraction level, providing thus

new activity patterns. The many abstraction levels,

and the cooperative dimension of the supported ac-

tivities let us hope that the end users, interested in

the tailorability levels they will be able to reach, will

increase their experience towards the system, and

will become more and more expert of it, being able

to access more advanced levels of tailorability. They

will be able then to share this experience through the

system, meeting the Coevolution principle.

Of course, this work still needs improvements.

Especially, we work on a proposition to extend the

plug-ins model, in order to add a semantic level that

should facilitate a finer integration by end users.

And in order to validate our approach, we plan to

experiment the platform in real projects that will

help us to verify the stability of the system with re-

gards to its reflexive properties, from a technical and

especially a human viewpoint. Indeed, for the sys-

tem to be ‘correctly’ adapted, the activity must pass

by stable stages, allowing users to increase their ex-

perience. So we want to verify that the human di-

mension brought to the fore in CooLDev (the system

is adaptable, but not self-adaptive) permits, not a

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

continuous evolution of the environment, but rather

the crystallization of a true experience for end users.

4 CONCLUSION

As software development (SD) is today strongly

cooperative, we focused in this paper on the means

that can support it. We have been working for years

in the CSCW research domain, trying to take benefit

from SHS theories, especially the Activity Theory

(AT). This work has led us to identify the crucial

need for tailorability in cooperative environments,

and to define the Coevolution principle. By studying

several platforms broadly used by developers, we

have identified their shortcomings, in line with the

stakes defined in the CSCW field. Therefore, we

have proposed a solution that consists in an exten-

sion of the Eclipse platform which is already broadly

used for SD, but which does not integrate the coop-

erative dimension of such activities at a global level.

Basing on results coming from the AT and on

Eclipse properties, we propose a model of activity

and a meta plug-in that contextualizes the activities

supported by plug-ins. We aim at creating a tailor-

able support for managing the inter-activities and

setting up the Coevolution: the system must support

SD cooperative activities and its own cooperative

(re)design (meta)activity, while fostering crystalliza-

tion and sharing of the experience developed by its

users. Our proposition brings several levels of tai-

lorability intended both to end-users and to users

with more advanced skills concerning our platform.

Although it already provides a tailorable support

for the inter-activities management, our proposition

needs to be developed further and to be tested and

validated by experiments in real situations. We have

to work on raising its abstraction level. In order to

achieve this, we plan to pursue our efforts and to

look closer at the problem of the semantic associated

to components available on the Internet. Indeed,

even if solutions trying to palliate this problem exist,

one must agree that most of the existing component

models are intended to software developers, whereas

the results of studies in many fields show that the

means for discovering, and dynamically and finely

integrating tools would be useful for end users, as it

would take into account in situ their emergent needs.

REFERENCES

Barthelmess P, Anderson KM, 2002. A view of software

development environments based on activity theory. In

Journal of CSCW, 11(1-2), pp. 13–37.

Bedny G, Meister D, 1997. The Russian theory of activity,

Current Applications to Design and Learning. Law-

rence Erlbaum Associates, Publishers.

Booch G, Brown A, 2003. Collaborative development

environments. In Advances in Computers, 59.

Bourguin G, 2001. Les leçons d'une expérience dans la

réalisation d'un collecticiel réflexif. In Actes de la

15ème conférence francophone IHM 2003, pp. 40-47.

Bourguin G, Derycke A, Tarby JC, 2001. Beyond the In-

terface: Co-evolution Inside Interactive Systems – A

proposal Founded on Activity Theory, People and

Computer vol. 15 – Interaction without Frontiers,

Springer Verlag, Proc. of HCI 2001, pp. 297-310.

Bourguin G, Lewandowski A, 2005. Inter-activities man-

agement for supporting cooperative software devel-

opment, Proc. of the 14th Int. Conf. on Information

Systems Development (ISD'2005), Karlstad, Sweden.

Cheng L, Hupfer S, Ross S, Patterson J, 2003. Jazzing up

Eclipse with collaborative tools. In Proceedings of the

2003 OOPSLA workshop on eclipse technology eX-

change, Anaheim, California, pp. 45-49.

Christiansen E., 1996. Tamed by a Rose: Computers as

tools in human activity, in (Nardi, 1996), pp. 174-198.

Dourish P, Button G, 1998. On “Technomethodology”:

foundational relationships between ethnomethodology

and system design. In Human-Computer Interaction,

vol. 13, Lawrence Erlbaum Associates, pp. 395- 432.

Engeström Y, 1987. Learning by expanding. Orienta-

konsultit, Helsinki.

Kraut RE, Streeter LA, 1995. Coordination in software

development. In Communications of the ACM, 1995,

38(3), pp. 69-81.

Kuutti K, 1993. Notes on systems supporting “Organisa-

tional context” – An activity theory viewpoint,

COMIC European project, D1.1, pp 101- 117.

Lethbridge T, Singer J, 2002. Studies of the Work Prac-

tices of Software Engineers. In Advances in Software

Engineering: Comprehension, Evaluation, and Evolu-

tion, Springer-Verlag, pp. 53-76.

Morch A, 1997. Method and Tools for Tailoring of Ob-

ject-oriented Applications: An Evolving Artifacts Ap-

proach, part 1, Dr. Scient. Thesis Research Report

241, University of OSLO, Department of Informatics.

Nardi B, 1996. Context and consciousness: activity theory

and human-computer interaction. Cambridge: MIT

Press.

Pavlicek RG, 2000. Embracing insanity: open source

software development. Indianapolis, Sams Publishing.

Sarma A, 2005. A survey of collaborative tools in soft-

ware development, Institute for Software Research

Technical Report, #UCI-ISR-05-3.

Suchman L, 1987. Plans and Situated Actions. Cambridge

University Press, Cambridge, UK.

Webster M, 2003. An end-user view of the collaborative

software development market. Market Research Re-

port, IDC #30608, Vol. 1, http://www.collab.net

A NEW FRAMEWORK FOR THE SUPPORT OF SOFTWARE DEVELOPMENT COOPERATIVE ACTIVITIES
