A NEW APPROACH TO IMPLEMENT EXTENDED

TRANSACTION MODELS IN J2EE

Xiaoning Ding, Xiangfeng Guo, Beihong Jin, Tao Huang

Institute of Software, Chinsese Academy of Sciences,China

Keywords: Extended Transaction Models, J2EE, Entity Beans.

Abstract: Extended transaction model (ETM) is a powerful mechanism to ensure the consistency and reliability of

complicated enterprise applications. However, there is few implementation of ETM in J2EE. The existing

research is deficient in supporting range and requires some special database supporting. This paper explores

the obstacle which prevents J2EE from supporting ETMs, and argues it is because of the limitation of J2EE

XAResource interface and underlying databases. To overcome the obstacle, we propose a new approach,

which processes concurrency control inside J2EE application server instead of in database. Furthermore, we

implement TX/E service in JBoss to validate the approach, which is an enhanced J2EE transaction service

supporting extended transaction models. Compared to existing work, TX/E supports user-defined

transaction models and does not require any special database supporting.

1 INTRODCTION

The traditional and most widely used transaction

model, known as Flat model, has been proven

powerful in On-Line Transaction Processing (OLTP)

systems, such as banking and airline reservation.

Flat model has a strict ACID (Atomicity,

Consistency, Isolation and Durability) constraint.

However, its ACID constraint is too strict. Most

complicated enterprise applications in nowadays are

collaborative, loosely coupled or long-running.

When used for these applications, Flat model has

been found some serious problems (Mohan 1994).

Numerous extensions to Flat model have been

proposed to solve the problem, referred to as

extended transaction model (ETM) or advanced

transaction model (ATM). Each ETM is designed

for a specific application domain, with a relaxed

ACID constraint. Some famous ETMs include

Nested, Join/Split, MMT, Pro-Motion, and etc.

J2EE is a primary middleware platform for

enterprise applications. And most applications

running on J2EE are complex and critical, so it is

significant to support ETMs in J2EE. However, no

commercial J2EE application server can support

ETMs. The existing research of ETM was mostly in

database and workflow systems, and little was made

in J2EE. Furthermore, the little existing research in

J2EE also has some serious limitations, such as the

supporting range is limited, or some special database

supporting is required (Marek 2002).

In this paper, we explore the implementation

mechanism of ETMs in J2EE. We put forward a new

approach, which processes concurrency control

inside J2EE application server instead of in

underlying databases. The new approach does not

require any special database supporting.

The rest of this paper is organized as follows:

section 2 reviews the background and analyzes the

obstacles; section 3 discusses our approach; section

4 presents TX/E, the prototype system of our

approach; section 5 reviews the related works; and

we conclude the paper in the last section.

2 BACKGROUND

2.1 Extended Transaction Model

The traditional Flat model only supports three basic

methods (or control operations, events): Begin,

Commit and Rollback. All data operations are

bracketed by these three methods. An ETM usually

defines some additional methods. For example,

Join/Split model supports two extra methods: Join

and split. Each extra method has its specific syntax

and semantics.

Each ETM is designed for a specific application

area where the traditional ACID property is too

strict. To achieve the efficiency and flexibility, the

ETM relaxes the ACID property of the transaction in

different dimensions and to different extents.

118

Ding X., Guo X., Jin B. and Huang T. (2006).

A NEW APPROACH TO IMPLEMENT EXTENDED TRANSACTION MODELS IN J2EE.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 118-123

DOI: 10.5220/0002496701180123

 SciTePress

To relax ACID property, ETM requires a

customized scheduling. In other words, it requires

adding specific semantics to scheduling. It is

necessary to set some flexible accessing roles on the

data items.

For example, in Flat model, if a data item is

modified by a transaction instance, then it can not be

accessed by any other instances until the holder

instance terminates (committed or rolled-back). The

accessing role is simple.

However, let’s look at the case of ETM. In

Nested model, after a child transaction instance

begins, it should be able to view the data items

which are locked by its parent instance. In this

example, the role is more complex: except the lock

holders, some instances (its children instances) are

allowed to view the data items, while some other

instances are not allowed to.

In conclusion, to implement various ETMs, the

transaction manager should provide a mechanism so

that the ETMs can set their necessary flexible

accessing roles.

2.2 J2EE Transaction Architecture

J2EE transaction service complies with JTS and JTA

specifications. Its architecture is coming from

CORBA OTS and X/Open DTP model.

In the architecture, clients (including stand-alone

Java Application and Session Bean) access the

underlying databases through the native database

interface, referred to as JDBC (Java Data Base

Connectivity) interface, while J2EE transaction

manager accesses the databases through

XAResource interface. Both interfaces are

implemented by the database vendors. Another way

client access database is entity bean. Entity bean is

an object-style encapsulation to the relational-data

from underlying database, and it is synchronized to

database through JDBC.

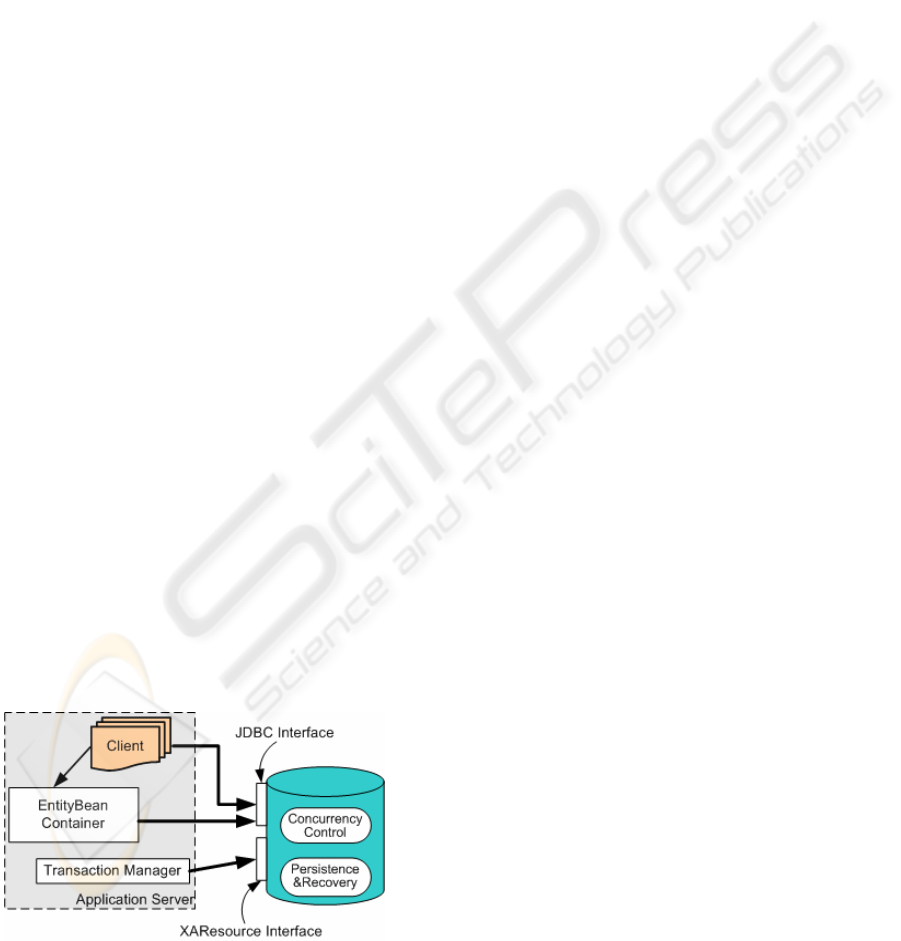

Figure1 shows the J2EE transaction service

architecture.

The XAResource interface is a simple java

mapping of X/Open XA interface. In essential, it is

just a set of functions.

According to JTS and JTA specification, J2EE

transaction manager is only responsible for

managing transaction identifiers and transaction

branches. The transaction manager performs its

work through the XAResource interface, such as

start(Xid), prepare(Xid), commit(Xid). J2EE

transaction manager is not aware of the detailed

accessed data and its concurrency control in the

underlying databases. And all of its work is just

issuing instructions to databases through

XAResource interface. i.e., the underlying database

is a black-box to J2EE transaction manager.

2.3 Discussion

Unfortunately, XAResource interface does not

include any functions to set the flexible accessing

roles. For example, J2EE transaction manager have

no way to inform the underlying database that a

child instance should inherit all locks of its parent

instance. It is also why the exiting research of ETM

in database can not be applied to J2EE directly. In

Data Base Management System (DBMS), we can

invoke lock manager to set the roles. However, as

mentioned above, we have no similar ability in

J2EE.

A straightforward way is to extend XAResource

interface so that it can pass any advanced

concurrency control instructions as we need.

However, it still can not work even we extend the

interface. Since in nowadays most commercial

databases only support Flat transaction model, and

do not support any advanced instructions. It is

meaningless to define an interface that few databases

can support it.

In conclusion, the difficulty of implementing

ETM in J2EE roots in the limitation of XAResource

interface and the underlying databases.

Some existing research was also troubled by this

obstacle. For example, in Bourgogne (Marek 2000),

a framework supports ETMs in J2EE, the system

provides an concurrency control instruction (called

primitive) delegate. The primitive is used to transfer

uncommitted data objects from one transaction

instance to another instance. However, since the

limitation mentioned above, there is no way to

inform databases the role. Thus the primitive

delegate can only be used between two transaction

branches with the same Xid. It is thought to be

difficult to break through this obstacle under the

current commercial databases (Marek 2002).

Figure 1: J2EE transaction service architecture.

A NEW APPROACH TO IMPLEMENT EXTENDED TRANSACTION MODELS IN J2EE

119

3 SOLUTION

3.1 Approach

As the J2EE official Object-Relational Mapping

(ORM) framework, Entity Bean is widely used in

recent years. It provides a “pure” object-oriented

paradigm and reduces the programming code.

Entity beans are managed by EJB container. EJB

container supplies the service of persistence, query,

concurrency control, etc. The concurrency controls

performed on entity beans is simple, usually a

thread-lock policy, i.e., when an entity bean is

accessed by a thread, it is locked and no other

threads can access it until the holder thread release

the lock.

While we face the limitation of XAResource

interface and underlying databases, how about we

implement primitives inside J2EE application server

by enhancing the concurrency control of entity

beans?

If we process the concurrency control inside

J2EE application server, we can avoid the above two

difficulties: 1) The flexible concurrency control is

implemented inside J2EE application server, and we

do not have to extend the XAResource interface to

pass through these instructions 2) The underlying

databases are not required to support ETMs and just

responsible for the data persistence and recovery.

Our approach is based on this idea. We restrict

entity beans as the only entrance for data accessing

and enhance its concurrency control. The work can

be divided into three parts:

1. J2EE transaction manager provides a set of

primitives; users invoke primitives to set

the desired accessing roles.

2. J2EE transaction manager maintains those

roles, and some necessary data structures,

such as lock table, log.

3. When clients access entity beans, we

perform concurrency control based on these

roles, instead of a simple thread-lock

policy.

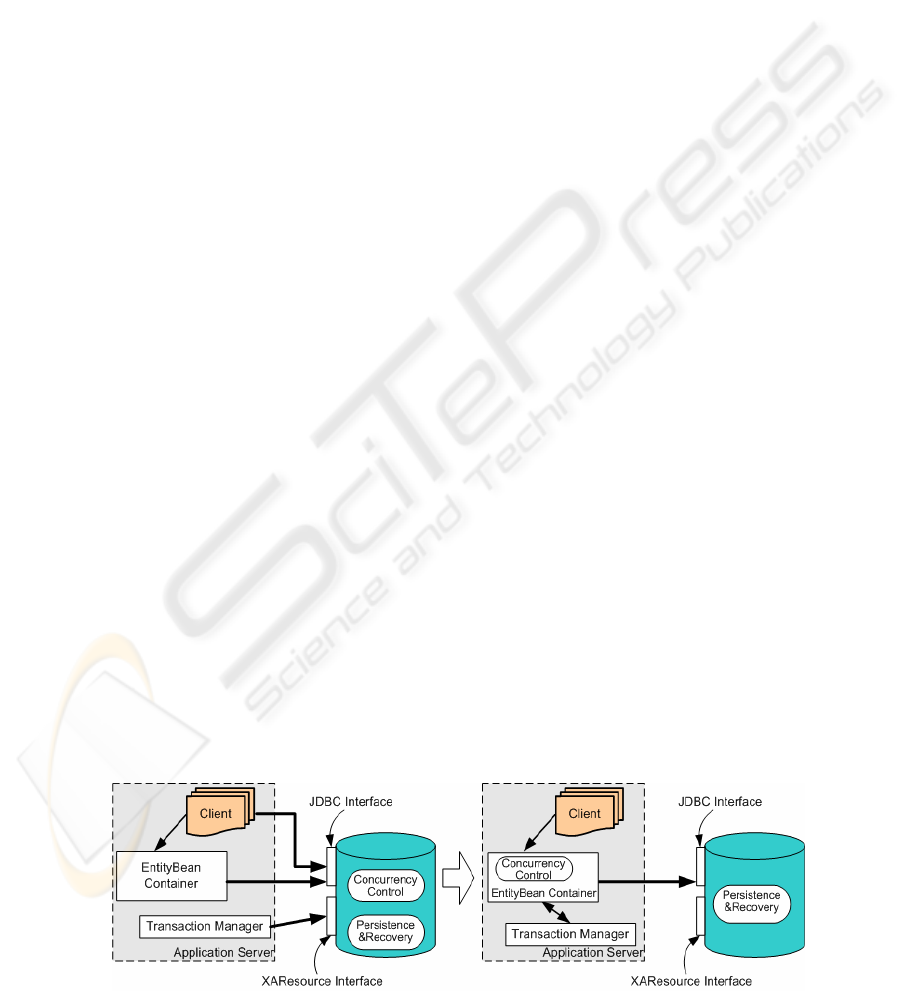

The difference between two architectures is

illustrated as figure 2.

3.2 Benefits and Side-effects

In the new approach, all primitives are implemented

inside J2EE application server. It does not pass

through XAResource interface and does not require

support of databases. Thus we overcome the

obstacle.

Another benefit brought from our approach is the

ability to detect global deadlock. Most commercial

DBMS use locking as the concurrency control

mechanism. It can detect a local deadlock in the

wait-for graph and abort one of the deadlock

transactions. However, if a global transaction in

J2EE involves two or more different heterogeneous

databases, such as Oracle and DB2, each DBMS

transaction manager is only able to view its own

local wait-for table and cannot detect the global

deadlock. So it has to wait until one of the

transaction instances became timed-out. It is one of

the serious shortcomings in current J2EE transaction

service. After the concurrency control was upgraded

into J2EE application server, J2EE transaction

manager is able to control the global wait-for table

and detect the global deadlock.

The new approach also has some shortcomings.

After the entity beans are restricted as the only

entrance, accessing underlying databases through

JDBC directly is forbidden if the application client is

willing to employ an ETM. It may sacrifice some

efficiency in certain situations. However, it is not a

serious problem since the Entity Bean is efficient

and powerful nowadays.

4 TX/E SERVICE

To validate the approach proposed in last section, we

implement TX/E service in JBoss (Marc 2003), a

famous open source J2EE application server. TX/E

is an enhanced J2EE transaction service and

provides all interfaces required by JTA and JTS

specification. So it is compatible with the standard

J2EE transaction service.

Figure 2: Evolution of the architecture.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

120

4.1 Architecture

The TX/E service is organized in an extensible

manner. Each ETM is implemented as an add-on

module, named ETM adapter, and can be easily

plugged into the system. The system provides a

small set of primitives as the kernel, and each ETM

adapter is a properly composition of the primitives.

This architecture style (pluggable adapters and a set

of primitives) has lots of advantages and was

employed in several previous ETM frameworks,

such as RTF (Roger 1995).

The ETM adapter is a java class inherited from

the appointed class. We classify the users in the

TX/E system into two categories: model designer

and application client. The ETM adapter class is

implemented by model designer, which defines the

methods set and the attributes set of the ETM. The

application client uses these ETM adapter classes to

work.

The kernel, primitives set, is implemented inside

TX/E transaction manager. The ETM adapter calls

primitives to set the accessing roles on the entity

beans.

4.2 Programming Interface

All of the ETM adapter classes inherit from the base

class AbstractModel. As the root of the inheritance

tree, the AbstractModel defines the elements which

are common to every transaction model. For

example, it defines some properties such as Xid and

time-out. The AbstractModel also defines three

abstract methods: begin, commit and rollback. Being

abstract methods, these three methods are

guaranteed to be implemented in every inherited

class by Java language, i.e., every transaction model

in TX/E supports these three methods.

All primitives are provided in class Primitive,

which is organized as an inner class named

m_Primitive in class AbstractModel. To ensure the

consistency, m_Primitive is declared as protected.

Thus, model designers have the privileges to invoke

the primitives in the derived ETM adapter class,

while the application clients are not able to invoke

the primitives directly.

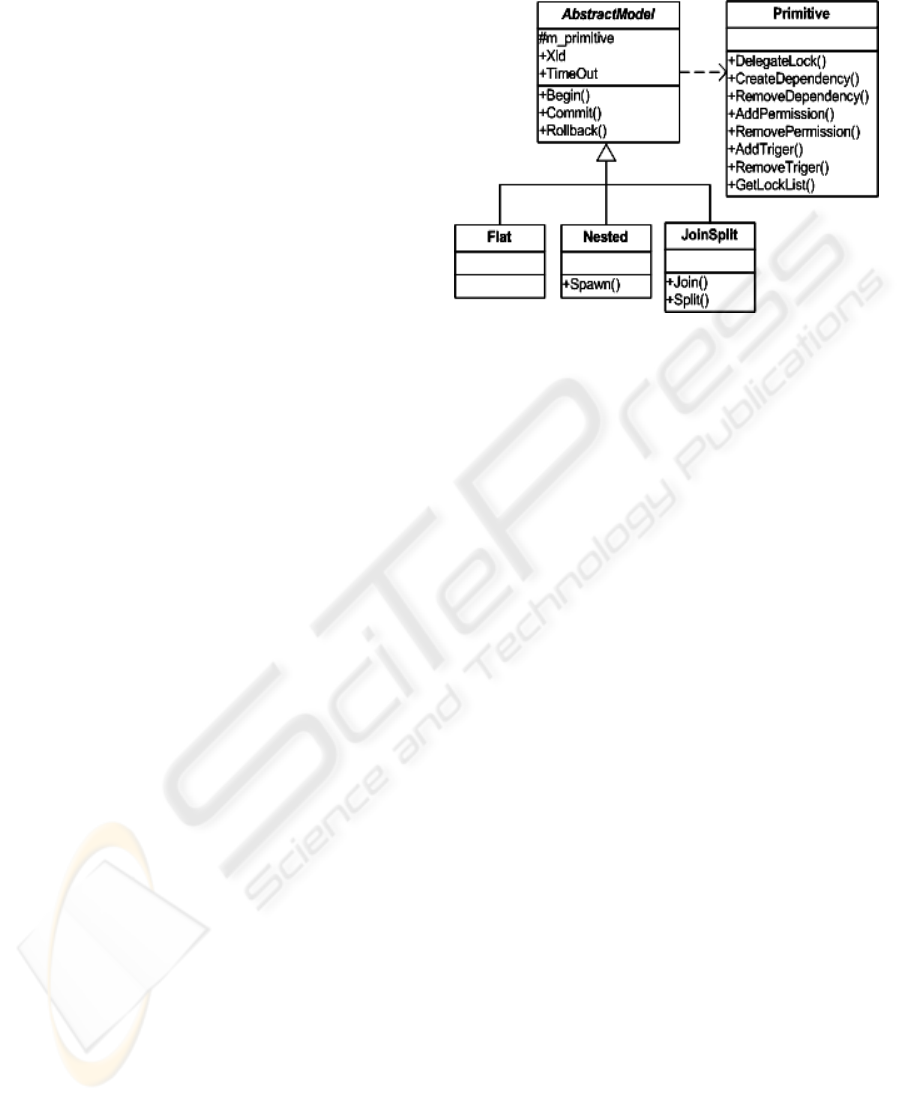

Figure 3 shows the class hierarchy after

deploying three ETMs: Flat, Nested and Join/Split.

After compilation, each ETM adapter class is

deployed to the specific directory with a

configuration file. The TX/E transaction manager

loads all ETM adapter classes during start-up, and

binds each class to the JNDI name described in the

corresponding configuration file. The application

client gets the ETM adapter class reference using

JNDI, and instances it to create an ETM transaction

instance.

4.3 Primitives Set

The capability of TX/E service is determined by the

primitives set. Primitives must be carefully selected

so that the ETM adapter has enough flexibility.

Fortunately, there are lots of research on which

primitives should be provided (Briliris 1994, Roger

1995). In general, there are four kinds of primitives

should be provided:

z Manage the life-cycle of transaction

instances, such as creating an instance of a

certain ETM type and terminating current

instance.

z Manage the control flow of transaction

instances, such as the dependency between

different methods.

z Manage the conflict and visibility.

z Manage the responsibility for modified data

objects.

Some important primitives defined in TX/E

include CreateDependency, RemoveDependency,

AddPermission, RemovePermission, AddTrigger,

removeTrigger, GetLockList, DelegateLock, and so

on.

4.4 Primitives Implementation

In TX/E transaction manager, a lock table records

the locking status and waiting queue of every entity

bean, and the transaction manager schedules each

accessing using a basic Two-Phased Locking (2PL)

algorithm.

All primitives are implemented by J2EE

transaction manager. Each primitive call lock

manager to set the accessing roles, and calls log

manager to do some necessary logging. For

example, the DelegateLock primitive is implemented

as following:

Figure 3: Class Hierarchy.

A NEW APPROACH TO IMPLEMENT EXTENDED TRANSACTION MODELS IN J2EE

121

1. Get the Xid of current transaction instance

from AbstractModel.

2. Query the lock manager, and get all lock

items which holder is the Xid of current

transaction.

3. Replace each lock item’s holder to the Xid

of target transaction instance.

By calling primitives, each ETM Adapter can set

the detailed accessing roles as they want.

After the accessing roles have been set, we need

to enhance the concurrency control of entity beans

so that we can schedule each invocation according to

the roles.

The JBoss EJB Container uses a Pipe and Filter

architecture style, and each service function is

implemented as an interceptor, such as logging,

security and transaction. Every invocation passes the

interceptor chain in turn. Its original concurrency

control is just a thread-lock policy. We modify the

existing interceptor EntityLockInterceptor of JBoss.

In this interceptor, we query J2EE transaction

manager to get the judgment to the fate of each

access, such as granting locks, blocking the instance

for locks, or aborting the instance.

The detailed architecture is illustrated in figure

5 RELATED WORK

The traditional research on ETM framework is

usually based on database system. ACTA

(Panayiotis 1994) is a general framework for

specifying the structure and the behaviour of

transactions as well as for reasoning about the

concurrency and recovery properties of the ETMs.

ACTA is such a classic framework that nearly

become a standard to formal specification and

analysis of ETMs. Many concepts of ETM are

introduced and discussed in ACTA, such as

dependency, delegation, and permission. Most

primitives in following research were designed

according to these concepts. But unfortunately,

ACTA did not discuss the approaches to implement

ETMs.

ASSET (Briliris 1994), provided in ODE

database system, presents a set of primitives and

explains how to implement different ETMs upon

these primitives. To some extent, ASSET can be

regarded as a implementation of ACTA. ASSET

does not use the object-oriented paradigm for the

proposed primitives; it rather uses procedural

programming style. And, ASSET was based on

database system and no implementation was

provided.

Another way to build ETM framework is

proposed in (Anwar 1996). It demonstrates how

database event-condition-action (ECA) rules can be

used to support extended transaction models.

Reflective Transaction Framework (Roger 1995,

Roger 1996) is another framework to support ETMs,

and it is built on Transaction Processing Monitor

(TP Monitor). RTF allows the extension of both

functionality and interface of a conventional TP

Monitor to implement advanced transaction models.

The framework depends on the internal structure of

the TP Monitor, such as the lock manager and log

manager.

A practical framework on supporting ETMs in

J2EE is Bourgogne (Marek 2002, Marek 2000). It

extends the deployment descriptors set of EJB and

supplies several fixed primitives based on the

extension. The users can develop a few ETMs upon

these primitives.

However, Bourgogne still processes the

concurrency control through XAResource interface.

And the framework has the following limitations: 1)

some primitives defined in Bourgogne such as

Delegate can only be used between two transaction

branches with the same Xid. 2) Bourgogne does not

support defining new methods. So users can only

create dependencies between three fixed methods,

i.e., Begin, Commit and Rollback, which restrict its

supporting range and some flexible ETMs can not be

implemented. The author realized the limitation, and

argued that a database with special API supporting

have to be employed (Marek 2002).

There are also some implementations of a

specific ETM in J2EE such as (Jinling 2004). But

they are tailored for a specific ETM, not a general

framework.

J2EE Activity Service for Extended Transactions

is a newly proposed specification and is still in

discussion. It is a coordination framework that

supports some ETMs. However it is composed of

several individual atomic transactions. It can not

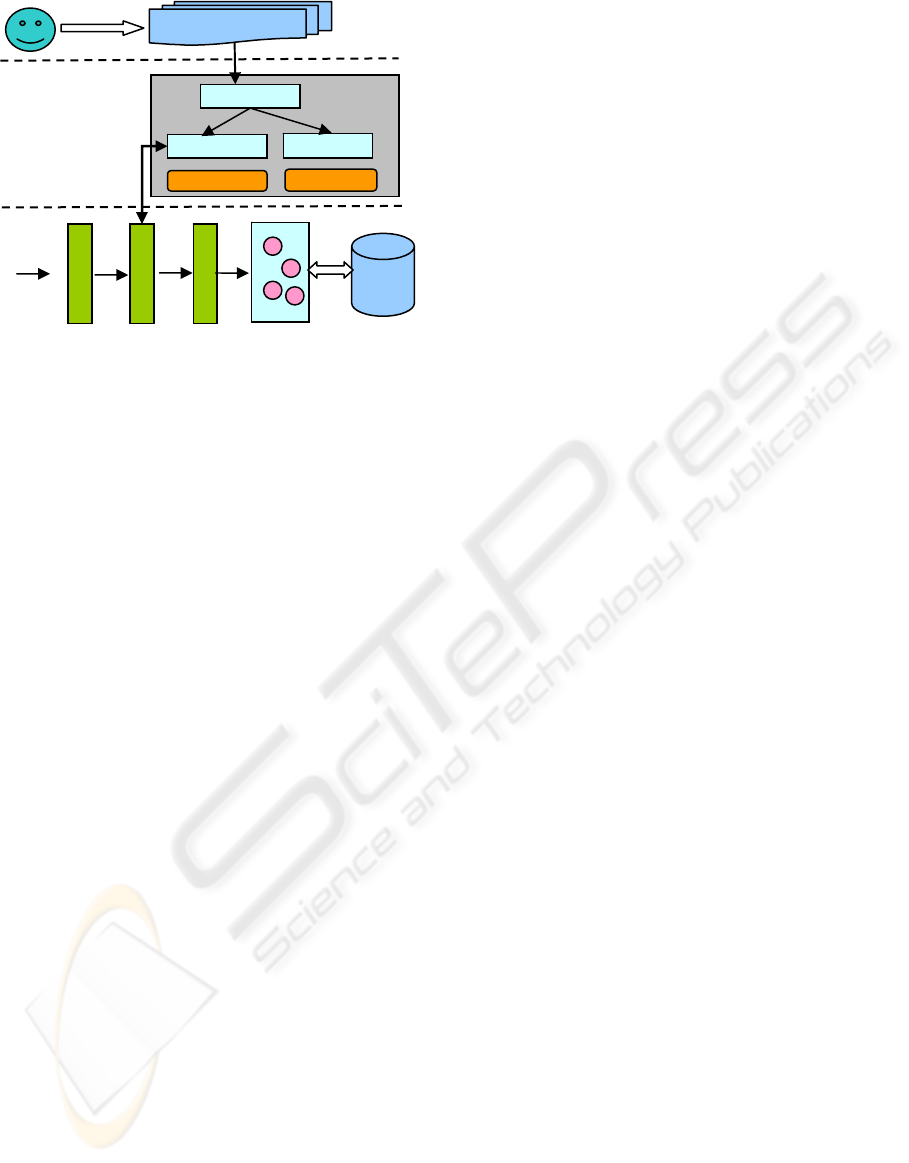

Invocation

Underl

Concurrency

Control

Lock Table

Entit

Beans

EntityLockInterceptor

Lock Manager

Log

Primitive

Transaction

Manager

ETM Ada

Persistence

JDBC

Figure 4: Implementation Architecture.

User-defined

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

122

handle the concurrency and permission issues inside

an atomic transaction instance.

6 CONCLUSION

Extended transaction models are urgently needed in

J2EE to support complex enterprise applications.

However, there is little research in J2EE. We studied

the implementation of ETMs in J2EE in this paper.

Our contributions lie in three aspects. First, we

analyses the obstacle which prevents J2EE from

supporting ETMs, and argue that it is the limitation

of XAResource interface and the underlying

database.

Second, we propose a new approach, which

handles concurrency control inside J2EE application

server instead of in underlying databases. In the

newly proposed approach, all primitives are

implemented by J2EE transaction manager, and does

not need any special APIs of underlying database.

The new approach discards the XAResource

interface, and databases are only responsible for

persistence and recovery. We also discuss the

possible side-effects brought by the new approach.

Finally, to validate the approach, we

implemented an enhanced J2EE transaction service

TX/E in JBoss. Compared to existing work, TX/E

service supports user-defined transaction models and

does not require any special support of databases.

REFERENCES

C. Mohan, 1994. Tutorial: Advanced Transaction Models

Survey and Critique, In ACM SIGMOD International

Conference on Management of Data.

Marek Prochazek, 2002. Advanced Transactions in

Component-based Software Architecture, PhD thesis.

Marek Prochazka, 2000. Advanced Transactions in

Enterprise JavaBeans. In Proceedings of the EDO

2000 Workshop.

Marc Fleury, Francisco Reverbel, 2003. The JBoss

Extensible Server, In Proceedings of the 2003

ACM/IFIP/USENIX International Middleware

Conference.

Panayiotis K.Chrysanthis, Krithi Ramamritham, 1994.

Synthesis of Extended Transaction Models using

ACTA, ACM Transactions on Database Systems.

Briliris, A., S.Dar N Gehani, H.V.Jagadish,

K.Ramamritham, 1994. ASSET ： A System for

Supporting Extended Transactions, In Proceedings of

the 1994 ACM SIGMOD International Conference on

Management of Data.

Anwar, E., Chakrawarthy, S., 1996. Viveros, M., An

Extensible Approach To Realizing Advanced

Transaction Models, In Proceedings of the

International Workshop on Advanced Transaction

Models and Architectures.

Roger Barga, Calton Pu, 1995. A Practical and Modular

Method to implement extended transaction Models, In

Proceedings of International Conference on Very

Large Data Bases.

Roger Barga, Calton Pu, 1996. Reflection on a Legacy

Transaction Processing Monitor, In Proceedings of the

Reflection'96 Conference.

Jinling Wang, Beihong Jin, Jing Li, 2004. A Transaction

Model for Long Running Business Processes, In

Proceedings of the 6th International Conference on

Enterprise Information Systems.

A NEW APPROACH TO IMPLEMENT EXTENDED TRANSACTION MODELS IN J2EE

123
