DATABASES AND INFORMATION SYSTEMS INTEGRATION

USING CALOPUS: A CASE STUDY

Prabin Kumar Patro, Pat Allen, Muthu Ramachandran, Robert Morgan-Vane, Stuart Bolton

15 Queen Square, Leeds, LS2 8AJ West Yorkshire, U.K

Keywords: Database Integration, Systems Integration, Workflow, Hybrid Integration, Enterprise Application

Integration, Calopus.

Abstract: Effective, accurate and timely application integration is fundamental to the successful operation of today’s

organizations. The success of every business initiative relies heavily on the integration between existing

heterogeneous applications and databases. For this reason, when companies look to improve productivity,

reduce overall costs, or streamline business processes, integration should be at the heart of their plans.

Integration improves exposure and, by extension, the value and quality of information to facilitate workflow

and reduce business risk. It is an important element of the way that the organization’s business process

operates. Data integration technology is the key to pulling organization data together and delivering an

information infrastructure that will meet strategic business intelligence initiatives. This information

infrastructure consists of data warehouses, interfaces, workflows and data access tools. Integration solutions

should utilize metadata to move or display disparate information, facilitate ongoing updates and reduced

maintenance, provide access to a wide variety of data sources, and provide design and debugging options. In

this paper we will discuss integration and a case study on Hybrid Enterprise Integration within a large

University using the Calopus system.

1 INTRODUCTION

In today's competitive marketplace, it is essential to

have an accurate, up-to-date, flexible environment to

assess the business and make strategic decisions for

the organization. The best way to do this is through

an integrated environment. With the ever changing

options available technically, businesses need to

decide how to integrate their applications. To be

successful, the organization must run its operations

effectively and efficiently—which requires the

ability to analyze operational performance. For an

organization to thrive, or perhaps even survive,

operations and analysis must work together and

reinforce each other.

Without the whole business picture, it is difficult to

make sound and dependable business decisions. That

is because good decision making requires a complete

and accurate view of data. Though the organization

needs a complete view of operations, the data it

needs often resides in a variety of application

systems that do not necessarily all use the same

database management system. These application

systems may only contain current data values. They

may not store prior data values needed to provide

historical context and to discover trends and causal

relationships.

Data integration allows an organization to

consolidate the current data contained in its many

operational or production systems and combine it

with historical values. And the creation of a data

warehouse (or, on a more limited scale, a single-

subject data mart) facilitates access to this data.

Collecting and consolidating the data needed to

populate a data warehouse or data mart and

periodically augmenting its content with new values

while retaining the old is a practical application of

data integration. In this paper we discuss the

importance, technology and also present a case study

of real-time hybrid integration implementation

within a large University using the Calopus system.

200

Kumar Patro P., Allen P., Ramachandran M., Morgan-Vane R. and Bolton S. (2006).

DATABASES AND INFORMATION SYSTEMS INTEGRATION USING CALOPUS: A CASE STUDY.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 200-207

DOI: 10.5220/0002496902000207

 SciTePress

2 IMPORTANCE OF DATA

INTEGRATION

Database integration has various benefits for the

organization. Database integration increases the

number of experts viewing and manipulating the

data by increasing the exposure of the data. It also

helps the organization by detecting and correcting

more errors in the data. The utilization of data in the

workflow also increases and hence enhances the

quality, trust and decreasing the business risk.

The process of integrating a particular category of

data can be thought of as a progression. Initially the

organization has only a single-source version of the

data. Over time more sources become available.

These multi-source versions are brought together

until a single comprehensive system is created that

relates these "variants" of the information and

resolves the inconsistencies. (Steve Hawtin et.al,

2003)

Integrated data provides a framework that helps

organization by delivering a complete view of a

customer and standardizing business processes and

data definitions. Integrated data helps to combine the

current and past values from disparate sources in

order to see the big picture. It helps to offload the

processing burden on operational systems. At the

same time this increases the effectiveness of its data

access and analysis capabilities. (Steve Hawtin et.al,

2003)

3 RELATED WORK

Database integration is often divided into scheme

integration, instance integration and application

integration. Scheme integration reconciles schema

elements (e.g., entities, relations, attributes,

relationships) of heterogeneous database. (Kim W,

Seo J, 1991) Instance integration matches tuples and

attribute values. Attribute identification is the task of

schema integration that deals with identifying

matching attributes of heterogeneous databases.

Entity identification (Lim E-P et.al, 1993) is the task

of instance integration that matches tuples from two

relations based on the values of their key attributes.

Application integration involves storing the data an

application manipulates in ways that other

applications can easily access. (Ian Gorton et.al,

2004) Meta-data management has become a

sophisticated endeavour. In the present world, nearly

all components that comprise modern information

technology, such as Computer Aided Software

Engineering (CASE) tools, Enterprise Application

Integration(EAI) environments, Extract/Transform/

Load (ETL) engines, Warehouses, EII, and Business

Intelligence (BI), all contain a great deal of meta-

data. Such meta-data often drives much of the tool’s

functionality. (John R Friedrich, 2005)

Database integration can take many forms. There are

three main forms of integration: Extract Transform

and Load (ETL), Enterprise Application Integration

(EAI), and Enterprise Information Integration (EII).

ETL refers to a process of extracting data from

source systems, transforming the data so it will

integrate properly with data in the other source

systems, and then loading it into the data warehouse.

ETL simplifies the creation, maintenance and

expansion of Data warehouses, data marts and

operational data stores. ETL is either batch, near

real-time, and sometimes real-time. (Surajit

Chaudhuri et.al, 2004, CoreIntegration, 2004)

Enterprise Application Integration (EAI) combines

separate applications into a cooperating federation of

applications by placing a semantic layer on top of

each application that is part of the EAI

infrastructure. EAI is a business computing term for

plans, methods, and tools aimed at modernizing,

consolidating, and coordinating the overall computer

functionality in an enterprise. (Jinyoul Lee, 2003)

Typically, an enterprise has existing legacy

applications and databases, and wants to continue to

use them while adding or migrating to a new set of

applications that takes advantage of Internet and

other new technologies.

Previously, integration of different systems required

rewriting codes on source and target systems, which

in turn, consumed much time and money. Unlike

traditional integration, EAI uses special middleware

that serves as a bridge between different applications

for system integration. All applications

communicate using the common interface.

EII: Enterprise Information Integration

EII provides real-time access to aggregated

information and an infrastructure for integrated

enterprise data management. While the graphical EII

data mapping tools are easy to use and speed the

integration process, the information they capture is

valuable corporate information required for

enterprise data quality management. EII helps to

capture the metadata to drive data transformations, is

the same information required for enterprise

information management. (Beth Gold-Bernstein,

2004).

DATABASES AND INFORMATION SYSTEMS INTEGRATION USING CALOPUS : A CASE STUDY

201

4 INTEGRATION THROUGH

CALOPUS

Calopus defines the structure in Metadata layer. It

automates the process and uses a replication

approach while performing Database Integration.

Calopus integration solution supports all three

methods of Database Integration ETL, EAI and EII

with a codeless environment and hence can be called

a hybrid solution. Calopus deploys ETL, EAI, and

EII instantly and each can be called from the other.

Calopus Integration Strategy:

The following are the activities of Calopus ETL

Interfacing Strategy:

• Logical datasets are defined for each source

system and can be files, XML events or

SQL Tables/Views.

• Each data set is frequently scanned for

additions, deletions and changes against an

internal control table of last known data

• Each difference can trigger qualified

complex events such as file creation, SQL

updates, emails, XML streams and LDAP

• Calopus defines the structure in a Metadata

layer.

Apart from this, the Calopus Data Warehouse can

contain a core set of frequently used records and

data items which can be extended by configuration

of Meta Data with little or no coding.

Figure 2: Calopus Integration Strategy.

The Calopus Data warehouse allows secure,

qualified and role based access to transferred data

and remote data. Calopus supports a hybrid

approach by seamlessly deploying ETL, EAI and EII

instantly within a codeless environment. The

Calopus hybrid approach provides flexibility in

allowing the data to reside its source system and

Web Applications

EAI Integration Traditional Integration

Application

Servers

Middleware

(Inter Application)

Applications

Database

Systems

Web

Applications

Web

Applications

Legacy

Applications

Legacy

Applications

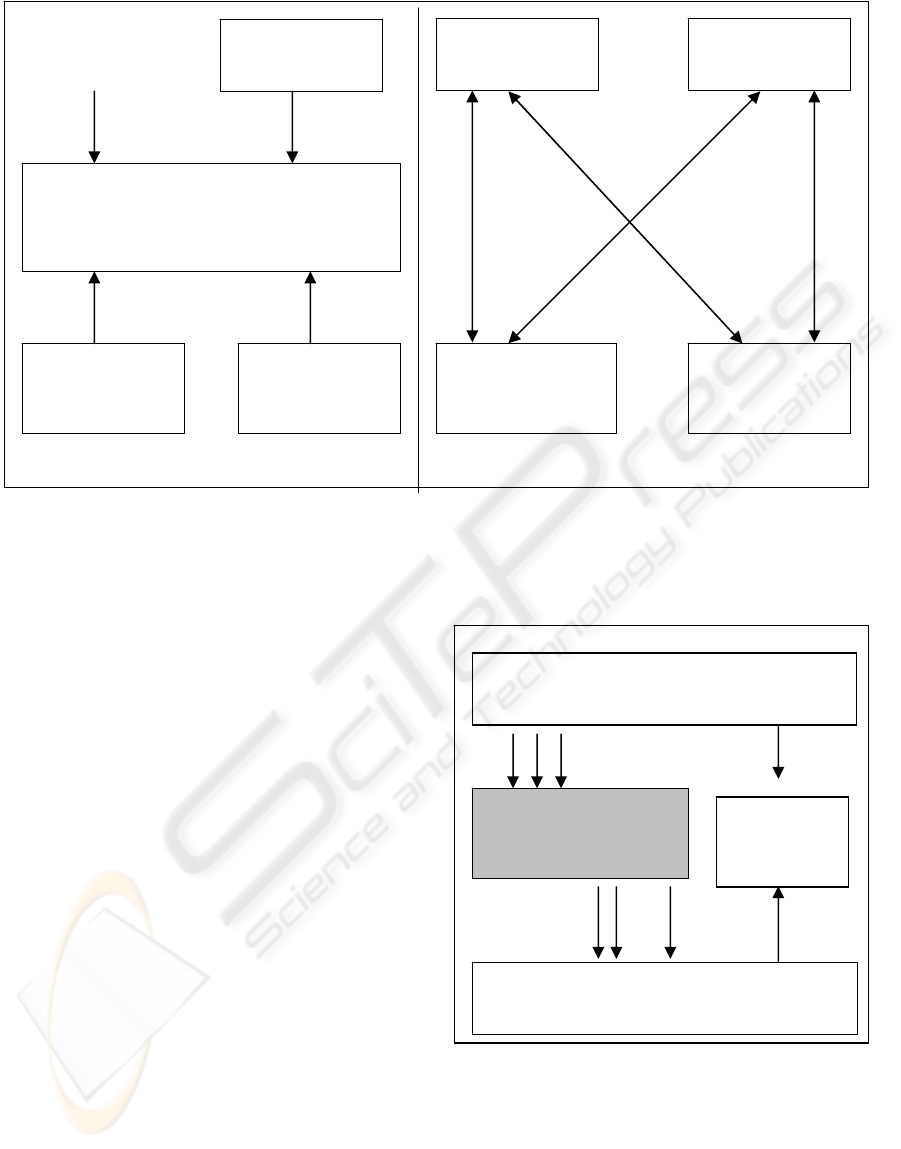

Figure 1: EAI Integration vs Traditional integration, Jinyoul Lee (2003).

Logical Data sets

File?

SQL Direct? Feed

ML? LDAP? COM?

SOURCE SYSTEMS

TARGET SYSTEMS

Calopus

[Data Warehouse

Interface Definition]

Calopus

Presentation

Layer (CPL)

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

202

accessing it via e-forms and workflows, or

transferring the information from a source system to

a target system using an ETL approach. Calopus

supports ETL (Extract/Transform/Load) by

extracting data from a source system, transforming

the data and loading it into a Data Warehouse or

target system. Calopus employs an Interface

Designer graphical tool to facilitate this. Calopus

supports EAI through e-forms, menus and

workflows. Calopus maintains EAI by having a

common interface (Calopus Presentation Layer)

which serves as a bridge between different

applications for system integration. All applications

communicate using this common interface (CPL).

Calopus supports EII (Enterprise Information

Integration) by capturing metadata. Calopus

workflow is a combination of EAI and EII which

helps an organization to easily and visually define

job roles, processes and tasks. Apart from this,

Calopus is a development environment that uses

Meta Data to configure interfaces, workflows, forms

applications, extranets and portals. This means that

as the business changes, Calopus adapts to this

change through its configuration, rather than through

wholesale redevelopment of more application code.

These are illustrated in the following case study.

5 CASE STUDY: BUSINESS

SYSTEM INTEGRATION

WITHIN A LARGE

UNIVERSITY

In nineteen ninety-nine a UK University was

identified that had started a six year rolling

programme to review and replace all its key

corporate systems. The existing systems were a

mixture of bought in solutions and in-house

developments. As part of this programme

application interfacing and integration was clearly

an issue, particularly once the decision was made to

pursue a ‘best of breed’ policy.

5.1 Technical Issues

5.1.1 Earlier Interfacing Strategy at the

University

There was a long-standing policy in the University

that in order to maximise data consistency,

information was entered a minimum number of

times, preferably only once into an ‘owning’ system.

Wherever possible mission critical data was passed

from an owning application to other applications that

needed this information via interfaces. This policy

provides efficiency gains and it was rapidly agreed

that the policy should continue.

The existing strategy had been to hand build

interfaces on a demand model and to use the

knowledge of the in-house systems to leverage

efficient and accurate data exchange. Figure 3

shows the information flows/interfaces for a

University administration system involving Student,

Library, Finance and Marketing System. The

network of interfaces had built up over a number of

years as new systems had been deployed across the

University. It was realized that the existing ad-hoc

interfacing methods could not be used. The

University implementation plan did not have

sufficient time for each existing interface to be

individually reengineered to meet new supply and

demand criteria. A coherent and manageable

solution was required.

5.1.2 Design Constraints

One major problem was the different processing

rules required in each system. Every information

feed seemed to have different requirements in terms

of the information required.

5.1.3 Timely Availability of Information

Many of the interfaces related to student facilities

such as IT suite accounts, library accounts, halls of

residence etc. It was important that as soon as the

student arrived in the University these facilities were

available to them. A major design decision was

whether the interfacing mechanism needed to work

in ‘real time’ or whether the delay imposed by batch

processing was acceptable. This decision was

complicated by the highly variable amount of

activity required by interfaces at different times of

the year.

5.1.4 Disparate Data Destination

The University’s corporate systems run on either

Oracle or SQL Server databases. However the

destinations for interface data are diverse. For

example the student IT authentication is to a Novell

tree, ATHENS is a remote ‘black box’, the student

and staff card system runs Linux. Each application

has its own distinct import mechanism with distinct

data formats and field sizes. The interface

mechanism was required to deal with any necessary

data transposition and output format required.

DATABASES AND INFORMATION SYSTEMS INTEGRATION USING CALOPUS : A CASE STUDY

203

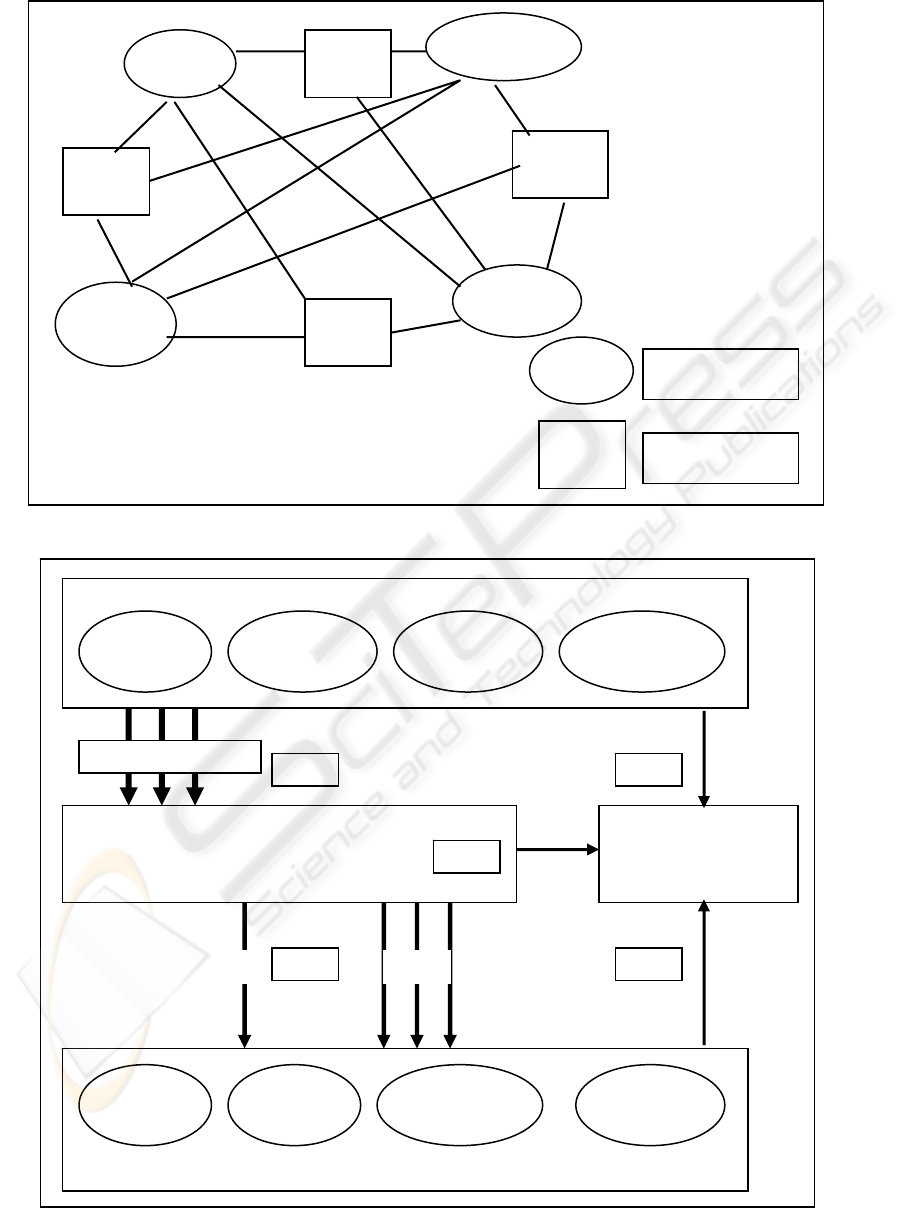

Figure 3: Historic Information flow and interfacing within the University.

Figure 4: Calopus Interfacing Strategy.

Student

Records

Finance

System

Marketing

System

Library

system

Finance

System

Student

Records

Library

System

Marketing

System

Source Syste

Targe

Syste

Source S

stems

Student

Records

Finance

System

Library

System

Other

System

Logical Data Sets

Calopus Data Warehouse

Interface Definition

Calopus

Presentation

Layer

(CPL)

Target Systems

File?

SQL Direct?

XML?

LDAP?

COM?

Feed

Fee

Library

VLE

System

Finance

System

Other

System

ETL

EAI

EII

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

204

5.1.5 Maintaining Consistent Information

Interfaces need to not only provide new information

but also to provide updates to client systems when a

required data item changes.

5.1.6 Develop or Purchase

This decision was principally resource driven. The

University had the staff with the necessary skills to

develop this mechanism. However these staffs were

already committed to other aspects of the

development programme. The Calopus product met

the University’s outline design and supported their

strategic requirements. The University decided to

implement Calopus for the Data Integration with in

the University.

5.2 Calopus Product Overview and

Its Technology

Calopus is a Web SDK built in the PL/SQL

language to enhance the standard features of Oracle

HTTP Server or 9i Application Server. It achieves

this by providing an application layer (missing from

the base Application Server software) with a rich set

of core features on top of which business processes

can be easily and quickly built. Calopus aims to

provide a complete, coherent and secure solution for

all of the “System” requirements of a business

application or portal. When developing an

Application or Portal, the development team does

not need to devote resources to such issues as

Session Management, Role Based Security, Data

Auditing, Menu Systems, Content Management,

Corporate Branding, Display Preferences, Data

Integration or File based data loading.

5.3 Using the Calopus SDK to Solve

the Integration Problems at the

University

To maximize development speed, it was first

decided to adopt a hybrid approach of two possible

strategies. Namely:

• Implement a coordinated sequence of batch

interface jobs across database links using the

job scheduling features within Calopus;

• Implement a coordinated sequence of batch

interface jobs writing the output to file for

subsequent upload to the target systems.

The University already has a number of tried and

tested file upload mechanisms in place at a

significant number of their target systems. It

therefore made sense to utilise these programs and

concentrate on customising a sequence of data

extraction, manipulation and file creation jobs.

Calopus is a PL/SQL system, and therefore can

perform the complete sequence of job scheduling,

Data Selection, Transformation and File Creation

within the same set of stored procedures. It can also

be configured to seamlessly import Data from a

“Flat File” rather than directly by a SELECT

statement. This ability to code the whole solution in

one programming language and within only one

database transaction creates a seamless solution with

little or no platform dependencies.

As time progressed, the University moved towards

more dynamic interfaces and Calopus has been

enhanced to support these changing interfaces. In

order for the University to be able to administer,

configure and further develop their Interface

Solutions, a Calopus Web Extranet Application was

deployed from the structure of the Transformation

Database Schema. This allowed a role secured view

of the interface data and its historical changes and

also any set-up information required by Calopus to

design the interfaces. The Extranet was defined to

operate with different views of the Interface

information for different University departments.

As the interfacing mechanisms were already coded

within the Calopus SDK framework, the

development times and costs of creating more than

ten interconnecting Interface solutions at the

University were greatly reduced in comparison with

a ground up development. Indeed, Calopus allowed

a single skilled Oracle developer to configure each

of all of the University’s interfaces within one

working day of the release of signed off technical

requirements documentation.

While implementing Calopus for the University the

source and targets systems are identified. Figure 4

shows the information flows/interfaces for the

University administration system involving Student,

finance, Library and Marketing system through

Calopus. As can be observed in Figure 4 (For

understanding please compare this with the earlier

Interfacing strategy of University shown in Figure

3), the Calopus Interfacing strategy applies a

common approach for interfacing all systems with in

the University for reducing the system maintenance.

6 RESULTS

The project was initially reviewed post go-live for

the student record system in 2002. A series of

DATABASES AND INFORMATION SYSTEMS INTEGRATION USING CALOPUS : A CASE STUDY

205

informal reviews have followed as other applications

were launched and integrated.

Positive Outcomes:

• Technically the project has been a success and

accurate data is correctly passed between

applications. Best estimates currently are that

about 97% of student records are passed

through the interface mechanism without any

issues.

• The design was correct and the product has

proved robust. Despite some misgivings a

metadata driven model has proved both

practical and efficient.

• The solution was designed to be scalable and its

use has continued to grow as the programme of

rolling replacement of key corporate systems

has continued over the last three and a half

years.

Issues:

• In the first year, the user community was under

prepared for the discipline required for all the

interfaces to trigger correctly. Consequently too

much data was entered but not passed through

the interface either because it failed validation

or was not entered in a timely fashion. This was

addressed by a programme of education and by

the user community experiencing direct and

significant advantages to carrying out the

process correctly.

• The complexities of the interdependencies were

underestimated and a more complete set of

Standard Operating Procedures were required at

both the business and technical level. The

introduction of these has been a long but

successful project with key business processes

now better and more widely understood than at

any previous time.

Overall the project has been a significant success.

Information sharing could not have been as flexible

or as complete without some type of standardised

interface mechanism. Calopus has fulfilled most of

the requirements of the University in this area.

7 CONCLUSION AND PROPOSAL

FOR FUTURE WORK

Database integration plays a very important role in

modern generation for industries. Effective data

integration is an essential requirement for any

organization. Calopus has been a cost effective,

powerful and quick tool for creating dynamic web

applications. It has been found that the development

effort and cost are minimised. Calopus has been

installed and successfully running in eight

universities in U.K.

Flexibility to changing business requirements is key

to providing effective IT solutions that can stand up

to the tests of time. Calopus takes the approach that

business processes should be the key driver for the

functionality that IT systems deliver. The Business

Model has great importance in the current Software

Industry. Calopus supports Business model through

its Enterprise Application Integration (EAI) and

Enterprise Information Integration (EII). This allows

a business analyst to visually define job roles,

processes and tasks in the form of Workflow

Diagrams and at the same time, enhance these

models with application configuration information.

This enhanced model is then interpreted into a

working and fully featured prototype system

automatically by Calopus. As the model changes so

does the prototype in real time. In our experience

and understanding, it is vital for business model to

be visible not only to systems architects, but also to

end users of the system. End users visualize a

system more easily when presented with a working

prototype that they can access, use and change

easily. This prototype should accurately reflect the

business model and change with it.

It may be possible for an end user to understand a

business model enough to say that it truly represents

their business. However, this model is then

interpreted by IT specialists into a working system

or delivered by package selection. Quite often the

clarity of the business model is then lost in the

technicalities of traditional systems development or

some processes are not supported within a selected

package solution. With the Calopus EAI solution,

this does not have to be the case. Continual research

is being carried out on this aspect. The aim is to

create a framework where a business analyst can

produce a fully featured prototype system as the

details of the requirements emerge. The prototype

will be self documenting through its use of designers

and META Data and deployment is instant so that

the requirement can be checked against the

prototype without a “generative” phase- closure

between requirements and prototype is bound to

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

206

follow. Calopus is very close to this aim of creating

the “Model Deployed Application Framework”. The

Calopus data integration product is aiming to

provide more code less environment and at the same

time enhancing the tool with new integration

methods as they arrive.

REFERENCES

Kim W, Seo J (1991) Classifying schematic and data

heterogeneity in multidatabase systems. IEEE

Comput 24(12):12–18

Lim E-P, Srivastava J, Prabhakar S, Richardson J

(1993) Entity identification in database

integration. In: Abstracts of the ninth

international conference on data engineering,

Vienna, pp 294– 301

Ian Gorton,Anna Liu (2004), Architectures and

technologies for Enterprise Application

Integration, National ICT and Microsoft, IEEE,

pp. 726-727, 26th International Conference on

Software Engineering (ICSE'04), 2004.

Surajit Chaudhuri, Umeshwar Dayal(1997), An

Overview of Data Warehousing and OLAP

Technology, Microsoft Research and Hewlett-

Packard Labs, Volume 26 , Issue 1, Pages: 65 -

Jinyoul Lee (2003), Enterprise Integration with ERP

and EAI, Vol.46, No.2, Communications of the

ACM.

John R Friedrich, II (2005), Meta-Data Version And

Configuration Management In Multi-Vendor

Environments, Meta-Integration Technologies,

California

Steve Hawtin, Najib Abusalbi,Lester Bayne (2003),

‘Data Integration: The solution spectrum’,

Schlumberger Information Solutions, Houston,

Texas.

Cortney Claiborne, Darren Cunningham, Davythe

Dicochea, Erin O’Malley, Philip On (2004),

‘Data Integration: The key to effective

Decisions’, MAS Strategies, California

Beth old-Bernstein (2004) ”Enterprise Information

Integration, What was old is New

again”,DMReview, USA, Retrieved September

21, 2005, from ,

http://www.dmreview.com/portals/portal.cfm?to

picId=230290

CoreIntegration (2004), Data Integration, Core

Integration Partners Inc., 2004, Retrieved

September 20,2005 from [

http://www.coreintegration.com/solutions/di.asp]

DATABASES AND INFORMATION SYSTEMS INTEGRATION USING CALOPUS : A CASE STUDY

207
