Multi-modal Categorization of Medical Images Using

Texture-based Symbolic Representations

Filip Florea

, Eugen Barbu

, Alexandrina Rogozan

and Abdelaziz Bensrhair

LITIS Laboratory, INSA de Rouen

LITIS Laboratory, University of Rouen, Avenue de l’Universit

76801 St. Etienne du Rouvray, France

Abstract. Our work is focused on the automatic categorization of medical im-

ages according to their visual content for indexing and retrieval purposes in the

context of the CISMeF health-catalogue. The aim of this study is to assess the

performance of our medical image categorization algorithm according to the im-

age’s modality, anatomic region and view angle. For this purpose we represented

the medical images using texture and statistical features. The high dimensional-

ity led us to transform this representation into a symbolic description, using block

labels obtained after a clustering procedure. A medical image database of 10322

images, representing 33 classes was selected by an experienced radiologist. The

classes are deﬁned considering the images medical modality, anatomical region

and acquisition view angle. An average precision of approximately 83% was ob-

tained using k-NN classiﬁers, and a top performance of 91.19% was attained with

1-NN when categorizing the images with respect to the deﬁned 33 classes. The

performances raise to 93.62% classiﬁcation accuracy when only the modality is

needed. The experiments we present in this paper show that the considered im-

age representation obtains high recognition rates, despite the difﬁcult context of

medical imaging.

1 Introduction

The context of our work is related to the CISMeF project

(French acronym for Catalog

and Index of French-language health resources) [1]. The objective of CISMeF is to

describe and index the main French-language health resources (documents on the web)

to assist the users (i.e. health professionals, students or general public) in their search

for high quality medical information available on the Internet.

Given that the content of the medical images placed in on-line health documents

(e.g. guidelines, teaching material, patient information, and so on) is signiﬁcant for the

CISMeF users, we focus our attention on the development of automatic image cate-

gorization and indexation tools, to facilitate the access to the rich information that the

images are carrying. Contrary to the DICOM format extensively used in PACS (i.e.

Picture Archiving and Communication System), the compressed bitmap formats used

in on-line documents (such as JPEG, PNG or GIF) contain no additional metadata.

The cost of manually annotating these images would be high because the task is time-

consuming and requires advanced domain dependent knowledge.

http://www.cismef.org

Florea F., Barbu E., Rogozan A. and Bensrhair A. (2006).

Multi-modal Categorization of Medical Images Using Texture-based Symbolic Representations.

In 6th International Workshop on Pattern Recognition in Information Systems, pages 48-57

DOI: 10.5220/0002500300480057

 SciTePress

In our context, the medical images are extracted from documents, and thus, we con-

sidered the text-objects related to each image (i.e. image caption, image name and/or

image-related paragraphs) as sources of image information. However, preliminary ex-

periments showed that the automatic mapping between the images and their related

texts is not always possible and the presence of all acquisition parameters (i.e. medical

modality, inspected anatomical region, biological system, organ and view angle) is un-

likely. Therefore, even though this approach is in development, due to its incomplete

nature, it is considered only as a secondary image descriptor.

In this paper we present one of the approaches of MedIC module (Medical Image

Categorization) developed by the CISMeF team to automatically extract the acquisition

modality (e.g. radiography, ultrasound or magnetic resonance imaging), the anatomical

region and the acquisition view-angle of medical images. This information is to be

added to the index of the CISMeF resources containing the images. Thus, our ﬁnal aim

is to allow the users to specify image-related keywords (in addition to the currently used

document-related keywords), when performing queries.

The outline of this paper is as follows. The next section presents some of the related

works. Section 3 describes the image database used and how we created and organize it.

The proposed method is described in Section 4 and experimental results are presented

in Section 5. We conclude the paper and outline perspectives in section 6.

2 Related Work

The majority of the existing medical image representation and categorization/retrieval

systems are dedicated to speciﬁc medical contexts (e.g. a given modality or anatomi-

cal region) [2], and thus use restricted context-dependent methods (i.e. representations,

classiﬁcation schemes or similarity metrics). These systems are rarely accessible via

Internet making impossible their comparison and integration as effective tools to train

medical students or to assist healthcare professionals in the diagnosis stage. However

efforts are being made in organizing image retrieval benchmarks, with the aim of eval-

uating the performances obtained by different systems and approaches [3].

Recently, several studies were presented taking into consideration the categorization

of medical images into modality and anatomical related classes. The IRMA project pro-

poses a general structure for semantic medical image analysis [4], and recently, body-

region categorization results are presented, taking in consideration multiple modalities,

but focusing on X-Rays [5]. On the same dataset, [6] present another classiﬁcation ap-

proach, based on the extraction of random sub-windows from X-Ray images, and their

classiﬁcation with decision trees.

Even though these approaches showed good image categorization performances, the

reported results are mainly focused on a single modality (i.e. X-Ray) and the images

used are directly extracted from hospital teaching ﬁles. Having to deal with a context

open to various medical resources (Internet), our aim was an architecture capable of

dealing with: 1). signiﬁcant image variability (multiple medical modalities, anatomical

regions, acquisition view-angles, variations in image quality, size, compression) and

2). the high dimensionality of an image representation space rich enough to effectively

tackle with this variability.

3 Medical Image Dataset

The image database used for the present experiments consists of 10322 anonymous

images divided in 33 classes. These images are extracted part from the Rouen Uni-

versity Hospital clinical ﬁle and part from web-resources indexed in CISMeF. For the

tests presented in this paper, we considered the main six categories of medical-imaging

modalities: standard angiography (Angio), ultrasonography (US), magnetic resonance

imaging (MRI), standard radiography (RX), computed tomography (CT) and nuclear

scintigraphy (Scinti).

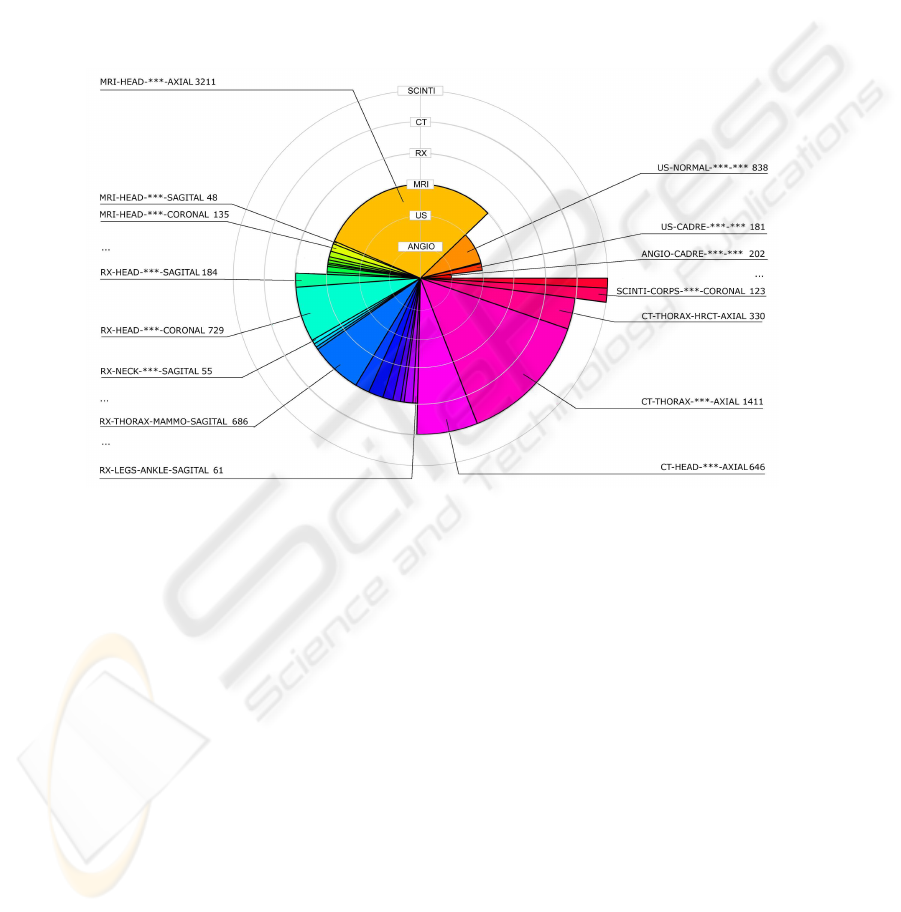

Fig.1. Database composition.

In Fig.1 the six modalities are represented on concentric circles (layers), from the

interior layer that represents the angiography modality, to the exterior one, represent-

ing the scintigraphy. The number of images in each modality is proportional with the

opening angle of its respective slice. The chart is presented in layers for an easier differ-

entiation of the modalities. Already we can easily observe a non-equivalent repartition

between the modalities (e.g. the angiographies and scintigraphies are numbering only a

couple of hundred images, whereas the MRIs, CTs and even RXs are exceeding 2000

images).

For each modality the corpus is further divided in anatomical (e.g. head, thorax,

lower-leg), sub-anatomical regions (e.g. knee, tibia, ankle) and acquisition-views (coro-

nal, axial, sagittal). This hierarchical organization of a medical corpus was already used

in a medical image categorization context [5]. Its main advantage is that it allows a

partition of images according to acquisition and regional criteria, and also the represen-

tation of medical information on an axis from the broadest (the modality) to the most

speciﬁc (the view). In our experiments the considered classes are the ﬁnal leaves of

the organizational tree (Fig.2). Considering this hierarchical data structure, more gen-

eral classes could be deﬁned, at any given node (e.g. RX-lowerleg) by merging all the

sub-classes resulted from that node.

Angio

...

U-sono

RX MRI

HEAD

LEGS

...

ANKLE

KNEE

CORONAL AXIAL

...

MODALITY

ANATOMICAL

REGION

SUB-ANATOMICAL

REGION

VIEW ANGLE

Medical

Information

general

specific

classes

RX - legs - knee - coronal

class

Fig.2. Medical image database organization.

The images present in the database are issued from various sources and thus, were

acquired with different digital or analogical equipments, in different hospital services

in a time span of several years. We note variations in dimension, compression, contrast,

background and textual annotations marked directly on the image. Furthermore, the

images published on the Internet are usually suffering further transformations: resizing,

cropping, high-compression, superposed didactical drawings and annotations. Thus the

intra-class variability (already high due to anatomical and pathological differences) is

increased (Fig.3). The categorization difﬁculty is further increased by the strong inter-

class similarity between some classes (representing different modalities and/or anatom-

ical regions) (Fig.4):

To account for the different characteristics presented by various imaging modalities

and anatomical regions we choose to combine several types of features extracted from

local representations.

4 System Overview

We designed this multi-modal categorization approach as a three stage process: a) the

extraction of different image-feature sets to describe the visual content, b) the descrip-

tion of these features using a symbolic representation to reduce the feature space di-

mensionality, and c) the classiﬁcation of the description vectors into classes.

4.1 Image Scaling and Local Representations

All images were down-scaled to 256×256. Clearly, loosing the image aspect ratio in-

troduces some structural and textural deformations, but from our observations, images

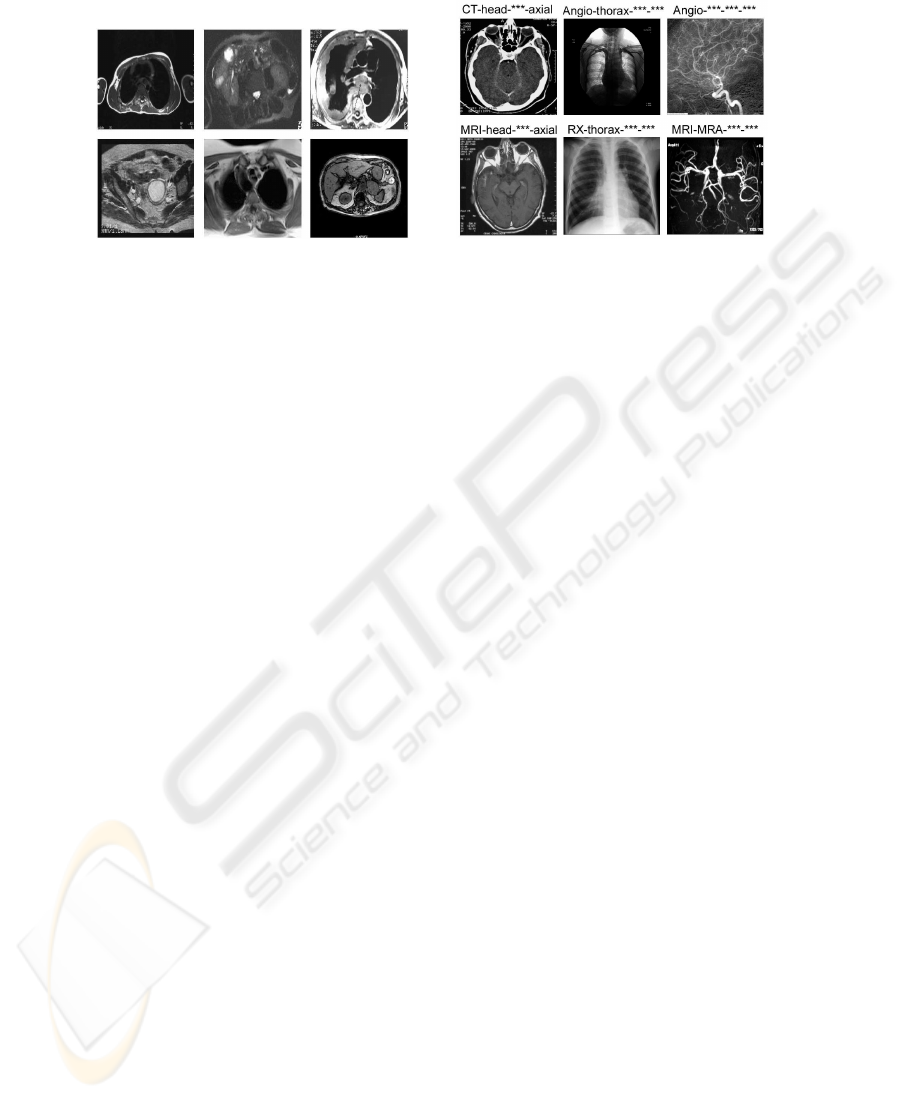

Fig.3. Intra-class variability: ”MRI-

upperbody-thorax-axial”.

Fig.4. Inter-class similarities.

of same category have similar aspect ratios, and ﬁnally will be deformed in the same

way.

As we already mentioned, even through the classes are representing distinct modal-

ities, anatomical regions and/or view-angles, the dataset is presenting signiﬁcant intra-

class variability (Fig.3) and inter-class similarities (Fig.4). In this context, the image

details and the spatial distribution of information inside images are very important to

tackle with these confusions. To accurately capture details and spatial distribution, the

features should be extracted from local representations, previously deﬁned (i.e. seg-

mented). However, relevant medical image segmentation is illusive without a priori

information about images (e.g. the modality and/or the anatomical region; exactly the

information we are trying to extract). Without the possibility of deﬁning local represen-

tations through segmentation, we choose to capture the spatial distribution of features

by extracting them from image sub-windows, deﬁned by splitting the original image

in 16 equal non-overlapping blocks (i.e. of 64×64 pixels). Thus, each image is repre-

sented by a vector of 16 blocks, and from each block features are extracted to describe

its content.

4.2 Feature Extraction

The properties of medical images render some of the most successfully used (i.e. for

image representation) features, like the color, inapplicable. The texture based features

combined with statistic gray-level measures proved to be a well suited global descriptor

for medical images [7].

From the large amount of methods developed for describing texture we extract fea-

tures based on the Harlick’s gray-level co-occurrence matrix (co), the box-counted

fractal dimension (fd) and the Gabor wavelets (gb). In addition we use features de-

rived from gray-level statistic measures (stat): different estimations of the ﬁrst order

(mean, median and mode), second order (variance and l2 norm), third and forth order

moments (skewness and kurtosis).

These representations can be used as individual descriptors or combined. In previ-

ous experiments, using feature selection algorithms, we pointed out the complementar-

ity of these features [8]. Given that the context complexity calls for rich feature repre-

sentations, we exploit the feature complementarity by describing medical images using

all the extracted features.

4.3 Symbolic Representation by Labels

Considering all the features, in all 16 blocks, concerns related to the size of the feature

space are appearing. The large number of features can lead to poor classiﬁer accuracy

(due to what is known as ”the curse of dimensionality”) or slow learning and decision

time.

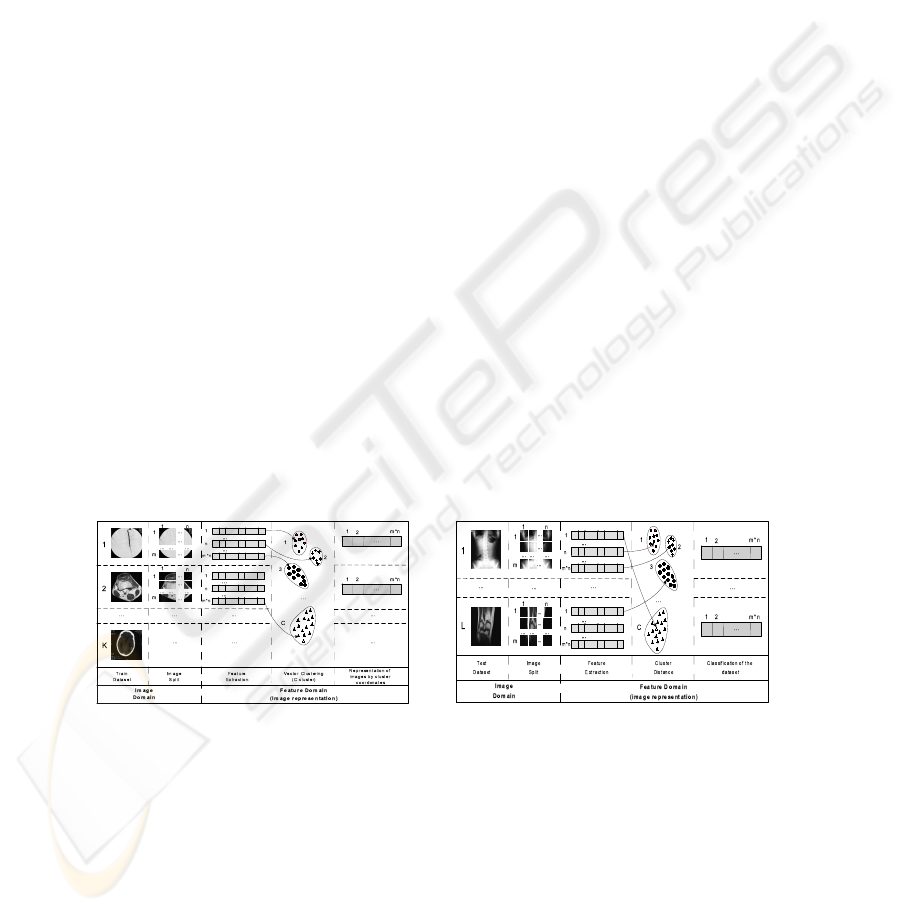

In order to avoid these problems we label the blocks in an unsupervised manner, and

thus obtain an image description as a vector of labels (i.e. we assign a label for every

block using a clustering procedure).

The ﬁrst step is to make a crisp partition of the input data set in a number of clusters

(400 in the results presented here). The algorithm used is CLARA (Clustering Large

Applications) [9]. CLARA ﬁnds representative objects, called medoids, in clusters. It

starts from an initial set of medoids and iteratively replaces one of the medoids by one

of the non-medoids if it improves the total distance of the resulting clustering. In order

to scale to large data sets sampling methods are employed.

The second step is to apply a hierarchical ascendant clustering algorithm, AGNES

(Agglomerative Nesting) [9], on cluster representants, to add more information to the

ﬁrst results. AGNES use the Single-Link method applied on a dissimilarity matrix and

merge nodes that have the least dissimilarity in a non-descending fashion.

The hierarchy obtained in the second step is cut in our application at four different

levels (C = 100, 200, 300 and 400 clusters). Every block of the initial image can be

thus described by a maximum of four labels, leading to 16×4=64 characteristics for

the initial image. Using more than one label for a block conducts to a more detailed

multi-scale description of the distances between clusters.

Fig.5. System architecture - Training. Fig.6. System Architecture - Test.

In Fig. 5 we consider a training set of K images, and the partition of each image in

m×n blocks (4×4 in the experiments presented in this paper). After the image feature

representation and the clustering of the image blocks, each initial image will be repre-

sented by maximum m×n×4 (i.e. 64 in this paper) symbolic labels. In the recognition

stage, each block is labeled using the label of the nearest cluster (Fig. 6).

4.4 Classiﬁcation

The next step is the classiﬁcation of images using this representation. We use labeled

clusters coming from the training images (with the associated class) to classify the test

images. A k-Nearest Neighbour classiﬁer was employed, using the ﬁrst (1-NN), the

ﬁrst three (3-NN) and the ﬁrst ﬁve (5-NN) neighbours (weighted by distance). This

classiﬁer has the advantage to be very fast (compared to more complex classiﬁers) and

still accurate. For computing distances between nominal representations we used VDM

(i.e. Value Difference Metric), a metrics introduced by [10] to evaluate the similarity

between symbolic (nominal) features more precisely.

The principle of the VDM metric is, that two symbols w = x

and z = x

of a

nominal input x

are closer to each other, if the conditional probabilities P (y = s|x

w) and P (y = s|x

= z) are similar for the different possible output classes s. A

simpliﬁed VDM metric can be calculated as:

s=1

|P (y = s|x

= w) − P (y = s|x

= z)| =

s=1

w,s

−

z,s

) is the number of data tuples, for which the input x

has as value w (z).

w,s

z,s

) corresponds to the number of data tuples, for which additionally the output

has the symbol class s.

The image database was partitioned into training/test datasets, and the classiﬁcation

accuracy was evaluated using a 10-fold stratiﬁed cross-validation scheme.

5 Results

The results, in term of classiﬁcation accuracy, are presented in the Table 1. The table

shows the performances of the considered descriptors, individually and combined, when

all the 33 deﬁned classes are taken into consideration.

The variations between the results obtained with each of the feature sets are never

more than 15%. The best classiﬁcation results are obtained with the 4-level symbolic

representation of statistic and texture (stat+texture) feature-set and 1-NN - 91.19%

of classiﬁcation accuracy. This feature set is composed of 16 co-occurrence (co) fea-

tures (4 features: energy, entropy, contrast and homogeneity, on 4 co-occurrence ma-

trixes, one on each direction: horizontal, vertical and diagonals), one fractal dimension

(fd), 24 Gabor (gb) wavelets features (2 measures on each of the 12 Gabor ﬁlter out-

puts; the 12 ﬁlters are obtained using a decomposition of λ = 3 scales and φ = 4

orientations) and the 7 statistic measures (stat). This adds to 48 features on each

of the 16 blocks, which ﬁnally produces a 768 feature representation vector for each

image.

Combining symbolic representations at all four levels (i.e. 100 clusters .. 400 clus-

ters) produces better results but the gain is not substantial (up to 2%). Furthermore

the differences between representations using 100 clusters and 400 clusters are rarely

bigger than 4%. This indicates that the proposed symbolic representation captures sim-

ilar image information at different levels, and thus joining the representation vectors

Table 1. Categorization Results.

100 clusters 200 clusters 300 clusters 400 clusters 100+. . .+400 clust.

features\dim (1×16) (1×16) (1×16) (1×16) (4×16)=64 classif

80,99 84,32 84,31 84,47 86,75 1-NN

co 77,86 80,49 81,17 81,29 83,79 3-NN

76,53 78,95 79,35 78,64 83,62 5-NN

82.73 84.96 85.84 86.72 87.54 1-NN

gb 79.13 81.42 82.30 83.80 84.50 3-NN

76.15 79.21 80.09 81.86 83.60 5-NN

85.54 86.01 86.28 87.79 88.01 1-NN

co+gb 82.52 82.87 83.04 85.23 85.31 3-NN

80.30 80.72 81.05 83.72 84.58 5-NN

84.13 85.70 86.46 88.10 88.56 1-NN

texture 80.45 81.99 83.92 85.59 85.97 3-NN

(co+gb+fd) 77.74 79.06 82.11 83.99 85.37 5-NN

86.99 88.13 89.08 90.12 90.33 1-NN

stat+ 84.16 85.07 85.94 87.49 87.79 3-NN

texture 82.11 83.30 84.11 85.91 87.26 5-NN

will only increase the ﬁnal feature-space dimensionality and not the features capacity

of representing the images. The 1-NN is always the best choice with all the feature

combinations and number of clusters.

An 9.67% error rate (91.19% of classiﬁcation accuracy) means that 998 images were

misclassiﬁed. Upon inspection of the resulted classiﬁcation confusion matrix (Fig.7(a))

we observed that indeed the majority of the confusions were made between classes with

high visual similarity (see examples at section 3).

Furthermore, a signiﬁcant number of confusions are made between classes rep-

resenting the same modality. This led us to a second experiment were we assessed

the performance of accurately extracting the modality, by merging all the classes de-

rived from a modality node (like in Fig.2). Using the 4-level symbolic representation of

stat+texture feature-set and 1-NN classiﬁer, we obtained an error rate of 6.38%

(93,62% accuracy) for the six modalities, having 9664 images correctly classiﬁed and

658 miss-classiﬁed. In the confusion matrix presented in Table 7(b) we can observe

how the 658 confusions are spread between modalities. Here, we can also note the good

recognition rates of the scintigraphy class (98.57% accuracy), an expected result con-

sidering its compactness (low intra-class variability) and visually dissimilarity from the

rest of the modalities.

For comparison, we used Principal Component Analysis (i.e. PCA) to reduce the

feature space dimensionality and obtained similar (yet sightly superior) results, but us-

ing a superior number of features (i.e. 113, compared to our 16 or even 64). The main

advantage is that compared to PCA, the output of the proposed method is still rep-

resenting the image spatial distribution, allowing further spatial-dependent processing

(considering, for example, only the central blocks).

Using the entire stat+texture feature vector (768 features = 48 features × 16

image sub-blocks) and the 1-NN classiﬁer, the classiﬁcation performances are slightly

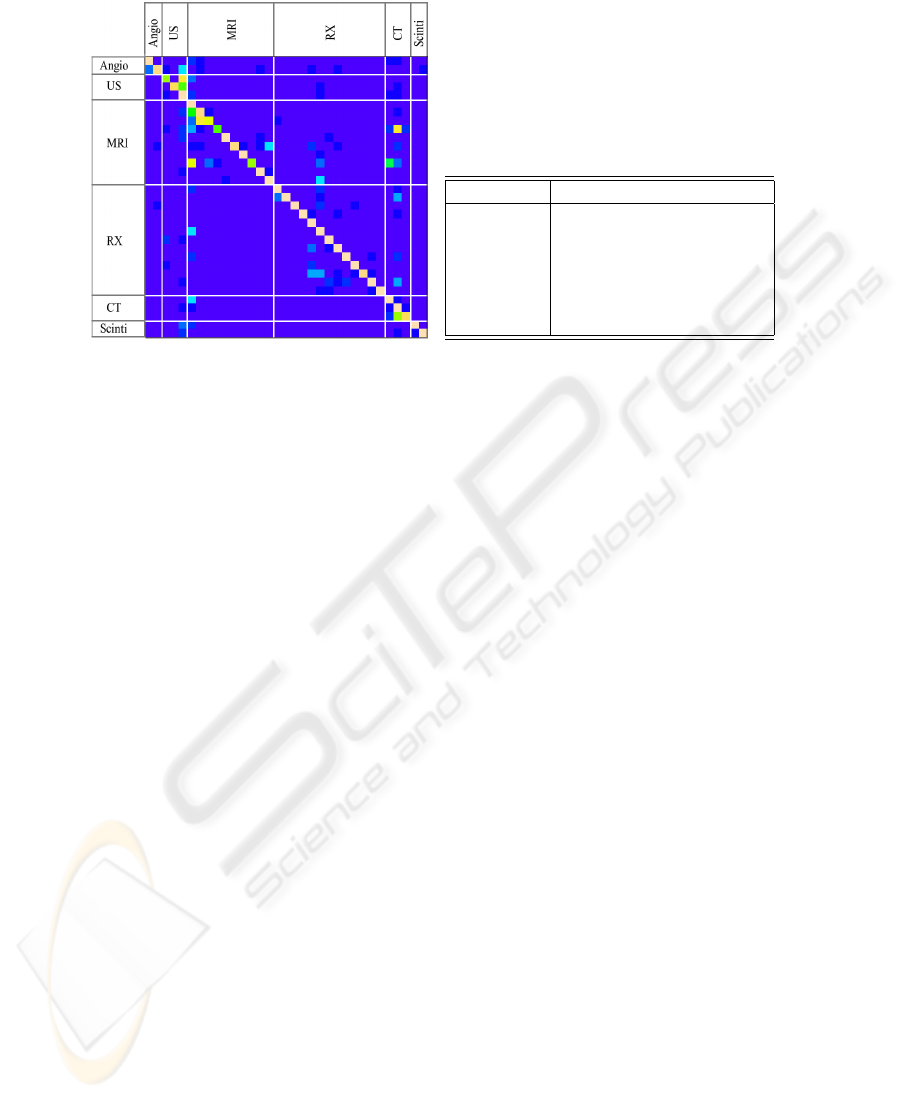

(a) Heatmap Representation of the 33 class

Confusion Matrix

a b c d e f

a= Angio-*** 235 2 3 23 4 13

b= US-*** 2 918 68 25 35 0

c= MRI-*** 4 43 3647 25 86 1

d= RX-*** 11 57 55 2431 28 8

e= CT-*** 4 25 84 7 2267 1

f= Scinti-*** 0 0 0 2 1 207

(b) Modality detection (6 class) confusion

matrix

Fig.7. Confusion Matrices.

superior (∼2-5%), but the classiﬁcation time rises dramatically. Thus, this method is

providing a signiﬁcant representation space dimensionality reduction (from the initial

768 features of the stat+texture feature vector, we obtain a vector of only 16

elements using 400 clusters; almost 50 times smaller).

6 Conclusion

We presented a medical image categorization approach in the context of CISMeF health-

catalogue. This application is important because it will add to the catalogue, the ca-

pability to formulate queries specifying image-related keywords, and thus, to retrieve

health-resources by the images they contain. We pointed out the difﬁculties of the con-

text, and we showed that even with these, our approach to describe and classify the

images, obtains good results.

The suggested method is close to VQ (Vector Quantiﬁcation), where the blocks of

pixels are labeled with the indexes of the prototype blocks [11]. The VQ prototype

blocks are obtained minimizing the QME (i.e. Quadratic Mean Error) between the orig-

inal images and the VQ representation. In our case, the similarity is evaluated in a repre-

sentation space adapted to our categorization task (using texture and high-order statistic

features). We are considering a comparative experimentation of the two approaches.

In future work, we plan to add other features and classiﬁers to this architecture

aiming at improving these results. We previously showed that the textual annotations

marked directly on the images are containing reliable indicators of the medical modality

[12]. Taking into consideration this information as well as the decisions extracted upon

interpretation of image related paragraphs should allow us to enrich the MedIC module

to better assist the automatic indexing CISMeF heath-resources.

References

1. Darmoni, S., Leroy, J., Thirion, B., Baudic, F., Douy

ere, M., Piot, J.: Cismef: a structured

health resource guide. Meth Inf Med 39 (2000) 30–35

2. Liu, Y., Teverovskiy, L., Carmichael, O., Kikins, R., Shenton, et al.: Discriminative mr image

feature analysis for automatic schizophrenia and alzheimer’s disease classiﬁcation. In: Proc.

of MICCAI’04. (2004) 393–401

3. Clough, P., Mu

eller, H., Deselaers, T., Grubinger, M., Lehmann, T., Jensen, J., Hersh, W.: The

clef 2005 cross-language image retrieval track. In: Working Notes of the CLEF Workshop,

Vienna, Austria (2005)

4. Lehmann, T.M., G

uld, M.O., Thies, C., Fischer, B., Keysers, M., Kohnen, D., Schubert, H.,

Wein, B.B.: Content-based image retrieval in medical applications for picture archiving and

communication systems. In Proceedings of Medical Imaging. 5033, San Diego, California

(2003) 440–451

5. G

uld, M., Keysers, D., Deselaers, T., Leisten, M., Schubert, H., Ney, N., Lehmann, T.: Com-

parison of global features for categorization of medical images. In: Proceedings SPIE 2004.

Volume 5371. (2004)

6. Mar

ee, R., Geurts, P., Piater, J., Wehenkel, L.: Biomedical image classiﬁcation with ran-

dom subwindows and decision trees. In: Proc. ICCV workshop on Computer Vision for

Biomedical Image Applications. Volume 3765. (2005) 220–229

7. Florea, F., Rogozan, A., Bensrhair, A., Darmoni, S.: Medical image retrieval by content and

keyword in an on-line health-catalogue context. In: Computer Vision/Computer Graphics

Collaboration Techniques and Applications, INRIA Rocquencourt, France (2005) 229–236

8. Florea, F., Rogozan, A., Bensrhair, A., Darmoni, S.: Comparison of feature-selection and

classiﬁcation techniques for medical image modality categorization. In: accepted at 10th

IEEE OPTIM2006, SS Technical and Medical Applications, Brasov, Romania (2006)

9. Kaufman, L.: Finding groups in data: an introduction to cluster analysis. In: Finding Groups

in Data: An Introduction to Cluster Analysis. Wiley, New York (1990)

10. Stanﬁll, C., Waltz, D.: Toward memory based reasoning. Communications of the ACM 29

(1986) 1213–1228

11. Gersho, A., Gray, M.: Vector quantization and signal compression. Kluwer Academic Pub-

lishers, Boston (1992)

12. Florea, F., Rogozan, A., Bensrhair, A., Dacher, J.N., Darmoni, S.: Modality categorisation

by textual annotations interpretation in medical imaging. In et al., R.E., ed.: Connecting

Medical Informatics and Bio-Informatics. (2005) 1270–1275
