Using Multi-Agent Systems for Change Management

Processes in the Context of Distributed Software

Development Processes

Kolja Markwardt, Daniel Moldt, Sven Offermann and Christine Reese

Department of Informatics, University of Hamburg, Germany

Abstract. Today software engineering is facing the problem of the development

of distributed software systems. Due to distribution these systems inherit speciﬁc

problems that need to be tackled during the development. Our approach to handle

the problem is to provide an integrated development environment that is based on

clear and powerful concepts and which allows to structure a system in a domain-

oriented way. As the conceptual basis we apply agent-oriented Petri nets. For the

practical part of the control of such applications we use agent-based workﬂow

management system (WFMS) technology. In this paper we illustrate for Change

Management, as an important part of the development process, how to apply our

approach.

1 Introduction

Large-scale software projects today are concerned with the development of distributed

software products. Additionally through globalisation and business process outsourcing

within the software industry, development activities as well are more and more distrib-

uted between different organisations and even geographically.

Therefore, the development of software is in itself a process that can and should be

supported by distributed software systems. Our intention is to provide the concepts and

tools for distributed software development environments.

As the conceptual background we use object-based, high-level Petri nets called ref-

erence nets (see [5]). To impose structures and patterns on our models we use the agent

paradigm (see [4]). A basic practical platform for such systems is a Multi-Agent System

based workﬂow management system (WFMS) as described in [10]. Important contri-

butions here are to build our approach on the integration of reference nets to ensure true

concurrency and to impose a structure on multi-agent based systems by workﬂow con-

cepts as the main structuring mechanism. To explain the background for the application

of our approach we will shortly introduce this system and describe how it can be used

as a basis for the development of new applications.

Ultimately the goal of this development is the aforementioned development environ-

ment. As a ﬁrst case study we focus on one aspect of distributed software development,

the ﬁeld of Change Management (CM). This is a central ﬁeld of interest in the software

life-cycle, it involves different parties and should be handled in a well structured and

reproducible way to minimise the danger of introducing new problems in the process.

Markwardt K., Moldt D., Offermann S. and Reese C. (2006).

Using Multi-Agent Systems for Change Management Processes in the Context of Distributed Software Development Processes.

In Proceedings of the 1st International Workshop on Technologies for Collaborative Business Process Management, pages 33-41

 SciTePress

For these reasons it is a good example for an inherently process-based, distributed ap-

plication that can be coordinated by a WFMS.

Section 2 introduces the WFMS we built, the technical background and the way,

applications can be built on top of a WFMS. Section 4 focuses on the actual Change

Management application, deﬁning the term Change Management as it is used here and

showing the development of a process-based application based on a domain-speciﬁc

problem formulation.

2 Description of the Distributed WFMS

First we will describe the technical foundations, on which the system is built, quickly

introducing reference nets, our Multi-Agent System platform CAPA and then describing

the WFMS built on top of it.

Reference nets. Reference nets are a higher level Petri net formalism. Petri nets allow

a formal speciﬁcation of processes with a graphical representation which is especially

well suited to express concurrency and independency. Coloured Petri nets allow com-

plex tokens and an expressive inscription language, using objects and method calls in

some other programming language. Reference nets add the concept of net instances, the

concept of synchronous channels and the concept of nets within nets while providing a

tight integration with Java (as an inscription language).

Net instances have a similar relation to net templates as objects to classes. Syn-

chronous channels allow the bidirectional information exchange (like tokens) between

two or more transitions in one or more net instances. The applied transitions are syn-

chronised and ﬁre atomically as one merged transition would ﬁre. Nets within nets is

a concept that allows to hold (a reference to) a net instance as a token on a place. This

allows to model complex systems as parts that are contained in each other. Synchro-

nisation and information exchange happens vertically through synchronous channels.

Reference nets are used for many years as a modelling language and as a programming

language in different settings.

The CAPA Agent Platform. Using reference nets and Java we implemented a standards-

compliant agent platform called CAPA. CAPA is modelled in layers: The agent platform

provides basic services like sending and receiving messages using standard-compliant

communication channels like HTTP, the agents on the second level are contained within

the platform. An agent contains some nets on the third layer which make up the agent’s

behaviour, i.e. a knowledge base and protocol nets. The knowledge base provides process-

ing intelligence held in a decision component besides knowledge in the form of keys

and Java objects. Protocol nets are workﬂow-like speciﬁcations of sub-processes. Pro-

tocol nets are instantiated either in response to a received message or proactively.

Distributed WFMS. Using reference nets and CAPA we developed a distributed work-

ﬂow management system (WFMS) presented in [10]. A distributed system, as assumed

here, is made up of several local systems which are combined to build a virtual system

on top of them. Our system architecture is illustrated in Figure 1. It implies that an appli-

AMS

On top of this: A distributed, complex and interorganisational application.

HTTP

WFMS

HTTP

...

... ...

...

Application

WFMS

WFMSWFMSWFMS

Computer 1

Computer 2 Computer 4

Computer 3

Platform

CAPACAPA

All WFMS agents in the intranet form a distributed

WFMS

All WFMS agents in the intranet form a distributed

Communicating WFMS agents on this level form a logical distributed interorganisational

multi level workflow management system.

Multilevel-WFMS

WFMS

Fig.1. Infrastructure as provided by the distributed WFMS.

cation such as a Change Management system is built on top of this virtual WFMS. The

local WFMS can be implemented with reference nets as we have shown in [3]. Other

implementations just have to fulﬁl the APIs. In our own environment we use an agent-

based implementation of this WFMS, which enhanced the old version by the features

of multi-agent based systems (MAS). Each WFMS agent is composed of inner agents.

The inner agents encapsulate the functionality and the outer one bundles their function-

ality. Different WFMS agents are combined and represented by another WFMS agent

one level higher. On top of this infrastructure, a distributed application can operate.

This described local WFMS can be used in a distributed environment because it

provides the agent interface and thus receives asynchronous messages via the Internet.

It can also be distributed by migrating the participating agents to other workﬂow man-

agement system platform agents. In the following this is especially interesting for our

concept of Task Agents which bridge between WFMS-internal agents and application-

speciﬁc or User Agents. A further possibility for distribution is to integrate several

such local systems into a distributed one using an agent for remote communication.

The whole distributed system works then like one workﬂow management service. Fig-

ure 1) gives an overview of the described infrastructure: the communication channel at

the bottom is provided by CAPA. For CAPA, the platform agents are shown (directory

facilitator (DF), agent management system (AMS) and the platform agent itself). The

WFMS agent is a platform agent itself, containing nested agents as described above

what is not detailed in the ﬁgure.

3 Building Applications

On top of the WFMS it is possible to build process-based, distributed applications.

These applications use the WFMS as an engine to execute a workﬂow process def-

inition. The application consists of several different aspects deﬁned according to the

application domain. Standard means of capturing these aspects like UML or BPEL can

be used to gather the requirements which are then translated into the corresponding as-

pects of the Multi-Agent System. In [10] the tool set which can be used in our actual

running environment is described.

In whole, the deﬁnition of a new application consists of the roles and agents that

execute the process, the domain objects used, the client applications invoked in the

process, the workﬂow process and other, non process-related aspects.

Roles. An important step in designing an application is to decide which types of users,

or roles, will be working with it. This information can be drawn from use case diagrams

and makes up the roles in the process deﬁnition later on.

Domain Objects. The business objects needed in an application are usually modelled

using methods like use cases and scenarios. For the use of these objects in a Multi-

Agent System a common ontology needs to be deﬁned so that all parties involved can

share a common vocabulary of concepts.

For the deﬁnition of this ontology, the tool Protégé [9] can be used. Our custom

plug-in for Protégé then provides the generation of Java classes that can be used in

FIPA-compliant ACL-messages between agents because they include application spe-

ciﬁc agent message handling methods.

Client Applications. Each step in the process requires some agent to execute a certain

step to handle a task. Some tasks can be executed without user interaction, these are

called automatic tasks and can be provided by specialised agents within the Multi-Agent

System or via a Webservice gateway (see [7]). Client interaction tasks require a human

user to interact with the system and execute some kind of client application. These

types of interaction can be standard tasks that are reusable among different processes

or special tasks custom programmed as agents of their own.

Users access the system via a User Agent. It presents the worklist to the user and

allows them to choose activities and execute them. When a user requests to execute

an activity, he receives a description of the task at hand. This consists of the type of

client application and usually associated data. A number of standard tasks are already

implemented in a special User Agent concept, while more complex client applications

can be deployed as specialised Tool Agents [6], such as the Task Agents mentioned

above.

Standard Tasks For simple tasks that occur frequently in different processes, task han-

dlers are already implemented in the User Agent and can be used immediately. The

most important ones are:

– Simple Conﬁrmation Task: No action in the system needs to be taken by the user.

Instead with this task, the user signals the completion of an activity outside the

scope of the application. No data needs to be exchanged.

– Choice Task: Similar to the Simple Conﬁrmation, this task is used to get a single

decision from a user that determines the the further control ﬂow of the process.

– Form Task: Many types of user interaction can be broken down into ﬁlling out

forms, so this client application allows the presentation of a form to the user to

gather information in a formalised way. To describe the layout of the form and the

data to be entered a special form ontology is used.

Task Agents If these standardised tasks are not sufﬁcient to model the interaction

needed, a specialised Task Agent can be deployed that enhances the capabilities of

the User Agent. The Task Agent is created on the agent platform of the WFMS and

migrated to the platform of the User Agent if necessary.[6]

Once the Task Agent is located in the same Java VM as the User Agent, Java object

references can be used to plug into the User Agents interface. A Task Agent can give

instant feedback to the user about data entered and check certain conditions before

reconnecting to the server and trying to complete the activity. For more complex client

interaction this is therefore the preferred way.

Workﬂow Process Deﬁnition. Since both, the WFMS as well as the underlying Multi-

Agent System, are implemented using Petri Nets as an implementation language, it is

an obvious choice to use a Petri Net formalism for the process deﬁnition as well.

The workﬂow engine used supports special task transitions that bear inscriptions de-

noting the type of task to execute, the rules for picking resources to execute the task and

parameters that can be passed around as tokens within the net. Transitions begin to ﬁre

when the execution of a task starts. They can restore the removed tokens if the execu-

tion is not successful (rollback functionality), as described detailed in [3]. This section

has shown the way in which process-based applications can be developed based on our

framework. It has of course not been able to demonstrate all aspects of developing a

complete application. Even in an application that is heavily process-oriented, there will

always be parts that are independent of the current process. For example users might

want to check data which is not part of a process they are currently working on. These

aspects must still be taken care of in extension to our approach. For further discussions

of software development based on agent-oriented Petri nets see e.g. [11].

4 Case Study - Change Management

This section describes the development of an application for Change Management ac-

cording to the principles laid out in Section 3. First the concept of Change Management

is introduced and its position within the software life-cycle. Then the requirements for

a real world sized CM application are outlined, as we see it in the bigger context of

distributed software development.

Afterwards the design and implementation of a simpler application is shown to point

out the procedure for the development. Finally some notes will be made on how to

further develop the system according to real world requirements.

4.1 Change Management

In a productive environment the requirements an application needs to fulﬁl can change

very frequently and make adaptations necessary. This applies to software, organisation

and hardware changes, however, we will focus on software changes.

These adaptations unfortunately can introduce new problems into the software,

therefore great care needs to be taken to devise the change process as reliable and re-

producible as possible to minimise these risks. The IT Infrastructure Library (ITIL [8])

classiﬁes Change Management as a part of service support activities. The main goal is

to ensure effective and on-time implementation of changes. One way to achieve this in a

transparent way is to use computer supported systems for Change Management. These

systems need to be distributed to support the coordination of the different involved par-

ties. CM is a central process for anyone dealing with software development (see [1]).

The challenge here is to support CM in a distributed environment. Our solution which

will be discussed here will be based on the use of a MAS-based system to support the

requirements of adaptability and ﬂexibility of such processes.

4.2 CM Application in Software Development

Change Management requires the coordination of the different stake holders in the ap-

plication from the ﬁrst notion of a deﬁciency in the software to the ﬁnal implementation

of a solution. This process in a way mirrors the original software development process

and therefore can be as diverse as software development process models. So it needs to

be customised to the individual needs. The process described in the following is based

on the actual process used for a medium sized web application in the B2B environment.

CM Process. The process can be broken down into three phases: Assessment, realisa-

tion and implementation. During the assessment phase a proposed change is classiﬁed

with the impact on the existing system, priority, beneﬁt etc. by the department(s) using

the software or the IT coordination department. If the change seems to be worthwhile,

the developer is asked for an offer on the realisation of that change. If that offer is

acceptable the change is authorised for realisation.

Realisation of the change is then given to the developer. It could be broken down

into several tasks based on the organisation of the developer, on the software and the

type of change. Once the realisation is done, the task of testing it is given to the client or-

ganisation. If the test is not successful, the developer has to remedy this until acceptance

can be reached. Finally the changed software needs to be deployed to the production

environment.

Roles. The roles as much as the process reﬂect the organisational conditions in which

the system is used. Again, a sample set of roles is described here, that usually are in-

volved in the CM process.

On the client side there is a number of people that can enter new Change Re-

quests (CR) based on user feedback or their own experience with the system under

consideration. A change manager categorises the CRs and supervises the CM process.

To determine concepts usually is also a task of the change manager. The change advi-

sory board (a committee proposed by ITIL to decide on changes [8]) gives authorisation

to perform a change and can thus be integrated into the system as well. Finally, the role

of a tester needs to be ﬁlled.

The service provider needs roles for submitting offers and another role for the actual

realisation of a change. Additionally a role for internal testing can be added. Implemen-

tation of the changed software onto the operating system can be performed by the client

organisation itself, the developing company or another service provider, depending on

the conﬁguration given.

The mapping of roles to users is done via an administrative interface not covered

here, the actual decision which users to present a certain work item is based on rules

deﬁned with the tasks.

Business Objects. The central object in a CM system is the change request (CR). It

holds all information regarding a certain change and is the base for all tasks in the

process.

A CR object holds a) basic information like title and description, b) classiﬁcation

like priority, type, and severity, and c) additional information gathered throughout the

process, like comments by the users involved, associated documents etc.

Which information exactly is needed here depends very much on the organisation

using the system, since some of this information might concern organisational speciﬁcs

like the integration with an ERP system. Some information might also be only accessi-

ble to certain types of users, like rating and billing information.

4.3 Developing an Example Application

The organisational environment in which Change Management occurs, can be very di-

verse. Therefore one CM process that ﬁts everyone does not exist. In the last section

we have described a CM application that might be used in a production context, to keep

things simple however, a smaller, simpler example will be presented here.

CM Process. The example application for Change Management is realised as a basic

prototype, the structure of the agent-based WFMS allows easily adding further com-

plexity as needed later. Therefore the used workﬂow is initially very simple.

The user of a software product detects some issue in this software he thinks should

be resolved. He starts a new instance of the workﬂow and enters the basic data of the

change. Once that task is ﬁnished, the workﬂow continues to the developer who gets

the task of resolving the issue. Once that is done, the ﬁrst user is notiﬁed again of the

resolving and the workﬂow completes.

Roles. The process contains only a small number of roles, the customer, developer and

the IT department. As tasks get more reﬁned also new roles can be deﬁned, for example

representatives from the departments using the software, IT coordination or the change

advisory board in the subprocess of generating the requirements of a change.

Ontology. For the example the CR object needs only a couple of ﬁelds, this has to be

enhanced for any real life applications of course. But for now, the CR object can be

limited to the ﬁelds: CR-Id, title, description, severity and CR-type. Severity and CR-

type can be implemented as types of their own to limit the possibilities here and provide

some common values to refer to.

Client Applications. For the simple example here, no new client applications have

been deﬁned. Instead the existing standard applications can be used to model all aspects

needed here. Figure 2 shows a form task in execution. The deﬁnition of the form is

done using the standard form ontology, which describes the elements of the form. The

mapping of form elements to information in the CM ontology is done by the WFMS

Agent.

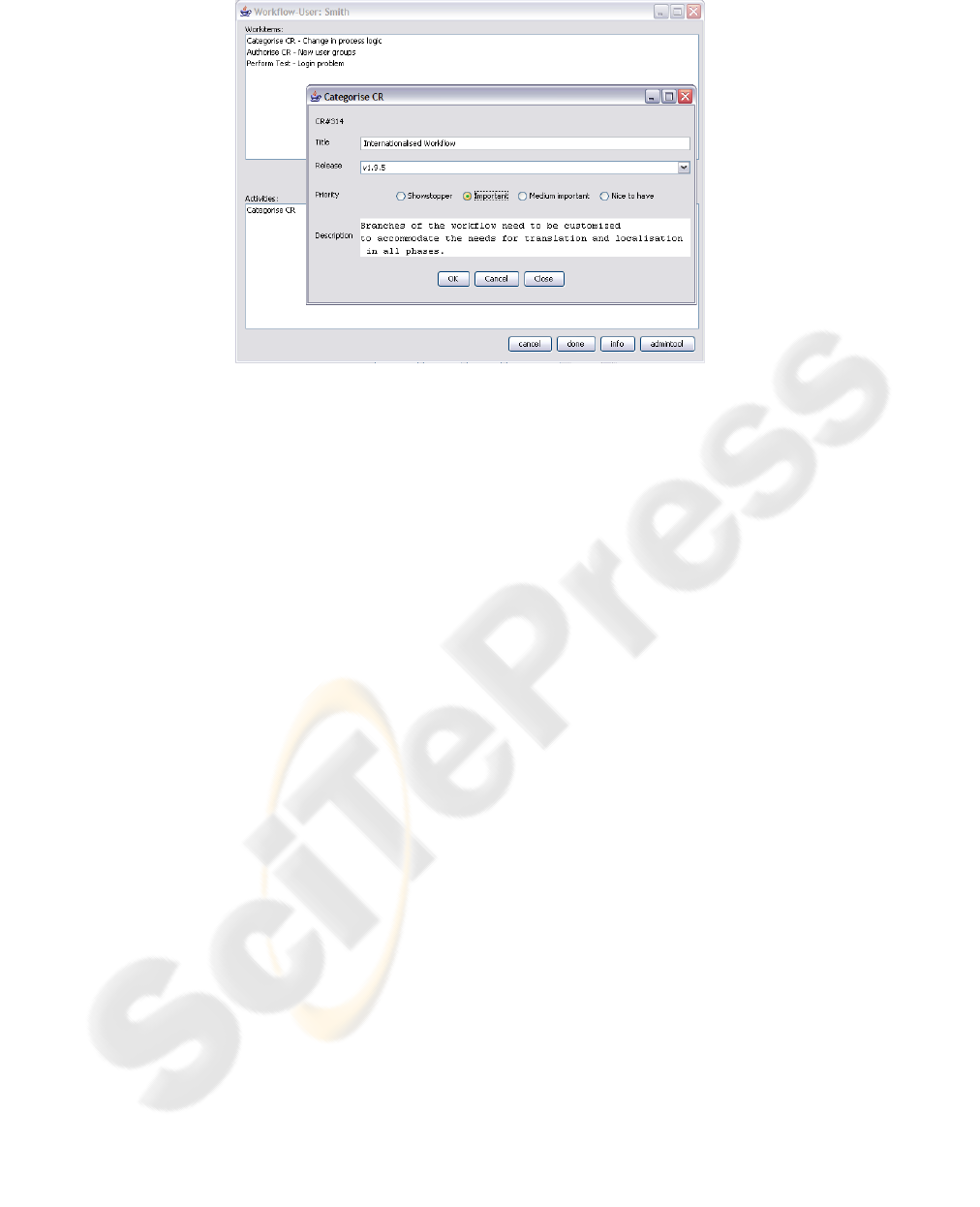

Fig.2. The personal agenda of one user with a form task.

4.4 Building on the Example

As stated above, each organisation has their own requirements towards a CM system.

Therefore one of the most important criteria to measure against is the ﬂexibility and

the ease of adaptation to different requirements. It has been shown how a sample CM

application could look like. In the following we sketch how to adapt such a system to

the speciﬁc needs of another organisation.

Each of the tasks in the process deﬁnition could be further reﬁned, introducing new

activities and more complex processes with choices, iterations and concurrent tasks. It

is even possible to fragment the workﬂow onto different WF engines (see [2]).

Process Deﬁnition. The ﬁrst aspect to focus on is the CM process needed for the

organisation. Process deﬁnitions can be edited with the workﬂow plug-in of the Renew

tool and uploaded to the workﬂow deﬁnition agent, if the user has the appropriate rights.

Roles. New roles to use in workﬂow processes can be deﬁned using the administra-

tion interface of the User Agent. Special protocols exist that make these known to the

administration agent.

Client Applications. For more complex applications it will not be sufﬁcient to just use

simple tasks like those shown in the example. New client applications can be developed

as Task Agents[6] and deployed onto the running platform. Once they are made known

to the directory service, they can be used in process deﬁnitions.

5 Conclusion

In this paper we have presented a Multi-Agent System based WFMS as a framework

for the development of process-based applications. The procedure for this kind of de-

velopment has been shown on the example of a Change Management system.

The general goal of a distributed software development environment has been illus-

trated by this description of a special part of the software development process which

has to be supported in such an environment.

Further challenges are still on the one hand the conceptual aspects of distributed

software systems and especially distributed software development environments. On

the other hand the practical requirements in constantly evolving infrastructures like the

Internet, Semantic Web, Grids etc. the development of usable software will require new

ways to handle central aspects of software development like distribution, concurrency,

non-determinism, mobility, adaptability. In future work we will extend our tool set in the

direction of a distributed development environment to cover critical parts of software

development and maintenance.

References

1. Claudio Bartolini and Matthias Sallé. Business driven prioritization of service incidents. In

Akhil Sahai and Felix Wu, editors, Utility Computing: 15th IFIP/IEEE International Work-

shop on Distributed Systems: Operations and Management, DSOM 2004, Davis, CA, USA,

November 15-17, 2004. Proceedings, volume 3278 of LNCS, pages 64–75. Springer, 2004.

2. Timo Carl. Entwicklung eines agentenbasierten verteilten Workﬂow-Management-Systems

mit Referenznetzen. Diplomarbeit, Universität Hamburg, Fachbereich Informatik, 2004.

3. Thomas Jacob, Olaf Kummer, Daniel Moldt, and Ulrich Ultes-Nitsche. Implementation of

Workﬂow Systems using Reference Nets – Security and Operability Aspects. In Kurt Jensen,

editor, Proc. of CPN, 2002. DAIMI PB: Aarhus, Denmark, August 28–30, number 560.

4. Nick R. Jennings. On agent-based software engineering. Artiﬁcial Intelligence, 117(2):277–

296, 2000.

5. Olaf Kummer. Referenznetze. Logos, Berlin, 2002.

6. Kolja Lehmann and Vanessa Markwardt. Proposal of an Agent-based System for Distributed

Software Development. In Daniel Moldt, editor, Proc of MOCA 2004, pages 65–70, Aarhus,

Denmark, October 2004.

7. Sven Offermann, Jan Ortmann, and Christine Reese. Agent based settler game, 2005. Part

of NETDEMO, demonstraion at international conference on Autonomous Agents and Multi

Agent Systems, AAMAS-2005.

8. Ofﬁce of Government Commerce (OGC), editor. IT Infrastructure Library (ITIL). The

Stationary Ofﬁce, Norwich, UK, 2000.

9. Protégé homepage. http://protege.stanford.edu/, 2006.

10. Christine Reese, Kolja Markwardt, Sven Offermann, and Daniel Moldt. Distributed busi-

ness processes in open agent environments. In Accepted at: International Conference on

Electronic Information Systems (ICEIS) 2006, 2006. Accepted paper.

11. Heiko Rölke. Modellierung von Agenten und Multiagentensystemen – Grundlagen und An-

wendungen, volume 2 of Agent Technology – Theory and Applications. Logos Verlag, Berlin,

2004.
