An Approach for Applications Suitability

on Pervasive Environments

⋆

Andres Flores

and Macario Polo

GIISCo Research Group

Departamento de Ciencias de la Computaci

on, Universidad Nacional del Comahue,

Buenos Aires 1400, 8300, Neuquen, Argentina

Alarcos Research Group

Escuela Superior de Inform

atica, Universidad de Castilla-La Mancha,

Paseo de la Universidad 4, 13071, Ciudad Real, Spain

Abstract. This work is related to the area of Component-based Software Devel-

opment, particularly to largely distributed systems as Pervasive Computing Envi-

ronments. We are focused on the automation of a Component Integration Process

as a support for run-time adjustments of applications when the environment in-

volves highly dynamic changes of requirements. Such integration implies to eval-

uate whether components may or may not satisfy a given model. The Assessment

procedure is based on syntactic and semantic aspects, where the latter involves

assertions, and usage protocols. We have implemented on the .Net technology

the current state of our approach to gain understanding about the complexity and

effectiveness of our approach.

1 Introduction

Pervasive Computing Environments (PvCEnv’s) should support the ’continuity’ of users’

daily tasks across dynamic changes of operative contexts. However functionality is usu-

ally shaped as a set of aggregated components which are distributed among different

computing devices. On changes of availability of a given device the involved component

behaviour still needs to be accessible in the appropriate form according to the updated

technical situation. This generally makes users to be involved on a dependency with the

underlying environment and increases the complexity of its internal mechanisms [1].

Applications composed of dynamically replaceable components imply the need of

an appropriate Integration Process according to Component-based Software Develop-

ment (CBSD) [2, 3]. For this an Application Model may provide the speciﬁcation of a

required functionality in the form of the aggregation of Component Models A Compo-

nent Model provides a deﬁnition to instantiate a component and its composition aspects

through standard interactions and unambiguous interfaces [4, 5]. In order to assure the

adequacy of a given component with respect to an Application Model there is a need

⋆

This work is supported by the projects: CyTED-CompetiSoft, UNCo-MPDSbC (04-E059) and

UCLM-MAS (TIC 2003-02737-C02-02)

Flores A. and Polo M. (2006).

An Approach for Applications Suitability on Pervasive Environments.

In Proceedings of the 3rd International Workshop on Ubiquitous Computing, pages 71-78

DOI: 10.5220/0002504000710078

 SciTePress

to evaluate its Component Model. Hence we present an Assessment procedure which

can be applied both on a development stage and also at run-time. We compare func-

tional aspects from components against the speciﬁcation provided by the Application

Model, which is component-oriented. Besides analysing component services at a syn-

tactic level, its behaviour is also inspected thus embracing semantic aspects. The latter is

done by abstracting out the black box functionality hidden on components in the form of

assertions, and also exposing its likely interactions by means of the usage protocol [6]

– also called choreography [7].

We illustrate with a simple example both the way a functionality is composed from

distributed disparate components and how the Assessment procedure helps to assure the

suitability of a certain involved component. We have implemented on the .Net technol-

ogy the current state of our approach. The use of certain built-in mechanisms of .Net

allow us to retrieve component interfaces and also to incorporate information for eval-

uation. Though being simple, this prototype give us a rewarding data on possibilities

to make concrete our proposals. All the applied techniques are selected according to

our goal of achieving consistent mechanisms to assure a fair component integration. As

we proceed with our work, reliability is mainly considered, since we focus the whole

integration process for those challenging systems as PvCEnv’s.

This paper continues by presenting the proposal for an integration process on Sec-

tion 2. Section 3 illustrates the approach with a simple case study. Section 4 presents

the .Net prototype. Conclusions and future work are presented afterwards.

2 Component Assessment for Application Integration

In previous works [8,9] we have described a preliminary model for the assessment pro-

cedure. In this paper we extend the model by adding more aspects concerning semantic

information in the form of the abstract behaviour for a component as well as the proto-

col of use. We assume that a component under evaluation should satisfy a certain degree

of compatibility with respect to a given requirement speciﬁcation. Such speciﬁcation is

assumed as being part of an Application Model which contains the components and

describing the required functionality in a component-oriented form by including the

following aspects:

1. Expected Interface. Signatures of expected services.

2. Abstract Behaviour. Assertions for the component and its services.

3. Usage Protocol. The expected order of use for its services.

Based on this we make the following consideration upon similarity between com-

ponents. A component B offers similar functionalities to the expected ones (A) when

the three following conditions are properly satisﬁed:

Condition 1. Component B offers, at least, the same or equivalent services as those offered by A.

Interface(A) ⊆ Interface(B)

Condition 2. Abstract behaviour of component B is similar or equivalent to component A.

Behaviour(A) ≈ Behaviour(B)

We use ≈ to denotes “equivalence”, which depends on the element to be compared and the

applied technique

Condition 3. The protocol of use for services on both components is equivalent.

UsageProtocol(A) ≈ UsageProtocol(B)

Condition 1 is true when there exists equivalence on corresponding services from

both interfaces. This is fulﬁlled when the ﬁve next conditions are satisﬁed:

Condition 1.1. The amount of services on B is at least the same as in A.

Condition 1.2. The return type of a pair of services sa of A and sb of B is equivalent

Condition 1.3. The number of parameters on services sa of A and sb of B is the same.

Condition 1.4. Parameter types on a pair of services sa of A and sb of B are equivalent.

Condition 1.5. Parameters inside the list of parameters on a pair of services sa of A and sb of B

are in the same order.

Condition 2 is true when there exists equivalence on the pre- and post-conditions

for corresponding services from both components. Assertions are boolean functions

composed of expressions connected by operators ∧ and ∨ [10]. A service sa of A is

equivalent to a service sbof a component Bwhen the three next conditions are satisﬁed:

Condition 2.1. Data types included on expressions of assertions of sa and sb are similar.

Condition 2.2. Pre-condition of sb is at most as restricted as pre-condition of sa:

Pre-cond. of sbmay have less expressions than in sa. At least one expression on sb’s pre-cond.

must be equivalent to a corresponding one on sa. pre(sb) ≤ pre(sa)

Condition 2.3. Post-condition of sb is at least as restricted as post-condition of sa:

Post-cond. of sb may include more expressions than in sa. All expressions on sa’s post-cond.

must be equivalent to the corresponding ones on sb. post(sb) ≥ post(sa)

Condition 3 is true when the usage protocol on both components express a similar

order for services. We describe usage protocols by means of regular expressions where

the operators are concatenation (•), alternative (+) and iteration (∗) – the order is ac-

tually described by the concatenation operation. The similarity, then, is based on the

following conditions:

Condition 3.1. An expression (+) on Bmust be at least as smaller as the corresponding expression

(+) for A – e.g. (a+b+c) from B and (a’+b’) from A.

Do not affect equivalence if an extra service from B is described inside an expression (+).

Condition 3.2. For all subexpressions into an expression (•) on Athere are equivalent counterparts

in the same order into the corresponding expression (•) for B – e.g. (a•(b+c)) from B and

(a’•b’) from A.

Condition 3.3. For all subexpressions composed of just one service into a expression (•) on B,

there are equivalent counterparts in the same order into the corresponding expression (•) for A –

e.g. (a•b•c) from B and (a’•c’) from A are not equivalent.

In order to understand the way these conditions are used to distinguish compatibili-

tiy we present in the next section a simple example where the assessment procedure is

applied.

For built-in types, types on sb must have at least as much precision as types on sa have – e.g.

compare double w.r.t. integer.

3 Case Study

Suppose we represent a PvCEnv for a Museum, where there could be for example a Tour

Guide application to propose different paths according to the user’s dynamic choices.

When the user enters the museum may carry a computing device (a PDA or a smart

phone) and through an automatic detection the device is identiﬁed and connected to the

environment. Upon each visited art piece (e.g. painting or sculpture) descriptions and

information of particular interest to the user is displayed on the PDA or spoken through

the phone. Figure 1 shows a likely scenario of the presented case study.

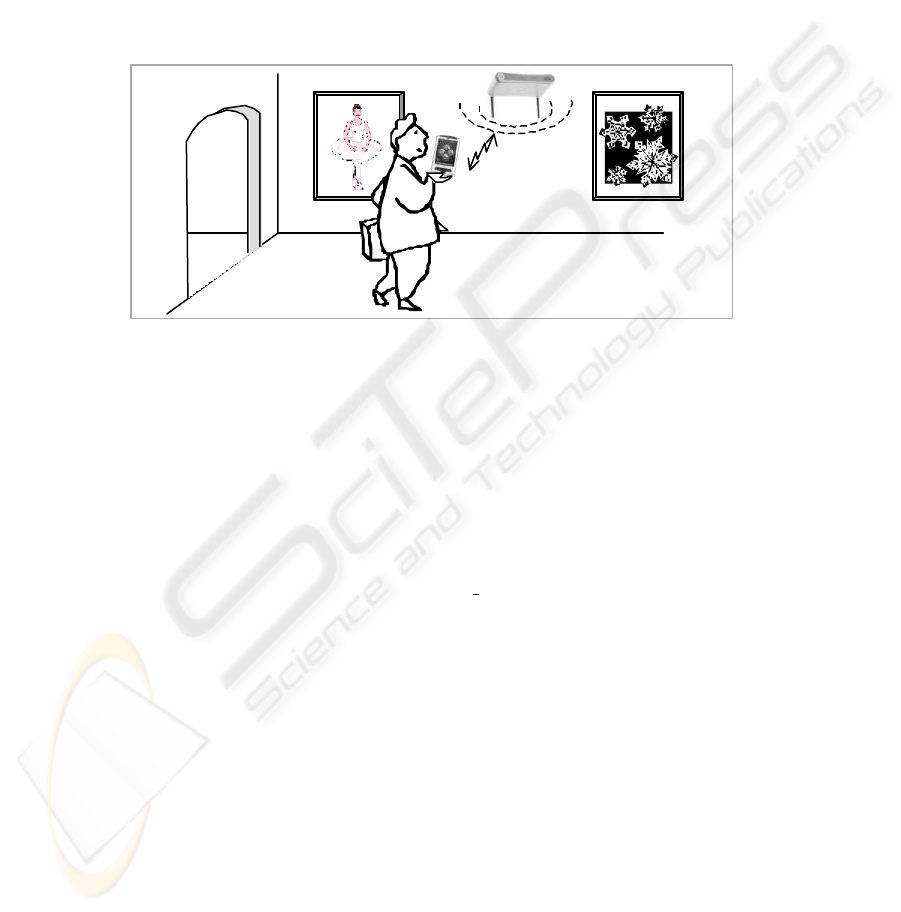

Fig.1. Likely scenario of a PvCEnv for a Museum.

A related application could allow creating albums with images of the art pieces vis-

ited by the user. The Album Organizer application – maybe downloaded into a user’s

notebook recognized by the environment – may allow creating a sort of document with

images and some notes written by the user. Notes could be stored on separated text ﬁles

and bind to the document by means of hypertext links. Thus every time the user needs

to write or edit a note, a proper editor is provided. The user may also be allowed to

print a selection of pages of the document, or even send the created album by e-mail to

easy carrying those ﬁles. We focus on this last application and we analyse its potential

required components. There could be an Album

Organizer component to represent

the main logic of the application, which could have an ad-hoc sophisticated album vi-

sual editor or a web-style editor in which is additionally required a generic web browser

– the visual editor also depends on the actual used device. For making notes, different

components could be used as a simple sort of NotePad, WordPad, etc – accord-

ing to the underlying software platform. To send e-mails applications like Outlook,

Eudora, etc, could be used, and to provide a printer service different kind of printers

and ad-hoc wireless sensors should be available. Other component is concerned with

the data base for images and descriptions of art pieces. Figure 2 shows a diagram with

the likely comprised components and devices for the Album Organizer application.

Suppose a user needs to write a note by using a notebook which runs a Linux plat-

form. One available text editor is KEdit. The environment then evaluates this com-

ponent so to ensure it is appropriate to fulﬁll the task. Following can be seen the

interfaces of both the KEdit component and the required component model named

Album

Organizer

Word

Pad

Outlook

Evolution

Mozilla

Netscape

Internet

Explorer

KEdit

Note

Pad

Eudora

Art_Data

Art_Image

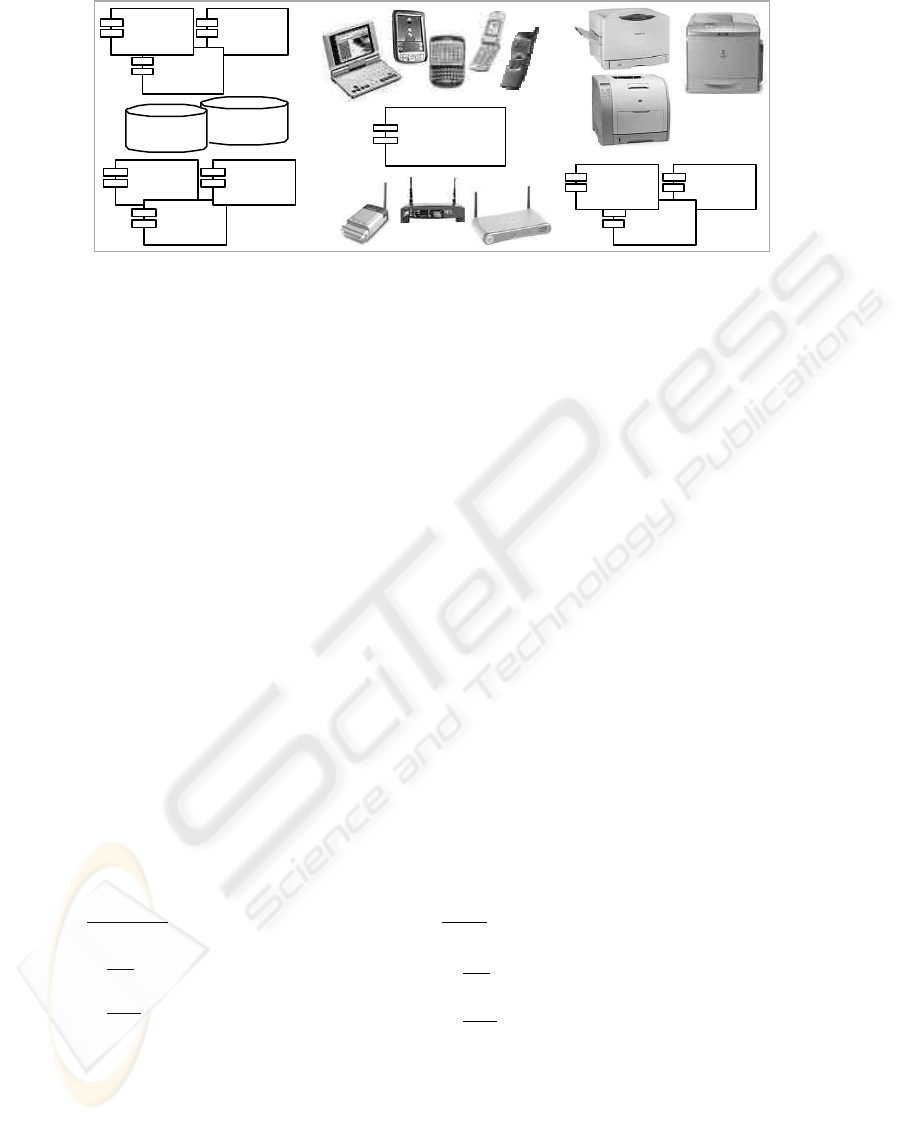

Fig.2. Components for the Album Organizer application.

TextEditor. The Assessment Procedure which may provide a degree of compatibil-

ity must verify that Condition 1, 2 and 3 are satisﬁed – as we pointed out on Section 2.

We begin analysing Condition 1.

component TextEditor {

void new(string fileName);

void open(string fileName);

void save(string fileName);

void print(string fileName); }

component KEdit {

void new(string fName);

void open(string fName);

void save(string fName);

void print(string fName); }

3.1 Interface Equivalence

For Condition 1 to be true we verify the ﬁve sub-conditions which are related to syntac-

tic aspects. As can be seen both KEdit and TextEditor include the same amount

of services (Cond.1.1), with the same return type (Cond.1.2), the same amount of pa-

rameters (Cond.1.3), the same types (Cond.1.4) and in the same order (Cond.1.5). This

implies that Condition 1 is satisﬁed, though it does not give a meaningful evaluation

result yet. Every pair of services from both components give an equivalent result. We

do not rely on the name of services which could give a difference here. Whether we

want to be sure about the utility of the KEdit component, a more accurate procedure

is still needed. Thus we continue exploring for Condition 2.

3.2 Behaviour Equivalence

Condition 2 is related to the pre and post-conditions from corresponding services. For

brevity reasons we describe this procedure only for the print service from both com-

ponents. Assertions are speciﬁed by using OCL as follows.

TextEditor

pre

: fileName <> BLANK and

not printer.queue.Full()

post: printer.print(fileName)

KEdit

pre: not printer.queue.Full()

and BLANK <> fName

post

: printer.print(fName)

Condition 2.1 is analysed ﬁrst inspecting data types besides those from the parame-

ter list which have already analysed on Conditions 1.2 and 1.4. In the assertions above

can be seen that for the print service Condition 2.1 is satisﬁed. For Conditions 2.2 and

2.3 we derive from assertions Abstract Syntax Trees (ASTs) which we have extended

with the addition of speciﬁc features. On each node in the tree we also save a ‘type’

that is used to operate with its sub-trees: Interchangeable Operator (IO) type for values

like or, and, =, <> etc, meaning that being a and b two sub-trees, (a and b) is the

same that (b and a); Non-Interchangeable Operator (NIO) type for values like >,

<, etc; Unary Operator (UO) type for values like not, etc – a tree with just one child;

Text (TXT) type for values being numbers or variable names. Expressions with boolean

operators and and or are transformed into a normalized and extended form. For exam-

ple, (a and (b or c)) is equivalent to ((a and b) or (a and c)) but not

immediately comparable. Then, the ﬁrst one is normalized without loosing its seman-

tic. In case of >= and <=, they are expanded into two subtrees connected by an or

operator – e.g. (a>=b) becomes ((a>b)or(a=b)). Figure 3 shows the ASTs for

pre-conditions of print from both components, from which we start the evaluation

procedure. For this, the root node of both trees are compared and, if they are equal, the

respective left and right subtrees are recursively compared. In our example, both trees

present IO root nodes. Thus, we can compare the left sub-tree of one pre-condition with

the right sub-tree of the other, and vice versa. This allows to detect the equivalence on

both trees. Values on leave TXT nodes are equivalent with respect to their data types

(Cond.2.1). Since one tree may have more sub-trees than the other, the extra sub-trees

expose that a pre-condition is bigger than the other – as it is described by Condition

2.2. This is not the case for trees on Figure 3, and all the sub-trees are equivalent mak-

ing pre-conditions being equivalent as well. Similar procedures are followed up for

each candidate pair of services in relation to Conditions 2.2 and 2.3. This makes clear

the real correspondence on the services from KEdit with respect to the expected ones

TextEdit.

TextEditor KEdit

and

not

BLANKfileName

printer.queue.Full() fNameBLANK

and

not

printer.queue.Full()

Fig.3. ASTs for print’s assertions.

3.3 Usage Protocol Equivalence

The next step is to check equivalence on the regular expressions describing the protocol

of use for a component. The usage protocols for TextEditor (1), and KEdit com-

ponent (2) are given below. Usage protocols comparison is also made deriving ASTs

as can be seen on Figure 4. The set of operators to set the node types differs based on

regular expressions. Concatenation (•) is a NIO type. Alternative (+) is an IO type.

Iteration (∗) is a UO type. TXT nodes correspond to services in the leaves of the tree,

and the equivalence is based on Condition 1 and 2. Thus, as the nodes labelled with •

and + correspond to IO operators, the trees can be found equivalent. Therefore, as both

Condition 1 and 2 are fulﬁlled, we can infer that FinancialAccount offers similar

functionalities to those of BankingAccount.

(1) (new+open) • (save+print)* (2) (open+new) • (print+save)*

•

new

∗

open

TextEditor KEdit

•

open

+ ∗

new

save print

print save

Fig.4. ASTs for Usage Protocols.

4 Preliminary Implementation

We have developed a ﬁrst prototype to check the feasibility of our proposal. The pro-

totype is based on Microsoft .NET technology and it includes simple but effective im-

plementations of different elements and algorithms described in the previous section.

In order to representing Assertions and Usage Protocol .NET allows to add information

to components using the Attribute mechanism. This help to annotate classes, methods,

parameters, etc. To describe assertions, we have created a class called

Contraint

that

specializes System.Attribute. This class includes the ambit where the attribute is valid –

Methods in this case. Each constraint will contain a String representing the text of the

pre or postcondition. For regular expressions representing the usage protocol the ambit

is Class. In order to facilitate evaluation both, the assertions and the usage protocol, are

described in a preﬁx form as can be seen above. In order to inspect the set of members of

any element, .NET includes the Reﬂection mechanism. This can be used to retrieve the

set of methods from components to be evaluated. Reﬂection can be of substantial help

in cases where components do reside on well-known and already evaluated repositories.

5 Related Work

Research very close to our intent of composing applications is presented in [5], though

here we suppose components residing on distributed disparate devices. From this we

continue studying technical situations which could make the environment to apply an

adjustment over a running application. Particularly the so called quality of service im-

plies an important consideration for this approach. The work in [11] presents a solution

for composing applications. A general framework for components integration is pre-

sented and evaluated the involved challenges on its application for PvCEnv’s. Other

work which gives a contribution to our work is presented in [7] by providing a consis-

tent format for speciﬁcations of components by means of XML. The approach covers

all of the aspects from components: functional, non-functional and commercial. We

are evaluating the use of such XML schemas and probably extending those related to

non-functional aspects. Some recognized projects on PvCEnv’s are Aura and Gaia. The

former presented in [12] addresses a large range of PvC topics by focusing of system

aspects. Applications are treated as user tasks which are a collection of abstract services

and are monitored to optimize their resources. The latter presented in [13] extends the

traditional services of an operating system by considering a PvCEnv. Both services

and devices are treated as resources that must be managed and allocated to requesting

clients.

6 Conclusions

We intend to address the automation of an Integration Process from software compo-

nents in order to properly update applications into a PvCEnv. In previous works [8, 9],

we have presented a scheme to address our intent. In this paper we have explained how

components could be replaced when the technical conditions change. This is done ac-

cording to the Application Model and the connection of Components and Models. We

have also described an Assessment procedure to evaluate components both at develop-

ment stage and at run-time. Such evaluation is based on speciﬁcations of the compo-

nents functionality, which is provided by their Component Models. Compatibility of a

component with respect to an expected Component Model is analysed at syntactic and

semantic levels. Semantic aspects are described by means of assertions and usage proto-

cols, which are then analysed by deriving extended ASTs – storing both expressions and

control data that help in the evaluation process. We have implemented the current stage

of our approach on Microsoft .Net in order to gain experience to understand possibili-

ties to recognize not only efﬁciency but mainly effectiveness on supporting reliability.

Selection of appropriate methods, techniques and languages must be accurately accom-

plished upon the concern of a reliable mechanism. This is the emphasis of our next

development in this area.

References

1. Judd, G., Steenkiste, P.: Providing Contextual Information to Pervasive Computing Applica-

tions. In: IEEE PERCOM’03, Dallas, USA (2003) 133–142

2. Brown, A., Wallnau, K.: Engineering of Component-Based Systems. In: 2

ICECCS’96,

Montreal, Canada, IEEE Computer Society Press (1996) 414–422

3. Flores, A., Augusto, J.C., Polo, M., Varea, M.: Towards Context-aware Testing for Semantic

Interoperability on PvC Environments. In: 17

IEEE SMC’04, The Hague, Netherlands

(2004) 1136–1141

4. Heineman, G., Council, W.: Component-Based Software Engineering - Putting the Pieces

Together. Addison-Wesley (2001)

5. et.al., B.W.: An Acive-Architecture Approach to COTS Integration. IEEE Software (2005)

20–27

6. Brada, P.: Towards Automated Component Compatibility Assessment. In: 6

Workshop on

Component-oriented Programming ( ECOOP’01), Budapest, Hungary (2001)

7. Iribarne, L., Troya, J., Vallecillo, A.: A Trading Service for COTS Components. The Com-

puter Journal 47 (2003)

8. Polo, M., Flores, A.: Towards Run-time Component Integration on Ubiquitous Systems. In:

MSVVEIS’05, held during ICEIS’05, Miami, Florida, USA (2005) 9–18

9. Flores, A., Polo, M.: Dynamic Component Assessment on PvC Enviroments. In: 10

IEEE

ISCC’05, Cartagena, Spain, IEEE Computer Society (2005)

10. D’Souza, D., Wilis, A.: Objetcts, Components, and Frameworks with UML: The Catalysis

Approach. Addison-Wesley (1998)

11. et.al., T.G.: Pervasive challenges for software components. Technical Report TUV-1841-

2003-05, Technical University of Vienna, Vienna, Austria (2003)

12. Page, P.A.H.: Distraction-free Ubiquitous Computing. http://www-2.cs.cmu.edu/ aura/

(2006)

13. Page, G.P.H.: Active Spaces for Ubiquitous Computing. http://gaia.cs.uiuc.edu/ (2006)
