WEB SERVICES COMMUNITIES

Concepts & Operations

Zakaria Maamar

, Mohammed Lahkim

, Djamal Benslimane

, Philippe Thiran

and Subramanian Sattanathan

Zayed University, Dubai, United Arab Emirates

King Saud University, Riyadh, Kingdom of Saudi Arabia

Claude Bernard Lyon 1 University, Lyon, France

University of Namur, Namur, Belgium

Keywords:

Community, Contract-Net Protocol, Web Service.

Abstract:

This paper discusses the concepts and operations related to the speciﬁcation and management of a community

of Web services, respectively. Web services offering the same functionality are gathered into one community,

independently of their origins. The community is led by a master component, which is responsible among

others for attracting new Web services to the community, retaining existing Web services in the community,

and identifying the Web services in the community that will participate in composite Web services. The

identiﬁcation of these Web services is based on the contract-net protocol.

1 INTRODUCTION

For the W3C,a Web service ”is a software application

identiﬁed by a URI, whose interfaces and binding are

capable of being deﬁned, described, and discovered

by XML artifacts and supports direct interactions

with other software applications using XML-based

messages via Internet-based applications”. Nowa-

days, competition is not limited to goods, services,

or software products, but includes systems that of-

fer the current and accurate information. Web ser-

vices are also not excluded from this competition.

Providers develop several Web services that could of-

fer similar functionalities like hotel booking and car

rental. To ease and improve the process of Web

services discovery in an open environment like the

Internet, it is suggested to gather similar Web ser-

vices

into groups known as communities (Benatallah

et al., 2003; Medjahed and Bouguettaya, 2005). Al-

though Web services are intensively investigated, the

following community-relatedissues have not been ad-

dressed yet: how to initiate, set up, and specify a com-

munity of Web services, is the functionality of a Web

service the only factor that drives the establishment

of a community, and how to specify and manage the

Similar Web services and Web services with a similar

functionality are interchangeably used.

Web services that reside in a community?

It is understood that a community of Web services

has a dynamic content: new Web services join, others

leave, some become temporarily unavailable, etc. All

these events need to be closely monitored, otherwise

conﬂicts arise. For example, if a Web service was

no longer a member of a community, its peers could

assume that the Web service is still in the community.

Moreover, Web services do not always expose a coop-

erative attitude when they join a community. Firstly,

they can compete on computing resources, which may

affect their performance scheduling. Secondly, they

can announcemisleading non-functionaldetails to en-

hance their participation opportunities in composite

Web services. Thirdly, they can become malicious

when they try to alter other peers’ data or behaviors.

In this paper, we do not aim at devising new strate-

gies to select Web services of composite Web ser-

vices. We mainly aim at presenting the concepts and

operations that are required to specify and manage a

community of Web services. Concepts and operations

related to a community of Web services are discussed

in Section 2. The prototype that simulates community

management is presented in Section 3. Conclusions

are drawn in Section 4.

323

Maamar Z., Lahkim M., Benslimane D., Thiran P. and Sattanathan S. (2007).

WEB SERVICES COMMUNITIES - Concepts & Operations.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 323-327

DOI: 10.5220/0001260103230327

 SciTePress

2 COMMUNITIES OF WEB

SERVICES

2.1 Background

In Longman Dictionary, community is ”a group of

people living together and/or united by shared inter-

ests, religion, nationality, etc”. When it comes to

Web services, Benatallah et al. deﬁne community as

a collection of Web services with a common func-

tionality, although these Web services have distinct

non-functional properties like different providers and

different QoS parameters (Benatallah et al., 2003).

Medjahed and Bouguettaya use community to cater

for an ontological organization of Web services that

share the same domain of interest (Medjahed and

Bouguettaya, 2005). Our deﬁnition considers a com-

munity as a means to provide a common descrip-

tion of a desired functionality (e.g.,

FlightBooking

)

without explicitly referring to any speciﬁc Web ser-

vice (e.g.,

EKFlightBooking

2.2 Architecture

Fig. 1 is the architecture we designed to manage com-

munities of Web services. The components in this ar-

chitecture include providers of Web services, UDDI

registries, and communities of Web services. A com-

munity is dynamic by nature. It is established and dis-

mantled according to speciﬁc scenarios and protocols,

which we discuss in Section 2.3. Two communities of

Web services are shown in Fig. 1, which could for ex-

ample offer

AirfareQuotation

and

HotelBooking

functionalities, respectively.

Master 

1

-WS

Slave-WS 

1i

Slave-WS 

11

Community 

1

of Web services

UDDI

registries

Providers of Web services

Advertisments

Interactions

Consultations

Interactions

Community 

2

of

Web services

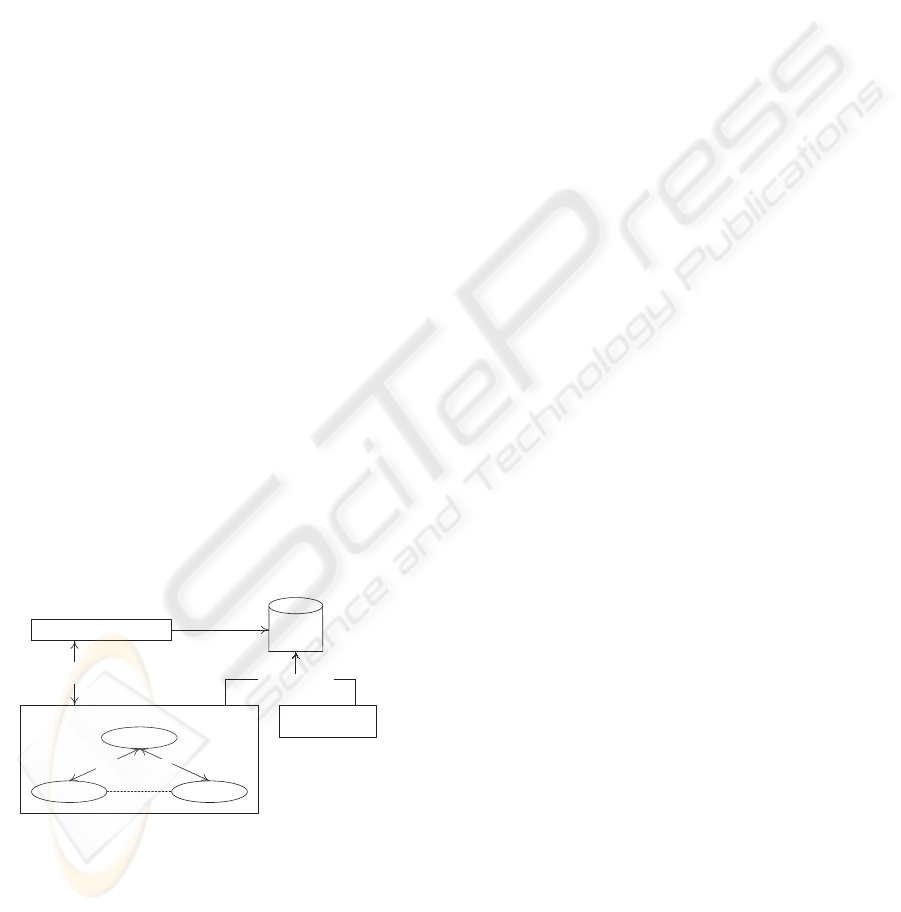

Figure 1: Architecture of Web services communities.

The architecture in Fig. 1 has some features which

we stress hereafter: (i) the traditional way of deﬁn-

ing, announcing, and invoking Web services is still

the same although these Web services are now el-

ements of communities, (ii) the functionalities that

UDDI registries usually offer to providers and end-

users of Web services are still the same, and (iii) the

selection of Web services from communities is trans-

parent to users and occur independently of the way

these Web services are gathered into communities. A

master component always leads a community. The

master component could itself be implemented as a

Web service for compatibility requirements with other

Web services in the community. These Web ser-

vices are now denoted as slaves and have in common

the functionality that labels the community in which

they run. The relationship between master and slave

Web-services is regulated using the contract-net pro-

tocol (Smith, 1980) (Section 2.3).

One of the responsibilities of the master Web-

service is to attract Web services to sign up in the

community it heads using rewards (Section 2.3). As

a result, the master Web-service interacts with the

UDDI registries on a regular basis, so it gets to know

the latest changes in the content of these UDDI reg-

istries such as advertisements of new Web services.

Additional responsibilities of the master Web-service

are (i) to nominate the Web service that will partici-

pate as component in a composite Web service, and

(ii) to run the contract-net protocol before nominating

this Web service.

In a community, the master Web-service is desig-

nated in two different ways. The ﬁrst way is to have

a dedicated Web service that will play the master role

during the whole time being of a community. This

Web service is independently developed (e.g., by ap-

plication designer) from other Web services that are

advertised in the UDDI registries. The Web service

leading a community never participates in any compo-

sition. Therefore, this Web service is only loaded with

community-management means. The second way is

to identify a Web service out of the Web services

that already populate a community. This identiﬁca-

tion could happen on a voluntary basis or after run-

ning election between the Web services. Because of

the temporary no-participation restriction, the nomi-

nated Web service needs to be compensated by other

peers. The call for elections among the Web services

of a community regularly happens so, the burden on

the same Web services leading a community is ei-

ther minimized or avoided. Because Web services in

the second way of designating a master Web-service

need to be enhanced with extra functionalities that

are speciﬁcally dedicated to community management

(besides the functionalities these Web services offer),

we develop an independent Web service to play the

master role.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

324

2.3 Operation

The operation of a community revolves around com-

munity development, Web services attraction and re-

tention, and contract-net deployment.

Community development. A community of

Web services is primarily established to gather the

Web services that have the same functionality. This

is a designer-driven activity that occurs in two

steps. The ﬁrst step is to deﬁne the functionality,

e.g.,

FlightBooking

, of the community by binding

to a speciﬁc ontology. This binding is crucial since

providers use different terminologies to describe the

functionality of their respective Web services. For

example,

FlightBooking

and

FlightReservation

are about the same functionality.

The second step in the establishment of a com-

munity is to deploy the master Web-service that leads

the community and takes over the responsibilities we

listed in Section 2.2. One of these responsibilities is

to invite Web services to sign up in its community by

using rewards. It will be shown later that the surviv-

ability of a community depends, to a certain extent,

on the status of the existing Web services in this com-

munity. Another responsibility of the master Web-

service is to check the credentials of a Web service

before this latter gets admitted in the community. The

credentials could be related to QoS, protection mech-

anisms, etc. Credential checking can boost the secu-

rity level within a community as well as enhance the

trustworthiness level of a master Web-service towards

the slave Web-services of its community. We recall

that a master Web-service nominates the component

Web services for participation in compositions.

Dismantling a community of Web service is also

a designer-driven activity that happens upon request

from the master Web-service. This latter oversees all

the events in a community such as arrival of new Web

services, departure of some Web services, identiﬁ-

cation of Web services to be part of composite Web

services, sanctions on Web services due to misbehav-

ior, etc. If the master Web-service notices that ﬁrst,

the number of Web services in the community is less

than a certain threshold and second, the number of

participation requests in composite Web services that

arrive from users over a certain period of time is less

than another threshold, the community could be dis-

mantled. Both thresholds are set by the designer. The

Web services that will be ejected from a community

are invited to join other communities subject to as-

sessing the functionality similarity with other existing

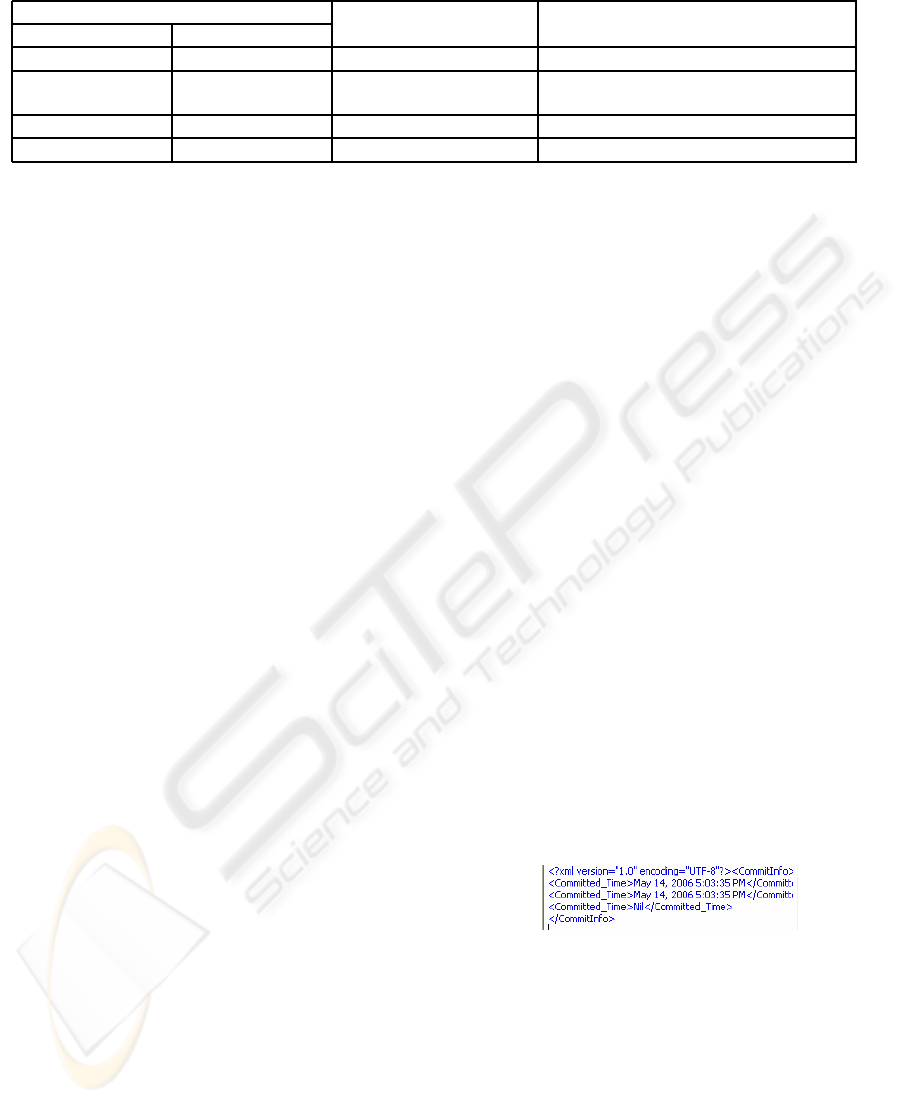

communities’ functionalities. Table 1 summarizes the

role of both thresholds. For example, when the num-

ber of Web services in a community is ”high” but the

number of participation of these Web services in com-

position is ”low”, this means that the community has a

poor conﬁguration. To remedy to that conﬁguration,

some Web services with a low level of participation

are ejected from the community and other Web ser-

vices are invited to join the community.

Web services attraction and retention. Attract-

ing new Web services to a community and retaining

the existing Web services in a community fall under

the responsibilities of the master Web-service. We

discussed how a community could vanish if the num-

ber of Web services in this community drops below a

certain threshold (Table 1). On one hand, attracting

Web services drives the master Web-service to regu-

larly consult the UDDI registries looking for new Web

services. These latter could recently have been posted

on an UDDI registry or have seen their description

changed. Changes in a Web service’s description raise

challenges at the community level since a Web ser-

vice may no longer be appropriate for a community.

As a result, the Web service is invited to leave the

community. When a candidate Web service is iden-

tiﬁed in an UDDI registry according to its function-

ality, the master Web-service engages in interactions

with its provider (Fig. 1). The purpose of interactions

is to ask the provider to register its Web service with

the community of this master Web-service. Some ar-

guments that are used during interactions include the

high rate of participation of the existing Web services

in composite Web services, the short response-time in

handling user requests, etc.

On another hand, retaining Web services in a com-

munity for a long period of time is a good indicator of

the following elements: (i) although the Web services

in a community are in competition, they expose a co-

operative attitude, and (ii) a Web service is to a certain

extent satisﬁed with its participation rate in compos-

ite Web services. Web services attraction and reten-

tion shed the light on a third scenario, which concerns

Web services being asked to leave a community. A

master Web-service could issue such a request upon

assessment of the following criteria: (i) the Web ser-

vice has a new functionality, which does not perfectly

match the functionality of the community, and (ii) the

Web service is unreliable. In different occasions, the

Web service failed to participate in composite Web

services due to recurrent operation problems.

Contract-net deployment. In a community, in-

teractions between the master Web-service and the

slave Web-services are framed in accordance with the

contract-net protocol (Smith, 1980). The main pur-

pose of these interactions is to identify the slave Web-

service that will take part in a composite Web service.

The Contract-Net protocol (CN) is built upon the idea

WEB SERVICES COMMUNITIES - Concepts & Operations

325

Table 1: Community management.

Number of Web services in Comment Recommended Action

A community Compositions

Small High Efﬁcient conﬁguration Retain Web services and invite new ones

High Small Poor conﬁguration Eject Web services with low participation

and invite new ones

Small Small Very poor conﬁguration Dismantle community

High High Desired conﬁguration Maintain same strategy

of contracting and subcontracting jobs between two

types of agents known as initiator and participant. At

any time an agent can be initiator, participant, or both.

The sequence of steps in the contract-net protocol

is as follows: (i) initiator sends a call for proposals

out to participants in relation to a certain job to carry

out; (ii) each participant reviews the call for proposals

and bids if interested (i.e., feasible job), (iii) initiator

chooses the best bid and awards a contract to that par-

ticipant, and ﬁnally (iv) initiator rejects other bids.

Mapping the contract-net protocol onto the oper-

ation of a community of Web services occurs as fol-

lows. When a user (through some assistance) selects

a community because it has the functionality that sat-

isﬁes her needs, the master Web-service of this com-

munity is automatically contacted. The objective is to

identify a speciﬁc Web service from the community,

which will be in charge of implementing this func-

tionality. The master Web-service sends a call for

bids out to all the slave Web-services about the im-

plementation of the functionality (CN

Step 1

). The call

for bids always comes along with the non-functional

criteria that the user sets for selecting Web services

like response time and execution cost. Prior to getting

back to the master Web-service, the Web services as-

sess their status (Maamar et al., 2006) and check their

capacities of meeting these criteria (CN

Step 2

). Only

the Web services that are interested in bidding con-

tact the master Web-service. This latter screens all the

bids before choosing the best one (CN

Step 3

, e.g., Web

service’s execution cost and reliability meeting the

user’s requirements). The winning Web service is

then notiﬁed so, it can get ready for execution when

requested (CN

Step 3

). The rest of the Web services

that expressed interest but were not selected, are also

notiﬁed (CN

Step 4

3 PROTOTYPE DEVELOPMENT

We developed a prototype to illustrate the contract-net

protocol in a Web services community. The proto-

type uses XML for request and response speciﬁcation

between users and Web services and between mas-

ter Web-services and slave Web-services, JDK 1.4 for

operation performance, and Eclipse 3.1 as an inte-

grated development environment. Currently, the pro-

totype tracks in a community the interactions between

a master Web-service and the slave Web-services with

emphasis on the slave Web-service that will take part

in a composition scenario. For illustration, we consid-

ered

WeatherForecast

functionality and a commu-

nity of four slave Web-service plus the master Web-

service. Each slave Web-service can only participate

in two compositions at a time.

Initially,

Master-WeatherForecast-WS

leads

WeatherForecast

community. When it receives

a user request,

Master-WeatherForecast-WS

broadcasts it to the members of the com-

munity. Upon receiving the request, each

Slave-WeatherForecast-WS

assesses its cur-

rent commitments in terms of time slots prior to

showing any interest in the new user-request to

Master-WeatherForecast-WS

(Fig. 2). For in-

stance,

Slave-WeatherForecast-WS

ignores the

user request because of its double, ongoing com-

mitments on

May 14, 2006 at 5:03:35 pm

. This

does not apply to

Slave-WeatherForecast-WS

2,3,4

;

they have no commitments so, they are willing to

take over the user request.

(a) Weather-1



Figure 2: Commitments of

Slave-WeatherForecast-WS

Once

Slave-WeatherForecast-WSs

’ availabil-

ities are known,

Master-WeatherForecast-WS

uses for example the ﬁrst-response strategy

to select a speciﬁc slave Web-service. Thus,

Slave-WeatherForecast-WS

receives an accept

message and

Slave-WeatherForecast-WS

3,4

re-

ceive a not-accepted message. Once the messages

are received, each

Slave-WeatherForecast-WS

updates its records.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

326

4 CONCLUSION

In this paper, we presented our project on Web ser-

vices communities. A community gathers Web ser-

vices with similar functionalities. We addressed

several aspects including establishing/dismantling a

new/existing community, attracting new Web services

to an existing community, retaining existing Web ser-

vices in a community, and regulating the interactions

inside a community using the contract-net protocol.

REFERENCES

Benatallah, B., Sheng, Q. Z., and Dumas, M. (2003). The

Self-Serv Environment for Web Services Composi-

tion. IEEE Internet Computing, 7(1).

Maamar, Z., Benslimane, D., and Narendra, N. C. (2006).

What Can Context do for Web Services? Communi-

cations of the ACM, 49(12).

Medjahed, B. and Bouguettaya, A. (March 2005). A Dy-

namic Foundational Architecture for Semantic Web

Services. Distributed and Parallel Databases, 17(2).

Smith, R. (1980). The contract Net Protocol: High Level

Communication and Control in Distributed Problem

Solver. IEEE Transactions on Computers, 29.

WEB SERVICES COMMUNITIES - Concepts & Operations

327
