ADJUSTMENT NEEDS IN SOA BASED E-LEARNING

APPLICATIONS

Antonio Ortiz, Juan Manuel de Blas and José María Gutiérrez

Computer Science Department. Technical School of Computer Science Engineering. University of Alcala

28871 Alcalá de Henares, Madrid, Spain

Keywords: Service-Oriented Architecture, Web Services, E-learning systems, Software reuse, Interoperability.

Abstract: SOA is a promising emerging technology and as such, it still has to solve certain issues. This paper

describes the solutions made to solve some interoperability issues found while carrying out an

interconnection project of two SOA based systems. It is supposed that the solutions can help to avoid the

problems in the future or solve incompatibilities. Not only in these projects, but also in similar ones, as the

proposed solutions are not tied to a specific implementation. Both systems were developed using the same

programming language, although they were based on different software platforms. These solutions are based

on the analysis and the tests accomplished, where simple data structures were sent and received, using the

Java language. This document also demonstrates the current state of interoperability in today’s frameworks,

which are not fully compliant yet, and are still rather weak using complex data structures.

1 INTRODUCTION

The Computer Science Department of the University

of Alcalá, is developing an e-learning application,

composed by many subsystems. Two of these

subsystems, self independent, are the subject of this

study.

Both systems needed a reliable communication

mechanism, and it was decided to use Web Services

to implement them, since there was the possibility

that they used different programming languages.

Web Services architecture allows developers and

corporations to encapsulate business logic, publish it

as services, subscribe to other services, and share

data between systems. One of the main benefits

derived from using this technology is a considerable

reduction in difficulty to intercommunicate along

different components, offering a view of those

components as a service-based architecture, fully

Internet compatible.

Due to the fact that the project uses Web

Services, a complete interoperability was expected.

However, in the process of integration of the two

subsystems, some incompatibility issues were found.

After detecting these interoperability problems,

that were previously spotted by other authors

(Severine, 2005), (Aragão and Fernandes, 2003) and

(Söderström, 2005), it was necessary to tweak the

core logic to achieve a satisfactory integration

between these two systems. On the following

chapters, the steps taken to gain interoperability are

detailed, also describing the necessary standards and

guides followed.

2 INTEROPERABILITY

STANDARDS AND GUIDES

Web Services are based on the SOAP standard, with

current release 1.2 (SOAP, 2003). It is an XML-

based protocol used to access services on the Web. It

was originally developed by IBM and Microsoft.

SOAP main purpose is, in fact, similar to others

object distributed systems, such as DCOM and

CORBA, but less resource-consuming and easier to

develop and maintain. It uses XML syntax to send

messages over the Internet using the HTTP protocol.

In addition, it can be concluded that because SOAP

uses a simple interchange message system, SOAP

can be used a messaging system as well.

Therefore, SOAP is the element that allows

communication between heterogeneous systems,

thanks to the use of a common language like XML.

However, in order to ensure interoperability across

123

Ortiz A., Manuel de Blas J. and María Gutiérrez J. (2007).

ADJUSTMENT NEEDS IN SOA BASED E-LEARNING APPLICATIONS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 123-127

DOI: 10.5220/0001261901230127

 SciTePress

platforms, operating systems, and programming

languages, an organization was created. This

organization is the WS-I, (Web Services

Interoperability) (WS-I, 2006), which gives

guidelines, creates and promotes generic

communication protocols, achieving to be a referent

in Web Services interoperability among different

platforms and programming languages.

WS-I Basic profile is one of the most important

guidelines. The version 1.0 was released on August

2003, and solved more than 200 interoperability

issues. Among others, some of the standards that can

be found in WS-I BP are SOAP 1.1, WSDL 1.1,

UDDI 2.0, XML 1.0 y XML Schema.

Version 1.1 was released in April, 2006, and it

included some improvements such as file attachment

support (SwA). Some of the new requirements are

described in the John Evdemon (Evdemon, 2004)

personal blog, who is a specialist in business

projects and workflow technologies.

WS-I also works on rules that ensure

interoperability using secure SOAP messaging

systems. The workgroup in charge is named Basic

Security Profile Working Group, which also is in

charge of some specifications developed by OASIS

(OASIS, 2006). OASIS is a consortium that aids

development, convergence and adoption of new

standards. The more relevant of them are the ones

that care about secure interoperable Web Services. It

has a technical committee named Web Services

Security TC (WSS), which objective is to carry on

the work described on the WS-Security specification

that was released in the context of Web Services

Security Roadmap, published on April 2002. One of

the most important specifications described is WS-

Security (WS-Security 1.0 y WS-Security 1.1). This

specification cares about security, using previously

defined specifications and standards, avoiding

defining a complete security solution, and proposing

an existing set of SOAP (SOAP 1.1 and SOAP 1.2)

extensions, allowing the use of secure Web Services

through a great variety of security models such as

Kerberos, PKI, and SSL.

It is clear that there are organizations that care

about ensuring interoperability, developing rules and

guidelines. Now, it is necessary to test if the uses of

these guidelines are enough to make interoperable

systems or something more is needed.

3 COMPLETED PROJECTS

The first system (Figure 1) belongs to the PROFIT

research project “FIT-350101-2004-7”, named

“Educational virtual resources management and

exploitation platform”, which aims to create a

learning management platform that will use a digital

repository to store the data.

During development process guidelines from

IMS DRI (DRI, 2003) were followed and the

Codehaus XFire (Codehaus, 2006) platform was

used for the core functions. The choice of this

platform was due to its easy of use, its standard

compliance, and it open source characteristic.

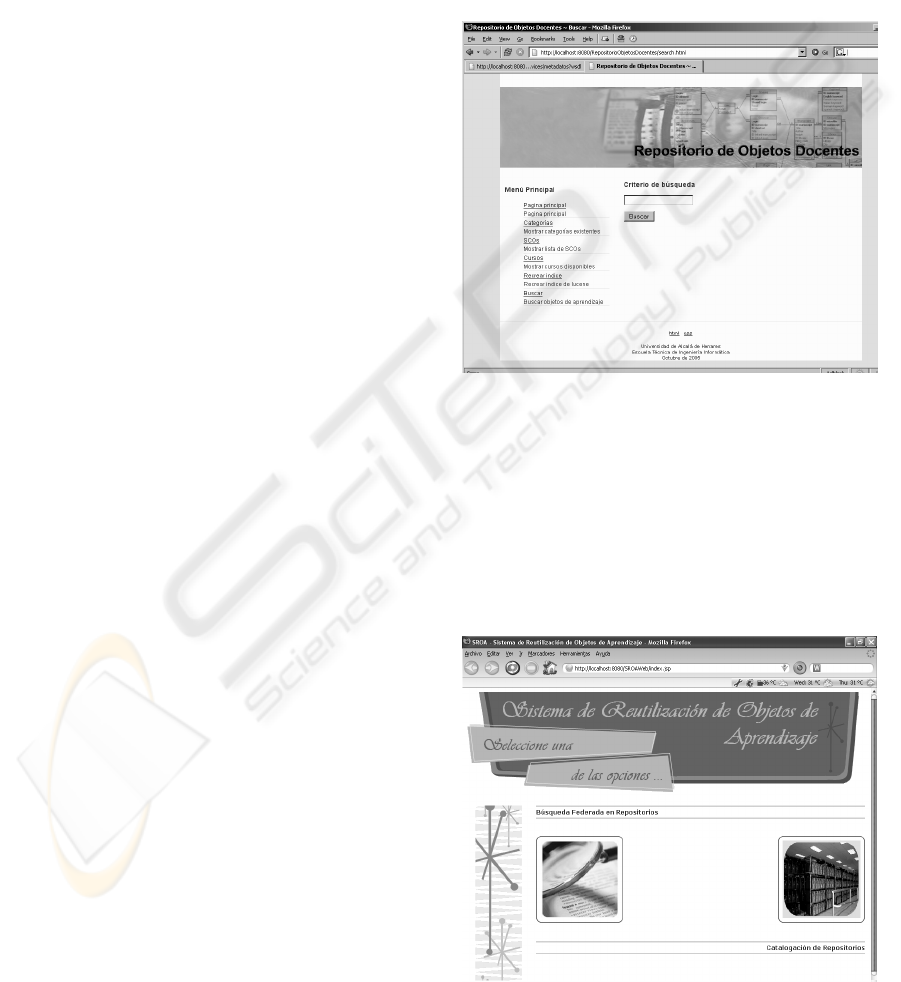

Figure 1: Digital Repository Interface.

The second system (Figure 2), named SROA

(Learning Object Reusability System), is part of

another research project: PROFIT “FIT-350101-

2005-4”, named “Publication and universal location

of learning objects system”. The goals of this project

are to analyze and design a prototype system to

assemble courses by reuse existing content located

in diverse remote repositories.

Figure 2: SROA system interface.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

124

The first prototypes created (Otón et. all, 2006A)

and (Otón et. all, 2006B), were able to demonstrate

that systems following these guides and architecture

(Otón et. all, 2005), are able to distribute educative

resources along many different e-learning platforms,

by making their respective repositories

interoperable.

IMS Abstract Framework (AF, 2003)

specifications were used during the development

process, and Web Services were used as well. This

second system uses Systinet Server platform

(Systinet, 2006), because it is easily integrated into

the Eclipse development software. Systinet Server

for Java offers high performance, interoperability,

reliable delivery and security. This platform is

widely deployed by industry leaders including

Barclays Global Capital, T-Mobile and FileNet

(Systinet, 2006).

Once both systems development reached an

advanced stated, the integration process began, in

order to build completely standalone system, as

shown in Figure 3.

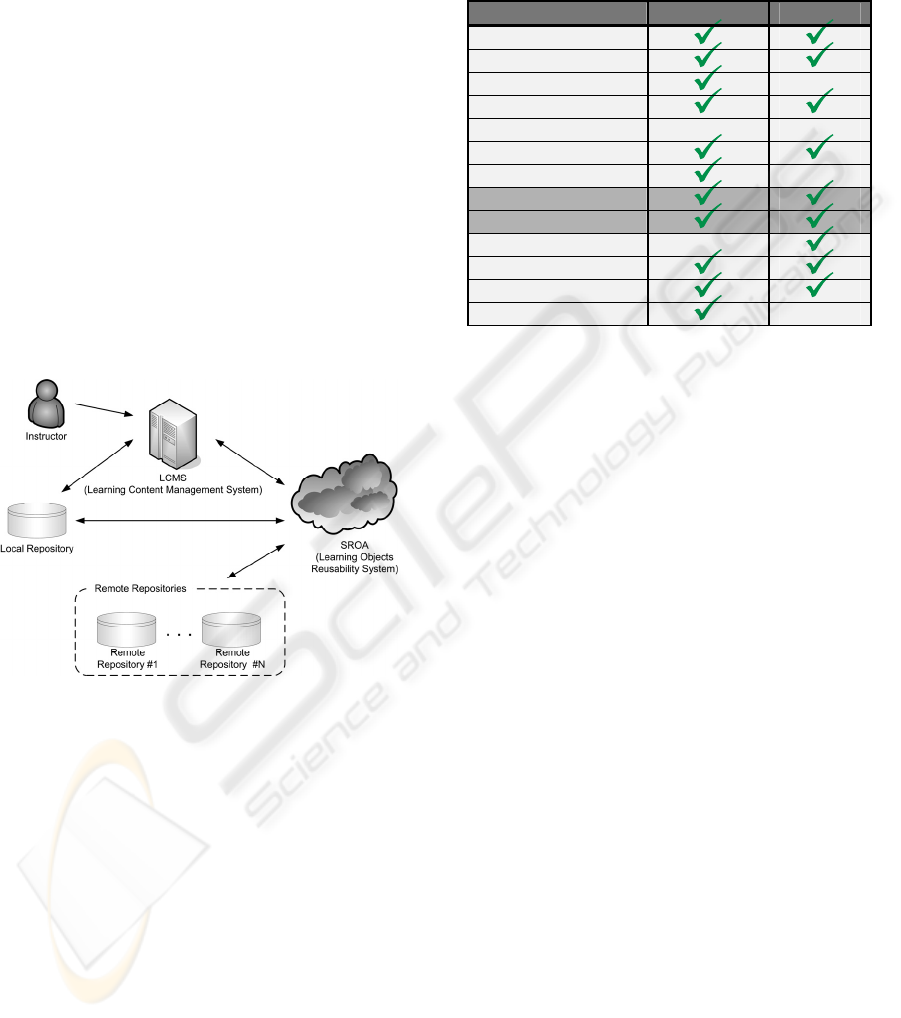

Figure 3: Scheme of the integrated system.

3.1 Observed Problems and Proposed

Solutions

By using Web Services and its possibilities to

communicate heterogeneous systems it is avoided

the need of use of special connection mechanism for

connecting different language based systems.

However, the Web Services servers used were not

the same and although no importance was given to

this aspect, at the beginning. Later it was discovered

that the integration was not seamlessly, as the results

were not the expected ones. Foregoing reason, it was

detected the necessity to make a higher effort in

order to obtain a complete interoperability between

both systems.

The first step was to ensure that the servers used

fulfilled the recommendations dictated by the WS-I;

information that is shown in the table 1.

Table 1: Main characteristics of the servers used.

Systinet 6.0 XFire 1.2

SOAP 1.1

SOAP 1.2

SwA

WSDL 1.1

WSDL 2.0

UDDI V2

UDDI V3

WS-I BP 1.0

WS-I BP 1.1

MTOM/XOP

WS-Security

WS-Addressing

WS- R. Messaging

The following conclusions are extracted from the

previous table:

 Both servers fulfil the interoperability

recommendations developed by the WS-I

(highlighted rows of the table). The fulfilment

of these procedures should be an essential

requirement for selecting a server as a

platform to use for developing SOA

architecture.

 They all fulfil the main standards that shape

the Web Services (SOAP 1.1, SOAP 1.2 and

WSDL 1.1). Only one exception is found, the

XFire server, failing the SwA requirement

(SOAP with Attachment), using MTOM

(Message Transmission Optimization

Mechanism, MTOM 2005) instead to send

files. None of the servers fulfils WSDL 2.0;

mainly because it is not a standard yet, only a

candidate recommendation as of March 2006

(WSDL, 2006).

 About secure interoperability connections

(WS-Security, WS-Addressing and WS-

Reliable Messaging), it is also fulfilled by

both servers, with the exception of XFire

server, that does not fulfil WS-Reliable

Messaging recommendation.

This information should guarantee, at least from

a theoretical point of view, a certain level of

interoperability, which is required when developing

interoperable service oriented systems. Nevertheless,

when testing the interconnection, the obtained

results were not the awaited ones.

The SROA system has to perform a learning

object search on the repository, and then return to

ADJUSTMENT NEEDS IN SOA BASED E-LEARNING APPLICATIONS

125

the client those objects that meet the parameters

marked by the user. To send the files across the

wire, a Systinet's proprietary class was used: the

ResponseMessageAttachment class, which turned

out to be incompatible with the other platform. So,

the first interoperability problem was found, but it

was solved using byte arrays (byte []). Because it is

a primitive type (available in all the platforms), its

use ensures interoperability.

This solution is not perfect; because another

problem appears, the whole content of the file is

loaded into memory. The solution to this can be to

transfer it across streaming. Tests were also

performed using DataHandler and DataSource

classes, recommended by Sun when SAAJ is not

used (SAAJ, 2006). At the end, also these classes

turned out to be incompatible as well.

When returning the learning object list, the

SROA system use complex objects. These objects

(JavaBean) incorporate different attributes, such as

an indicator of the operation state, or a collection

(ArrayList) of new JavaBean generated in the

operation. The above mentioned objects represent

each of the learning objects that match the

parameters of the search. These types of structures

are widely used in the Java language, but they

produce some interoperability problems. After

trying, without success, to return an object-only

collection, parameterization of the data inside was

necessary, and to encapsulate it inside another object

in order that at least the transmitted information was

recognized across the SOAP applications that are

included with the platforms.

Another problem was found sending files using

SOAP. It was necessary to deactivate the MTOM

(MTOM, 2005) support in the XFire platform in

order to achieve a complete interoperability, because

the platform used in the other project did not support

it.

On the following paragraph, an example of the

SOAP message sent by the platform SROA to the

Repository is shown, being outlined in boldface the

most relevant information. It can be observed how

this information is grouped in a complex object

called DatosBusquedaBean, including a file type. To

process the sending of this file, the system

decomposes in bytes (base64Binary), because the

inclusion of it in the SOAP message once MTOM is

deactivated.

<e:Envelope

xmlns:d="http://www.w3.org/2001/XMLSchema"

xmlns:e="http://schemas.xmlsoap.org/soap/env

elope/"

xmlns:i="http://www.w3.org/2001/XMLSchema-

instance"

xmlns:wn0="http://bean.common.busqueda.sroa.

org"

xmlns:wn1="http://xfire.codehaus.org/Servici

oWebMetadatosRepositorio">

<e:Body>

<wn1:buscarLOEnRepositorio>

<wn1:db

i:type="wn0:DatosBusquedaBean">

<wn0:ficheroXEL

i:type="d:base64Binary">PD9lkjdfldkjgsldk

fgjsvGJDDOgjjsdfgldgorkgsdFSDJofg4wgdmuuhjsh

… … …

JhdohjakldjvsakjhsaklvnsnaasjSSJDjsjdSJDjsjo

wekjkdsfgjlskjdfasDJDSJDSdjldvalkbnRlbnQ+

</wn0:ficheroXEL>

<wn0:forzarGeneracionXEL

i:type="d:boolean">0

</wn0:forzarGeneracionXEL>

<wn0:opcionBusqueda

i:type="d:int">1

</wn0:opcionBusqueda>

<wn0:porcentajeCoincidencia

i:type="d:float">20.0

</wn0:porcentajeCoincidencia>

</wn1:db>

</wn1:buscarLOEnRepositorio>

</e:Body>

</e:Envelope>

The returned error found when the SROA system

tries to send a file to a client that uses MTOM is

shown in the following code. The transmitter sends

the file as a stream of bytes inside the SOAP

message, whereas in destiny the receiver expects this

file to be out of the SOAP message.

Unsupported media type: application/xop+xml;

charset=UTF-8; type="text/xml"

com.systinet.saaj.soap.SOAPPartImpl.checkCon

tentType(SOAPPartImpl.java:486)

4 CONCLUSIONS

Web Services and SOA architectures, with all their

presented features, were met with a great

enthusiasm, because, it was possible to interconnect

heterogeneous systems, as the market demanded.

The possibility of using the language and the

platform most adapted to every purpose, to finally

obtain a complete system composed by independent

elements, was finally possible. Nevertheless, and

after our own experience, it is possible to conclude

indicating that the obtained results are not as ideal as

the announced ones by the organizations and the

manufacturers.

The system integration was possible, although it

has been necessary to do modifications in the

transmission protocols used, and in the information

sent, reducing notably its complexity. Therefore,

WEBIST 2007 - International Conference on Web Information Systems and Technologies

126

Web Services interoperability at this moment does

not reach the degree of awaited fulfilment.

During the testing stage, the obtained results

reveal that working with simple data (primitive

types), guarantees interoperability. Greater problems

arise when the information is more complex, for

instance when using JavaBeans, because this

information is handled in different ways depending

on the platforms used.

Another detected disadvantage is the inability to

use common structures in the Java environments, as

the Collection objects. Depending on the server, it is

possible to use them as a return type for the

methods, being handled all in a different way by

almost all of the servers, when its use is possible. It

has been observed that every platform adapts the

WSDL file to its own needs, resulting in

incompatibilities among platforms, and producing

errors while sending data, because the format of the

message sent is different from to the expected by the

receiver.

On top of that, with all of these issues exposed, it

is expected that future works should be carried out

with that limitations on mind, focusing the problems

from another point of view and making easier the

process of dealing the limitations.

In the future, it will be necessary for the

organizations as the mentioned WS-I, OASIS, and

the implementation manufacturers, to continue

improving the recommendations. For example, the

automation in the complex information sending (as

JavaBeans), or the possibility of using compatible

Streaming systems.

Without fulfilling with these expectations, Web

Services use will be limited as occurs with other

solutions on the market, such as RMI or CORBA. If

this goal is achieved, the use of Web Services will

be extended to all kinds of applications that need

data transmission over the Internet.

REFERENCES

Severine, B., 2005. “Interoperability problems:

management of evolution of collaborative enterprises”.

In INTEROP-ESA’05, 1st International Conference

on Interoperability of Enterprise Software and

Applications.

Aragão, R., Fernandes, A., 2003. “Conflict Resolution in

Web Services Federations”. In ICWS’03, 1st

International Conference on Web Services.

Söderström, E., 2005. “Web services and inter-

operability”. In INTEROP-ESA’05, 1st International

Conference on Interoperability of Enterprise Software

and Applications.

IMS DRI. 2003. IMS Digital Repositories Interoperability,

http://www.imsglobal.org/digitalrepositories/index.ht

Codehaus Xfire. 2006. http://xfire.codehaus.org/

Otón, S., Ortiz, A., Barchino, R. 2006A. “Arquitectura

orientada a servicios Web para la implementación de

repositorios distribuidos de objetos de aprendizaje”. In

IADIS WWW/Internet’06. International Association

for Development of the Information Society

Otón, S., Ortiz, A., Hilera, J.R. 2006B. “Sistema de

reutilización de objetos de aprendizaje”. In VIII

congreso Iberoamericano de Informática Educativa.

Otón, S., Hilera, J.R., Gutiérrez, I., Ortiz, A. 2005.

“Arquitectura orientada a servicios Web para la

implementación de repositorios distribuidos de objetos

de aprendizaje”. In SINTICE’05. Simposio Nacional

de Tecnologías de la Información y las

Comunicaciones en la Educación.

IMS AF. 2003. IMS Abstract Framework,

http://www.imsproject.org/af/index.html

Systinet Corporation, http://www.systinet.com/

WSDL 2.0. 2006. Web Services Description Language 2.0

Candidate Recommendation 27 March 2006,

http://www.w3.org/TR/wsdl20/

SAAJ. 2006. SOAP with Attachments API for Java,

http://java.sun.com/webservices/saaj/index.jsp

MTOM. 2005. SOAP Message Transmission Optimization

Mechanism, http://www.w3.org/TR/soap12-mtom/

WS-I. 2006. Web Services Interoperability Organization,

http://www.ws-i.org

SOAP 1.2. 2003. Simple Object Access Protocol 1.2

Recommendation 24 June 2003,

http://www.w3.org/TR/soap/

Evdemon, J. 2004. “What's changed in WS-I Basic Profile

1.1?”.http://blogs.msdn.com/jevdemon/archive/2004/0

8/25/220353.aspx

OASIS. 2006. Organization for the Advancement of

Structured Information Standards. http://www.oasis-

open.org/home/index.php

ADJUSTMENT NEEDS IN SOA BASED E-LEARNING APPLICATIONS

127
