A TWO-STAGED APPROACH FOR ASSESSING

FOR THE QUALITY OF INTERNET SURVEY DATA

Chun-Hung Cheng

Dept of Systems Engineering & Engineering Management, The Chinese University of Hong Kong, Hong Kong

Chon-Huat Goh

School of Business, Rutgers University, Camden, NJ 08102, USA

Anita Lee-Post

School of Management, University of Kentucky, Lexington, KY 40506, USA

Keywords: Internet Survey Data, Quality, TSP, genetic algorithm.

Abstract: In this work, we propose to develop a procedure to detect errors in data collected through Internet surveys.

Although several approaches have been developed, they suffer many limitations. For instance, many

approaches require prior knowledge of data and hence they need different procedures for different

applications. Others have to test a large number of parameter values and hence they are not very efficient.

To develop a procedure to overcome the limitations of existing approaches, we try to understand the nature

of this quality problem and establish its linkage to travelling salesman problem (TSP). Based on the TSP

problem structure, we propose to develop a two-staged approach based on a genetic algorithm to help ensure

the quality of Internet survey data.

1 INTRODUCTION

Surveys have been widely used in various

disciplines to understand public opinions and views.

Typically, interview over telephone and postal mail

surveys are often used. Interview over telephone is

only effective for small and simple surveys while

postal mail surveys are costly and slow. With the

ubiquitous of personal computers, and the

availability of high-speed broadband network,

Internet survey has become a reality.

With the Internet, surveys can be conducted to

reach out a large number of potential survey subjects

at very low cost. However, the subjects enter their

responses without any assistance. Although data-

type and data-range checking may be implemented

together with an electronic survey form, they are not

always effective given a diversity of survey

questions and responses. Hence, data collected

through this means may contain erroneous values.

These erroneous data must be identified to ensure

the survey quality. In this work, we shall focus on

the detection of unsystematic errors. These errors are

those that are caused by survey design faults.

There are two kinds of approaches to assessing the

quality of data. Application-dependent approaches use

knowledge of data and, therefore, require different

quality-checking procedures for different survey

applications. On the other hand, application-

independent approaches do not need any prior

knowledge of data and provide one general quality-

checking procedure for all applications. The flexibility

and generalisability of application-independent

approaches make them more appealing than the

application-dependent approaches. In this work, we

shall also focus on application-independent

approaches.

Currently, application-independent approaches use

clustering analysis techniques. Clustering analysis

gathers data records into groups or clusters based on

their field values. Similar data records occupy the

same group while dissimilar records do not coexist in

the same group. Records, whose field values make

Cheng C., Goh C. and Lee-Post A. (2007).

A TWO-STAGED APPROACH FOR ASSESSING FOR THE QUALITY OF INTERNET SURVEY DATA.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Society, e-Business and e-Government /

e-Learning, pages 77-83

DOI: 10.5220/0001264200770083

 SciTePress

them significantly different from all others, may not

find themselves related to any other group members at

all (see Figure 1). They are called outliers (Storer and

Eastman, 1990).

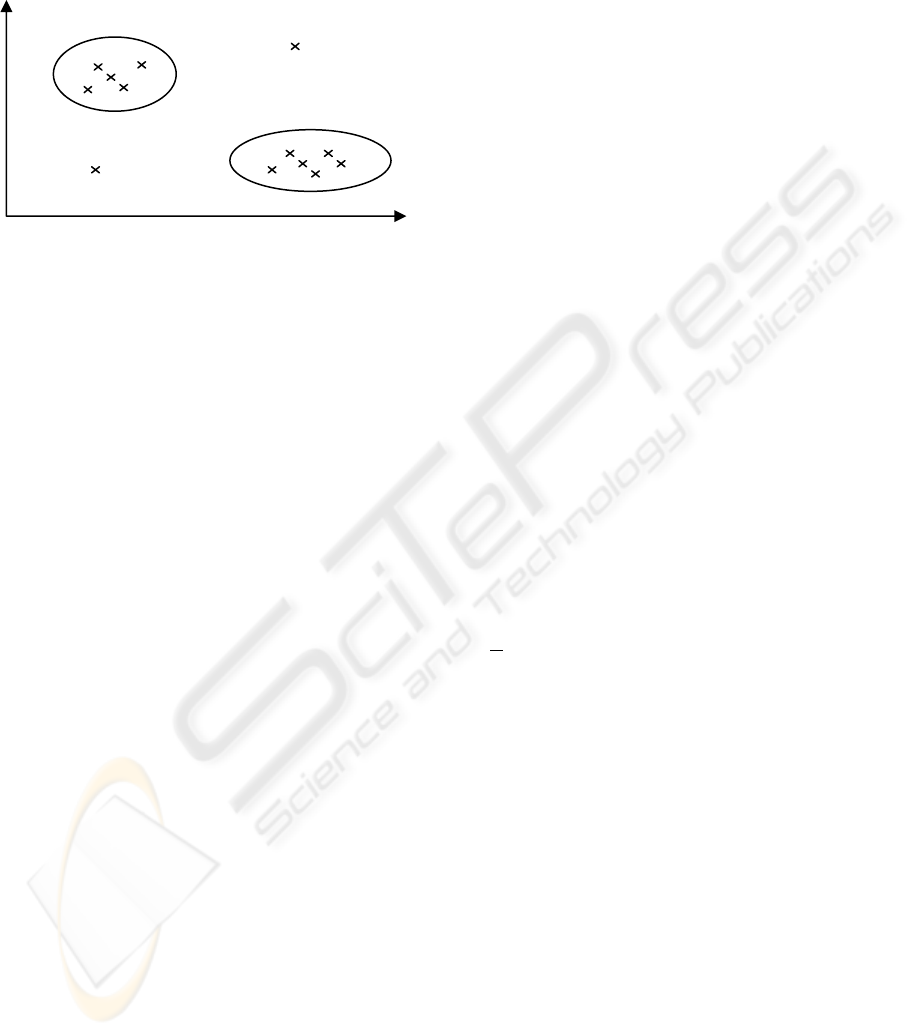

Figure 1: Examples of outliers.

In this work, we apply a quality-checking

technique for data collected through Internet surveys.

The new approach provides many advantages over

current approaches.

• Unlike some current approaches, our

approach does not require knowledge of data.

Therefore, this approach is applicable to

many different Internet survey applications.

• Many clustering approaches, including

ours, require the user to test the clustering

algorithms with different parameter values.

However, we will show that our approach

significantly cuts down on the search and

evaluation of a number of parameter values

and, therefore, is more efficient than other

approaches.

• Many current approaches do not specify

systematic ways to choose the best

clustering result among many candidate

solutions. Our approach applies a selection

criterion to systematically evaluate the

clustering of a sample data in order to best

separate the outliers from similar records in

a group.

2 LITERATURE REVIEW

Although the classical database literature considers

errors in a database a serious problem (e.g., Felligi and

Holt, 1976 and Naus et al., 1972), few studies propose

ways to deal with the problem. There are two kinds of

quality-checking approaches: application-dependent

and application-independent approaches.

2.1 Application-Dependent Methods

Application-dependent approaches such as those by

Freund and Hartley (1967), Naus et al. (1972), and

Felligi and Holt (1976) are all statistical-based. In

detecting errors in a database, these approaches require

knowledge of the data. Using these approaches,

software developers may have to develop different

programs for different database applications.

2.2 Application-Independent Methods

All application-independent approaches use clustering

analysis techniques. Lee et al. (1978) first applied a

clustering approach. They defined a distance function

to measure the difference between two records. Based

on a distance matrix, they found the shortest path

between a pair of records. Since the determination of

the shortest path is an NP-complete problem (Storer

and Eastman, 1990), the shortest spanning path

algorithm (Slagle et al., 1975) is used to find an

approximate solution. A link between two records that

is longer than the pre-specified threshold value will be

broken. Records whose distances are less than the

threshold value are similar and are placed in the same

group. A record with no similar partners is an outlier.

Storer and Eastman (1990) proposed three related

clustering approaches. They used the same distance

function as defined by Lee et al. (1978). The first

approach is called the leader algorithm (Hartigan,

1975). The leader algorithm clusters M records into K

groups, where M and K are positive integer values and

M >

K. It assumes that the distance function between

two records and the threshold value for group

membership are available. The first record is a leader

for the first group. A record is assigned to an existing

group if its distance from the group leader is less than

the threshold value. It becomes a new leader for a new

group if its distance from every existing leader is more

than the threshold value.

The second approach is a modification of the

leader algorithm that we refer to as an average record

leader algorithm. This modified algorithm uses the

average record instead of the first record as an initial

leader. Therefore, the algorithm can generate a

solution independent of record order. On each pass, a

record that is furthest from its group leader becomes a

leader for a new group. If the algorithm were to

produce K groups, it requires K passes through the

data.

The third approach is another modification of the

leader algorithm. Storer and Eastman (1990) call it the

greatest distance algorithm. The greatest distance

algorithm uses a different criterion for selecting new

outlier

WEBIST 2007 - International Conference on Web Information Systems and Technologies

group leaders. First, Storer and Eastman (1990) define

a non-deviant cluster as one that has more than one

percent of all records. A new leader is the record that

is furthest from a leader of a non-deviant cluster and is

greater than the average record distance from its

cluster leader.

Many existing approaches use a non-hierarchical

approach. Cheng et al. (2006) proposed the use of

hierarchical clustering. They demonstrated that the use

of hierarchical reduces the number of parameter values

to test for data quality.

2.3 Limitations of Current Methods

Table 1 summarizes the parameters that need to be

pre-defined for all four approaches. The shortest

spanning path algorithm requires pre-specifying a

threshold value. Since there is no upper bound on the

value of the distance function, there are many possible

threshold values to test before a desirable value is

found. Worse yet, there is no systematic way to find

the desirable value. The search for the most desirable

parameter value may be time-consuming. A smaller

threshold value than the desirable may result in a

larger number of groups and possibly a larger number

of outliers that are actually error free. A larger

threshold value than the desirable may lead to a fewer

number of groups but it may group erroneous records

into existing groups along with correct records.

Table 1: Required parameters for different approaches.

Approach

Pre-specified

threshold value

Pre-specified

number of groups

SSP Yes No

LA Yes Yes

ARLA No Yes

GDA No Yes

HC Yes No

Note

SSP shortest spanning path algorithm

LA leader algorithm

ARLA average record leader algorithm

GDA greatest distance algorithm

HC hierarchical clustering

The leader algorithm also uses a pre-specified

threshold value and the number of groups to be

formed. It is difficult for the user to come up with the

desirable values for both the threshold value and the

number of groups to be formed as the number of

possible combinations for each value is very large.

The desirable values can be found only after an

extensive search. The remaining two algorithms need

the pre-specified number of groups. A larger number

of groups than desirable produces many outliers

containing no errors while a smaller number misses

some outliers containing errors since we do not have

prior knowledge of the data, we have to test the

algorithms with many parameter values.

Neither Lee et al. (1978) nor Storer and Eastman

(1990) discuss how to find the desirable parameter

values among many possible values. Moreover, they

do not specify any systematic methods to choose the

desirable clustering result among many candidates that

are generated from a given set of parameter values.

To systematically generate parameter values,

Cheng et al. (2006) propose the use of a dendogram.

Their method significantly reduces the number of

threshold values to test. However, Cheng et al. (2006)

do not provide any justification for the use of a

hierarchical approach. In this work, we try to provide a

justification for our approach.

3 TSP & DATA QUALITY

In this section, we try to establish the linkage between

data quality problem and travelling salesman problem

(TSP). Based TSP characteristics, we develop an

algorithm to deal with data quality problem.

A data record, R

, may be represented by a

vector. That is, R

= (x

,...,x

), where x

is the

value of the pth field of R

, for p = 1,2,….N and i =

1,2,…,M. A record can be classified into one of the

three types (Lee et al., 1978).

Type I records: All field values in this type of

record are numerical. The distance between two

records R

and R

is defined as:

N / )

c( =

jpip

1=p

∑

where

/ |

| = )

pjpipjpip

, and

| =

Mi1

ipMi1p

min

max

≤≤

(1)

For example, if R

= (4.5, 3.1, 0.9, -2.1), R

= (4.1,

2.1, 0.3, -1.1), S

= 5.0, S

= 4.0, S

= 2.0, and S

= 2.1,

then d

= 0.2765.

Type II records: All field values in this type of

record are non-numerical. The distance between two

records R

and R

is defined as:

A TWO-STAGED APPROACH FOR ASSESSING FOR THE QUALITY OF INTERNET SURVEY DATA

N / )

c( =

jpip

1=p

∑

where

otherwise. 0

if 1

{ =)

jpip

≠

(2)

Type III records: Fields in a type III record may

assume either numerical or non-numerical values. The

distance between two records R

and R

is defined as:

N / )

c( =

jpip

1=p

∑

where

for a numerical field p,

/ |

| = )

pjpipjpip

, and

| =

Mi1

ipMi1p

min

max

≤≤

or for a non-numerical field p,

otherwise. 0

if 1

{ =)

jpip

≠

(3)

For example, if

= (black, black, 3.1, 5.0), R

(black, white, 2.1, 5.1),

= 4.0, and S

= 5.5, then d

= 0.3170.

Lee et al. (1978), and Storer and Eastman (1990)

use Euclidean distances or city block distances for

type I records, and hamming distances for type II

records. There is no upper bound on the value of

either distance function. Therefore there are a large

number of possible threshold values.

To illustrate the new distance function, consider a

simple example with type III records. Table 1 is a

personnel database for a hypothetical company.

Matrix (4) shows the distance value between a

pair of records. Note that in the matrix,

= 0 and d

= d

. A small distance value between two records

implies that they are similar, while a large distance

value means that they are different.

An erroneous record, being so different from

other records, has large distance values with other

records. When records are clustered into groups,

erroneous records (i.e., outliers) will not be

associated with other records.

Table 2: Example.

Record POS

EDU

MON

SAL

1 0 0 15 20,000

2 1 1 10 20,000

3 0 0 11 20,000

4 1 1 35 60,000

5 1 0 17 30,000

6 0 1 17 30,000

7 0 0 16 20,000

8 1 1 33 65,000

9 1 0 16 46,000

10 0 0 50 80,000

Note:

1. POS = 1, when an employee has a middle management

position;

and POS = 0, when an employee has a supervisor position.

2. EDU = 1, when an employee has a college degree;

and EDU = 0, when an employee does not have a degree.

3. MON is the number of months an employee has worked for

the company.

4. SAL is the current salary of an employee.

Records

1 2 3 4 5 6 7 8 9 10

┌─ ─┐

1 │.00.52.02.73.29.29.01.73.34.36 │

2 │.52.00.51.25.32.32.53.26.36.89 │

R 3 │.02.51.00.74.31.31.03.75.36.89 │

e 4 │.73.25.74.00.43.43.72.03.39.64 │

c 5 │.29.32.31.43.00.50.29.44.06.57 │ (4)

o 6 │.29.32.31.43.50.00.29.44.56.57 │

r 7 │.01.53.03.72.29.29.00.73.33.36 │

d 8 │.73.26.75.03.44.44.73.00.39.63 │

s 9 │.34.36.36.39.06.56.33.39.00.53 │

10 │.36.89.89.64.57.57.36.63.53.00 │

└─ ─┘

Records

1 3 7 4 8 5 9 2 6 10

┌─ ─┐

1 │.00.02.01.73.73.29.34.52.29.36 │

R 3 │.02.00.03.74.75.31.36.51.31.89 │

e 7 │.01.03.00.72.73.29.33.53.29.36 │

c 4 │.73.74.72.00.03.43.39.25.43.64 │

o 8 │.73.75.73.03.00.44.39.26.44.63 │

r 5 │.29.31.29.43.44.00.06.32.50.57 │ (5)

d 9 │.34.36.33.39.39.06.00.36.56.53 │

s 2 │.52.51.53.25.26.32.36.00.32.89 │

6 │.29.31.29.43.44.50.56.32.00.57 │

10 │.36.89.36.64.63.57.53.89.57.00 │

└─ ─┘

When we rearrange rows and columns in Matrix

(4) with the purpose of putting similar records

together, we may get one possible solution shown in

Matrix (5). It is not difficult to observe that there are

three clusters: {1,3,7}, {4,8}, {5,9}. It is also

WEBIST 2007 - International Conference on Web Information Systems and Technologies

apparent that Records 2, 6, and 10 are not associated

with other records in any way. Therefore, they are

the outliers.

Suppose we let a record in the row of Matrix (4)

be a city in a TSP. The distance value between two

records is the distance between two cities. We need

to find a sequence of the cities for the row such that

cities closer to each other will be placed closer

together. Hence, this sequencing problem can be

formulated as a TSP (Lenstra and Kan Rinnooy,

1975). Many approaches may be used to solve this

TSP. In this paper, we attempt to use genetic

algorithm.

4 OUR APPROACH

Our approach consists of two phases: obtaining a

sequence of sample data records, and classifying

records into groups. The first phase uses a genetic

algorithm and the second phase adopts a

classification criterion for grouping. An illustrative

example is used to show the computational process

of our approach.

4.1 Genetic Algorithm

The genetic algorithm approach was developed by

John Holland (1975). This approach is a subset of

evolutionary algorithms that model biological

processes to optimize highly complex cost functions.

It allows a population composed of many individuals

to evolve under specified selection rules to a state

that maximizes the “fitness” (i.e., minimizes the cost

function).

Clearly, the large population of solutions and

simultaneously searching for better solutions give the

genetic algorithm its power. Some of the advantages

of a genetic algorithm are that it (Haupt and Haupt,

1998):

• Optimizes with continuous or discrete

parameters.

• Does not require derivative information.

• Simultaneously searches from a wide

sampling of the cost surface.

• Deals with a large number of parameters.

• Is well suited for parallel computers.

• Optimizes parameters with extremely

complex cost surfaces; it can jump out of a

local minimum.

• Provides a list of optimum parameters, not

just a single solution.

• May encode the parameters so that the

optimization is done with the encoded

parameters, and

• Works with numerically generated data,

experimental data, or analytical functions.

4.1.1 Representation

A chromosome represents an individual. For example,

= (1011001) and x

= (0111011) are two distinct

individuals. Offspring (new individuals) are generated

by crossover. A crossover point will be selected

randomly. The parent chromosomes will be split at the

chosen point and the segments of those chromosomes

will be exchanged. Using this basic crossover operator,

two fit individuals may combine their good traits and

make fitter offspring.

Nevertheless, the simple representation scheme

described above is not suitable for TSP. Instead, three

vector representations for TSP were proposed

(Michalewicz, 1999): adjacency, ordinal, and path.

Each representation has its own genetic operators.

Among the three representations, the path

representation is the most natural representation of a

tour. For example, a tour 3 – 4 – 1 – 6 – 5 – 2 – 7 is

simply represented by (3 4 1 6 5 2 7). Our proposed

approach uses this representation.

4.1.2 Initialization

Initialization involves generating of possible solutions

to the problem. The initial population may be

generated randomly or with the use of a heuristic. In

our approach, the initial population is generated

randomly.

4.1.3 Fitness Function

Fitness function is used to evaluate the value of the

individuals within the population. According to the

fitness value scored, the individual is selected as a

parent to produce offspring in the next generation or

is selected to disappear in the next generation.

In TSP, the total distance is calculated as the

distance travelled from the starting city to the last

city plus the distance from the last city to the starting

city. In our data auditing problem, returning to the

starting city (i.e., record) does not have any practical

meanings. Therefore, the problem is simplified to

the associated Hamiltonian Path Problem (HPP). As

the first and last records need not be connected, we

may calculate the total distance of a path instead of a

tour in our fitness functions.

Let

ρ be the permutations of records along the

row of the initial matrix. For a sequence of cities

A TWO-STAGED APPROACH FOR ASSESSING FOR THE QUALITY OF INTERNET SURVEY DATA

(i.e., records): (1 3 7 4 8 5 9 2 6 10),

ρ(2) = 3 and

ρ(7) = 9. The proposed approach converts the initial

sequence of records (specified by the initial matrix)

to a new sequence that minimizes the following

fitness function:

∑

−

)1()(

ρρ

where

n = number of records (i.e., rows

or columns).

(6)

4.1.4 Parent Selection

Parent selection is a process that allocates reproductive

opportunities to individuals. There are several

selection schemes: roulette wheel selection, scaling

techniques, ranking, etc. (Goldberg, 1989).

As the process continues, the variation in fitness

range will be reduced. This often leads to the problem

of premature convergence in which a few super-fit

individuals receive high reproductive trials and rapidly

dominate the population. If such individuals

correspond to local optima, the search will be trapped

like hill climbing.

In our approach, fitness ranking is used to solve the

problem of premature convergence (Whitley, 1989).

Individuals are sorted according to their fitness values,

the number of reproductive trails are then allocated

according to their rank.

4.1.5 Crossover

Several TSP crossover operators are defined: partially-

mapped (PMX), order (OX), cycle (CX), and edge

recombination (ER) crossover. Whitley et al. (1989)

found that ER is the most efficient crossover operator

for TSP. Starkweather et al. (1991) proposed an

enhancement to ER and find it more efficient than the

original operator.

In our approach, we use the EER operator. Since

the EER operator incorporates random selection to a

break tie, this mechanism creates an effect similar to

mutation. In our approach, we do not use any mutation

operator.

4.1.6 Mutation

Mutation is applied to each child individually after

crossover according to the mutation rate. It provides a

small amount of random search and helps ensure that

no point in the search space has a zero probability of

being examined. Several mutation operations have

been suggested by Michalewicz (1999). We do not

plan to use mutation operation. This is because the

crossover operator used incorporates a random

selection in completing a legal permutation and the

effect is similar to a mutation.

4.1.7 Replacement & Termination Criterion

In each generation, only two individuals are replaced.

In other words, parents and offspring may co-exist in

the population. The genetic process is repeated until a

termination criterion is met. In this case, we use a pre-

specified maximum number of generations as a

termination criterion.

4.2 Classification Criteria

We adopt the classification criteria developed by

Stanfel (1983) to classify data records into groups.

These classification criteria seek to minimize the

average distance within groups and maximize the

average distance between groups. Minimizing the

average distance within groups will put similar data

records into the same groups. At the same time,

maximizing the average distance between groups

will put dissimilar data records into different groups.

To formulate the chosen selection criterion, we

define:

⎩

⎨

⎧

otherwise

groupsametheinare

jandirecordsif

(7)

The expression for the average distance

within

groups is given as:

()

∑∑

−

ijij

(8)

While the expression for the average distance

between groups is given as:

∑∑

−

ijij

(9)

Hence, in order to achieve the objective of

maximizing the homogeneity of records within

groups as well as the heterogeneity of records

between groups, the difference between the average

()

∑∑

−

ijij

(10)

WEBIST 2007 - International Conference on Web Information Systems and Technologies

distance within groups and the average distance

between groups is minimized as shown in criterion

(10):

4.3 Illustrative Example

Phase one of the proposed approach takes Matrix (4)

as input and rearranges its rows and columns to obtain

a sequence of records. As shown in Matrix (5), the

sequence produced is (1 3 7 4 8 5 9 2 6 10). Phase two

takes the sequence and classifies data records into

groups to minimize criterion (10). As a result, we find

this grouping result: {1,3,7}, {4,8}, {5,9}, {2}, {6},

{10}.

Unlike most of the existing methods, our

approach does not require any parameters. The

generation of a sequence of data records and

assignment of data records into groups are all

automatic.

Based on the grouping result, we conclude that

records 2, 6, and 10 are outliers. A survey

administrator will examine these outliers and

determine whether they contain any error or not. Our

example postulates that an employee with a college

degree, in a middle management position, and with

more years of seniority should have higher current

salary. On the other hand, an employee without a

college degree, in a supervisor position, and with

fewer years of seniority should have a lower current

salary. However, record 2 indicates that the employee

has a college degree and in a middle management

level but has relatively low current salary. Record 10

indicates that the employee has exceptionally high

current salary for his/her position (i.e., supervisor) and

education (i.e., does not have a degree). Record 6 may

(or may not) contain errors.

5 CONCLUSION

In this work, we discussed the use of clustering

algorithms for assessing the quality of Internet

survey data. Limitations of some existing

approaches were identified. To address these

limitations, we first examined the nature of the

quality problem of Internet surveys and then

established that the problem is equivalent to a TSP.

Our proposed approach exploits the underlying TSP

structure. Although many algorithms may be used

for the TSP-quality problem, we adopt genetic

algorithm for computational efficiency and

advantage. Compared to the existing approaches, our

approach provides a better understanding of the

nature of the Internet survey problem and seems to

offer improvement potential. However, the quality

model must be implemented and tested to verify our

claims.

REFERENCES

Anderberg, M.R., 1993. Cluster analysis for applications,

Academic Press, New York.

Cheng, C.H., Goh, C.H., and Lee-Post, A., 2006. Data

auditing by hierarchical clustering, Internatinal

Journal of Applied Management & Technology, Vol.4,

No.1, pp. 153-163.

Felligi, I.P. and Holt, D., 1976. A systematic approach to

automatic editing and imputation, Journal of American

Statistics Assocication, Vol. 71, pp. 17-35.

Freund, R.J. and Hartley, H.O., 1967. A procedure for

automatic data editing, J Journal of American Statistics

Assocication, Vol. 62, pp. 341-352.

Goldberg, D.E., 1989. Genetic Algorithms in Search,

Optimization and Machine Learning. Massachusetts:

Addison Wesley.

Hartigan, J.A., 1975. Clustering Algorithms, McGraw-Hill,

New York.

Haupt, R.L. and Haupt, S.E., 1998. Practical Genetic

Algorithms. New York: John Wiley & Sons.

Holland, J.H., 1975. Adaptation in Natural and Artificial

Systems. Michigan: Michigan Press.

Lee, R.C., Slagle, J.R., and Mong, C.T., 1978. Towards

automatic auditing of records, IEEE Transactions on

Software Engineering., Vol. SE-4, pp. 441-448.

Lenstra, J.K. and Kan Rinnooy, A.H.G., 1975. Some

Simple Applications of the Traveling Salesman

Problem, Operations Research Quarterly, Vol. 26, pp.

717-733.

Michalewicz, Z., 1999. Genetic Algorithms + Data

Structures = Evolution Programs. Third, Revised and

Extended Edition, Hong Kong: Springer.

Naus, J.I., Johnson, T.G., and Montalvo, R., 1972. A

probabilistic model for identifying errors and data

editing, Journal of American Statistics Assocication,

Vol. 67, pp. 943-950.

Slagle, J.R., Chang, C.L., and Heller, S.R., 1975. A

clustering and data-reorganizing algorithm, IEEE

Transactions on Systems, Man, and Cybernetics, Vol.

SMC-5, pp. 125-128.

Stanfel, L.E., 1983. Applications of clustering to information

system design, Information Processing & Management.,

Vol. 19, pp. 37-50.

Starkweather, T., McDaniel, S., Mathias, K., Whitley, D.,

and Whitley, C., 1991. A Comparison of Genetic

Sequencing Operators, Proceedings of the fourth

International Conference on. Genetic Algorithms and

their Applications, pp.69-76

Storer, W.F. and Eastman, C.M., 1990. Some Experiments in

the use of clustering for data validation, Information

Systems., Vol. 15, pp. 537-542.

Whitley, D., 1989. The Genitor Algorithm and Selection

Pressure: Why Rank-based Allocation of Reproductive

Trials Is Best, Proeedings of. the Third International

Conference on Genetic Algorithms, pp.116-121.

A TWO-STAGED APPROACH FOR ASSESSING FOR THE QUALITY OF INTERNET SURVEY DATA
