DISPATCHING REQUESTS IN PARTIALLY REPLICATED WEB

CLUSTERS

An Adaptation of the LARD Algorithm

Jose Daniel Garcia, Laura Prada

Computer Architecture Group, University Carlos III of Madrid, Avda Universidad Carlos III, 22, Colmenarejo, Madrid, Spain

Jesus Carretero, Felix Garcia, Javier Fernandez, Luis Miguel Sanchez

Computer Architecture Group, University Carlos III of Madrid, Avda de la Universidad, 30, Leganes, Madrid, Spain

Keywords:

Web cluster, content replication, reliability.

Abstract:

Traditional alternatives for Web content allocation have been full replication and full distribution. An hybrid

alternative is partial replication where each content element is replicated to a subset of server nodes. Partial

replication gives advantages in terms of balancing reliability and storage capacity. However, partial replication

has architectural implications. In this paper we present a Web cluster architecture which may be used in single

switched Web clusters and multiple switched Web clusters. We present an algorithm for Web content allocation

which determines the number of replicas for each content based on its relative importance and that performs

the allocation keeping in mind resource constraints in clusters with heterogeneous storage capacity. We also

provide an adaptation of the LARD algorithm for request dispatching that copes with the fact that contents are

partially replicated. Our evaluations show that performance of partial replication solutions is comparable to

performance of traditional fully replicated solutions.

1 INTRODUCTION

During the last years the demand of high performance

Internet Web servers has increased dramatically. The

target is a solution which is scalable in both perfor-

mance and storage capacity, while reliability is not

compromised. The traditional standalone Web server

approach presents severe scalability limits which may

be partly mitigated by means of hardware scale-up

(Devlin et al., 1999) which may be viewed as a short

term solution. Web server performance may also be

improved by acting on the operating system (Banga

et al., 1998; Pai et al., 2000) or on the Web server

software itself (Pai et al., 1999; Shukla et al., 2004).

Another approach is the distributed Web server

(Cardellini et al., 2002) where a set of server nodes

are used to host a Web site. In those systems, per-

formance scalability may be achieved by adding new

server nodes. Different architectures have been pro-

posed for distributed Web servers. A common feature

to those architectures is the fact that the set of server

nodes offer a single system image to clients. Existing

solutions may be classiﬁed in three families:

Cluster based Web Systems. In this solution

(also known as Web Cluster) server nodes own IP ad-

dresses are not visible to clients. Instead, clients use a

virtual IP address which corresponds to the address of

some request distribution device or Web Switch. The

Web switch (Aron et al., 1999; Schroeder et al., 2000)

receives requests from clients and sends each request

to a server node.

Virtual Web clusters. All the server nodes share

a single common public IP address (Vaidya and Chris-

tensen, 2001). Each node receives all messages, but

every request is discarded by all nodes except one.

Distributed Web systems. Each node has its

own different publicly visible IP address (Aversa and

Bestavros, 2000; Cardellini, 2003). Request distri-

bution is made by a combination of dynamic DNS

(Brisco, 1995) and request redirection.

Usually, content allocation has been based on full

content replication (where every ﬁle is replicated into

every server node) or on full distribution (where every

ﬁle is stored in one and only one server node).

With full replication (Kwan et al., 1995; Devlin

et al., 1999) the system is highly reliable and request

distribution is easy to implement, as each request may

be served by any server node. On the other hand, stor-

141

Daniel Garcia J., Prada L., Carretero J., Garcia F., Fernandez J. and Miguel Sanchez L. (2007).

DISPATCHING REQUESTS IN PARTIALLY REPLICATED WEB CLUSTERS - An Adaptation of the LARD Algorithm.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 141-149

DOI: 10.5220/0001265201410149

 SciTePress

age scalability is minimal, as the full storage capacity

is limited by the server node with the lowest capacity.

Furthermore, adding new server nodes to the system

does not increase storage capacity.

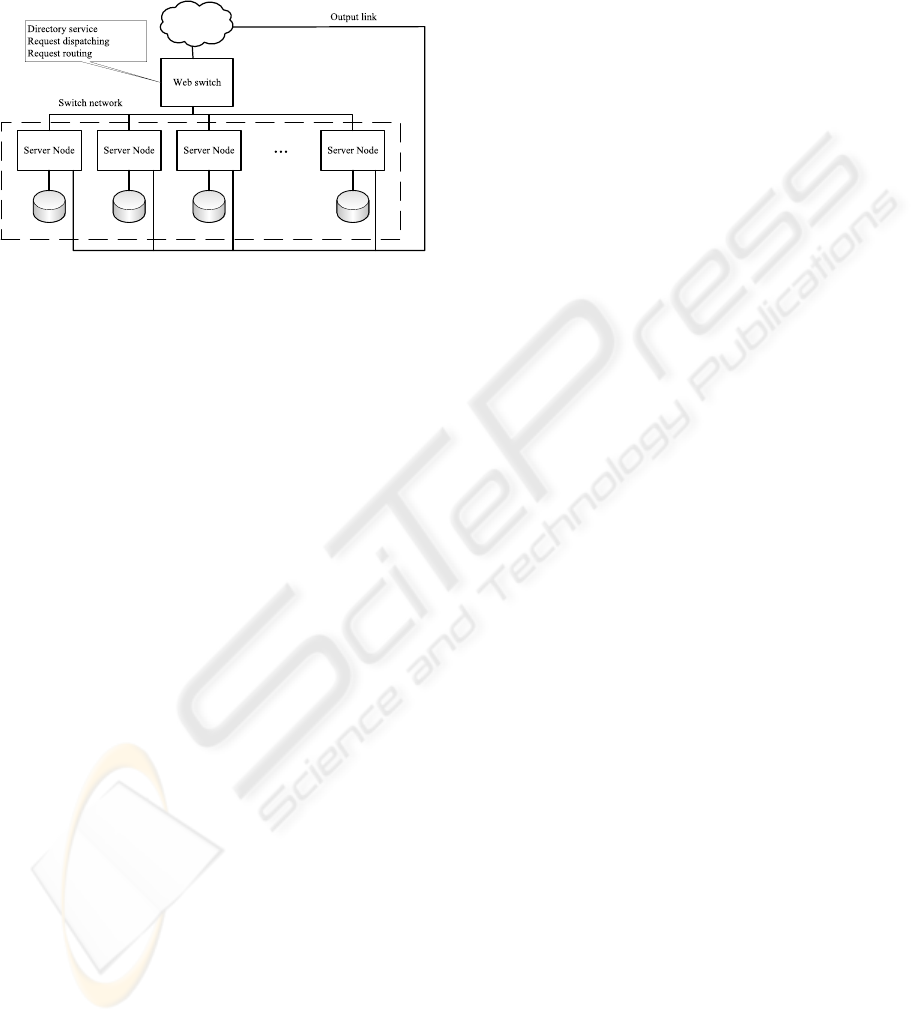

Figure 1: Architecture of a SSWC.

With full distribution the system gives a lower re-

liability (a node failure makes some content unavail-

able) and request distribution needs to use some sort

of directory service (Baker and Moon, 1999; Apos-

tolopoulos et al., 2000) to determine which node is

storing the requested ﬁle. On the other hand, storage

scalability is maximum, as adding a new node means

increasing the total amount of available storage.

A third alternative is partial replication (Li and

Moon, 2001; Garcia et al., 2003; Zhuo et al., 2003;

Tse, 2005), where each ﬁle is replicated in a possi-

bly different subset of the server nodes. With partial

replication reliability is higher than with full distribu-

tion and lower than with full replication. In terms of

storage capacity, partially replicated solutions provide

less capacity than fully distributed solutions, but far

more than fully replicated solutions. However, an im-

portant difference with full replication is that partial

replication provides storage capacity scalability (i.e.

adding new server nodes increases the system storage

capacity), while full replication does not.

In this paper we present a solution for partial repli-

cation of contents in Web clusters. The paper is orga-

nized as follows. Section 2 discusses alternatives for

the general architecture of a distributed Web server

with partial replication and justiﬁes the selection of

the Web cluster architecture, giving design details for

single switch and multiple switch variants. Section

3 presents our algorithm to determine the number of

replicas for each element of a Web site and to allo-

cate them to a set of server nodes. Section 4 presents

an adaptation of the well known LARD algorithm for

the case of partial replication of contents. Section 5

shows our evaluation results. In section 6 we sum-

marize our conclusions. Finally section 7 outlines our

future work.

2 ARCHITECTURAL

ALTERNATIVES

Partial replication restricts the architectural alterna-

tives for a distributed Web server. When a Web re-

quest arrives into the system, that request cannot be

sent to any node in the system, as not every node

stores every content. Besides, every ﬁle is not stored

in a single node. Instead, it is replicated in a set of

server nodes. Thus, a mechanism to determine that

set of server nodes is needed.

Virtual Web Clusters cannot be easily integrated

with the idea of partial replication (Garcia et al.,

2006b). In that case, every request reaches to every

node of the cluster. Nodes not storing the requested

content may ignore the request. But if two or more

nodes store the requested content it is not simple to

determine which node should take the responsibility

of answering the request, because most implementa-

tions make their selection using a hash function based

only on client IP address and port. Such hash func-

tions may lead to select a node not containing the re-

quested ﬁle. Furthermore, in most cases communica-

tion among cluster nodes is not feasible, and that fact

excludes the possibility that a node may notify others

when it takes the responsibility of taking in charge of

a request and its response.

In a Distributed Web System any request may

reach any node, but it is guaranteed that one request

reaches to one and only one node. However, there is

no guarantee that the node receiving the request con-

tains a replica of the requested node. In that case the

only solution is that the node receiving the request

performs a redirection to another node, which effec-

tively contains the requested resource. This fact in-

troduces additional complexities in the load balancing

mechanisms.

Although it is not impossible to integrate the par-

tial replication strategy into a Virtual Web Cluster or

into a Distributed Web System, we consider that such

strategy can be more easily integrated into a Web

Cluster. The main difference of a Web Cluster with

other architectures is that it has a single point where

every request arrives (the Web Swtich). In case of

partial replication, the Web Switch must be a con-

tent aware one (Cardellini et al., 2002). That is, the

switch must operate at level 7 of the protocol stack

and it must parse each request before deciding to

which server node that request will be routed. In a

previous work (Garcia et al., 2006a) we showed that

a Web Cluster with partial replication using a small

amount of replicas per ﬁle offers a reliability equiv-

alent to that of a fully replicated system and, at the

same time, it offers a much higher storage capacity.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

142

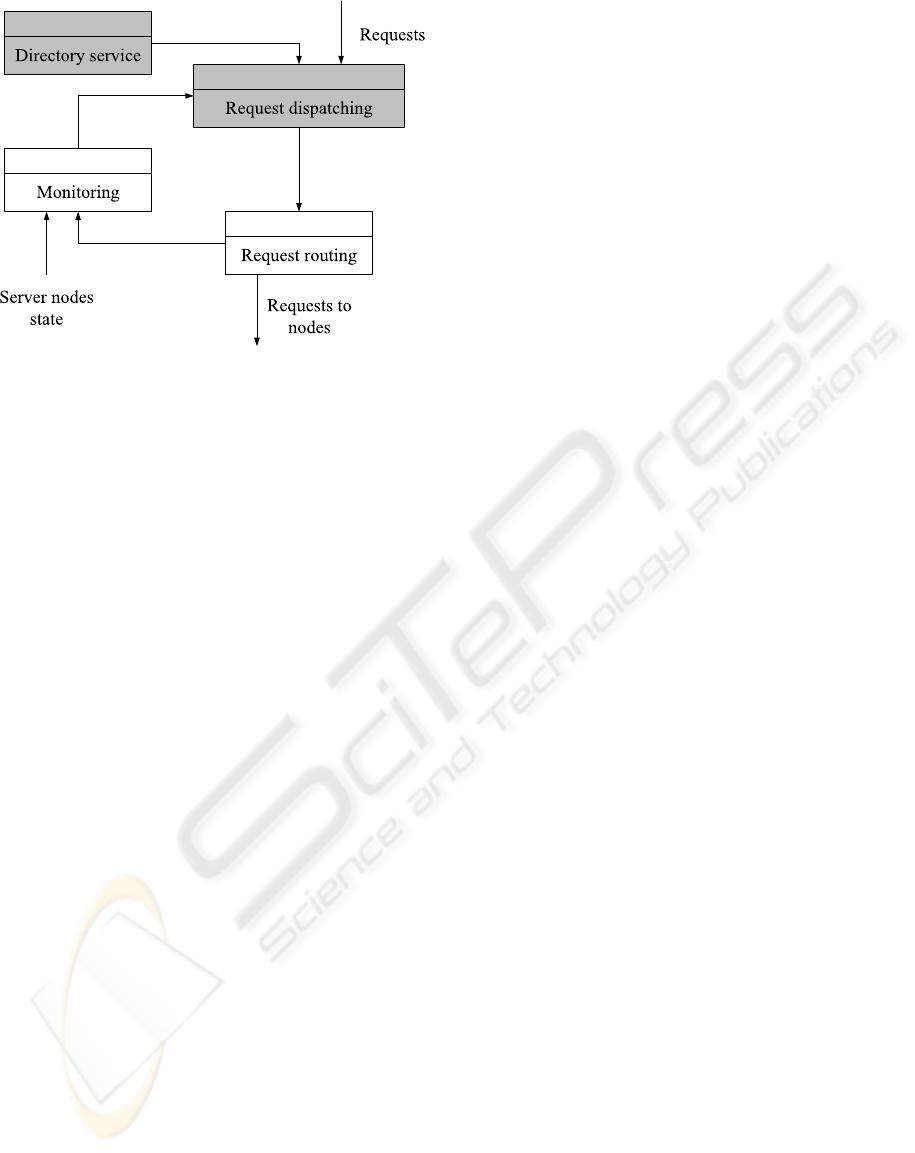

Figure 2: Internal architecture of Web Switch software for

a SSWC.

However, reliability is negatively affected by the fact

of using a single Web Swtich, which is a single point

of failure. That ﬂaw is mitigated by using more than

one Web Switch (2 or three are enough).

2.1 Single Switched Web Cluster

Architecture

In a Single Switched Web Cluster (SSWC), every re-

quest arrives into the Web Switch. The Web Switch is

responsible for the selection of the node which must

serve the request (through a dispatching algorithm).

The Web Switch is also responsible for sending the

request to the selected node (through a request routing

algorithm). Existing solutions do not apply, because

they usually assume either that every ﬁle is replicated

in every node (full replication of contents) or that ev-

ery ﬁle is stored in one and only one node (full distri-

bution of contents). However, the general architecture

is very similar to that of a standard Web Cluster (see

Fig. 1) where every server node has two network in-

terfaces: one connected to the Web Switch network,

and another one connected to a high bandwidth output

link.

In case of partial replication the dispatching algo-

rithm is dependent of the exact set of nodes effectively

containing the requested ﬁle. Thus, the Web Switch

must have the knowledge of the mapping of each ﬁle

to nodes (the set of nodes where it resides). It is for

that reason that content blind routing is not applica-

ble. As the dispatching algorithm must use the allo-

cation information, some sort of directory service is

needed to keep such information. Although a generic

directory service could lead to excessive delays, it is

possible to build low demanding resources data struc-

tures with lower delays (Apostolopoulos et al., 2000).

As an example, Luo et al. (Luo et al., 2002) imple-

mented a data structure using URL formalization and

multilevel hash tables. Their solution stored the infor-

mation related to 76000 ﬁles in 540 KB and the time

needed for a query was about 1.12 microseconds.

Once the dispatching algorithm has selected a

server node for a request, it is necessary to use some

request routing mechanism to effectively send the re-

quest to the selected node. As we have already stated,

request routing needs to be content aware. The rout-

ing mechanism may be implemented at the applica-

tion level (e.g. TCP gateway (Casalicchio and Co-

lajanni, 2001)) or at the operating system kernel level

(e.g. TCP splicing (Maltz and Bhagwat, 1999) or TCP

handoff (Pai et al., 1998)).

Several modules are needed in the Web Switch

software, as depicted in Fig. 2:

• Request dispatching Receives requests and se-

lects the node which must serve each request. The

request dispatching algorithm uses replica alloca-

tion information (given by directory service) and

node state information (given by monitoring mod-

ule).

• Request Routing Receives dispatched requests

and performs request routing to selected server

node. We propose the usage of TCP handoff for

efﬁcient request routing.

• Directory service Efﬁciently keeps replica allo-

cation to node information.

• Monitoring Keeps node state information (pro-

vided periodically by each node) which is used

by the request dispatching module. It also keeps

trace of routed requests information (provided by

the request routing module).

Modules in gray color are new (or need modiﬁca-

tion) in our architecture. A directory service module

has to be added to keep track of the mapping of ﬁles to

nodes. Besides the request dispatching module needs

to be modiﬁed to use the information of the directory

service.

2.2 Multiple Switched Web Cluster

Architecture

SSWC architecture presents a reliability drawback.

As they have a single switch, that element becomes

in a single point of failure. That is, if there is a failure

in the Web switch, the full system fails. To avoid this

ﬂaw, we propose a modiﬁed architecture: the multiple

switched Web Cluster (MSWC) based on the concept

of distributed Web switch.

DISPATCHING REQUESTS IN PARTIALLY REPLICATED WEB CLUSTERS - An Adaptation of the LARD

Algorithm

143

Figure 3: Request routing in a MSWC.

The main idea is the usage of a set of Web

switches as front end of the Web cluster. This al-

lows a high increase of the global reliability (Garcia

et al., 2006a). To distribute request arrival among the

Web switches, we use the combination of two mech-

anisms: dynamic DNS and request redirection among

switches.

Dynamic DNS (Andresen et al., 1997) has been

widely used in conjunction with Distributed Web Sys-

tems to share requests from clients among a set of

publicly available nodes. However, this technique is

of limited usefulness due to DNS caching, as several

experiments (Colajanni et al., 1998) have shown.

To complement dynamic DNS, each Web switch

may redirect some requests to another Web switch of

the front end. In our system, when a Web switch is

highly loaded, it redirects incoming requests to an-

other Web switch. That redirection may be performed

by means of standard HTTP redirection.

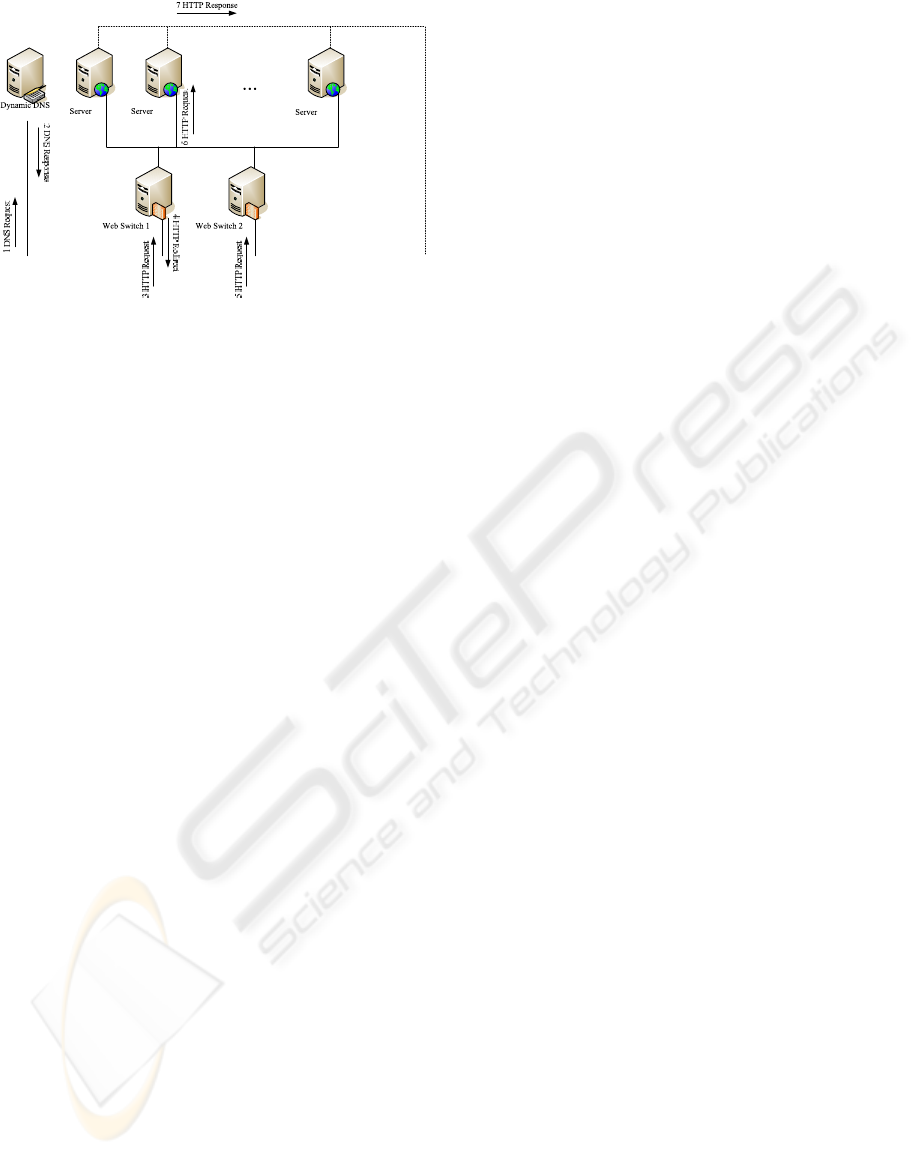

Fig. 3 shows the ﬂow of a request in a MSWC.

When a client starts a request, it ﬁrst issues a DNS

resolution request (1), which is answered by the DNS

server (2) with the IP address of a Web switch in the

front end of the cluster. The client then sends a HTTP

request to the selected Web switch (3), which may an-

swer with a redirection to another Web switch (4). In

that case, the client resends the HTTP request to the

newly selected Web switch (5). The Web switch se-

lects a server node through its dispatching algorithm

and resends the HTTP request to it (6). At last, the

selected node answers the client (7).

For the solution to work properly, each Web

switch must monitor its own state and, periodi-

cally, exchange that information with the other Web

switches. This allows that each switch may have

enough information to decide when it is able to trans-

fer some requests to another switch to achieve some

degree of load balancing at the front end level. It is

important to remark that transferring a request to an-

other switch has a lower cost than keeping it in the

original switch. That is because transfer operation

may be performed in a content blind manner at the

TCP level of the protocol stack and may be easily

integrated in the operating system kernel. When a

switch takes the responsibility of managing a request

it selects a server node and it routes the request to that

server node.

The structure of the software running in each

server node (see Fig. 4) is more complex than the one

used for a SSWC. Main modules are listed below:

• Switch routing ﬁlter Decides if an incoming re-

quest may be processed by the current switch or if

there is a better switch to serve the request. The

decision is based on the load state of every switch.

That information is provided by the state synchro-

nization module.

• Request dispatching Receives requests not dis-

carded by the switch routing ﬁlter and selects the

node which must serve each request. The request

dispatching algorithm uses replica allocation in-

formation (given by directory service) and system

state information (given by state synchronization).

• Request routing Receives dispatched requests

and performs request routing to selected server

node. We propose the usage of TCP handoff for

efﬁcient request routing.

• Directory service Efﬁciently keeps replica allo-

cation to node information. To reduce commu-

nication overheads we place a directory service

replicated in every Web Switch of the system.

• Monitoring Keeps node state information (pro-

vided periodically by each node). It also keeps

trace of routed requests information (provided by

the request routing module). The information it

gathers is provided to the state synchronization

module to build an integrated system state view.

• State synchronization Periodically notiﬁes the

rest of Web switches about its own state. This al-

lows that every switch has knowledge about the

state of other switches. That information is inte-

grated with information about server nodes pro-

vided by the monitoring module to help switch

routing ﬁlter and request dispatching modules to

make their own decissions.

3 REPLICA ALLOCATION

A key point to use a partial replication strategy is

replica allocation. That means answering two ques-

tions:

WEBIST 2007 - International Conference on Web Information Systems and Technologies

144

Figure 4: Internal architecture of Web Switch software for

a MSWC.

1. How many replicas must be used for each ele-

ment?

2. How must the replicas for different elements be

distributed over the cluster?

For question 1 the most easy solution would be to

use a ﬁxed number of replicas for each element (e.g.

three replicas per ﬁle). This solution does not takes

into account the fact that some ﬁles do not need to be

replicated as they are rarely accessed. Besides, hav-

ing the same number of replicas for each ﬁle leads

to problems when nodes have heterogeneous storage

capacities. Having an architecture that allows hetero-

geneous storage capacities is an useful feature when

scaling up nodes as it is not needed that every node

has the same storage capacity.

To select the number of replicas to be used for

each element, some criteria (or combination of cri-

teria) is needed. That allocation criteria may be ex-

pressed as the relative importance of the element or

ﬁle. One example for such criteria is access frequency

to elements. In that case, more replicas could be used

for highly accessed elements, using few replicas for

elements seldomly accessed. Another example of cri-

teria is relative importance for the content provider.

In that case, important elements have more replicas to

provide a better fault tolerance.

Let s

be the size of element e

, c

the capacity

of j-th server node and w

the normalized weight for

element e

. A ﬁrst approach is to assign for each el-

ement an amount of space proportional to its weight,

and determine the number or replicas r

that can ﬁt in

that space, as shown in (1). To ensure that at least one

replica is assigned to every element, only the remain-

ing space after assigning ﬁrst replica is distributed

among elements.

Table 1: Meaning of symbols used to express replica allo-

cation algorithm.

Symbol Meaning

N Number of elements in Web site

M Number of server nodes

Weight for i-th element

Storage capacity for j-th server node

Size of i-th element

Unadjusted number of replicas for i-th

element

∗

Adjusted number of replicas for i-th el-

ement

= 1+

∑

j=1

∑

k=1

(1)

However, (1) may lead in results of more than M

replicas for an speciﬁc element. To correct this, we

deﬁne r

∗

to adjust the number of replicas to a value in

the integer interval [1,M], as shown in (2).

∗

(

M if r

> M

⌊

⌋

if r

≤ M

(2)

Once the number of replicas has been determined

for each element, and in order to answer question 2,

an algorithm is needed to allocate replicas to server

nodes. For this, we use a greedy algorithm which al-

locates ﬁrst larger ﬁles and afterward smaller ones.

Algorithm 1 shows our approach which determines

the number of replicas for each element and allocates

them to server nodes, and Table 1 shows notation for

the algorithm.

Algorithm 1 Greedy algorithm for replica allocation.

for i = 1 to N do

← 1+ w

(

∑

j=1

∑

k=1

)/s

∗

← min

{

M,r

}

j ← k ∈ [1,M] |∀lc

> c

for l = 1 to r

∗

← 1

← c

− s

end for

DISPATCHING REQUESTS IN PARTIALLY REPLICATED WEB CLUSTERS - An Adaptation of the LARD

Algorithm

145

4 REQUEST DISPATCHING

ALGORITHM

In both architectures SSWC and MSWC request dis-

patching is a key element, as it receives a request and

it selects the server node responsible for processing

that request. We have adapted LARD (locality aware

request distribution) (Aron et al., 2000) for the context

of partial replication of Web contents. We name our

version PLARD (Partial LARD). LARD tries to max-

imize the hits on ﬁle systems caches and Web server

caches. To achieve this goal the algorithm tries to as-

sign all the requests of a ﬁle to the same server node,

when that node is below a certain load level. Only

when the server node is highly loaded a new node is

selected to serve requests to that ﬁle.

LARD algorithm assumes that every ﬁle may be

found on every server node. That is, the algorithm is

suitable for fully replicated Web clusters. In a par-

tially replicated Web clusters some adaptations are

needed:

1. If the number of replicas for a speciﬁc ﬁle is se-

lected using the probability for that ﬁle to be re-

quested, only one replica is used for such ﬁle. It is

important to remark that it should be expected for

a large number of ﬁles to be in that category, as

many ﬁles are rarely accessed. For all those ﬁles

the dispatching algorithm is not needed as there is

only one server node capable of serving requests.

2. The algorithm must consider, for each ﬁle, only

the server nodes where it is effectively stored.

This means, that the set of nodes assigned to ser-

vice a ﬁle must be a subset of the set of nodes

effectively storing that ﬁle.

In Table 2 we show the notation we use for our

PLARD algorithm.

Initially (see algorithm 2), a family of sets S is

constructed where each set S

contains the server

nodes s

where the ﬁle e

is stored. Besides, a sec-

ond family of sets U is constructed where every set

is initially empty. Every set U

is used to store the

server nodes assigned to service requests for an spe-

ciﬁc element e

. Additionally, the value t

mod

is set to

0 for each ﬁle e

. That value is used to keep track of

the latest instant in which the corresponding ﬁle has

been modiﬁed.

When a request reaches the Web switch (see al-

gorithm 3), the number of server nodes capable of

servicing the request is determined (|S

|). If the re-

quested element may be only serviced by on node, the

request is assigned to that node. Otherwise the corre-

sponding U

set is analyzed (i.e. the set of nodes cur-

rently assigned to service requests for that element).

Table 2: Meaning of symbols used to express PLARD algo-

rithm.

Symbol Meaning

N Number of elements in Web site

M Number no server nodes

Element allocation matrix element (1 if

element i is allocated to server j)

Set containing server nodes where the

i-th element is stored

k-th element of set S

Set containing nodes currently servic-

ing requests for element i

k-th element of set U

load(s

) Load level of k-th node in set S

mod

Instant when set T

was modiﬁed last

time

t Current time.

Algorithm 2 Value initialization for PLARD.

for i = 1 to N do

mod

← 0

←

for j = 1 to M do

if a

= 1 then

← S

∪





end if

end for

When set U

is empty, the least loaded node of

corresponding set S

is selected and added to set U

When set U

is non-empty, the least loaded node (s

el)

of set U

is selected, if it is below a load threshold. If

there is no node in set U

below load threshold, a new

node is selected to be added to set U

. A special case

is when all nodes containing replicas of the requested

element are in set U

(i.e. |U

| = |S

|). In such a case,

the least loaded node in U

is used to serve the request.

When load associated to an element decreases, an

element is eliminated from the corresponding U

set.

To achieve this, whenever set U

is updated the corre-

sponding modiﬁcation time t

mod

is updated to current

time. If after a timeout t

ev no change has happened

to set T

, the least loaded node of T

is eliminated.

5 PERFORMANCE EVALUATION

Even if reliability and storage capacity are key issues

for a Web server, these goals must be achieved with-

out loss of performance or with a minimum loss. To

WEBIST 2007 - International Conference on Web Information Systems and Technologies

146

Algorithm 3 Request dispatching in PLARD.

if |S

| = 1 then

Select node s

else

if U

0 then

sel

← s

∈ S

|load(s

) = min

∈S



load(s

)



← U

∪

{

sel

}

mod

← t

Select node s

sel

else

sel

← u

∈ U

|load(u

) = min

∈U



load(u

)



if |U

| = |S

| then

Select node s

sel

else if load(s

sel

) > L

MAX

and ∃s

|load(s

) <

MIN

or load(s

sel

) ≥ 2L

MAX

then

′

sel

← s

∈ S

|load(s

) = min

∈S



load(s

)



← U

∪



′

sel



mod

← t

Select node s

′

sel

else

Select node s

sel

end if

if |S

| > 1 and t −t

mod

> t

rev

then

elim

← u

∈ U

|load(u

) =

max

∈U



load(u

)



← U

−

{

elim

}

mod

← t

end if

evaluate performance of our solutions we have built

a simulation model using the OMNeT++ 3.0 frame-

work (

http://www.omnetpp.org

For our simulations we have used a Web cluster

with 16 server nodes. We have set up 800 client ma-

chines which are continuously performing Web re-

quests to the cluster. Requests are routed using an

one-way strategy (responses from server nodes use a

different connection so they do not return through the

Web switch). Table 3 shows the main simulation pa-

rameters used in the evaluations which are consistent

with other works (Barford and Crovella, 1998; Casal-

icchio and Colajanni, 2001; Cardellini, 2003).

In our evaluation we have compared full replica-

tion of contents (FREP), where every ﬁle is replicated

into every node, to partial replication (PREP) where

ﬁles are partially replicated. In the latter case we have

used ﬁle popularity as selection criteria. We use Zipf

function as as popularity model (Breslau et al., 1999).

We have used two test scenarios: a SSWC and a

MSWC with three Web switches. For each scenario

we performed 35 simulation realizations with differ-

ent random seeds. Table 4 shows mean service time

and variance for SSWC and MSWC.

The obtained results show slight overheads in case

of partial replication over the case of full replication.

To estimate if there is difference in obtained results

we have conducted an analysis of variance (ANOVA)

with α = 0.05 over our simulation results. In both

cases, SSWC and MSWC, we obtained a probability

that there is no difference in results of more than 99%.

Thus, there is no evidence, in our simulation ex-

periments, that the usage of a partial replication strat-

egy affects negatively performance. This is true for

both, our experiments of a SSWC and for our exper-

iment using a front-end of three Web switches. It is

remarkable to note that, even if we admitted that per-

formance is not equal differences in performance are

below 0.5% which makes our solution very useful as

it offers a very good tradeoff between reliability and

storage capacity.

6 CONCLUSION

In this paper we have presented a Web cluster ar-

chitecture which may be used in presence of partial

replication. Our previous works have shown that par-

tial replication allows to balance global reliability and

storage capacity. In this work we have focused on

the needed architecture for a cluster based Web sys-

tem to provide services when contents are partially

replicated. Using the Web cluster as base architecture

allows that key changes are needed only in the Web

switch component.

We have presented two variants of our architec-

ture: one for single switched web clusters and another

one for multiple switched web clusters. Both archi-

tectures share as a key element an efﬁcient directory

service to keep track of ﬁle to node mappings.

When using partial replication, two issues have to

be solved: (1) the replica allocation strategy and (2)

the request dispatching algorithm used to select the

server node responsible to service every request. For

replica allocation strategy we have presented an algo-

rithm that keeps in mind storage resource constraints

and gives more replicas to more relevant ﬁles. Rele-

vancy of ﬁles may be deﬁned in terms of popularity,

relative importance of the content or any other orga-

nization deﬁned criteria. It is remarkable to note that

our algorithm may be used when nodes have hetero-

geneous storage capacities. For request distribution

DISPATCHING REQUESTS IN PARTIALLY REPLICATED WEB CLUSTERS - An Adaptation of the LARD

Algorithm

147

Table 3: Simulation parameters used in the evaluation.

Parameter Distribution

Number of embedded ﬁles Pareto (α = 2.43,k = 1)

Main ﬁles size (body) Lognormal (µ = 7.63, σ = 1.001)

Main ﬁles size (tail) Pareto (α = 1,k = 10240)

Embedded ﬁles size Lognormal (µ = 8.215, σ = 1.46)

Inter session time Pareto (α = 1.4,k = 20)

Requests per session Inverse gaussian (µ = 2.86,λ = 9.46)

Inactivity time Pareto (α = 1.4,k = 1)

Parsing time Weibull (α = 1.46,β = 0.382)

Table 4: Mean service time and correspondig variance for request processing in SSWC and MSWC.

Replication SSWC MSWC

Mean Percentile-90 Mean Percentile-90

FREP 5.423566866 s. 12.91512182 s. 5.437371853 s. 13.04278589 s.

PREP 5.423986327 s. 12.97181347 s. 5.437461929 s. 13.03745480 s.

we have adapted the LARD algorithm for the case of

partial replication leading to our PLARD.

The performance evaluation suggest, that there is

no signiﬁcant difference in performance between full

replication and partial replication. Moreover, even if

we assume that there is a difference this would be be-

low 0.5%. The main advantage of our solution is that

is capable to offer a good balance among storage ca-

pacity and reliability.

7 FUTURE WORK

The solution we have presented if of static nature in

the sense that replica allocation is performed at start

phase and it is then frozen. However conditions of a

Web site may vary when new contents are added, or

the usage pattern is modiﬁed. It is for this reason that

we plan to redeﬁne our architecture so that replica al-

location may be automatically updated incorporating

properties of self-managed systems. This will be spe-

cially useful in cases where ﬁle popularity is used as

replica allocation criteria.

ACKNOWLEDGEMENTS

This work has been partially supported by the Span-

ish Ministry of Science and Education under the

TIN2004-02156 contract and Madrid Regional Gov-

ernment under contract UC3M-INF-05-003.

REFERENCES

Andresen, D., Yang, T., and Ibarra, O. H. (1997). Toward a

scalable distributed www server on workstation clus-

ters. Journal on Parallel and Distributed Computing,

42(1):91–100.

Apostolopoulos, G., Aubespin, D., Peris, V., Pradham, P.,

and Saha, D. (2000). Design, implementation and

performance of a content-based switch. In Proceed-

ings of the Nineteenth Annual Joint Conference of the

IEEE Computer and Communications Societies (IN-

FOCOM 2000), volume 3, pages 1117–1126.

Aron, M., Druschel, P., and Zwaenepoel, W. (1999).

Efﬁcient support for P-HTTP in cluster-based web

servers. In Proceedings of the 1999 USENIX Annual

Technical Conference, pages 185–198.

Aron, M., Sanders, D., Druschel, P., and Zwaenepoel, W.

(2000). Scalable content-aware request distribution in

cluster-based network servers. In Proceedings of the

2000 USENIX Annual Technical Conference, pages

232–336.

Aversa, L. and Bestavros, A. (2000). Load balancing a clus-

ter of web servers: using distributed packet rewriting.

In Conference Proceedings of the 2000 IEEE Interna-

tional Performance, Computing, and Communications

Conference (IPCCC 2000), pages 24–29.

Baker, S. M. and Moon, B. (1999). Distributed cooperative

web servers. Computer Networks, 31(11–16):1215–

1229.

Banga, G., Druschel, P., and Mogul, J. C. (1998). Better

operating system features for faster network servers.

Performance Evaluation Review, 26(3):23–30.

Barford, P. and Crovella, M. (1998). Generating represen-

tative web workloads for network and server perfor-

mance evaluation. SIGMETRICS Performance Evalu-

ation Review, 26(1):151–160.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

148

Breslau, L., Cao, P., Fan, L., Phillips, G., and Shenker, S.

(1999). Web caching and Zipf-like distributions: Ev-

idence and implications. In Eighteenth Annual Joint

Conference of the IEEE Computer and Communica-

tions Societies (INFOCOMM ’99), volume 1, pages

126–134.

Brisco, T. (1995). DNS Support for Load Balancing. RFC

1794. Internet Engineering Task Force.

Cardellini, V. (2003). Request redirection algorithms for

distributed web systems. IEEE Transactions on Par-

allel and Distributed Systems, 14(4):355–368.

Cardellini, V., Casalicchio, E., Colajanni, M., and Yu, P. S.

(2002). The state of the art in locally distributed Web-

server systems. ACM Computing Surveys, 34(2):263–

311.

Casalicchio, E. and Colajanni, M. (2001). A client-aware

dispatching algorithm for web clusters providing mul-

tiple services. In Proceedings of the tenth interna-

tional conference on World Wide Web, pages 535–544.

Colajanni, M., Yu, P. S., and Dias, D. M. (1998). Analy-

sis of task assignment policies in scalable distributed

web-server systems. IEEE Transactions on Parallel

and Distributed Systems, 9(6):585–600.

Devlin, B., Gray, J., Laing, B., and Spix, G. (1999). Scal-

ability terminology: Farms, clones, partitions, and

packs: RACS and RAPS. Technical Report MS-TR-

99-85, Microsoft Research.

Garcia, J. D., Carretero, J., Garcia, F., Calderon, A., Fer-

nandez, J., and Singh, D. E. (2006a). On the reliabil-

ity of web clusters with partial replication of contents.

In First International Conference on Availability, Re-

liability and Security, 2006. ARES 2006., pages 617–

624.

Garcia, J. D., Carretero, J., Garcia, F., Fernandez, J.,

Calderon, A., and Singh., D. E. (2006b). A quanti-

tative justiﬁcation to partial replication of web con-

tents. In International Conference on Computational

Science and its Applications, volume 3983 of Lecture

Notes in Computer Science, pages 1136–1145.

Garcia, J. D., Carretero, J., Prez, J. M., Garcia, F., and Fer-

nandez, J. (2003). A distributed web switch for par-

tially replicated contents. In Proceedings of the 7th

World Multiconference on Systemics, Cybernetics and

Informatics (SCI 2003), volume VIII, pages 1–6, Or-

lando, FL, USA.

Kwan, T. T., McGrath, R. E., and Reed, D. A. (1995).

NCSA’s world wide web server: design and perfor-

mance. IEEE Computer, 28(11):68–74.

Li, Q. and Moon, B. (2001). Distributed cooperative

Apache Web server. In Proceedings of the tenth inter-

national conference on World Wide Web, pages 555–

564.

Luo, M.-Y., Tseng, C.-W., and Yang, C.-S. (2002). URL

formalization: An efﬁcient technique to speedup

content-aware switching. IEEE Communications Let-

ters, 6(12):553–555.

Maltz, D. A. and Bhagwat, P. (1999). TCP splice for ap-

plication layer proxy performance. Journal of High

Speed Networks, 8(3):225–240.

Pai, V. S., Aron, M., Banga, G., Svendsen, M., Zwaenepoel,

P. D. W., and Nahum, E. (1998). Locality-aware

request distribution in cluster-based network servers.

ACM SIGPLAN Notices, 33(11):205–216.

Pai, V. S., Druschel, P., and Zwaenepoel, W. (1999). Flash:

An efﬁcient and portable Web server. In Proceedings

of the USENIX 1999 Annual Technical Conference,

pages 199–212.

Pai, V. S., Druschel, P., and Zwaenepoel, W. (2000). IO-

Lite: A uniﬁed I/O buffering and caching system.

ACM Transactions on Computer Systems, 18(1):37–

66.

Schroeder, T., Goddard, S., and Ramamurthy, B. (2000).

Scalable web server clustering technologies. IEEE

Network, 14(3):38–45.

Shukla, A., Li, L., Ward, A. S. P., and Brecht, T. (2004).

Evaluating the performance of user-space and kernel-

space web servers. In Proceedings of the 2004 Con-

ference of the Centre for Advanced Studies on Collab-

orative Research, pages 189–201.

Tse, S. S. H. (2005). Approximate algorithms for document

placement in distributed web servers. Transactions on

Parallel and Distributed Systems, 16(6):489–496.

Vaidya, S. and Christensen, K. J. (2001). A single system

image server cluster using duplicated MAC and IP ad-

dresses. In Proceedings of the 26th Annual IEEE Con-

ference on Local Computer Networks (LCN 2001),

pages 206–214.

Zhuo, L., Wang, C.-L., and Lau, F. C. M. (2003). Document

replication and distribution in extensible geographi-

cally distributed web servers. Journal of Parallel and

Distributed Computing, 63(10):927–944.

DISPATCHING REQUESTS IN PARTIALLY REPLICATED WEB CLUSTERS - An Adaptation of the LARD

Algorithm

149
