SEMANTICS-BASED ACCESS CONTROL

Ontologies and Feasibility Study of Policy Enforcement Function

Anton Naumenko

Department of Mathematical Information Technology, University of Jyväskylä, P.O.Box 35, FIN-40014, Finland

Keywords: Access Control, Policy Enforcement Mechanism, Semantic Web, Ontology.

Abstract: The current Web evolves to the Web 2.0 that is an intermediate step towards Semantic Web. Conventional

security measures fall short to serve both, emerging technologies and innovative web-based information

systems. The paper presents our research and development results towards adoption Semantic Web

standards for the creation of unified view on the access control area that enables flexible, collaborative and

distributed management of access control based on semantic relations amongst relating concepts. The

integration of Semantic Web and access control disciplines leads to the elaboration of new more intelligent,

flexible and reusable access control mechanisms and tools. The paper has practical orientation, evaluating

research results and ideas with the development and testing of the prototype for the enforcement of access

control policies based on the ontologies.

1 INTRODUCTION

The current Web evolves to the Web 2.0, which is

an intermediate step towards Semantic Web

(Berners-Lee, Hendler, and Lassila, 2001), by

adding new unique advanced features (O’Reilly,

2005). Ubiquitous and autonomic computing, RFID

technologies, and ambient intelligence ultimately

leads to the “Internet of things”. Web-based

information systems become more complex,

dynamic, heterogeneous, pervasive, nomadic, and

open. Conventional security measures fall short to

serve both, emerging Internet technologies and

innovative web-based information systems. This

slows down or even blocks the adoption of

innovative Internet and Web technologies.

We present our research and development results

towards Semantics-Based Access Control (SBAC).

SBAC aims at the adoption of Semantic Web

standards for the creation of unified view on the

access control area that enables flexible,

collaborative and distributed management of access

control based on semantic relations amongst relating

concepts. SBAC research and development targets

are mathematical models (Naumenko 2006),

ontologies (Gruber, 1993), specification of

functionality for enforcement and administrative

functions, algorithms, abstract designs (Naumenko

2006, Naumenko and Luostarinen 2006), reference

implementations, concrete designs for different

domains with different ICTs (Naumenko et al 2005,

Naumenko and Luostarinen 2006, Naumenko et al

2007). SBAC is to provide means for the

management of access control on the abstract level,

in order to allow flexible ontology-based policy

management for open and dynamic environments.

This paper addresses the use of ontologies and

evaluates our research results with the development

and testing of the prototype for the enforcement of

access control policies based on ontologies.

The remainder is organised as follows. Related

work is presented in section 2. Section 3 addresses

ontologies in SBAC. Section 4 describes the study of

feasibility of the SBAC enforcement mechanism.

Section 5 provides conclusions.

2 RELATED WORK

The presented in this paper research lies on the

intersection of Semantic Web and access control

research areas. There are number of ongoing efforts

to apply the Semantic Web standards to different

aspects of access control.

Yagüe et al initially introduced Semantic Access

Control (SAC) model (2005) and constantly publish

results of their research on applying SAC (2003) in

different environments. SAC uses XML (Yergeau et

al., 2004) inheriting limitations of XML-based

efforts (see below).

150

Naumenko A. (2007).

SEMANTICS-BASED ACCESS CONTROL - Ontologies and Feasibility Study of Policy Enforcement Function.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 150-155

DOI: 10.5220/0001265601500155

 SciTePress

The Concept-level Access Control (Qin and

Atluri, 2003) introduces the model based on 4-tuple

(object, operation, positive or negative sign, subject)

for the specification of authorizations over Semantic

Web data.

Rei is the rule-based policy language represented

using RDF. This language originally was oriented to

specify policy rules for individual subjects, targets

and actions. However, it permits specification of

policies based on roles, groups and entities despite

the fact, that notions for roles, groups and entities

have not been specified in the basic Rei ontology

(Tonti et al., 2003).

KAoS is an approach to the ontology-based

policy representation language. It is based on KAoS

Policy Ontology (KPO) that uses OWL (Tonti et al.,

2003). KAoS policies authorize actions that restrict

subjects and objects of access further in their

annotations. Thus the KAoS overstates the

importance of actions comparing to subjects and

objects. Policies may target individual concepts,

classes, groups, etc.

Finally, there are number of ongoing industrial

efforts to produce access control languages and

standards based on XML, like Extensible Access

Control Markup Language (Moses, 2005), Web

Services Security (Nadalin et al., 2006), Extensible

Rights Markup Language (Wang et al., 2002), etc.

XML-based solutions intersect in ideas and concepts

with ontology-based approaches. However, they do

not concentrate on semantic features and thus do not

fully gain benefits of Semantic Web. The main

limitation of these efforts is that knowledge

representation models standardized as part of the

Semantic Web activity is much more generic and

expressive than the representation based on tailored

XML schemas.

3 SEMANTICS-BASED ACCESS

CONTROL ONTOLOGIES

The main research proposal is to use ontologies

instead of mathematical access control and domain

models. The SBAC ontologies consolidate and

formally specify knowledge of the access control

domain in machine-interpretable form. This means

that SBAC ontologies mainly represent and organize

knowledge that was already formalized in different

existing access control models. The SBAC

ontologies formally serialize the model-theoretic

semantics of SBAC (Naumenko 2006) which uses

the model-theoretic semantics of OWL (Patel-

Schneider, 2004).

For the specification of SBAC ontologies we use

the abstract syntax of OWL (McGuinness and

Harmelen, 2004). Purpose of abstract syntax is

informal specification of ontologies that facilitates

analysis of concepts and relations.

A regular OWL ontology consists of annotations,

axioms, and facts. Annotations carry information

about authorship, versioning and other data

associated with an ontology and concepts. Facts and

axioms provide information about classes,

individuals and properties that form main content of

an ontology. An ontology can have name that is

intended to be the address where it can be found,

although this is out of formal semantics.

Semantics-based security (SBS) ontology is a

stub of upper ontology. The SBS ontology defines

three classes and three individual-valued properties

with explicit definition of their names (note: OWL

allows defining anonymous concepts). Specification

of classes and properties consists of axioms that

associate concepts’ identifiers with the specification

of their characteristics, for example that sbs:subject,

sbs:predicate and sbs:object properties have

sbs:SecurityStatement class as their domains. The

class of security statements and three relations

define a generic structure for specification of

statements related to security e.g. privileges,

prohibitions, obligations for access control, trace

statements for logging and audit, reputation

statements and trust agreement statements for trust

management, and other. The scope of this paper

encompasses semantics of access control statements.

The main feature of the semantics of access control

statements and the whole SBAC is that above

mentioned security-related statements are specified

between classes instead of individuals.

Ontology(sbs:ontology

Class(sbs:SecurityStatement)

ObjectProperty(sbs:subject

domain(sbs:SecurityStatement))

ObjectProperty(sbs:predicate

domain(sbs:SecurityStatement))

ObjectProperty(sbs:object

domain(sbs:SecurityStatement)))

An ontology property owl:imports gives the extra

effect of importing the contents of target ontology

into the current ontology (Patel-Schneider, 2004).

The SBAC ontology imports the SBS ontology in

order to specialize the security statement and three

relations. The introduced class for access control

statements is a subclass of security statements.

Subject, operation and object relations of access

control statements are subproperties of

corresponding relations of the SBS ontology. The

SBAC ontology also defines restrictions on these

relations that their values must be classes of

resources and operations, respectively. For this

SEMANTICS-BASED ACCESS CONTROL - Ontologies and Feasibility Study of Policy Enforcement Function

151

purpose there are two sub classes of the owl:Class

concept that denote the class of resources and class

of operations. A resource is an entity of physical or

digital world that is a subject or an object of access.

Definition of the resource as a set for subjects and

objects gives more flexibility in access control rights

specification because it is hard to separate resources

on passive and active in environments where

artificial resources play active roles and their

relations to human users are weak or are not present.

Individual operations could be actions, transactions,

access modes, etc. Finally, there is an axiom

defining relation of precedence between

specialisations of access control statements, like

privileges, prohibitions, etc (see description below).

Ontology(sbac:ontology

Annotation(owl:imports sbs:ontology)

Class(sbac:ClassOfResources partial

owl:Class)

Class(sbac:ClassOfOperations partial

owl:Class)

Class(sbac:AccessControlStatement

partial sbs:SecurityStatement

restriction(sbac:subject

allValuesFrom(sbac:ClassOfResources)

)

restriction(sbac:operation

allValuesFrom(sbac:ClassOfOperations

))

restriction(sbac:object

allValuesFrom(sbac:ClassOfResources)

)))

ObjectProperty(sbac:subject

super(sbs:subject)

domain(sbac:AccessControlStatement)

range(sbac:ClassOfResources))

ObjectProperty(sbac:operation

super(sbs:predicate)

domain(sbac:AccessControlStatement)

range(sbac:ClassOfOperations))

ObjectProperty(sbac:object

super(sbs:object)

domain(sbac:AccessControlStatement)

range(sbac:ClassOfResources))

ObjectProperty(sbac:precedes))

The SBAC privilege and prohibition ontologies

import the SBAC ontology in order to extend it with

class axioms that define the class of privilege

statements or the class of prohibition statements,

respectively. These classes are subclasses of the

abstract class of access control statements. The

individual privileges and prohibitions are positive

and negative authorizations.

Ontology(sbacpriv:ontology

Annotation(owl:imports

sbac:ontology)

Class(sbacpriv:Privilege partial

sbac:AccessControlStatement))

Ontology(sbacproh:ontology

Annotation(owl:imports

sbac:ontology)

Class(sbacproh:Prohibition partial

sbac:AccessControlStatement))

A privilege is an authorization of resources to access

other resources using some operations. A decision of

access granting or prohibiting depends on

classification of subjects, operations and objects.

The decision algorithm evaluates types of subjects,

operations and objects taking into account partial

order of classes.

Support of only positive authorizations in the

form of privileges guaranties a conflicts free

specification of access control policies. However,

even in this case, the model has an implicit

prohibition that everything is prohibited unless it is

privileged. Introducing means for the specification

of prohibitions in SBAC policies enhances

expressivity of the policy language i.e. to make

negative authorizations explicit.

It is evident that policies with privileges and

prohibitions are not free from conflicts in an

arbitrary case (Naumenko 2006). These policies

require mechanisms to resolve conflicts and

ambiguity for the guarantied decidability. Following

the fundamental principle of access control for

ensuring confidentiality, prohibitions always precede

privileges. For example, block lists in mobile phones

prohibit accepting calls from given phone numbers

while there is a general implicit privilege to accept

calls from everybody. Note, for this example

prohibitions are mostly used to specify policies in

the form of block lists. Although in the most cases

policies will follow the fundamental principle, there

is a need to specify the precedence between

privileges and prohibitions to facilitate at least the

explicit specification of the fundamental prohibiting

principle with the further precedence of privileges.

Figure 1 illustrates the concepts of SBAC

ontologies, importing mechanism amongst the

ontologies and possible policies commitments to the

different SBAC features introduced in the paper.

Ontologies for the policies A and D are able to

define only privilege and only prohibition statements

respectively. The policies B and C may contain both

types of statements. Privileges have precedence over

prohibitions in the policy B and prohibitions precede

privileges in the policy C.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

152

sbac

sbacpriv

Class

ClassOfResources ClassOfOperations

AccessControlStatement

subject: ClassOfResources

operation: ClassOfOperations

object: ClassOfResources

subject ∀ ClassOfResources

operation ∀ ClassOfOperations

object ∀ ClassOfResources

Privilege

Class

property: Range

property Restriction

Ontology

i s

imports

subClassOf

Legend:

sbs

SecurityStatement

subject: owl:Thing

operation: owl:Thing

object: owl:Thing

sbacproh

Prohibition

∀ - allValuesFrom restriction

policyA

policyCpolicyB

policyD

∋ - hasValue restriction

sbacproh:Prohibition

precedes ∋ sbacpriv:Privilege

sbacpriv:Privilege

precedes ∋ sbacproh:Prohibition

Figure 1: The SBAC ontologies.

SBAC interprets the facts, axioms and ontologies

as defined by the OWL direct model-theoretic

semantics. Notable and important interpretations of

OWL for SBAC are provided briefly below. The

OWL provides a possibility to specify classes using

descriptions. Descriptions are axioms and they

include class identifiers, restrictions and boolean

combinations of other descriptions. Boolean

combinations are union, intersection, and

complement. Restrictions are placed on properties

and called also facets. Descriptions allow flexible

specification of access control policies for further

inferring access control statements applicable to

individual resources and operations based on their

taxonomic and faceted classifications Another useful

OWL feature for organizing access control

statements is specification of an enumerated class by

the explicit specification of all individual members.

Interpretation of ontologies is the key issue for

evolution, consistency, reasoning and organising

SBAC policies and domain knowledge in different

ontologies separately. That is needed for flexible and

joint further use with the high conceptual

granularity. Annotation and ontology properties help

to record a history of evolution of the SBAC and

domain ontologies, policies, trust agreements, etc.

The OWL standard (Patel-Schneider, 2004) defines

conditions when an abstract OWL interpretation

satisfies an OWL ontology. The definitions of when

and how a collection of ontologies and axioms and

facts is consistent and entails an ontology or axiom

or fact provide background for reasoning and

maintaining integrity of the SBAC data.

4 FEASIBILITY STUDY

The use of Semantic Web standards ensures

automated reasoning over ontology-based access

control policies. This also ensures the possibility to

reuse existing Semantic Web tools and applications.

The prototyping was conducted with the main

purpose to test performance of the SBAC

enforcement mechanism and to gather information

for the feasibility study.

4.1 Development and Testing

Environment

The development environment consists of several

interrelated elements (figure 2). Java 2 standard

edition development kit version 1.5

(java.sun.com/j2se/1.5.0/) is a programming

language and platform that was chosen for the

prototyping of research ideas. Jena

(jena.sourceforge.net/) is a semantic web framework

for java developed within the HP Labs Semantic

Web Programme (www.hpl.hp.com/semweb/). ARQ

(jena.sourceforge.net/ARQ/) is a SPARQL processor

for Jena. SPARQL is a query language for the RDF

developed by W3C (Prud'hommeaux and Seaborne,

2006). Eclipse (www.eclipse.org) is an open source

community that produces extensible with huge

amount of plugins integrated development

environment (IDE). The last version of the IDE is

3.2. The Eclipse Test & Performance Tools Platform

(TPTP, www.eclipse.org/tptp/) project consists of

four subproject one of which provides tools for

tracing and profiling java applications for further

analysis of performance. The protégé

(www.protege.stanford.edu) is the most appropriate

tool to create defined SBAC ontologies in the

RDF/XML exchange syntax of OWL. The protégé is

an open source and free ontology editor with the

number of plugins for editing (Protege-OWL) and

visualizing (Ontoviz, OWL Viz) OWL ontologies.

Web server is a container for developed in the

protégé SBAC, domain and policy ontologies that

are accessible by the prototype through HTTP.

Java 2 Standard Edition Development Kit 1.5 Platform

Jena 2.4 ARQ

Eclipse 3.2 IDE

EclipseUML 2.1

TPTP 4.2

Protege 3.1

OWL plugin

Ontoviz plugin

OWL Viz plugin

Web Server

Figure 2: The development environment.

SEMANTICS-BASED ACCESS CONTROL - Ontologies and Feasibility Study of Policy Enforcement Function

153

4.2 Testing the Prototype

The test application firstly creates a subject, a

protected object and a guard. Then, it initiates a

request from the subject to the guard, which

evaluates the request. Basically, there are two

processes with distinct characteristics and impacts

on the overall performance of the guard. The first

process starts up the guard. It creates and initializes

all internal components. The performance of this

process is crucial for the fast restarting. The time, at

which the guard starts, is not as important and

critical as the response time of run-time evaluating

of requests. This is the second process. The overall

performance accumulates both performances of the

start-up and evaluating processes.

– The performance of the start-up process is

determined by the time of start-ups of guard’s

components. For example, a decision maker can

faster initialize a knowledge base with only SBAC

ontologies, or can initialize the knowledge base with

all ontologies and semantic annotations.

– The performance of the evaluating process

is determined by manipulations with semantic

annotations and a decision making procedure. The

decision making procedure is broken down to three

activities. The first activity combines retrieved

semantic annotations, applicable SBAC, domain and

policy ontologies into the knowledge base. The

second activity prepares a query according to the

request and SBAC authorization rules. The third

activity queries the prepared knowledge base.

Several major factors influence the performance

of the SBAC enforcement mechanism. Preparation

of the knowledge base for the decision making

process can be allocated to both the start-up and

evaluating processes based on the availability of

semantic annotations and ontologies in different

environments. This allocation shapes the balance

between performances of the both processes. The

complexity of querying the knowledge base differs

because of different complexity of the authorization

rules for policies that commit to different features of

SBAC. The performance of the query execution is

the most crucial for the evaluating process. The

performance of other operations with the knowledge

base impacts performances of the both processes.

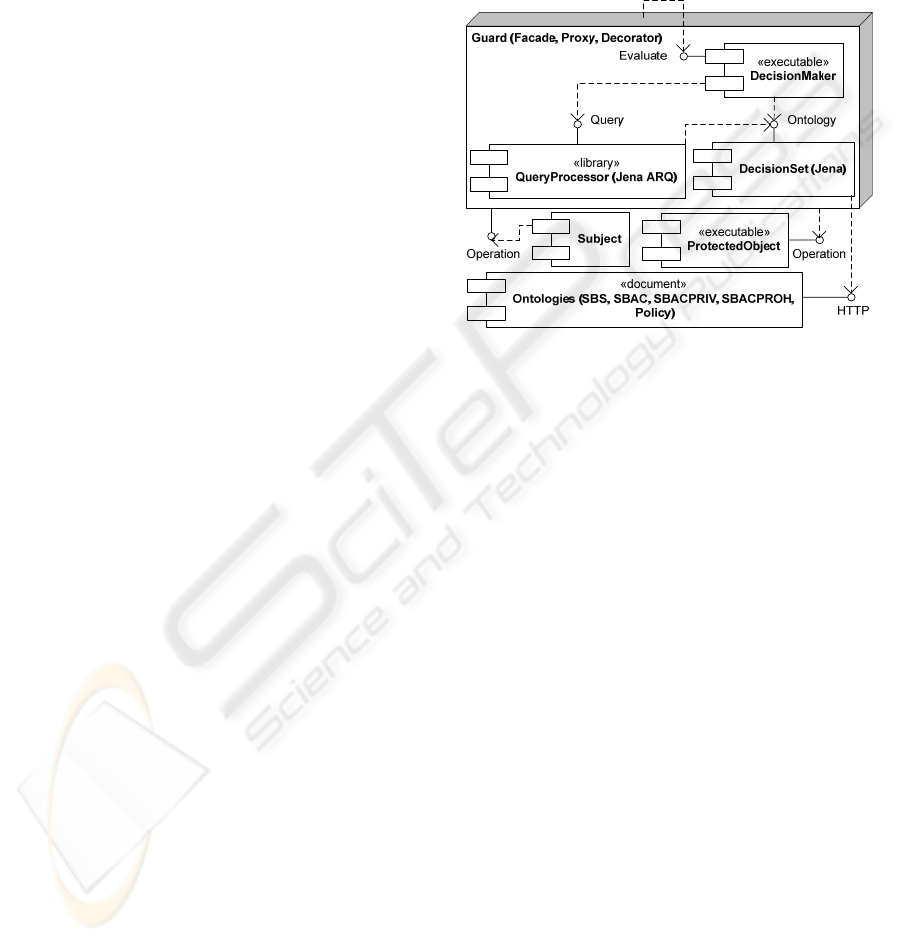

The UML component diagram (Figure 3) depicts

the architecture of the prototype for the SBAC

enforcement mechanism. The internal structure of

the guard consists of the decision maker and the

query engine (query processor) provided by the

ARQ processor of SPARQL queries. The decision

maker has in-memory knowledge base (decision set)

in the form of ontology model provided by the Jena

framework. All ontologies are accessible via HTTP.

The fastest response time of the evaluating

process corresponds to the simplest policy ontology.

The policy ontology consists of one class of active

resources with one individual, one class of passive

resources with one individual and one class of

operations with one operation. The policy has the

only one privilege statement defined using the above

described classes. All these data are loaded into the

decision set during the start-up process.

Figure 3: The architecture of prototype.

The cumulative CPU time of the guard start-up

process is 12,256 seconds which are caused mainly

by initializing the in-memory decision set (12,141

seconds). The average cumulative CPU time of the

evaluating process is 0,813 seconds which are fully

caused by the query execution over the decision set.

This cumulative CPU time is smaller than the

real invocation time of both processes (14,559 and

2,05 seconds) but fairer for the comparison with

fixed type of CPU because the overall cumulative

time depends from number of characteristics of the

hardware. The personal computer was used for

testing. It was IBM PC with the CPU AMD Athlon

XP 3000+, 1 GB of RAM, and OS Microsoft

Windows XP Professional version 2002 with

Service Pack 2.

5 CONCLUSIONS

There are several critical sections in the research on

the SBAC ontologies. The suggested structure of

access control statements reminds RDF statements.

It is disputable whether this structure is universal

enough to accommodate privilege, trust, trace, etc

statements. The concepts defined in the SBAC

ontologies require OWL Full profile that may cause

problems in the stage of practical implementation, as

long as existing reasoners do not fully support the

WEBIST 2007 - International Conference on Web Information Systems and Technologies

154

whole semantics of OWL. Thus, the ontologies

could experience refinement based on practical

needs. SBAC relies on the Semantic Web layers.

The standards for some layers are still in active

discussion and research. The provided feasibility

study illustrates benefits of orientation to Semantic

Web in reusability and expressivity. In general, the

results are quite promising. The automated inferring

makes the enforcement mechanism and the whole

SBAC intelligent and flexible.

Presented in the paper ideas have clear practical

and research implications. SBAC is an ambitious

target. It further demands prototyping of ideas,

reference implementations, and industrial

deployments and evaluations. This should aim at

rigorous and convincing specification of advantages.

The application of SBAC seems to be promising

in areas where Semantic Web emerges and resources

have their semantic annotations according to

ontologies, for example multi-agent systems,

semantic web services, semantic web portals, social

networks, collaborative tools, etc. Semantic web

services and agent technologies are the most

promising because these environments already have

means for ontologies and semantic annotations of

resources (agents and services) and of operations

(service processes and agent speech acts).

ACKNOWLEDGEMENTS

We are grateful for the financial support to the

Rector and to the Department of Mathematical

Information Technology, University of Jyväskylä.

REFERENCES

Berners-Lee, T., Hendler, J., and Lassila, O., 2001. The

Semantic Web. Scientific American, Vol. 284, No. 5,

pp. 34-43.

Gruber, T., 1993. A translation approach to portable

ontologies. Knowledge Acquisition, 5(2): 199-220.

McGuinness, D., and Harmelen, F., (eds.). 2004. OWL

Web Ontology Language Overview. W3C

Recommendation, http://www.w3.org/TR/owl-

features/

Moses, T., (ed.). 2005. eXtensible Access Control Markup

Language (XACML) Version 2.0. OASIS Standard.

Nadalin, A., Kaler, C., Monzillo, R., Hallam-Baker, P.,

(eds.). 2006. Web Services Security: SOAP Message

Security 1.1 (WS-Security 2004). OASIS Standard.

Naumenko A., Nikitin S., Terziyan V., Zharko A., 2005.

Strategic Industrial Alliances in Paper Industry: XML-

vs. Ontology-Based Integration Platforms, The

Learning Organization, Special Issue on: Semantic

and Social Aspects of Learning in Organizations,

Emerald Publishers, Vol. 12, No. 5, pp. 492-514.

Naumenko A., Katasonov A., Terziyan V., 2007. A

Security Framework for Smart Ubiquitous Industrial

Resources, J.P. Müller and K. Mertins (Eds.), In Proc.

of the 3rd Int. Conf.. on Interoperability for Enterprise

Software and Applications, 13 pp. (In press).

Naumenko, A. and Luostarinen, K., 2006. Access Control

Policies in (Semantic) Service-Oriented Architecture,

Schaffert S. and Sure Y. (Eds.), In Semantic Systems

From Visions to Applications, Proc. of the

SEMANTICS 2006, Austrian Computer Society,

Vienna, Austria, pages 49-62.

Naumenko, A., 2006. Contextual rules-based access

control model with trust, Shoniregan C. and

Logvynovskiy A. (Eds.), In Proc. of the Int.

Conference for Internet Technology and Secured

Transactions, e-Centre for Infonomics, London, UK,

ISBN 0-9546628-2-2, pages 68-75.

O’Reilly T., 2005. What Is Web 2.0 Design Patterns and

Business Models for the Next Generation of Software,

http://www.oreillynet.com/pub/a/oreilly/tim/news/200

5/09/30/what-is-web-20.html.

Patel-Schneider, P., Hayes, P., and Horrocks, I., (eds.).

2004. OWL Web Ontology Language Semantics and

Abstract Syntax. W3C Recommendation,

http://www.w3.org/TR/owl-absyn/

Prud'hommeaux, E., and Seaborne, A. (eds.). 2006.

SPARQL Query Language for RDF. W3C Candidate

Recommendation, http://www.w3.org/TR/rdf-sparql-

query/

Qin, L. and Atluri, V., 2003. Concept-level access control

for the Semantic Web. In Proc. of the 2003 ACM

Workshop on XML Security XMLSEC '03. ACM Press,

New York, NY, 94-103.

Tonti, G., Bradshaw, J., Jeffers, R., Montanari, R., Suri,

R., and Uszok, A., 2003. Semantic web languages for

policy representation and reasoning: A comparison of

KAoS, Rei, and Ponder. In Proc. of the Int. Semantic

Web Conference, pp. 419--437.

Wang, X., Lao, G., DeMartini, T., Reddy, H., Nguyen, M.,

and Valenzuela, E., 2002. XrML -- eXtensible rights

Markup Language. In Proc. of the ACM Workshop on

XML Security. XMLSEC '02. ACM Press, New York,

NY, pp. 71-79.

Yagüe, M., Gallardo, M., and Maña, A., 2005. Semantic

Access Control Model: A Formal Specification, In

Lecture Notes in Computer Science, Springer, Volume

3679, pp. 24-43,

Yagüe, M., Maña, A., López, J., and Troya, J., 2003.

Applying the Semantic Web Layers to Access Control.

In Proc. of the Int. Workshop on Web Semantics, IEEE

Computer Society Press, pages 47–63.

Yergeau, F., Bray, T., Paoli, J., Sperberg-McQueen, C.,

and Maler, E., 2004. Extensible Markup Language

(XML) 1.0 (Third Edition). W3C Recommendation,

http://www.w3.org/TR/2004/REC-xml-20040204/

SEMANTICS-BASED ACCESS CONTROL - Ontologies and Feasibility Study of Policy Enforcement Function

155
