A DESIGN PATTERN FOR AUTOMATIC GENERATION OF WEB

SERVICES FROM DOMAIN ONTOLOGIES

Robert Dourandish

, Nina Zumel

and Michael Manno

Quimba Software, San Mateo, CA, USA

Air Force Research Labs, Rome, NY, USA

Keywords: Distributed Systems, Automatic Systems, Ontology, Web Services, Service-Oriented Architecture,

Emergency Response, Syndromic Bio-Surveillance.

Abstract: Web Services and Service-Oriented Architecture have become ubiquitous and are increasingly embedded in

every aspect of systems architecture. At the same time, advances in workflow tools now enable us to

compose complex new applications by dynamically orchestrating existing web services in new and

previously unanticipated execution sequences. The combination of the two is slowly transforming software

engineering to a service-centric discipline, with the focus shifting from creating expansive systems to

building small, specialized services that can be sequenced, on demand, to support previously unanticipated

missions. Implementing and deploying specialized services in this way presents significant challenges in

design and programming, as well as long-term maintenance. A fundamental challenge is to maintain the

underlying program code long after it has been released and, potentially, incorporated in numerous other

processes. This paper presents a methodology and a design pattern to automatically generate web services

based on domain ontology. Our approach promises to significantly reduce the programming and

maintenance burden of creating and deploying web services, particularly in mission-critical, collaborative,

and distributed operations such as emergency response, supply-chain, or healthcare.

1 INTRODUCTION

For the past several years we have been researching

massively scaled, multi-organizational, automated

information sharing infrastructures, with a focus on

emergency response (Dourandish et al., 2006).

Emergency response is a uniquely challenging

example of a complex, distributed, and networked

eco-system because of the extremely broad range of

systems, technologies and resources of network

participants.

Specifically, we are focused on bio-surveillance

as a persistent information exchange during

everyday, emergency, or disaster healthcare support:

that is, whenever emergency help is summoned, or

when a patient seeks emergency or non-emergency

care from a health care provider. This type of

surveillance is known as syndromic surveillance:

surveillance using health-related data to signal that

there is sufficient probability of a disease outbreak

to warrant further public health response. Though

historically syndromic surveillance has been utilized

to target investigation of potential epidemics, its

utility for detecting outbreaks associated with

bioterrorism is also increasingly being explored by

public health officials (Buehler and Hopkins, 2004).

2 DOMAIN CHALLENGES

As a discipline, Emergency Response has a number

of unique properties that make software

development for the domain a challenging task.

Chief amongst these attributes is the fact that

emergency response is a collaborative operation that

often includes multiple organizations and disciplines

(Bruinsma and Hoog, 2006) such as a fire

department, an ambulance company, and one or

more hospitals. In addition, larger response

operations often require a coalition of responders

from multiple jurisdictions. As a result, each

response operation could be subject to multiple legal

regulations, local policies, or court-mandated

considerations (Bui et al., 2006). Furthermore, each

341

Dourandish R., Zumel N. and Manno M. (2007).

A DESIGN PATTERN FOR AUTOMATIC GENERATION OF WEB SERVICES FROM DOMAIN ONTOLOGIES.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 341-348

DOI: 10.5220/0001265703410348

 SciTePress

participating response organizations, indeed each

responder, could have different operational

protocols, resources, or capabilities. It is clear that

enumerating all possible combination of responder,

legal or policy umbrellas, and operating protocols is

not feasible.

This domain therefore presents significant

programming and automation challenges. The

complexity is due to the heterogeneity of the overall

eco-system, and to the number of participants in a

typical emergency response network, who may be

called upon to handle a wide variety of possible

events. Such scenarios can range from common

events such as vehicle accidents, heart attacks,

gunshot wounds, or childbirth, to more catastrophic

events such as hazardous material release,

hurricanes, or earthquakes.

The key research question is how to implement

the domain knowledge in such a way that

implementations can easily be localized and be

contextually responsive (as much as possible) to the

broad nature and scope of emergency calls. While

these questions are universal to most domains, they

take on an added level of complexity for emergency

response:

• The domain is protocol driven. While these

protocols, such as how to treat a potential heart

attack patient, are reasonably standard, they can

differ slightly from location to location. These

variations are typically due to medical direction,

proximity to a major hospital, or legal issues.

Nonetheless, these local protocols are important

and any programming in this domain must

facilitate possibly many minor variations, even

within a small geographic area.

• The domain is governed by a large number of

local to global regulations dealing with a wide

range of policy issues such as privacy, legal

casework, and accepted local customs or

practices.

• Multi-jurisdictional collaboration during

emergency situations is often abruptly initiated,

staffed on an as-available, ad-hoc basis, and

without any guarantees that the joint coalition

response personnel have previously trained

together. In the case of international response,

the responder coalition may not share the same

protocols or the situational and operational

context in order to quickly adapt their own.

• The domain lacks a standard lexicon that is

shared by all participants.

The above attributes highlight the complexity of

programming for this domain. To address these

challenges our research focuses on knowledge-based

strategies, as opposed to requirements-based

engineering. Specifically we focus on methods of

encapsulating and utilizing expert knowledge as the

foundation of software specification and

implementation. To accomplish this objective, we

have further subdivided the domain into a set of

response protocols and a series of core operations to

support those protocols. We were able to take

advantage of this distinction to implement the

system as two components: (1) a foundational

platform, implementing core services, and (2) a

series of domain-level services that run on the

platform, e.g. the response protocols. The former

included basic messaging and transactional

support

while the latter implemented expert knowledge.

3 FOUNDATIONAL PLATFORM

The foundational platform is based on a variation of

the portal architecture pattern coupled with a logical

specialized P2P network overlaid on a Service-

Oriented Architecture (SOA). This architectural

approach effectively creates distributed

collaborative P2P portals with specialized

applications, e.g. emergency response. Because data

exchange is a native component of the portal pattern,

the architecture can also enhance distributed data

mining in support of secondary applications such as

bio-surveillance. The Service-Oriented approach

also means that portals are able to contribute data to

other applications on as needed or ad-hoc basis.

Finally, the key issue in emergency response,

particularly multi-jurisdiction response to large

incidents, is Command and Control (

Veelen et al.,

2006)

. We use a hierarchical network topology that

allows participants to assume roles of a "parent

node", or a "child node" within a given context. This

approach implements local Command and Control

(C2) of resources assigned to each node while

enabling creation of dynamic C2 as warranted, such

as in response to large-scale emergencies. Figure 1

shows the technology stack of the foundational

platform. The stack generically provides a platform

for messaging, data transfer, data privacy and

security, and computing (e.g. cluster) services.

A Service Oriented Architecture (SOA) was the

A detailed discussion of the transaction processing core of the platform is beyond

the scope of this paper. However, it should be noted that the transaction code conforms

to a typical transaction design pattern.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

342

only logical choice to create a common operational

environment that did not require a priori technical or

policy agreement between all participants.

Furthermore, the SOA was the only approach that

would allow all responders to use their existing

infrastructures, particularly the wide-area

connectivity afforded via the Internet. Using IP-

based networks inside the firewall, also a common

practice, allowed us to implement the services

without the need to distinguish where they were

running (e.g. inside or outside an organization’s

network) and secure the communication using

standard strategies such as VPN.

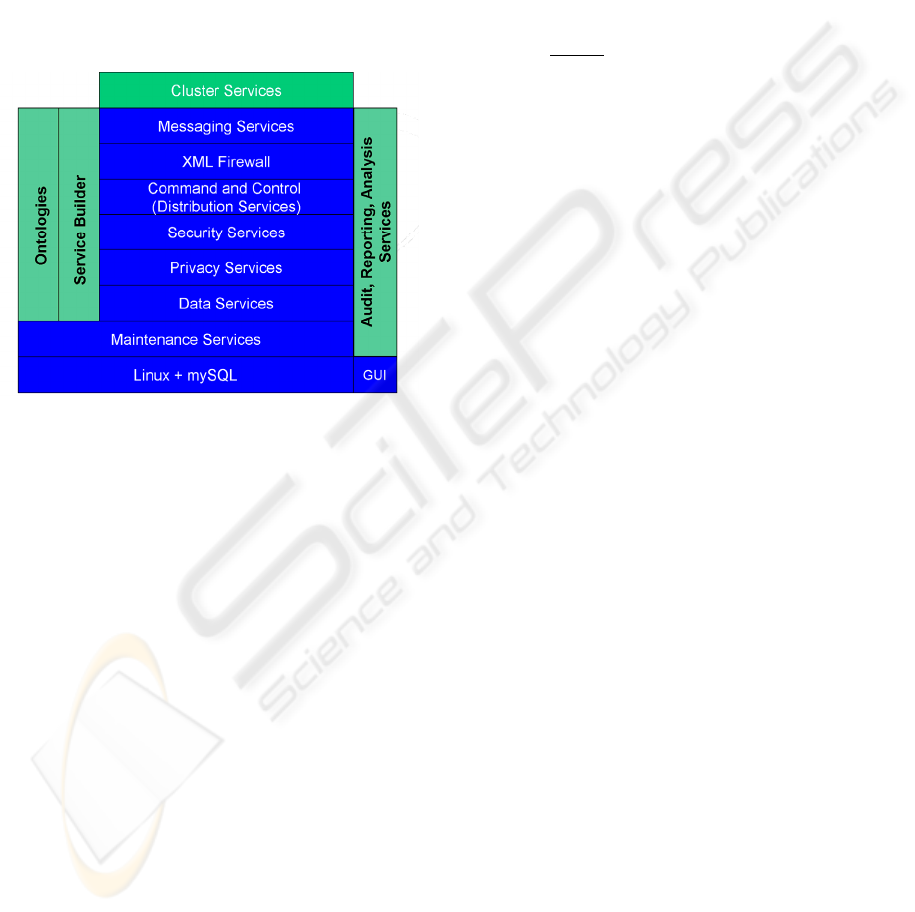

Figure 1: Foundational Platform Technology Stack.

Employing a Service-Oriented Architecture also

solves the challenge of duplicating the infrastructure

underpinnings, particularly with respect to ad-hoc

coalitions that are formed in response to specific

incidents. To become a part of a responder network

all an organization needs to do is to operate the stack

shown in Figure 1.

4 DOMAIN LEVEL SERVICES

Once system-level and deployment issues are

addressed through the Foundational Platform, what

remains is the domain-specific programming of

services that will be delivered over this network.

In our approach, a basic model of the domain is

implemented using ontologies, and various

strategies are used to create the context for an event

that occurs within the domain, and to determine the

appropriate way of handling that event. While this

approach has proven successful (Stojanovic et al.,

2004) our approach does not implement a single

ontology. Instead we chose to model the world using

numerous small models, each represented by a

different ontology. In doing so, we sought to extract

and express Subject Matter Expert (SME)

knowledge, in very specific and concisely-defined

areas, and use the resulting ontology in lieu of

engineering requirements for Web Service code.

5 DESIGN PATTERN

After researching various approaches to tightly

integrate ontologies with software engineering, we

created a logical

design pattern as depicted in figure

2. The key attribute of this pattern is using XML as

the bridge between expert-designed ontologies and

engineer-implemented systems. This pattern is

designed for the domain layer (Fowler et al., 2003)

of the system and assumes an ontology editor tool

that is used by the Subject Matter Expert (SME) to

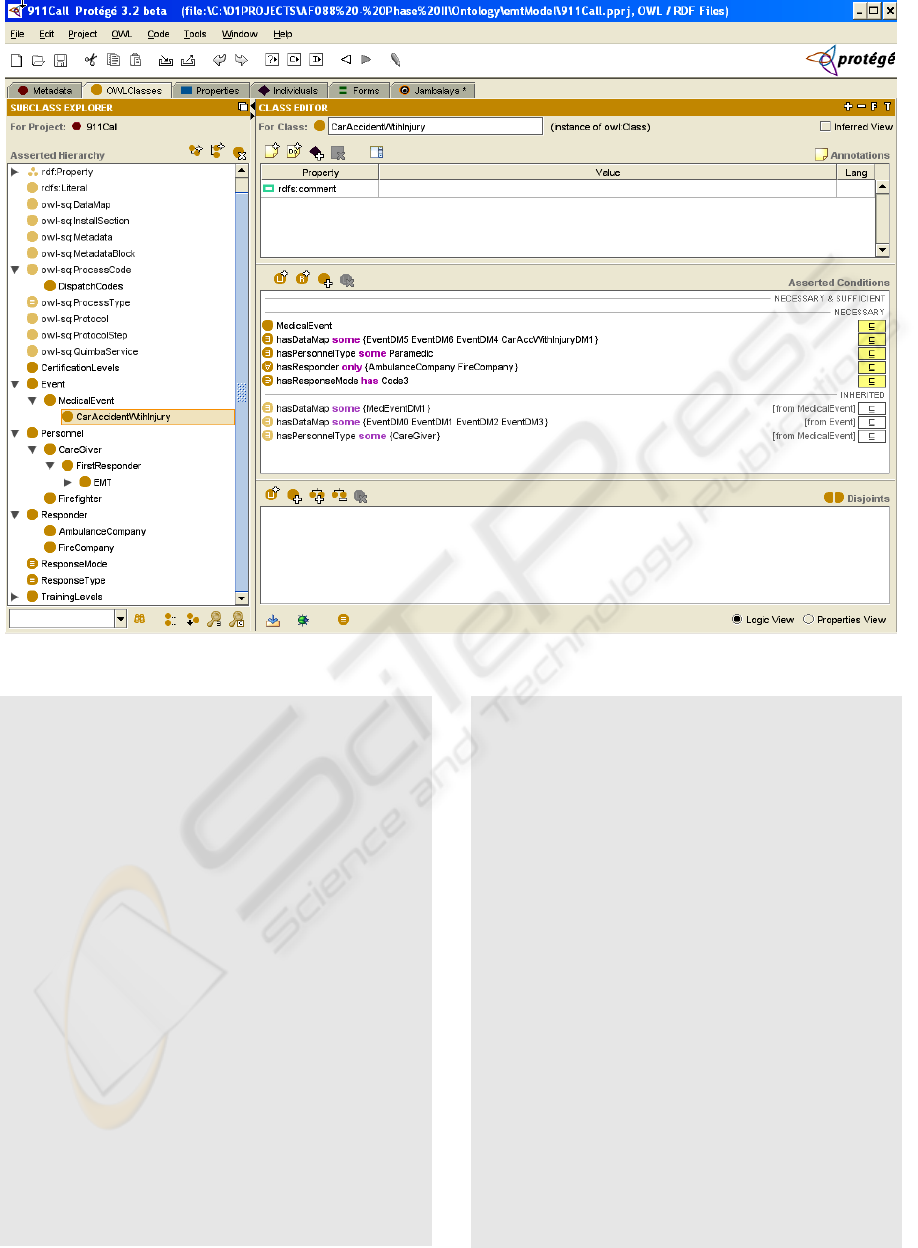

specify the Ontology. In our research we used

Protégé, an open source ontology editor and

knowledge acquisition system developed by

Stanford University.

The pattern illustrated in Figure 2 reflects a core

operational doctrine that domain experts should be

in full control of a service’s behavior. There are two

implications resulting from this choice. First,

various domain operations must be described in

small enough steps that are both manageable in

terms of ontology description and meaningful in

terms of operational deployment. Second, it is

possible to create a broad foundation that can

support SME-described ontologies. The emergency

response domain exhibits both these attributes:

Fundamentally, the domain is protocol-driven and

individual protocols are combined to compose more

complex protocols in response to particular

scenarios or authorized practice level of responders.

Within this domain, there is also a set of core

messaging and communications practices,

commonly referred to as the “10 codes” that largely

systemize the communication paradigm and provide

some level of lexical consistency amongst

responders

. In our research, we implemented the

“10 codes” using the foundational platform

previously described. Higher level response

operations are defined and executed in accordance

with the design pattern as follows.

This is an extremely broad statement. There are significant inconsistencies in use

of 10 codes from jurisdiction to jurisdiction.

A DESIGN PATTERN FOR AUTOMATIC GENERATION OF WEB SERVICES FROM DOMAIN ONTOLOGIES

343

Figure 2: Design Pattern.

The first step, (1), is for an expert to use an

ontology editor to define an ontology. This ontology

will eventually be transformed to an executable Web

Service, invoked by humans or machines, (7, 8)

through a normal Web Service interface, for

example via SOAP messages. The ontology editor

we used, Protégé, is capable of generating RDF-

based XML, which we further processed to achieve

a simpler syntax, (3). The domain ontology will

include the explicit components of workflow, (2),

for example protocol steps. The implicit workflow

elements, such as acknowledging command and

control messages, are implemented as part of the

foundational platform.

The XML representing domain knowledge and

protocol workflow steps are processed by our core

software, (4), which augments the XML with

references to implicit workflow steps, and

incorporates database or other references to include

explicit instances of domain components, such as

individuals, equipment, or locations. In computer

science terms, the core software packages the XML

into a series of appropriate objects (classes,

methods, etc.) organized using a transaction object.

The result of this step is a Web Service, (6), that is

executable over the solution platform. Invoking the

service will, in effect, execute the SME-defined

domain ontology.

6 AN EXAMPLE

The design pattern is exemplified through the

following “call for help” scenario. This example

demonstrates a call to a central location (911 in the

United States) that is typically contacted when help

is needed. The response protocol is used here to

illustrate the underlying principles of our research.

6.1 The Domain Ontology

Figure 3 above shows the 911 Call ontology. The

definition includes classes, such as Event and

subclasses, such as Medical Event, as well as other

relevant components for an emergency medical

response, such as personnel, the required level of

training, and what class of responders (e.g. Fire or

Ambulance or both) may respond to this type of

event.

6.2 The XML

As stated previously, the next step in our

methodology is to process the ontology into XML.

While the Protégé ontology development

environment is capable of producing XML

description of the ontology, we found it easier to

process it for clarity – the version that is discussed

here.

(1) <quimbaService name="911 Call">

(2) <metadata name="Event">

(3) <attribute name="EventID" />

(4) <datamap index="0" value= "this.EventID" />

(3a) <datamap index="1" value="Emergency" />

</metadata>

(5) <metadata name="MedicalEvent" typeof="Event">

</attribute>

</metadata>

(6) <metadata name = "CareGiver">

(7) <attribute name="isPerson" />

(8) <attribute name="hasCertification" />

</metadata>

WEBIST 2007 - International Conference on Web Information Systems and Technologies

344

</metadata>

(9a) <metadata name="EMT" typeof="CareGiver">

<attribute name="hasCertification" value="EMT-

B" />

</metadata>

(9b) <metadata name="Paramedic" typeof="EMT">

</metadata>

(10) <metadata name = "FireCompany"

typeof="Responder">

</metadata>

<metadata name = "AmbulanceCompany"

typeof="Responder">

</metadata>

(11) <metadata name ="CarAccidentWithInjury"

typeof="MedicalEvent">

(11a) <datamap index="1"

value="CarAccidentWithInjury" />

<datamap index="4"

value="set(this.ResponderType)" />

<datemap index="5"

value="set(this.PersonnelType)" />

<datamap index="6"

value="set(this.EquipmentType)" />

</metadata>

(12) <protocol name="dispatch">

(13) <step num="1" id="s1" name="Get Information"

prompt="What is your Emergency" options="Event"/>

(15) <step num="2" id="s2" name="Dispatch

Responder"

(15a)Type="C2"

(15b) Code="Q09"

(15c) input="this.datamap" />

</protocol>

</quimbaService>

Figure 3: Example Ontology Developed in Protégé.

A DESIGN PATTERN FOR AUTOMATIC GENERATION OF WEB SERVICES FROM DOMAIN ONTOLOGIES

345

The XML is enclosed in a tag, quimbaService (1)

that names the Web Service, e.g. 911_Call, as it will

be accessed. By convention any space in the service

name will be replaced with an underscore.

Next is a series of metadata (2) tags that

represent the classes defined by the ontology, as

well as their hierarchy and attributes (3). As per

Object Oriented Design standards, child classes

inherit their parents’ attributes. Parent attributes are

overridden if they also appear in the child’s

definition, as shown in (3a) and (11a). Each class

may have multiple parents. A subclass relationship

is signaled using the typeof directive, as shown

between Event (2), Medical Event (5), and Car

Accident with Injury (11). Some metadata elements

such as Care Giver (6) include higher-level

knowledge representation concepts such as a person

(7). It is important to note that the ontology is viable

and operable without such high level definitions.

However, since a responder can become a caregiver

and a patient as the event progresses, reasoning

about generic terms is useful. The implication here

of course is that the Subject Matter Expert designing

the ontology may need a bit of training or,

alternatively, may be teamed up with a knowledge

engineer. As with any domain, emergency response

includes several taxonomical concepts, such as the

hierarchy and certification levels for the Emergency

Medical Technicians (EMTs). The fact that a

certification is a requirement for an individual to be

considered a caregiver is expressed by a has

attribute (8), and the different skill levels are

expressed by combining hasCertificate and

hasTraining attributes in the metadata, as shown in

(9a) and (9b). The execution has two dimensions –

data and process, or steps. The data generated from

instantiating the ontology (i.e. applying it to a

particular 911 call) is collected using the datamap

tag (4). This tag mirrors the data filed in the

underlying transaction object that is implemented as

part of the foundational platform -- the data that is

contained in the transaction are, in effect, the

parameters that are passed from process to process

in order to affect the execution of the Web Service.

The second execution component, the process steps,

are enumerated using the step tag (13) which, as

shown, may include actual prompts that are

presented to the user or calls to the components of

the underlying platform (15). In this specific case,

the ontology designer is calling the underlying

Command and Control (“C2”) element (15a) of the

platform, invoking the dispatch protocol (15b), and

causing the instantiated data to be passed to it (15c).

When the service is executed, the underlying

platform will broadcast the dispatch request (“Q09”)

to all responders by creating a transaction and

passing it to a service that represents each

responder. Each responder service will evaluate the

data and determine whether or not it can respond to

this request (“transaction”) and report back

accordingly. The net result is that a responder is

dispatched as the result of the 911 call.

6.3 Executing the Ontology

To execute the ontology as represented by the final

XML, we currently deploy the XML to a web

service that implements a “service runner”. This

service runner is an interpreter and executes the

directives, much the same way a PHP interpreter

would execute PHP syntax. Each directive, such as

metadata, has a specific handler that is domain

independent. This interpreter does not

understand

the emergency response domain, any more than the

PHP interpreter understands a particular application.

It simply collects, routes, and otherwise manages

data and message traffic amongst participating

nodes. These activities change the state of the

network – thereby producing actions. Because the

service-runner itself is a web service and since the

XML drives the entire execution process, the entire

system is accessible to any program that complies to

Service Oriented Architecture.

7 LESSONS LEARNED AND

FUTURE DIRECTION

An early phase of our research utilized ontologies as

requirements engineering instrument. In that mode,

the ontology was developed by a subject matter

expert, validated through the Protégé knowledge

base query mechanism, and supplied to a

programming team to generate the equivalent web

service. While this process initially worked well, we

quickly discovered that the two – the core Web

Services and the domain ontology – rapidly

diverged.

Fundamentally, the reason behind the divergence

was the fact that the two efforts, the ontology

development and the system engineering, were two

separate tasks with no physical relationship

Although a relatively small effort, the initial phase

We use the word “physical” to call attention to the fact that there was a logical

relationship between the two.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

346

of our research proved that if ontologies are to

significantly and seriously contribute to production-

grade, system-scale engineering effort, they must

become an integral part of the system, in the same

way as data models are. In the case of a data model,

a physical component, i.e. the database, binds the

data model with the system that uses it. There is no

such equivalence in knowledge engineering.

Our research has proven that it is possible to

generate Web Services directly from domain

ontologies designed by Subject Matter Experts.

While still in its infancy, this research has the

potential to significantly impact distributed

computing, at least in some domains, where

collaborating Service-Oriented components can be

generated based on domain ontologies. If proven

scalable, the work may lead to ushering of a new

paradigm in software development with a significant

shift to knowledge engineering as the foundation of

software design, with the potential of replacing

requirements engineering.

While we were extremely successful in

demonstrating automatic generation of web services

based on domain ontologies, the research also

revealed a number of challenges.

In our opinion the foundational challenge is the

lack of standard knowledge engineering

methodologies. We believe knowledge engineering,

as a discipline, needs a level of practicable

systemization similar to Object Oriented Design.

Lack of such accepted methodologies will not only

lead to repeat of the “islands of technology”

phenomenon that the community experienced with

databases and operating systems, but also will create

interoperability and utility issues. A key dictum of

any knowledge engineering methodology should in

our opinion be componentization and reuse – two

objectives the software engineering community is

now actively pursuing. Finally, knowledge

engineering, in our opinion, requires tools that can

be used by Subject Matter Experts with little or no

knowledge of programming.

Our research also revealed a number of

challenges that are unique to using knowledge as the

foundational driver for software: because services

are generated automatically, the ontology will have a

multiplying effect in either the utility or dysfunction

of the resulting code. As such, tools that simulate

ontologies and help “debug” the ontology are

extremely important (Easterbrook, 1991).

Furthermore, because Services are not collocated,

the distributed aspect of the system becomes a key

issue in operations that orchestrate existing web

services for a new purpose. As such, versioning,

audit, validation, and identity management take an

entirely new and complex role. Finally, because

different experts can have different views of the

world, an ontology conflict resolution mechanism

must be incorporated in the underlying platform.

Because we use numerous small ontolgies to model

the world, we also need to research conflict

resolution strategies. While the automation adds a

new level of complexity, this however is not a new

concept in computing (Easterbrook, 1991); (Klein,

1991); (Sycara, 1993); (Fang et al., 1993). The key

research challenge here is the real-time, mission-

critical aspect of conflict resolution.

Our immediate future direction is two-fold:

Our first goal is to study scalability issues in

both deployment and maintainability. There are, for

example, active questions in dealing with the

“weakest link” in an environment where the

operation being executed is orchestrating web

services that are not collocated. The key question

here is whether or not a mechanism can be created

to negotiate and maintain a level of service between

collaborating web services. If so, what does that

mechanism look like in practical terms? Can it be

automatically negotiated or do we need humans in

the loop, at least in parts of the process?

Secondly, we plan to study the next generation

of our service-runner that may generate Java classes

that are directly executable. To be a feasible

operational solution, the research would have to

address a number of additional challenges, ranging

from Java Virtual Machine (JVM) compatibility to

dealing with updates of statically linked code.

ACKNOWLEDGEMENTS

This work was supported in part by a Small

Business Innovation Research award from the US

Air Force, under contract number FA8750-05-C-

0085. The views and opinions presented in this

paper represent the views of the authors and do not,

necessarily, represent the views of the DoD.

REFERENCES

Dourandish, R., Zumel, N., Manno, M., “Automated

Military-Civilian Information Sharing”, Military

Communications Conference (MILCOM), 2nd IEEE

Workshop on Situation Management (SIMA),

Washington, D.C., 2006.

A DESIGN PATTERN FOR AUTOMATIC GENERATION OF WEB SERVICES FROM DOMAIN ONTOLOGIES

347

J. Buehler, W., Hopkins, R.S., Overhage, J.M, Sosin,

D.M., and Tong, V. “Framework for Evaluating

Public Health Surveillance Systems for Early

Detection of Outbreaks,” MMWR, 53(RR5):1, 2004.

Bruinsma, G., de Hoog, R., “Exploring Protocols for

Multidisciplinary Disaster Response Using Adaptive

Workflow Simulations”, Information System for

Crisis Response and Management, ISCRAM, Newark,

NJ, 2006.

Bui, Tung, Sankaran, S., “Foundations fro Designing

Global Emergency Response Systems”, Information

System for Crisis Response and Management,

ISCRAM, Newark, NJ, 2006.

Van Veelen, J.B., et. al, “Effective and Efficient

Coordination Strategies for Agile Crisis Response

Organizations”, Information System for Crisis

Response and Management, ISCRAM, Newark, NJ,

2006.

Easterbrook, S., “Handling Conflict Between Domain

Descriptions With Computer-Supported Negotiation”,

Knowledge Acquisition: An International Journal,

3:255-289, 1991.

Klein, M., Supporting Conflict Resolution in Cooperative

Design Systems, IEEE Transactions on Systems, Man

and Cybernetics, 21(6), 1991.

Sycara, K.P., Machine learning for intelligent support of

conflict resolution, Decision Support Systems,

10(2):121-136, 1993.

Fang, L., Hipel, K.W., and Kilgour, D.M., Interactive

Decision Making: The Graph Model for Conflict

Resolution, Wiley, 1993.

Fowler, M., et. al, “Patterns of Enterprise Application

Architecture”, Addison-Wesley, Boston, MA, 2003.

Stojanovic, L., et. al, “The role of ontologies in automatic

computing systems”, IBM Systems Journal, Vol 43,

No 3:598-616, 2004.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

348
