SECURITY RISK ANALYSIS IN WEB APPLICATION DESIGN

Rattikorn Hewett, Phongphun Kijsanayothin

Department of Computer Science, Texas Tech University

Meinhard Peters

Department of Industrial Engineering Technology, The University of Johannesburg

Keywords:

Risk assessment, computer security, software design, web-based systems.

Abstract:

Web-based information systems play increasingly important roles in providing functions and business services

for many organizations. Because of their ubiquitous natures dealing with a huge and diverse population of

users, web applications must be tolerant to errors, adverse interactions and malicious attacks. The ability to

quickly estimate security risks early in the system development life cycle can be beneﬁcial in making various

decisions. This is particularly crucial for large and complex web applications that are asset-critical and evolve

rapidly through long life cycles. This paper presents a systematic approach for the automated assessment of

security risks, at the design stage, of web-based information systems. The approach combines risk concepts

in reliability engineering with heuristics using characteristics of software and hardware deployment design to

estimate security risks of the system to be developed. It provides a simple early estimate of security risks that

can help locate high-risk software components. We discuss limitations of the approach and give an illustration

in an industrial engineering and business-to-business domain using a case study of a web-based material

requirements planning system for a manufacturing enterprise.

1 INTRODUCTION

The scope and complexity of web applications have

grown signiﬁcantly from small-scale information dis-

semination to large-scale sophisticated systems that

drive services, collaboration and business on a global

scale. Unlike conventional software systems, web-

based systems grow and change rapidly. They also

tend to be living systems having long life cycles with

no speciﬁc releases and thus, require continuous de-

velopment and maintenance (Ginige and Murugesan,

2001). Designing web applications involves not only

technical but also social and political factors of the

system to be built. Poorly developed web applica-

tions that continue to expand could cause many se-

rious consequences. Because of their ubiquitous na-

tures that deal with a huge and diverse population of

users, web applications must be tolerant to errors, ad-

verse interactions and malicious attacks. It is desir-

able to have mechanism that can quickly estimate the

security risks of such systems at an early stage of their

life cycles.

Various techniques and guidelines to security risk

analysis are available (Landoll, 2006; Stoneburner

et al., 2002) and activities to increase security assur-

ance of software are integrated throughout the soft-

ware development life cycle (e.g., security require-

ments, code analysis, security and penetration test-

ing). However, most security risk assessments of soft-

ware systems are done at a system level after the sys-

tems have been implemented.

Software vulnerabilities can occur in codes (e.g.,

buffer overﬂow, SQL injection) and designs (e.g.,

internal controls that attackers can compromise).

They can even exist in components that are not in-

volved with security procedures. As many soft ware-

intensive infrastructure systems increas-ingly utilize

COTS (Commercial Off-The-Shelf) components for

rapid application development, ability to analyze se-

curity risks at a software component level becomes

essential.

As web applications are implemented on standard

platforms, they inherit similar security weaknesses

that are published and available publicly (Bugtrag,

Hewett R., Kijsanayothin P. and Peters M. (2007).

SECURITY RISK ANALYSIS IN WEB APPLICATION DESIGN.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 28-35

DOI: 10.5220/0001266700280035

 SciTePress

2006). These known vulnerability databases are used

widely as parts of basic principles for guidelines, stan-

dards, and vulnerability scanning tools such as Nes-

sus (Nessus, 2006). Currently, like other informa-

tion systems, most web-based systems rely on stan-

dard checklists, ﬁrewall rules and scanners for system

security risk testing. One drawback of these tools is

their lack of ability to assess vulnerabilities speciﬁc

to custom web applications (Walt, 2002).

Most traditional risk analysis techniques are dif-

ﬁcult to apply directly to modern software design, as

they do not necessarily address potential vulnerabili-

ties and threats at a component or environment level

(Verdon and McGraw, 2004). Particularly, web-based

information systems are designed on multi-tier archi-

tectures spanning over multiple boundaries of trust.

A vulnerability of a component depends on both its

platform (e.g., J2EE on Tomcat/Apache/Linux, C# on

a Windows .NET server) and environment (e.g., ex-

posed network such as LAN versus secure DMZ).

To adapt risk methodology to web application de-

sign, security risk analysis should consider risk fac-

tors from different design levels including software

components, hardware platforms and network envi-

ronments.

Risk analysis aims to provide some assessment of

risk to serve as a basis for decision-making to prevent,

mitigate, control and manage risks of loss. This paper

presents a systematic approach for automated security

risk assessment of a web application system from its

component-based designs. By combining risk con-

cepts in reliability engineering with heuristics using

characteristics of software design and hardware plat-

forms, the security risks of a proposed system can be

estimated. In contrast with rigorous analysis of pre-

cise security risks during the operational phase, our

approach provides a simple early estimate of security

risks that can help locate design components that are

at risk. Thus, mitigating strategies (e.g., allocating re-

sources for rigorous testing, or redesigning the high-

risk component) can follow.

Section 2 describes related work. Section 3 de-

ﬁnes relevant security terminologies and risk concepts

and describes the proposed approach. Section 4 il-

lustrates our approach to a web application in indus-

trial engineering. Conclusion and future work are dis-

cussed in Section 5.

2 RELATED WORK

Much research in web information systems is con-

cerned with techniques and methodologies for engi-

neering web-based systems effectively by adapting

principles from software engineering to web appli-

cation design and development (Barna et al., 2006;

Qiang et al., 2001; Ginige and Murugesan, 2001).

Risk methodologies have been employed to as-

sess safety and performance associated with soft-

ware systems in various application domains includ-

ing industrial engineering, business and space sci-

ence (Shahrokhi and Bernard, 2004; Cortellessa et al.,

2005; Yacoub et al., 1999). Risk methodology in-

cluding FMEA (Failure Mode and Effect Analysis)

has been applied to gain understanding about usabil-

ity of web information systems (Zhang et al., 2001).

Unlike our approach, none of these work addresses

risks in security contexts. Identifying likelihoods in

risk methodology in these web information systems

are mostly subjective rather than analytical and ob-

jective.

Our work is most similar to a methodology and

framework proposed by Yacoub et al. (Yacoub et al.,

1999). However, instead of assessing the reliability

of software components, we assess the security risks

associated with software. Thus, their risk models con-

tain different attributes than ours. Reliability risks are

estimated from the complexity of software compo-

nents whereas security risks are based on characteris-

tics of software design as well as hardware platforms

to be deployed.

3 SECURITY RISK ANALYSIS

In this section, we deﬁne basic risk analysis concepts

and relevant security elements in Section 3.1. Section

3.2 describes the proposed methodology.

3.1 Preliminaries

Risk is deﬁned as a multiplication of the probability

of occurrence of an undesired event and its conse-

quences (ISO, 2002). Risk analysis is a process that

aims to assess, manage and communicate risk infor-

mation to assist decisionmaking. Risk assessment in-

volves identiﬁcation of adverse situations (or hazards

or threats) and quantifying their risks by determining

all likelihoods of their causes and the severity of their

impacts. The risk measures obtained can assist in cost

beneﬁt study for resource planning to prevent, elimi-

nate or mitigate these undesired situations. These are

activities of risk management. Many techniques for

risk assessment exist (e.g., FMEA, HAZOP (Hazard

and Operability), FTA (Fault Tree Analysis) (Haimes,

2004)), but they have been mainly applied to hard-

ware rather than software artifacts. Risks associated

with software (or software risks) are risks that account

SECURITY RISK ANALYSIS IN WEB APPLICATION DESIGN

for undesired consequences of software behaviour, in

the system in which the software is used.

Security and safety are two related perspectives

of value judgements of acceptable risks. Security is

concerned with the protection of ownerships of as-

sets and privacy, while safety is more concerned with

the protection of human lives and environments, fac-

tors that cannot be evaluatedeasily in monetary terms.

Examples also include some assets in web applica-

tions - e.g., trust and a company’s reputation. Unlike

safety, sources of security threats include malicious

(e.g., deliberate attack, code injection) as well as non-

malicious actions (e.g., natural disaster, human error,

software system failure) that may lead to a security

breach.

Security attacks, whether intentionally targeted or

not, can originate from internal and external threats

depending on the degree of exposure of assets and

how vulnerable the system is to attack. A system’s

vulnerability refers to its weakness (i.e., speciﬁc at-

tribute/environment) that makes a system more prone

to attack or makes an attack more likely to succeed.

Exploited vulnerabilities can compromise security.

In ﬁnance, risks are estimated in terms of expected

loss per year, ALE (Annualized Loss Expectancy),

which is a product of the annual rate of occurrence

and single loss expectancy. The former reﬂects prob-

ability, and the latter for consequences over a pe-

riod of time. In security risk analysis, risks are es-

timated from adapted ALE formulae. Basic proba-

bility factors are related to exposure degrees, vulner-

abilities and threats, whereas basic consequence fac-

tors are measured by asset values. Thus, for a given

threat/adverse action, its security risk can be roughly

estimated by:

Risk = threat × exposure× vulnerability× severity,

where threat actually measures the threat likelihood.

The ﬁrst three contributes to probability measures,

whereas the last measures its consequence. In this

paper we omit threat, which can be easily integrated

into our analysis at a later stage of the design. While

the ALE concept works well in general ﬁnancial and

security risks, it may not be applicable for cases like

terrorist attacks, which are rare or may never occur.

3.2 Methodology

Quantitative risk assessment methodologies, such as

the ALE-based approach, provide useful mechanisms

to facilitate risk ranking for decision-making in risk

management. However, they are often criticised for

producing results that are too general (statistic-like) to

be useful for speciﬁc decision-making, and producing

results that are not credible enough as they rely heav-

ily on subjective value assignments.

The authors’ proposed methodology given below

has two objectives: (1) to estimate security risks of

a web-based software system from its early design

conﬁguration, and (2) to estimate probability mea-

sures more objectively. The latter is achievedby using

heuristics based on relevant design attributes (more

details later). Because web applications are typically

designed with multiple architectural layers and trust

boundaries, our risk methodology must incorporate

relevant attributes from multiple design levels (e.g.,

component, network and hardware platforms). Figure

1 shows basic steps in the methodology.

Inputs: Software design, hardware deployment design,

likelihood of each scenario. Let s

be the likeli-

hood of scenario k.

Outputs: Security risks of a system to be built and security

risks of each component.

1) Determine interaction rates in each scenario: For

each use case, for each scenario k, for any two com-

ponents i and j, compute I

ijk

= n

ijk

, where I

ijk

an interaction rate from i to j in k, n

ijk

is the number

of interactions from i to j in k, and N

is the number

of all interactions out of i in k.

2) Determine transition rates in all scenarios: Con-

struct a dependency graph of components where com-

ponent transitions are based on interaction rates from

all scenarios. Let t

be a transition rate from compo-

nents i to j. Then t

∑

ijk

. Normalize t

so that

a total sum of transition rates from each component is

one.

3) Estimate component vulnerability: By using hard-

ware deployment, determine V

, an estimated vulner-

ability ratio of component i. Note that a total sum

of vulnerability ratios over all system components is

one.

4) Combine likelihood estimates: Determine probabil-

ity of security breach of each component by identify-

ing all access paths to the component. For each path,

estimate the likelihood by using the transition rates

’s) and vulnerability ratios (V

’s) of components

along the path. Combine the likelihoods obtained for

each alternative path to the component.

5) Severity Analysis: Determine severity of each ad-

verse action in each component. Categorize the sever-

ity and select the worst case in each component.

6) Compute security risks: for each component and the

overall system using results obtained from 4) and 5).

Figure 1: Proposed risk methodology.

The methodology requires two inputs: a software

design and a hardware deployment design. We as-

sume that the software design is expressed in terms

of an extended activity or workﬂow diagram, where

the software components of the web applications and

use case actors are represented as well as activities in

use cases (Barna et al., 2006). The software design

includes all use cases, each of which may have one or

more scenarios.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

The hardware deployment design provides infor-

mation about hardware platforms including host or

server, their attributes (e.g., services, operating envi-

ronments), and network attributes (e.g. IP addresses

for network conﬁguration, and LAN, WAN or DMZ

for connection). Security scanning tools use this in-

formation to identify vulnerabilities of each host in

the system. The hardware deployment plan also indi-

cates software components designated to use, or run

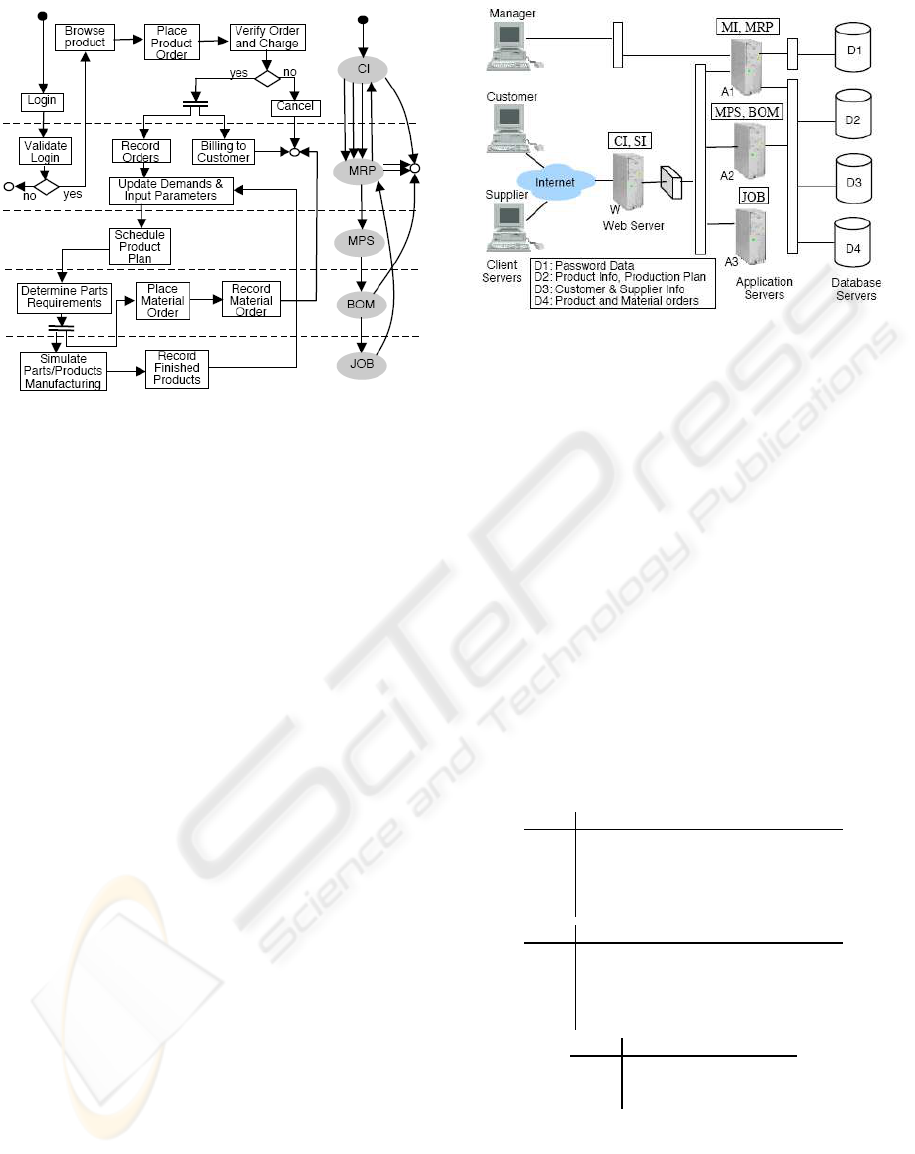

on, corresponding hosts. Examples of a workﬂow di-

agram and a hardware deployment diagram are shown

in Figure 3 and 4, respectively.

As shown in Figure 1, the ﬁrst two steps use soft-

ware design characteristics as heuristic measures of

probability factors of risk. Step 1) computes interac-

tion rates among software components for each sce-

nario based on the design workﬂow. For simplicity,

we assume that each outgoing interaction from the

same component occurs equally likely (when insights

about interaction likelihoods are available, appropri-

ate weights can be applied). Step 2) constructs a graph

whose nodes represent software components. Transi-

tion rates among components are computed by tak-

ing scenario likelihoods into account for combining

interaction rates from each scenario. In security risk

contexts, scenario likelihoods are heuristic measures

of probabilities of potential threats (e.g., when scenar-

ios involve adverse actions), whereas interaction rates

are heuristics that partially measure degrees of com-

ponent exposure.

Step 3) uses characteristics of hardware deploy-

ment design as a heuristic measure of an additional

probability factor of security risk. We ﬁrst deter-

mine vulnerability sources of each host. This can be

done by a table lookup procedure on publicly avail-

able vulnerability databases for vulnerability sources

based on relevant host and network attributes (e.g.,

IP addresses, services). Examples of vulnerability

sources include Apache Chunked-Code software on

web servers, operating environments Windows XP

SP2 and JRE 1.4.2 for running JAVA programs on ap-

plication servers, and Oracle and TNS Listener soft-

ware for database servers. Such vulnerabilities and

their sources can be easily identiﬁed by scanning tools

when hardware platforms to be deployed are already

in operation.

Next step is to measure vulnerabilities of each

software component. Each component may require

one or more hosts. For example, a component that

runs on one application server may also need to query

data on another database server. From the deployment

design, we can determine all hosts required by each

component. Let H

be a set of hosts required by soft-

ware component i and v

be a number of vulnerabil-

ities of host h. For component i, a number of vul-

nerabilities, v

and its normalization to a vulnerability

ratio, V

are estimated as:

∑

h∈H

and V

= v

∑

Here vulnerability ratios of software components

are heuristic measures of likelihood factors of security

risks. The more vulnerable software component is,

the more likely that the system security can be com-

promised.

Step 4) combines all probability factors obtained

in Steps 2) and 3) to estimate the likelihood of each

component being attacked (or security breach). Here

we interpret this likelihood as a chance of a com-

ponent under investigation to be the ﬁrst being at-

tacked in the system. Thus, all components and links

along the path to reach the component are secured

(unexposed to attack and unexploited vulnerability).

The likelihood of a node being secured is estimated

by subtracting its exposure degree, estimated by its

weaknesses (i.e., vulnerability ratio), from one.

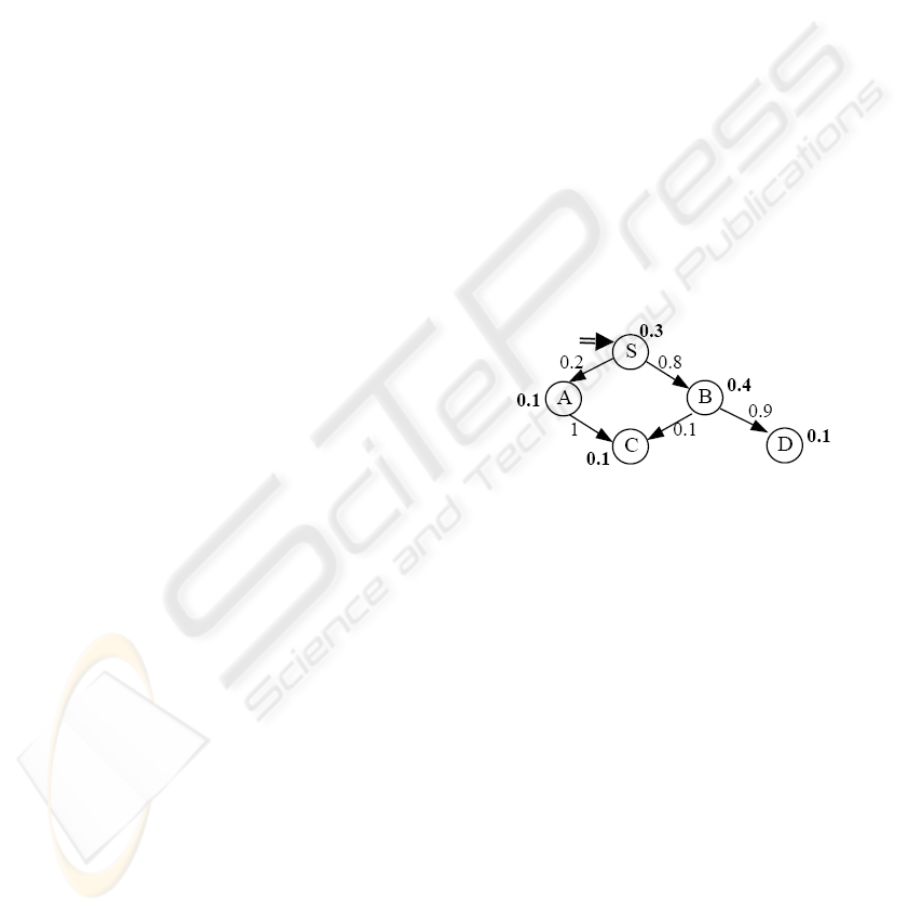

Figure 2: Likelihoods of security breach in components.

We elaborate this step by a small example of a de-

pendency graph shown in Figure 2, where nodes S, A,

B, C and D represent components of a software de-

sign. A double-lined arrow indicates that S is an entry

point to software system execution. Each component

and transition is annotated with a corresponding vul-

nerability ratio (in bold) and a transition rate, respec-

tively. As shown in Figure 2, the likelihood of S to

breach security is determined by the vulnerability ra-

tio of S itself. The chance of A being attacked (via

S → A) is estimated by its chance to be reached with-

out attacks (i.e., S being secured and S transits to A)

and its exposure factor (weaknesses). The former is

estimated by the likelihoods of S being secured and S

transiting to A, whereas the latter is estimated by A’s

vulnerability ratio. Thus, the chance of A being at-

tacked is estimated by (1− 0.3) × 0.2× 0.1 = 0.014.

Similarly, the likelihood estimate of security breach

in B is 0.224. The chance of C being attacked is

estimated by the sum of the chances of C being at-

tacked via S → A → C (i.e., (1 − 0.3) × 0.2 × (1 −

0.1) × 1 × 0.1 = 0.0126) and via S → B → C (i.e.,

SECURITY RISK ANALYSIS IN WEB APPLICATION DESIGN

(1 − 0.3) × 0.8 × (1 − 0.4) × 0.1 × 0.1 = 0.00336).

This gives 0.01596.

In general, the estimated probability along an ac-

cess path is analogous to propagation of probabilis-

tic effects in Bayesian network by using Bayes Rule

(Pearl, 1997). The transition rate plays a similar role

to a conditional probability of a destination being at-

tacked given a source being reached. For simplicity,

we do not explicitly represent access privilege. We

assume that any activity in the same component can

be equally accessed. However, not every component

deployed by the same host can be accessed equally.

We also assume that network connections between

hosts do not have vulnerabilities. Such vulnerabilities

can be easily incorporated in our proposed approach.

Note that since all probability factors (transition rate,

vulnerability ratio) are no greater than one, the longer

the path to reach a component is, the harder it is to at-

tack (i.e., its chance of being attacked decreases). For

a path that contains cycles, we consider the maximum

likelihood that can be obtained. Thus, the heuristic

function we use for estimate likelihoods conforms to

intuition in security contexts.

In Figure 1, Step 5) estimates consequences of

each adverse action in each software component us-

ing approaches similar to HAZOP or FMEA. In this

paper we focus on probability estimation. Thus, we

apply a typical severity analysis technique, categorize

and quantify component consequences according to

security standards (ISO, 2002). By using the max-

imum severity obtained in each component, we can

compute an estimate of security risks of each compo-

nent of the system being design. For a risk estimate

of an overall system, we estimate the likelihood of

a system by multiplying the likelihood of a system

to safely terminate by a vulnerability ratio of over-

all system components, and the system severity. We

estimate the system severity by taking a majority of

severity categories of components in the overall sys-

tem. Section 4 illustrates our methodology in a case

study of web application design.

4 A CASE STUDY

This section presents an illustration in an industrial

engineering and business-to-business (B2B) domain

with a case study, adapted from (Qiang et al., 2001).

4.1 Web Application Design

A web-based material requirements planning (MRP)

system takes customer’s product order through the

B2B web front and performs material requirements

planning. The goal of the system is to respond quickly

and effectively to changing requirements to minimize

delay in production and product delivery. The system

automatically updates orders and predicts the daily

planned orders, which may be overwritten by a man-

ager. The daily planned orders are sent to a job shop

that simulates real-time scheduling and production.

At the same time, the system determines materials re-

quired for the daily planned orders and sends orders of

raw materials to appropriate suppliers. Job shop sim-

ulator reports on ﬁnished parts/products to the MRP

system, where the manager may adjust some initial

parameters (e.g., lead time, lot size) for scheduling

production plan to meet customer order requirements.

A supplier can view material order status and ac-

knowledge the receipt of the order.

The web application design consists of seven soft-

ware components: MRP, MPS (Master Production

Schedule), BOM (Bill of Material), JOB (Job shop

simulator), CI (Customer Interface), MI (Manager In-

terface), and SI (Supplier Interface). MRP validates

logins, records product orders and determines cus-

tomer’s billing. MPS schedules appropriate daily pro-

duction plan from a given product demand (e.g., from

customer order) and other input parameters. The de-

tails of MPS are beyond the scope of this paper. BOM

determines parts required for each product to be pro-

duced and sends order for raw materials to suppliers.

JOB is a job shop component that simulates real-time

scheduling and production in a manufacturing plant.

CI, MI and SI facilitate web interfaces for different

users. Customers and suppliers are required to login

via a web front, while a manager can do remote login

to MRP.

To focus our illustration on risk methodology, we

simplify a B2B process by assuming that all payment

between a customer and a manufacturer, or a man-

ufacturer and a supplier are off-line transactions. We

represent the design in an extended workﬂow diagram

as described in Section 3.2. To make it easy to under-

stand our analysis approach, we present the workﬂow

in three use cases, each of which has one scenario.

The three use cases are customer orders products,

manager adjusts demands/requirements, and supplier

acknowledges material order. We assume that the

likelihood of occurrence of each scenario is 0.4, 0.2,

and 0.4, respectively.

Figure 3 shows a workﬂow diagram of a process to

handle customer orders for products. We assume cus-

tomers have established business relationships with

the manufacturing enterprise and therefore MRP is re-

stricted for use with these customers only. Thus, cus-

tomers and suppliers are required to login via a web

front. The workﬂow starts at a dark circle and ends

WEBIST 2007 - International Conference on Web Information Systems and Technologies

Figure 3: Workﬂow diagram of a customer use case.

at a white circle. It represents both sequential (by di-

rected link) and concurrent (indicated by double bar)

activities among different components. For example,

after determining parts required for products produc-

tion, BOM sends results to job shop to simulate pro-

duction of product orders and concurrently it places

order of raw materials to appropriate suppliers. The

workﬂow diagram is extended to include software

components responsible for functions/executions of

these activities. The components are shown in oval

shapes on the right of the ﬁgure. The arrows between

components indicate the interactions among them.

Second part of the design is a hardware deploy-

ment plan. Figure 4 shows the design of hardware

platforms required. Like many web applications, the

MRP system has a three-tier architecture. The pre-

sentation layer requires a web server, W. The busi-

ness logic layer contains three application servers:

A1− A3. Finally, a data layer employs four database

servers: D1 − D4, each facilitates data retrieval from

different databases as summarized at the bottom of the

ﬁgure. The servers/hosts are connected via LAN with

a ﬁrewall between the web server,W and the LAN ac-

cess to the three application servers. The deployment

plan annotates each server with software components

that rely on its services as appeared in a square box

on top of each server. For example, as shown in Fig-

ure 4, a manager can login remotely to MRP via MI,

both of which run on application server A1. MRP and

MI allow him to review production status and adjust

product demands. Since MRP is also responsible for

Thus, unlike other application servers, A1 needs to be

connected with D1. Next section describes the analy-

sis for assessing security risks associated with each of

Figure 4: Hardware architecture and deployment plan.

these software components from a given design.

4.2 Estimating Security Risks

The ﬁrst step for the proposed risk methodology is to

calculate interaction rates from each scenario of the

web application design. As shown in Figure 3, MRP

has one interaction to MPS but has a total of four in-

teractions from it (two from MRP to a terminal state,

one to CI and one to MPS). Thus, an interaction rate

from MRP to MPS is 1/4 as shown in table M

Figure 5. M

represents interaction rates among com-

ponents obtained from a “customer orders product”

scenario, where T is a terminal state in the workﬂow.

Similarly, we can obtain tables M

and M

represent-

ing interaction rates in the manager and supplier sce-

nario, respectively.

CI MRP MPS BOM JOB T

CI 0 3/4 0 0 0 1/4

MRP 1/4 0 1/4 0 0 1/2

MPS

0 0 0 1 0 0

BOM 0 0 0 0 1/2 1/2

JOB

0 1 0 0 0 0

MI MRP MPS BOM JOB T

MI 0 2/3 0 0 0 1/3

MRP

1/3 0 1/3 0 0 1/3

MPS 0 0 0 1 0 0

BOM

0 0 0 0 1/2 1/2

JOB 0 1 0 0 0 0

SI MRP BOM T

SI 0 1/2 1/2 0

MRP 1/2 0 0 1/2

BOM

0 0 0 1

Figure 5: Tables of interaction rates in each scenario.

Step 2) constructs a dependency graph of software

components. For each pair of components, we com-

pute a transition rate using the corresponding interac-

tion rates obtained from each scenario (M

, M

and

SECURITY RISK ANALYSIS IN WEB APPLICATION DESIGN

) and a given likelihood of each scenario, as de-

scribed in Figure 1.

In Step 3), determine vulnerabilities of hardware

platforms from a given deployment plan shown in

Figure 4 by applying a scanning tool (if the required

host and network conﬁgurations of the system are

already in operation), or (otherwise) a table lookup

procedure to public vulnerability databases. Table 1

shows vulnerability sources and their counts on our

application deployment plan. As described earlier, the

table lookup for vulnerability sources are based on

software and its environments required on each host

to provide their services.

Table 1: Vulnerabilities from hardware deployment plan.

Host Vulnerability Sources Count

W Apache-Chunk, PHP 4.2 2

A1 Jboss, JRE 1.4.2, Windows, Tomcat-3.2.1 4

A2 Jboss, JRE 1.4.2, Windows 3

A3 Telnetd 1

D1 Oracle, TNS Listener 2

D2 Oracle, TNS Listener 2

D3 Oracle, TNS Listener 2

D4 Oracle, TNS Listener 2

Table 2: Component demands and vulnerability ratios.

W A1 A2 A3 D1 D2 D3 D4 #Vuls V

CI 1 1 4 0.09

SI 1 1 1 6 0.14

MI 1 1 1 8 0.2

MRP 1 1 1 1 1 10 0.23

MPS 1 1 1 7 0.16

BOM 1 1 1 7 0.16

JOB 1 1 0.02

Next, to ﬁnd a vulnerability ratio, V

of component

i, we determine host services required by the compo-

nent. For example, the customer interface, CI requires

the web server W for login and ordering products, and

also requires query retrievals of product information

from the database D2 for browsing. Similar results

can be obtained for other components as summarized

in Table 2. The second to last column shows the

number of vulnerabilities associated with each com-

ponent. This is estimated by summing a total number

of vulnerabilities in each of the hosts required in the

component. The last column shows vulnerability ra-

tios with a total ratio of one for overall system vulner-

ability.

Figure 6 shows the resulting graph obtained from

Step 2) with annotated transition rates and vulnerabil-

ity ratios (in bold), heuristic estimates of vulnerability

of the design components. Here we assume that at the

starting point S (a solid circle), the system has no vul-

nerability, whereas the terminating point T (a white

circle) has a vulnerability ratio of the whole system

(i.e., one).

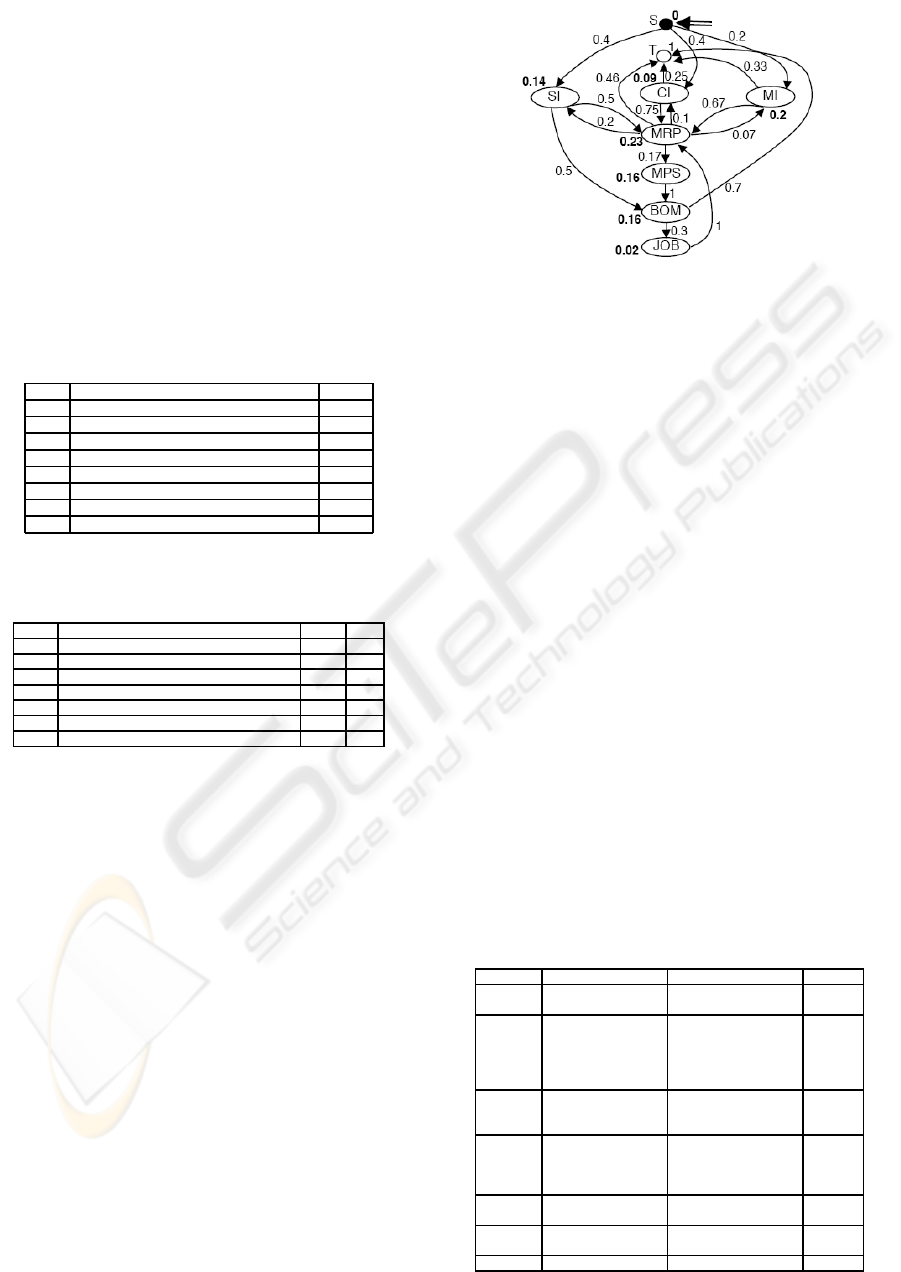

Figure 6: A dependency graph of software components.

Step 4 determines likelihoods of attacks to (or se-

curity breach in) each component using the approach

as described in the example of Figure 2. For exam-

ple, the chance of CI being attacked (via S → CI)

is 1 × 0.4 × 0.09 = 0.036. Note that the path to CI

from MRP (via S → CI → MRP → CI) is ignored

since it produces a lower likelihood and thus, not

the worst case as desired. The chance of MRP be-

ing attacked is computed as a sum of likelihoods of

MRP being reached from CI, MI, SI, and JOB, i.e.,

0.06+0.02+0.04+0.01= 0.14. A summary of com-

ponent security breach likelihoods is given in the ﬁrst

row of Table 4. In Step 5), we estimate consequences

of adverse actions in each component by categorizing

consequences into ﬁve categories: CT (catastrophic:

0.95), CR (critical: 0.75), MG (marginal: 0.5), and

MN (minor: 0.25) (ISO, 2002). The estimated sever-

ity for each component is shown in Table 3. By select-

ing the maximum severity obtained in each compo-

nent to be the component severity, and applying stan-

dard quantiﬁcation to it, we can obtain risk of each

component as shown in Table 4. Here MRP is the

most high-risk component with 34.31% risk, whereas

MI is the lowest with 2.64% risk. The risk of over-

all system is computed by multiplying the likelihood

Table 3: Severity analysis of the web application design.

SW units Malicious actions Consequences Severity

CI change product order order unveriﬁed MN

increase access level increase vulnerabilities CR

MRP change product order incorrect charge, plan MG

change demands over/under stock MG

change charges lose proﬁts CT

access customer info lose ﬁnancial info CT

access product info lose product info MG

MPS change schedule incorrect plans CR

access product info lose product info MG

access supplier info lose supplier info MG

BOM change parts incorrect product plan CR

increase access level increase vulnerabilities MG

access product info lose product info MG

access supplier info lose supplier info MG

JOB change ﬁnished time late delivery, lose cust. MG

access product info lose product info MG

MI change prod. status wrong update MN

increase access level increase vulnerabilities MN

SI increase access level increase vulnerabilities MG

WEBIST 2007 - International Conference on Web Information Systems and Technologies

Table 4: Risk analysis results.

CI SI MI MRP MPS BOM JOB T

Likelihoods 0.04 0.06 0.04 0.14 0.07 0.08 0.13 0.665

Severity 0.75 0.5 0.25 0.95 0.75 0.75 0.5 0.75

Risk 0.03 0.03 0.01 0.13 0.05 0.06 0.07 0.499

%Risk 7.13 7.39 2.64 34.31 14.51 16.77 17.25

of reaching the terminating point, T with its vulner-

ability and a severity of the overall system. Here we

use, CR, which is a severity category of a majority of

all components. The result in Table 4 shows that the

security risk of overall system is about 50%, which

can be used as a baseline to compare with alterna-

tives. These risks give relative measures for assist-

ing decisionmakings on security options from differ-

ent designs.

5 CONCLUDING REMARKS

This paper attempts to provide a general framework

for security risk analysis of web application software

design. We present a systematic methodology for

automated preliminary risk assessment. Our focus

here is not to estimate precise risk measures but to

provide a quick and early rough estimate of security

risks by means of heuristics based on characteristics

of software design and hardware platforms to help lo-

cate high-riskcomponents for further rigorous testing.

Our risk model is far from complete partly due to in-

herent limitations in the design phase. Although, we

illustrate our approach to web applications, it is gen-

eral to apply to other softwareintensive systems and to

extend the framework and the methodology to include

additional security elements in the model.

The approach has some limitations. Besides ob-

vious requirements on knowledge about system us-

age scenarios and component-based design, the ap-

proach is limited by insufﬁcient data available in the

early phases of software life cycle to provide precise

estimation of the system security. However, the risk

analysis methodology suggested in this paper can be

used to estimate security risks at an early stage, and

in a systematic way. Finally, the approach does not

consider failure (to satisfy security criteria) depen-

dencies between components. Thus, risks of a com-

ponent connected to attacked components are deter-

mined in the same way as those that are not attacked.

We plan to extend this framework to address this is-

sue by providing mechanisms that take user roles, ac-

cess privilegesand vulnerability exploits into account.

Additional future work includes reﬁnement of explicit

severity analysis and incorporationof attack scenarios

in the risk models.

REFERENCES

Barna, P., Frasincar, F., and Houben, G.-J. (2006). A

workﬂow-driven design of web information systems.

In ICWE ’06: Proceedings of the 6th international

conference on Web engineering, pages 321–328, New

York, NY, USA. ACM Press.

Bugtrag (2006). Retrieved October 11, 2006, from

http://www.securityfocus.com/archive/1.

Cortellessa, V., Appukkutty, K., Guedem, A. R., and Elnag-

gar, R. (2005). Model-based performance risk analy-

sis. IEEE Trans. Softw. Eng., 31(1):3–20.

Ginige, A. and Murugesan, S. (2001). Web engineering: an

introduction. Multimedia, IEEE, 8(1):14–18.

Haimes, Y. Y. (2004). Risk Modeling, Assessment, and

Management. John Wiley & Son, 2nd edition.

ISO (2002). Risk management vocabulary guidelines for

use in standards. ISO Copyright Ofﬁce, Geneva.

Landoll, D. J., editor (2006). The Security Risk Assessment

Handbook. Auerbach Publications.

Nessus (2006). Nessus vulnerability scanner. Retrieved Oc-

tober 11, 2006, from http://www.nessus.org/.

Pearl, J. (1997). Graphical models for probabilistic and

causal reasoning. In The Computer Science and Engi-

neering Handbook, pages 697–714.

Qiang, L., Khong, T. C., San, W. Y., Jianguo, W., and

Choy, C. (2001). A web-based material requirements

planning integrated application. In EDOC ’01: Pro-

ceedings of the 5th IEEE International Conference on

Enterprise Distributed Object Computing, page 14,

Washington, DC, USA. IEEE Computer Society.

Shahrokhi, M. and Bernard, A. (2004). Risk assess-

ment/prevention in industrial design processes. In

2004 IEEE International Conference on Systems, Man

and Cybernetics, pages 2592–2598.

Stoneburner, G., Goguen, A., and Feringa, A. (2002). Risk

management guide for information technology sys-

tems. Technical Report 800-30, Computer Security

Division, Information Technology Laboratory, NIST.

Verdon, D. and McGraw, G. (2004). Risk analysis in soft-

ware design. IEEE Security and Privacy, 2(4):79–84.

Walt, C. v. d. (2002). Assessing internet security risk,

part four: Custom web applications. Retrieved from

http://www.securitydocs.com/library/729.

Yacoub, S. M., Cukic, B., and Ammar, H. H. (1999).

Scenario-based reliability analysis of component-

based software. In ISSRE ’99: Proceedings of the

10th International Symposium on Software Reliability

Engineering, page 22, Washington, DC, USA. IEEE

Computer Society.

Zhang, Y., Zhu, H., Greenwood, S., and Huo, Q. (2001).

Quality modelling for web-based information sys-

tems. In FTDCS ’01: Proceedings of the 8th IEEE

Workshop on Future Trends of Distributed Computing

Systems, page 41, Washington, DC, USA. IEEE Com-

puter Society.

SECURITY RISK ANALYSIS IN WEB APPLICATION DESIGN
