FLOOR CONTROL IN COMPLEX SYNCHRONOUS CSCL

ENVIRONMENTS

Jacques Lonchamp

LORIA, Nancy University, Campus Scientifique, BP 239, 54506 Vandoeuvre-les-Nancy Cedex, France

Keywords: CSCL, collaborative learning, floor control, turn management.

Abstract: Complex synchronous CSCL environments are dual space environments providing a task space where users

“do things” through a set of collaborative tools and a communication space where users “talk of what they

do”. The most recent systems provide several tools in each space. In such complex dual space environments,

the definition and role of floor-control (FC) has to be clarified. FC can be associated to different granularity

levels: environment, space, artefact, component or attribute. If FC is associated to the tool or space level, the

coexistence of different FC policies has to be considered. This paper discusses FC in complex synchronous

CSCL environments and describes the particular approach implemented in Omega+ generic framework.

1 INTRODUCTION

Complex synchronous CSCL environments are dual

space environments providing a task space where

users “do things” through a set of collaborative tools

and a communication space where users “talk of

what they do”. This combination of communication

and shared work artefacts is an important

requirement for effective collaborative learning

(Suthers and Xu, 2002).

Early dual space CSCL systems only provided a

chat tool in the communication space and some

artefact editor in the task space. It was the case, for

instance, of C-Chene (Baker and Lund, 1996),

EPSILON (Soller et al., 1999), Digalo (Glassner and

Schwarz, 2004), Coler (Constantino-Gonzáles and

Suthers, 2001) and Cosar (Jaspers et al., 2001). In

most of these environments (C-Chene, Digalo,

Coler, Cosar), a floor control (FC) mechanism was

associated to the task editor. The rationale was either

to ensure exclusive access to the shared artefact

(concurrency control), or to disallow anarchic

interaction (turn management). In a few other

proposals, all users were allowed to use the editor at

any moment (“free floor policy”), and social

protocols were expected to avoid inconsistent usages

through mutual awareness information (e.g., visual

feedback indicating which objects are in use). The

FC approach has often been criticized from a

theoretical point of view, when compared to more

flexible techniques for consistency control, such as

serializability, optimistic locking, operational

transformation (Yang and Li, 2005). At the opposite,

a number of field studies comparing argumentative

activities with and without FC have found that FC

increases the efficiency with regard to the

collaborative task, thanks to better turn management

and more meaningful discussions (Glassner and

Schwartz, 2004), (McKinlay et al., 1993). The most

recent synchronous CSCL systems provide several

tools in each space. This is the case of Modelling

Spaces (Avouris et al., 2004), Algebra-Jam (Singley

et al., 2000), Cool Modes (Pinkwart, 2003) and Co-

Lab (van Joolingen et al., 2005). In such complex

dual space environments, the definition and role of

FC has to be clarified. FC can be associated to very

different granularity levels: environment, space,

tool/artefact, component of the artefact, attribute of a

component. If FC is associated to the tool or space

level, several FC policies can coexist. The

consequences of combining different FC policies

have to be carefully analyzed.

The problem of FC is discussed here in the scope

of the Omega+ effort for building a generic

synchronous CSCL framework. Omega+ applies

“model-based genericity” to the four dimensions of

collaborative learning: the situation, the interaction,

the process, and the way of monitoring individual

and group performance (Lonchamp, 2006). These

four aspects are explicitly specified in four models

(process, protocol, artefact, effect) that serve as

parameters for the generic framework which is

397

Lonchamp J. (2007).

FLOOR CONTROL IN COMPLEX SYNCHRONOUS CSCL ENVIRONMENTS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Society, e-Business and e-Government /

e-Learning, pages 397-402

DOI: 10.5220/0001270103970402

 SciTePress

designed to model systems that are flexible and can

be tailored to a wide range of users, communities,

goals and contexts. Omega+ client looks like a

classical dual space system, with a communication

space and a task space. The chat in the

communication space is either a regular chat or a

protocol-driven chat. A protocol model defines

typed messages, role assignment, and message

sequencing. The process model describes the

sequential and/or parallel ordering of phases

(“rooms”) within the synchronous session. Each

phase is characterized by an interaction protocol

type, a FC policy, and a set of tools available in the

task space. Tools are either predefined editors

(collaborative text editor, whiteboard) or shared

editors for graph-based representations which are

customized by artefact models. Individual and

collective group performance representations can be

generated on the basis of the effect model. Omega+

approach of FC has to be sufficiently generic for

accommodating a large spectrum of learning

situations and sufficiently simple for allowing non

specialist model designers to well understand the

consequences of the choices specified in the process

models they create or reuse.

Section 2 introduces the problem by defining the

role of FC in complex synchronous CSCL systems,

emphasizing its importance for user-oriented reasons

and defining a set of global policies at the

environment level. Section 3 discusses how these

general ideas are implemented in Omega+.

2 THE PROBLEM

2.1 Understanding FC

Synchronous computer-mediated collaboration bears

an inherent structure resembling a discourse model

as it is known from linguistic pragmatics. A central

concept is turn-taking, which is defined as the

passing of speaker control among multiple

participants. In pragmatic turn-taking models, at

each turn a party assumes a social role such as

speaker or listener, switching control in order to

minimize pauses and maximize the conveyed

information. The concept of transition relevance

place (TRP) was introduced by Sacks et al. (1974).

At each TRP, identified by syntactical constructs,

control may eventually be switched. Duncan (1972)

has proposed a model of turn-taking for face to face

two-person conversations based on a description of

the behaviour that accompanied speaking-role

changes. Cues are actions which serve a signal’s

intent by being directly perceived and interpreted by

the other participant as an expression of that intent.

Many intuitive verbal cues (voice volume and rate)

and non-verbal cues (gestures, eye contact, facial

expressions) in face to face meetings are not valid in

a computer-mediated environment. Floor control

mechanisms are therefore introduced for facilitating

turn management.

Synchronous collaborative environments are also

concerned with how the learners’ focus of attention

relate, i.e., with mutual focus of attention. A

person’s focus of attention will correspond roughly

to selections of one or more interface elements for

immediate further processing, and such selections

change from moment to moment. Other persons

have to perceive and interpret these visual signals.

FC is also concerned with helping to achieve such

mutual focus of attention.

2.2 FC Policies

There are a surprisingly large number of different

policies for FC. Policies are rules used for making

decisions. The primary FC decisions concern how

users acquire control, how users release control, and

what happens to requests if control is not available

(Myers et al., 1999). There are four options for

control acquisition:

 explicit request: for instance by pushing a button,

 implicit request: by performing an input event,

such as clicking the mouse or typing,

 protocol-based: for instance ‘round robin’, where

each user gets a turn in a circular order,

 designation: a chair-person decides who gets

control.

The three options for releasing control are:

 explicit release: the floor holder explicitly

signals being finished,

 idle pre-emption: the system notices that the

floor holder is not busy and releases the control,

 explicit removal: whether or not the user is

finished, the control can be explicitly removed;

for example, a moderator determines that the

user has control for too long.

Finally, there are three options of what can happen

to the requests:

 immediate grant: this only works with the

explicit loss release policy,

 queued: usually in first-come, first-serve order,

 ignored: the request is thrown away if it cannot

be satisfied.

By combining these options, most of the existing FC

policies can be constructed: free-floor (implicit

request + explicit removal + immediate grant), pause

WEBIST 2007 - International Conference on Web Information Systems and Technologies

398

detection (implicit request + idle pre-emption +

ignored), take the floor (explicit request + explicit

removal + immediate grant), wait the floor (explicit

request + explicit release + queued), ask the floor

(explicit request + explicit release + ignored),

moderated (designation + explicit removal +

queued), etc.

2.3 Requirements

In a complex synchronous CSCL environment, FC is

mandatory for user-oriented reasons. At the contrary

of face-to-face conversations, a participant’s

attention might not be directed to a single other

participant. If parallel activities may occur in

different tools, mutual focus of attention can become

very difficult to maintain. The danger of parallel

activities from different learners is to obtain several

threads of individual work, instead of a collaborative

activity which is the fundamental objective of a

CSCL system. However, a global floor at the

environment level, ensuring the exclusive control of

the whole system, is only one of the many possible

solutions and in most cases not the optimal one. A

complex (dual space) synchronous CSCL

environment requires a small set of global policies

at the environment level, specifying who can talk

and who can act. For instance, a coarse grained form

of parallelism, between a single active participant in

the task space and several active commentators in

the communication space, can be appropriate in

many learning situations.

Each global policy can be characterized by the

number of parallel floors available in the two spaces.

Table 1 defines the five proposed global FC policies

in terms of the corresponding space policies and

illustrates each of them with a typical example. This

proposal can deal with a large spectrum of learning

situations. It is sufficiently simple for allowing non

specialist process model designers to well

understand the consequences of a given choice.

3 OMEGA+ IMPLEMENTATION

Some characteristics of Omega+ impact the

implementation of these general ideas. As explained

in the introduction, interaction models are used for

customising the chat tool in the communication

space. Interaction models allow describing complex

policies for chat control based on application-related

roles, typed messages and explicit sequencing rules.

For example, some reviewing protocol defines two

Table 1: The five global FC policies.

Global policy

Task

space

policy

Comm.

space

policy

Typical

example

Free floor Free floor Free floor Free sketching +

free commenting

Free talking-

exclusive

doing

Exclusive

control

Free floor Free commenting

+ exclusive

diagramming

Free doing-

exclusive

talking

Free floor Exclusive

control

Free sketching +

round robin

talking

Parallel floors Exclusive

control

Exclusive

control

Exclusive

diagramming +

exclusive voice

channel

Common floor Exclusive control Round robin

talking and

diagramming

roles (writer and reviewer) and three message types

(correction, supplement, comment). The rules

specify that each reviewer contributes in turn with a

correction, a supplement, or a comment. If a

correction or supplement is provided, it is the

writer’s turn, who can accept or reject the proposed

contribution. If a comment is provided, it is the next

reviewer’s turn (Pfister and Mühlpfordt, 2002). This

kind of “protocol model-driven policy” may concern

not only the communication space but also the task

space, by using the communication floor as a

common floor for the whole environment.

Omega+ provides an application-independent

‘room operator’ role. A participant playing this role

has extended rights for dynamically changing most

of the constraints that apply in the room (e.g.,

change the current interaction protocol, kick off or

skip a participant, modify the ongoing process

model) In Omega+ implementation, a default FC

policy is proposed which achieves exclusive control

at the space level. The proposed default policy is

what was called above wait the floor, characterized

by explicit request, explicit release and FIFO

queuing options. This default policy may be

dynamically customised by room operators. The

definition of maximum idle time duration turns the

default policy into a pre-emptive one. The capability

to pass the floor to a specific participant turns the

default policy into a moderated one. By this way,

many different policies can be derived from the

default policy. Apart the implicit request option

(problematic when there are several tools), all the

other options for control acquisition (explicit

request, protocol-based, designation) and control

FLOOR CONTROL IN COMPLEX SYNCHRONOUS CSCL ENVIRONMENTS

399

release (explicit release, idle pre-emption, explicit

removal) become available as derivatives of the

default policy or protocol model-driven policies.

Table 2 summarizes Omega+ implementation of the

global policies proposed in the previous section.

Table 2: Omega+ implementation.

Global policy Task space

policy

Communication

space policy

Free floor Free floor Free floor

Free talking-

exclusive doing

Wait the floor

(customisable)

Free floor

Free doing-

exclusive talking

Free floor Wait the floor

(customisable) or

protocol-driven

Parallel floors Wait the floor

(customisable)

Wait the floor

(customisable) or

protocol-driven

Common floor Wait the floor (customisable) or

protocol-driven

3.1 The User Interface

The background colour of all interactive areas shows

if the user has the floor: a white area is ready to

accept contributions from the user (such as typing,

creating or modifying graphical elements) whereas a

coloured (light blue) background means that

interaction is impossible. The only exception

concerns interacting through the annotation

mechanism provided by Omega+: graphical

pointers, “sticky notes”, and “sticky annotated

snapshot” are independent of the FC mechanism

providing unconstrained means of interaction to the

users (Lonchamp, 2007).

In the case of the default wait the floor policy,

explicit control request and release are performed

through dedicated buttons. When the “ask floor”

button is pressed, it becomes greyed and its label

changes to “waiting…” until the floor is received. At

this time, the “release floor” button stops to be

greyed and the background of the tool changes to

white. With the “queue?” button, it is possible to

know the FIFO queue state during the waiting state.

Menu options allow a room operator to change the

maximum idle time duration and to give the floor to

a specific participant.

3.2 A Process Model Example

A process model, within a “structured room”,

defines a sequence of phase types. We differentiate

between regular and split phases. In a regular phase

the whole group of participants works in the same

room. A split phase is a structured phase comprising

a small set of sub phases running in parallel. The

group of participants is divided into sub groups

working in different sub rooms. Room Operators

participate to all sub rooms. All sub phases of a split

phase start and terminate simultaneously.

Each phase type (regular phase or sub phase) can

be characterized by a name, a type (regular or split),

an informal description, an interaction protocol type

(either predefined – moderated, round robin, single

contribution, unique contributor – or application-

specific), a global FC policy (see Table 2), and a set

of available shared tools (at most three). Each tool

can be characterized by a name, a type (text editor,

whiteboard, artefact editor), a read-only boolean, the

path of the input file automatically loaded when the

phase starts and the path of the output file

automatically created when the phase terminates.

Omega+ favours visual modelling and model

reuse. Collaborative model editing sessions use

Omega+ generic editor customized for editing

process models.

The OODesign process model has been created

for an object-oriented design course. Small groups

of three or four students receive the wording of a

situation (see the read-only textboard in the middle

part of the task space on the left of Figure 1) and

have to build an UML class diagram. In the first

phase, they are asked to specify some use cases with

short textual descriptions (with the textboard in the

upper part of the task space) and to draw the overall

use case diagram (with the diagrammer in the lower

part of the task space). This phase requires free

talking like during a brainstorming. However, when

producing the artefacts some coordination is

required. Therefore, the free talking and exclusive

doing FC policy has been selected. Figure 1 shows

Jack’s client who has the floor for doing (see the

‘release floor’ button on the top left and white

backgrounds for all tools excepted the read-only

textboard). All users (including Jack) can

communicate with the regular chat tool (we present

here simplified dialogues rewritten in English

because the original course was given in French).

The second phase is the core of the design

process. Students can see their use case descriptions

in a read-only textboard (in the upper part of the task

space in Figure 2). They translate them into

collaboration diagrams (with the diagrammer in the

middle part) while introducing new classes in the

class diagram (with the diagrammer in the lower

part). For ensuring both disciplined work and

equality of participation among the students, the

WEBIST 2007 - International Conference on Web Information Systems and Technologies

400

‘CircularWork’ protocol is used as a common floor

at the environment level. Each student in turn takes

control of the whole environment. The predefined

‘round robin’ protocol has not been chosen because

it implies that the floor moves to the next learner

after each utterance. A specific protocol has been

designed which allows sending several messages

before passing explicitly the floor to the next learner.

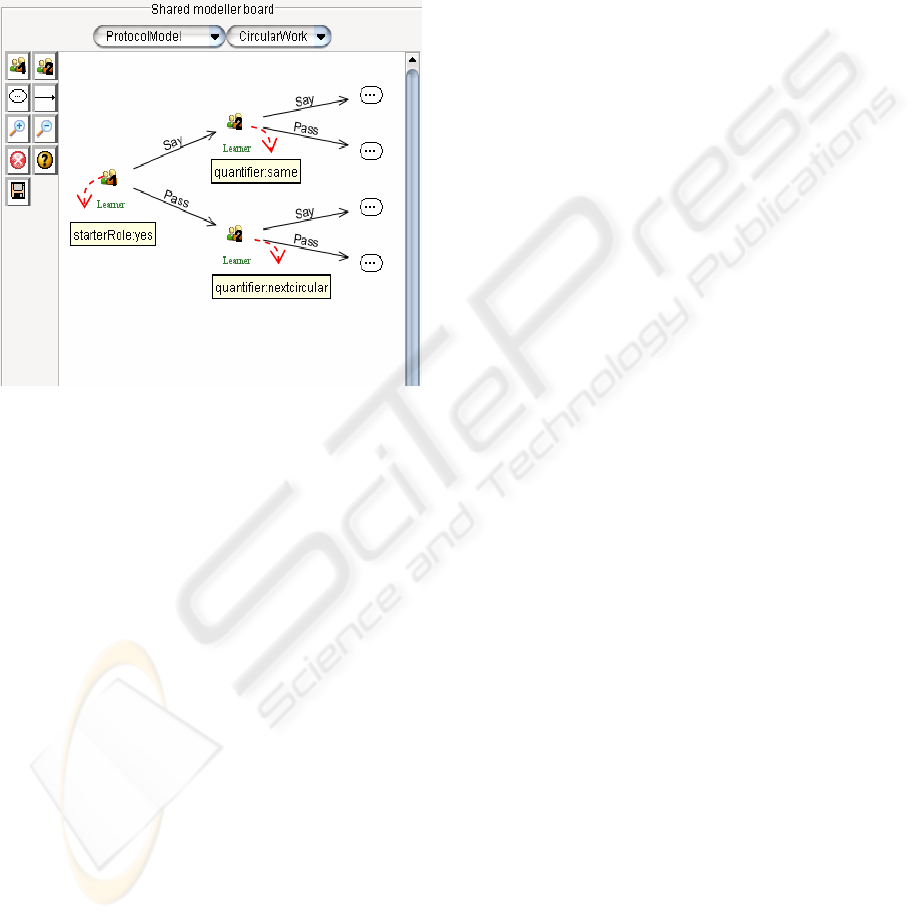

Figure 3 shows Omega+ generic editor when the

user has selected the ‘Protocol Model’ type and the

‘CircularWork’ protocol model. Such a protocol

model includes a set of roles, a set of typed

messages (utterances), and a set adjacency pairs

(Clark and Schaefer, 1989) saying that if a user

playing role A produces a message of type X then

any user (or the next one, the same one, etc.) playing

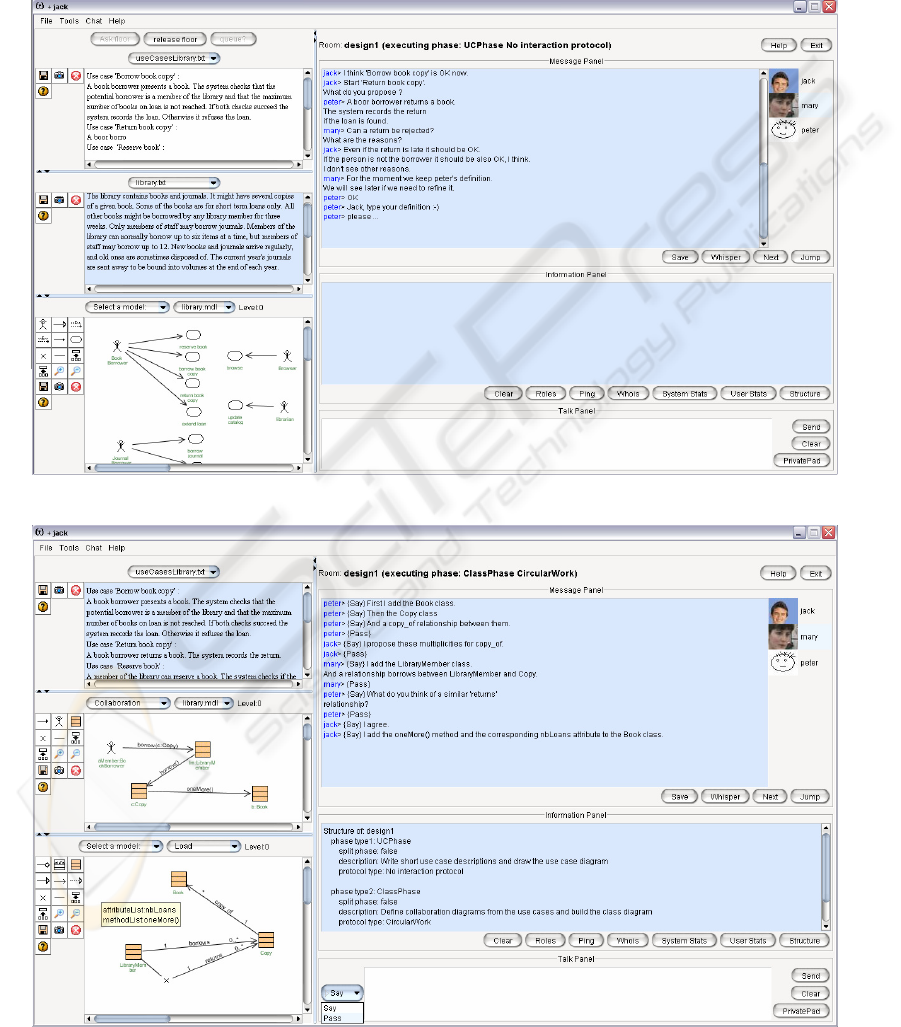

Figure 2: The protocol model-driven second phase.

Figure 1: Jack’s client during the first phase.

FLOOR CONTROL IN COMPLEX SYNCHRONOUS CSCL ENVIRONMENTS

401

role B can continue with a message of type Y. At

each moment, a participant using the protocol-driven

chat can only select through a combo box a type of

message in accordance with his(her) role and the

protocol rules (‘Say’ or ‘Pass’ for the floor holder,

no message for the other students – see Fig. 2). The

chat history also reflects the use of this protocol. At

every moment, the room operator can switch to

another FC policy like wait the floor or free floor.

4 CONCLUSION

Complex synchronous CSCL environments require a

set of well defined FC policies at the environment

level, specifying who can talk and who can act.

This paper proposes five global FC policies

which should satisfy a large spectrum of learning

situations. Omega+ implementation takes into

account the existence of ‘protocol model-based’

policies for controlling the chat tool which have to

be extended to the task space and the strong

requirement for dynamic policy evolution by users

playing the room operator role.

REFERENCES

Avouris, N., Komis, V., Margaritis, M., Fidas, C., 2004.

Modelling Space: A tool for synchronous

collaborative problem solving. In Proc. ED-MEDIA’

04, AACE Press, 381-386.

Baker, M., Lund, K., 1996. Flexibly structuring the

interaction in a CSCL environment. In Proc. European

Conf. on Artificial Intelligence and Education, Colibri

Ed., 401-407.

Constantino-González, M., Suthers, D., 2002. Coaching

Collaboration in a Computer-Mediated Learning

Environment. In Proc.CSCL’05, Lawrence Erlbaum

Associates, 583-586.

Duncan, S., 1972. Some Signals and Rules for Taking

Speaking Turns in Conversations. Journal of

Personality and Social Psychology 23, 283-292.

Glassner, A., Schwarz, B, 2005. The Role of Floor Control

and of Ontology in Argumentative Activities with

Discussion-Based Tools. In Proc. CSCL’05, Lawrence

Erlbaum Associates, 170-179.

Jaspers, J., Erkens, G., Kanselaar, G., 2001. COSAR:

Collaborative writing of argumentative texts. In Proc.

ICALT’01, IEEE Computer Society Press, 269-272.

Lonchamp, J., 2006. Supporting synchronous

collaborative learning: a generic, multi-dimensional

model. Int. Journal of CSCL, 1 (2), 247-276.

Lonchamp, J., 2007. Linking Conversations and Task

Objects in Synchronous CSCL Environments,

WEBIST 2007.

McKinlay, A., Arnott, J., Procter, R., Masting, O.,

Woodburn, R., 1993. A Study of Turn-Taking in a

Computer-Supported Group Task. In Proc. HCI '93,

Cambridge University Press, 383-394.

Myers, B.A., Chuang, Y.S.A., Tjandra, M., Chen, M.C.,

Lee, C.K., 2000. Floor Control in a Highly

Collaborative Co-Located Task. http://www.cs.cmu.

edu/~pebbles/papers/pebblesfloorcontrol.pdf

Pfister, H.-R., Mühlpfordt, M., 2002. Supporting discourse

in a synchronous learning environment: The learning

protocol approach. In Proc.CSCL’02, Lawrence

Erlbaum Associates, 581-589.

Pinkwart, N., 2003. A Plug-In Architecture for Graph

Based Collaborative Modelling Systems. In Proc.

AIED’03, IOS Press, 535-536.

Sacks, H., Schegloff, E. A., Jefferson, G., 1974. A

Simplest Semantics for the Organization of Turn

Taking for Conversation. Language, 50 (4).

Singley, M., Singh, M., Fairweather, P., Farrell, R.,

Swerling, S., 2000. Algebra jam: supporting teamwork

and managing roles in a collaborative learning

environment. In Proc.CSCW’00, ACM Press,145-154.

Soller, A., Linton, F., Goodman, B., Lesgold, A., 1999.

Toward Intelligent Analysis and Support of

Collaborative Learning Interaction. In Proc. AIED’99,

IOS Press, 75-82.

Suthers, D. Xu, J., 2002. Kukakuka: An Online

Environment for Artifact-Centered Discourse. In Proc.

11th WWW Conference, ACM Press, 472-480.

van Joolingen, W., de Jong, T., Lazonder, A., Savelsbergh,

E., Manlove, S., 2005. Co-Lab: research and

development of an online learning environment for

collaborative scientiﬁc discovery learning. Computers

in Human Behavior, 21, 671 –688.

Yang, Y.,Li, D., 2005. Supporting Adaptable Consistency

Control in Structured Collaborative Workspaces.

Computer Supported Cooperative Work, 14, 469–503.

Figure 3: The ‘CircularWork’ protocol model.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

402
