WEB SERVICE-BASED TRACEABILITY IN FOOD SUPPLY CHAINS

Andr

eia Akemi Kondo, Claudia Bauzer Medeiros,

Edmundo Roberto Mauro Madeira, Evandro Bacarin

Institute of Computing, University of Campinas, Campinas, S

ao Paulo, Brazil

Keywords:

Traceability, Supply Chains, Workﬂows, Web Services.

Abstract:

Supply Chains present many research challenges in Computing, such as the modeling of their processes, com-

munication problems between their components, logistics and processes management. This paper presents

a supply chain traceability model that relies on a Web service-based architecture to ensure interoperabil-

ity. Geared towards assisting quality control in the agricultural domain, the model allows to trace products,

processes and services inside a chain. It has been validated for real life case studies and the Web service

implementation is under way.

1 INTRODUCTION

A supply chain is a network of retailers, distributors,

transporters, storage facilities and suppliers that par-

ticipate in the sale, delivery and production of a par-

ticular product (Kumar, 2001; Min and Zhou, 2002).

It is composed of distributed, heterogeneous and au-

tonomous elements, whose relationships are dynamic.

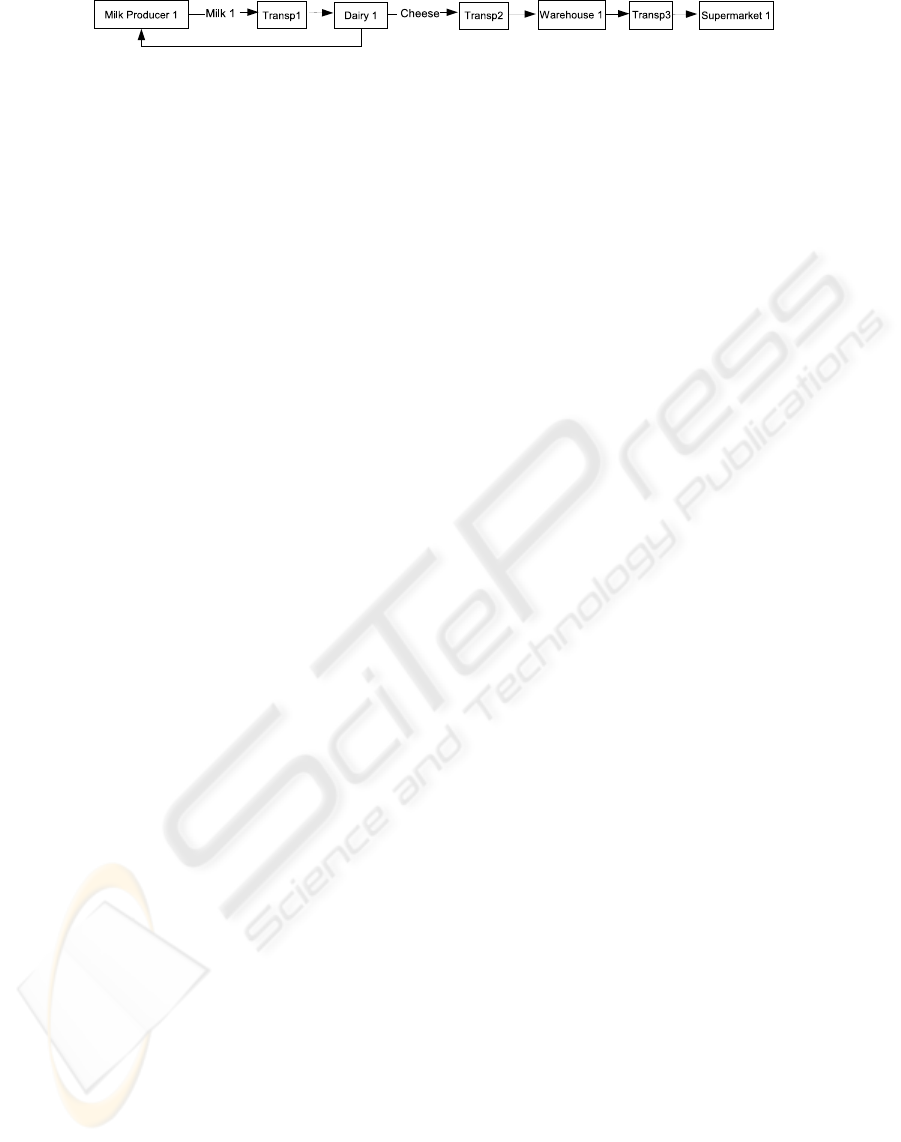

Figure 1 presents a basic example of the milk sup-

ply chain. Starting from a product (input) – (Milk 1) –

it produces another product – (Cheese), going through

transformations, storage and transportation steps. The

ﬁgure shows units of Production (Milk Producer 1

and Dairy 1), Transportation (Transp1, Transp2 and

Transp3) and Storage (Warehouse 1 and Supermarket

1). Any supply chain can be represented by a directed

graph which has at least one source – e.g., (Milk Pro-

ducer 1) and one sink (Supermarket1). The back ar-

row represents a return ﬂow, where some outputs of

a chain can be used as inputs of the same or other

chains – e.g., milk overﬂowing from vats can be used

to enrich food for the animals at the farm.

Traceability in food supply chains is gaining im-

portance everywhere all over - be it to feed humans,

plants or animals. The food industry is investing mas-

sively in issues involving health – e.g., safety, storage,

manipulation and composition of products.

In particular, meat supply chains have attracted at-

tention from all over the world, with the appearance of

the Creutzfeldt-Jacob Disease (also known as the mad

cow disease). New devices have been devised to tag

animals, and special hardware and software systems

keep track of speciﬁc events in the animal’s life. The

emphasis, however, is on constructing such devices.

What is needed is a generic computational infrastruc-

ture to support traceability in a general way.

In Computer Science, supply chain traceability

management involves many challenges, such as cap-

turing, identifying and storing relevant events, man-

aging associated constraints, analyzing the interaction

of actors in a chain, monitoring negotiation protocols,

and many others. Though some of these computing

issues are studied in the context of supply chains, food

supply chain traceability is still a relatively new ﬁeld.

This paper contributes to solving this problem, by

presenting a traceability model for agriculture sup-

ply chains. This model is based on two main con-

cepts: (1) using distributed repositories to store sets of

records concerning speciﬁc events along a given food

supply chain; and (2) deﬁning Web services to access

these repositories, thereby transforming the problem

of traceability derivation into that of performing a set

of service invocations.

2 RELATED WORK

2.1 Supply Chains and Base Model

An agricultural supply chain is composed of all the

activities that occur from the production to the ﬁ-

171

Akemi Kondo A., Bauzer Medeiros C., Roberto Mauro Madeira E. and Bacarin E. (2007).

WEB SERVICE-BASED TRACEABILITY IN FOOD SUPPLY CHAINS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 171-177

DOI: 10.5220/0001270701710177

 SciTePress

Figure 1: Basic example: the Milk Supply Chain.

nal consumer. The ﬂow inside an agricultural supply

chain is subject to several controls, most of which can

affect human health. Such controls must be enacted

at all phases within the chain, complicating its moni-

toring.

Our work is based on a general model (Bacarin

et al., 2004) composed of the basic components: Ac-

tors, Production, Storage and Transportation.

Chain dynamics are modeled by Regulations,

Contracts, Coordination Plans and Summaries. Re-

gulations are restrictions imposed at several phases of

the chain. Contracts are agreements between trading

partners. Coordination Plans are directives that des-

cribe chain execution, coordinating the interactions

between its components. Summaries are elements in-

troduced for traceability and auditability. This paper

is concerned with traceability issues.

2.2 Traceability

Traceability is a concept that involves several types of

activities and refers to the ability to describe and to

follow the life of a conceptual or physical element,

preserving its identity and its origins. In database

systems, traceability is associated with execution of

transaction logs. In software engineering, it is related

to all phases of software development from the re-

quirements to the ﬁnal product. It is also present in

fault tolerance studies or in system auditing.

Most scientiﬁc papers on agricultural traceability

ignore implementation aspects. They are concerned

with logistics (Thomas and Grifﬁn, 1996) and strate-

gies of chain execution (Guiffrida and Nagi, 2006) or

certiﬁcation (Stock, 2004). These papers center on the

business at hand, and computing issues are not treated

at depth.

More recently, work has appeared concerning a

computer science perspective – e.g., (Bello et al.,

2004) or (Cimino et al., 2005). The ﬁrst proposes a

distributed collaborative information system that uses

XML for representing data and Web Services to inter-

face distinct suppliers which communicate through a

HTTP protocol. The second describes a traceability

system that supports exchanging documents between

several units of the supply chain. It uses ebXML

(Electronic Business using eXtensible Markup Lan-

guage), a set of speciﬁcations that enable companies

to conduct business over the Internet.

According to (Opara, 2003), there are seven im-

portant elements in agricultural traceability: product,

process, genetic constitution, inputs, disease, pests

and measurement traceability. Many of these factors

are associated with geographical coordinates. As a

consequence, additional information can be derived

- e. g., associated with cultural aspects, which may

inﬂuence food preparation and preservation. An ex-

ample of the use of coordinates is the GeoTraceAgri

(Debord et al., 2001) european project, where geo-

graphic coordinates are the prime element for trace-

ability studies. As will be seen, our model also relies

on this information.

2.3 Workﬂows and Web Services

In our work, processes within a chain are modelled

as workﬂows, in which an activity can encapsulate

other activities. A workﬂow represents the automa-

tion of procedures where documents, information or

tasks are passed between participants for executing

a certain action according to a deﬁned set of rules

(Hollingsworth, 1995).

Figure 1, the basic supply chain, can be seen

as a workﬂow where each box denotes a Produc-

tion element (e.g, Dairy), a Transportation element

or a Storage element. Each box comprises a wide

range of activities that occurs within the supply chain.

The Dairy can furthermore encapsulate another chain

(workﬂow).

In our architecture, each workﬂow activity may

be considered as invoking some sort of Web service.

Web Services are self-describing and modular busi-

ness applications that provide business logic as ser-

vices over the Internet through standards-based inter-

faces and Internet protocols (e.g. HTTP) with the pur-

pose of ﬁnding, subscribing and invoking those ser-

vices (Nagappan et al., 2003; Alonso et al., 2004).

These standards include XML (Extensible Markup

Language), SOAP (Simple Object Access Protocol),

WSDL (Web Services Description Language) and

UDDI (Universal Description, Discovery and Integra-

tion). Web Services facilitate the communication be-

tween distinct applications and platforms. As will be

seen, our traceability model is also enacted via service

invocation and composition.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

172

3 THE TRACEABILITY MODEL

3.1 Model Overview

Our traceability architecture is concerned with recor-

ding relevant events that occur within an agricultural

supply chain. Those events are incrementally regis-

tered in summaries (Section 3.2) that are stored in in-

terlinked repositories (Section 3.3).

Let us introduce our three main summaries (Prod-

uct, Process and Service) via our running example.

Consider again Figure 1 and the cheese making pro-

cess. This process demands a certain amount of milk,

coagulating agent and salt. At the Dairy, those in-

gredients are mixed and undergo the process that pro-

duces cheese. Each ingredient has its own Product

Summary. For instance, the milk summary stores in-

formation that allows discovering among other things

where and when the milk was produced, if any milk

cow received certain undesirable substances (a drug,

a vaccine). The production process itself has several

stages, such as: curd formation, cutting, cooking, salt-

ing, pressing and curing. Although this process ap-

plies to most kinds of cheese, there are variations and

each process occurs under distinct condition. The in-

formation about each instance of the cheese making

process (ingredients and speciﬁc conditions) is stored

in a Process Summary.

The cheese making process produces two distinct

products: cheese and whey. These products may be

used by other production processes. Thus, it is nec-

essary to create a speciﬁc Product Summary for each

product. Finally, the cheese may be transported to a

grocer and the whey to an animal food industry, where

they may be stored. Thus, there is a Service Summary

associated to each transportation and storage step.

3.2 Summaries

A Summary is a sequence of records that, similar to

a database log, describes events of a supply chain

for traceability purposes. There are 3 kinds of sum-

maries:

• Product: it records the sequence of events that

happen along the life of a product, from its cre-

ation to its ﬁnal consumption.

• Process: it records the details and the phases of

a production process. A process is any activity

that transforms a set of inputs into one or more

different products.

• Service: it records information about a service. A

service is any activity that may inﬂuence a prod-

uct, without transforming it, e.g. transportation or

storage.

3.2.1 Product Summary

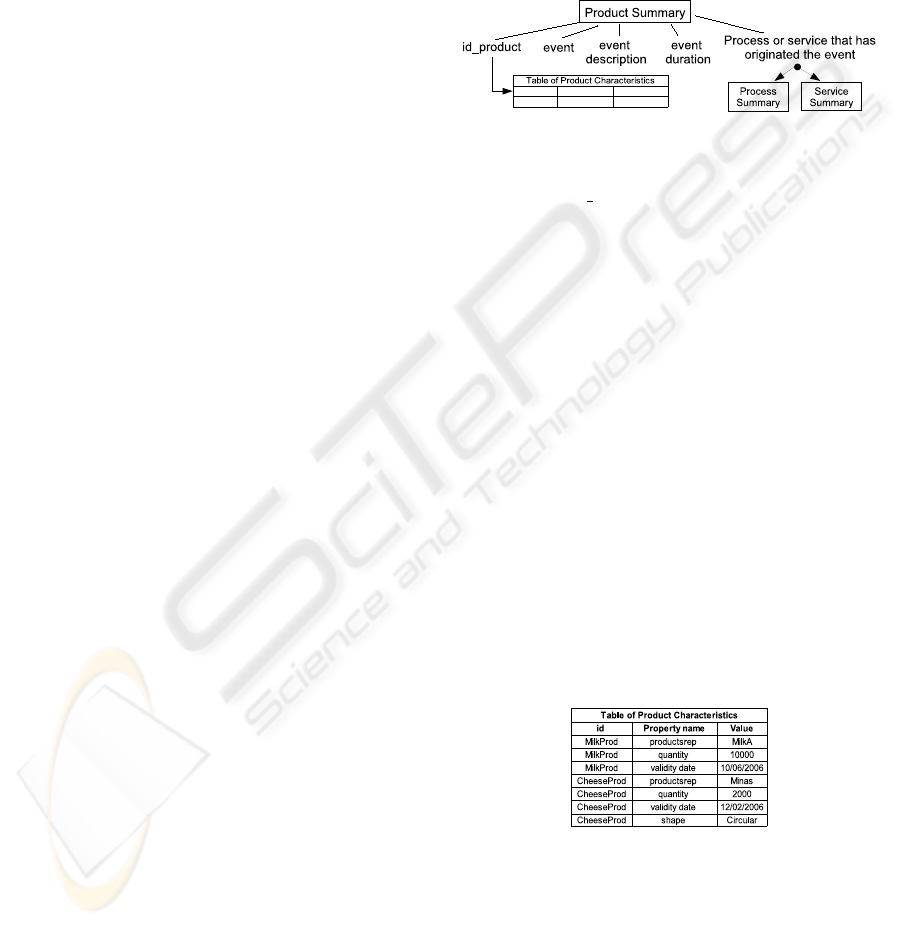

Figure 2 presents a general view of a Product Sum-

mary record, illustrating its links to other data sources

(repositories or other summary records).

Figure 2: Product Summary Record: General View.

The ﬁeld “id product” uniquely identiﬁes the pro-

duct instance. The “events” ﬁeld refers to phases of

the supply chain, such as creation, storage, packing,

mixture, consumption etc. Events are described by

“Event description”. The ﬁeld “process or service that

has originated the event” is a pointer to a record in the

Process or Service Summary that describes the pro-

cess or service which originated the event.

Records in the Product Summary refer to speciﬁc

instances of a product. This summary is comple-

mented by a table (Table 1) that deﬁnes the properties

of an instance of the product. Each property is deﬁned

as a record composed of three ﬁelds, similar to an

RDF description: “id”, “property name” and “value”.

For example, quantity is a property of the product in-

stance identiﬁed as CheeseProd (Table 1). The value

of each property is speciﬁed by the ﬁeld “value” (e.g.

the value circular for property shape). This table

allows managing products with distinct properties –

here milk has three properties and cheese has four.

Table 1: Table of Product Characteristics.

3.2.2 Process Summary

Figure 3 presents a general view of a Process Sum-

mary record. Similar to what occurs with product in-

stances, records in Process Summaries are instances

of more general process descriptions stored in the

Process Repository (see Section 3.3).

WEB SERVICE-BASED TRACEABILITY IN FOOD SUPPLY CHAINS

173

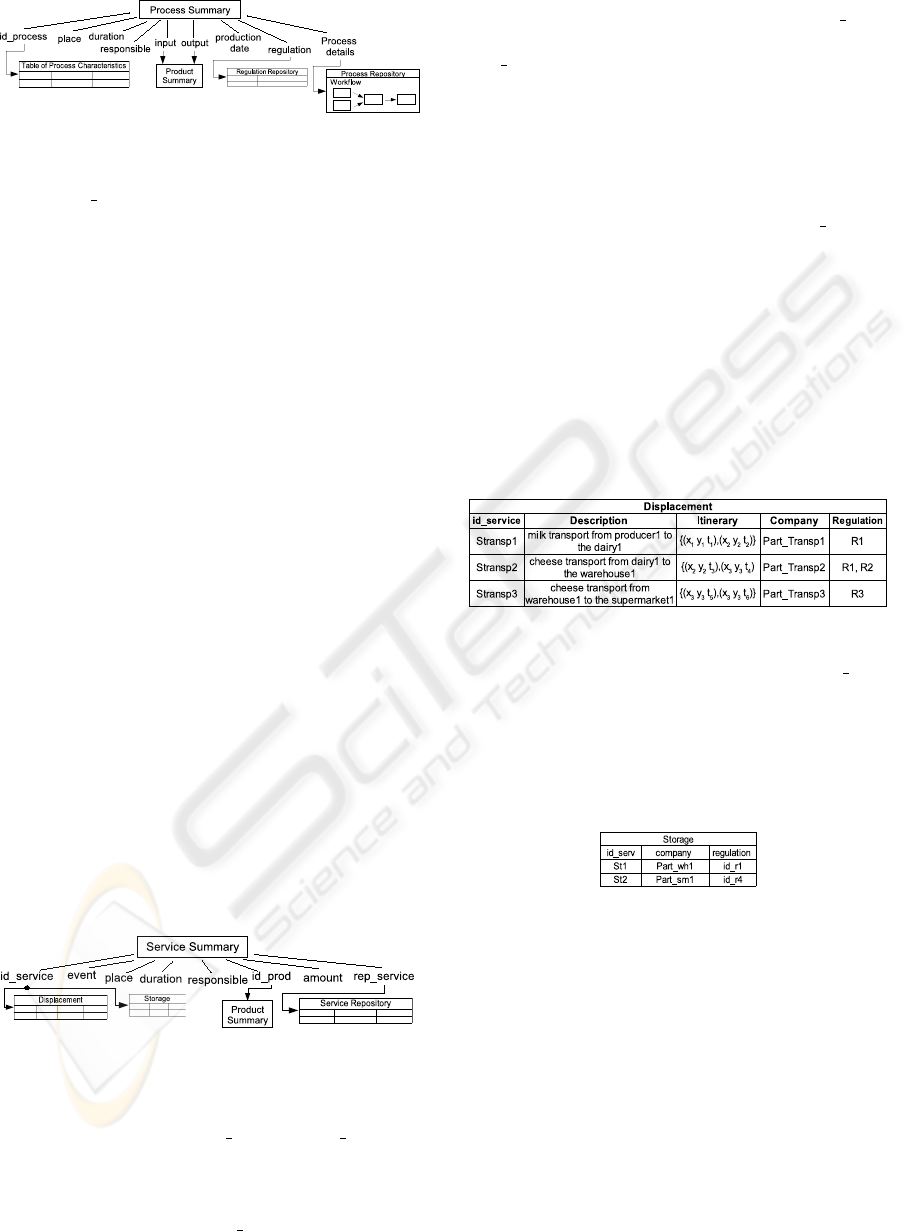

Figure 3: Process Summary Record: General View.

The “id

process” ﬁeld identiﬁes a process in-

stance. Every time a process is executed, a new in-

stance is generated. The “place” ﬁeld indicates the

geographical coordinates of the place where the pro-

cess is executed; the “duration” of the process is a

time interval characterized by two timestamps: pro-

cess begin and process end; “responsible” indicates

the entity (human, software or machine) in charge of

the process; “production date” is the date in which

the process created a product. The “input” ﬁeld indi-

cates the raw materials that are required for producing

that product. The ﬁeld “output” contains one or more

identiﬁers of the products that are produced by the

process; “regulation” contains references to the norms

or conditions that are followed by the process; “pro-

cess detail” points to a workﬂow, stored in the Process

Repository, which presents details of the process (see

Section 3.3). If a workﬂow encapsulates other more

detailed workﬂows, additional records will be stored

in the Process Summary, reﬁning the process activi-

ties. This feature allows to record process execution

in several granularity levels.

The Process Summary is complemented by a ta-

ble that deﬁnes the characteristics of an instance of

the process. This table is similar to the product char-

acteristic table (Table 1).

3.2.3 Service Summary

Figure 4 presents a general view of a Service Sum-

mary record. A service can be classiﬁed as Trans-

portation or Storage.

Figure 4: Service Summary Record: General View.

A Service Summary record is identiﬁed by a key

composed of four ﬁelds: “id

service”, “ id product”,

“place” and “event”. Each record is related to an event

that happens while the service is carried out – e.g., the

loading or unloading of products (during transporta-

tion or storage). The ﬁeld “id

service” indicates that

a record is related to a speciﬁc service. “Amount”

indicates the loaded or unloaded quantity; “id

prod”

identiﬁes the product that is the target of a service;

“rep

service” makes reference to a record of the Ser-

vice Repository. “place”, “duration” and “responsi-

ble” are analogous to the ﬁelds of the Process Sum-

mary.

The Service Summary is complemented with a

Displacement and a Storage table. The Displacement

table, illustrated in Table 2, describes an itinerary for

each instance of a transportation service. “Id

service”

is the related service identiﬁer. “Description” de-

scribes the service carried out. “Itinerary” stores the

trajectory of that transportation service: triples (x

) where (x

) are geographical coordinates and t

the time. “Company” makes reference to an enter-

prise, whose description is stored in the Participant

Repository. “Regulation” contains references to the

norms or conditions that are followed by the service

in this itinerary.

Table 2: Displacement Table.

The Storage table, see Table 3, contains details

on instances of storage services. The ﬁeld “Id

serv”

refers to the service. “Company” makes reference to

an enterprise that is carrying out the storage. “Regu-

lation” contains references to the norms or conditions

followed while performing this storage service.

Table 3: Storage Table.

3.3 Repositories

Our model relies on six types of distributed reposito-

ries: Product, Process, Service, Regulation, Partici-

pant and Summary Repositories.

Product Repositories store generic descriptions of

products that are used or generated along the supply

chain. A product can belong to distinct chains. For

example, the product “Minas Cheese” has a unique

generic description for all chains which is instantiated

every time a product of this type is produced.

Process Repositories store descriptions of the pro-

cesses that generate or transform products along the

chain. These processes are stored as workﬂows and

WEBIST 2007 - International Conference on Web Information Systems and Technologies

174

deﬁne the sequence of activities needed for the pro-

duction of a speciﬁc product. Table 4 illustrates the

records stored in the repository for the example of

Figure 1. The ﬁrst row concerns a cow milking pro-

cess and the second shows details of cheese produc-

tion in the Dairy.

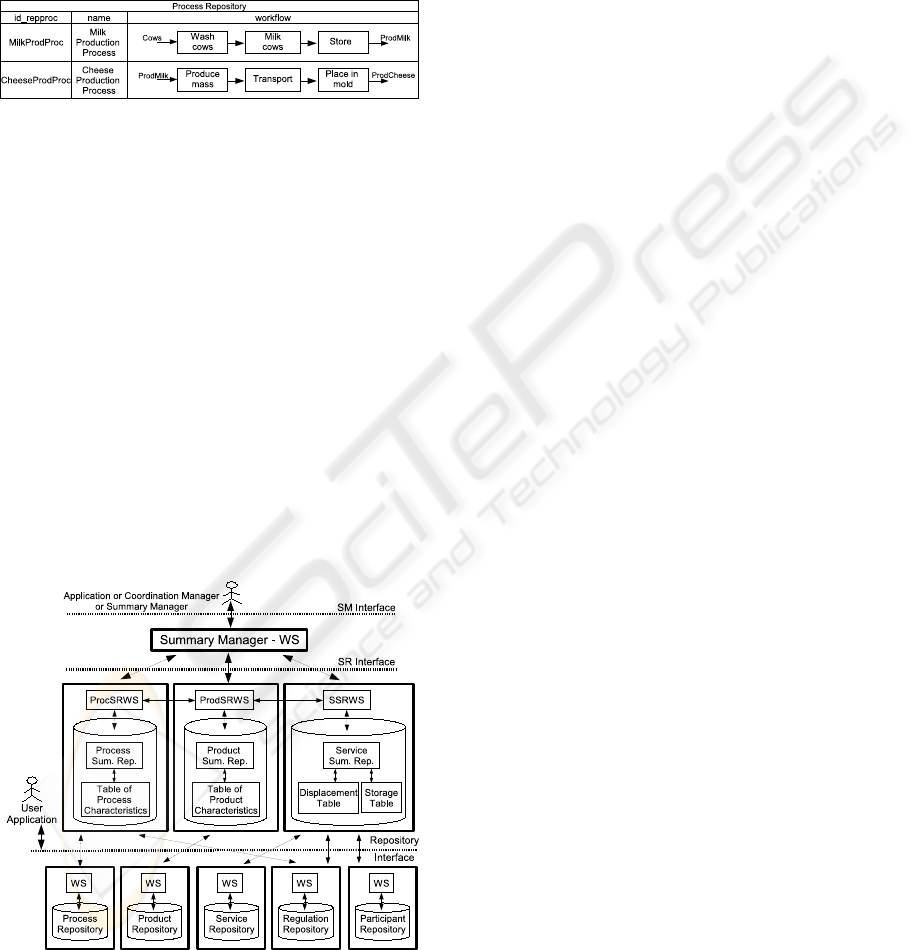

Table 4: Process Repository.

Service Repositories store the description of ser-

vices – Transportation and Storage – that are pro-

vided by a chain’s participants. Participant Reposito-

ries store descriptive data on the chain’s participants

- e.g, information on a transportation or a production

company. Regulation Repositories contain the regu-

lations for quality control in processes and services.

Summary Repositories store summary records previ-

ously described and are of three kinds: Product, Pro-

cess and Service.

4 ARCHITECTURE

This section shows the architecture (Figure 5) that

supports our traceability model. The ﬁgure is com-

posed of three layers: repository, summary, and sum-

mary manager layers. All layer components are en-

capsulated by Web services.

Figure 5: Proposed Architecture.

Traceability processing involves queries and up-

dates to Repositories. It is performed via exter-

nal requests to the Summary Manager Web Service

(SMWS). This service provides an interface (SM in-

terface) that allows client applications (a Summary

Manager, a Coordination Manager or a speciﬁc soft-

ware) to interact with the Summary Repositories.

Through this service, a client application can request

queries or update the summaries and related tables

with information generated along the supply chain.

Several SMWS may exist, for a fully distributed sum-

mary management scenario. This service forwards

the appropriate requests (queries and/or updates) to

the summary layer, which may need to forward part

of these requests to the repository layer. Repositories

in this layer may also be updated or queried directly

by external applications.

The ﬁgure separates summary concerns from the

rest – thus, Summary Repositories are treated apart.

The bottom layer encapsulates access to ﬁve Reposi-

tories via ﬁve distinct Web services, that respectively

receive requests to Process, Product, Service, Regula-

tion and Participant Repositories.

The middle layer is composed of three Web ser-

vices, ProcSRWS, ProdSRWS and SSRWS, respec-

tively encapsulating access to Process, Product and

Service Summary Repositories and associated tables.

The ﬁgure shows that the interface of ProdSRWS ac-

cepts requests from the Summary Manager Web ser-

vice, and may interact with SSRWS and ProcSRWS.

The Web Service of the Product Summary Reposi-

tory is a central piece in traceability processing. The

other two Summary Repository services (ProcSRWS

and SSRWS) cannot interact with each other. The rea-

son for these design decisions is based on the fact that

Product Summaries centralize event recording – thus,

Process and Service Summaries are to some extent de-

pendent on Product Summaries.

Though the ﬁgure shows only one repository of

each kind, repositories are in fact distributed. In this

case, we assume that the ﬁgure elements are repli-

cated for each site. Distribution does not mean that all

elements of the ﬁgure appear at every site. Rather, it

provides a logical overview of communication among

Web services and application. Moreover, traceabil-

ity management must always depend on the Sum-

mary Manager service (SMWS). Thus, our distributed

architecture relies on several SMWS, one for each

site containing summary data. These services inter-

act with each other and manage the access to related

Product, Process and Service Repository services.

Distribution also raises issues such as access au-

thorization, replication, and integrity control, which

are beyond the scope of this paper. For our purposes,

it is enough to state that interactions mediated via

a given Summary Manager service must conform to

WEB SERVICE-BASED TRACEABILITY IN FOOD SUPPLY CHAINS

175

network domain constraints. We say that two Sum-

mary Repositories belong to the same domain when

they have mutual access authorization. The interac-

tion between repositories in distinct domains is ac-

complished through Summary Managers.

Let us now illustrate Web service interactions,

starting with a non distributed scenario. Consider a

request R1 made to service SMWS1 to know when

a given process ﬁnished producing product instance

Cheese1. This is executed as follows. SMWS1 is

“responsible” for interacting with three summary ser-

vices – ProcSRWS1, ProdSRWS1 and SSRWS1. It

sends a request to ProdSRWS1 with input parameters

“id

product = Cheese1” and “event = creation” (see

Figure 2), requesting as output “production

date” (see

Figure 3). First, ProdSRWS1 ﬁnds out which pro-

cess instance was responsible for creating Cheese1

(suppose “process

id = pr ch1”); next, ProdSRWS1

will request from ProcSRWS1 the production date, of

“pr ch1”, the desired date for R1. Repository updates

can also be processed in a similar way.

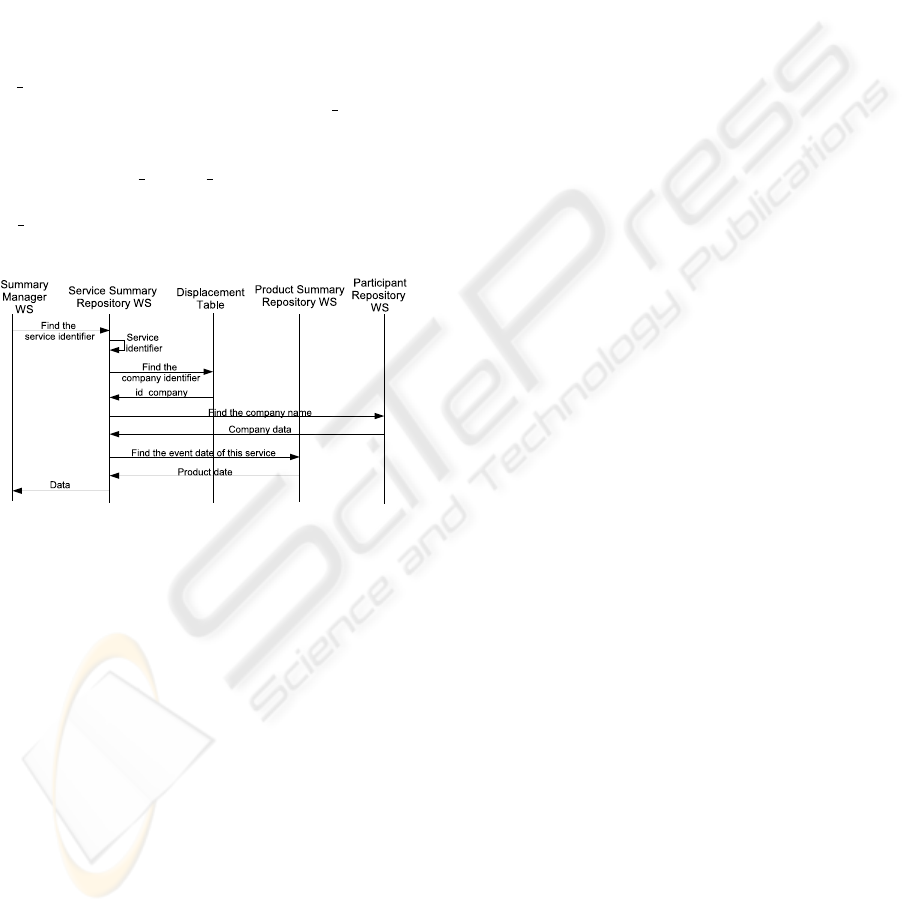

Figure 6: Example: activity sequence.

In a second example (Figure 6), a user applica-

tion requests the following query from the SMWS:

ﬁnd the company name that carried out the transporta-

tion service of product P from dairy (x

) to ware-

house (x

) and the date of this transport event. The

SMWS interacts with the Service Summary Repos-

itory Web service (SSRWS) which ﬁnds the service

identiﬁer. Within this service, the company is found

via the displacement table. Given the company iden-

tiﬁer, the SSRWS poses a request to the Participant

Repository WS to ﬁnd the company name. To ﬁnd the

event date of the service, the SSRWS accesses Prod-

SRWS using the product and service identiﬁers. Date

and company name are forwarded to the SMWS and

returned to the user application.

Our examples concern a centralized scenario. In

the distributed case, requests will start at some SMWS

– say, SMWS1 – that will interact with “its” Summary

services for information. If this cannot be provided,

SMWS1 will broadcast the request to other SMWS

which behave independently as described in the cen-

tralized case. Another possibility to avoid such broad-

cast overheads would be to replicate some key reposi-

tory information (e.g., basic product and service data).

The use of Web Services for the communication

between the Summary Manager and the many repos-

itories facilitates the management of traceability data

and provides interoperability for distributed and het-

erogeneous environments.

5 CONCLUSIONS

Supply chains present many research challenges in

Computing. This paper proposed a traceability model

for agricultural supply chains. It allows to follow the

life of a product at distinct granularity levels, through

distributed summaries and repositories. The model

proposed was evaluated for different chains for spe-

ciﬁc scenarios.

This paper differs from most related work by the

level of detail concerning storage aspects and the use

of spatial data in repositories and summaries, increas-

ing the number of traceable entities and facts. More-

over, it provides a Web service based infrastructure

to allow interactions among repositories. The use of

Web services increases ﬂexibility in chain event man-

agement and facilitates traceability processing.

Ongoing work includes the use of real chain data,

and service implementation. We adopted XML stan-

dards and services are being implemented using the

Java language and PostGIS database.

ACKNOWLEDGEMENTS

This work was partially ﬁnanced by FAPESP, CNPq,

as well as WebMaps and AgroFlow CNPq projects.

REFERENCES

Alonso, G. et al. (2004). Web Services: Concepts Architec-

tures and Applications. Springer, Germany.

Bacarin, E., Medeiros, C. B., and Madeira, E. R. M.

(2004). A Collaborative Model for Agricultural Sup-

ply Chains. In CoopIS/DOA/ODBASE 2004, LNCS

3290, pages 319–336.

Bello, L. L., Mirabella, O., and Torrisi, N. (2004). Mod-

elling and evaluating traceability systems in food

manufacturing chains. In Proc. of the 13th IEEE

International Workshops on Enabling Technologies:

Infrastructure for Collaborative Enterprises, pages

173–179.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

176

Cimino, M. G. C. A., Lazzerini, B., Marcelloni, F., and

Tomasi, A. (2005). Cerere: an information system

supporting traceability in the food supply chain. In

Proc. of the Seventh IEEE International Conference

on E-Commerce Technology Workshops, pages 90–98.

Debord, M., Viau, A., Tychon, B., Oger, R., and Danet, V.

(2001). Geotraceability: an innovative concept for

the qualiﬁcation of crop production. Available at:

http://www.geotraceagri.net/doc/GeoTraceAgri

Final-

report

EN.pdf/.

Guiffrida, A. L. and Nagi, R. (2006). Cost characterizations

of supply chain delivery performance. International

Journal of Production Economics, 102(1):22–36.

Hollingsworth, D. (1995). Workﬂow management coali-

tion - the workﬂow reference model. In The Workﬂow

Management Coalition Speciﬁcation.

Kumar, K. (2001). Technology for supporting supply chain

management. Comm. of the ACM, 44(6):58–61.

Min, H. and Zhou, G. (2002). Supply chain modeling: past,

present and future. Computer & Industrial Engineer-

ing, 43:231–249.

Nagappan, R., Skoczylas, R., and Sriganesh, R. P. (2003).

Developing Web Services. Architecting and Develop-

ing Secure Web Services Using Java. Wiley, USA.

Opara, L. U. (2003). Traceability in agriculture and food

supply chain: A review of basic concepts, technologic

implications, qne future prospects. Food, Agriculture

and Environment, 1(1):101–106.

Stock, J. R. (2004). Food Supply Chain Management, chap-

ter 14 - The US Food Supply Chain, pages 211–220.

Blackwell Publishing, United Kingdon.

Thomas, D. J. and Grifﬁn, P. M. (1996). Coordinated supply

chain management. European Journal of Operational

Research, 94(1):1–15.

WEB SERVICE-BASED TRACEABILITY IN FOOD SUPPLY CHAINS

177
