HARNESSING THE WEB TECHNOLOGY TO ENRICH

VISUALLY CHALLENGED USERS NAVIGATION

Hulya Francis, Madjid Merabti

School of Computing and Mathematical Sciences, Liverpool John Moores University, James Parsons Building

Byrom Street, Liverpool, UK

A. Taleb Bendiab

School of Computing and Mathematical Sciences, Liverpool John Moores University, James Parsons Building

Byrom Street, Liverpool, UK

Keywords: Navigation, GIS, visually challenged users, web technology, tactile, auditory, olfactory senses.

Abstract: Navigating urban streets without sight is fraught with difficulty and is often dangerous. Visually challenged

people rely on ancillary equipment such as a white cane to probe the immediate area in front of them as well

as developing other pre-existing personal physiological senses such as tactile, auditory, and olfactory

senses, to train themselves to walk along pavements. Conventional navigation systems based on geo-maps

alone are of little use to a visually challenged pedestrian. Hence, there is a need to develop a navigation

client-server system capable of providing information appropriate for a visually challenged pedestrian to use

to navigate urban pavements. This paper describes a navigation system that includes an enriched

information model and a technology to deliver such information in an easy-to-use, accessible fashion. The

paper introduces the technical challenge to the creation of a digital database for the navigation server that

stores appropriate data. A prototyped digital navigation model of Hoylake Town Centre, UK has been used

to test and validate the proposed model. This paper describes the role and function, and outlines the

architecture for the Web-based mobile computing location-based services navigation support systems.

1 INTRODUCTION

A visually challenged person will need training

before being able to walk unaided, along a

pavement. Pavements are cluttered with street

furniture, vehicles sometimes parked on pavements,

repairs and other obstructions. Obstructions are

usually short-term and dynamic. As such,

obstructions do not remain in place for any length of

time and the pattern of obstruction changes

frequently. Conventional navigation systems are

based on maps that model the primary features of an

area. The features of an area included in

conventional maps are based on tangible objects that

can be seen in the area e.g. roads, pavements, street

furniture, buildings etc. Conventional navigation

systems provide this information to support

navigation such as that found in the ubiquitous

NavSat systems. This information is of little use to a

visually challenged pedestrian. A major challenge is

the creation of a digital database for the navigation

server that stores appropriate data. New digital

models have been made of a case study area:

Hoylake Town Centre, near Liverpool, United

Kingdom. The digital database has been populated

with micro tactile, auditory and olfactory data that

visually challenged people will find useful. The

digital database has been designed to provide

information to make it easy for visually challenged

pedestrians to navigate urban streets. Digital

soundscapes for example provide information about

the type and extent of sounds along the route; tactile

maps contain information about the type and

position of tactile surfaces or permanent wind

draughts along the route; and olfactory maps provide

information about the type and extent of smells

along the route. Such data is used to enrich

conventional data to assist visually challenged

pedestrians find their way safely.

No conventional navigation systems provide

189

Francis H., Merabti M. and Taleb Bendiab A. (2007).

HARNESSING THE WEB TECHNOLOGY TO ENRICH VISUALLY CHALLENGED USERS NAVIGATION.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 189-196

DOI: 10.5220/0001272401890196

 SciTePress

information about obstructions in real time. The

navigation system described here provides an

opportunity for a user to record centrally information

about current obstructions. Such information will

become immediately available to others pedestrians

in the vicinity. There is a need to ensure the delivery

of information is appropriate to the user’s particular

needs. Recent advances in multimodal interface

design offers a real way forward towards achieving

this goal. Mobile location-based services’ systems

offer potential for delivering information in an

unobtrusive, accessible fashion. A multimodal

speech- and/or button driven interface on a thin

client such as a PDA will help ensure wide

acceptability of the system amongst visually

challenged users. The navigation server will detect

the client’s position via an on-board GPS and will

deliver user-specific, location-specific information

in real time to help guide a pedestrian safely along

an urban pavement.

Conventional information models are not

appropriate for supporting navigation in visually

challenged circumstances. Francis, H (1997)

identified a non-traditional data-stream used by

visually challenged people to navigate footpath

routes in Lancaster University. Later research by

Francis (Royal National Institute for the Blind,

1997) identified similar findings in research on blind

pedestrians. Similar research carried out amongst

visually challenged pedestrians in Liverpool

(Francis, 2003-2005) noted the inability of

conventional information models to supply

unconventional data.

The conventional information model relies on

sight being present. Recent technological advances

to help overcome problems with navigation for

people without sight have been based primarily on

developing technology based on Geographic

Information System (GIS) and Global Positioning

System (GPS). Typical attempts have included audio

systems that speak turn-by-turn instructions and,

systems that make use of obstruction warning

devices that employs infra-red technology. These

approaches are limited by two fundamental

shortcomings: (a) the size and complexity of the

technology they use and (b) the fact that the

information model they employ is derived for use by

sighted people.

2 DATA MODEL AND DESIGN

Conventional map data do not provide the data

normally used for navigation by visually challenged

Authentification

Manage users

update services

Administrator

<<include>>

Create new acc ount

View user account

<<extend>> <<extend>>

From an address

From coordinates

Location Service

<<extend>>

MapPath Servi ce

<<include>>

Route service

<<include>>

Point of interest

<<include>>

Event of interest

<<include>>

Tracking Service

Obstacle Service

Compass Service

Client

<<extend>>

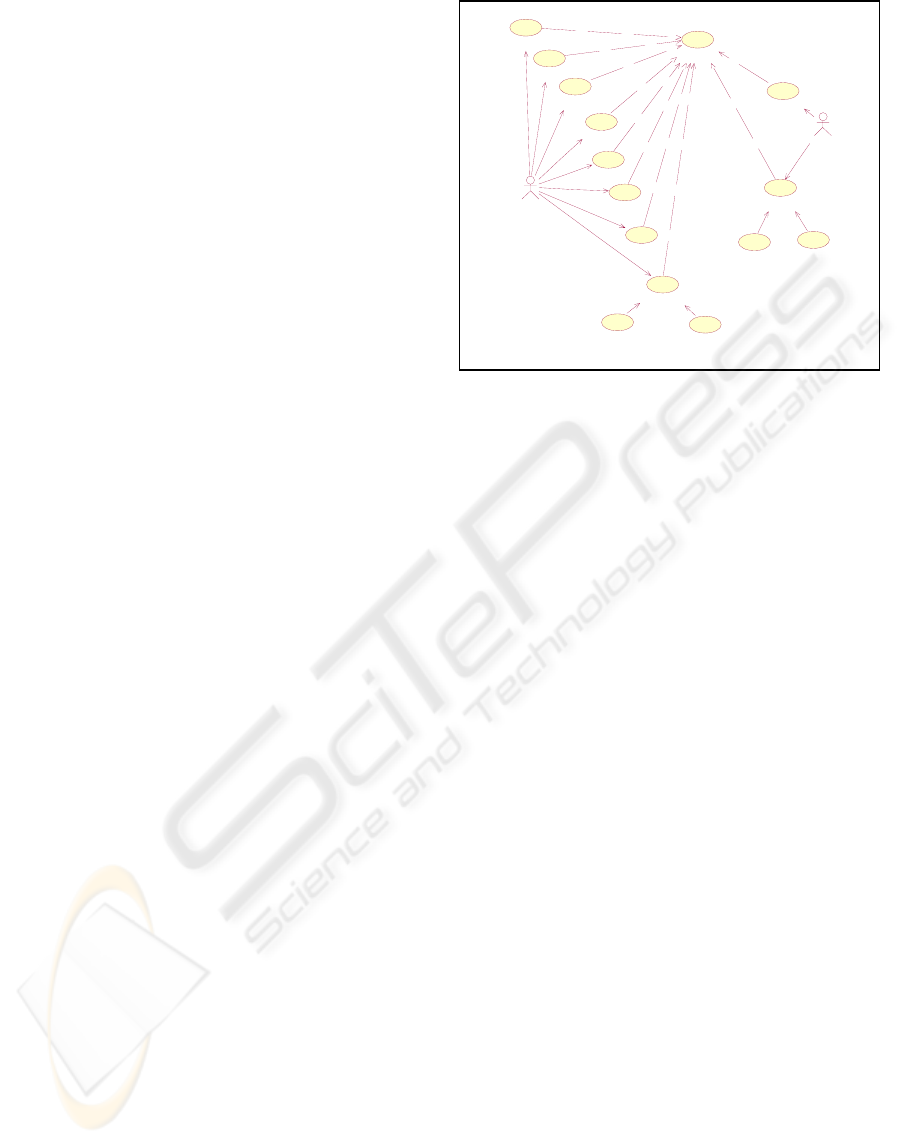

Figure 1: Application Use Case Diagram.

users. The success of the proposed navigation

system hardware is dependent upon the right

information being available. New digital maps that

include the data required for navigation in visually

challenged circumstances will need to be derived.

Using advanced Global Position System technology,

digital maps of the micro environment are being

assembled for the case study area. The digital maps

will include data about significant sounds, tactile,

olfactory features in the environment suitable for

positioning. A range of digital maps will be prepared

for inclusion in the navigation server including

soundscapes, tactile positions, olfactory extents and

auditory prompts.

The navigation system provides information to a

user in a mobile location-based services

environment. A user carrying a GPS-enabled PDA

client will be able to query the navigation system

about routes and services along a given route. The

navigation system will provide information in real-

time via a multimodal speech-driven interface.

Augmented navigation support in visually

challenged circumstances will require both the

inclusion of unconventional data as well as a new

approach to information delivery. With this in mind

it has been necessary to design a new generic

navigation system to address the navigation needs of

visually challenged people. The following Unified

Modelling Language constructs provides an outline

of the proposed design.

The use case diagram in Figure 1 shows all the

services offered to a user, who can be either a simple

client or an administrator.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

190

MapService

location

destination

set Logo()

generateMap()

display MapP ath()

display MapP oint ()

displayStops()

Locat ionService

getLoc ation()

getCoordinate()

getAddress()

RouteService

dctFile

getPath()

getDirection()

creat eNetwork()

POIServic e

EOIService

CompassService

direction

getAngl e()

ObstacleService

segment

getObs tacle()

Session

SessionID

UserID

Last Proces s

UpdateProcess ()

Device

deviceID

ref

getS creenSiz e()

Tracking

userName

refreshRoute()

changeOrigin()

User

userID

userName

pass word

group

logon()

0..*

uses

1..*

0..1

1..*

0..1

UserRes ult

userID

generateUserResult()

Request

service

device

output

createNew()

request Service()

0..*1 0..*1

express

GISservice

name

locationService

csf

GDOServer

output Type

setMapServer()

generates

1..*0..1 1..*0..1

request

Services manager

DBlocation

getServiceLocation()

changeSe rvi ceLoc ation()

0..*

manag es

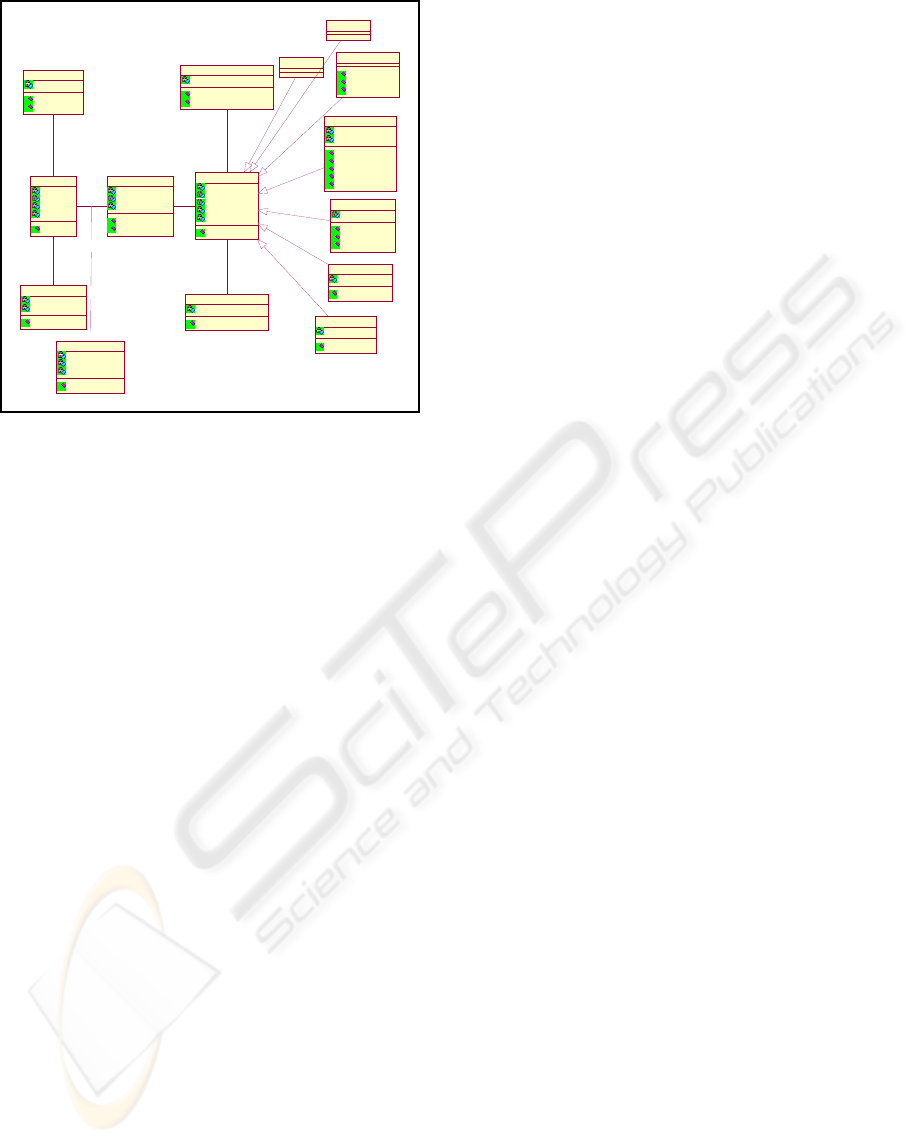

Figure 2: Class Diagram of the Application.

Figure 2 provides an overview of the available

services in the system. The location service can be

called by providing either an address (street name,

street number or postcode) or coordinates. If called

by providing an address, the service will display a

map with the address highlighted or retrieve its

coordinates. These coordinates can be then used by

another service or another application in the case of

a web service configuration. If called by providing

coordinates, the location service will assign the

nearest street to this point and return either the

corresponding address on a text format or a map

with the address highlighted.

The MapPath service retrieves a map displaying

the shortest path between 2 points. This service takes

an address as origin or integrates coordinates

provided by the GPS.

The Route service also generates the shortest

path between 2 points but will retrieve route

direction instead of a map.

These three services will be implemented in the

prototype. The following services will be

implemented in the future:

 The point of interest (POI) service shows,

for instance, restaurants, bus stops or

museums on a map.

 The event of interest (EOI) service shows on

a map the location of a specific event. The

system could tell if a cultural event is taking

place somewhere in the city and show the

location on a map. If the user is an impaired

person, the system will provide route

instructions.

 The proximity service compares an origin to

multiple destinations and determines which of

the destinations is the closest to the origin.

The system could then show the nearest

restaurant from the user’s location for

instance.

 The allocation area service display on a map

the area that could be traversed during a

certain time from an origin. This service can

also display the area locate at a certain

distance of an origin.

The proximity and allocation area analysis are

two analyses enable by the GIS engine. The

following services are more specific to the

application developed for the blind users:

 The Compass Service handles the user’s

bearing. Before sending a route instruction to

a blind user, we need to know the initial

direction he is facing. To do so, a compass is

embedded in the device to determine the

direction. Knowing their intended route, we

can generate a direction to follow and

compare it to the user’s one. The system will

then give instructions to correct his bearing.

 The innovative Obstacle Service checks if

there is any obstacle on the path the user is

taking. If so, instructions to avoid the obstacle

are provided to the user.

 The Tracking Service maintains knowledge

of the current location. This service enables to

refresh the different analysis and adapted the

response to the user’s pace. This is a major

service, which will enable to match the route

instructions to the user’s location. In the case

of a sighted user, the system can send the full

set of instructions from the starting point to

the destination. The user will then follow them

at his pace. In the case of a blind user,

providing the full set of instructions on a

speech format is not acceptable. The system

has to follow the user’s pace and to give the

route instructions in accordance with the path

he is taking. This also entailed to

communicate the information regarding

potential obstacles at the right time.

 The management area enables the creation of

new accounts and the management of the

existed ones. This area let the administrator

specify new location of a component if we are

in a distributed environment. The management

area won’t be integrated to the prototype for

the moment. This area has to be customised

for the client of the future application.

However, basic management services will be

HARNESSING THE WEB TECHNOLOGY TO ENRICH VISUALLY CHALLENGED USERS NAVIGATION

191

developed as an independent module. These

services include the management of users’

accounts.

2.1 The Class Diagram

The diagram in Figure 3 shows the relationships

between the components of the navigation system.

provide a

location address

select output:

cgm, Jpeg, text

Select device:

Desktop, Palm

provide

coordinates

select output:Acgm,

Jpeg, Text, Voice

Send request

Reset request

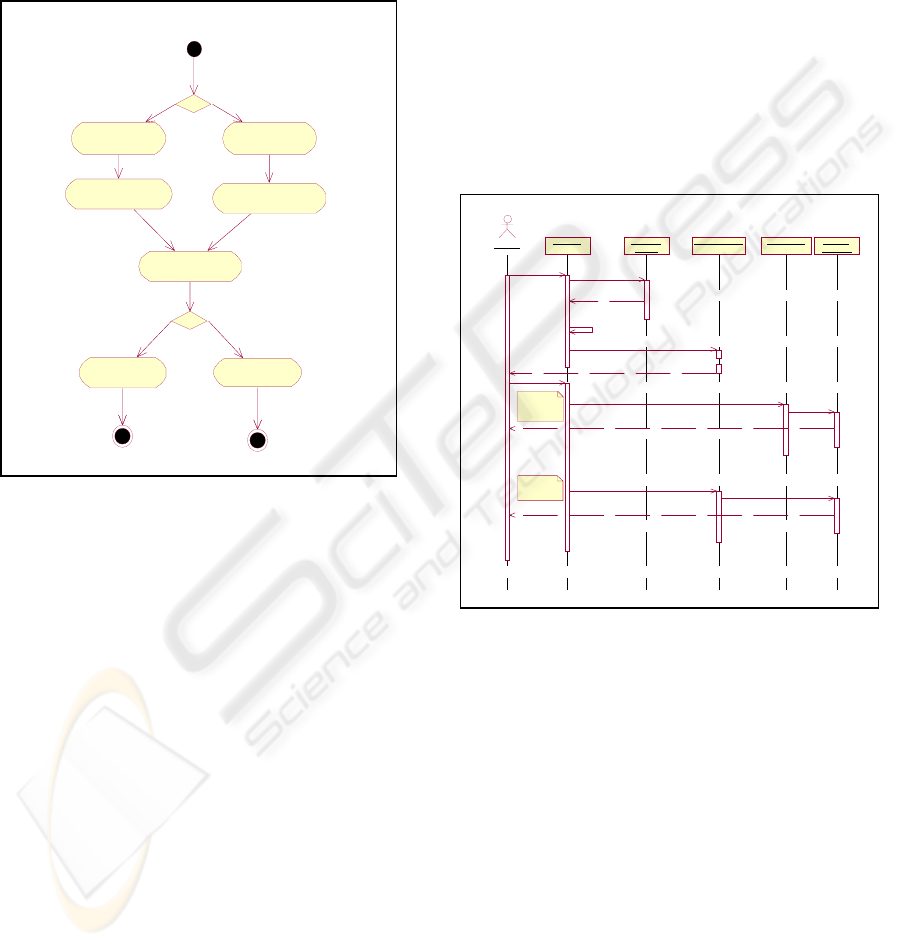

Figure 3: Activity Diagram of the Location Service.

The user interacts with the system through a

device. He or she expresses a request that is the

interface for the GIS services. Once the request

generated, it has got all the information to call the

required service. The services manager provides

information about the different services e.g. their

location. This will be very useful in a distributed

environment. Once the request is processed, a

response will be generated and send to the user in a

suitable format. This response enables session

tracking. If the connection breaks, the previous

result generated can be retrieved when the user logs

on again and saves him from building a new request.

2.2 Location Service

The activity diagram in Figure 3 shows the different

options offered within the location service.

For the moment the user’s got only two device

options: desktop or palm. The screen size of these

devices is hard-coded but the class exists and can

therefore be used to extend this choice. The final

client-side application will send the user’s device

profile to the server. The sequence diagram in Figure

5 represents the interactions between a user and the

components of the system when an address is

provided to the location service. Location Service

checks whether more than one address match the

given location and offers a list of addresses to select.

If the location is requested form coordinates, the

system will have to assign a street to the coordinates

given. This process involves the GeoMedia Network

component. A network is built over the street

feature. This network is made up of edges and

nodes. So that when a coordinates are assigned to a

street, it is first assigned to the closest edge of the

network and the system will then identify the

corresponding street.

A : Client

a R eques t : Services

manager

: Locat ionService : MapS ervice a result :

UserResult

RequestService(loc)

getS erviceLoc ation( )

creat eNew( )

getLoc at ion( )

suitable locat ions

If a Map is

request as

output

If coordinates

are request

as output

a location

displayMapPoint( id)

getCoordinate(id )

service location

generateUserResul t( )

Map

generateUserResult( )

coordinates

Figure 4: Sequence Diagram of the MapPath Service.

2.3 MapPath Service

Once the location of the origin and destination point

is defined, Route Service generates the shortest path.

The path is then sent to MapPath Service. The path

of the generated map is contained in a string and

sent to UserResult to build the result.

2.4 Route Service

The Route Service performs a shortest path analysis.

Route direction are then generated and sent back to

the request. The sequence diagram below shows the

interaction between the components involved for

this service.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

192

After performing the shortest path analysis, the

system checks if there is any obstacle on the path. If

so the route instruction is customised.

A : Client

a Request : Services

manager

: RouteService : LocationService : MapS ervice a result :

UserRes ult

Request Service(map)

getS erviceLocat ion( )

createNew( )

get the location matc hing the

request

location

getRoute()

getCoordinat e( )

getLoc ation( )

location

coordinates

getPat h( )

path

displayMapPat h(path )

service locati on

generate userResult.xml

map

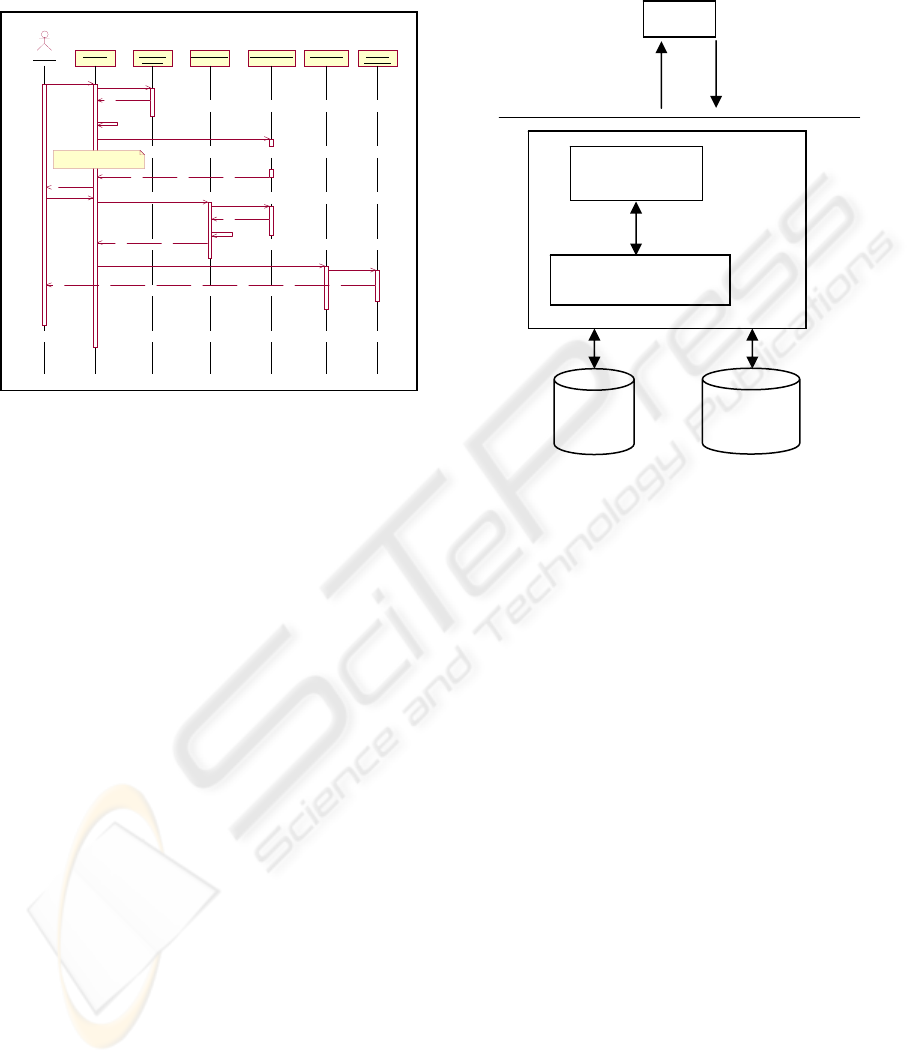

Figure 5: Sequence Diagram of the Route Service.

2.5 The Architecture and

Framework

GeoMedia’s architecture is based upon the

Microsoft’s Component Object Model (COM)

technologies, therefore it seems suitable to develop

the application using the Microsoft .Net Framework.

Moreover, the .Net Framework provides good

facilities to develop Web services. Indeed, the

system is intended to be designed as a Web service

in the future. The .Net framework support different

languages: VB, C# and C++. ASP.Net with Visual

basic seemed to be the most appropriate language to

develop the system in a minimum of time, as

Intergraph used VBScript in its programming

documentation.

Microsoft also provides several free

development tools for mobile and embedded

applications under their .NET framework, such as

the Microsoft Mobile Internet Toolkit (MMIT).

MMIT adopted Wireless Markup Languages and

compact HTML (cHTML), which can be applied for

mobile devices. After thought, this toolkit won’t be

used here, as we prefer the more generic XML and

Extensible Stylesheet Language Transformations

(XSLT) approach. Because the presentation code

and business logic of the application can be

separated, the system will be more flexible, more

efficient and more manageable. Indeed, the first

prototype will be web-based, the user connecting

himself to an URL, but the final system will be an

application on the handheld device that makes itself

the request to the server. The following schema

shows communications within the system.

Figure 6: Communications within the system.

Communications between client and server (Figure

6) are entirely made up of XML messages. XML is

an efficient communication way through the

wireless network. The application takes spatial

queries in XML format, answer the query and sends

the result back to the calling application by way of

XML.

XSLT handle transformations between XML and

HTML or WML. The application calling the service

will send the profile of the device used. The

response will be then translated in a suitable format

for this device.

2.6 The Speech Interface

The .NET Speech Platform provides a development

and deployment environment for speech-enabled

Web applications. The Microsoft .Net Speech SDK

is built around a newly emerging standard: Speech

Application Tags (SALT). SALT has been submitted

to the World Wide Web Consortium (W3C) for

adoption as a standard for telephony and multi-

modal applications, which incorporate speech-

enabled elements within a visual Web interface.

CLIENT

XML query

XML response

GIS

etadata

Server

ASP.Net Interface

(Generates XML)

Geoprocessing Object Library:

GeoMedia WebMap

HARNESSING THE WEB TECHNOLOGY TO ENRICH VISUALLY CHALLENGED USERS NAVIGATION

193

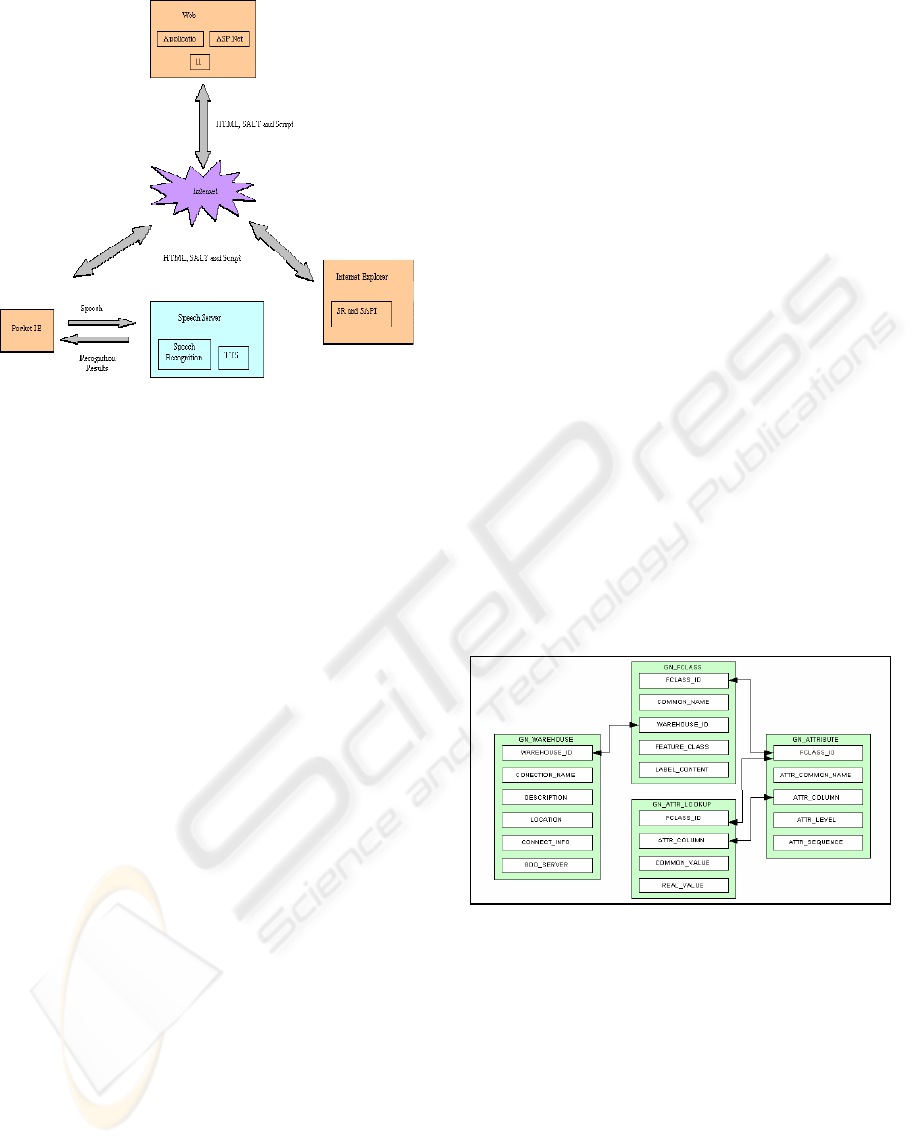

Figure 7: The speech interface.

Figure 7 provides the details of the Speech Interface

used in the system development. Speech Application

Language Tags (SALT) are a lightweight set of

extensions to existing markup languages, in

particular HTML and XHTML. It consists of a small

set of XML elements, with associated attributes and

DOM object properties, events and methods, which

apply a speech interface to web pages. SALT

enables multi-modal and telephony access to

information, applications and Web services from

PCs, telephones, tablet PCs and wireless personal

digital assistants (PDAs).

The SDK provides a suite of four development tools

for use within the Visual Studio .NET development

environment: the Grammar Editor, Prompt Editor,

ASP.NET Speech Control Editor, and the Speech

Debugging Console.

 The Grammar Editor is a graphical grammar

file editor. Use the Grammar Editor to create

grammar files, which are then bound to a QA

or Command control. The Grammar Editor

also validates grammar files, verifying that the

files contain valid XML code, and that they

are compliant with the W3C Speech

Recognition Grammar Specification V. 1.0,

without building the entire application.

 The Prompt Editor is a data entry and edit

tool for prompt databases. Use it to create a

prompt database containing recording scripts,

.wav files, and descriptive and tracking data

for each prompt. It includes the Prompt

Validate Tool, which checks prompt coverage,

and allows testing of extractions in sample

combinations. The Prompt Editor includes a

graphical Wave Editor to customize .wav

files. Use the Wave Editor to display the

wave-form, edit word boundaries, copy and

paste individual sound segments within and

across .wav files, and play the edited .wav

files.

As the application is based on an XML interface,

ASP.NET Speech Control Editor won’t be used.

The Speech Server provides text-to-speech (TTS)

and speech recognition resources for telephony and

PocketPC clients. The Speech Server receives

speech and returns recognition results, and receives

marked up text and returns speech.

In the first scenario, the client is Microsoft Internet

Explorer with the Microsoft Internet Explorer

Speech Add-in installed. The Speech Add-in

implements SALT functionality using a prompt

engine, text-to-speech (TTS) engine, and a speech

recognition (SR) engine. Applications are developed

with the .NET Speech SDK and posted on the Web

Server. The Web Server exchanges HTML, SALT,

and script with the Speech Add-in on the desktop.

Speech recognition occurs on the desktop. Multi-

modal applications with desktop clients can be

deployed using only the .NET Speech SDK.

In the second scenario, the client is pocket Internet

Explorer with a Speech Add-in. The Web Server

sends HTML, SALT, and Script to the Pocket PC.

Figure 8: Structure of the feature metadata.

The Pocket PC sends a compressed representation of

the audio and a pointer to the recognition grammar

to the Speech Server that performs recognition and

returns results to the PocketPC.

2.7 The Network

The wireless-based navigation information system

will be based on a WiFi (Wireless Fidelity) network.

A WiFi network is thought to be the best possible

enabling technology to provide a real-time, stable,

fast communication channel. The WiFi network will

WEBIST 2007 - International Conference on Web Information Systems and Technologies

194

offer the following advantages: It’s fast (11Mbps),

reliable, and it has a long range (1,000 ft in open

areas and 250ft in closed areas).

2.8 Metadata

Metadata are formal descriptions of data. They are

very useful to enable the process of search and

discovery over distributed archives. We also need

metadata to determine whether a dataset, once

discovered, will satisfy the user’s requirements. The

following diagram in Figure 8 shows the table

structure of the feature metadata.

The meta-database is used to define feature

classes that can be directly queried by the user

through the XML interface. For example, when the

user is looking for restaurants, the metadata enable

to identify the source warehouse where the feature

comes from, the table name and other attributes.

Indeed, the table name and source warehouse may

be unrelated to the feature name. This is actually the

case for the restaurants as they are references as

“Restaurants” in the GIS.

2.9 System Development

To be successfully driven by and deliver spoken

instructions and maps to a mobile device, based on

user requirements, in this case a hand held personal

digital assistant (PDA) device, equipped with

onboard GPS capability.

The delivered spoken instructions and maps

would provide navigation support based on a route

derived on the system server. The navigation support

would be automatically updated based on the current

position of the device, although no GIS software or

map data need be installed in the device itself.

The application will be designed to be “Web

Enabled” taking into account the .net environment.

If possible this may provide a way of using the

application on a suitable mobile phone, via the web.

It is anticipated that the software produced from

this research study could be used to provide mobile

location information, whenever, and wherever it is

required.

This project will attempt to address the following

problem areas that are associated with the delivery

of spoken instructions and map images to mobile

devices.

• Speed

o Spoken instructions and images

must be delivered quickly enough

between client and server and vice

versa. This may be difficult due to

limited bandwidth.

• Data Integrity

o Data will be delivered to devices

in small packets. These must be

successfully received, in order to

build a recognizable image.

• Speech and image Quality

o The speech and images received

must be meaningful to the user,

but this must take into account the

size/resolution of the display

screen.

• Relevant Content

o Data delivered must be relevant to

the user, as we are dealing with a

small screen size. This must be

taken into account before data is

delivered.

2.10 Design

The system design will be completed using UML

(Unified Modeling Language). This will produce a

series of diagrams from which objects that will be

required to build the system will be identified.

Pseudo code may also be created at this stage, which

will be used in the implementation of the system.

2.11 Implementation

The system will be implemented by following the

UML design produced at the design stage. The

system will be specifically implemented using

Microsoft .net and the C# programming language.

2.12 Testing

Two groups of visually challenged users have agreed

to test the system in Hoylake, near Liverpool. This is

however the final testing stage of the project testing

stage, making it ready for a final “sign off” as a

finished product. Testing will however be carried

out in collaboration with RNIB, on a constant basis

as part of the implementation stage, in order to

ensure that a complete, robust and useable piece of

software has been produced.

HARNESSING THE WEB TECHNOLOGY TO ENRICH VISUALLY CHALLENGED USERS NAVIGATION

195

3 CONCLUSION

Current information models do not contain the data

visually challenged users need for successful

navigation. Previous research recognises a need to

develop a new navigation system to serve the needs

of visually challenged users. To be successful, the

new navigation system must provide data that

visually challenged users normally find useful. Such

unconventional data includes tactile, olfactory and

auditory data. Contemporary navigation systems are

based on an information model that uses tangible

topographical features found in the micro-

environment. The navigation support system

described in this paper uses an enriched information

model that extends conventional data by

incorporating the unconventional data described

above. Such data has never before been provided by

a digital system. To achieve this, a major data

collection effort has been undertaken to develop a

new data base containing micro-data describing the

case study area. Digital maps of the area have been

developed for use on the navigation server.

Operating via the web will ensure easy access to

navigation support via a speech-driven multimodal

interface. The system will provide location-based

information to clients roaming freely in a wireless-

enabled urban area via HTTP. Geographic spatial

analyses will be carried out on a GeoMedia

professional GIS-based navigation server. Not all

visually challenged users have the same degree of

visual impairment. The system described here will

provide mechanisms for providing information

appropriate to each user’s requirements. Given that

urban streets are filled with a wide variety of people

and objects, the system provides opportunities for

pedestrian users to record obstructions and changing

topographical features. Information added to the

database will be immediately available to other users

in the vicinity. The system goes some considerable

way towards overcoming the shortcomings of

conventional navigation systems by providing

services and facilities that better match the needs of

visually challenged pedestrians in the urban

environment.

REFERENCES

Blenkhorn, P. and Evans, D.G., 1997. "A system for

enabling blind people to identify landmarks: the sound

buoy." IEEE Trans. on Rehab. Eng. 5, 3, 276-278.

Brabyn, J., Crandall, W., and Gerry, W., 1993. "Talking

signs: a remote signage solution for the blind, visually

impaired and reading disabled." Proc. 15th Annual

Int. Conf., IEEE Eng. in Medicine and Biology

Society, 1309-1310.

Francis, H., 1997 A Database Design for a GIS-based

Relational Database for Tactile Mapping: Case Study

Lancaster University Campus M.Sc. Dissertation,

Department of Systems, School of Management,

Lancaster University)

Fritz, S., Michel, R., Raab, A., and Strothotte, T., 1995.

"User interface design for a travel aid for blind

people." Workshop on Non-Visual Graphical User

Interfaces for Blind People, Software Ergonomie,

Darmstadt.

Gilden, D., 1997. "Moving from naive to knowledgeable

on the road to technology transfer." Technology and

Disability 7, 115-125.

McInerney, R., D'Allura, T., and Benn, T., 1995. "An

evaluation of talking signs: Lighthouse staff

utilization." Arlene R. Gordon Research Institute, The

Lighthouse Inc., New York.

Scadden, L.A., 1997. Technology and people with visual

impairments: a 1997 update. Technology and

Disability 6, 137-145.

Motluk A, Senses special: The art of seeing without sight,

New Scientist issue 2484, 29 January 2005,

Yoichi Takebayashi, Multimodal Anthropomorphic

Interface, IJCAI-97 Workshop on

Intelligent Multimodal Systems

Zelek John S. September 2005, Pages 1108-1112 Vision

2005 - Proceedings of the International Congress held

between 4 and 7 April 2005 in London, UK

WEBIST 2007 - International Conference on Web Information Systems and Technologies

196
