DEFINING ADAPTIVE ASSESSMENTS

Construction of Adaptive Assessments Based in the Learning Style of the Students

Héctor Barbosa Leon, Francisco García Peñalvo

Departamento de Informática y Automática, Universidad de Salamanca, Plaza de los Caidos s/n, Salamanca, España

Maria José Rodríguez Conde

Departamento de Didáctica, Organización y Métodos de Investigación, Facultad de Educación

Universidad de Salamanca, España

Keywords: Learning Objects, Assessment, IMS specifications, Authoring tool, Learning Styles, Adaptive systems.

Abstract: This article presents a proposal to define learning objects for adaptive assessments. Two adaptation

processes are described here, the first one is the adaptation in the level of complexity of the questions, and

the second one is our proposal to adapt the final presentation according to the user’s learning style. To

define the items and exams, a model to construct adaptive assessment and a proposal of three levels of

integration is detailed.

1 INTRODUCTION

The educative content is evolving from a static view

to an adaptive one in which the content is adapted to

the needs and/or preferences of the users. This

content, developed in form of units of learning look

to cover a specific learning objective including one

or several learning objects and their related material.

Inside those objects we can find objects

describing assessment activities to evaluate the

knowledge of the students. The assessment activity

inside a unit of learning could be seen as an element

that closes and complete a circular activity, being an

integral part of the learning process (Barbosa &

García, 2005).

Nowadays, it is necessary to produce educative

Internet-based systems that permit the dissemination

of the education, covering the needs of diverse

learning group profiles. To obtain this, it is desirable

that such systems perform automatic task to adapt

itself to each user, disconnecting the content from its

presentation by using a semantic approach rather

than a syntactical one, defining a meaningful web. In

consequence, learning systems must be flexible and

efficient, and one way to accomplish that is to be an

open and standardized system (Barbosa & García,

2006).

In addition, the assessment activity inside the e-

learning process could be used to adapt the system

by setting a new user knowledge level, evaluate, and

setting new learning profiles, assign user grades and,

in consequence, performing user content re-

adaptation (Barbosa & García, 2005b). According to

the Australian Flexible Learning Framework

(Backroad Connections, 2003), assessment,

especially when is included within a real learning

task or exercises, could be an essential part of the

learning experience, giving to the entire Web site the

characteristic to adapt itself to the needs and the

acquired knowledge of the users.

The rest of the paper is structured as follow: In

section two, we present the model overview,

organized in levels of abstractions and sections for

each stage of activity. In the section three we briefly

describe the construction of simple items using open

standards and the definition of complete exams

containing groups of simple items. In the fourth

section we present the integration levels going from

simple items (first level) to complete exams with

adaptation rules. In the fifth section we describe the

adaptation processes in the final presentation

(adapted to the learning style) and the adaptation in

the complexity level. Finally we give our

conclusions and future work.

409

Barbosa Leon H., García Peñalvo F. and José Rodríguez Conde M. (2007).

DEFINING ADAPTIVE ASSESSMENTS - Construction of Adaptive Assessments Based in the Learning Style of the Students.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Society, e-Business and e-Government /

e-Learning, pages 409-414

DOI: 10.5220/0001273204090414

 SciTePress

2 MODEL OVERVIEW

We propose a model to construct assessment items

with characteristics of adaptability. This model have

four main sections (figure 1), some of them have

three levels of conceptualizations with activity

definitions form the abstract level (lower layers) to a

more concrete level (upper layers) to a more

concrete level (upper layers).

We structured the model starting with the

definition of the basic core elements so we can

evolve them to a more concrete definition,

identifying their requirements and interactions

between them at the same time (Barbosa & García,

2006b).

2.1 Levels: From an Abstract to a

Concrete View

In the first level (dark colour), we identify the core

elements (learning objects, management, test

construction, and LMS (Learning Management

System) interaction). In the second level (grey

color), we describe the main sections, identifying

four phases: authoring, repository management,

visualization, and interaction with LMS. In the third

level (white colour), we categorize each activity into

a subsystem (authoring, item management,

publishing, and interaction with LMS).

2.2 Sections: From the Creation to the

Interaction With the LMS

Section one: Learning Objects Definition (ASI:

Assessment, Section, and Items). We focused our

research in technologies and specifications in the

definition of this section; we use the authoring use-

cases of the IMS QTI specification (IMS QTI,

2006). In addition, we want to use the IMS Learning

Design specification (IMS LD, 2006) to define a

resource-learning object in three different levels of

integration.

Section two: Item Management. We define this

section with the aim to give to the developer a tool

to organize, manage, and import ASI from other

authoring tools. We propose a native XML

(Extensible Mark-up Language) (XML, 2006)

database management system to manage the items.

Section three: Test Construction: We consider

in this section the activities made by the assessor to

view the items by rendering them in a visualization

system. We suggest using accepted software plug-

ins to show a final rendering to the user. In this

section, the assessor selects the ASI to construct the

test that will be delivered into LMS in a XML

format. In addition, we want to integrate data fields

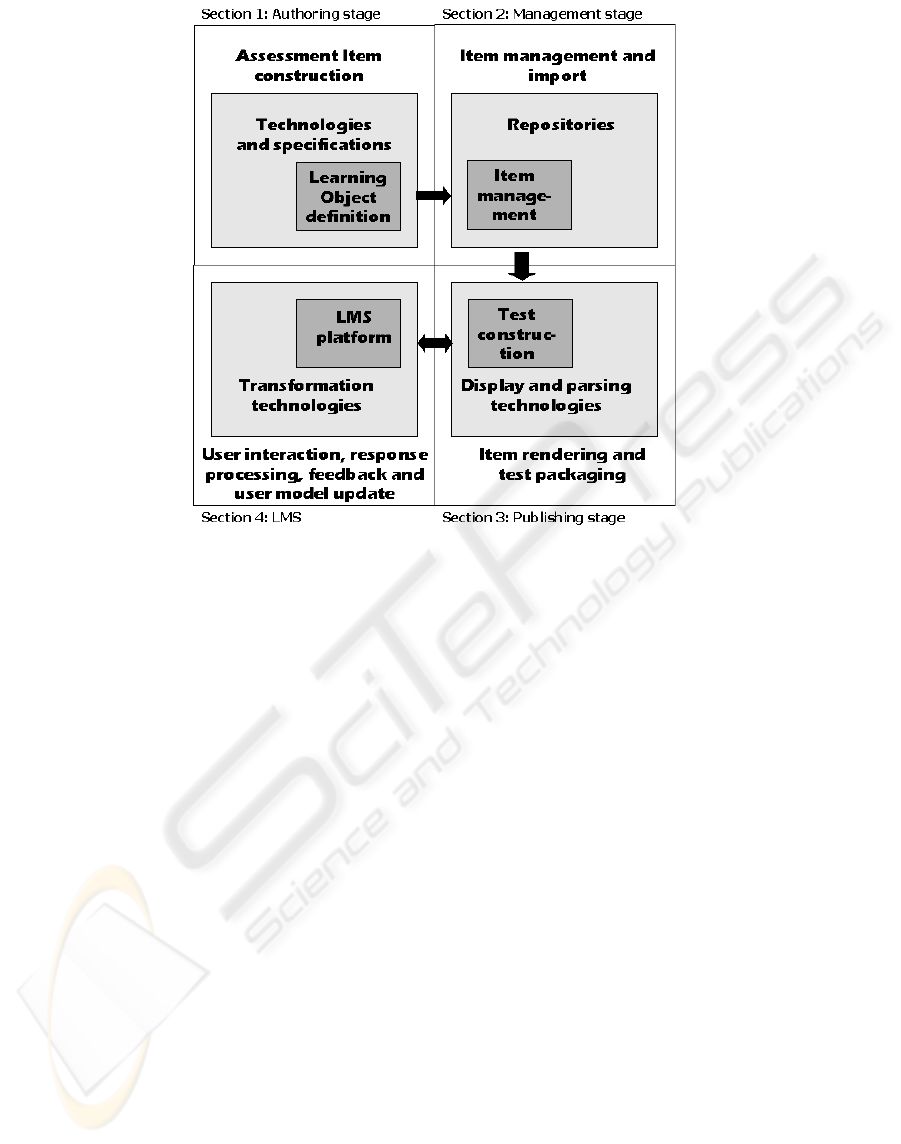

Figure 1: Model to construct adaptive assessment items.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

410

so the assessor could construct adaptability test by

defining trees of related questions depending of the

responses and the feedback presented to the user.

We propose the development of a user interface for

the students or candidate so they can access and

respond to the exam, sending the results to the LMS

to make an assessment record.

Section four: Test Delivery: In this phase, the

candidate or student activates the test by accessing

to it through an LMS, from which we get the

learning style definition to make the adaptation.

3 DEFINING ASSESSMENT

ITEMS AND EXAMS USING

IMS SPECIFICATIONS

3.1 Defining Items Using IMS QTI and

IMS CP Specifications

The IMS CP specification is used when is necessary

to transfer learning objects (lessons, exams or other

material) between several Learning Management

Systems. In this case we can use this specification to

package and transfer assessment items between

LMS. In the case of a simple element, the package

will contain (a) the manifest (XML file called

imsmanifest.xml), (b) the item (QTI XML format

file) and, (c) any auxiliary files required by the item

(ref: ims qti integration guide).

3.2 Defining Exams Items Using IMS

QTI, IMS LD and IMS CP

Specifications

The IMS QTI and IMS LD specifications allow their

integration to define a learning object to evaluate the

knowledge acquired by the students when interact

with an unit of learning (UoL). The IMS LD

includes activities of course instruction, modules,

lessons and exams in a generic context (those

considered as formative assessment) to support the

recent knowledge or to give immediate feedback to

the student.

But the IMS specifications could be used to

define learning objects with extra characteristics like

adaptation rules for the final presentation and

sequence of the questions.

The main structure defined in a IMS LD object is

the manifest, containing the organization and

resources. Inside the organizations section some

elements are described, like the roles, properties,

activities, environments and methods. The

integration of the specifications could be done

defining tags and instructions in the imsld:properties

to control the visibility and order of the elements and

the imsld:conditions to define decision structures.

The environments section is a container for the

environment elements, each could be used to

describe assessment items for a particular learning

style. These structures (the environment ones) could

be executed by the LMS in parallel, allowing

multiple students of different learning styles to

access their own adaptable elements (or an adaptable

exam).

4 PACKAGE CONFIGURATION

FOR ITEMS AND EXAMS

4.1 First Level of Integration: Simple

Items

This is a package (figure 2) that contains a simple

item or question and the multimedia files or

references to them. The purpose is that this package

could be exported to third-party authoring tools or to

be referenced by learning objects like those

constructed using the IMS LD specification in

formative exams. This object is supposed to include

the question description in IMS QTI and the

reference to the multimedia file that will be used for

the LMS when the item is displayed to the student.

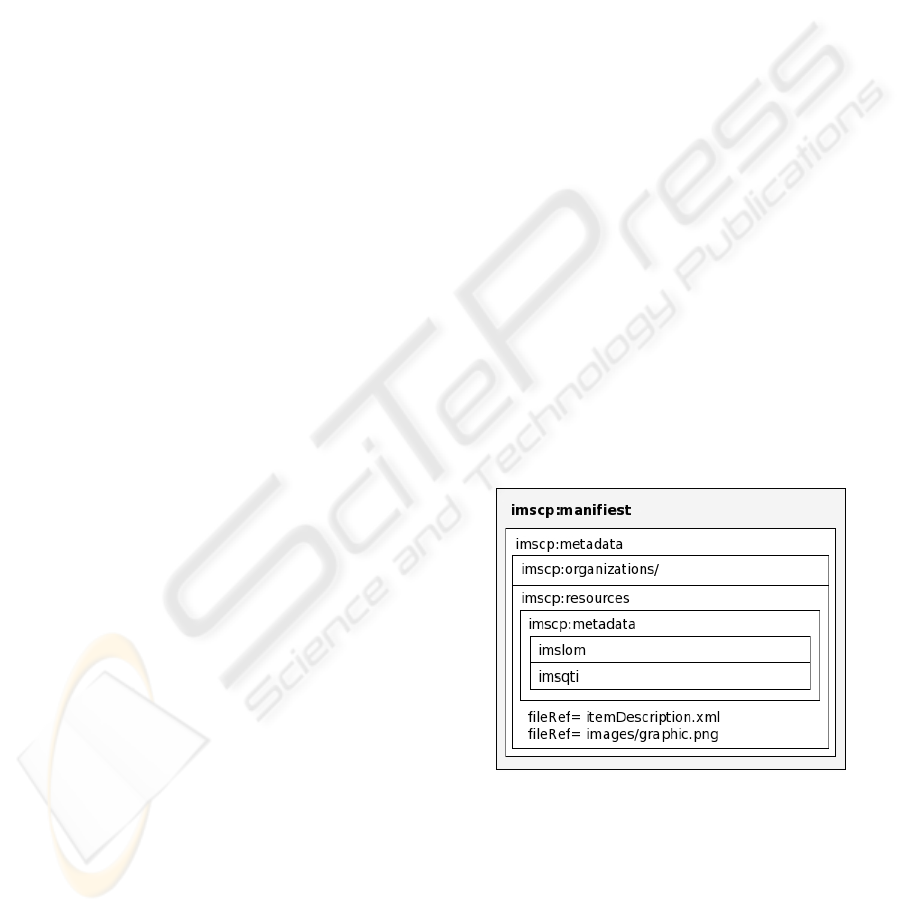

Figure 2: First level of integration for items.

4.2 Second Level: Many Items, One

Learning Style

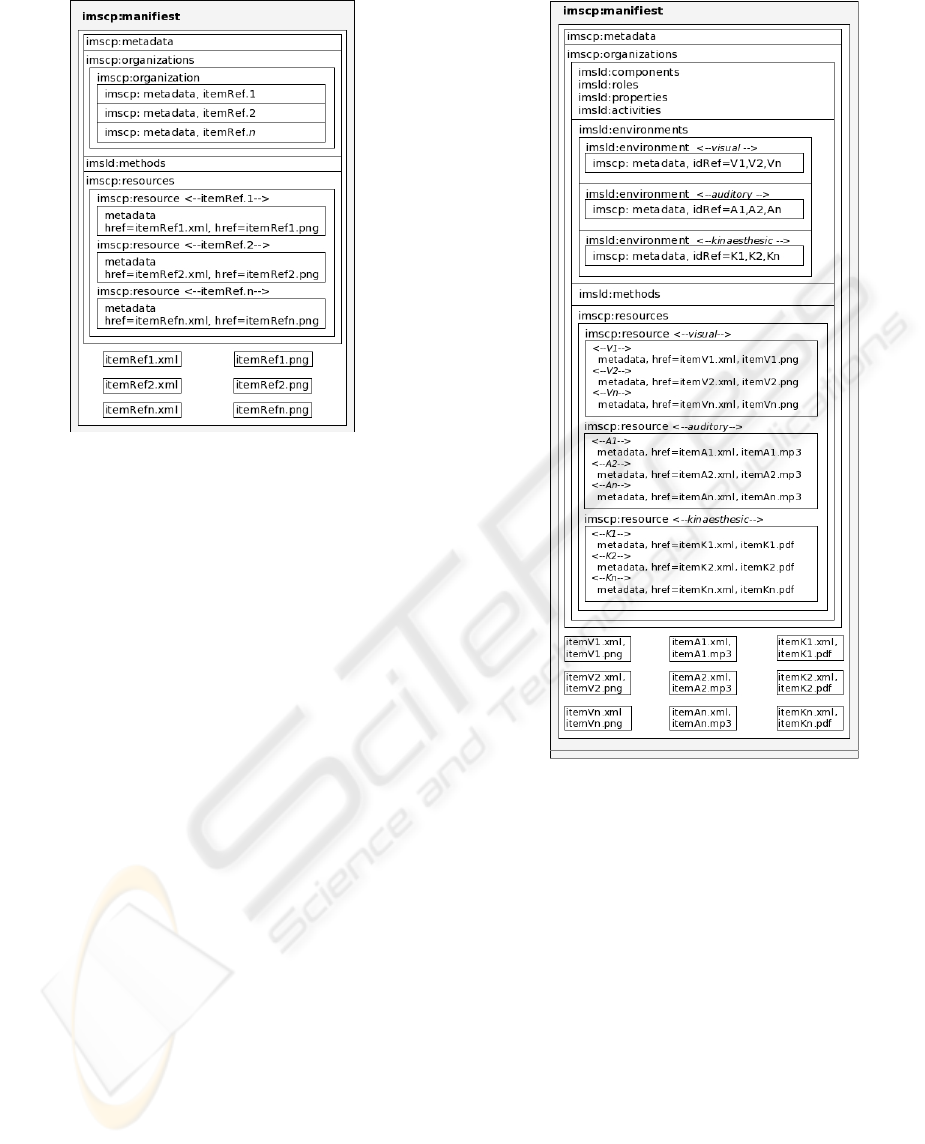

This package (figure 3) contain many question items

and hence a complete exam for a single learning

style. This package could be constructed by

selecting a group of items with the same educational

objective (to evaluate an unit of learning) and

DEFINING ADAPTIVE ASSESSMENTS - Construction of Adaptive Assessments Based in the Learning Style of the

Students

411

categorized for the same learning style. In this level

IMS LD metadata is defined and sequencing

instructions for the final presentation are defined as

well, using rules defined in the imsld:methods

section.

4.3 Third Level: Many Items, Many

Learning Styles

This package (figure 4) describe a complete exam,

with several components: (a) an environment for

each learning style, (b) a method section describing

the adaptation rules for the sequencing, (c) the

resource section, containing the description of the

resources for each learning style and the files (or the

reference to them) to support the adaptation to the

final presentation to the student.

5 ADAPTATION PROCESSES

5.1 Adaptation in the Final

Presentation to the User

The learning object could adapt their final

presentation taking into account the needs or

preferences of the users. For this, the learning object

containing an adaptable exam includes content for

each learning style through the use of a specific

context or environment. The LMS access the

appropriate environment that fit to the user learning

style or preference, showing the multimedia

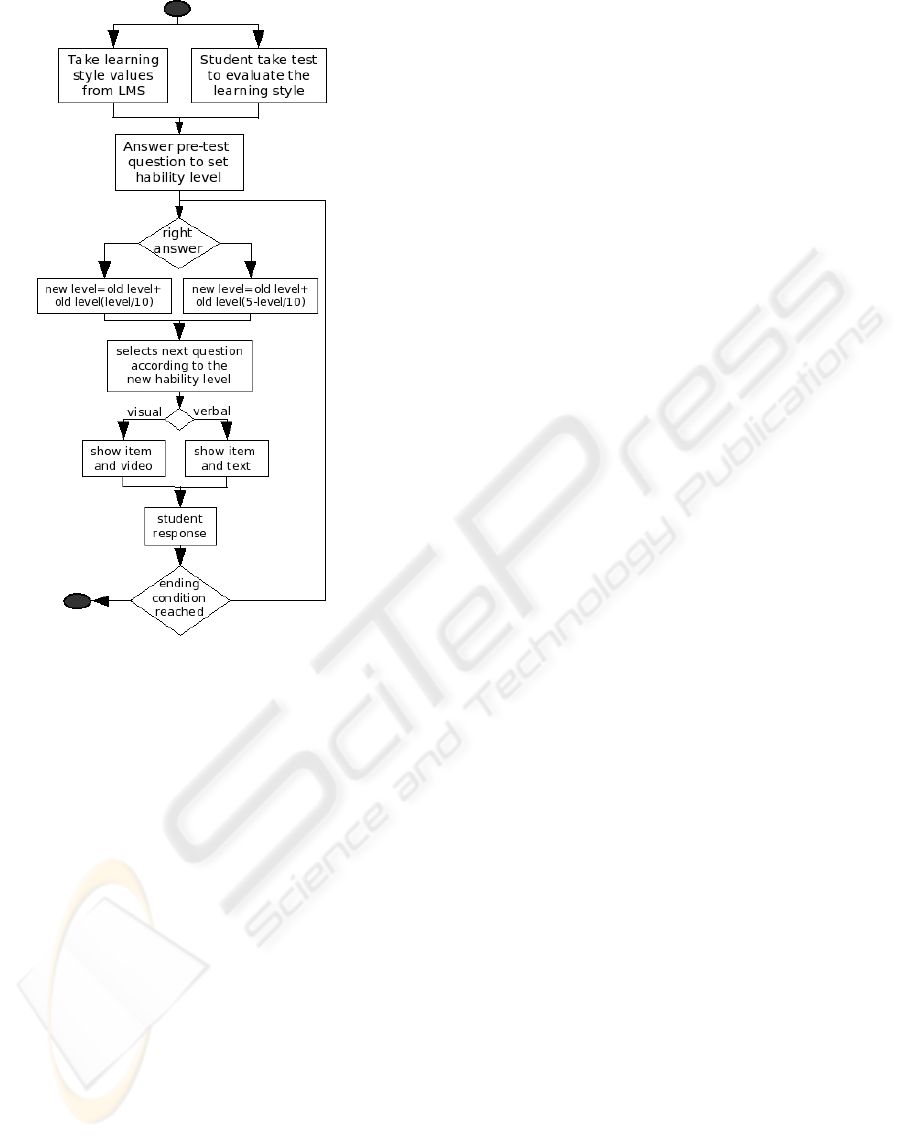

material. For example, the next sentence (figure 5)

consider the ability level and the learning style of the

student to show the next question with the right

multimedia material

5.2 Adaptation in the Complexity Level

Another process of adaptation is the level of

complexity of the questions that are presented to the

student (figure 5). The questions are selected by

their level of complexity, taking into account the

response of the student to the last question answered.

If he/she answer correctly then the next question is

of the same or higher complexity, if not, then the

next question is of a lower complexity. This is the

traditional adaptation process used by some

developments in this area (Gouli et. al, 2001),

(Guzmán et. al, 2005).

Figure 3: Second level of integration for exams.

Figure 4: Third level of integration for adaptive exams.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

412

5.3 Adaptation Rules

One of the main characteristics of the IMS LD

specification is its potential to define adaptive

characteristics covering the student preferences,

prior knowledge and/or learning needs. To do this it

is necessary to use this specification in the level B to

define individual interactions because in this level

we can use some elements like <properties> and

<conditions>.

The learning style values could be set from

values stored in the user model in the LMS and

stored in property elements (<locpers-property>,

<globpers-property) to perform the adaptation.

Finally, the <on-completion> element could be used

to set the actions that will be done once certain

action is performed. To perform adaptability to the

learning style the LMS access the environment

according to the need or selection of the user. From

this, the questions set are presented to the student

applying the adaptation algorithm proposed by

(Stern & Woolf, 1994).

Adaptation rule RUL1 is to perform adaptability

according to the ability level and RUL2 is to adapt

the presentation to the user learning style.

RUL1= IF <student>::(response,true)

THEN

newLevel = oldLevel+

oldLevel(oldLevel/10)

ELSE

newLevel = oldLevel+

oldLevel(5-oldLevel/10).

RUL2= IF <student>::(LS_visual)

THEN

show item (newLevel,visual)

ELSE

show item (newLevel,verbal).

6 CONCLUSIONS

Online assessment is an important step inside the e-

learning process because gives convenient feedback

to all participants in the process, helping to improve

the learning and teaching experience.

Given the fact that assessment is an important

element of the e-learning process and that this

process looks to be interoperable, then we can think

that the assessment tool could be used with different

educative content administrators with different

conceptualizations and ways to design and apply a

test for their students. To face this situation it is

necessary to develop an assessment tool that give

several ways to design an test with different types of

resources, different kind of assessments, group of

students, kind of questions, managing schedules, etc.

Under this conceptualization, we propose to

construct assessment items incorporating adaptive

characteristics taking into account the learning style

of the user, besides the adaptation process in the

level of complexity of the questions, already in use

by some assessment tools. We propose to

incorporate adaptation rules using the IMS LD

specification in an exam to construct a learning

object that could be used by the LMS.

ACKNOWLEDGEMENTS

We want to thank to the group KEOPS (ref.

TSI2005-00960) of the University of Salamanca for

their contributions and ideas for the development of

this work.

Héctor Barbosa thanks the National System of

Figure 5: Adaptation processes.

DEFINING ADAPTIVE ASSESSMENTS - Construction of Adaptive Assessments Based in the Learning Style of the

Students

413

Technological Institutes (SNIT–Mexico) for its

financial support.

REFERENCES

Backroad Connections Pty Ltd. 2003. Assessment and

Online Teaching, Australian Flexible Learning

Framework Quick Guides series, Australian National

Training Authority, Version 1.00.

Barbosa, H., Garcia F. 2005 Importance of the online

assessment in the e-learning process. 6th International

Conference on Information Technology-based Higher

Education and Training ITHET, Santo Domingo,

Dominican Republic. IEEE CD version.

Barbosa, H., García F. 2005b. A model for online

Assessment in adaptive e-learing platform. In

proceedings of the 3th. Internatonal Conference on

Multimedia and Information: m-ICTE, Cáceres, Spain,

Vol.l 1, pp. 16-20.

Barbosa, H., García F. 2006. An Authoring Tool to

Develop Adaptive Assessments. In the International

Conference on Web Information Systems and

Technologies WebIst 06. Setúbal Portugal.

Barbosa, H., García, F. 2006b. Setting and Sharing

Adaptive Assessment Assets. In proceedings of 8

International Simposium of Educative Informatics.

SIIE 06. Leon Spain.

Gouli E., Kornilakis, H., Papanicolau, K., Grigoriadou, M.

2001. Adaptive Assessment Improving Interaction in

an Educational Hypermedia System. In procedings de

Panhellenic Conference on Human-Computer

Interaction, Patras, Greece.

Guzmán, E., Machuca, E., Conejo, R., Libbrecht, P. 2005.

LeActiveMath, Integrated Adaptive Assessment Tool.

http://polux.lcc.uma.es/siette/doc.

IMS LD, Learning Definition. 2006.

http://www.imsproject.org/learningdesign/index.html

IMS QTI, Question and Test Interoperability. 2006.

http://www.imsproject.org/question/index.html.

Stern, M., Woolf, B. 1994. Curriculum Sequencing in a

Web-based tutor. Proceeding of Intelligent Tutoring

Systems. LNCS, Vol. 1452, pp. 574-578.

XML. Extensible Mark up Language. http://www.w3.org.

http://hermes.di.uoa.gr/lab/cvs/papers/Papanikolaou/.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

414
