DEVELOPING NEW SERVICES FOR THE AUTOMOTIVE

INDUSTRY USING MATRIX

Silvia Alén

CTAG: Technological Automotive Centre in Galicia

Pol. Industrial A Granxa, Calle A, Parcela 249-250, 36400, Porriño (Pontevedra), Spain

Daniel Glez-Peña, Florentino Fdez-Riverola

Escuela Superior de Ingeniería Informática

Edificio Politécnico, Campus Universitario As Lagoas s/n, 32004, Ourense, Spain

Keywords: MAS architecture, Car2Car, Car2Infrastructure, OSGi, JADE.

Abstract: This progress report explores how multi-agent systems can be applied to the automotive industry in order to

create an intercommunication platform. Our proposal called MATRIX (Multiagent Architecture for TRaffic

Information eXchange) provides the basis for information exchange between cars (Car2Car) and between

cars and infrastructural elements (Car2Infrastructure). In this work we also discuss how the most prominent

technologies in both areas (JADE and OSGi) can be integrated in order to achieve new functionalities and

security improvements in present cars.

1 INTRODUCTION

Since its appearance at the end of the 19

century,

the car has become a basic article in everyone’s life.

In early 2005 there were 26.5 million of cars in

Spain (DGT, 2006). The same year, almost 2 million

of cars were registered (ANFAC, 2006). However,

the automotive industry has multiple challenges

where the security arouses everyone’s interest.

Every year 120,000 deaths by accident take place

in Europe. Those accidents suppose for the states

members a joint cost of 160,000 million euros,

which ascends to 2% of the Europe GIP (Gross

Industrial Product).

These worrisome numbers forced the creation of

a working group within the European Commission

called e-Safety (e-Safety, 2006). e-Safety group was

born with the purpose of proposing a strategy to

promote the investigation, development,

implantation and use of security intelligent systems

based on ICT (Information and Communications

Technologies) destined to increase the road security

in Europe.

The work group e-Safety published its final

report at the end of the year 2002, concluding that

the application of the ICT to offer security systems

for intelligent vehicles is a great instrument for the

resolution of security problems on the road

transport. The use of the ICT to provide new and

intelligent solutions includes the participation and

the interaction of the driver, with the vehicle and the

road surroundings.

In this integrated and global approach of the

automotive industry security, the embedded

independent surveillance systems are complemented

by cooperative technologies. Those technologies are

intended to use vehicle to vehicle (Car2Car) or

vehicle to infrastructure (Car2Infrastructure)

communication strategies with the purpose of

obtaining data belonging to the road surroundings in

order to detect possible dangers and optimize the

effectiveness of the onboard security systems (CE,

2003).

The design of new forms of communication

between cars is one of the telematic services to

increase cars security and protection. One of the

most important supporter for the creation of a

204

Alén S., Glez-Peña D. and Fdez-Riverola F. (2007).

DEVELOPING NEW SERVICES FOR THE AUTOMOTIVE INDUSTRY USING MATRIX.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 204-209

DOI: 10.5220/0001274702040209

 SciTePress

standard communication protocol at European level

is the Car2Car Communication Consortium

(Car2Car, 2006). Car2Car is a non-profit

organisation created by European vehicle

manufacturers, which is now open for suppliers,

research organisations and other partners. The

Consortium is dedicated to the objective of

increasing road traffic safety and efficiency by

means of inter-vehicle communications. The main

goal of Car2Car is to create and establish an open

standard European industry for Car2Car

communication systems based on wireless LAN

components, able to guarantee European-wide inter-

vehicle operability.

Taking into account the increasing tendency

towards communication between cars in the

automotive industry, we present the MATRIX

architecture focused not only in increasing the

security, but also in supplying information for

developing infotainment systems. MATRIX

(Multiagent Architecture for TRaffic Information

eXchange) defines a multiagent system which

improves inter-vehicular and vehicle-infrastructure

communications by an effective and efficient use of

standard technologies.

Potential applications of the MATRIX

architecture cover all telematic services defined by

the working group e-Safety, including: (i) security

and protection (e-call and the pursuit of vehicles),

(ii) telematic services like remote diagnosis and

proactive maintenance, (iii) positioning systems and

itinerary like dynamic navigation, management of

the POIs (points of interest) or road and traffic

information and (iv) fleet management and

infotainment services (entertainment, access to

Internet, information services, e-mail, etc.).

The rest of the paper is organized as follows:

Section 2 summarizes the technological context

related with this work. Section 3 presents the main

issues about the proposed architecture. Finally,

Section 4 gives out the concluding remarks.

2 TECHNOLOGICAL CONTEXT

In the last years, software development has become

more important in the automotive industry. A car

contains an average of 35 million lines of source

code and, for example, the Linux OS has about 6

million. This fact demonstrates the importance and

the complexity of software development within the

automotive industry, without considering the factor

that supposes the risk for human lives.

Like in other areas where software is developed,

but particularly in the automotive industry, the use

of standards is always worthwhile because it

supposes a reduction in the development time and

guarantees security, reliability and reusability of the

applications with the consequent costs reduction.

Nowadays, there are several standards in the

automotive industry: AUTOSAR (Automotive Open

System Architecture) (AUTOSAR, 2006) and

MISRA-C (Motor Industry Software Reliability

Association) (MISRA, 2006) whose purpose is

giving attendance to the automotive industry in the

implementation of safety software systems, or OSGi

(Open Services Gateway Initiative) (OSGi, 2006)

providing software modules management

middleware for interconnected environments. In the

following we present those standards in detail.

2.1 OSGi

OSGi is a technology developed by the OSGi

Alliance, who involves companies such Sun

Microsystems, IBM, BMW, Oracle, Nokia, Toshiba

and Telefónica I+D. The main purpose of OSGi is

the development of an open specification to provide

services for interconnected environments (Chen and

Gong, 2001) like houses and cars. The OSGi

Alliance facilitates specifications, support for

implementations vendors, test suites and

compatibility certifications. OSGi has recently

released the version 4.

OSGi has been chosen as our base platform in

MATRIX because it is one of the mightiest

technologies in the sector. For example, Nokia and

Motorola are developing a standard based on OSGi

for the next generation of smart phones; AMI-C

(Automotive Multimedia Interface Collaboration)

has included OSGi as an intrinsic part of its

specifications, and BMW, among others, has

incorporated OSGi as a standard part of its high-end

platform.

This platform is not only supported by

commercial companies, but also by the open-source

community, with projects like Apache Felix

(Apache, 2006), Eclipse Equinox (Eclipse, 2006)

and Knopflerfish (Knopflerfish, 2006).

2.2 AUTOSAR

AUTOSAR is an international consortium created in

July 2003 to provide a framework for automotive

software, functional interfaces, management and a

integration methodology, that is to say, to supply an

open industrial standard to develop components for

present cars.

DEVELOPING NEW SERVICES FOR THE AUTOMOTIVE INDUSTRY USING MATRIX

205

Permanent members of this consortium are

automotive companies like BMW, DaimlerChrysler,

Ford, General Motors, PSA Peugeot Citroën, Toyota

and Volkswagen, as well as companies leaders in the

manufacture of components for automotive like

Bosch, Continental and Siemens VDO. In this

context, the main areas within the vehicle are the

electrical system, the systems of conduction, the

chassis, the functions of comfort, security systems,

multimedia/telematic systems and the

human/machine interface.

AUTOSAR is trying to establish a standard

specification to develop vehicle components, which

is due to be completed by August 2006. This process

deals with the interdependencies that can appear in a

distributed environment, including the underlying

system’s standard functions and the definition of the

module integration of different manufacturers with

its interfaces. The specification will also include the

maintenance of electronic components and the

software upgrades during the whole production

cycle.

3 MATRIX ARCHITECTURE

The main idea behind our proposed multiagent

design is conceptually simple: each mobile entity or

infrastructure should have a representation in our

MATRIX system in the form of an intelligent agent

able to establish relationships with other mobile or

static devices.

Our final purpose is that real devices will take

advantage of the communication capabilities of the

multiagent paradigm. Different examples which

serve as real applications of our architecture are the

following: (i) a car could publish its GPS position so

it can be further located by other agents, (ii) a car

could send messages to other cars (Car2Car) or

could detect the closest infrastructural elements like

powerboats or lodging (Car2Infrastructure) and (iii)

a car could interchange information between many

other applications in a local or remote way to solve a

particular problem.

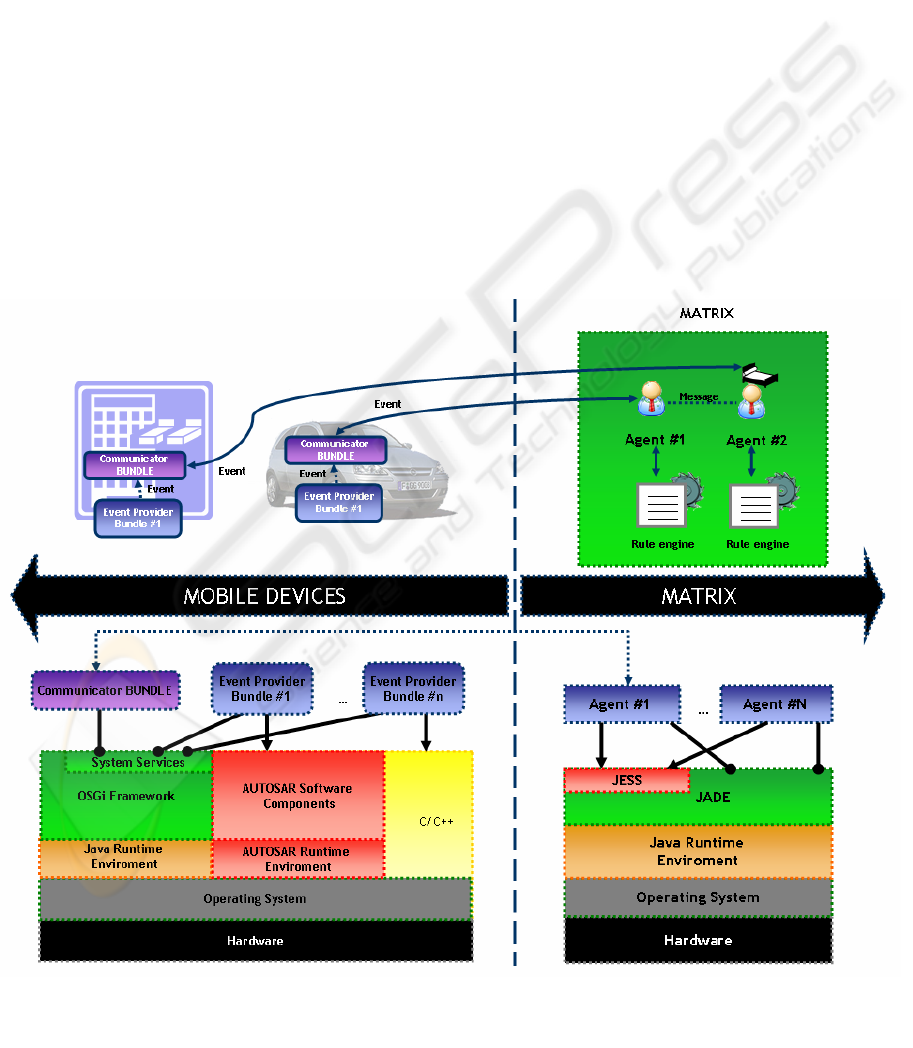

Figure 1 shows an overview of the MATRIX

architecture. The top level shows a logic view of the

Figure 1: MATRIX multiagent architecture.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

206

system where real elements live and interchange

information in the model, whereas the bottom level

includes the related technologies that support the

system.

The implementation of the architecture on the

mobile device side (left part of Figure 1) is based on

OSGi, whereas its representation in MATRIX (right

part of Figure 1) is based on JADE agents (JADE,

2006). Concretely, the components built in this

architecture are:

 Communicator bundle: establishes the

association with its agent in MATRIX to send

and receive events. This connection will be

established through Internet.

 Event provider bundle: devices could have

installed one or several bundles of this type.

Each bundle will be programmed to generate a

concrete event to be finally sent to the agent

through the Communicator Bundle. It is

possible that the implementation of a bundle

of this type requires the use of AUTOSAR in

order to access low level information related

to car’s internal state (i.e.: airbag activation

detection, oil levels, fuel, etc.).

 Agent: represents a device inside MATRIX

system and manages events and messages sent

by the device and by other agents. The

decisions taken by the agent are established by

a rule engine.

 Rule engine: eases the implementation of the

agent’s behaviour, which can also be easily

modified in order to adapt MATRIX to a

concrete problem.

3.1 Implementing Knowledge in Agents

MATRIX is not an end product, but rather represents

an architecture that requires an adaptation to each

concrete problem on which it will be applied. For

that reason, the modification of the decisions taken

by the agents in response to the arrival of different

messages/events should be easily modified, reusing

its code as much as possible.

To achieve this feature, the use of rule engines is

considered essential, because they allow

representing the logic of the agent reasoning process

in separated rule files. The key benefit is the

minimization of the adaptation cost being necessary

for each particular implementation. There are

multiple rule engines available like JRules, Drools,

CLIPS, SMOOTH, JESS, etc. For our proposed

architecture we chose JESS (Friedman, 2003)

because the agent platform used in this work, JADE,

was integrated natively with this rule engine through

the JESSBehaviour.

Here is an example of a JESS rule file that could

define the behaviour of an agent representing a

vehicle that receives an event when the airbag is

activated. After the event notification, a Mayday

message is sent to all agents of type ambulance

registered in the DF (Directory Facilitator) and at a

near GPS position.

(defrule airbag-message

(MatrixEvent (type airbag) )

;SearchDF asserts in the memory all the

MatrixAgent of a given type

;In this case, we will search emergency

agents

(SearchDF (type emergency) )

)

MatrixAgent

<<Agent>>

EventReaderBehavi our

Comm unicatorBundle

EventProviderBundle

+readEvents()

readers

AirbagEventProvider SearchHotelEventProvider

Communi cati onsHel pe r

+sendEvent(event: Event)

+readEvents(): List<Event>

<<event>>

JessBehaviour

+Je ssB ehav iour( ruleF ile: F ile )

Jess Engine

<<use>>

Memory

<<Jess Memory>>

<<assertion>>

asserts the incoming

events in the jess memory

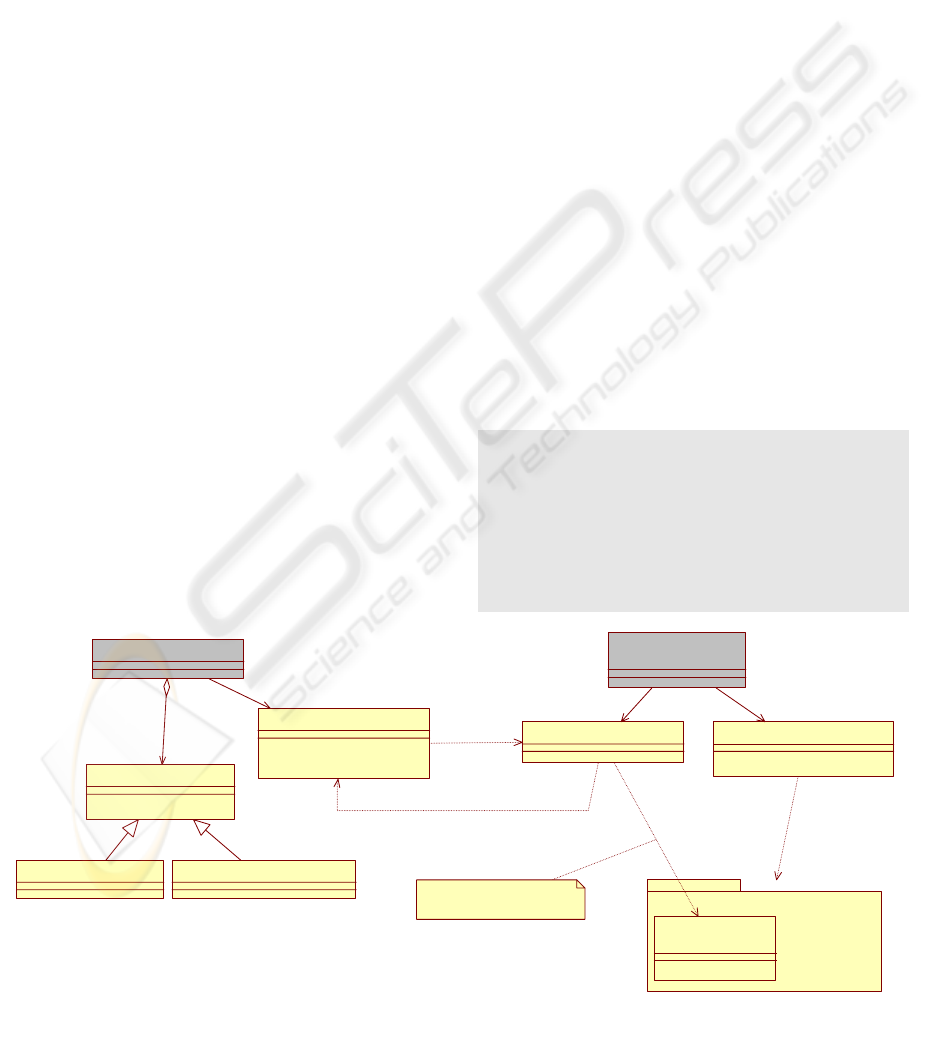

Figure 2: Class diagram of the core MATRIX architecture.

DEVELOPING NEW SERVICES FOR THE AUTOMOTIVE INDUSTRY USING MATRIX

207

(defrule call-emergency

?m <- (MyAgent (name ?n) (GPSposition

?p ) )

?a <- (MatrixAgent( (GPSposition ?q)

(< (distance ?p ?q) 100) ) )

(send (ACLMessage (communicative-act

PROPOSE) (sender ?n) (receiver ?a) (content

"Mayday!") ) )

(retract ?a)

)

Please note that in the above piece of code there

are predefined functions related to the JADE

framework, such as SearchDF, which can be useful

for the implementation of new rules during the

adaptation of the MATRIX platform to a concrete

problem.

3.2 Software Design

Figure 2 shows the class diagram used to define the

MATRIX basic design. Our proposal incorporates

the following classes:

 CommunicatorBundle: establishes the

communication through sockets TCP/IP using

package javax.microedition.io, which is part

of OSGi standard. This bundle detects the

existence of another bundles of type

EventProviderBundle and listens to events that

they could generate. In addition, the

CommunicatorBundle receives events from its

agent in MATRIX coming from other devices.

 EventProviderBundle: this abstract class

represents a bundle that generates events. A

specific implementation might be a bundle

which controls the airbag state and generates

an event if the

 airbag was activated (class

AirbagEventProvider), or a class that interacts

with the user to get the accommodation details

before generating the corresponding event

(class SearchHotelEventProvider).

 MatrixAgent: super class of all agents

represented in MATRIX. Implements a JADE

agent.

 EventReaderBehaviour: represents a cyclical

behaviour that reads events sent by the device,

modifying the rule engine’s memory.

 JESSBehaviour: this is a class representing

the behaviour that demonstrates the

integration between JADE and JESS. It is a

cyclical behaviour instantiated with a JESS

rule file and wrapping the rule engine.

3.3 Example of Use Cases

In this subsection we include two examples of

MATRIX's adaptation in order to obtain a given

functionality. For each case, we detail which OSGi

bundles should be developed and which rules would

lead the behaviour of the agents in MATRIX. For

this purpose the rules have been coded in pseudo-

code, not in JESS, to make the reading more easy.

The first example describes a hypothetical

communication that could take place between a

stopped vehicle and a non-mobile device. The car

driver is looking for a hotel with a price not

exceeding some threshold and situated near his GPS

position. Table 1 shows the software elements

needed in our system, its location and a brief

description of its mission.

The second example describes a vehicle–vehicle

communication where one of the cars has suffered

an emergency situation and warns the nearest

available ambulance. As in case of the previous

scenario, Table 2 shows the software elements

needed in MATIX, its real location and a brief

description of how the component must operate

inside the system.

Table 1: Software elements to implement in order to adapt MATRIX to the problem of looking for accommodation.

Element needed Location Description

Event Provider Bundle 1 Hotel Collects information coming from the hotel manager (available

prices) and generates an event to be sent to the agent through the

Communicator Bundle. The agent also knows the hotel GPS

position.

Event Provider Bundle 2 Vehicle Collects user information about the desired hotel distance and the

price limits.

Rules Vehicle agent If event type is “look for accommodation” then it searches for

nearest agents of type hotel sending them a requesting price

message (CFP).

Rules Hotel agent If type of message is “look for accommodation” then it sends

prices to the solicitor agent.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

208

4 CONCLUSIONS

Nowadays, car industry spends a lot of effort to

develop new software systems, as well as new

standard and development models. According to

Stavros Stefanis - director of IBM's Embedded

Systems Lifecycle Management - in 2010 the 90%

of vehicle innovations will be related with software.

According to this idea, the development of (i) new

communication systems between vehicles or

vehicles and infrastructures and (ii) the development

of new telematic services will be necessary in the

near future.

The main contribution of the present work is the

improvement in the administration of all the

information that current cars are generating within a

centralized system, which manages and stores this

information. The purpose of the system is not only

to improve the communication between vehicles or

vehicle-infrastructure, but also to provide services to

other applications that need it.

The future work is focused in the development of

new services in the context of the CTAG

(Technological Automotive Centre in Galicia) active

projects. Examples of these applications are: remote

diagnosis, remote software updates, modification of

engine settings, navigation, theft tracking, automatic

log book, car pooling and traffic information. In all

of this application areas, MATRIX will play a

crucial role using all the information generated from

this centralized system.

ACKNOWLEDGEMENTS

We are deeply indebted to the personnel at the

Technological Automotive Centre in Galicia

(CTAG), who made this research work possible by

providing useful information of state-of-the-art

technologies and allowing us access to all kind of

facilities.

REFERENCES

ANFAC, 2006. Vehicle registration Statistics. Retrieved

November 2, 2006 from http://anfac.com/global.htm.

Apache Software Foundation, 2006. Apache Felix.

Retrieved November 7, 2006 from

http://cwiki.apache.org/FELIX/index.html.

AUTOSAR, 2006. Automotive Open System Architecture.

Retrieved September 20, 2006 from

http://www.autosar.org.

Car2Car, 2006. Car 2 Car Communication Consortium.

Retrieved November 1, 2006 from http://www.car-to-

car.org.

CE, 2003. Paper to the European Council and Parliament

about information and communication technologies

bringing the car security and services. Brusels,

15.9.2003. COM(2003) 542 final (SEC(2003) 963).

Chen, K., Gong, L., 2001. Programming Open Service

Gateways with Java Embedded Server Technology.

Addison-Wesley Professional.

DGT, 2006. Spanish Traffic Department. Retrieved

October 10, 2006 from http://www.dgt.es.

Equinox, 2006. Eclipse Equinox. Retrieved November 2,

2006 from http://www.eclipse.org/equinox.

e-Safety, 2006. Europe's Information Society. Retrieved

November 9, 2006 from

Friedman-Hill, E., 2003. JESS in Action. Manning.

http://ec.europa.eu/information_society/activities/esafety/i

ndex_en.htm

JADE, 2006. Java Agent DEvelopment framework.

Retrieved September 15, 2006 from

http://jade.tilab.com/.

Knopflerfish, 2006. Knopflerfish – Open Source OSGi.

Retrieved October 10, 2006 from

http://www.knopflerfish.org.

MISRA, 2006. The Motor Industry Software Reliability

Association. Retrieved 11 September, 2006 from

http://www.misra.org.uk.

OSGi, 2006. Open Services Gateway initiative. Retrieved

October 28, 2006 from http://www.osgi.org/.

Table 2: Software elements to implement in order to adapt MATRIX to the functionality of looking for ambulances after an

emergency takes place.

Element needed Location Description

Event Provider Bundle 1 Vehicle,

Ambulance

Generates an event with the GPS position to be sent periodically to the

agent through the Communicator Bundle.

Event Provider Bundle 2 Vehicle Throws an event if an emergency situation occurred (i.e.: airbag is

activated).

Rules Vehicle agent If event type is emergency then it searches for nearest agents of type

ambulance sending them a help message

Rules Ambulance agent If message type is “help request” then sends an event to a mobile

device with the required information.

DEVELOPING NEW SERVICES FOR THE AUTOMOTIVE INDUSTRY USING MATRIX

209
