SERVICE ORIENTED ATMOSPHERIC RADIANCES (SOAR)

A Web Service Research Tool for the Gridding and Synthesis of Multi-Sensor

Satellite Radiance Data for Weather and Climate Studies

Milton Halem, Curt Tilmes, Yelena Yesha, Sharon Shen

University of Maryland Baltimore County, Baltimore, MD 21250, USA

Mitchell Goldberg, L. H. Zhou

NOAA NESDIS, Camp Springs, MD 20746

Keywords:

Gridding atmospheric radiances; web services, service oriented computing; SOAP messaging; SOAs; satellite

data processing; AIRS/MODIS data services.

Abstract:

Three decades of Earth remote sensing from NASA, NOAA and DOD satellites carrying successive gener-

ations of atmospheric instruments have resulted in petabytes of radiance data with successive increases in

spatial and spectral resolutions stored at different data archives in various data formats. We describe here a

web based Service Oriented Atmospheric Radiance (SOAR) prototype system built on the SOA architecture

that will enable the science community to process these valuable climate data records according to their own

gridding criteria. SOAR employs the standard XML based protocol suite of SOAP, WSDL and UDDI service

descriptions for aggregating atmospheric instrument radiance data into user speciﬁed spatial grids. SOAR

consists of three subsystems, a Client Server, a Directory Server, and a Process Server, connected to a high

performance compute cluster and storage grid by a Service Bus. The process server employs optical commu-

nications to access data and invoke algorithms on the compute/storage cluster for on-demand spatial, temporal,

and spectral subsetting Scientists can choose a variety of statistical averaging techniques for combining the

footprints of satellite observed radiances from multiple instruments to form spatial-temporal grids for their

respective studies. Animation services are also provided for viewing the results of the user speciﬁed service

requests. Results are presented for subsetting and animating a multi-year high-resolution multi-instrument

pre-gridded radiance ﬁeld employing this initial version of SOAR.

1 INTRODUCTION

The objective of this paper is to demonstrate how

web based information systems technologies can pro-

vide tools that can broaden the access and ability

to use space data to a wider science and engineer-

ing community. The information systems technolo-

gies are an outgrowth of Service-oriented architec-

tures (SOA). SOA has become an important new busi-

ness paradigm for developing e-commerce applica-

tions (Barry, 2003). Web-based services employing

this architecture as a design approach can be found

today in many business organizations (Xerox, 2005),

(Sun Software), (Berger, 2006). SOA builds on the

basic language standards for communicating com-

puter messages to integrate the many business pro-

cesses of their respective administrative and/or ﬁ-

nancial enterprise (Sullivan et al., 2005). In recent

years, this paradigm has started to emerge among sev-

eral science disciplines and is often referred to as e-

science (Hey and Trefethen, 2005) or service-oriented

science (Foster, 2005). For these applications, the

SOA approach has been extended to include an under-

lying cyberinfrastructure (i.e. computing grids, data

storage and networks) for discovery of algorithms and

their execution. Examples of such science oriented

computing are GEON (Geosciences), NEES (Net-

work Earthquake Engineering), LIGO (Gravitational-

Wave). In this paper, we address the gridding of atmo-

spheric radiances, a computational challenging satel-

lite data integration problem of high scientiﬁc rele-

vance to understanding global climate change. US

polar orbiting Earth looking satellites from NASA,

NOAA and the DOD have collected and archived

petabytes of data from operational and research satel-

lites for over three decades. These data are stored

371

Halem M., Tilmes C., Yesha Y., Shen S., Goldberg M. and H. Zhou L. (2007).

SERVICE ORIENTED ATMOSPHERIC RADIANCES (SOAR) - A Web Service Research Tool for the Gridding and Synthesis of Multi-Sensor Satellite

Radiance Data for Weather and Climate Studies.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 371-377

DOI: 10.5220/0001274803710377

 SciTePress

at distributed archives with diverse formats and com-

prise one of the longest continuous satellite climate

data records available today. This paper sets out to de-

scribe in section 2 the challenges in producing a grid-

ded array of radiances derived from satellite borne in-

struments. Section3 then discusses the relevance of

this problem for the science community as well as

others. Section 4 describes the architecture of a ser-

vice oriented atmospheric radiance prototype system

for gridding remote sensing data that we call SOAR.

Section 5 presents examples of results obtained from

invoking subsetting services for multiple sensors.

2 THE SOAR GRIDDING

PROBLEM

Polar orbiting satellites carrying Earth viewing radia-

tive sensing instruments of the electro-magnetic spec-

trum travel in circular trajectories passing over the

South and the North poles as the Earth revolves be-

neath the orbit. A satellite at a height of ∼ 700 km

on average takes ∼ 100 minutes to complete one po-

lar orbit thus providing ∼ 14 orbits per day. The sub

satellite nadir path covers ∼ 7 km per second. Thus,

depending on the instruments dwell time sensitivity

needed to build up a high signal to noise ratio, the

area of the ﬁelds of view (fovs) for determining the

radiance from a spot or fov on the Earths surface can

range from 1 sq. km to 100 sq. km depending on the

spectral interval width being measured and the state

of advances in CCD technology at the time of the

design implementation of these instruments. In ad-

dition, these instruments scan across the nadir track

a distance of 1200 km providing additional spots or

fovs coverage at the same time needed to collect a

nadir pixel as shown in Figure 1 for the AIRS and

AMSU instruments. The scanning thus gives nearly

twice daily coverage of the atmospheric radiances for

every spot on the Earth except for some gaps at the

Equator. Such gaps are overlapped with data gen-

erally after three days of radiance collection. The

instruments of interest for this study are those that

collect the emitted radiation in the visible, infra-red

and microwave regions that can be employed for at-

mospheric temperature proﬁling. Table 1 lists some

instruments that capture atmospheric radiances along

with various detector characteristics such as spectral

channels, spatial resolutions, scanning angle ranges,

satellite and dates of data coverage.

Table 1 shows the variety of instruments and their

different scan and fov geometries. The gridding prob-

lem consists of forming an array of radiances rep-

resenting a speciﬁed spatial and temporal resolution

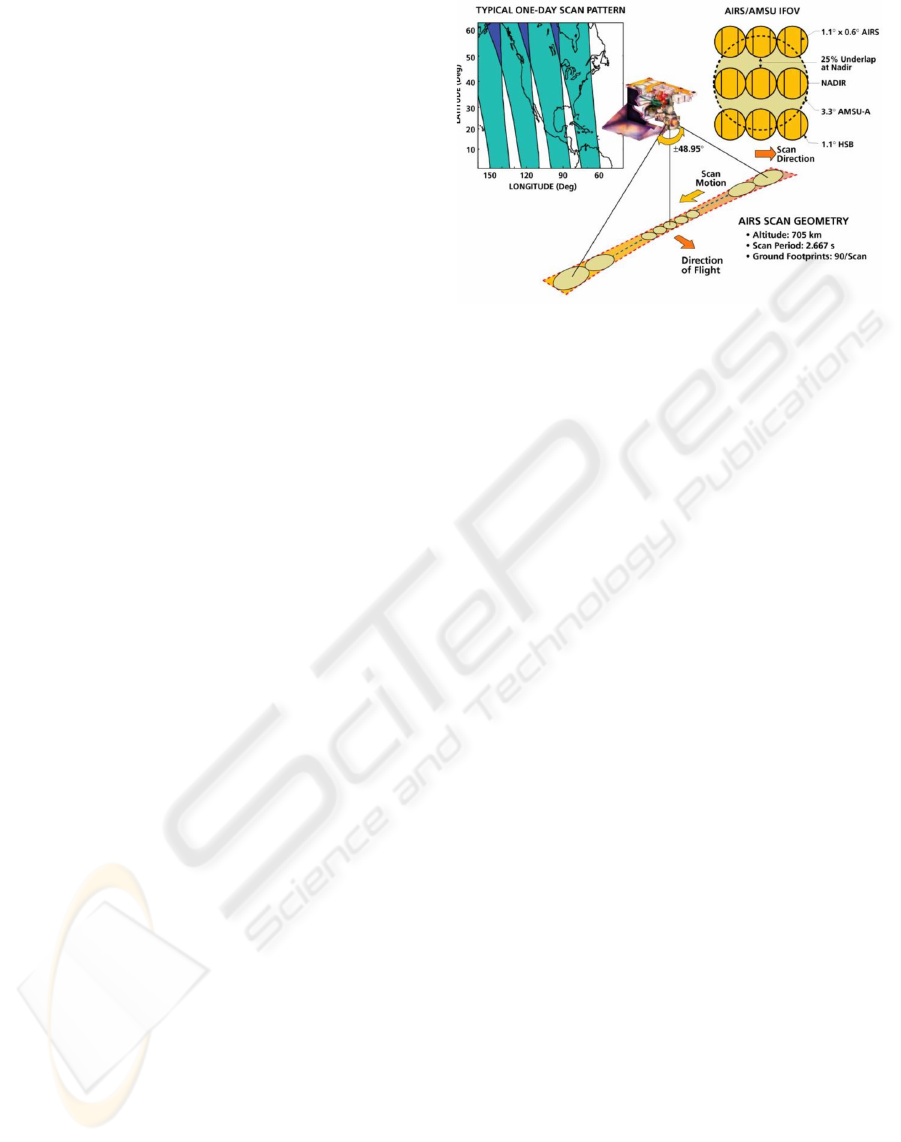

Figure 1: Cross track scan fov patterns and overlap fovs for

two atmospheric radiance instruments, AIRS and AMSU

currently ﬂying on the NASA research satellite AQUA.

by combining radiance channels of instruments of

different spatial and spectral resolution and differ-

ent viewing angles. For example, to combine the

MODIS temperature proﬁling channels with the ap-

propriate AIRS temperature channels one has to con-

sider merging 1 sq. km fovs with 14 sq. km spots,

as well as the narrower AIRS spectral channels with

the broader MODIS channels both with different scan

angles. For these considerations, there are well tested

scientiﬁc convolutions algorithms to combine AIRS

channels into a broader MODIS-like spectral band as

well as limb correcting algorithms for rapidly convert-

ing the different scanning angles into nadir-like view-

ing spots. A variety of options exist for specifying

how the different spatial resolutions can be combined

depending on the intended applications.

In addition to dealing with the geometric issues

posed by integrating multiple sensors, the different

formats and distributed nature of the archives make

access a highly desired attribute for a community tool.

Since it is common today for scientists and other po-

tential users to expect rapid access to conduct their

studies and most of the historical data are stored on

tape media, having global gridded radiance arrays

available on disk media with very high resolution (i.e.

at 0.25 deg X 0.25 deg.) will make it possible to de-

liver on-demand supersets of this array in near real

time. Further, if users want even higher resolution re-

gional arrays say over the US or Europe, then creating

arrays at say 1 or 2 sq. km from MODIS can be gen-

erated from the off line data for a given region but

then stored on line to meet future client requests for

subsets or supersets of these grids.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

372

Table 1: NOAA and NASA atmospheric radiance sensors for temperature sounding.

Sensor Number of Channels Band Width Swath Spatial Resolution

MODIS 36 620 nm - 14.385 um 2330 km 250m - 1000m

AIRS 2378(IR), 4(VIS) IR 3.74 um - 15.40 um 1650 km 13.5 km horizontal at

VIS/NIR 0.4 um - 1.0 um nadir, 1km vertical

AMSU-A 15 3 MHz - 6000 MHz 2343 km 48km

AMSU-B 5 500 MHz - 2000 MHz 2343 km 16km

HIRS/3 20 0.69 um - 15 um 1127 km 20.3 km (1.4 degrees IFOV) at nadir

HIRS/2 18.9 km (1.3 degrees IFOV) at nadir

AVHRR 5 0.58 um - 12.5 um 2399 km 1.1km

3 RELEVANCE OF

MULTI-SENSOR GRIDDED

RADIANCES

The principal output of SOAR is to deliver client

speciﬁed multi-sensor gridded radiance ﬁelds (i.e.

Level 3 data sets) from one or more atmospheric

sounding instruments chosen from one or more polar

orbiting satellite platforms. Gridded radiance ﬁelds

greatly reduce the volume of data, often called thin-

ning, by some form of statistical operation of bin-

ning data into a grid box. This is the most frequently

used format for Earth science modelers and analysts

who wish to display maps, ingest data for forecasting

models, validate weather and climate models and for

the study of climate change trends.. Currently, grid-

ded radiance ﬁelds are available as a standard prod-

uct from some EOS instruments. However, such grid-

ded products for multiple instruments are generally

not available as standard products. The unique contri-

bution that SOAR offers users is the ability to choose

the speciﬁc physical and statistical algorithm options

and resolutions.We describe the concepts of the grid-

ding service which are fairly intuitive by an example

below. The challenge is in providing this as a service

implementation. Let us consider an example of how

these three elements are implemented for a speciﬁc

user request. We show in Figure 2 the image that was

produced at JPL (Chahine, 2003) by the AIRS instru-

ment scientist, Dr. M. Chahine. This example shows

what unanticipated products are possible with grid-

ded radiance data even from just one spectral channel.

The global gridded data set which is color coded and

displayed is a monthly mean average radiance ﬁeld

for April 2003 taken directly by the single spectral

window channel number 20 of AIRS which corre-

sponds to a wave number at 0.381um. The daily radi-

ance observations falling in each grid box of resolu-

tion 1 degree by 1 degree over the globe are averaged

for the month. The clouds have not been removed

and account for some of the blurring shown in yel-

low of stationary features at higher latitudes.. Clearly,

the number of such products that can be produced

from all the combinations of spectral channels will

enable the broader community of modelers and cli-

mate analysts to readily investigate seasonal, annual

and short term aspects of climate variability that have

so far been impractical with their available resources.

The instruments this system initially addresses are the

AIRS, AMSU instruments on AQUA.

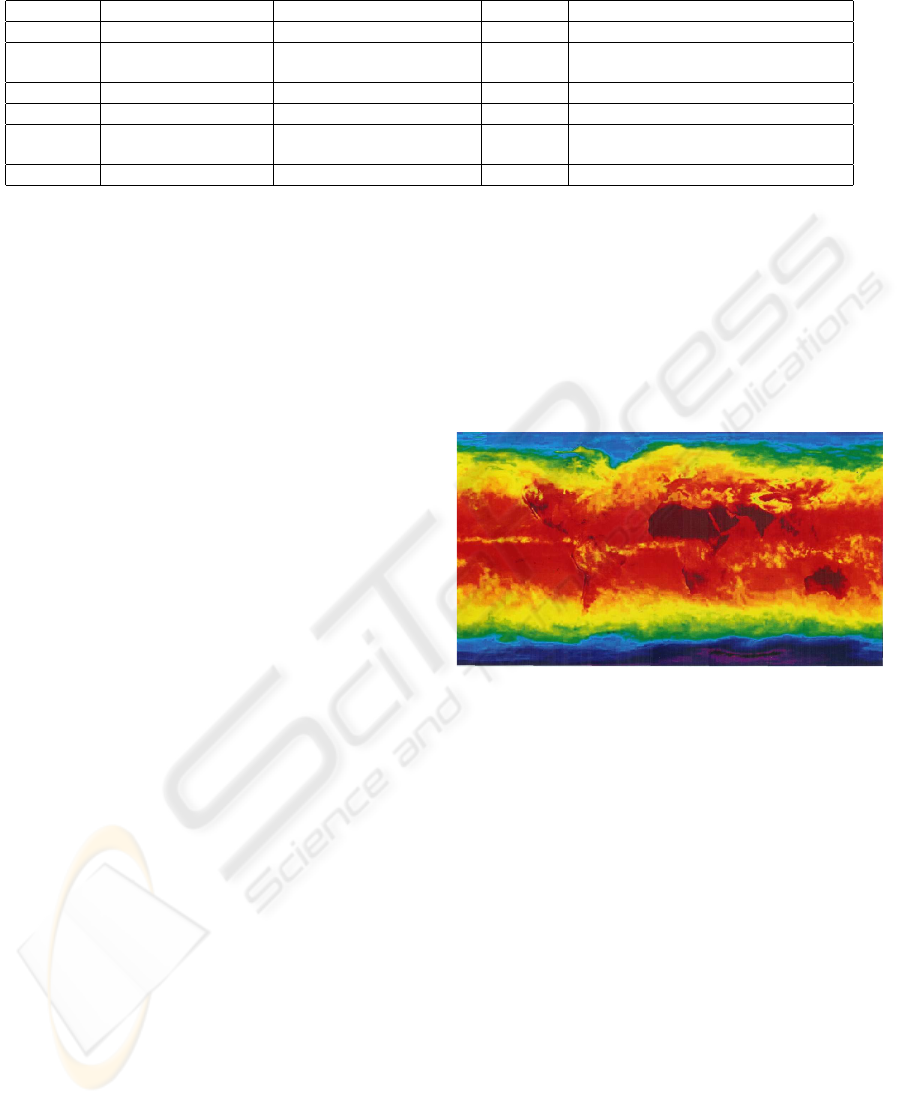

Figure 2: Gridded monthly mean AIRS radiance data, April

2003, from a single window channel at 2616 wave number.

4 SOAR COMPUTING

ARCHITECTURE

Figure 3 depicts the typical Service Oriented Archi-

tecture, comprised of three primary subsystems: the

Client Server, the Directory Server, and the Process

Server. The Physical Resource Layer represents the

hardware that supplies computing resources to the

subsystems. The Client Server represents the users

of the service, which could be a human interacting

through a web browser based GUI, or a computer in-

teracting with the SOAP server directly. Traditional

SOA includes a Directory Server that is used to adver-

tise the services where clients can discover them. Fi-

nally, the Process Server receives the service requests

and arranges for the actual science algorithms to be

executed. The standard XML based protocols SOAP,

WSDL and UDDI are used to communicate between

servers for receiving and issuing requests from all

SERVICE ORIENTED ATMOSPHERIC RADIANCES (SOAR) - A Web Service Research Tool for the Gridding and

Synthesis of Multi-Sensor Satellite Radiance Data for Weather and Climate Studies

373

three servers. Based on those requests, a ﬁnal prod-

uct is delivered to the user. All of these requests are

related to atmospheric-science data sets. Using the

web service, science or non-science users do not have

to download huge amounts of data and process it lo-

cally. Figure 4 shows a detailed component-based de-

scription of the architecture. It also shows the inter-

action from a SOAP-enabled browser such as Mozilla

Firefox. The following sections describe the system

architecture functionality.

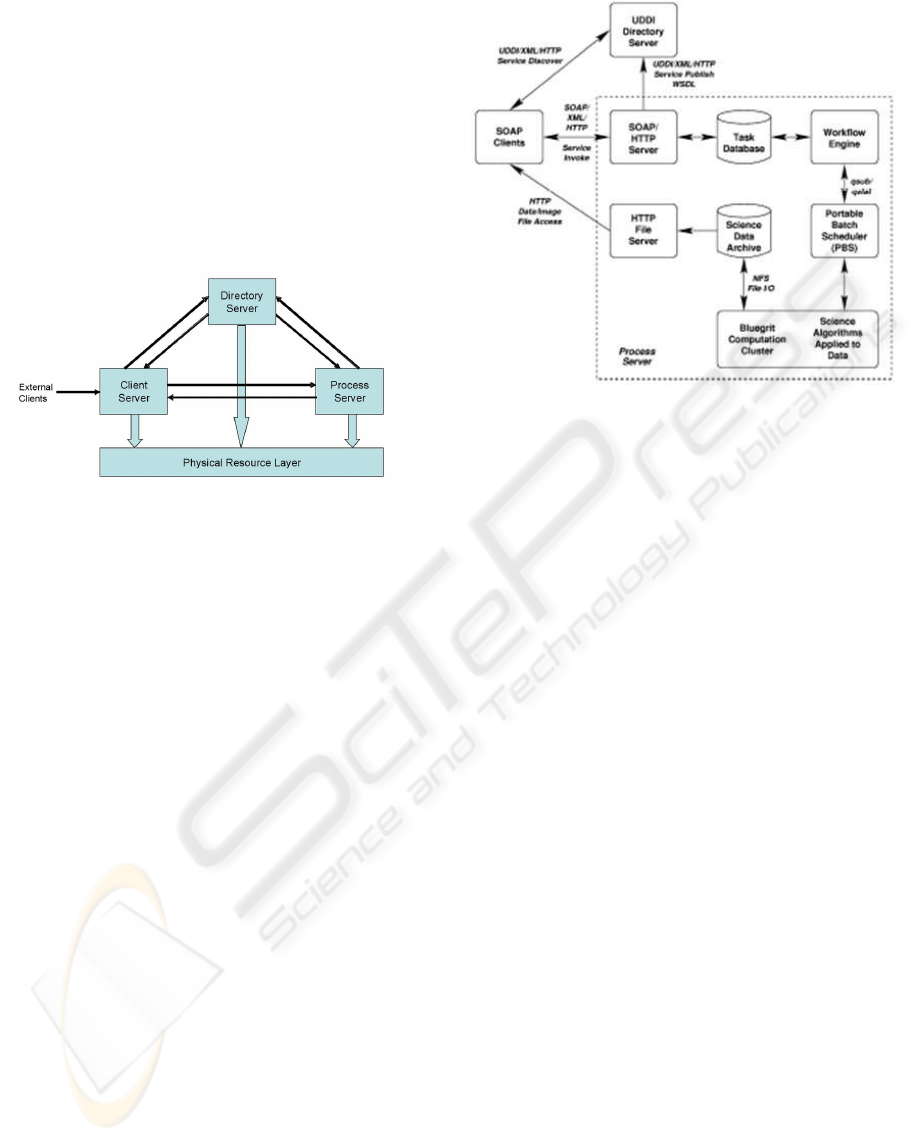

Figure 3: SOA Architecture Block Diagram.

4.1 Client Server

The service-oriented architecture classically relies on

a typical application server to integrate the various

web services into one cohesive solution. However,

there is no reason that the client cannot represent it-

self to the process server. The Soar web applica-

tion was relegates the client server to serving only

the most basic content. Initially, the browser requests

the javascript libraries that deﬁne the AJAX interac-

tions and the basic xhtml structure of the Soar web

application. For our implementation, soap libraries

were used to enable the client’s direct communica-

tion with the Process Server. From this point on, the

web server is only contacted incidentally to provide

images and applets that support the look-and-feel of

the web application. Every web service comes in

pairs of methods; one method that actually provides

the web service and another method that returns an

XHTML block necessary for the browser to present

that web service to the user. The SOAP Web Ser-

vices offered by the Process Server are completely

described in WSDL and available to the clients as a

standard GUI. The standard GUI provides an interac-

tive set of web dialogs to capture data selection cri-

teria and gridding directives.. The criteria are sub-

mitted to the Process Server as a SOAP/XMLrequest

which executes the needed science algorithm. Other

web services provide status of pending requests and

ultimately the results of the request back to the client.

Figure 4: Internal Architecture with an independent SOAP

Client.

4.2 Process Server

The Process Server provides the data processing ca-

pabilities required to transform data products to meet

requests submitted by the client. It is comprised of a

number of distinct cooperating systems as shown in

Figure 5.

4.2.1 SOAP/HTTP Server

The criteria comprising each individual request is

submitted, either by an independent SOAP client, or

the SOAR WWW Browser GUI to a SOAP web ser-

vice running under Apache/Axis. That server submits

the request using SQL to a PostgresSQL based Task

Database which queues all the requests. In addition

to the science algorithm web service methods, there

are a number of additional web services for login, re-

trieving task status, retrieving results from a task and

removing a task from the database.

4.2.2 Task Database

The database maintains the state of the system. It

tracks the users registered with the system and web

sessions the user is interacting with. Web sessions are

simply a way to distinguish separate logins within the

system. Each request submitted by a client on behalf

of a user is stored as a task, along with the method or

algorithm requested, the parameters needed to gov-

ern the execution of the algorithm, the date/time the

request was submitted, and, eventually, the date/time

the request was completed.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

374

4.2.3 Workﬂow Engine

When a new request or task is inserted into the

database, the Workﬂow Engine examines and allo-

cates the task. If the task is a primitive task, it is sub-

mitted directly to the Portable Batch Scheduler (PBS)

for processing. If the task is a compound task, it is

broken down into child tasks, which themselves could

be compound or primitive. As the primitive tasks

complete, their results are listed in the database. If a

primitive task has a parent compound task, the results

are rolled up to the parent. A compound task is com-

pleted only after all the primitive tasks it depends on

complete. For example, there is a primitive method

DailyImage which produces an image from a single

day of AIRS or AMSU data. One of its parameters

is the data day to process. Another method DailyIm-

ageRange is a compound method that takes parame-

ters startdate and enddate. When the work ﬂow engine

considers a new DailyImageRange request, it creates

additional DailyImage tasks for each day of the range.

All the primitive tasks are submitted at once to PBS.

4.2.4 Portable Batch Scheduler

When a primitive task is submitted to SOAR, the qsub

process of PBS is used to submit the task to PBS. PBS

monitors the computation resources available on the

Bluegrit Computation Cluster and schedules the tasks

to run as resources are available. PBS will execute

as many jobs in parallel as it can within the comput-

ing resources available, and as jobs complete, the next

queued job will be executed.

4.2.5 Bluegrit Computation Cluster

Bluegrit is an IBM cluster comprised of 32 blades

with 2.2 GHz IBM dual powerpc CPUs. It is con-

nected to the outside world through a management

node. The SOAR work ow software submits software

through PBS by an SSH connection from the database

on Matisse to the Bluegrit management node. PBS al-

locates one of the blades to execute each job.

4.2.6 Science Data Archive

The Bluegrit Computation Cluster includes a 2.2 TB

shared ﬁlesystem which is available on all the individ-

ual nodes of the cluster from a large Intel based NFS

server. The input science data sets needed for pro-

cessing reside on the disk, and any ﬁles created during

processing are output to the ﬁlesystem. Currently, for

the test system, it holds 15 months of AIRS/AMSU

gridded data. Eventually other tasks will be inte-

grated in the system that will extend the current static

Science Data Archive to interact with external data

archives at NASA and NOAA to retrieve needed in-

put data on demand. Additionally, whenever a science

algorithm task is submitted the cluster, prior to ac-

tual execution, the programs check the Science Data

Archive to see if a meeting the requested criteria al-

ready exists from a previous request. If so, the request

is not recreated, it is simply returned as the result of

the new request.

4.2.7 HTTP File Server

When data ﬁles, images, or animations are created on

the cluster and stored on the Science Data Archive,

they are made available to the end user through a

read/only HTTP ﬁle server running on the Bluegrit

management node. The URLs for the result ﬁles

on the Bluegrit HTTP server are stored in the task

database and returned to the client through the SOAP

server on request.

4.3 Directory Server

The traditional mechanism for discovery of web ser-

vices is through a UDDI server, and WSDL deﬁni-

tion for SOAR could be registered with a UDDI server

with appropriate keywords for an independent user to

discover and access the server. The WSDL includes a

complete description of the SOAP web services avail-

able from the Process Server, and sufﬁcient informa-

tion for a SOAP client to access the system.

4.4 Web Services

As previously mentioned, in addition to the science

algorithms, the system includes a number of ancillary

web services for interacting with the system. These

include login, UserTaskStatus, CompletedTasks, Ge-

tResultsById and RemoveTaskById.The focus of the

current development has been to construct a frame-

work for web services which can later be extended

by adding additional algorithms. As discussed above,

the tasks are processed individually, while compound

tasks are composed of multiple primitive tasks. These

algorithms utilize the GrADS system(Goldberg et al.,

2003), a tool that is widely used by the atmospheric

science community for performing science data visu-

alizations.

SERVICE ORIENTED ATMOSPHERIC RADIANCES (SOAR) - A Web Service Research Tool for the Gridding and

Synthesis of Multi-Sensor Satellite Radiance Data for Weather and Climate Studies

375

5 STATUS OF CURRENT SOAR

IMPLEMENTATION

A prototype version of SOAR is installed at a user ac-

cessible web site at UMBC (SOAR). The web site im-

plements the above described client server features to

specify requests and discover information on services.

This web site incorporates user registration function-

ality with a front end to the systems data process-

ing capabilities. It also contains animation service

options. The current SOAR implementation allows

the system to perform subsetting for arbitrary bound-

ing boxes and time durations with a relatively high

resolution for a pre-computed AIRS/AMSU gridded

data set. This data set is for a spatial grid resolution

of 2.0 deg. latitude by 0.5 degree longitude which

have been limb corrected and where the 3 X 3 foot-

print array of AIRS fov selected within the AMSU

fov which falls within a grid element. The data were

prepared by NOAA/NESDIS on their Process server

and transferred over the network to the NASA pro-

cess server where the meta database is updated to re-

ﬂect the available periods for which the gridded data

are available. NASA then transferred the data to the

UMBC SOAR data management system for archiv-

ing. For this prototype study, the current holdings

consist of 1.25 TBs of daily data gridded data sets for

the period Jan.1. 2005 to March 31, 2006. Select pre-

choreographed scripts were developed to dynamically

invoke and perform temporal/spatial/spectral subset-

ting services as may be requested by the user GUI

interface, and to enable a product to be animated for

the desired instrument channels for any chosen avail-

able time period. Users interested in viewing atmo-

spheric changes over certain regions or globally, can

select such regions from a specifying a bounding box

on the globe with out having to enter the coordinates

for the desired region. The visualization services uti-

lize the GrADS system that is widely used by the me-

teorological community. GrADS offers a variety of

capabilities in graphing and animating data in four di-

mensions. The main use of GrADS in this project is to

analyze, process, and display data according to user-

speciﬁed parameters. The process server converts

user requests into command line inputs to GrADS.

In the prototype, GrADS accepts commands from the

process server, locates data within the local cache,

processes the data, and stores an image along with

the associated binary data in a user download cache.

The image location is passed back to the web server

for display via a link in the a Directory Results page.

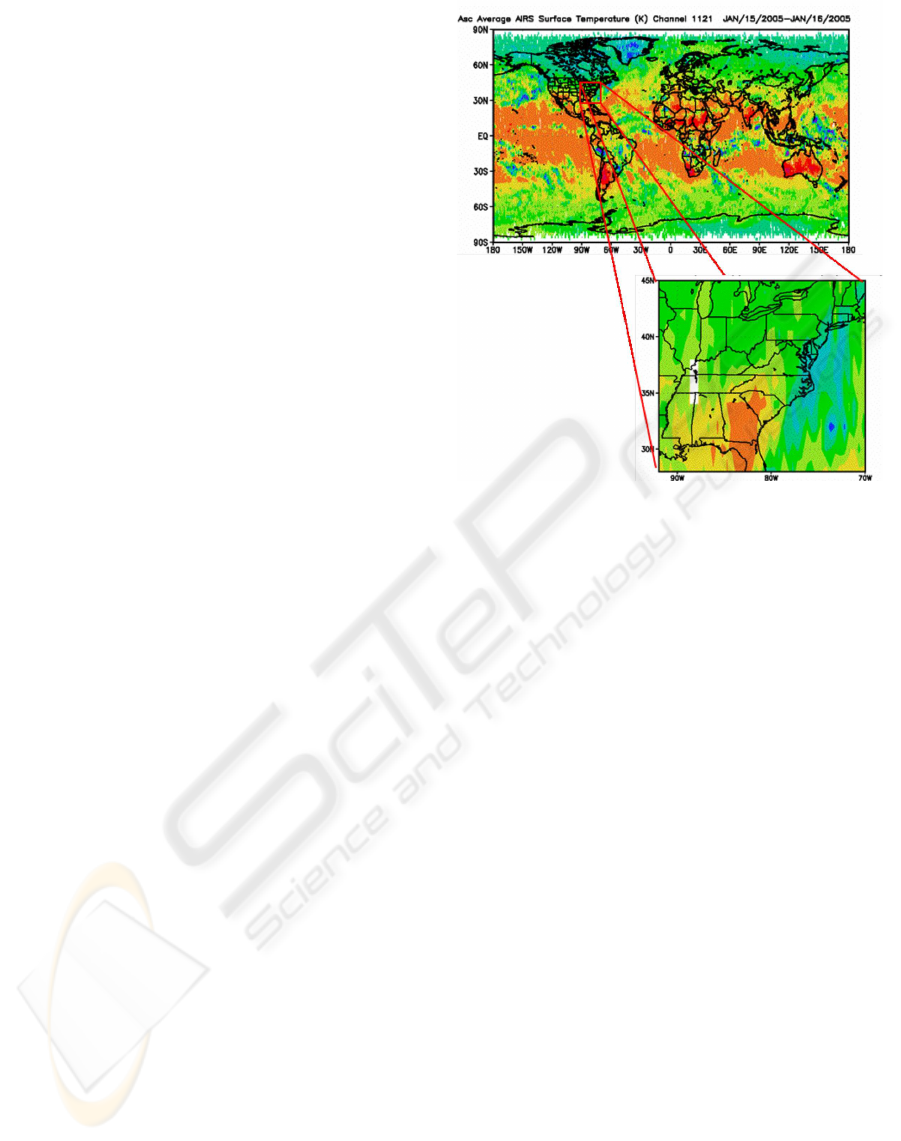

Figure 5 illustrates the subsetting display of a por-

tion of the East coast of the US extracted from the

daily AIRS data set archived at UMBC and averaged

Figure 5: Spatial Subsetting.

over a month. For our implementation, once the sub-

setted data are properly selected, the system simply

passes the selected data sets and the subsetting param-

eters to the GrADS system which in turn performs the

averaging of the data set and returns an updated data

set and corresponding display.

6 CONCLUSION

This prototype has effectively demonstrated a dy-

namic, user-friendly application to access multiple

satellite instruments for the research of atmospheric

data, process the data as requested by the user, and

deliver the processed data. Although not all of the

ﬁnal project goals have yet been implemented, the

prototype has delivered an extensible framework to

which additional features such as convolving and

cloud clearing algorithms can easily be incorporated

to provide a system that meets all project goals. This

prototype has demonstrated on a small scale that the

dynamic generation of science data products and im-

ages, as opposed to the use of static data products

and images on existing web sites, is in fact possible.

While much additional work yet remains on each of

these additional features before they can be fully oper-

ational, the foundation has been laid for an evolvable

system conﬁguration to meet current and future client

demands.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

376

ACKNOWLEDGEMENTS

We would like to express our appreciation to Brian

Blackburn and David Chapman for their contributions

in developing the browser based dynamic client server

SOAP messaging capability.

REFERENCES

Barry, D. K. (2003). Web Services and Service oriented

architectures. The Savvy Managers Guide 1. Morgan

Kaufman Publishers.

Xerox Enhances productivity with IBM Service

Bus Solution and Service Oriented Archi-

tecture (2005). October 28. http://www-

306.ibm.com/software/success/cssdb.nsf/CS/SPAT-

6FCQB2?OpenDocument& Site=wp

Ensuring the Competitive Edge; Transamer-

ica Life Insurance Company Simpli-

ﬁes Infrastructure with Sun Software.

http://www.sun.com/products/soa/success.jsp#1

Berger, A. K. (2006). Getting an E-Biz Up and Keeping it

Running. May 17. http://www.EcommerceTimes.com

Sullivan, J. O., Edmond, D., Hofstede and A. H. M. ter

(2005). The Price of Services. In ICSOC-2005 Pro-

ceedings 3rd International Conference Amsterdam,

Netherlands.

Hey, T. and Trefethen, Anne E. Cyberinfrastructure for e-

Science. Science 2005, Vol.308 pp. 817-821

Foster, I. Service-Oriented Scienc. Science 2005, Vol. 308,

pp 814-817

Geosciences Network. http://www.geongrid.org/

Network for Earthquake Engineering. http://it.nees.org

Laser Interferometer Gravitational-Wave Observatory.

http://www.ligo.caltech.edu/

NRC of National Academies of Science. Climate

Data Records from Environmental Sciences, National

Academies Press 2004

Chahine, M. (2003). JPLAIRS Image Archive June 2003.

http://www.airs.jpl.nasa.gov/Multimedia

GrADS Home Page. Center for Ocean-

Land-Atmosphere Studies. 25 Apr 2006.

http://www.iges.org/grads/grads.html

Goldberg, M. D., Qu, Y., McMillin, L. M., Wolf, W., Zhou,

L. and Divarkarla, M. (2003). AIRS near-real-time

products and algorithms in support of operational nu-

merical weather prediction. IEEE Trans. Geosci. Re-

mote Sensing, vol. 41, pp. 379-389, Feb. 2003.

SOAR Home Page. http://iclass.cs.umbc.edu/SOAR

SERVICE ORIENTED ATMOSPHERIC RADIANCES (SOAR) - A Web Service Research Tool for the Gridding and

Synthesis of Multi-Sensor Satellite Radiance Data for Weather and Climate Studies

377
