IMPLEMENTATION OF INDEX SCHEMA FOR XML

DOCUMENTS BASED ON STRUCTURE OF DATABASE

Youngrok Song, Kyonam Choo

Department of Information and Telecommunication Engineering, University of Incheon

177 Dowha-Dong, Nam-Gu, Incheon 402-749, Korea

Yoseop Woo, Hongki Min

Department of Information and Telecommunication Engineering, University of Incheon

177 Dowha-Dong, Nam-Gu, Incheon 402-749, Korea

Keywords: Index Schema, XML, Database.

Abstract: In this paper, structural information between tree nodes is presented without any structural changes in tree

by converting number information added to tree into bit streams. It is also shown that other structural

information can be retrieved and added to index schema, and that in query schema it is possible to restore

host nodes by exploiting the given node information in case relative route query expressions as well as

absolute query expressions are given. It has an advantage of making derived query expressions through a

query. In addition, in the query-processing process, response time can be minimized by conducting bit

operation between bit streams with index schema and query schema in use, and accurate results can be

reached by searching only with information of record set by node in index files.

1 INTRODUCTION

Because of its simplicity and flexibility, XML is

rapidly becoming the most popular format for

information representation and data exchange on the

web. It has become more difficult to locate

information needed, so methods to search and

manage XML document information more

efficiently are necessary (Dao, 1998), (Milo and

Suciu, 1999) and recently studies have been actively

under way to store XML document information in

storage media such as database(Zhang et al, 2001),

(Chien et al, 2002), (Yoshikawa et al, 2001).

These studies aim to support efficient route

search for a single large volume XML document or

several XML documents with the same structure.

Thus, in case of using the aforementioned

indexing techniques to find the wanted routes from

several XML documents with different structures,

we need to compose each index for each XML

document and investigate every index. In addition,

in case the route includes ancestor-descendant

relationship, search performance becomes bad as the

wanted route is located only by visiting every node

of the established index. Though indexing methods

have been suggested to complement the defects,

there is still the drawback of lower performance in

case the ancestor-descendant relationship in case an

ancestor-descendant relationship appears in the

middle of the rout, not in root (Chung et al, 2002).

At the same time, an integrated indexing method

(Zhang et al, 2001), (Chien et al, 2002), (Yoshikawa

and Amagasa, 2001) is also presented which enables

us to search XML documents with different

structures. It has adopted the way of reflecting and

expanding structural characteristics of XML in the

inverted index opposite to the term basis used in the

information search field.

However, the index techniques suggested in

Zhang et al (2001) and Chien et al (2002) face lower

search functions as increased number of documents

brings about index data to be compared and searched,

Yoshikawa and Amagasa (2001) show the

disadvantage of lower search performance with

more documents. The characteristics serve as a

factor that makes it difficult to apply them in the

situation route search for XML documents is

needed.

402

Song Y., Choo K., Woo Y. and Min H. (2007).

IMPLEMENTATION OF INDEX SCHEMA FOR XML DOCUMENTS BASED ON STRUCTURE OF DATABASE.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 402-405

DOI: 10.5220/0001278304020405

 SciTePress

Therefore, query search is made possible through

operations between bits by avoiding complicated

structure search and using stream-based index

algorithm. As well, in this article, query processing

in diverse forms is given flexibility by adding

structural information field needed for the structure

of existing index files, if additional structural

information is added to XML documents. As a

result, the given query analysis time is reduced and

thus response time to output return is reduced by

using query schema based on index schema in order

to improve query processing efficiency.

2 INDEX SCHEMA BASED ON

DATABASE STRUCTURE

2.1 Index Schema

This paper has gone through the following processes

to make index schema:

(1) Build up XML documents into trees by

using DOM (document object model)

trees.

(2) Give sequential numbers to the built-up

trees by node of each level.

(3) Trees given numbers are rebuilt-up.

(4) Data to be stored in index files are

acquired from the trees.

(5) Make bit streams by using the number

given to each node.

(6) Store the data gained from [(4),(5)] in

index files.

2.1.1 XML Tree Numbering Technique

Figure 1 is a DTD used for shipments between

buyers and sellers.

<!ELEMENT deliveries (delivery*) >

<!ELEMENT delivery (sender, receiver) >

<!ELEMENT receiver (name*, item) >

<!ELEMENT name (#PCDATA)>

<!ELEMENT receiver (item*) >

<!ELEMENT item (item*, payment, price,

raddress)>

<!ELEMENT raddress (#PCDATA)>

<!ELEMENT price (#PCDATA)>

<!ATTLIST item iname CDATA #REQUIRED

fee CDATA #IMPLIED

icode CDATA #IMPLIED

dn CDATA #REQUIRED

amount CDATA

#IMPLIED>

<ellipsis>.......

Figure 1: DTD of shipping XML document.

Figure 2 the node of each level is sequentially

given a number, and bits which can express each

node are assigned in as the same number as that of

the node of each level, among the numbers given to

nodes of trees, those starting with bit 0 are excluded

and the numbers should be given from bit 1. In this

way, sequential numbers are given from the root

node to the least significant nodes. After the

operations are completed, the only bit stream for

each route is generated when the assigned numbers

are connected with the root node as the reference

point. The value itself shows the super-sub

relationship, the structural information of the entire

node in the same tree such as parent-children,

ancestor-descendant and sibling nodes from the root

node up to the node where the route ends.

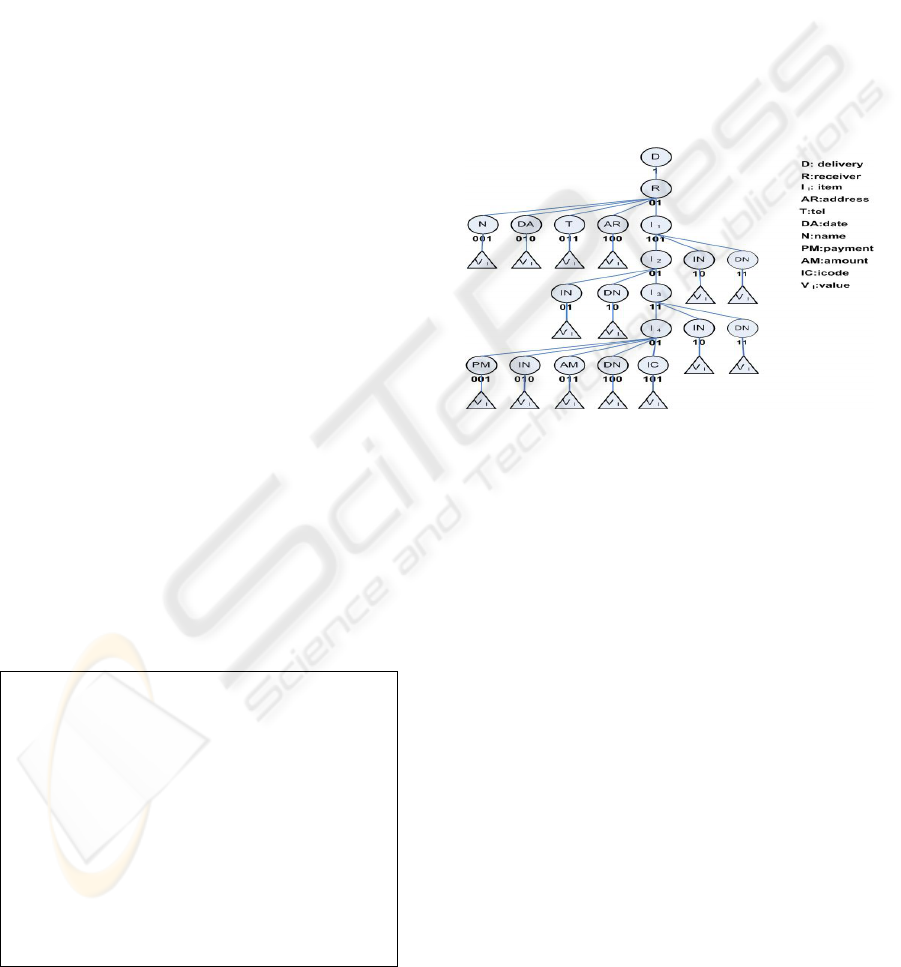

Figure 2: Tree of shipping XML document given bits.

2.1.2 Technique of Converting Bit Stream of

XML Structural Information

Figure 2 shows that bit stream value given to each

node is gained by successively visiting each from

the root node, and with this bit stream, the bit value

by level is stored from the least significant bit in the

assigned fixed bit space. The bit values from L0 to

L7 expressed in Figure 3 show the bit stream value

concerning hierarchical relationship by node in

Figure 2. The bit stream values correspond with all

the nodes one to one, and they are the only and

unique values. As well, as the value is the only

value, the whole XML document can be restored if

the bit value by each node name is known. The

entire size of the bit stream is 64 bits, which means

that the fixed space is assigned. Yet, if the level of

an XML document goes up or the node number by

level increases, the value will exceed the fixed bit of

64 bit. In that case, it can be solved by assigning a

space bigger than 64 bits. Even so, the whole

algorithm for the bit stream is not affected. It has the

advantage of expanding the bit stream without

changing the index schema when a number of

IMPLEMENTATION OF INDEX SCHEMA FOR XML DOCUMENTS BASED ON STRUCTURE OF DATABASE

403

documents should be processed. The bit stream

gained from the processes is again converted into

hexadecimal forms, and it can be stored in each field

of database index schema.

i = i times repetition of bit ‘0’

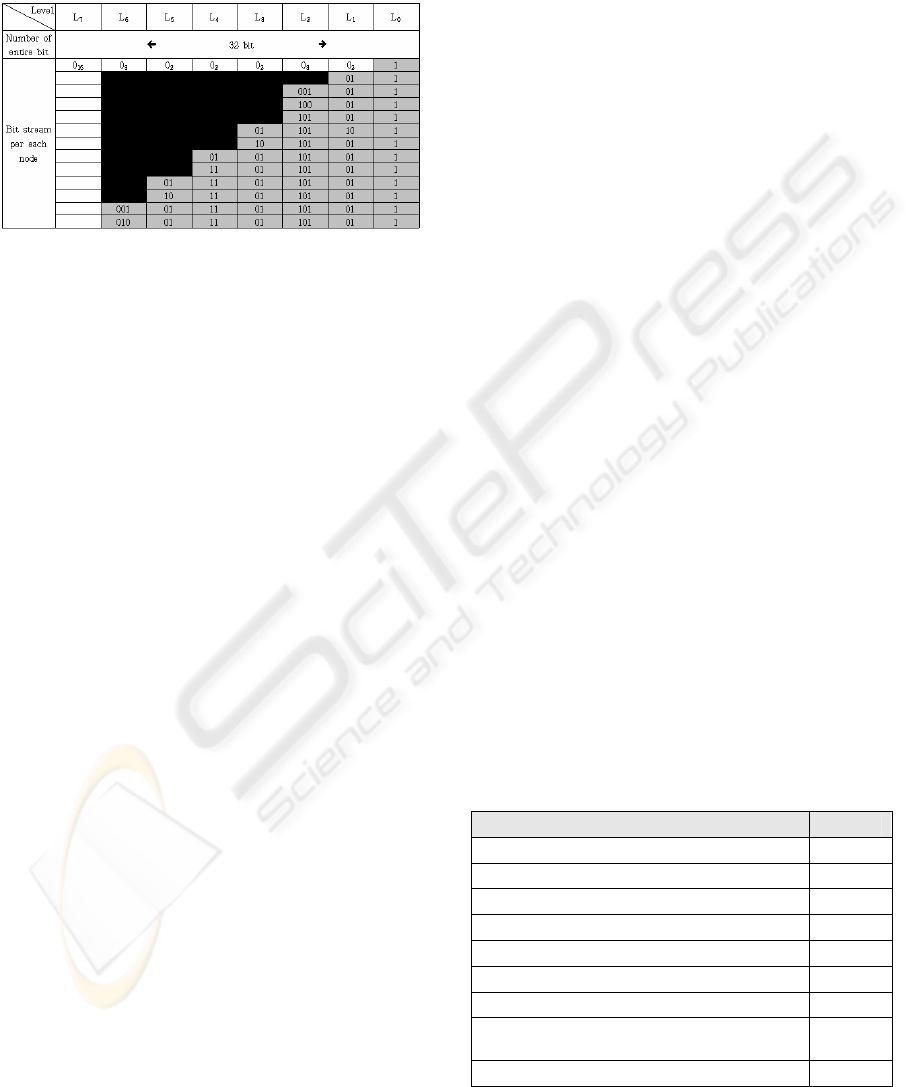

Figure 3: Bit stream assigned to each node.

2.1.3 Building up Index Schema Based on

Database

In index schema table, names of each node, unique

bit stream values, bit stream values of parent node,

and level values needed for query analysis when

user's queries come up are stored. The roles of the

schema structure of index files are defined as

follows:

(1) N_name field: names of XML tree nodes

(2) B_value field: bit stream values of each

node

(3) Tb_len field: certain node length of the

whole bit stream

(4) B_len field: bit stream length assigned

temporarily to the present node

(5) Level field: the level of the present node

on XML tree

(6) P_value field: bit stream value of the

parent node of the present node

(7) Ctype field: It shows if the present node

is a primitive or an attribute.

(8) Position field: It shows the order of the

present node as a child node to the parent

node.

(9) D_num field: the document no. of XML

document

(10) Data field: the value each node has

3 EXPERIMENTS AND RESULTS

The accuracy test was conducted about the general

query types by using 1000 all different XML

documents, and another test was carried out to

compare performances between the experiments of

existing XRel(Yoshikawa and Amagasa, 2001) and

INRIA(Floresc and Kossman, 1999) and the

methods suggested in this article.

3.1 Accuracy Test of Search Results in

Addressing Queries

In this paper, the experiment data in Table 1 were

built up to conduct an accuracy test for query

performances in an XML index system.

The index algorithm suggested by Chien et al

(2002)

focuses on the index techniques centering on

three points. That is, to process XML queries

effectively, it takes I) quickly testing the structural

relationship of ancestor-descendant (parent-child)

between the two given primitives II) quickly finding

out the candidate list that satisfies the structural

relationship in I), and III) effectively drawing the

pairs that satisfy the structural relationship from the

candidate list, the result of II).

This paper also suggested the algorithm

concerning the new structure search about I) and II)

mentioned above. In stage III), Chien proved its

efficiency with B+ trees. Yet, this paper presents a

more efficient method of storing and searching the

index algorithm that suits the processes of I) and II).

As the queries are already optimized after the

processes of I) and II), the result of one to one

corresponding from database in Stage III). However,

in compared with Chien's method, this paper shows

a slight difference. As Chien concentrates on

structural relationship index, he does not consider

the characteristics of storage media such as database.

Rather, he simply stores and searches the structural

information with B+ tree. However, there is a close

relationship between index structure and storage

structure in this paper, it is not appropriate to be

compared with Chien's method which indexes only

XML documents.

Table 1: Experiment data for accuracy evaluation.

MEAN VALUE

Num. of entire documents 1000

Average size of documents 10KB

Average num. of elements per document 128

Average num. of attributes per documents 98

Average depth of element 5.24

Average num. of keywords per documents 226

Average num. of child nodes of element 4.29

Average value of K in index based on

K-ary

Num. of entire elements 128,942

WEBIST 2007 - International Conference on Web Information Systems and Technologies

404

The index and query schema about XML

documents suggested in this article was conducted

1000 times by repeating the queries with the XPath

expression depth of 10 by using experiment data as

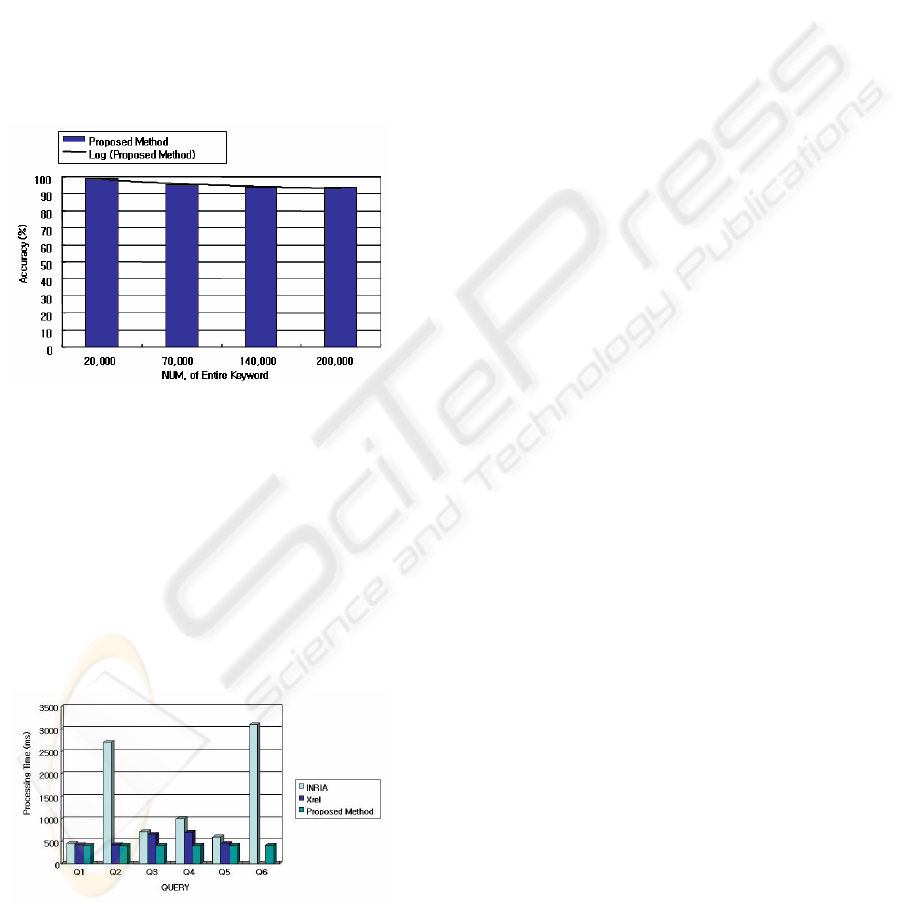

in Table 1, and the results are in Figure 4. As shown

in Figure 4, the accuracy was more than 94%,

though the number of primitives, attributes and texts

in expressions increases. The error rate was less than

6%, the reason is that with increased complexity of

documents, the number of nodes by level in XML

document trees increases. Thus, as the length of bit

stream that can express structural information of

each node exceeds 64 bits, query processing

operations fail, otherwise inappropriate results were

returned though query processing was successful.

Figure 4: Accuracy of retrieval result.

3.2 Response Time Experiment of

Query Processing

To experiment response time experiment of query

processing, queries and Shakespeare's plays (Bosak

Shakespeare Collection) used in INRIA and XRel‘s

comparison experiment in Yoshikawa and Amagasa

(2001) were adopted for experiment data and queries.

The queries have different complexity level as it

goes up from Q1 to Q6.

Figure 5: Response time of retrieval result.

As shown in Figure 5, the join operations were

made to search the results of the given queries for

the methods the existing INRIA and XRel

suggested, but the queries were already converted

into optimized forms before index file access in the

query method suggested in this paper, there was a

big difference from the operation results of INRIA

and XRel since there were no join operations

between tables that occur database access.

4 CONCLUSIONS

The index and query schema is the method of

searching structural information and data of XML

documents and storing it in the storage media such

as database which can manage a lot of information.

However, when XML documents are changed,

the numbers given to XML document trees should

be changed too. It means that there are advantages:

one is that bit stream values should be changed in

that case and the other is that search is possible after

bit streams are completed by visiting all the nodes of

XML documents. Again, another disadvantage is

that search time increases as index fine is

bigger. Therefore, future studies are needed for the

research about dynamic models of bit streams

without any changes in bit streams even in case of

changes in XML trees, and about the search

techniques that makes it possible to search structures

without visiting all the nodes of XML documents

trees. In addition, another study about expanding

index file structures is also necessary to cope with

the problem that database table becomes big as

structural information needed for XML document

indexing increases.

REFERENCES

Tuong Dao, 1998. An Indexing Model for Structured

Document to Support Queries on Content, Structure

and Attributes. In Processing of IEEE ADL. pp. 88-97.

Tova Milo, Dan Suciu, 1999. Index structures for Path

Expressions. In ICDT. pp. 277-295.

C.Zhang, J. Naughton, D. Dewitt, etc, 2001. On

Supporting Containment Queries in Relational

Database Management System. In ACM SIGMOD.

Shu-Yao Chien, Zografoula Vagena, Donghui Zhang, etc,

2002. Efficient Structural Joins on Indexed XML

Documents. In VLDB. pp. 263-274.

Masatoshi Yoshikawa, Toshiyuki Amagasa, 2001. XRel :

A Path-Based Approach to Storage and Retrieval of

XML Documents Using Relational Databases. In ACM

TOIT. pp. 110-141.

Chin-Wan Chung, Jun-ki Min, Kyu-seok Shim, 2002.

APEX : An Adaptive Path Index for XML Data.

In SIGMOD. pp. 121-132.

D. Floresc, D. Kossman, 1999. A Performance Evaluation

of Alternative Mapping Schemes for Storing XML

Data in a Relational Database. In Technical Report of

INRIA.

IMPLEMENTATION OF INDEX SCHEMA FOR XML DOCUMENTS BASED ON STRUCTURE OF DATABASE

405
