POLICY-BASED MANAGEMENT OF DIFFSERV USING XML

TECHNOLOGIES

Ntanzi M. Carrilho, Neco Ventura

Department of Electrical Engineering, University of Cape Town, Rondebosch, Cape Town, South Africa

Keywords:

Policy-based Network Management, DiffServ, XML-based Network Management, NETCONF.

Abstract:

A design, implementation, and evaluation of a Policy-based Management framework for DiffServ networks

using XML technologies is presented. XML is used for policy representation throughout the entire policy life

cycle, as well as in the communication protocol, reducing development costs, while promoting clarity, simplic-

ity, and interoperability. Furthermore, performance evaluation results show that the proposed scheme generates

less network trafﬁc than its COPS-PR counterpart when protocol messages are compressed. Moreover, XML

messages generate higher processing delays. The added processing overhead caused by compression to XML

messages is very small, thus the gains in reduced network trafﬁc generated outweigh the losses in terms of

processing delays.

1 INTRODUCTION

Today Internet trafﬁc is highly diverse. Applications

have different requirements in terms of bandwidth,

delay, loss and jitter. The Internet protocol suite was

originally designed to provide best-effort services; it

was designed to deliver packets to their destination

without any Quality of Service (QoS) guarantees, re-

sulting in unpredictable behaviour of applications.

In order to counter this behaviour a few technolo-

gies were designed to complement the IP infrastruc-

ture to it capable of handling trafﬁc with different QoS

needs. One of these technologies is the Differenti-

ated Services (DiffServ) (Blake et al., 1998) network

architecture. DiffServ was designed to be a scalable

service differentiation architecture for the Internet. It

achieves scalability by classifying and possibly condi-

tioning trafﬁc streams on the edge of the network, ac-

cording to their requirements. On the core of the net-

work, resources are allocated to these streams based

on their classiﬁcation or Per-Hop Behaviour (PHB).

The management requirements for DiffServ net-

works differ from those of simple IP networks. Al-

though the DiffServ technology is relatively simple,

the initial setup and conﬁguration of hundreds of de-

vices can be complex and daunting. Policy-Based

Network Management (PBNM) provide mechanisms

to simplify and automate the management and admin-

istration of these networks, therefore reducing man-

agement costs.

The Internet Engineering Task Force (IETF) is

working on the standardisation of PBNM technolo-

gies such as the Common Open Policy Service proto-

col for Policy Provisioning (COPS-PR) (Chan et al.,

2001) and its associated data deﬁnition language, the

Structure of Policy Provisioning Information (SPPI)

(McCloghrie et al., 2001). COPS-PR messages are

usually encoded according to the Basic Encoding

Rules (BER), a binary encoding scheme. As a conse-

quence the protocol is not easy to use, understand, or

debug. Up to now, COPS-PR and SPPI have failed to

gain considerable market acceptance (Schoenwaelder

et al., 2003), mainly because network operators feel

that COPS-PR protocol does not address their require-

ments (Schoenwaelder, 2003).

On the other hand the limitations of the Simple

Network Management Protocol (SNMP) as a suit-

able mechanism for device conﬁguration manage-

ment are driving research on the applicability of XML

(the eXtensible Markup Language) to device con-

ﬁguration management. The IETF has charted the

Network Conﬁguration (NETCONF) Working Group

M. Carrilho N. and Ventura N. (2007).

POLICY-BASED MANAGEMENT OF DIFFSERV USING XML TECHNOLOGIES.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 72-79

DOI: 10.5220/0001281500720079

 SciTePress

(WG) with the aim of creating a network conﬁgura-

tion protocol using XML technologies. NETCONF

(Enns, 2006) enables devices to communicate with

each other using Remote Procedure Calls (RPC) en-

coded in XML.

Motivated by the failure of COPS-PR, we present

the design, implementation, and evaluation of a

policy-based management architecture for DiffServ

networks using NETCONF as the device communi-

cation protocol, along with XML Schema and XML

for policy modelling and representation, respectively.

There are several advantages of using XML for both

data representation and the exchange protocol. XML

provides a format that is both machine and human-

readable, which is useful in the debugging and de-

ployment of the tool. XML Schema provides power-

ful and extensible modelling mechanisms capable of

modelling information of arbitrary complexity. Due

to the widespread XML document processing tools,

the effort needed in the development of the PBNM

system is reduced. Perhaps the most important incen-

tive for the use of XML for data representation and

protocol messages in a PBNM system is that it im-

proves interoperability between heterogeneous man-

agement systems or even between elements within the

same system, and provides a common format for the

various policy representation levels.

The remainder of this paper is organised as fol-

lows: Section 2 presents a brief overview of NET-

CONF. Section 3 presents an overview of relevant

work related to the one presented here. Section 4

introduces the proposed policy framework. Section

5 proceeds by describing the proposed PBNM ar-

chitecture and its main components. Section 6 pro-

vides measurement results and ﬁnally, conclusions are

drawn in Section 7.

2 THE NETCONF PROTOCOL

NETCONF (Enns, 2006) is an XML based proto-

col created speciﬁcally for network device conﬁgu-

ration. It uses a XML RPC mechanism to expose

a formal Application Programming Interface (API)

through which managers and agents communicate.

The protocol deﬁnes a base set of operations to re-

trieve, edit and copy partial or entire device conﬁgu-

rations. This base set of operations can be extended

by adding capabilities.

NETCONF is a connection-oriented protocol

which requires a persistent connection between the

manager and the agent although it is not bound to any

particular transport protocol. Its connections must

provide authentication, data integrity, and privacy.

NETCONF depends on the transport protocol for this

capability. SSH, SOAP over HTTP and BEEP may be

used. Although we are not using any of these proto-

cols in our current implementation, in future we are

planning to use SSH to secure sessions.

3 RELATED WORK

This section will review research work addressing is-

sues relating to policy representation and transporta-

tion using XML based technologies.

(Beller et al., 2004) propose a framework for

deﬁning reusable business-level policies for DiffServ

using XML for policy representation. Policies are de-

signed following a modular approach to increase re-

usability. Xpointers are used to locate reusable pol-

icy fragments placed in a reusable policy container.

Although this is a good approach, we think that us-

ing the XInclude standard would yield a better result,

since it would automate the parsing and inclusion of

re-usable fragments. This is the approach followed in

the research project.

(Clemente et al., 2005) propose a similar PBNM

architecture focusing on IP Security (IPSec). Similar

to the scheme proposed in our paper, XML is used for

representation of policies during their entire life cy-

cle. High-level policies are modelled based on PCIM

and lower-level policies are modelled based on the

IPSec PIB. A Model-Level mapping scheme is used

for lower level policy mapping. PIB attributes are

mapped to XML elements instead of attributes, result-

ing in XML documents that are even more verbose.

The proposals mentioned above only partially

solve the problems stated in Section 1. This is due to

the fact that they still use COPS-PR to provision poli-

cies. (Franco et al., 2006) and recognise in their work

the potential of using XML-based exchange protocols

for PBNM. They present two communication mod-

els for policy provisioning, based on NETCONF and

SOAP, respectively. The study shows, as compared

to COPS-PR, that both schemes waist more band-

width. An interesting ﬁnding is that if compression is

used for XML messages both schemes consume less

bandwidth than COPS-PR. The study concludes that

if NETCONF or SOAP are to be used for policy pro-

vision careful attention must be paid to the modelling

of the communication between devices. The archi-

tecture presented in this paper uses NETCONF for

device communication and the communication model

used is very similar to the one presented in (Franco

et al., 2006).

In summary, whereas (Beller et al., 2004) and

(Clemente et al., 2005) use COPS-PR for policy pro-

POLICY-BASED MANAGEMENT OF DIFFSERV USING XML TECHNOLOGIES

visioning, we employ NETCONF. We think that this

is a step forward because by using an XML-based

provisioning protocol coupled with XML policy rep-

resentations we simplify the internal structure of the

PBNM system and reduce development costs. More-

over, (Franco et al., 2006) use XML-based policy pro-

visioning schemes but their work focuses on low level

QoS policies. In this paper we aim to present a more

comprehensive policy framework by adding a layer of

abstraction that focuses on the network instead of the

various managed devices and simpliﬁes the adminis-

tration process.

4 PROPOSED POLICY

FRAMEWORK

The IETF and the Distributed Management Task

Force (DMTF) have jointly developed object oriented

models for policy representation, namely the Policy

Core Information Model (PCIM) (Moore et al., 2001)

and its extensions (PCIMe) (Moore, 2003). PCIM and

PCIMe deﬁne the generic structure of a policy and can

be extended to enable developers and administrators

to deﬁne policies of different types. The Policy QoS

Information Model (QPIM) (Snir et al., 2003) is a fur-

ther extension of PCIM and PCIMe designed speciﬁ-

cally for the representation of QoS policies. The pol-

icy framework presented here is based on these stan-

dards.

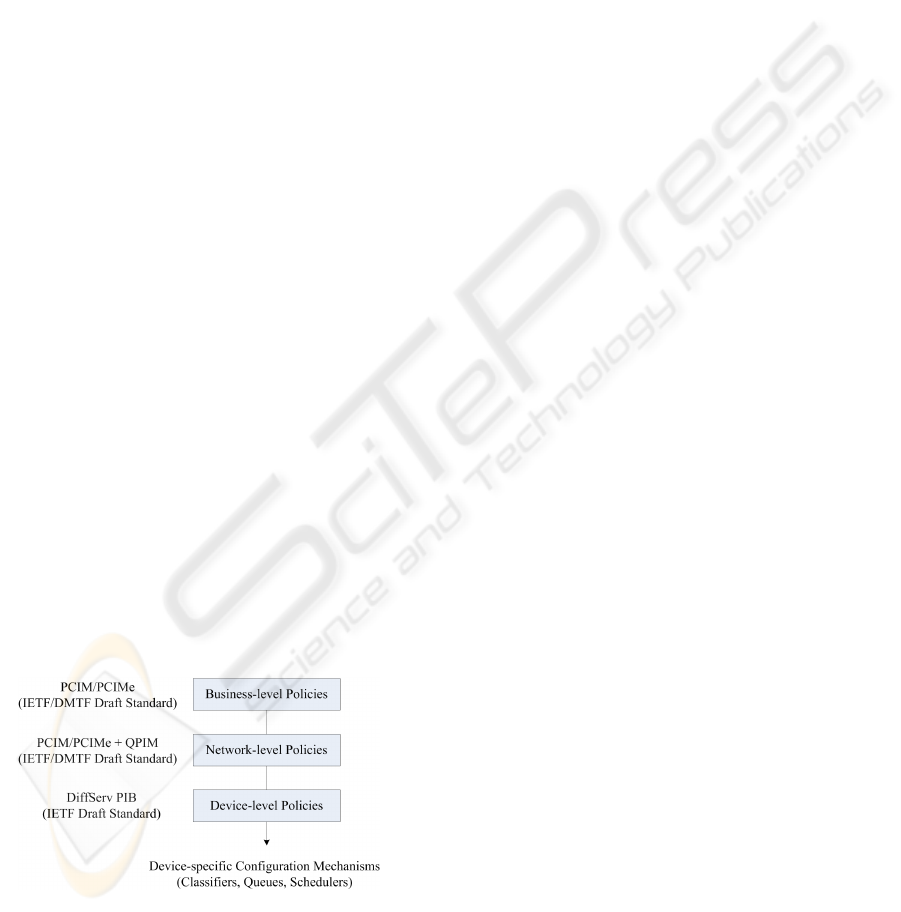

Figure 1 presents an overview of the policy frame-

work used in our work. Business-level policies are

used to express the general business requirements of

the network. They represent the highest level of pol-

icy abstraction and are generally presented in a user

friendly format. Business-level policies can be mod-

elled using PCIM extended to model policies in a spe-

ciﬁc domain, e.g. QoS.

Figure 1: Policy hierarchy.

This work focuses on the two middle levels of

Figure 1, more speciﬁcally, network and device-level

policies. Network-level policies represent generic

network operational and conﬁguration information

that is independent of any speciﬁc device but is de-

pendent of general QoS mechanisms such as the type

of queue management strategy employed. We model

network-level policies based on the PCIM/PCIMe

and QPIM information models. We chose to model

network-level policies based on these standards be-

cause they are very ﬂexible, widely accepted, and do

not depend on any storage technology.

Device-level policies are speciﬁc for a given de-

vice. The PBNM system translates network-level

policies to device-level policies based on the capa-

bilities supplied by each device. While network-

level policies provide a common level of abstrac-

tion required to manage multiple devices with poten-

tially different capabilities, device-level policies pro-

vide adequate policies for each device based on the

device’s capabilities. In this work we model device-

level policies based on the DiffServ Policy Informa-

tion Base (PIB). We opted to use the DiffServ PIB, in

favour of QDDIM (Information model for Describing

Network Device QoS Datapath Mechanisms) (Moore

et al., 2004) because of its simplicity and acceptance.

Furthermore COPS-PR is designed to transfer poli-

cies modelled using the DiffServ PIB, and in order

to provide a fair comparison between the alternative

policy provision scheme presented in this paper and

traditional COPS-PR schemes both schemes have to

be based on the same model.

Device-level policies provide a common conﬁgu-

ration format for multiple network devices. But the

speciﬁc conﬁguration commands applied to devices

may differ. Therefore the ﬁnal translation stage in the

policy life cycle is the translation of device-level poli-

cies to device-speciﬁc conﬁguration commands.

4.1 Network-Level Policies

As mentioned in the previous section we model

network-level policies based on PCIM/PCIMe and

QPIM. These models are independent of any stor-

age technology allowing various data models to be

designed and implemented according to a single uni-

form model. Some of their strengths are that they al-

low for policy rule nesting and re-usability. Rule nest-

ing enables complex policy rules to be constructed

form multiple simpler rules enhancing the manage-

ability and scalability of the policy framework.

In order to gain advantage from these features

these information models have to be mapped to a suit-

able data model. By using XML for policy repre-

sentation and storage we ease that mapping. XML

is renowned for its ability to represent data of almost

arbitrary complexity, easily enabling data nesting and

re-usability.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

There are two possible mapping schemes: schema

mapping and meta-schema mapping (Youn and Hong,

2003). A Schema Mapping is one in which the XML

Schema is used to describe CIM classes, and CIM In-

stances are mapped to valid XML Documents for that

schema. XML element names and attributes are taken

directly from the corresponding CIM element names

and attributes respectively. A Meta-schema Mapping

is one in which the XML schema is used to describe

the CIM meta-schema, and both CIM classes and in-

stances are valid XML documents for that schema.

CIM element names are mapped to XML attribute or

element values, rather than XML element names.

In this work we opted for the schema mapping

since it provides a more intuitive representation of

PCIM/PCIMe and QPIM in XML. Moreover because

XML Schema is used to describe CIM classes, this

mapping scheme gives us more validation power. The

mapping strategy adopted in this work is as follows.

The mapping of CIM structural classes is straight

forward. There is a one-to-one mapping of CIM struc-

tural classes to XML elements. CIM class attributes

are mapped to the corresponding XML element at-

tributes. Only concrete CIM classes are mapped. Ab-

stract classes are omitted and their attributes are in-

herited by the closest concrete descendant class.

The mapping of CIM associations is more tricky

because of the need to enable data re-usability. When

the association does not involve reusable information

the association class is not represented. Its attributes

are mapped to the structural representing the Depen-

dent/PartComponent of the association.

When the association involves reusable informa-

tion the association class is explicitly mapped to an

XML element. The end of the association represent-

ing the Dependent/PartComponent class is mapped to

an XInclude element. XInclude is a World Wide Web

Consortium (W3C) standard that enables the inclu-

sion of a fragment of an XML document within an-

other. XInclude uses XPointer, another W3C stan-

dard, to determine what part of a document to in-

clude. The advantage of using XInclude is that it

allows for policies to be created in a modular fash-

ion. Furthermore, some native XML databases al-

ready come equipped with an XInclude processor that

replaces xinclude elements with the XML fragments

they point to, making it very easy to deploy solutions

that beneﬁt from XInclude. In order to increase ro-

bustness, XML policies are validated before and after

inclusion.

The extract below corresponds to a network-

level policy that models an Expedited Forwarding

(EF) class suitable for IP telephony. In the ex-

ample xinclude elements are used to locate and

include re-usable actions and conditions. The

example also demonstrates how associations (e.g.

PolicyConditionInPolicyRule) that involve

re-usable policy elements are used.

<xi:include href="/db/QoSPolicies/

ReusablePolicies/

CompoundPolicyCondition.xml

#xpointer(//CompoundPolicyCondition[

@Name=’EFedgeConditions’])" />

</PolicyConditionInPolicyRule>

<xi:include href="/db/QoSPolicies/

ReusablePolicies/

QoSPolicyPoliceAction.xml

#xpointer(//QoSPolicyPoliceAction[

@Name=’EFedgePolicer’])"/>

</PolicyActionInPolicyAction>

<xi:include href="/db/QoSPolicies/

ReusablePolicies/

QoSPolicyBandwidthAction.xml

#xpointer(//QoSPolicyBandwidthAct[

@Name=’EFedgeBand’])"/>

</PolicyActionInPolicyAction>

</CompoundPolicyAction>

</PolicyRule>

4.2 Device-Level Policies

Device-level policies are modelled based on the Diff-

Serv Policy Information Base (PIB). The DiffServ

PIB (Chan et al., 2003) follows the principles of

the DiffServ architecture

described in (Blake et al.,

1998) and its informal management model presented

in (Bernet et al., 2002). It describes a structure for

specifying management information that can be trans-

mitted to a network device using COPS/COPS-PR.

The DiffServ PIB models TCB elements as Provi-

sioning Classes (PRCs) and Instances of these classes

(PRIs), identiﬁed by unique Provisioning Instance

Identiﬁers (PRIDs).

As with network-level policies, there are two pos-

sible schemes for mapping SPPI-based PIB to a XML

format: model-level mapping and meta-model-level

mapping (Youn and Hong, 2003). A model-level

mapping is one in which each PIB object is mapped

to a XML Schema fragment. XML element names or

attributes are taken directly from PIB object names.

A meta model-level is one in which the XML Schema

gives a generic description of the PIB. In this case, in-

stead of mapping PIB objects to XML element names

or attributes, PIB objects are mapped to XML at-

tributes values deﬁned by the XML Schema.

For this work we used the model-level mapping

POLICY-BASED MANAGEMENT OF DIFFSERV USING XML TECHNOLOGIES

because it provides a more intuitive representation

of the PIB in XML, and it gives us more validation

power.

For the mapping strategy each PRC is mapped to

a XML element and instances of that PRC (i.e. PRIs

or PIB objects) are mapped to corresponding XML

attributes. We chose to map PRIs to XML attributes

instead of child elements as in

(Clemente et al., 2005)

because this way the resulting XML documents be-

come less verbose.

As an exception, PRIs or objects

that refer to other Provisioning Instance Identiﬁers

(PRIDs), such as the ClfrElementSpecific ob-

ject, are mapped to child XML elements. This is due

to the fact that

PRIs containing PRIDs are at times

optional, and can be left out

. These elements have an

attribute Location, which has as value, an Xpath

expression locating the desired PRC element. PRCs

of the same type are grouped within the same PRC

container, so that XML documents become more con-

venient for reading and processing.

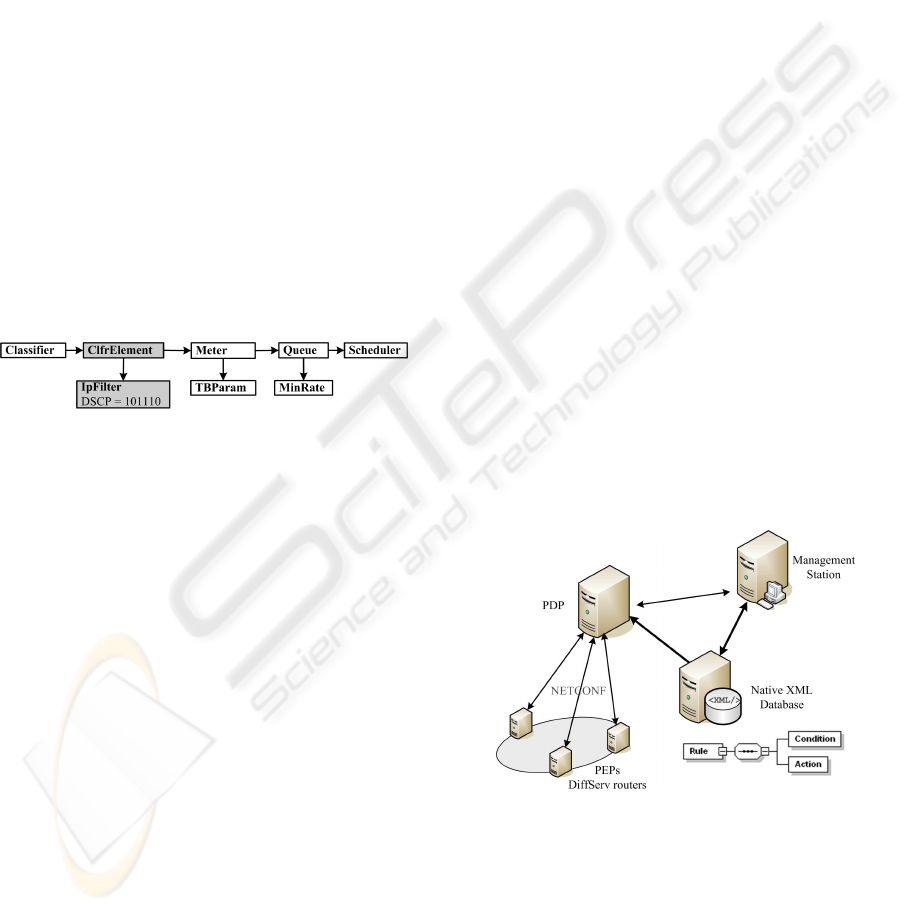

Figure 2 depicts a very simpliﬁed version of a

TCB. In the ﬁgure the blocks are PRIs. The arrows

depicted are linking PRIs using their PRIDs as refer-

ence.

Figure 2: DiffServ PIB TCB.

The XML fragment bellow corresponds to the

mapping of the highlighted portion of Figure 2. Note

that although all elements that represent the DiffServ

PIB belong to a speciﬁc namespace (i.e. ds-pib),

we chose to leave the namespace preﬁx out of the fol-

lowing example for simplicity.

<IpFilterTable BaseFilterPrid="3"

IpFilterDscp="101110"/>

</IpFilterTable>

...

<ClfrElementSpecific Location=

"//IpFilterTable[@BaseFilterPrid=3]"/>

<ClfrElementNext Location=

"//MeterTable[@MeterPrid=1]"/>

</ClfrElementTable>

...

</MeterTable>

There are many advantages of using a XML over bi-

nary SPPI for policy representation. XML-based PIB

is clear, easy to use and debug. The Xpath-based nam-

ing scheme presented here is more clear and easy to

understand than the Object Identiﬁer (OID) naming

scheme employed by SPPI-based PIBs. As depicted

in the XML fragment above, the generated XML doc-

ument is easy readable and self-describing. Further-

more, because XML parsers are widely available, de-

velopers spend less time worrying about the details of

the parser itself and more time working on the appli-

cation. This certainly reduces the development cycles

of PBNM applications.

5 PROPOSED ARCHITECTURE

Figure 3 presents an overview of the our proposed

PBNM architecture. It is based on the PBNM archi-

tecture deﬁned by the IETF (Yavatkar et al., 2000).

The components are the same, whereas the technolo-

gies used are different.

Firstly, a native XML database serves as the pol-

icy repository. This is a natural choice taking into

consideration that we only use XML for policy repre-

sentation. Some native XML databases already come

equipment with an XInclude processor and an XML

parser and ’validator’. That way we do not have to

worry about the parsing, validating and processing of

XML documents, focusing only on policy authoring.

Furthermore, we can organise policies in the database

in a modular fashion, as described in Section 4.1, us-

ing XInclude to include the various reusable XML

policy fragments.

Figure 3: Proposed PBNM architecture.

Secondly, policy provisioning is done through

NETCONF instead of COPS-PR. Because NET-

CONF is XML-based it is simple, portable, easy to

understand, program and debug. Additionally we

can use the same tools to process protocol messages

and conﬁguration data, greatly reducing development

costs.

As per Figure 3, the management station serves

WEBIST 2007 - International Conference on Web Information Systems and Technologies

as the interface between the administrator and the

PBNM system. It is used to create, insert and edit

policies in the XML database through the standard

API exposed by the database server. It also monitors

the operation of various PDPs.

The native XML database stores policies in XML

format. It automatically validates them against well

deﬁned XML Schemas. The database server includes

a XInclude processor that automatically processes

XInclude elements, locating and including fragments

of policies stored in reusable policy collections. The

other system components interact with the database

server through a standard API.

The PDP is the central part of the system. It is

responsible for fetching network-level policies stored

in the database using the roles supplied by PEPs

to discriminate between policies. It validates the

fetched policies. Translates network-level policies

into device-level based on the device capabilities sup-

plied by PEPs; sets up a scheduler according to the

time conditions attached to each policy and sends

device-level policies to PEPs using the NETCONF

API exposed by them.

The PEPs enforce policies on the DiffServ routers.

They are responsible for receiving and translating

common device-level policies into a set of commands

speciﬁc for the type of router being managed, and

feeding the resulting commands to the router.

5.1 The Communication Model

The communication model employed in this scheme

is different from that employed by schemes that use

COPS-PR. COPS-PR sees the PDP as the server and

the PEP as the client. The PEP opens the connection

with the server. In case of failure the client is respon-

sible for re-establishing the lost connection.

On the other hand NETCONF employs a

client/server model where the PDP is the client

whereas the PEP is the server. The PDP is conﬁgured

with a list of PEPs that it manages. It is responsible

for initiating communication with all PEPs, request-

ing roles and capabilities of each device, and sending

policy decisions. The PDP has to keep track of all

open sessions to PEPs. In case of connection failure

the PDP is responsible for re-establishing the lost con-

nection. This characteristic makes this scheme less

attractive than the COPS-PR scheme, with regard to

failure recovery.

5.2 Implementation Details

This Section gives a brief overview of some of the

details regarding the implementation of the proposed

architecture.

The native XML database used was the eXist

(Meier, 2006) open source database. It has XQuery

support to run server side applications. It also comes

equipped with an XInclude engine to process xinclude

elements. We use the standard XML:DB API pro-

vided to interact with the repository.

The PDP was programmed as a multi-threaded

Java client. We used the Java API for XML Pro-

cessing (JAXP) to ease the parsing, validation, and

processing of policies. JAXP provides an abstraction

layer between the PDP application and the XML doc-

uments through the Document Object Model (DOM)

and the Simple API for XML (SAX). The PDP has

a simple NETCONF stack used to communicate with

PEPs.

The Yenca (Bourdelon and State, 2004) NET-

CONF agent prototype was used as basis for the PEP

server. Yenca is a simple NETCONF agent writ-

ten in C by the LORIA-INRIA Lorraine Madynes

Research team, in France. The agent has a modu-

lar design allowing users to extend it with modules

that are loaded dynamically. We extended the Yenca

agent with a DiffServ module that supports the Diff-

Serv PIB. The module validates policies and trans-

lates them to router-speciﬁc conﬁguration commands.

6 PERFORMANCE STUDY

The advantages of using XML in any system are its

simplicity, clarity, and portability. On the other hand

that design choice can be costly in terms of network

usage and processing overhead because of the verbose

nature of XML documents. This Section presents

a performance comparison between the XML-based

PBNM system proposed in this paper and a PBNM

system using COPS-PR as the management protocol

with a SPPI-based DiffServ PIB.

6.1 Provisioned Policies

DiffServ policies were provisioned to core DiffServ

routers in four iterations, going from simple to com-

plex. Table 1 gives a summary of the four iterations.

In iteration 1 the PDP sends policies correspond-

ing to the Expedited Forwarding (EF) class suitable

for IP telephony. In iteration 2 it adds an Assured For-

warding 4x class (AF4x) designed to support multi-

media conferencing applications. In the third iteration

we add an AF3x class for multimedia streaming appli-

cations. Finally, in iteration 4, a AF1x class suitable

for applications that generate high throughput data is

POLICY-BASED MANAGEMENT OF DIFFSERV USING XML TECHNOLOGIES

Table 1: Provisioned policies.

Iteration

Provisioned

Classes

Number of

Objects

1 EF 67

2 EF, AF4x 213

3 EF, AF4x, AF3x 293

EF, AF4x,

AF3x, AF1x

373

added. These policy classes were created following

the guidelines recommended by (Babiarz et al., 2006).

6.2 Experimental Environment

Our experimental setup is composed of two machines

acting as a PDP and PEP respectively. The PDP is

an AMD Sempron 2600+, with 705MB RAM, run-

ning a Fedora Core 4 operating system. The PEP is a

Pentium II, 233 MHz, with 450 MB RAM, running a

Fedora Core 4 operating system. The PEP serves as

proxy to an edge DiffServ router implemented using

the Linux trafﬁc control libraries. The the two ma-

chines are connected to each-other via a 100 Mbps

switch.

The overhead imposed by our implementation was

compared to that of the COPS-PR/DiffServ imple-

mentation developed by the Networks and Protocols

Group of the Tampere University of Technology. We

chose this implementation because like Yenca, it is

written in C, and it is simple and small, providing a

good basis for comparison.

The parameters taken into consideration when

comparing the performance of both schemes were

network usage when the PDP sends decisions to the

PEP, and the processing delays generated when the

PEP parses and saves policy decisions.

6.3 Network Usage

We compared the network trafﬁc generated by each

scheme for each policy provisioning iteration. Given

the verbose nature of XML documents we decided to

add zlib compression to XML messages and verify

its effect on the trafﬁc generated. Figure 4 shows the

resulting measurements.

The results show that NETCONF generates more

trafﬁc than COPS-PR. As the number of objects trans-

mitted increases, the amount of trafﬁc NETCONF

generates as compared to that of COPS-PR also in-

creases.

When zlib compression is added to NETCONF

messages, and the number of objects transmitted is

small, both schemes generate roughly the same net-

work trafﬁc. However, as the number of objects in-

creases NETCONF outperforms COPS-PR. This is

due to the fact that XML documents are structurally

repetitive, resulting in good compression levels for

large documents.

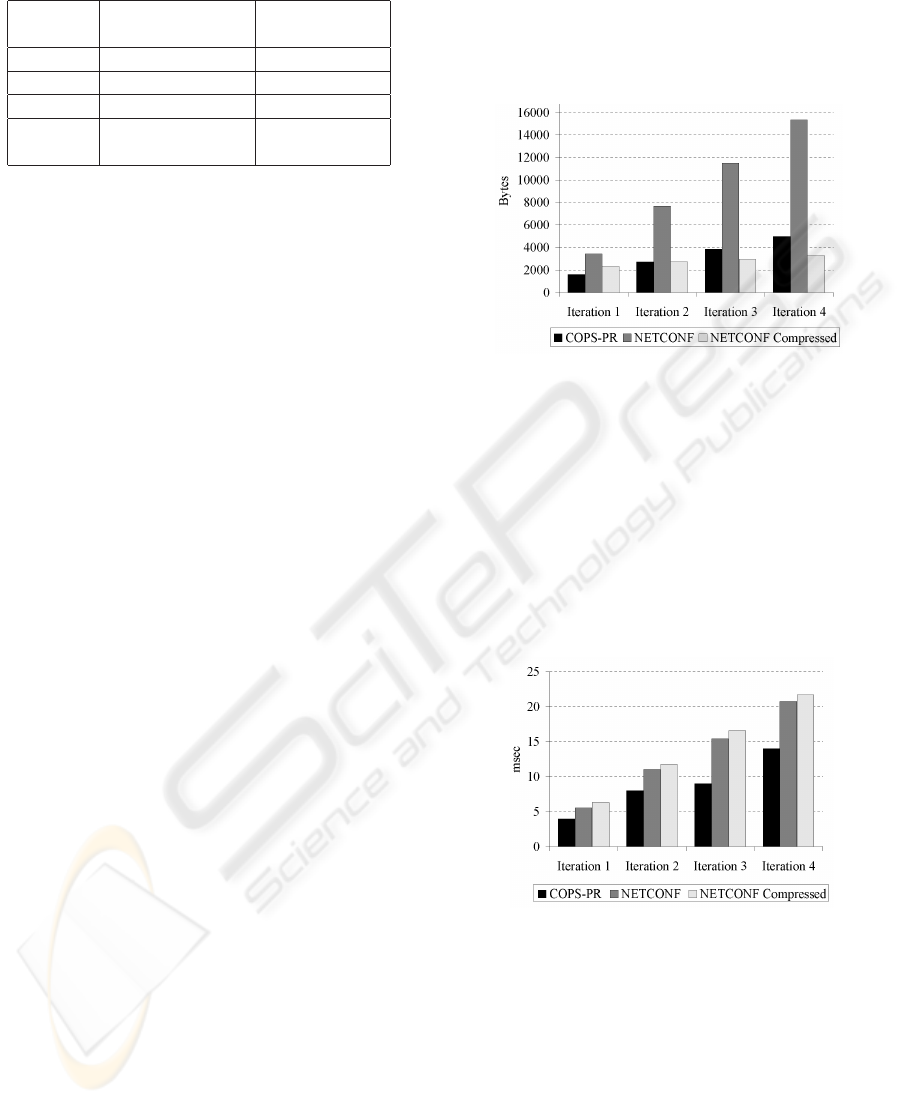

Figure 4: Network usage.

In cases where bandwidth is scarce, compression

schemes such as XMill can be used. These schemes

are tailored speciﬁcally for XML documents, achiev-

ing better results than general compression schemes.

6.4 Processing Delay

The second parameter considered was the time taken

for the PEP to parse, decode and save policy deci-

sions. Figure 5 shows the resulting measurements.

Figure 5: Processing delays.

Not surprisingly the measurements show the

scheme proposed in this paper generates more pro-

cessing overhead. The XML messages are more pro-

cessor intensive than BER messages because they go

through complex parsing and validation before data is

extracted. However, as network devices become more

powerful the processing overhead caused by XML

documents becomes a less relevant issue.

The added processing overhead generated by

adding compression to documents is very small,

therefore with the use of compression the gains in re-

WEBIST 2007 - International Conference on Web Information Systems and Technologies

duced network trafﬁc generated outweigh the losses

in terms of processing overhead.

7 CONCLUSIONS

In this paper we presented the design, implementa-

tion, and evaluation of a PBNM system based on

XML technologies. XML is used for policy represen-

tation throughout the entire policy life cycle, as well

as in the communication protocol, reducing develop-

ment costs, while promoting clarity, simplicity, and

interoperability. As exempliﬁed, XML-based (net-

work and device-level) policies are self-describing,

and easy to use.

The performance comparison results show that the

scheme proposed in this paper generates less network

trafﬁc than its COPS-PR counterpart when protocol

messages are compressed. The difference becomes

more signiﬁcant as the number of objects transferred

increases.

On the other hand the measurements show that the

XML-based scheme proposed here generates more

processing delays than COPS-PR due to the fact that

XML messages have to go through complex parsing

and validation before data is extracted. However, as

network devices become more powerful the process-

ing delays caused by XML messages becomes a less

relevant factor.

The added processing overhead generated by

adding compression to documents is very small,

therefore by using compression the gains in reduced

network trafﬁc generated outweigh the losses in terms

of processing delays. In the near future we plan to ver-

ify the memory consumption levels at the PEP. This

can be a concerning factor because DOM parsers have

to reconstruct entire XML documents in memory in

order to process it.

REFERENCES

Babiarz, J., Chan, K., and Baker, F. (2006). Conﬁguration

Guidelines for DiffServ Service Classes. RFC 4594

(Informational).

Beller, A., Jamhour, E., and Pellenz, M. E. (2004). Deﬁning

Reusable Business-Level QoS Policies for DiffServ.

In DSOM, pages 40–51.

Bernet, Y., Blake, S., Grossman, D., and Smith, A.

(2002). An Informal Management Model for Diffserv

Routers. RFC 3290 (Informational).

Blake, S., Black, D., Carlson, M., Davies, E., Wang, Z., and

Weiss, W. (1998). An Architecture for Differentiated

Service. RFC 2475 (Informational). Updated by RFC

3260.

Bourdelon, J. and State, R. (2004). YENCA

Network Management Framework.

http://sourceforge.net/projects/yenca/.

Chan, K., Sahita, R., Hahn, S., and McCloghrie, K. (2003).

Differentiated Services Quality of Service Policy In-

formation Base. RFC 3317 (Informational).

Chan, K., Seligson, J., Durham, D., Gai, S., McCloghrie,

K., Herzog, S., Reichmeyer, F., Yavatkar, R., and

Smith, A. (2001). COPS Usage for Policy Provision-

ing (COPS-PR). RFC 3084 (Proposed Standard).

Clemente, F. J. G., Pérez, G. M., and Gómez-Skarmeta,

A. F. (2005). An XML-Seamless Policy Based Man-

agement Framework. In MMM-ACNS, pages 418–

423.

Enns, R. (2006). NETCONF Conﬁguration Protocol. Tech-

nical report, Internet Engineering Task Force, Net-

Conf Working Group.

Franco, T. F., Lima, W. Q., Silvestrin, G., Pereira, R. C.,

Almeida, M. J. B., Tarouco, L. M. R., Granville,

L. Z., Beller, A., Jamhour, E., and Fonseca, M.

(2006). Substituting COPS-PR: An Evaluation of

NETCONF and SOAP for Policy Provisioning. In

POLICY ’06: Proceedings of the Seventh IEEE Inter-

national Workshop on Policies for Distributed Systems

and Networks (POLICY’06), pages 195–204, Wash-

ington, DC, USA. IEEE Computer Society.

McCloghrie, K., Fine, M., Seligson, J., Chan, K., Hahn,

S., Sahita, R., Smith, A., and Reichmeyer, F. (2001).

Structure of Policy Provisioning Information (SPPI).

RFC 3159 (Proposed Standard).

Meier, W. (2006). eXist Version 1.0 - Open Source Native

XML Database. http://exist.sourceforge.net/.

Moore, B. (2003). Policy Core Information Model (PCIM)

Extensions. RFC 3460 (Proposed Standard).

Moore, B., Durham, D., Strassner, J., Westerinen, A., and

Weiss, W. (2004). Information Model for Describ-

ing Network Device QoS Datapath Mechanisms. RFC

3670 (Proposed Standard).

Moore, B., Ellesson, E., Strassner, J., and Westerinen, A.

(2001). Policy Core Information Model – Version 1

Speciﬁcation. RFC 3060 (Proposed Standard). Up-

dated by RFC 3460.

Schoenwaelder, J. (2003). Overview of the 2002 IAB Net-

work Management Workshop. RFC 3535 (Informa-

tional).

Schoenwaelder, J., Pras, A., and Martin-Flatin, J.-P. (2003).

On the Future of Internet Management Technologies.

IEEE Communications Magazine, 41(10):90–97.

Snir, Y., Ramberg, Y., Strassner, J., Cohen, R., and Moore,

B. (2003). Policy Quality of Service (QoS) Informa-

tion Model. RFC 3644 (Proposed Standard).

Yavatkar, R., Pendarakis, D., and Guerin, R. (2000). A

Framework for Policy-based Admission Control. RFC

2753 (Informational).

Youn, K. S. and Hong, C. S. (2003). A Network Manage-

ment Architecture Using XML-Based Policy Informa-

tion Base. In ICOIN, pages 876–885.

POLICY-BASED MANAGEMENT OF DIFFSERV USING XML TECHNOLOGIES
