ERLANG/OTP FRAMEWORK FOR COMPLEX MANAGEMENT

APPLICATIONS DEVELOPMENT

Carlos Abalde, V´ıctor M. Gul´ıas, Laura M. Castro, Carlos Varela and J. Santiago Jorge

MADS Group, Department of Computer Science, University of A Coru˜na, A Coru˜na, Spain

Keywords:

Distributed systems, functional languages, design patterns, cluster computing, client/server architecture.

Abstract:

This paper presents our ideas about how to evolve a ﬁrst and early architecture, which has been used in the

development of a large scale management client/server application, to a more sophisticated one, which could

be reused in other developments, signiﬁcantly reducing the development life cycles of future versions. We

also expose some problems that arised in the process and suggest some solutions.

1 INTRODUCTION

In this paper, we will elaborate some ideas ex-

plaining how to evolve the ﬁrst and early architec-

ture used in the development of a large scale man-

agement client/server application, using the distrib-

uted functional language Erlang (Armstrong et al.,

1996), to a more sophisticated one. The application

(ARMISTICE (Armistice, 2002; Cabrero et al., 2003;

Gul´ıas et al., 2005; Gul´ıas et al., 2006), Advanced

Risk Management Information System: Tracking In-

surances, Claims and Exposures) is a risk manage-

ment information system (RMIS) designed for a large

regional company. The aim of the proposed architec-

ture is to help to reduce the development life cycles,

and to be reused in similar projects.

The paper is structured as follows. Section 2 gives

an overview of the proposed architecture. Next, some

discussion is provided on section 3, explaining how

the framework would improve the development, tak-

ing our study case as example. Finally, section 4

shows some conclusions and future work to be done.

2 FRAMEWORK OVERVIEW

Our proposal is a layered client/server architecture,

based on two well-known architectural patterns: Lay-

ers and Model-View-Controller(Gamma et al., 1999).

The user side is a lightweight client which only

makes remote procedure calls (RPCs), and has no as-

sociated logic (i.e., there are no business objects in the

user side). The server side supports the model and the

business logic, and is structured in four tiers:

WAN

Client side

UBF

Persistent

objects

layer

Use case

facades

Interface

adapter

Server side

Distributed DB

CALLBACKCALLBACK

FACADE FACADE

DAO

FACADE

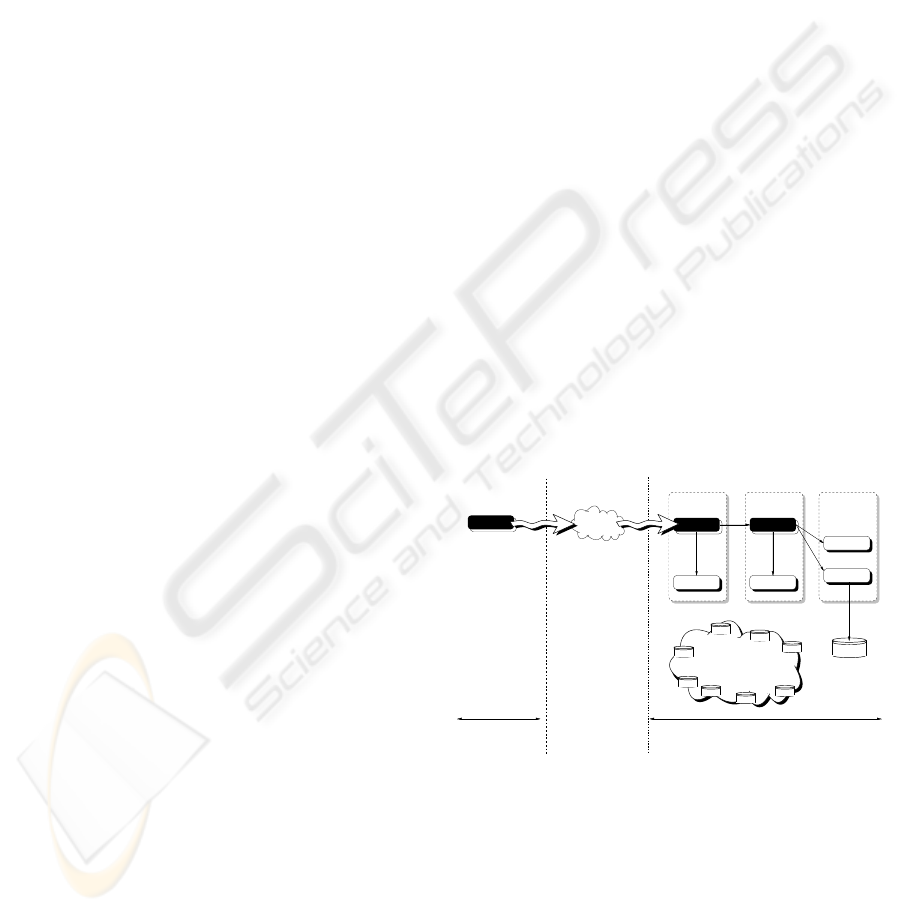

Figure 1: Framework architecture overview.

• Interface adapter: Receives messages from

clients, deserialises their input and parameters,

and gives them the appropriate format so that the

server can process the enquiry, and viceversa.

• Use case facades: Facades of the system, which

represent the access points to each subsystem.

Every facade has methods implementing different

use cases, using the persistent objects layer.

422

Abalde C., Gulías V., M. Castro L., Varela C. and Santiago Jorge J. (2007).

ERLANG/OTP FRAMEWORK FOR COMPLEX MANAGEMENT APPLICATIONS DEVELOPMENT.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 422-425

DOI: 10.5220/0001281904220425

 SciTePress

• Persistent objects layer: Here, domain trans-

fer objects (TOs) and data access objects

(DAOs) (Marinescu, 2002) are deﬁned. Each TO

models a domain entity, and the DAO is the mod-

ule that interacts with the persistence layer.

• Persistence: It represents the permanent storage

over a relational database.

Source code for implementing these layers can be

automatically generated from a description of:

• The client-server communication format.

• The use cases.

• The domain transfer objects and relationships.

2.1 Client-Server Communication

The transport layer needs to be lightweight and easily

integrable with different client applications. There are

several possibilities to solve this problem. For exam-

ple, interface deﬁnition languages like XDR (XDR,

2003) or ASN.1 (ASN.1, 2003) or complex frame-

works like CORBA (Corba, 2003), most of them sup-

ported by Erlang/OTP.

The UBF scheme (Universal Binary Format (Arm-

strong, 2002)) has the expressive power of the XML

set of standards, but it is considerably simpler. Thus,

in our framework, we can see the server as a service

whose interface is deﬁned in XML as follows,

<input>UBF description</input>

<output>UBF description</output>

</method>

Then, our compiler gets each facade interface de-

ﬁnition and builds the following skeletons:

•

customer.erl

, which is a black box module

(from the programmer’s point of view).

add_customer(Session, UBFParams) ->

% unpack UBFParameters

% callback implementation module

R = customer_cb:add_customer(Session,

Param1,

...,

ParamN),

% pack R in a UBF value

•

customer_cb.erl

, which is a callback module

skeleton that must be ﬁlled in by the programmer.

add_customer(Session, P1,..., PN) ->

% call domain facade

case customer_facade:add_customer(Session,

P1,...,

PN) of

{error, Reason} -> % adapt result

R -> % adapt result;

end.

•

Customer.java

, which is an user interface facade

to access the service and perform internal tasks.

2.2 Access Points and Use Cases

Each access point is described by means of it use

cases. Use case descriptions include names, input pa-

rameter list, and transactional information.

As in the previous section, two Erlang modules

are built from each access point description:

<access-point name="customer">

<use-case name="add_customer" trans="yes">

</use-case>

</access-point>

The Erlang generated black box module for this

access point is:

-module(customer_facade).

-export([add_customer/3]).

add_customer(Session, CName, CDescription) ->

ConnRef = db_facade:connect(),

session:set_connection(Session, ConnRef),

R = customer_facade_cb:add_customer(Session,

CName, CDescription),

db_facade:endtrans(ConnRef),

And the callback module skeleton is:

-module(customer_facade_cb).

-export([add_customer/3]).

add_customer(Session, CName, CDescription) ->

%% write your code here

not_implemented.

The parameter

Session

represents the distributed

database over the deployment cluster, in which client

session state data is stored, providing fault-tolerance

features. Database connections are organised within

a supervision tree, so that automatic rollbacks can be

performed if necessary.

2.3 Persistent Objects Layer

Business logic associated with a complex RMIS usu-

ally has to deal with a big number of domain entities

with complex relationships amongst them. The actual

coding of these objects and relationships storage is a

very annoying and repeatable task.

The entities are described with their name, a list

of their attributes and their relationships.

<primary-key>

</primary-key>

ERLANG/OTP FRAMEWORK FOR COMPLEX MANAGEMENT APPLICATIONS DEVELOPMENT

423

</entity>

Here some ideas from powerful persistence and

object-relational mapping frameworks like Hibernate

(Java) (Hibernate, 2006) and Active Object (Ruby on

Rails) (Ruby, 2006) are borrowed.

From this deﬁnition the obtained source code will

be composed by a TO module and a DAO module

skeleton. An example of TO source code could be:

-module(customer_to).

-include("customer_to.hrl").

-export([new/2, get_name/1, set_name/2]).

new(Id, Name) ->

#customer_to{id = Id, name = Name}]}.

get_name(CustomerTO) ->

State#customer_to.name.

set_name(CustomerTO, Name) ->

CustomerTO#customer_to{name = Name}.

And the DAO would look like:

-module(customer_dao).

-include("customer_to.hrl").

-export([create/2, find/2]).

create(ConnRef, CustomerTO) ->

Id = customer_to:get_id(CustomerTO),

Name = customer_to:get_name(CustomerTO),

Acc = customer_to:get_account(CustomerTO),

Query = "INSERT INTO customer "

"VALUES ( " ++ Id ++ ", ’"

++ Name ++ "’, "

++ Acc ++ ")",

case db_facade:process(ConnRef, Query) of

...

end.

As we can see, the DAO assumes the existence of

a database table named after the entity and columns

after the attributes. Relationships are managed de-

pending on the multiplicity of the participants.

3 ARMISTICE: CASE STUDY

ARMISTICE is a risk management information sys-

tem for a large company. It is a three-tier client/server

vertical application which is able to:

• Model contracted policies.

• Select the most suitable warranty to cover re-

sources damaged in an accident.

• Manage the claims for accidents.

• Manage another several accident-related tasks

(payments, invoices, repairs...).

ARMISTICE logic is structured in three compo-

nents. The risk subsystem models a set of basic con-

cepts: risk situations (e.g. a shop), risk situations at-

tributes (e.g. merchandise value), risk groups (which

classify risk situations), dangers (e.g. a ﬁre),... and

deﬁnes the notion of exposure based upon dangers

and risk attributes. The policies subsystem uses those

concepts to deﬁne insurance policies based upon ex-

posures and applicability constraints. Finally, the

claims subsystem uses the insurance policy to track

an accident affecting one or more of the covered ex-

posures, providing useful guidance to forecast limits

and franchises and a way to manage the related tasks.

3.1 Actual Armistice Architecture

As we said before, ARMISTICE is a three-tier

client/server application. Client and a server commu-

nicate with each other via XML-RPC, a remote pro-

cedure call protocol which uses HTTP as the transport

and XML as the encoding.

The client, developed in Java, is a thin stand-

alone client, because the complex interactivity ad-

vised against a web or an Erlang-based solution.

Implementing ARMISTICE server using the func-

tional programming language Erlang has shorten the

development cycle, allowed its deployment over a

low-cost cluster, its scalability, and its conﬁguration

in a supervision tree. Combined with these, storage

of its internal state in a distributed database gives it

fault-tolerance and reliability properties.

Last but not least, the use of abstraction in the

form of both functional and design patterns helped

to reduce the programming effort to evolve the pro-

totypes during the iterative development process.

3.2 Discussion

A powerful mixture of technologies has been put on

practice with ARMISTICE. But, at the same time,

there are a lot of work which could be automatically

performed, and the ideas presented in section 2 are

inspired by this reason.

At the moment of writing this article, implemen-

tation of ARMISTICE’s TOs and DAOs is done com-

pletely by hand, as well as are client/server commu-

nication interfaces, etc. These tasks are very monoto-

nous and repeatable, so our XML-based description

framework will make developer’s life much easier, as

they will be able to concentrate on the design and im-

plementation of really important parts(business logic)

and also saving programming errors.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

424

4 CONCLUSIONS AND FUTURE

WORK

This paper has presented an innovative framework

based on the evolution of our ﬁrst experiences de-

veloping a real application on a distributed functional

language. The proposed architecture could be reused

in other traditional management software develop-

ment and it is a step forward in features like main-

tainability, scalability and availability with regard to

the early architecture.

The implementation of management software us-

ing a functional language may seem an exotic ap-

proach. But the adaptation of O.O. concepts to the

functional environment is a key factor for success.

Another advantage of using Erlang/OTP as the un-

derlying platform for the system development (in ad-

dition to those common in declarative languages), is

that techniques coming from the formal methods area

can be applied in order to improve the system design

and performance (Arts and Benac Earle, 2002), and to

ensure (at least partially) the system correctness (Arts

and S´anchez Penas, 2002). These techniques can be

used more naturally with high level declarative lan-

guages, and their results are specially appreciated in

complex management software.

Also, the design of a full application container

(similar to the available in J2EE (J2EE, 2003)), its de-

sign and development could be a future work line, fo-

cusing on simpler applications where persistence mat-

ters can be hidden. Particularly interesting would be

the development of a persistence layer following the

same philosophy of the Ruby on Rails (RoR) Active

Record, for the Erlang platform. The two main design

principles of RoR, “Don’t repeat yourself” and “Con-

vention over conﬁguration” have proved themselves

as highly productive in this architecture, taking ad-

vantageof the useof simple conventionsand metapro-

gramming, which could be applied in the functional

world.

Finally, as far as lightweight-style user interface

development is concerned, we strongly believe that

the integration in the framework of any kind of inter-

face deﬁnition language like XUL (XUL, 2003) will

alleviate this task, and will improve interface design

and maintainability.

ACKNOWLEDGEMENTS

This work has been partially supported by Span-

ish MEyC TIN2005-08986 (FARMHANDS: Recur-

sos Funcionales para la Construccin de Sistemas Dis-

tribuidos Complejos de Alta Disponibilidad).

REFERENCES

Armistice (2002). Armistice, Advanced Risk Management

Information System: Tracking Insurances, Claims and

Exposures. http://www.madsgroup.org/armistice.

Armstrong, J. (2002). Getting Erlang to talk to the outside

world.

Armstrong, J., Virding, R., Wikstr¨om, C., and Williams, M.

(1996). Concurrent Programming in Erlang, Second

Edition. Prentice-Hall.

Arts, T. and Benac Earle, C. (2002). Verifying Erlang

code: a resource locker case-study. In Int. Symposium

on Formal Methods Europe, volume 2391 of LNCS,

pages 183–202. Springer-Verlag.

Arts, T. and S´anchez Penas, J. J. (2002). Global scheduler

properties derived from local restrictions. In Proceed-

ings of ACM Sigplan Erlang Workshop. ACM.

ASN.1 (2003). Introduction to ASN.1.

http://asn1.elibel.tm.fr/en/introduction/index.htm.

Cabrero, D., Abalde, C., Varela, C., and Castro, L. (2003).

Armistice: An experience developing management

software with Erlang. Proceedings of the 2003 ACM

SIGPLAN workshop on Erlang, pages 23–28.

Corba (2003). Object Management Group.

http://www.omg.org.

Gamma, E. et al. (1999). Design Patterns. Elements

of Reusable Object-Oriented Software. Professional

Computing Series. Addison-Wesley.

Gul´ıas, V. M., Abalde, C., Castro, L., and Varela, C. (2005).

A new risk management approach deployed over a

client/server distributed functional architecture. In

Proceedings of 18th International Conference on Sys-

tems Engineering (ICSEng’05). August 16 - 18, 2005,

pages 370–375. IEEE Computer Society.

Gul´ıas, V. M., Abalde, C., Castro, L., and Varela, C. (2006).

Formalisation of a functional risk management sys-

tem. In Proceedings of 8th International Conference

on Enterprise Information Systems (ICEIS’06). May

23 - 27, 2006, pages 516–519. INSTICC Press.

Hibernate (2006). Hibernate homepage.

http://www.hibernate.org/.

J2EE (2003). Enterprise Javabeans 2.0 Speciﬁcation.

http://java.sun.com/products/ejb/2.0.html.

Marinescu, F. (2002). EJB Design Patterns. Advanced Pat-

terns, Processes, and Idioms. John Wiley & Sons, Inc.

Ruby (2006). Ruby on rails project homepage.

http://www.rubyonrails.org.

XDR (2003). RFC 1832 - XDR: External Data Representa-

tion Standard. http://www.faqs.org/rfcs/rfc1832.html.

XUL (2003). XML User Interface Language.

http://xul.sourceforge.net.

ERLANG/OTP FRAMEWORK FOR COMPLEX MANAGEMENT APPLICATIONS DEVELOPMENT

425
