SPECIFICATION-BASED INTRUSION DETECTION SYSTEM FOR

CARRIER ETHERNET

Pan Jieke, Jo

ao Redol

Siemens Networks S.A, Lisboa, Portugal

Miguel Correia

Faculty of Sciences, University of Lisboa, Lisboa, Portugal

Keywords:

Speciﬁcation-based Intrusion Detection, Ethernet, Spanning Tree Protocol, Network Topology, Security.

Abstract:

Layered network architectures (OSI, TCP/IP) separate functionality in layers, allowing them to be designed

and implemented independently. However, from the security point of view, once a lower layer is compromised,

the reliability of the higher layers can be impaired. This paper is about the security of the Data Link Layer,

which can affect the reliability of higher layers, like TCP, HTTP and other World-Wide Web protocols. The

paper analyzes security-wise a layer 2 protocol – the Spanning Tree Protocol (STP), part of the Ethernet suite

– and presents a solution to detect attacks against this protocol using Speciﬁcation-based Intrusion Detection.

1 INTRODUCTION

The Internet and the World-Wide Web play an in-

creasingly indispensable role in the modern society.

The dependence on networked computers is a phe-

nomenon that can be observed in several areas. This

trend could be observed during the last decade and

will certainly continue in the future. Nevertheless,

due to its popularity, the Internet has become the tar-

get of malicious hackers, which cause intrusions and

disseminate malware at a world-wide scale.

Layered network architectures, like the OSI and

TCP/IP models, separate functionality in layers,

where the lower layers provide services for the higher

layers. These ﬂexible models provide a form of sep-

aration of concerns, which allows the layers to be

designed and implemented independently. However,

from the security point of view, once a lower layer

is compromised, the reliability of the higher layers

can also be affected. Most existing network secu-

rity paradigms and models are concerned with the

layers from 3 to 7 of the OSI model, i.e., from the

Network to the Application layers. In Internet terms,

this means security is mostly concerned with proto-

cols like IP, TCP, HTTP and SOAP, and issues like

user authentication, data integrity and conﬁdentiality.

Less attention has been paid to the network infrastruc-

ture, i.e., to layer 1 and 2 protocols. However, attacks

against these two layers can “disable” the network,

causing unavailability of the higher layer protocols,

with a huge impact on a large-scale network, possibly

involving innumerable service providers and users.

The work presented in this paper has the purpose

of protecting the Carrier Ethernet network infrastruc-

ture using a distributed intrusion detection and re-

sponse system, since this kind of network technology

is being adopted around the world by Internet service

providers and other companies

. More speciﬁcally,

the work deals with the Network Elements – NEs –

Switches/Bridges – and the Data Link Layer (layer

2) protocols. Currently, NEs are reasonably com-

plex hardware and software boxes, which therefore

can have vulnerabilities, like those often reported in

web servers, browsers, operating systems, etc. So, we

consider that a subset of the NEs of a network can be

compromised by hackers and launch attacks against

the network infrastructure, i.e., they can be malicious.

Previous protection schemes for STP did not consider

this possibility of NEs being malicious; they essen-

tially discard STP messages (BPDUs) (IEEE, 1998)

sent by non-NEs trying to emulate a NE (Marro,

2003; Cisco, 2005a; Cisco, 2005b).

To deal with this problem, we propose that NEs

The adoption of Carrier Ethernet is being pushed by

the Metro Ethernet Forum. The site of the forum is at:

http://www.metroethernetforum.org

426

Jieke P., Redol J. and Correia M. (2007).

SPECIFICATION-BASED INTRUSION DETECTION SYSTEM FOR CARRIER ETHERNET.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 426-429

DOI: 10.5220/0001283204260429

 SciTePress

are equipped with a component which provides net-

work intrusion detection. Each of these detectors in-

spects the behavior of other NEs by inspecting the

messages received from them. Detection follows a

recent approach dubbed speciﬁcation-based intrusion

detection, which relies on a speciﬁcation of the proto-

col to detect deviations from it (Balepin et al., 2003;

Sekar et al., 2002; Uppuluri and Sekar, 2001).

The contribution of this paper is the design of the

ﬁrst network intrusion detection scheme for carrier

Ethernets. It focuses on the original link management

protocol of the (switched) Ethernet, the Spanning

Tree Protocol (STP), as a case study (IEEE, 1998).

Detection is based on a speciﬁcation-based intrusion

detection scheme, which we extend with annotations,

to detect attacks with certain time patterns.

2 THE SYSTEM

The paper proposes a distributed intrusion detection

system for Carrier Ethernet (Figure 1). Typically,

Carrier class NEs are used for providing connectiv-

ity from end users to ISPs or other service providers.

The proposal involves extending each NE with a net-

work intrusion detection component. This extension

can be done in two ways:

• by inserting the component in the NE, in case its

internal resources (CPU, memory) allow it; or

• by connecting the component to the NE using a

network port, and forwarding all BPDUs received

by the NE to the component.

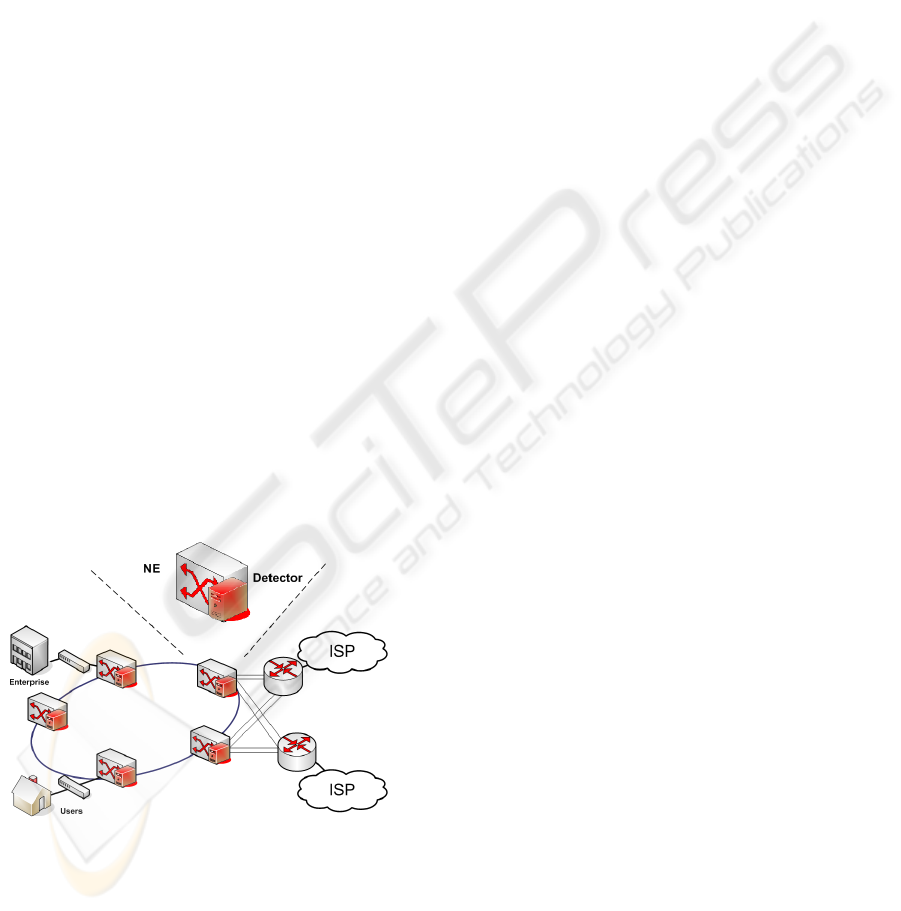

Figure 1: System architecture.

We assume a subset of the NEs of a network

can be compromised by hackers and launch attacks

against the network infrastructure. We say those NEs

are malicious, while the rest are correct. To make

the assumption even stronger, if a NE is malicious, its

network intrusion detection component will be com-

promised too. Therefore, a subset of the NEs may

not follow the correct speciﬁcation of STP, and this

incorrect behavior has to be detected by the correct

NEs/detectors. Previous protection schemes for STP

essentially discarded BPDUs sent by non-NEs trying

to emulate a NE (Marro, 2003; Cisco, 2005a; Cisco,

2005b).

2.1 STP Attacks

As one of the most commonly used Ethernet standard

conﬁguration protocols, the Spanning Tree Protocol

(STP) is an obvious target for attacks, which can com-

promise the security of all the layers above layer 2 and

the network availability. STP is a low level network

link management protocol that provides path redun-

dancy while preventing undesirable loops in the net-

work. STP exchanges messages called Bridge Pro-

tocol Data Units (BPDUs), which contain the Bridge

ID (bridge’s unique identiﬁer) of the sender. BPDUs

are used to learn about the existence of other bridges

and to obtain the information needed to calculate and

maintain the spanning tree. A few characteristics ren-

der the STP protocol vulnerable to several types of

attacks from hackers who have direct physical access

to the network equipment. These attacks use the le-

gitimate connection with network equipment to inject

attacks in the network. Recall that we say that a NE

is malicious if it is controlled by a hacker, thus can

execute arbitrary attacks against the STP protocol.

A careful analysis of the protocol and the literature

(Marro, 2003), lead us to conclude that the attacks

possible against STP are essentially the follow:

• ID changing attacks: A NE modiﬁes its bridge

identiﬁer to cause (undesirable) topology changes

(since the root of the tree is the node with lowest

bridge ID).

• Silent attacks: When the network topology is

stable every NE continues sending Conﬁguration

BPDUs to others to indicate it is alive. A mali-

cious NE can omit sending these BPDUs to cause

an undesirable network reconﬁguration. When

executed repetitively, this attack can impair the

availability of the network.

• Faked failure attacks: A NE generates fake Topol-

ogy Change Notiﬁcation BPDUs to cause network

reconﬁgurations.

• BPDU ﬂooding attacks: A ﬂood of bogus BPDUs

from different addresses is injected in the net-

work, possibly causing undesirable network re-

conﬁgurations.

• Invalid BPDU: Sending malformed BPDU, e.g.,

as an attempt to ﬁnd a vulnerability in the target

NE.

SPECIFICATION-BASED INTRUSION DETECTION SYSTEM FOR CARRIER ETHERNET

427

2.2 STP Speciﬁcation

This paper uses speciﬁcation-based intrusion detec-

tion (Balepin et al., 2003; Sekar et al., 2002; Uppu-

luri and Sekar, 2001) which detect attacks as devia-

tions from a norm. By specifying correct behavior,

any other behaviors will be classiﬁed as anomalous.

The detector performs network intrusion detection

in run-time. The speciﬁcation of the STP protocol is

modeled using a state machine. The states of this ma-

chine are the states of the protocol, and state transi-

tions are caused by the reception of BPDUs or expi-

ration of timeouts.

Instead of crafting the detailed description of the

protocol, an abstract speciﬁcation of STP is used. De-

veloping a more precise speciﬁcation requires more

effort and has been considered to have a negative im-

pact in speciﬁcation-based intrusion detection (Sekar

et al., 2002). The reason is that real implementations

of a protocol tend to have differences between them-

selves and to deviate from the speciﬁcation on the

standard or RFC. A more abstract speciﬁcation tends

to omit the details that lead to these inconsistencies.

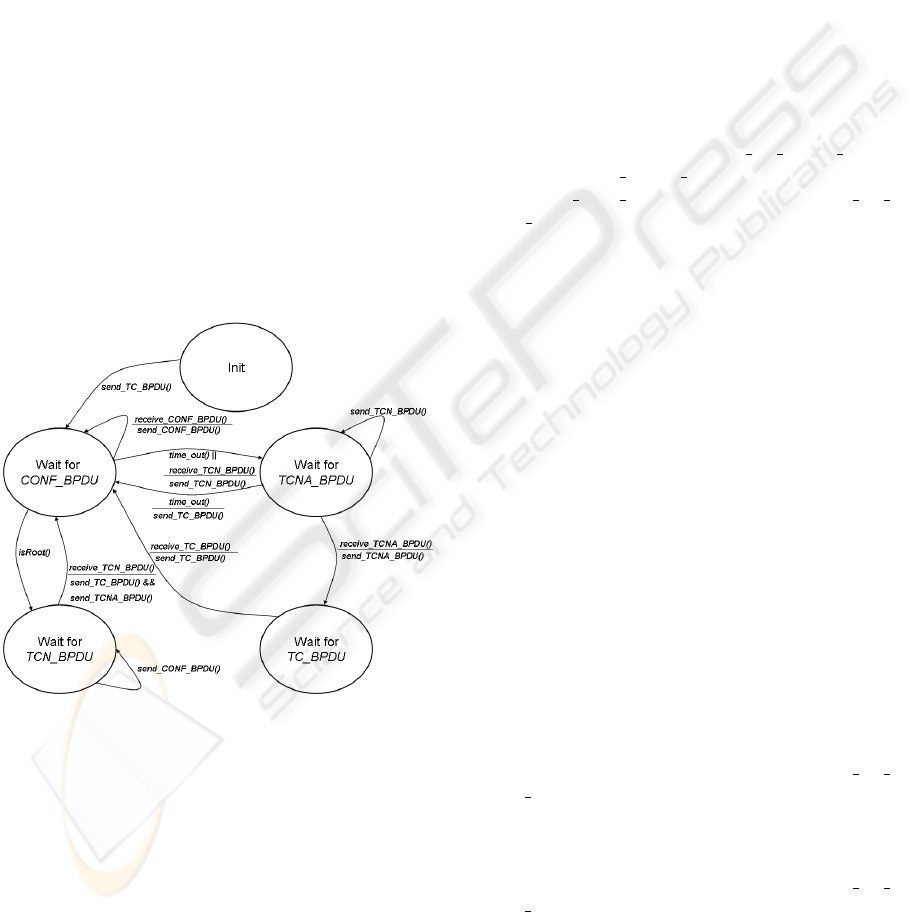

Figure 2: Spanning Tree Protocol state machine.

Figure 2 presents the state machine that speciﬁes

STP. Each node in the diagram represents a state in

which a NE can be at a certain instant. Each arrow

represents a transition between two states. Arrows

have a label in the form of a fraction: the top part

is the event that causes the transition (message recep-

tion, timeout), while the bottom is the event generated

(message sent).

Annotations The state machine in Figure 2 is an in-

complete speciﬁcation of the STP protocol since it al-

lows behavior that is not acceptable. Examples in-

clude a NE omitting sending Conﬁguration BPDUs

repeatedly although it is alive, and sending many bo-

gus Topology Change BPDUs.

Distinguishing correct behavior from these devia-

tions requires extending the state machine with an-

notations. Each event timeout or send BPDU can

be annotated with the acceptable time pattern of that

event. For simplicity we consider that, given an

event e, this pattern is deﬁned simply in terms of

the maximum number of repetitions of e per unit of

time, Rmax

, but more complex forms of speciﬁ-

cation might be used. These values can be deﬁned

for any event but only some of them are relevant

to detect the attacks presented in Section 2.1. Ex-

amples are Rmax

timeout

– for the timeout in the

transition between the state Wait for CONF BPDU

and the state Wait TCNA BPDU – and Rmax

tcn

–

for the send TCN BPDU events in state Wait for -

TCNA BPDU. These values have to be carefully de-

ﬁned in order to avoid detecting false attacks (false

positives) and missing attacks (false negatives).

2.3 Intrusion Detection

Consider again the state machine in Figure 2. Each

NE stores a representation of the state machine of its

neighbors (i.e., of the NEs who are directly connected

to it) and has a variable that says which is the current

state of a neighbor. The state machine for every NE

starts at the Init state. The detection algorithm exe-

cuted by a pair NE/detector is the following:

1. When the NE receives a BPDU message: pass it

to the detector;

2. When the detector gets the BPDU: check if it is

an expected BPDU message in the current state

and if satisﬁes the pattern deﬁned for it (i.e., its

Rmax

);

3. If the message is not expected, then suspect of the

NE that has sent it.

An attack is detected ﬁrstly by matching the re-

ceived message with expected messages in the cur-

rent state. For example, if a NE is in the Wait for -

CONF BPDU state, it can not do a transition to the

Init state directly (see Figure 2). In other words,

if a NE is waiting for a conﬁguration BPDU in a

stable topology, it is incorrect to send a Topology

Change BPDU. Therefore, if the NE in the Wait for -

CONF BPDU sends a Topology Change BPDU to the

others, this will be detected to be an anomaly. The

same reasoning can be done to the other states and to

the patterns.

Let us now make an argument that the intrusion

detection scheme presented above detects the attacks

WEBIST 2007 - International Conference on Web Information Systems and Technologies

428

against STP presented in Section 2.1. All detection

actions are made by the detectors in the NEs, but we

simplify the presentation by forgetting this separation

between a NE and its detector.

• ID changing attacks. Recall that each NE stores

a representation of the state machine of its neigh-

bors. This representation includes the Bridge ID

of the neighbors. If the NE receives two or more

BPDUs with different sender IDs from the same

port, it detects that its neighbor is malicious (if

the ID is modiﬁed by an administrator, other NEs

should be informed).

• Silent attacks. For this type of attacks, when a ma-

licious NE stays silent on purpose, other NEs will

generate a timeout event, consider it as a legitim

NE failure and send Topology Change Notiﬁca-

tion BPDUs (see Figure 2). So, the speciﬁcation-

based intrusion detection scheme does not detect

it to be an attack. One solution would be the elim-

ination of the timeout event from the speciﬁca-

tion, so a timeout would always be suspected of

being an attack, but it would generate suspicions

for every (non-malicious) failure. The solution is

not to detect if the NE simulates a failure but if it

does it too many times. This detection is done

using the pattern of the event timeout between

the states Wait for CONF BPDU and Wait for -

TCNA BPDU, i.e., if that timeout expires more

than Rmax

timeout

times in a unit of time then the

NE is malicious.

• Faked failure attacks. This attack is done by send-

ing a Topology Change Notiﬁcation BPDU re-

peatedly, so it is detected if that BPDU is not sent

in the state Wait for TCNA BPDU or if it is sent

more than Rmax

tcn

times in a unit of time.

• BPDU ﬂooding attacks. These attacks are de-

tected when events that send the BPDUs are done

more than the corresponding Rmax

times in a

unit of time.

• Invalid BPDU. This attack is directly detected

by the speciﬁcation-based intrusion detection

scheme, since an invalid BPDU is precisely one

that can not be sent in the current state of the NE.

When a NE is identiﬁed as being malicious, it will

be logically removed from the network, i.e., its neigh-

bor NEs will disconnect all ports connected to it. Nat-

urally this is only possible if the network has enough

redundancy to disconnect an NE and still keep the net-

work connected. Moreover, it requires that the NEs

correlate their detections (Kruegel et al., 2005), in

order to make agreement about which NE(s) is ma-

licious. This correlation and disconnection scheme is

still being investigated.

3 CONCLUSION

The Internet and the World-Wide Web have become

more and more important in modern society. How-

ever, they also became the target of a legion of ma-

licious hackers. Compromising a low layer, like the

Data Link Layer, can affect the reliability of higher

layers, like TCP/IP, HTTP, SOAP and other web pro-

tocols. This work gives a novel perspective about a se-

curity solution for low-level network protocols, based

on a speciﬁcation-based intrusion detection system

enhanced with annotations. More precisely, we pre-

sented a solution for protecting Carrier Ethernet by

detecting attacks against the STP protocol. We argued

that protecting these protocols is crucial to ensure the

availability of the network so higher level protocols,

like HTTP and other Web-related protocols can be ex-

ecuted normally.

ACKNOWLEDGEMENTS

The work presented in the paper is funded by Siemens

Networks, S.A. Portugal.

REFERENCES

Balepin, I., Maltsev, S., Rowe, J., and Levitt, K. N. (2003).

Using speciﬁcation-based intrusion detection for au-

tomated response. In Proceedings of the International

Symposium on Recent Advances in Intrusion Detec-

tion, pages 136–154.

Cisco (2005a). Spanning Tree PortFast BPDU Guard En-

hancement. Cisco Systems Inc. Document ID 10586.

Cisco (2005b). Spanning Tree Protocol Root Guard En-

hancement. Cisco Systems Inc. Document ID 10588.

IEEE (1998). ANSI/IEEE 802.1D-2004 standard - Part 3:

Media Access Control (MAC) Bridges.

Kruegel, C., Valeur, F., and Vigna, G. (2005). Intru-

sion Detection and Correlation: Challenges and Solu-

tions, volume 14 of Advances in Information Security.

Springer-Verlag.

Marro, G. M. (2003). Attacks at the data link layer. Master’s

thesis, University of California.

Sekar, R., Gupta, A., Frullo, J., Shanbhag, T., Tiwari, A.,

Yang, H., and Zhou, S. (2002). Speciﬁcation-based

anomaly detection: a new approach for detecting net-

work intrusions. In Proceedings of the 9th ACM con-

ference on Computer and communications security,

pages 265–274.

Uppuluri, P. and Sekar, R. (2001). Experiences with

speciﬁcation-based intrusion detection. Lecture Notes

in Computer Science, 2212:172–189.

SPECIFICATION-BASED INTRUSION DETECTION SYSTEM FOR CARRIER ETHERNET

429
