PLATFORM FOR ELABORATION OF SEARCH RESULTS

Ari Korhonen, Juha Litola and Jorma Tarhio

Department of Computer Science and Engineering, Helsinki University of Technology

P.O. Box 5400, FI-02015 HUT, Finland

Keywords:

Local search engine, clustering, visualization.

Abstract:

We introduce a system called VisElabor that is a platform for elaborating search results. It is a local meta search

engine utilizing general search engines. The system downloads a number of documents from the search results

and is dynamically able to cluster them and show them on multiple views. VisElabor visualizes relations of

documents based on clustering, and it coordinates the information among the views based on user actions in

order to better maintain the user context. In addition, VisElabor has been designed so that it is fairly easy to

integrate new visualizations and other elaborations into the system.

1 INTRODUCTION

The growth of the Internet has turned Internet search

engines into an essential part of the net infrastruc-

ture. Popularity has created competition and search

engines have evolved immensely. However, the gen-

eral user interface of search engines has stayed almost

untouched for a decade. Users enter some keywords

and get in return a linear list of links. Typically, all

the computation is done on the server side without

utilizing growing computing resources of user work-

stations.

On the other hand, even though the details of the

user interface of a single search engine slowly evolve,

there is still room for more sophisticated client side

tools. This is due to the fact that the search results

can be ﬁne tuned if several search engines are used si-

multaneously. This principle is applied in meta search

engines. Our aim is to provide advanced client side

software for such search engines in order to enhance

the information retrieval process.

In this paper, we introduce a system called VisE-

labor, which is running on the client machine and is

able to dynamically cluster search results and to show

several views on them. The idea of VisElabor is to for-

ward a search request to some general search engine

and download around one hundred full documents

from the search results. The further actions are based

on these downloaded documents. The search process

is enhanced by showing the search results in multiple

views that are coordinated by the system. The user

can interact with any of the views. The correspond-

ing data in other views are updated accordingly, and

the changes are highlighted in order to maintain the

context. At any moment, the user may send a reﬁned

search request. Thus VisElabor offers many ways to

explore the Web. VisElabor has been designed so

that it is fairly easy to integrate new visualizations

and elaborations into the system. So VisElabor can

serve as a platform for testing elaborations on search

results. VisElabor was implemented in Java, and it is

freely available under the GPL license

SnakeT (snaket.com) (Ferragina and Gulli, 2005)

is a well-known open source meta search engine.

There are, however, differences between SnakeT and

VisElabor. SnakeT is a large system with a sophis-

ticated clustering algorithm, whereas VisElabor is a

light system for playing with visualizations. In ad-

dition, VisElabor runs on the client side whereas

SnakeT is merely server side software.

In the next chapter, we are going to outline the

methods how the search results are visualized in gen-

eral. Chapter 3 outlines our approach to clustering.

The implementation of VisElabor is described in

http://www.cs.hut.ﬁ/Research/SVG/VisElabor/

263

Korhonen A., Litola J. and Tarhio J. (2007).

PLATFORM FOR ELABORATION OF SEARCH RESULTS.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Web Interfaces and Applications, pages 263-269

DOI: 10.5220/0001283302630269

 SciTePress

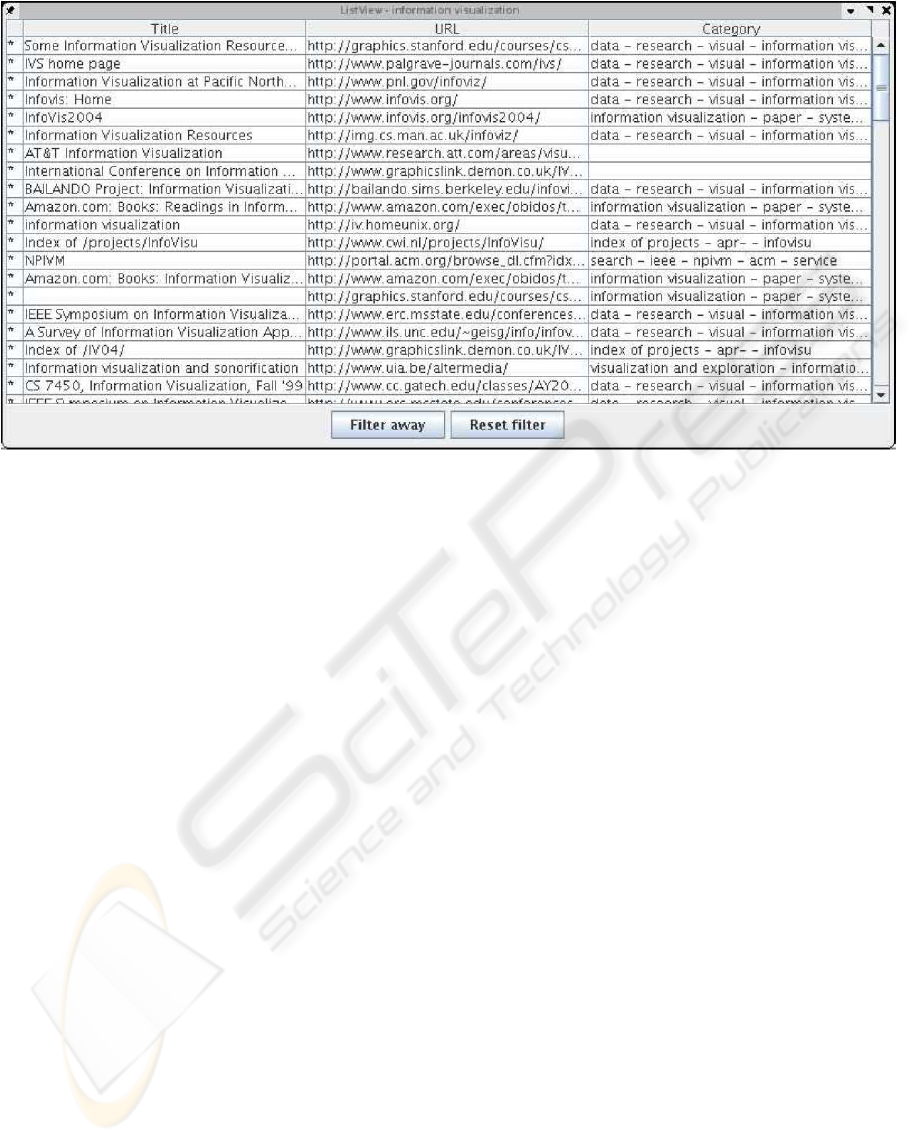

Figure 1: The List View. shows the title, URL, and category of each document matching the query. The list is sorted in order

of ranking given by the search engine applied. By double-clicking an item in the list, the corresponding document is opened

into the Full Text View. It is also highlighted in the Graph View. In addition, the buttons in the bottom of the window can

ﬁlter documents out of the search results. Asterisk (*) at the front of line denotes that the full text retrieval is completed. This

view is intended to be used in tandem with the Category View.

Chapter 4, and a use case example is given in Chap-

ter 5. Finally, the signiﬁcance of the VisElabor is

discussed and ideas on further development are pre-

sented in Chapter 6.

2 VISUALIZATION OF SEARCH

RESULTS

Visualization promotes understanding of information.

We consider how visualization can enhance Internet

searches.

A typical Internet search has four phases.

1. Formulate the search conditions.

2. Launch the search.

3. Review of results.

4. Reﬁne the search conditions.

The phases are closely connected with phases of

creative problem solving (Sutinen and Tarhio, 2001).

Like problem solving, Internet search is a cyclic pro-

cess, where phase 4 is followed by phase 2. There are

visualization techniques for each phase. In this paper

we concentrate on phase 3.

Most techniques visualize relations of a set of

documents usually based on clustering. Typically a

set is visualized as a graph (Mann, 1999) or as a

map (Kohonen et al., 2000), where representations

of related documents are connected by an edge or

are situated close to each other. Another type of

views is associated with relevance numbers. One

visualization of this kind is shown at Thumbshots

(ranking.thumbshots.com), which illustrates the dif-

ference in relevance in two searches on related top-

ics or with different search engines. There are also

techniques to visualize aspects of a single document.

Tilebars (Hearst, 1995) and relevance curves (Mann,

1999) show approximate locations of search key-

words within a document.

Typically there are only few alternatives to sort

textual lists that current search engines provide. The

Kartoo (kartoo.com) and the Mooter (mooter.com)

meta search engines are currently the only search

engines that offer visualization. The visualization

of Mooter is a simple star-like graph of unnested

clusters, whereas Kartoo shows the search results as

a more sophisticated map. Also VisElabor shows

search results as graph based on the TouchGraph

(TouchGraph, 2005) library. A few years ago, Alta

Vista (altavista.com) had a service showing the search

results as a concept map, but this service has been dis-

continued.

Exalead (www.exalead.com) shows thumbnail

WEBIST 2007 - International Conference on Web Information Systems and Technologies

264

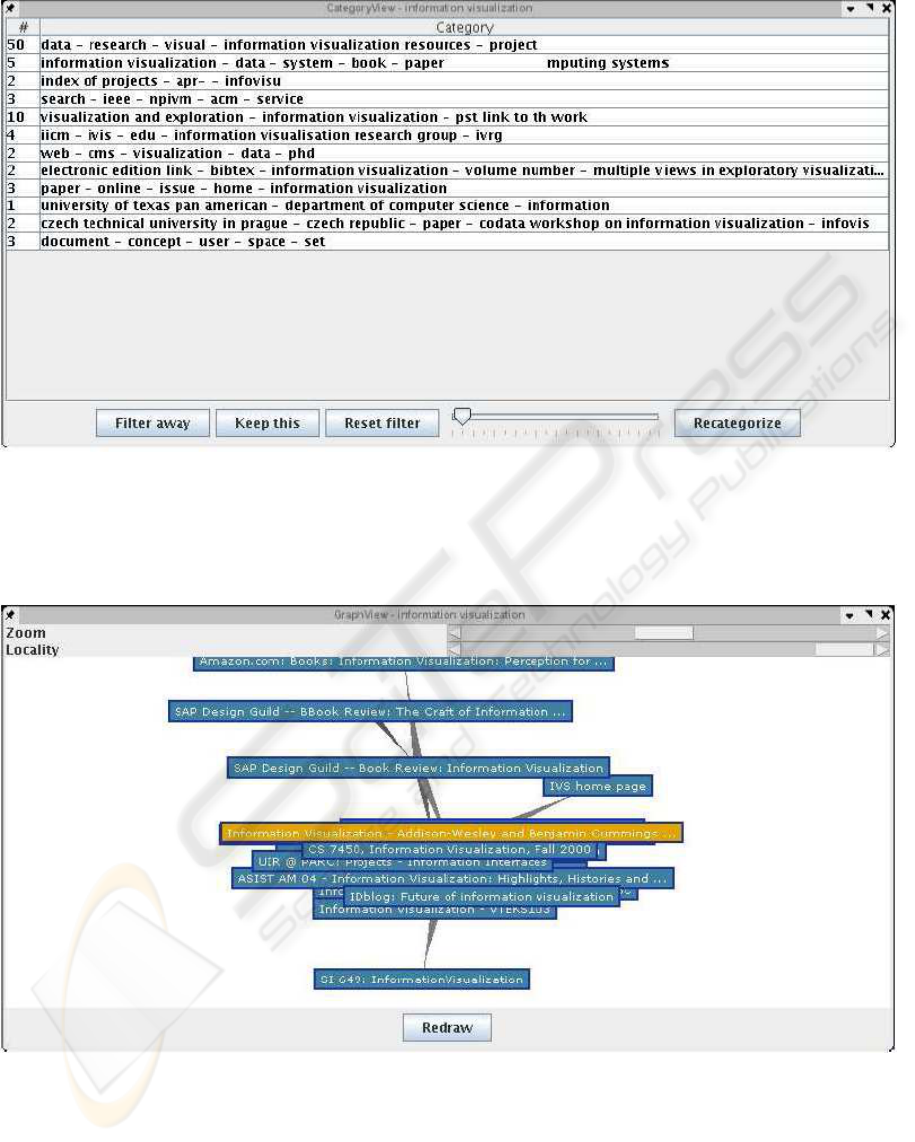

Figure 2: The Category view. shows the names of the categories and the number of documents within a category. The

threshold value described in the previous section to control the creation of new clusters can be changed with the slider bar

at the bottom of the window. The clustering adapts to these changes dynamically or the clustering can be restarted with the

Recategorize button. By double-clicking an item in the list, the corresponding documents within this category are shown in

the List View. In addition, the buttons in the bottom of the window can ﬁlter whole categories out of the search results.

Figure 3: The Graph View. represents the relationships among search results. Each node represents a single search result.

Similar nodes are connected with edges: the more alike two search results are the shorter and thicker the edge between them.

The size of the graph can be adjusted with the Locality slide bar, which sets the maximum path length from the selected node.

The view can be zoomed, and explored freely. Selected items are also highlighted in the List View. By double-clicking a

node, the corresponding result is opened in the Full Text View as well. In addition, the right mouse button allows to ﬁlter

single documents out of the view. The view was implemented by reusing the TouchGraph library (TouchGraph, 2005).

PLATFORM FOR ELABORATION OF SEARCH RESULTS

265

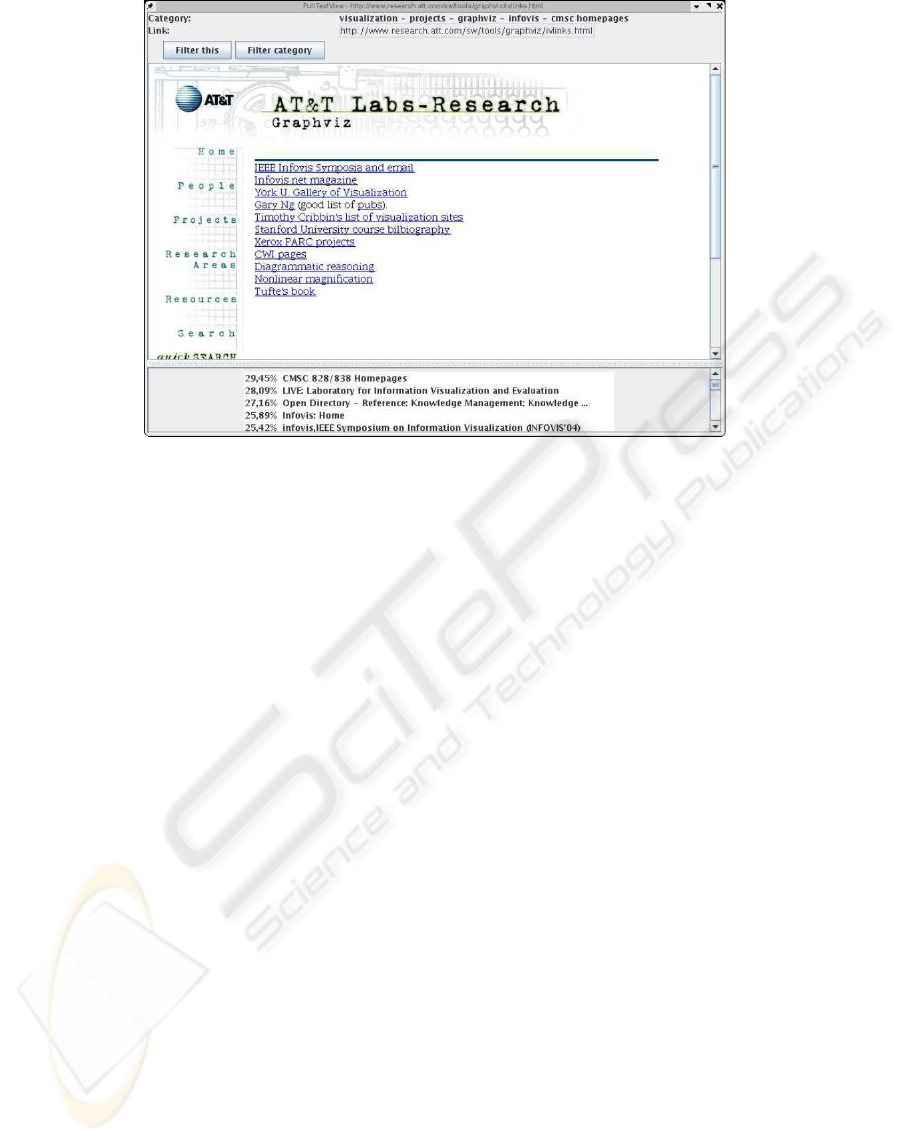

Figure 4: The Full Text View. shows the search results in a simple browser window. In the top of the window, there is an

address ﬁeld. In addition, the current category is shown above that. A speciality is the list of similar documents in the bottom

of the window that is updated dynamically as new search results are clustered. By double-clicking a document in the list, it is

opened in the Full Text View as well as highlighted in the Graph View. Moreover, search results and categories can be ﬁltered

out with buttons similar to that in the other views.

pictures of found pages. This feature, which used

to work also with MSN search (www.msn.com) helps

the user to quickly pick up the right page, especially

when he misses the right URL for a page seen earlier.

Clusty (clusty.com) provides categories and a quick

preview of a page. Google (google.com) provided a

service called Google Viewer which displayed search

results as a continuous slide show. This service has

been discontinued. Currently VisElabor does not have

any of these quick views, but it would be possible to

adopt some of them.

Google is able to give pages similar to the cur-

rent page. TouchGraph (TouchGraph, 2005) uses

this characteristic and shows the results as a dynamic

graph. The user can extend the graph by selecting an-

other node. TouchGraph is an applet that runs on the

user machine.

3 CLUSTERING

Clustering of search results is not per se associated

with visualization, but it is necessary in order to vi-

sualize categories. Algorithms that apply predeﬁned

categories are complicated to implement and they

need training. For VisElabor we selected straight-

forward dynamic clustering, which was suitable for

our needs. Our algorithm uses the scalar product

based on word chains. This is a fairly common tech-

nique applied in many other clustering algorithms

(Klose et al., 2000). The closer to one the scalar prod-

uct is the more identical word chains two documents

have.

A session starts with submitting a query to a gen-

eral purpose search engine. Currently we use Google,

but it is easy to modify the system to use other engine

or any combination of them. The 100 ﬁrst documents

of the result are then downloaded. The phases of the

algorithm are the following.

1. Download the full text of the selected documents.

Remove html tags and other parts of the docu-

ments that are not connected with the contents.

2. Divide each document to sentences according to

punctuation marks. From the sentences, form all

possible consecutive chains of at most ﬁve words.

Eliminate all chains ending or starting with a stop

word. Store the remaining chains into a chain vec-

tor of each document.

3. Eliminate those chains which appear only once in

the chain vector.

4. Compute the scalar product of the chain vector

with the vector of each other document.

5. Based on the scalar product, associate the docu-

ment with the cluster containing the closest doc-

WEBIST 2007 - International Conference on Web Information Systems and Technologies

266

Figure 5: Category View with 40% threshold value.

ument to it. If there is no document closer than a

threshold value, form a new cluster for this docu-

ment.

6. Form the name of a category from the most com-

mon word chains of the category.

Each word chain has a ﬁxed position in the chain vec-

tor, which is a vector of scores. The score is 1.5∗ w∗ c,

where w is the width of the chain and c is the count of

words. We implemented chain vectors as hash tables.

The user controls the creation of new clusters by

changing the threshold value. The name of a category

adapts dynamically to the changes in the category.

Straight-forwardness and easy interaction are the

strengths of our algorithm. It is fast enough for on-

line use, and it works iteratively. The produced clus-

ters or categories are not always relevant, or their

names may be misleading. The current solution pro-

duces clustering of one level. This is sufﬁcient for one

hundred documents used in the tests. For larger sets

of documents, clustering should be hierarchical.

In our tests, the elimination of word chains appear-

ing once and allowing chains of up to ﬁve words were

essential features in improving the quality of cluster-

ing.

4 FOUR VIEWS

One way to improve the search process is to utilize

multiple views that can ease the search process (Bal-

donado, Woodruff, and Kuchinsky, 2000). Separate

views, however, need to be interconnected to each

other in such a way that the user can realize how the

information in one view relates to another. Several

techniques exist to achieve this, but the main principle

is that the user should be able to link the information

in all of the views to a single document. Typically this

linking is perceived by selecting a document within

one view, and the corresponding information is high-

lighted also in the rest of the views.

VisElabor displays the search results in four win-

dows and coordinates the information among the

views based on user actions. In Figures 1 to 4, there

are snapshots of a query and the resulting windows:

1. List View (Figure 1)—ordered list of hits based

on the search engine ranking

2. Category View (Figure 2)—ordered list of cate-

gories (clusters) based on cluster size

3. Graph View (Figure 3)—graphical overview of

the documents and their relations

4. Full Text View (Figure 4)—the selected document

in a browser window

5 USE CASE

In addition to the different views described above, the

prototype application has a separate main window in

PLATFORM FOR ELABORATION OF SEARCH RESULTS

267

which the query is entered (the ﬁgure of this is omit-

ted due to brevity). One can enter a new query, or

double click an old one to make the search again. As

soon as the query is entered and the search engine(s)

respond(s), the result lines and nodes start appearing

into the List View and Graph View, respectively. An

asterisk at the beginning of a result line indicates that

also the full text has been retrieved.

Meanwhile, the clustering algorithm creates new

categories that start to appear into the Category View.

In the early phase, the number of categories and their

names vary heavily while new full texts are retrieved.

If the task is to have an overview, some 5% thresh-

old would be the most feasible as in Figure 2. Thus,

fewer categories are created and it is easy to ﬁlter out

unnecessary results.

By double clicking a category, the List View

shows the corresponding results. Due to the low

threshold value, not all category names are related to

the results. In addition, some categories consist of

empty pages that can be ﬁltered out. After this, the

threshold can be raised (e.g., to 40% as in Figure 5)

in order to focus on single documents. For example,

in order to pick up new expressions that better match

to the query. By lowering and raising the threshold,

it is quite feasible to reﬁne the query and ﬁnally pick

up only those documents best matching to the certain

topic of interest.

The Graph View gives additional information

about the documents. Basically, it illustrates how the

documents are related to each other. In Figure 3, for

example, course home pages and text books seem to

have a strong relationship.

6 DISCUSSION

We have demonstrated a way to visualize search

results queried from standard Internet search en-

gines. The implemented system VisElabor dynami-

cally clusters search results and shows the informa-

tion in several views simultaneously. The idea is to

coordinate the information among the views based on

user actions in such a way that the reﬁnement of the

query is easy and straightforward. The aim is to speed

up the cyclic search process by providing better ways

to cope with the large number of documents typically

found in a single query.

VisElabor is running on the client machine. It

sends the search request to a search engine and down-

loads the resulting documents to be clustered dynami-

cally. The results are shown in four separate windows.

The List View is fast to compile as it contains only the

search results retrieved from the search engine.

The Category View is based on the clustering of

the search results. Our clustering algorithm is dy-

namic, i.e. the user sees the evolving stage of cluster-

ing all the time, yet it is possible to interact with the

system at any moment. For example, the ﬁrst cluster

is ready to be examined as soon as it appears on the

display. The threshold value for new clusters provides

the user with a possibility to work on different views

on the same data.

The Graph View requires that the system is able

to coordinate the information in multiple views and si-

multaneously regain contextual information in case of

real-time updates, i.e., while information constantly

ﬂows in from the search engine. The user should be

able to follow the changes in order to maintain the

context. One way to solve this is to allow updates only

by request. The TouchGraph library we use was de-

signed to be applied in real-time applications. In ad-

dition, the movements of nodes were animated which

is necessary in order to retain the context. Yet, this

requires quite a powerful computer.

Finally, a ﬂexible Full Text View requires a

browser. Fortunately, a simple browser window can

be achieved by utilizing standard libraries. How-

ever, in a real application, more sophisticated browser

would be required.

The most salient point here is the coordination

among the multiple views. Thus, the user can have

better overview of the search results, but he can still

maintain the context due to the automatic coordi-

nation. Even in a dynamic situation in which the

search results are constantly updated as they arrive,

and while the user itself interacts with the results (e.g.,

ﬁlters out results, or views a single document).

There are several options to apply VisElabor as

well as develop it further. First, even though our

examples emphasize the client side usage, the sys-

tem can easily be transformed into a server side ver-

sion that has a light browser front end. Second, ad-

ditional visualizations could be implemented so that

more users can ﬁnd a visual interface that appeals

them. Third, VisElabor could be enhanced with adap-

tive personalized information in order to get more rel-

evant search results. This kind of user model consists

of preferences given directly by the user and of an

adaptive part which is updated after each search re-

quest. Maintaining the model locally without sending

personal information anywhere else is an obvious ad-

vantage. The additional information may be applied

to enhancing the search request or to favoring relevant

categories in clustering.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

268

REFERENCES

M. Q. Wang Baldonado, A. Woodruff, and A. Kuchinsky:

Guidelines for using multiple views in information vi-

sualization. In: Proc. ACM AVI’00, 2000, 110–119.

P. Ferragina and A. Gulli: A Personalized Search En-

gine Based on WebSnippet Hierarchical Clustering.

In: Proc. 14th International World Wide Web Confer-

ence, 2005, 801–810.

M. A. Hearst: TileBars: Visualization of Term Distribution

Information in Full Text Information Access. In: Proc.

ACM CHI’95, 1995, 59–66.

A. Klose, A. Nurnberger, R. Kruse, G. Hartmann, and M.

Richards: Interactive Text Retrieval Based on Doc-

ument Similarities. Phys. Chem. Earth 25 (8), 2000,

649–654,

T. Kohonen, S. Kaski, K. Lagus, J. Saloj

arvi, J. Honkela,

V. Paatero, and A. Saarela: Self Organization of a

Massive Document Collection. IEEE Transactions on

Neural Networks, Special Issue on Neural Networks

for Data Mining and Knowledge Discovery 11 (3),

2000, 574–585.

T. Mann: Visualization of WWW-Search Results. Database

and Expert Systems Applications, 1999. Proceedings.

Tenth International Workshop on, 1999, 264–268.

TouchGraph, 2005. http://www.touchgraph.com/

TGGoogleBrowser.html.

E. Sutinen, J. Tarhio: Teaching to identify problems in

a creative way. In: Proc. FIE ’01, 31st ASEE/IEEE

Frontiers in Education Conference, IEEE, 2001, p.

T1D813.

PLATFORM FOR ELABORATION OF SEARCH RESULTS

269
