FROM PLATO’S DUALISM TO USER INTERFACE

DEVELOPMENT

Francisco Montero and Víctor López-Jaquero

LoUISE Research Group, University of Castilla-La Mancha

02071, Albacete – Spain

Keywords: User interface development, design patterns, reflection, dual specification.

Abstract: Today, many devices are available, and they use different languages. From a user point of view, the system

is its user interface, and this idea is used in this paper to provide a pattern-based design solution where

platform independent and dependent levels are connected in a model-based user interface development and

reflective environment. Platform independent and dependent levels have similarities with Plato’s dual view

of reality.

1 INTRODUCTION

User Interface (López-Jaquero et al., 2006) is the

part of the system that receives input from, and

presents information to the user. Strictly speaking,

the user interface includes both hardware and

software components, although in the context of

software design, it refers to the software that

manages the interaction with the user.

Nowadays, we have many devices and theirs

associated programming languages, to handle this

diversity, service providers must either devote

considerable resources to developing multiple

alternative user interfaces, each specialized to a

particular delivery context, or must develop more

flexible user interfaces.

In this paper we introduce a design pattern-based

framework as a solution to flexible user interface

development. This framework is a model-based user

interface development environment (MB-UIDE)

where a hierarchical structure is identified. This

structure consists of a meta level, where MB-UIDE

platform-independent models are located, and a base

level where platform dependent models are hosted.

This paper is organized into three further

sections. Section 2 presents relationships among user

interfaces and classic philosophy. Section 3 presents

our framework, a reflective-MB-UIDE that can be

implemented using design patterns, how these

patterns can be used is commented too. Finally,

section 4 presents conclusions and future challenges.

2 USER INTERFACES AND

PHILOSOPHY

Reality is the configuration of any substance,

material or spiritual. Therefore, the definition of

reality is looked for in the substance and

configurations of existence. To test substance for

reality, an example is used. A clay model is a good

test. The question then is, is reality in the substance.

A model of a tree can be made of a different

substance, and it still represents a tree. So the reality

is not in the substance.

The question then is whether the reality is in the

configuration. When the configuration is changed,

the reality changes. Therefore, the reality is in the

configuration. This definition is adequate for both

material and spiritual substance. It is accurate for

thoughts in the mind, for that which is observed and

for that which is communicated.

Truth is an attempt to properly represent the

characteristics of unified reality. Therefore, its

proper definition is the communicated representation

of unified reality.

Developers often see the functionality of a

system as separate from the UI, with the UI as an

add-on. Users, however, do not typically make

distinctions between the underlying functionality

and the way it is presented in the UI. To users, the

UI is the system. Therefore, if the UI is usable, they

will see the entire system as usable.

479

Montero F. and López-Jaquero V. (2007).

FROM PLATO’S DUALISM TO USER INTERFACE DEVELOPMENT.

In Proceedings of the Third International Conference on Web Information Systems and Technologies, pages 479-483

DOI: 10.5220/0001292504790483

 SciTePress

User interface is often thought of as referring

only to how screens look. But because users see the

UI as the system, this is too narrow a definition. A

broader definition of UI includes all aspects of the

system design that influence the interaction between

the user and the system. It is not simply the screens

that the user sees, although these are certainly part of

the UI. The UI is made up of everything that the user

experiences, sees and does with the computer

system.

2.1 Classic Philosophy

Plato's allegory of the cave (Roser, 2001) is the best-

known of his many metaphors, allegories, and

myths. The allegory is told and interpreted at the

beginning of Book VII of The Republic (514a-520a).

The allegory is probably best presented as a story,

and then interpreted—as Plato himself does.

Unlike his mentor Socrates, Plato was both a

writer and a teacher. His writings are in the form of

dialogues, with Socrates as the principal speaker. In

the Allegory of the Cave, Plato described

symbolically the predicament in which mankind

finds itself and proposes a way of salvation. The

Allegory presents, in brief form, most of Plato's

major philosophical assumptions: his belief that the

world revealed by our senses is not the real world

but only a poor copy of it, and that the real world

can only be apprehended intellectually; his idea that

knowledge cannot be transferred from teacher to

student, but rather that education consists in

directing student's minds toward what is real and

important and allowing them to apprehend it for

themselves; his faith that the universe ultimately is

good; his conviction that enlightened individuals

have an obligation to the rest of society, and that a

good society must be one in which the truly wise

(the Philosopher-King) are the rulers.

The allegory begins with a graphic picture of the

pathetic condition (see Fig. 1) of the majority of

mankind. We are like chained slaves living in an

underground den, which has a mouth open towards

the light and reaching all along the den. Here we

have been from our childhood, unable to move or to

see beyond, being prevented by the chains from

turning round our heads. Above and behind us a fire

is blazing at a distance, but between the fire and

ourselves there is a low wall like the screen which

marionette players have in front of them to foster the

illusion necessary for a puppet-show. We are like the

strange prisoners in this den who see only their own

shadows or the shadows of one another, which the

fire throws on the opposite wall of the cave. To them

the truth would be literally nothing but the shadows

of the images, and they cannot distinguish the voices

of one another from the echoes emanating from the

surrounding darkness

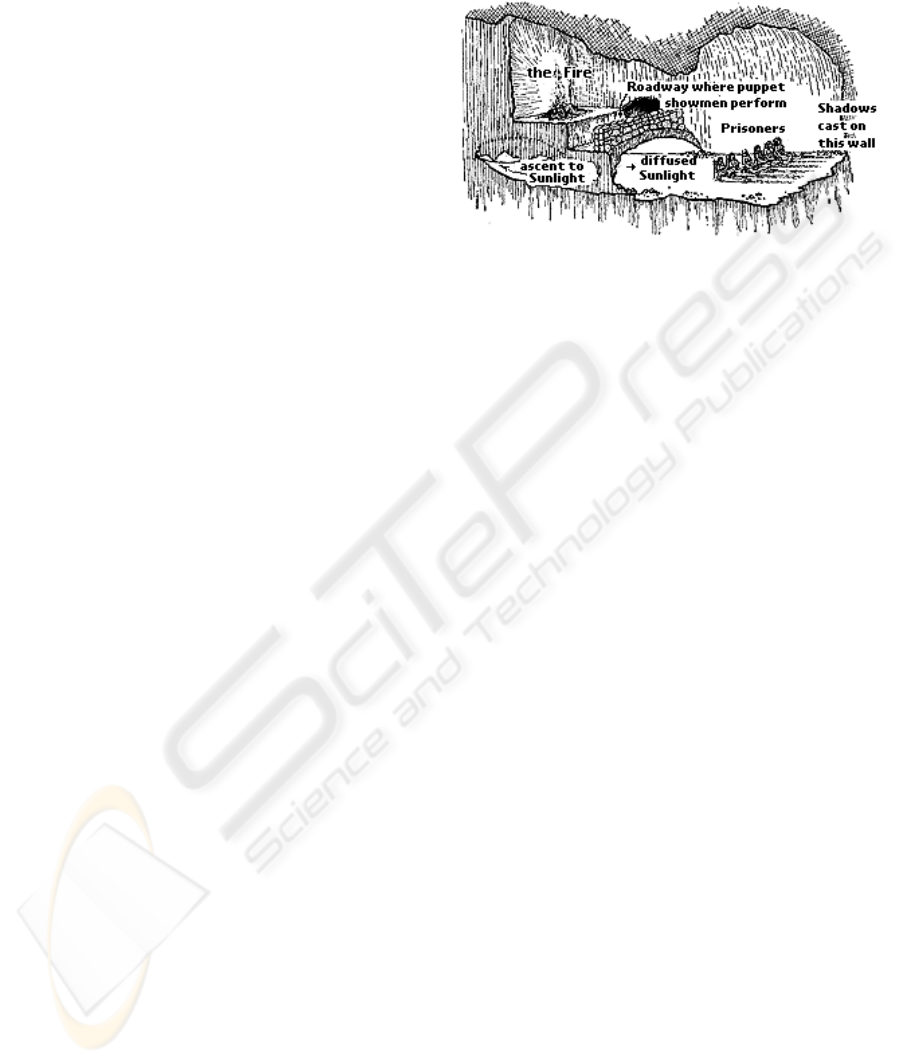

Figure 1: Graphical representation of Plato’s cave.

Plato speaks of ascending and descending dialectic

in his purpose of Theory of the knowledge. The

ascending dialectic awakens the mind and the heart

to the presence of the highest principles. Once that is

achieved, the descending dialectic is the process of

going back into the cave in order to be a beacon

pointing others beyond the limitations of

particularity. This similar directions, ascending and

descending, can be found in Software Engineering

and Model Driven Architecture (MDA) and in our

framework.

2.2 Software Engineering: Model

Driven Architecture

Recently many organizations have begun to focus

attention on Model Driven Architecture (MDA) as

an approach to application design and

implementation. MDA encourages efficient use of

system models in the software development process,

and it supports reuse of best practices when creating

families of systems. As defined by the Object

Management Group (OMG), MDA is a way to

organize and manage enterprise architectures

supported by automated tools and services for both

defining the models and facilitating transformations

between different model types.

Models provide abstractions of a physical system

that allow engineers to reason about that system by

ignoring extraneous details while focusing on

relevant ones, in a similar way to Plato who had two

levels of knowledge (objects and concepts). All

forms of engineering rely on models to understand

complex, real-world systems. Models are used in

many ways: to predict system qualities, reason about

specific properties when aspects of the system are

changed, and communicate key system

characteristics to various stakeholders. The models

WEBIST 2007 - International Conference on Web Information Systems and Technologies

480

may be developed as a precursor to implementing

the physical system, or they may be derived from an

existing system or a system in development as an aid

to understanding its behavior.

Four principles underlie the OMG’s view of

MDA:

 Models expressed in a well-defined notation are

a cornerstone to understanding systems for

enterprise-scale solutions.

 The building of systems can be organized

around a set of models by imposing a series of

transformations between models, organized

into an architectural framework of layers and

transformations.

 A formal underpinning for describing models in

a set of metamodels facilitates meaningful

integration and transformation among models,

and is the basis for automation through tools.

 Acceptance and broad adoption of this model-

based approach requires industry standards to

provide openness to consumers, and foster

competition among vendors.

Figure 2: Model-driven architecture philosophy: one

origin many destinations.

To support these principles, the OMG has

defined a specific set of layers and transformations

that provide a conceptual framework and vocabulary

for MDA. Notably, OMG identifies four types of

models: Computation Independent Model (CIM),

Platform Independent Model (PIM), Platform

Specific Model (PSM) described by a Platform

Model (PM), and an Implementation Specific Model

(ISM).

2.3 Human-Computer Interaction:

Model-Based User Interface

Development Environments

Model-Based User Interface Development

Environments (MB-UIDEs) provide a context within

which declarative models can be constructed and

related, as part of the interface design process

(Schulungbaum, 1996; Szekely, 1995). MB-UIDEs

use an explicit, largely declarative representation

capturing application semantics and other

knowledge needed to specify the appearance and

behavior of an interactive system. The goal of the

MB-UIDE is to identify reusable components of a

UI and to capture more knowledge in the model,

while reducing the amount of new procedural code

that has to be written for each new application. In a

MB-UIDE we can find several typical models:

domain, task, presentation, dialog, user, etc., many

of these models are independent of the platform.

Nowadays, we have many user interface

description languages (UIDL) and using them we

can work in an abstract user interface (AUI) level.

The AUI model separates a user interface into

concrete and abstract components so that a number

of concrete user interface styles may be specified for

a single abstract user interface. The AUI notation is

an executable specification language used to define

the abstract user interface. By only specifying

abstract interaction once, it is hoped that

development and maintenance costs will be reduced

and that interaction semantics of an interactive

system will remain consistent across multiple

concrete user interfaces.

Domain, task and abstract user interface model

are platform independent models that can be used to

describe an application in a platform-independent

manner. A domain model is an object model of a

problem domain. Elements of a domain model are

domain classes, and the relationships between them.

The user task model is a representation of the tasks

that the user can perform on the interface. These

tasks may differ from the system, or application,

tasks. The presentation model is a view of the static

characteristics of an interface, mainly its layout,

organization, and attributes such as fonts and colors.

Finally, the user model defines the types of users of

the interface and the relevant attributes of those

users. Its main purpose is to influence interface

generation. It is not designed to be a model of the

mental state of the user at a particular time during

the interaction.

3 OUR FRAMEWORK

In our framework (Montero et al., 2006) MB-UIDEs

and reflection, are used together. Reflection has been

proposed as a solution to the problem of creating

applications able to maintain, use, and change

representations of their own designs (Maes, 1987;

FROM PLATO’S DUALISM TO USER INTERFACE DEVELOPMENT

481

Smith, 1982). Reflective systems are able to use

self-representations to extend, modify, and analyze

their own computation.

A reflective architecture yields a flexibility level

that allows designers not only to extend a language

itself but also to adapt and add functionality to

existing systems in a transparent way. Reflection is

used in several domains, such as concurrency

programming, distributed systems, artificial

intelligence, and expert systems. Not only functional

requirements can be achieved using computational

reflection,

In reflective architectures, components that deal

with the self-representation and the application

reside in two different software levels organized in a

hierarchical manner, such as Plato’s cave: metalevel

and base level, respectively.

 Metalevel: formed by objects that carry out

computation about a system materialized by

objects at the base level. The computational

domain, or system internal domain, deals with

the information relative to structures and

mechanisms that fit into the program

execution

 Base Level: contains program objects that solve

a problem and return information about the

application domain.

Two processes, abstraction (bottom-up

transformations) and reification (top-down

transformations), occur between the levels of this

hierarchy. We have adopted the word reification to

indicate the inverse operation to abstraction.

Abstraction implies a many-to-one transformation

from the many possible variants to a single invariant

form. Reification on the other hand implies not a

one-to-many transformation, which would

potentially produce an infinite variety of variants,

but rather a one-to-one-of-many transformation,

although the exact variant that is generated could be

any one of the infinite variety of variant forms. We

implemented these processes, abstraction and

reification, using design patterns from (Gamma et

al., 1994).

3.1 Abstraction Process (Bottom-up)

The state of an object is a combination of the current

values of its attributes. When you call a set- method,

you typically change an object's state, and an object

can change its own state as its methods execute.

Objects are often discussed in terms of having a

state that describes their exact conditions in a

given time, based upon the values of their properties.

The particular values of the properties affect the

object's behavior. For instance, one can say that the

exact behavior of an object's getColor() method

is different if the color property of the given

object is set to blue instead of red because

getColor() returns a different value in the two

situations. In this sense, Context in Fig. 3 is our

application described in a platform-independent

manner, that is, in Context we can find task,

domain and presentation in an abstract way. In State

we can find concrete presentation associated with

different devices so many as we are considering.

Figure 3: State pattern structure.

At base level, the Decorator Pattern is used for

adding additional functionality to a particular object

as opposed to a class of objects. It is easy to add

functionality to an entire class of objects by

subclassing an object, but it is impossible to extend a

single object this way. With the Decorator Pattern,

you can add functionality to a single object and

leave others like it unmodified. Decorator pattern

can be used at our base level to added additional

functionality in concrete presentation reusing

concrete interaction objects functionality without use

of inheritance (Fig. 4).

Figure 4: Decorator pattern structure.

Fig. 4 shows several classes located at our base

level. These classes are related with concrete

interaction objects (CIOs) in different devices

(concreteComponent), and Decorator

classes are associated with additional functionality

that can be added dynamically to CIOs.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

482

Figure 5: Observer pattern structure.

3.2 Reification Process (Top-down)

The Observer pattern (Gamma et al., 1994) (Fig. 5)

allows one object (Observer) to watch another

(Subject). The Observer pattern allows the

subject and observer to form a publish-subscribe

relationship. Through the Observer pattern,

observers can register to receive events from the

subject. When the subject needs to inform its

observers of an event, it simply sends the event to

each observer.

A casual connection, between base and meta

level, is implemented using Observer pattern.

Subject classes are models located at meta level

and observer classes are platform-dependent

descriptions of our application, that is, concrete

interaction objects.

4 CONCLUSIONS AND FUTURE

WORKS

In the developed world, information technology is

being embedded into more and more everyday

items, and many people are increasingly reliant on

electronically delivered information diversity of

devices with which individuals access these

electronic services. Abstraction and reification are

efficient tools to address the flexible user interface

development problem. This paper presented

different design patterns that are successfully used in

user interface development under a model-based

user interface development environment. Future

works will include use this approach to implement

different kinds of user interfaces and applications.

Non-functionality requirements and design patterns

is just another challenge.

ACKNOWLEDGEMENTS

This work was supported by the Spanish CICYT

project TIN2004-08000-C03-01 and the grant

PCC05-005-1 from the Junta de Comunidades de

Castilla-La Mancha.

REFERENCES

Gamma, E., Helm, R., Johnson, R., & Vlissides, J. (1994).

Design Patterns: Elements of Reusable Object-

Oriented Software. Reading, Massachusets, US:

Addison-Wesley

López Jaquero, V. , Montero, F., Molina, J.P., González,

P. Interfaces de Usuario Inteligentes: Pasado, Presente

y Futuro. VII Congreso Internacional de Interacción

Persona-Ordenador, Interacción 2006, Puertollano,

Spain, 13-17, november, 2006.

Maes P. Concepts and Experiments in Computational

Reflection. In Proceedings of OOPSLA'87, ACM

Sigplan Notices, p.147-155, Orlando, Florida, October

1987

Model-Driven Architecture (MDA).

http://www.omg.org/mda/

Montero, F., López Jaquero, V., Lozano, M., González, P.

A User Interfaces Development and Abstraction

Mechanism. In HCI related papers of Interacción

2004. Navarro Prieto, Raquel; Lorés Vidal, Jesús

(Eds.) Springer.Verlag, Germany, 2005. ISBN: 1-

4020-4204-3.

Roser, C. Platón. Libro VII de la República. Editorial

Diálogo. 2001

Schulungbaum, E. Model-based user interface software

tools – current state of declarative models. Graphics,

visualization and usability centre, Georgia Institute of

Technology, GVU Tech #96 #30. 1996

Smith, B.C. Reflection and Semantics in a Procedural

Programming Language. PhD thesis, MIT, January

1982

Szekely, P. Retrospective and challenges for model-based

interface developments. In: Bodart, F., Vanderdonckt,

J. (eds.) Design, Specification and Verification of

Interactive Systems. 1995

FROM PLATO’S DUALISM TO USER INTERFACE DEVELOPMENT

483
