REQUIREMENTS DEFINITIONS OF REAL-TIME SYSTEM

USING THE BEHAVIORAL PATTERNS ANALYSIS (BPA)

APPROACH

The Elevator Control System

Assem El-Ansary

CEO, Emergent Technologies USA, Inc., Principal Consultant, Keane Federal Systems

Keywords: Analysis, modeling approach, software modeling, event-oriented, behavioral pattern, use cases.

Abstract: This paper presents a new event-oriented Behavioral Pattern Analysis (BPA) modeling approach. In BPA,

events are considered the primary objects of the world model. Events are more effective alternatives to use

cases in modeling and understanding the functional requirements. The Event defined in BPA is a real-life

conceptual entity that is unrelated to any implementation. The BPA Behavioral Patterns are temporally

ordered according to the sequence of the real world events. The major contributions of this research are:

The Behavioral Pattern Analysis (BPA) modeling approach. Validation of the hypothesis that the

Behavioral Pattern Analysis (BPA) modeling approach is a more effective alternative to Use Case Analysis

(UCA) in modeling the functional requirements of Human-Machine Safety-Critical Real-time Systems.

1 INTRODUCTION

Experience reports problems with Use Cases such as

(Graham, 1995):

1. The lack of a Use Case formal specification

2. The lack of a notion of atomicity

3. The absence of the notion of triggering

events and business goals in determining use

cases

4. There is a problem with the phrase use case

itself.

A major problem in the use case approach is its

tendency to focus on the solution rather than the

problem (Jackson,1995).

The concluding statement of the “Question Time!

About Use Cases” Panel of the (Oopsla, 1998)

Conference by Ian Graham (Oopsola, 1998) was

“There is a need for another modeling approach with

a sound theoretical basis and a precise definition.”

This need is what this research problem area is

about.In addition to the problems with the use cases

(Oopsola, 1998) (Jackson, 1995) that were described

briefly above, several additional problems were

identified during this research (El-Sansery 2002, El-

Sansery, 2005). The following is a discussion of

these problems:

¾ The types of interactions are: interactions

among users, interactions between users and the

system, and interactions among the different

components of the system. Yet, use cases

describe only the users’ interaction with the

system. This is just one type of interaction.

¾ Because use cases’ description are used to

identify the objects, if use cases do not describe

all of the interactions, the resulting object

(class) model may be incomplete.

¾ As a result of this class model

incompleteness there will then be an incomplete

description of the interactions, and so the

sequence diagram may be incomplete.

¾ Using natural language in use cases

description, with the absence of any semantic

structure such as alternation or repetition,

increases the risks of ambiguity,

incompleteness, and inconsistency.

In conclusion, if the analyst misinterpreted or

neglected some structural or behavioral aspects, the

resulting conceptual model will not be a good

representation or understanding of the real world.

The resulting software solution system built from

the model may not demonstrate the correct behavior

or may ungracefully terminate. The end result might

be the loss of opportunities in using business

371

El-Ansary A. (2007).

REQUIREMENTS DEFINITIONS OF REAL-TIME SYSTEM USING THE BEHAVIORAL PATTERNS ANALYSIS (BPA) APPROACH - The Elevator

Control System.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 371-377

DOI: 10.5220/0001323603710377

 SciTePress

systems, serious damages in embedded systems, or

the loss of lives in using a safety-critical system.

This paper reports on Behavioral Pattern Analysis

(BPA), which is a more effective alternative to use

cases in modeling and understanding the functional

requirements (El-Lansary, 2002) BPA is an event-

oriented modeling approach in which events are

considered the primary objects of the world model.

While the term Event is used in UML, and in almost

all of the other modeling approaches, to mean an

occurrence of stimulus that can trigger a state

transition, the Event defined in BPA is a real-life

conceptual entity that is unrelated to any

implementation. In the BPA modeling approach, the

BPA Behavioral Pattern, which is the template that

one uses to model and describe an event, takes the

place of the Use Case in the UML Use Case View.

The BPA Behavioral Patterns are temporally

ordered according to the sequence of the real world

events.

2 ILLUSTRATING BPA

THROUGH THE ELEVATOR

CONTROL SYSTEM (ELCS)

The main function of the ELCS (Yourdon, 1996) is

to control group of elevators in a building. The

following describe the operation cycle:

¾ If someone summons an elevator by

pushing the down button on a floor. The next

elevator that reaches this floor traveling down

should stop at that floor. On the other hand, if

an elevator has no passengers (no outstanding

destination requests). It should park at the last

floor it visited until it is called again.

¾ An elevator that is filled to capacity,

should not respond to a new summon request.

There is an overweight sensor for each elevator.

¾ The interior of each elevator is furnished

with a panel consisting of an array of 40

buttons, one button for each floor, marked with

the floor number. These floor buttons can be

illuminated by signals sent from the computer to

the panel when a passenger presses a

destination button not already lit. An interrupt

for this elevator is sent to the computer. When

the computer receives one of these interrupts, its

program can read the appropriate memory

mapped to each elevator and each button.

¾ There is a floor sensor switch for each

floor for each elevator shaft. When an elevator

is within eight inches of a floor, a wheel on the

elevator closes the switch for that floor and

sends an interrupt to the computer. When the

computer receives one of these interrupts, its

program can read the appropriate mapped

memory that contains the floor number

corresponding to the floor sensor switch that

caused the interrupt.

¾ The interior of each elevator is furnished

with a panel containing one illuminate indicator

for each floor number.

¾ Each floor of the building is furnished

with a panel containing summon buttons. Each

floor except the ground floor (floor one) and the

top floor (floor forty) is furnished with a panel

containing two summon buttons, one marked

UP and one marked DOWN. The scheduler

decides which elevator should respond to a

summon request. When the computer receives

one of these two interrupts, its program can read

the appropriate memory mapped to the floor

number corresponding to the summon button

that caused the interrupt.

¾ There is a memory mapped control for

each elevator motor. Bit 0 commands the

elevator to go up, bit 1 commands the elevator

to go down, and the two bits commands the

motor to stop at the floor whose sensor switch is

closed.

¾ The elevator manufacturer uses

conventional switches, relays, and safety

interlocks for controlling the elevator doors so

that the computer manufacturer can certify the

safety of the elevator without regard to the

computer controller.

¾ Each elevator’s destination panel contains

a stop button which does not go to the

computer. Its sole purpose is to hold an elevator

at the floor with its doors open when the

elevator is currently stopped at a floor.

3 RESEARCH THESIS

The specific thesis is that the proposed Behavioral

Pattern Analysis (BPA) approach is more effective

than the Use Case Analysis (UCA) approach at

modeling the functional requirements of Interactive

Safety-Critical Real-time Systems. To validate that

the BPA approach is more effective than the Use

Case approach, sixteen Subject Matter Experts were

given two case studies that are modeled using the

two approaches and were asked to evaluate the

ICSOFT 2007 - International Conference on Software and Data Technologies

372

models using the Safety, Repeatability,

Unambiguity, Completeness, Consistency,

Modifiability, and Traceability as the effectiveness

criteria.

The following subsection presents a summary of

the research approach.

4 THE BPA REQUIREMENTS

DEVELOPMENT PROCEDURE

The following is an outline of the BPA functional

requirements development procedure:

1 Identify the problem at the highest level of

abstraction (e.g. The Mission Statement

and Operating Requirements).

2 Identify the scope of the requirements

(problem) from the Originating

Requirements.

3 Analyze the Originating Requirements to

identify the Critical Constraints (e.g.

Safety) and/or the Utility Requirements.

4 Decompose the scoped problem (from step

2) into Main Events based on the Mission

and Operating Requirements (Step 1).

5 Using the identified Main Events, draw the

High Level Event Hierarchy Diagram

(Figure 3).

6 Decompose these identified Main Events

into smaller and simpler events represented

as Episodes (Composite Events) with clear

boundaries

. An Episode Boundary at this

stage may be marked with Location / Loci

of Control and Effect. Add additional levels

to the Event Hierarchy Diagram (Event

Hierarchy Sub-Diagrams). For complex

problems, it is often helpful to extract these

sub-diagrams and analyze them. Detailed

level event hierarchy diagrams are drawn as

necessary.

¾ The Event Decomposition Heuristics at

this stage is ‘One Agent and One

Location’.

7 For each identified main event (from step

4) draw an Event Thread Diagram (Fig. 4).

¾ Starting with the Main Events, as

initial composite events, recursively

decompose the composite events into

Basic Events

¾ The Event Decomposition Heuristics at

this stage is ‘One Agent, One

Location, One Motion Direction, and

One Time Interval’.

¾ Group Basic Events by their Location /

Loci of Control and Effect. Draw a

frame box around these Basic Events

8 Refine and transform the above Basic

Events into their corresponding BPA

Behavioral Patterns (Figure 5 represents a

Behavioral Pattern sample).

9 Using the Event Thread Diagrams from

step 8, draw the Temporal/Causal

Constraint Diagrams by adding the

temporal constraints alongside the

associations and identifying the

enable/causal relationships in each

corresponding Event Thread Diagram

(Figure 8).

10 Using the Critical Constraints (e.g. Safety),

identify the critical events, identify all

possible ways of each critical event’s

failure, and draw the Critical Event

Analysis Diagram (Figure 9).

11 Using the BPA Event Patterns and the

Critical Event Analysis Diagrams, identify

any missing requirements that are necessary

to satisfy the critical constraints. If these

missing requirements are not in the

Originating Requirements document,

develop a Derived Requirements document

and get users approval on this document.

12 Using the Missing Requirements (from step

11), refine the Event Hierarchy Diagram

(from step 6), the Thread Diagrams (from

step 7), and the Temporal Constraint

Diagram (from step 9) as necessary. Draw

additional Event Thread Diagrams for

identified critical events as necessary. The

figure (Figure 1) below illustrates the

iterative and incremental development

process that is used in the BPA approach.

13 Using the BPA Event Patterns (from step

8), identify the candidate Classes from the

Event Roles (Participants) and Instrument.

Draw the Class Diagram (figure10).

14 To illustrate the relationship between

Events and States, optionally, using the

BPA Behavioral Patterns, draw the

Event/State History Chart (Optional – not

shown) that includes the States before and

after each Event for each identified Class

whose instance is a participant in that

Event. This chart helps in developing the

state model during the design stage.

REQUIREMENTS DEFINITIONS OF REAL-TIME SYSTEM USING THE BEHAVIORAL PATTERNS ANALYSIS

(PBA) APPROACH

373

I-III IV-VII

VIIIIX-X

Originating

Requirements

Derived

Requirements

XII

Begin Refinement

Start

Missing

Requirements

Figure 1: The BPA Modeling Process.

The above procedure illustrates the BPA functional

requirements development procedure Figure 2

depicts the flow of the modeling activities for the

BPA procedure.

Event

Hierarchy

Diagram

IV, V, VI

Event

Thread

Diagram

VII

Critical Event

Analysis

Diagram

BPA

Behavioral

Pattern

VIII

Class

Diagram

XIII

Event /

State History

Chart

XIV

Temporal/Causal

Constraints

Event Thread

Diagram

Missing

Req’ts?

Refine diagrams XII

Yes

I Mission

II Originating

Requirements

III Critical

Constraints

Figure 2: Requirements Development Procedure.

4.1 Event Hierarchy Diagram (EHD)

Because there are many levels of requirements

details analysts need techniques to structure the

excessive amount of requirements information that

surfaces. Event Hierarchy is used to model the

events at different levels of abstraction (event

decomposition). As per steps 4, 5, and 6 in the BPA

procedure, a general problem with decomposition is

when to stop the decomposition. To overcome this

problem, the decomposition heuristic used in an

Event Hierarchy Diagram (EHD) is one agent and

one location. Using this heuristic, the leaf events in

an Event Hierarchy are usually Simple Sequence

Events. In other words, a leaf event is usually a set

of Basic Events (atomic events) sequenced into

episode

. The episode is marked with a location

boundary. The following is the ELCS detailed Event

Hierarchy Diagram:

Figure 3: Event Hierarchy – Elevator Control.

Using the identified main events, the high level

EHD diagram (or the first level in a detailed EHD

diagram) is drawn. Each main event is then

decomposed further until one arrives at leaf events,

each of which has one location or one locus of effect

and control and one agent.

In order to model the sequence of events (and show

the location / loci of control and effect view, or the

temporal / causal constraints), one uses the event

thread diagrams as shown in the next subsections.

4.2 Event Thread Diagram (ETD)

In BPA, as per step 7, an Event Thread Diagram

(ETD) is drawn for each main event, and optionally

drawn for any other event, subordinate to main

event, depending on its complexity or its critical

nature.

A Basic Event is defined as an event that cannot be

decomposed into another set of events (atomic

event). The heuristic used in decomposing an event

into its basic events is one agent, one location, one

time interval, and one motion direction if the event

Elev ator Control

pressing

Summon Button

Pressing

Elevator Button

Traavelling Up

Trav ell ing Dow n

Calling Up

Calling Dow n

Approaching

Flo or

Stopping AT

Flo or

Opening Doors

Pressing Stop

Button

Hold i n g Do or s

Ope n

Calling Up

Calling Dow n

Reg is tering

Int er r upt

Operating Door

Rela y

ICSOFT 2007 - International Conference on Software and Data Technologies

374

involves any motion. The ETD, which one draws

for an event, shows the sequence of the basic events

of that event.

Event Thread Diagram: ‘Elevator Control’

pressing

Summon Button

Pressing

Elevator Button

Calling

Do w n

Calling Up

Traavelling

Travelling

Dow n

Approaching

Flo or

Stopping A T

Flo or

Opening

Doo rs

Releas ing

Passengers

Clo sin g

Doors

Registering

Interrupt

Checking

Scheduler

Closing Floor

Sensor Sw itch

Pressing

Stop Button

Holdin g

Doors Open

Releasing

Stop Button

Disregard

Interrupt

Overw eight

Sensor On

Floor

Elevator Controller

Elevator

Flo or

Elevator

Elevator Controller

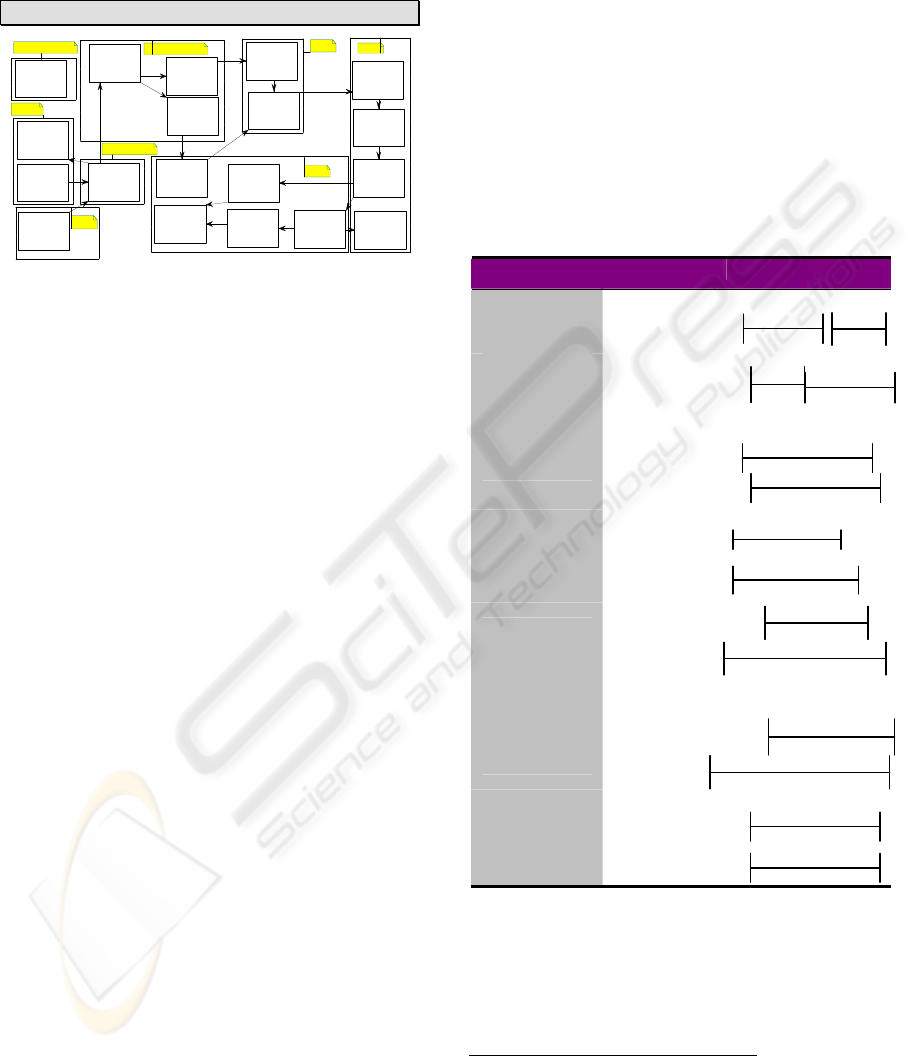

Figure 4: Event Thread –Elevator Control System.

4.3 Behavioral Patterns

As explained earlier in step 8, the research goal is to

develop a requirements definition mechanism (BPA

Pattern) that describes the What, Who, How, When,

Where and Why.

BPA BEHAVIORAL PATTERN - EXAMPLE

Event (WHAT?) Elevator Control System

Actions

1. Pressing Summ Button 2. Pressing Elev Button

3. Calling UP 4. Calling Down

5. Approaching Floor 6. Stopping At Floor

Agent a: Elevator

¾ Initial State: Idle

¾ Final State: Moving Up/Down

Affected p: Passenger

¾ Initial State: At Floor

¾ State: Moving Up/Down

Modality (HOW?)

Instrument

i: Elevator Motor

Circumstances

Manner

m: Critical

Condition

c1: Idle c2:

Effect

f1: Moving Up/Down f1: Moving Up/Down

Date/Time (WHEN?)

Place (WHERE?)

Location

l:Elevator

Path

Motion

m: Moving

Direction

d: Up/Down

Rationale (WHY?)

Goal g: Carrying Passengers Up/Down

Mental State bdi:

Caused-By e’: Elevator

End;

Figure 5: BPA Pattern–Elevator Control.

4.4 Introducing Time

The key intuitions motivating the introduction of

time are:

¾ Events take time. Yet, in most of the

Modeling approaches such as OMT and UML,

time is neglected in the event definition.

¾ Events may have temporal constraints.

BPA uses the time intervals’ relations that are

described in the Interval Algebra framework

(Allen, 1983) to model the temporal

relationships between events. Figure 6

illustrates these basic relations for arbitrary

events x and y.

REL SYM MEANING

before

meets

overlaps

starts

during

finishes

equals

Figure 6: Time Interval Algebra–Temporal Relations.

4.5 Introducing Enable/Cause

Relationships

The introduction of the Enable

. Cause relationships

‘Enable’ is defined in the American Heritage Dictionary as: “.To

supply with the means, knowledge, or opportunity; make able: a hole

in the fence that enabled us to watch; techniques that enable surgeons

to open and repair the heart.”

REQUIREMENTS DEFINITIONS OF REAL-TIME SYSTEM USING THE BEHAVIORAL PATTERNS ANALYSIS

(PBA) APPROACH

375

between events will enable the analyst to do cause

effect analysis and reason about any possible failure

of the system.

In the Temporal Constraint Diagram, as described in

steps 9, and 10, the temporal relations, that are

displayed in Figure 7, are written alongside the

sequence relationships between the events to

represent the possible timing at which these events

can occur.

Approaching

Floor

Calling Dow n

Calling Up

Pressing

Elevator Button

Stopping AT

Floor

Traav elling Up

Travelling Dow n

pressing

Su mmon Bu t ton

Opening Doors

Closing Doors

Releasing

Pa s s e n g e r s

Pressing Stop

Button

Holding Doors

Open

Chec kin g

Scheduler

Regis ter ing

Int er r upt

Closing Floor

Sensor Sw itch

Releasing Stop

Button

Overw eight

Sensor On

Dis r e ga rd

Inter rupt

{b,o}

{b, m }

{ b,m}

{b,m }

{ b,o}

{b, m}

{ b,o }

{ b, m}

{ b, f}

{ b }

{ b}

{b }

{b,f, m}

{b, f, m}

{b}

{b, f }

{b,m,f}

{ b }

{b, f}

{m}

Figure 7: Temporal Constraint Diagram–Elevator Control.

4.6 Failure Issues

The ability to provide requirements specification for

safe behavior is very limited using the current

modeling approaches. Neither a safety analysis

(anterior analysis) nor accident analysis (posterior

analysis) can be achieved efficiently without event

analysis. As will be explained below, the BPA

modeling approach provides the Critical Event

Analysis as an efficient solution to this problem.

4.6.1 Critical Events Analysis

The Critical Event Analysis procedure includes the

following steps:

¾ Identify Critical Events

¾ For each critical event, identify all possible

ways in which it may fail

¾ Capture these possible failure modes using

the undesired event notation

¾ Study each undesired related state to find

out how to achieve protection against such

possible failure

The following diagram (Figure 8) illustrates the

critical event analysis in BPA as described in step

11:

Figure 8: Critical Analysis Diagram-Subscribing.

5 MISSING REQUIREMENTS

There were no missing requirements that required

generating a Derived Requirement Document.

6 ELCS CLASS DIAGRAM (STEP

12)

«user»

::Passanger

«business»

::Elevator Button

«business»

::Summon Button

«business»

::Sum m on Button Light

«business»

::Ele va t or But t o n L ight

«business»

::Floor

«business»

::Floor Sensor

«business»

::Elevator

«business»

::Eleva t or Door

«business»

::Elevator M o tor

«business»

::But t o n

«business»

::Light

«business»

::Stop Button

«business»

::Floor Sensor Switch

«business»

::Door Relay

«business»

::Elevator Control

«business»

::Control Register

Is A

IsA

Is A

Figure 9: Class Diagram–ELCS.

7 EVALUATION OF THE

EFFECTIVENESS OF THE BPA

MODELING APPROACH AND

THE UCA MODELING

APPROACH

In this research, three real-life applications were

used to illustrate the effectiveness of the new BPA

modeling approach in handling safety-critical real-

time systems development:

1 The Therac-25 Medical Device System

([Leveson, 1996).

2 The Production Cell System (Lewerentz,

1995).

Elevator

ccident

Traavelling

Travelling

Dow

Opening

Doors

Undesired

Event

(failure)

State

ICSOFT 2007 - International Conference on Software and Data Technologies

376

3 The Railroad Crossing System

(Heitemyer, 1996).

The UCA and the BPA modeling approaches were

used to define the requirements and model these

systems. The first application was used, as a proof of

concept, in a pilot case study. The last two

applications were distributed as part of the case

studies material to compare the UCA versus the

BPA modeling approaches using the pre-mentioned

effectiveness criteria.

8 WHY THIS WORK IS

IMPORTANT

8.1 Real-Time Systems

In most of the development modeling approaches

state diagrams are used to model the behavior. By

using state diagrams, one is focusing on an

individual object’s response to specific events rather

than objects interaction. Hence, objects interaction

must be reconstructed from the analysis of groups of

diagrams. Such a task is at least complex and error-

prone. However, in BPA, by describing the

requirements in terms of events, represented by the

behavioral patterns, this perceived problem is

reduced.

8.2 Multi-Agent Systems

There is a need for a multi-agent systems analysis

and design method that is powerful enough to model

interaction patterns involving autonomous agents.

BPA modeling approach can be used to model

multi-agent systems effectively.

8.3 Safety-Critical Systems

In these systems, analysts should perform a ‘Safety

Analysis’. Using BPA, one identifies and documents

the critical events during the requirements definition

stage.

GOD says (Koran) (Torah), “(…) Whoever rescues

a single life earns as much merit as though he had

rescued the entire world.” If the use of the BPA

Modeling approach may save one life, the

significance of this modeling approach is

immeasurable.

REFERENCES

Allen, J. F., Maintaining Knowledge about Temporal

Intervals, Communications of ACM, 26, 1983.

Bell, T. and Thayer, T., Software Requirements: are they

really a problem?, Second International Conference on

Software Engineering, 1976.

Booch, G.,Jacobson, I., and Rumbaugh, J., The Unified

Modeling Language User Guide, Addison Wesley,

Reading, Massachusetts, 1999.

Davidson, D., Essays on Actions and Events, Oxford

University Press, New York, 1980.

El-Ansary, Assem I., Behavioral Pattern Analysis:

Towards a New Representation of Systems

Requirements Based on Actions and Events, in

Proceedings of the 2002 ACM Symposium on Applied

Computing, ACM, New York, NY, 2002.

El-Ansary, Assem I., Behavioral Pattern Analysis:

Towards a New Representation of Systems

Requirements Based on Actions and Events, Doctoral

Thesis, George Mason University, 2005.

Graham, Ian, Migrating to Object Technology, Addison-

Wesley, Reading, Massachusetts, 1995.

Heitmeyer, Constance and Mandrioli, Dino, Formal

Methods for Real-Time Computing: An Overview, in

Formal Methods for Real-Time Computing, John

Wiley & Sons, Inc., NY, 1996.

IEEE and ANSI, ANSI/IEEE Std 830-1984, IEEE Guide

to Software Requirements Specification, in System

and Software Requirements Engineering, IEEE

Computer Society Press, Los Alamitos, CA, 1990.

Jackson, Michael, Software Requirements &

Specification, A Lexicon of Practice, Principles and

Prejudices, ACM Press, Reading, MA, 1995.

Jacobson, I., Christeron, M., and Overgaard, Object-

Oriented Software Engineering: A Use Case Driven

Approach, Addison-Wesley, Reading, MA, 1992.

Lewerentz, Claus, and Lindner, Thomas, Formal

Development of Reactive Systems, Springer-Verlag,

NY, 1995.

Fowler, Martin and Cockburn, Question Time! About Use

Cases, OOPSLA’98 Proceedings, ACM Press, New

York, NY, 1998.

Edward Yourdon and Carl Argila, Case Studies in Object

Oriented Analysis & Design, Prentice Hall, Upper

Saddle River, NJ, 1998.

REQUIREMENTS DEFINITIONS OF REAL-TIME SYSTEM USING THE BEHAVIORAL PATTERNS ANALYSIS

(PBA) APPROACH

377
