GOAL-ORIENTED AUTOMATIC TEST CASE GENERATORS

FOR MC/DC COMPLIANCY

Emine G. Aydal, Jim Woodcock and Ana Cavalcanti

University of York, UK

Keywords: Test case generators, goal-oriented test-case generators, MC/DC.

Abstract: Testing is a crucial phase of the software development process. Certification standards such as DO-178B

impose certain steps to be accomplished in testing phase and certain testing coverage criteria to be met in

order to certify a software as Level-A software. Modified Condition/Decision Coverage, listed as one of

these requirements in DO-178B, is one of the most difficult targets to achieve for testers and software

developers. This paper presents the state-of-the-art goal-oriented automatic test case generators and

evaluates them in the context of MC/DC satisfaction. It also aims to guide the production of MC/DC-

compliant test case generators by pointing out the strengths and weaknesses of the current tools and by

highlighting the further expectations.

1 INTRODUCTION

Civil Aviation is only one of the fields where the

proper use and the correct implementation of

software are of high importance in order to protect

the lives of the passengers. The Federal Aviation

Administration (FAA) is the body in the United

States of America (USA) that “is primarily

responsible for the advancement, safety and

regulation of civil aviation as well as overseeing the

development of the air traffic”(Hayhurst et al. 2001).

In order to secure FAA approval of digital airborne

computer software, the developers are recommended

to use the RTCA/DO-178B document (DO178B

1992), by the FAA through Advisory Circular (AC)

20-115B (DO178B 1992, Hayhurst et al. 2001,

AC#20-115B 2003). In RTCA/DO-178B, software

life cycle activities and design considerations are

described and sets of objectives for the software life

cycle processes are enumerated. According to

RTCA/DO-178B document, one of the most difficult

objectives to be met in order to achieve Level-A

software is the satisfaction of the Modified

Condition Decision Coverage (MC/DC). MC/DC is

a test coverage criterion that verifies the adequacy of

the executed tests in terms of conditions, decisions

and their relations with respect to each other. The

process of satisfying MC/DC for software is still

computationally complex and therefore software

developers are in urgent need of a tool that

automates the process of generating test cases that

cover MC/DC or a tool that is able to verify that a

given test suite satisfies MC/DC.

Within this context, this paper focuses on the goal-

oriented test case generators. We commence with a

brief overview of MC/DC and its positioning in the

literature. We, then, summarize the general concept

of test case generation by explaining the principal

components of generators in an organised fashion.

We present the capabilities and weaknesses of

various goal-oriented test-case generators and

conclude with a summary of practical improvements

that would ease MC/DC satisfaction when

implemented.

2 MC/DC IN THE LITERATURE

One of the main difficulties encountered in the

testing phase is the decision of adequacy (decision

of terminating the testing process). Testing can

continue as long as there are different, untested

execution paths and/or requirements that have not

been verified, but the constraints of software

development, such as time and budget limitations,

only allow a certain amount of test cases to be

carried out. Therefore, different sets of rules that

prescribe some property of the test sets are

suggested in the literature (Kapoor and Bowen 2004,

Ammann et al. 2003, Chilenski and Miller 1994).

These sets of rules are named as test coverage

criteria. The satisfaction of a test coverage criterion

290

G. Aydal E., Woodcock J. and Cavalcanti A. (2007).

GOAL-ORIENTED AUTOMATIC TEST CASE GENERATORS FOR MC/DC COMPLIANCY.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 290-295

DOI: 10.5220/0001324002900295

 SciTePress

that verifies the adequacy of the executed tests in

terms of desired qualities is checked during the test

coverage analysis phase. The two different test

coverage analyses (Hayhurst et al. 2001, Adrion et

al. 1982) are requirements coverage analysis and

structural coverage analysis. Requirements coverage

analysis forms a bridge between software

requirements and test cases, thus demonstrating how

well testing has verified the implementation of the

software specifications. Structural coverage analysis

provides traceability between code structure and test

cases. The results of this analysis shows how much

of the code structure has been executed.

Whilst determining the percentage of the code

structure covered, different structural coverage

criteria may focus on different elements in the

program and their accuracy, effectiveness and cost

may vary. In (Chilenski and Miller 1994, Chilenski

and Newcomb 1994), structural coverage criteria are

investigated within three categories:

- Data flow coverage criteria deal with the

interrelationships along subprogram subpaths

between points where a variable is defined and

where that variable’s definition is used.

- Control flow coverage criteria analyze the

interrelationships of decisions and conditions

along subprogram path subsets.

- Control coverage criteria check the program by

examining decision and condition outcomes and

interrelationships within a single control point.

Modified Condition / Decision Coverage (MC/DC),

being a control coverage criterion, deals with

decisions and conditions in control points. A

condition is a leaf level Boolean expression, which

does not include any Boolean operators and thus

cannot be broken down into smaller Boolean

expressions. A decision is a Boolean expression that

is composed of a single condition or expressions that

combine many conditions (Hayhurst et al. 2001,

CAST 2001). MC/DC requires the following

statements to be true for the given set of test cases

(Hayhurst et al. 2001, Kapoor and Bowen 2004,

Ammann et al. 2003):

- Every point of entry and exit in the program has

been invoked at least once.

- Every decision in the program has taken all

possible outcomes at least once.

- Every condition in the program has taken all

possible outcomes at least once.

- Every condition in a decision has been shown to

independently affect that decision’s outcome

3 TEST CASE GENERATION

Testing has been one of the major processes in the

software development accounting for approximately

50% of the time and over 50% of the budget

(Chilenski and Newcomb 1994). Due to the size of

the input space and the number of paths in a

program, the possibility of being able to complete

exhaustive testing remains low and instead,

researchers have been looking for some other ways

of quickening the testing process with the aim of

achieving some testing coverage criteria.

Automation of test case generation with the help of a

tool is one of the approaches aiming to reduce the

time and effort given to testing.

This chapter will first explain the concept of

automating the test case generation process in

general and section 3.2 will provide more insight to

the components expected in test case generators.

3.1 Automatic Test Case Generation

The automation of test case generation may have

different targets to achieve. The test case generation

for functional testing aims at generating test cases

that exercises all the functions of the systems either

based on specifications or based on the model of the

system. The test case generation for structural

testing, on the other hand, attempts to find a set of

program inputs X that achieves desired testing

coverage criterion, provided that X is a subset of the

set of all possible input combinations (Tracey et al.

1998). This type of test case generation may be

code-based, model-based or specification-based

depending on the approach taken.

In fact, the approach taken not only determines how

the test cases will be generated, but also whether the

system has to be executed in the generation of these

test cases. Some test case generation techniques

need the execution of the program with the

generated test suite. These techniques are called to

be dynamic. If the execution of the system is not

involved in the generation of the test suite, then

these techniques are said to be static techniques.

The next section will briefly explain the components

that are likely to be seen in test case generators.

3.2 General Structure of the Test Case

Generators

A typical test case generator consists of three parts;

Program Analyzer, Strategy Handler and Generator.

GOAL-ORIENTED AUTOMATIC TEST CASE GENERATORS FOR MC/DC COMPLIANCY

291

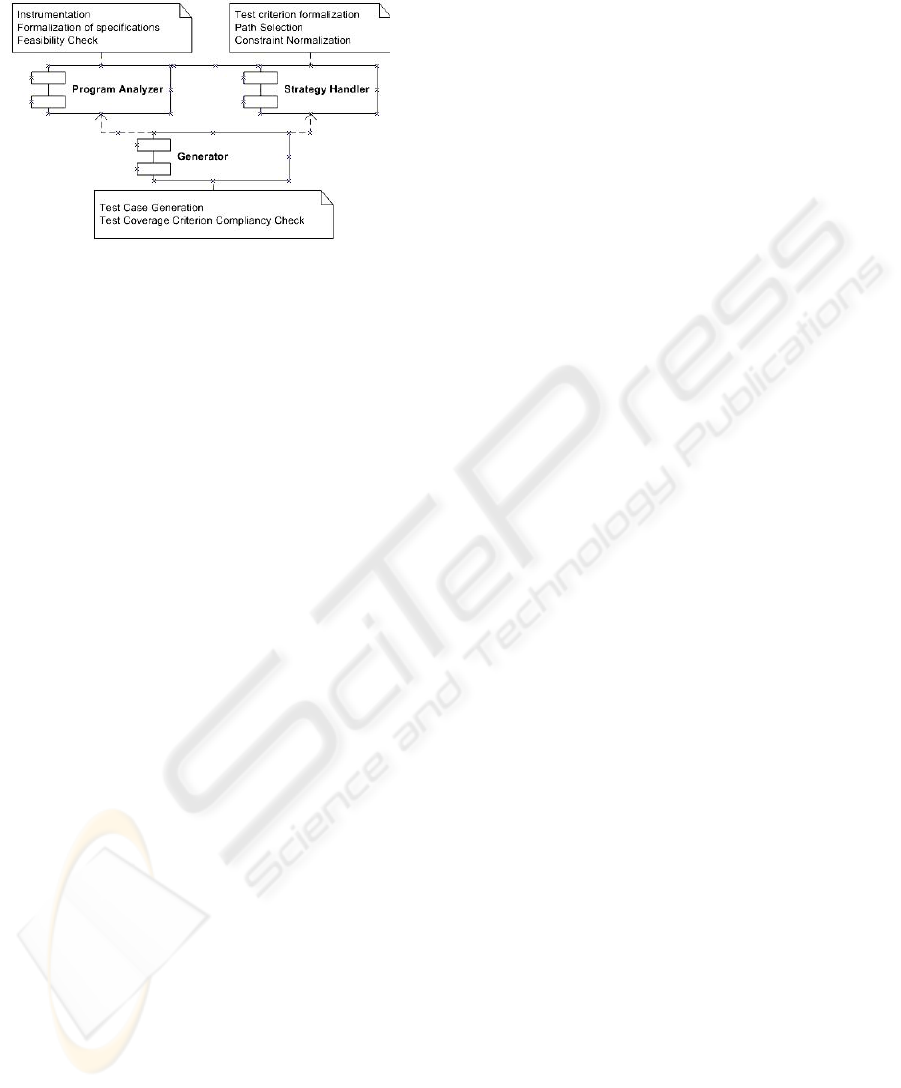

Figure-1 shows the components and the tasks that

may be handled in these components.

Figure 1: The components of a test case generator.

The first component, Program Analyzer, is

responsible for the preparation of the program to the

automation process. This preparation may need

some changes on the actual program or some

analysis of a certain property. For instance, some

test case generation techniques require specific

response from the software and therefore the

instrumentation may become necessary. If the

approach taken is formal, a formal specification of

the system may be in need. Another task performed

at this point may be to build a control flow graph

(CFG) or to perform parameterised feasibility

analysis in order to locate as much unreachable code

as possible.

Strategy Handler is the component where

external factors affecting the test case generation are

determined. This step may include the formalization

of the test coverage criterion, the selection of paths,

normalization of constraints, etc. In some cases, this

component may need some amount of interaction or

input from Program Analyzer.

Generator is the component that takes input

from the other two components and generates test

cases according to the rules of the approach

followed. The satisfaction of test coverage criterion

is generally verified in this component as well.

The model above is similar to that of (Edvardson

1999), however, the tasks of these components are

more generalized in order to give reader an overall

picture of the test case generators and establish a

basis for the next chapter where different goal-

oriented test case generators are discussed.

4 GOAL-ORIENTED TEST CASE

GENERATORS AND MC/DC

There have been many studies on the automation of

test case generation during the last two decades.

Literature surveys on this field (Edvardson 1999,

Prasanna et al. 2005) generally classified the test

generators for structural testing into three categories;

random, path-oriented, goal oriented. This paper

mainly focuses on goal oriented generators. The

reader may find further information on random and

path-oriented test case generators in (Tracey et al.

1998, Durrieu et al. 2004, Diaz et al. 2004).

The goal-oriented generators generally identify test

cases covering a selected goal such as statement or

branch coverage irrespective of the path taken. In

other words, in this sort of generators, the input

generated does not necessarily traverse from entry to

the exit point of the program, but may take an

unspecified path. Since the paths are not restricted,

the risk of encountering infeasible paths is reduced

(Edvardson 1999). Having said that, the strategy

selected should still provide a way to direct the

search for input values.

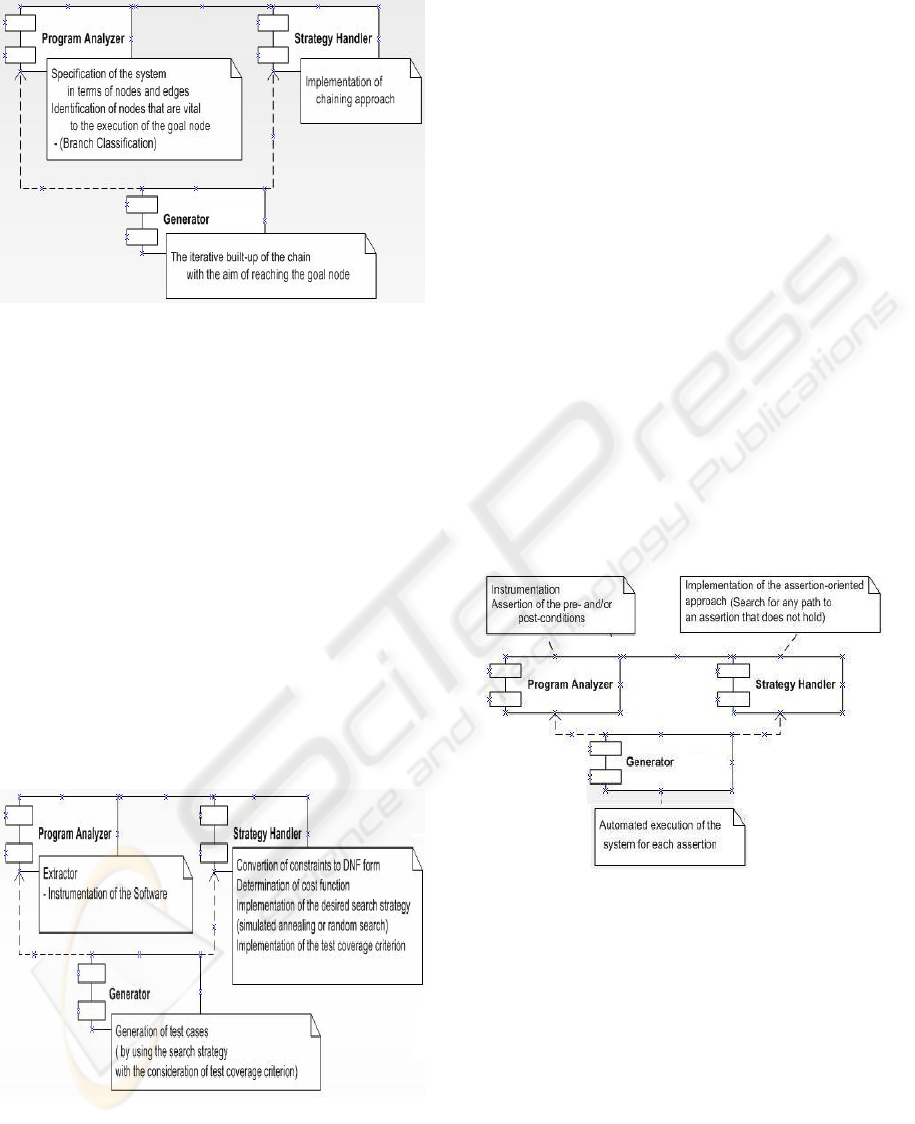

Chaining Approach

One of the approaches followed is the chaining

approach (Ferguson and Korel 1996). In this

approach, for each test coverage criterion, different

initial event sequence is defined and the goal nodes

are determined accordingly. For instance, the initial

event sequence for the branch coverage of the

branch (p,q), the initial event sequence E is defined

as E = <(s, Ø),(p, Ø),(q, Ø)> (Ferguson and Korel

1996). The problem with this approach is the

lengthiness of the processes to prepare the program

to testing. The Branch Classification process

handled in the Program Analyzer has to determine

the critical, semi-critical and non-critical nodes for

each branch. Then, this classification leads the

search during the execution of the program and

decides which branch to take to reach the goal node

or to cover the requested branch. Then again, for

branch coverage, each branch has to be given

explicitly to the generator and the program has to be

executed as many times as the number of branches

in the code. It is written in the specifications of the

tool that the technique can be adapted to other

criteria as well, but the algorithm to introduce a new

criterion is not straightforward and the burden to

introduce each unit of the criterion –eg. each branch

for branch coverage - is still on the shoulders of the

tester. The structure of the test case generator that

uses chaining approach is given in Figure-2.

ICSOFT 2007 - International Conference on Software and Data Technologies

292

Figure 2: Chaining approach.

Simulated Annealing

A similar approach is studied in the domain of

Heuristic-global optimization techniques (Tracey et

al. 1998). Clark et al. have used simulated annealing

in order to build a general framework for generating

test-data. Figure-3 shows the internal structure of the

generator described in (Tracey et al. 1998).

Given the representation of the candidate solutions

and a cost function which can measure the quality of

the candidate solution for a chosen test criterion,

simulated annealing can overcome the problems of

locally optimal solutions by performing modified

neighbourhood search (Tracey et al. 1998). Instead

of classifying branches to find the target branch, as

in chaining approach, it uses the directions of the

cost function. The cost function returns zero as long

as the correct branch is taken along the path to be

traversed.

Figure 3: Simulated annealing.

This approach is superior to many others in the sense

that it is flexible and allows changes during the

procedure. The cost function plays the role of the

oracle in finding the right path and avoids redundant

branching. The test coverage criterion formalization

is also hidden in the cost function. Thus, to generate

test data for new test criterion, it is necessary to

devise an appropriate cost function. The problem is

that the cost function itself may need an oracle.

Because finding a cost function for a new test

criterion is not an easy process and to the best of our

knowledge, no cost function has been produced to

cover MC/DC. Furthermore, although the cost

function aims to lead to the desired branches, there

must be an additional unit to check that the

generated test cases caused the desired coverage.

Having said that, the flexibility of the technique may

allow further improvements. For instance, the

derivation of the cost function from the test criterion

may be formally demonstrated, and the degree of

learning process in each execution may be increased

possibly by harnessing the current optimization

techniques such as tabu-search, generic-algorithms

as well as simulated annealing with the help of

software metrics (Tracey et al. 1998). These

improvements may let researchers to adapt new

criteria such as MC/DC by using more formal

techniques.

Figure 4: Assertion-oriented approach.

Assertion-oriented Approach

Another approach again in the context of goal-

oriented generators is the assertion-oriented

approach. This approach is based on the power of

assertions, i.e. pre- and post-conditions. The

approach may be useful when considered in the

context of all-purpose test case generation. Because

its main goal is to identify a program test on which

an assertion is violated (Korel and Al-Yami 1996)

and ultimately automate the process for each

assertion in the program. By finding an assertion

violation, it aims at finding a fault in the program, a

GOAL-ORIENTED AUTOMATIC TEST CASE GENERATORS FOR MC/DC COMPLIANCY

293

faulty precondition or an erroneous assertion. The

Figure-4 shows its internal components.

For fault-detection purposes, this testing technique

can be of use, but its drawback is that it does not

consider any test coverage criterion within the

process. Thus, there is no fixed termination point

other than the number of assertions in the program,

but as stated in (Korel and Al-Yami 1996), the

problem of finding a program input on which an

assertion is violated is undecidable and therefore the

process may not be able to find violations for certain

assertions and may never terminate.

ADA Testing Workbench

As a more formal approach in building test case

generators, Chilenski and Newcomb (1994) examine

Ada Testing Workbench (ATW), a research tool that

automates the analysis of a subset of Ada language

and generation of coverage compliant specifications

for twenty-one control, control-flow and data-flow

coverage criteria, including MC/DC. The internal

structure of ATW is shown in Figure-5.

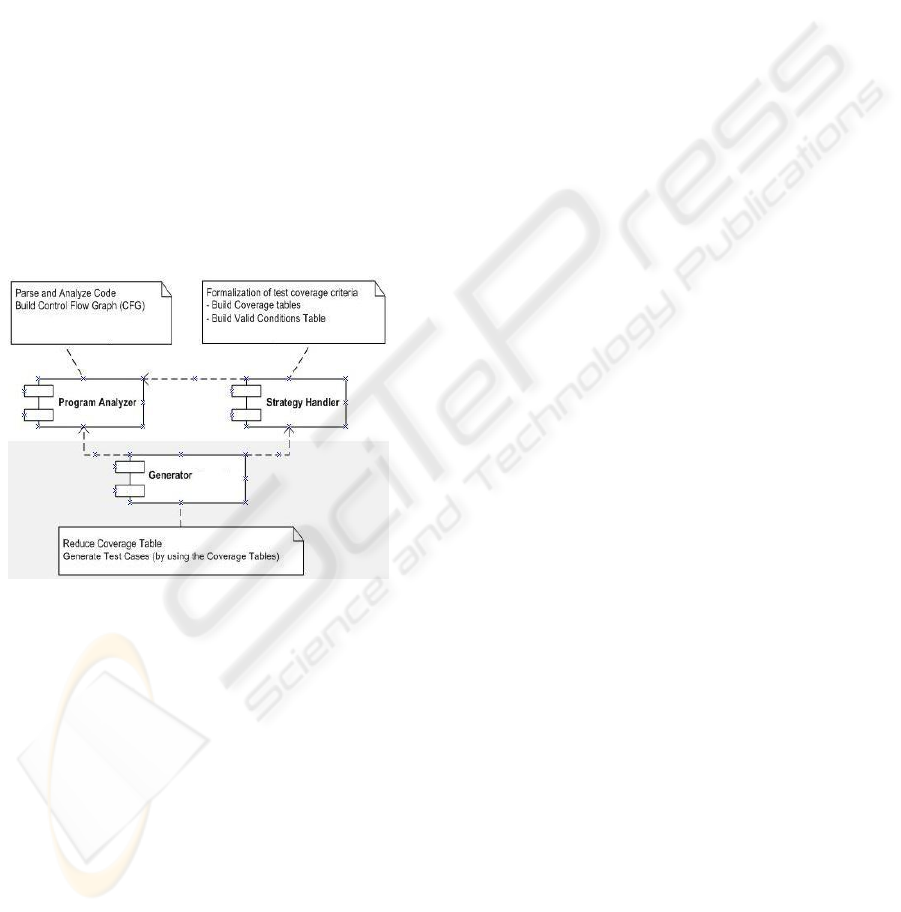

Figure 5: Goal-oriented test case generator – ATW.

The generator starts the process with the

transformation of source code into a machine

understandable representation. Then, ATW starts the

parsing step where a set of knowledge base

structures are generated. These constitute an abstract

syntax tree (AST). By using AST, Control Flow

Analysis generates CFG for each Ada subprogram.

CFG is used to determine the decisions, conditions

and variables that control the execution of the code.

Meanwhile, coverage specifications are built for the

test coverage criteria by using the coverage tables

and feasibility analysis is carried out. Finally, the

generator reduces the number of rows in the

Coverage Tables by using Valid Conditions Table

(VCT) and constructs test cases accordingly. Thus

the goal of the generator can be summarized as

generating test cases for a certain coverage criterion

through Coverage Tables in an efficient manner.

Although this work was promising for test case

generation, the efforts to improve the tool (ATW)

ceased in 1994. One of the main benefits of this

study has been that it demonstrated automated

formal semantics capture techniques with derivation

of formal specifications from Ada code and

mechanical theorem proofs for properties of

program paths (Chilenski and Newcomb 1994,

Chilenski and Miller 1994).

Model-based Approach

In addition to the techniques and tools introduced,

there are also model-based goal-oriented test case

generation tools (Prasanna et al. 2005, Cavarra et al.

2002), most of which are based on UML. The test

case generation from UML models is certainly

possible. However, to generate test cases that satisfy

a coverage criterion, the models need to be verified

against the specifications. Although there have been

some studies focused on formal verification of UML

models, the overall semantics of UML still needs to

be elaborated in order to get rid of ambiguities in its

definition as stated by Prasanna et al. 2005 and

therefore these tools are not studied in this paper.

5 CONCLUSION

Having evaluated a significant number of goal-

oriented test case generators in the context of

MC/DC satisfaction, we can summarize the crucial

outcomes as follows:

- MC/DC must be formulated in a standard format

and there must be a mechanism that introduces

the criterion to the generator.

- If there is a need for the determination of all

branches or paths in order to execute them, then

this must be handled by the tool.

- Heuristic-global optimization techniques can be

used if formality in the definition of cost function

for MC/DC can be achieved.

- Analysis of the program code is an indispensable

part of the test case generation since, like most

other criteria, MC/DC is a syntax-dependent

criterion. Some of the generators analyze the

code through instrumentation, others through

parsing and producing CFGs, etc. A formal

analysis of the code that does not rely on the

programming language can improve the

confidence in the tool and provide more

flexibility to other components of the generator.

- It is possible to produce tools that accept

different coverage criteria in the form of plug-ins

ICSOFT 2007 - International Conference on Software and Data Technologies

294

as in (Chilenski and Newcomb 1994). Although

our aim in this paper is to generate MC/DC-

compliant test suites, having this broader idea in

mind would probably facilitate the introduction

of other criteria if need be.

- The components of the tool must comply with

the ‘separation of concerns’ rule. Separation of

concerns (SoC) is the process of breaking a

program into distinct features that overlap in

functionality as little as possible (Jackson 2006).

In this case, the components; program analyzer,

strategy handler and generator must be

implemented in such a way that amendments in

one of the components should not affect others in

great deal. For example, if the instrumentation of

the code in the program analyzer depends on the

criterion formulated in Strategy Handler, this

may cause huge amount of modifications when

the decision for the criterion used is changed.

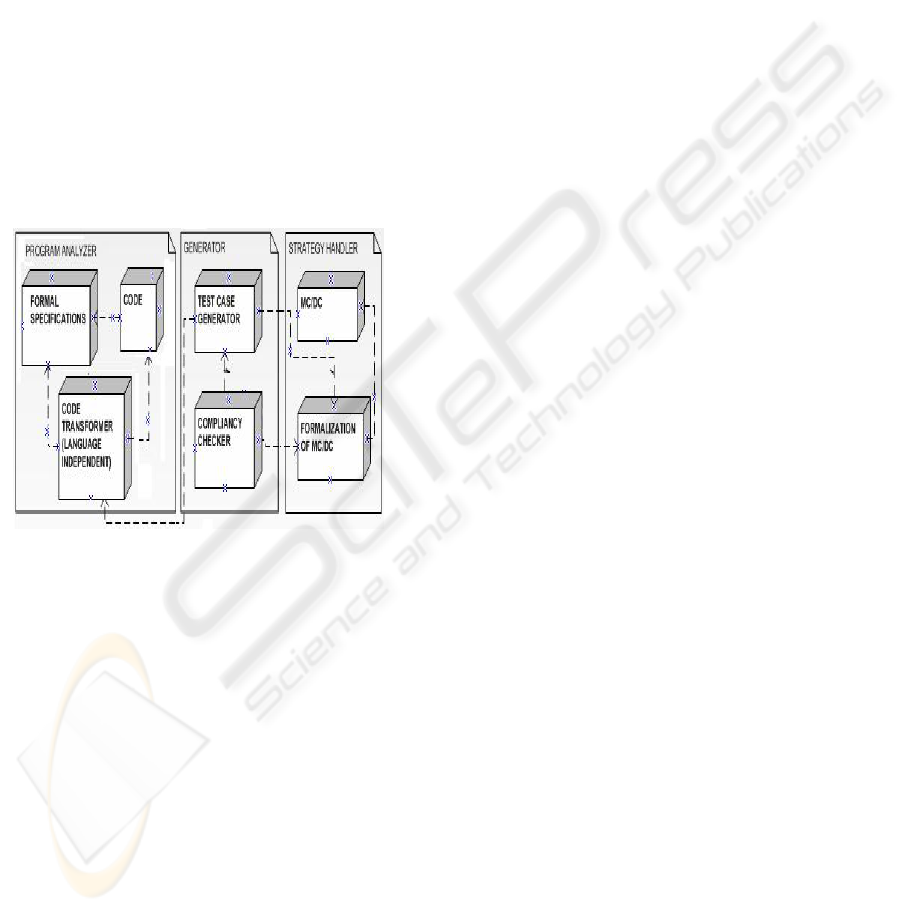

Figure 6: A different view to test case generation.

Figure-6 gives a different view to the test case

generation process. The main idea emphasized in

this figure is the fact that MC/DC is separated from

the other components of the generator and therefore

its formalization can be handled separately, for

instance, by using Z notation, provided that the

generator is able to interpret this notation. Another

message given by Figure 6 is that the code

transformed into a format that can be understood by

the generator, must still be consistent with the

formal specifications of the program.

There is certainly more work to be done in this

subject, however the strengths of the tools and the

techniques outlined in this paper will certainly draw

a guideline in the production of future tools to cover

MC/DC and we continue to explore the use of

formal methods to achieve MC/DC-compliant test

case generation.

REFERENCES

AC#20-115B (2003). Advisory Circular (AC) # 20-115B,

FAA.

Adrion, R., Branstad, M. and Cherniavsky, J., (1982).

Validation, Verification and Testing of Computer

Software. Computing Surverys, ACM.

Ammann, P., Offutt, J. and Huang, H., (2003). Coverage

Criteria for Logical Expression. International

Symposium on Software Reliability Engineering

(ISSRE '03).

Cavarra, A. , Crichton, C., Davies, J., Hartman, A., Jeron,

T. and Monier, L., (2002). Using UML for Automatic

Test Generation. Proceedings of ISSTA.

Certification Authorities Software Team (CAST), 2001.

Rationale for Accepting Masking MC/DC in

Certification Projects.

Chilenski, J.J. and Miller, S.P., (1994). Applicability of

Modified Condition/Decision Coverage to Software

Testing. Software Engineering Journal.

Chilenski, J.J. and Newcomb, P.H., (1994). Formal

Specification Tools for Test Coverage Analysis. The

Boeing Company.

Díaz, E., Tuya, J. and Blanco, R., (2004). A Modular Tool

for Automated Coverage in Software Testing,

Software Technology and Engineering Practice. IEEE

CS Press, pp. 234-240.

DO-178B, (1992). DO-178B: Software Considerations in

Airborne Systems and Equipment Certification,

RTCA, Washington D.C., USA.

Durrieu, G., Laurent, O., Seguin, C. and Wiels, V., (2004),

Automatic Test case Generation for Critical Embedded

Systems. DASIA’04.

Edvardsson, J., (1999), A Survey on Test Data Generation,

ECSEL.

Ferguson R. and Korel B., (1996). The Chaining Approach

for Software test data generation. ACM Transactions

on Software Engineering and Methodology, 5(1):63-

86.

Hayhurst, K.,Veerhusen, D., Chilenski, J. and Rierson,

L.K., (2001). A Practical Tutorial on Modified

Condition/Decision Coverage. NASA.

Jackson, M., (2006). What can we expect from program

verification?. Innovative Technology for Computer

Professionals 39, no.10, PG 65-71.

Kapoor, K. and Bowen, J.,(2004).Formal Analysis of

MCDC and RCDC Test Criteria. London South Bank

University.

Korel, B. and Al-Yami, A. M., (1996). Assertion-oriented

automated test data generation. Proceedings of the

18th International Conference on Software

Engineering, (ICSE), pages 71-80. IEEE.

Prasanna, M., Sivanandam, S.N., Venkatesan, R. and

Sundarrajan, R., (2005). A Survey on Automatic Test

Case Generation. Academic Open Internet

Journal,Volume 15.

Tracey, N., Clark, J., Mader, K. and McDermid, J., (1998).

An Automated Framework for Structural Test Data

Generation. 13

IEEE International Conference on

Automated Software Engineering.

GOAL-ORIENTED AUTOMATIC TEST CASE GENERATORS FOR MC/DC COMPLIANCY

295
