TOWARDS A UNIFIED SECURITY/SAFETY FRAMEWORK

A Design Approach to Embedded System Applications

Miroslav Sveda

Faculty of Information Technology, Brno University of Technology, Brno, Czech Republic

Radimir Vrba

Faculty of Electrical Engineering & Communication, Brno University of Technology, Brno, Czech Republic

Keywords: Embedded software, security, safety.

Abstract: This paper presents a safety and security-based approach to netw

orked embedded system design that offers

reusable design patterns for various domain-dedicated applications. After introducing proper terminology, it

deals with industrial, sensor-based applications development support aiming at distributed components

interconnected by wired Internet and/or wireless sensor networks. The paper presents a dependability-driven

approach to embedded networks design for a class of Internet-based applications. It discusses an abstract

framework stemming from embedded system networking technologies using wired and wireless LANs, and

from the IEEE 1451.1 smart transducer interface standard supporting client-server and publish-subscribe

communication patterns with group messaging based on IP multicast that mediate safe and secure access to

smart sensors through Internet and Zigbee. The case study demonstrates how clients can access groups of

wireless smart pressure and temperature sensors and safety valves through Internet effectively using

developed system architecture, which respects prescribed requirements for application dependent safety and

security.

1 INTRODUCTION

This paper deals with a safety and security-based

approach to networked embedded system’s design

that is rooted in design patterns reusable for various

application domains. The approach aims at

embedded system design for a class of Internet-

based applications focusing on a conceptual

framework that stems from (1) embedded system

networking technologies using wired and wireless

LANs, and (2) the IEEE 1451.1 smart transducer

interface specification supporting client-server and

publish-subscribe communication styles. That

communication employs group messaging based on

IP multicast, mediating safe and secure access to

smart sensors through Internet and ZigBee.

After introducing basic concepts of functionality

d dependability, the paper discusses relations in

between safety and security properties that embrace

main functional and non-functional requirements in

the considered application domain. Next section

introduces embedded system networking, in this

case ZigBee and IEEE 1451 protocols, client-server

and publish-subscribe configurations, and

multicasting including secure multicast. The case

study demonstrates how clients can access groups of

wireless smart pressure and temperature sensors and

safety valves effectively through Internet using

developed system architecture while respecting

prescribed requirements for application dependent

safety and security.

2 FUNCTIONALITY AND

DEPENDABILITY

The design of current networked embedded system

applications should consider functionality and

dependability measures. Functionality means

services delivery in the form and time fitting

requirement specifications, where the service

specification is an agreed description of the expected

service. Functionality properties should be realized

efficiently and cost-effectively, so reachable

345

Sveda M. and Vrba R. (2007).

TOWARDS A UNIFIED SECURITY/SAFETY FRAMEWORK - A Design Approach to Embedded System Applications.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 345-350

DOI: 10.5220/0001324503450350

 SciTePress

performance and maintainability of implementation

belong to the checked properties.

Dependability is that property of a system that

allows reliance to be justifiably placed on the service

it delivers. A failure occurs when the delivered

service deviates from the specified service.

Dependability measures consist of reliability,

availability, security, safety and survivability.

Availability is the ability to deliver shared service

under given conditions for a given time, which

means elimination of denial-of-service

vulnerabilities. Security, see e.g. (Kim et al., 2006),

is the ability to deliver service under given

conditions without unauthorized disclosure or

alteration of sensitive information. It includes

privacy as assurances about disclosure and

authenticity of senders and recipients. Security

attributes add requirements to detect and avoid

intentional faults. Safety, see (Leveson, 1984), is the

ability to deliver service under given conditions with

no catastrophic effects. Safety attributes add

requirements to detect and avoid catastrophic

failures.

A failure occurs when the delivered service

deviates from the specified service. The failure

occurred because the system was erroneous: an error

is that part of the system state which is liable to lead

to failure. The cause of an error is a fault. Failures

can be classified according to consequences upon

the environment of the system. While for benign

failures the consequences are of the same order of

magnitude (e.g. cost) as those of the service

delivered in the absence of failure, for malign or

catastrophic failures the consequences are not

comparable.

A fail-safe system attempts to limit the amount

of damage caused by a failure. No attempt is made

to satisfy the functional specifications except where

necessary to ensure safety. A mishap is an

unplanned event (e.g. failure or deliberate violation

of maintenance procedures) or series of events that

results in damage to or loss of property or

equipment. A hazard is a set of conditions within a

state from which there is a path to a mishap.

A fail-stop system never performs an erroneous

state transformation due to a fault (Schneider, 1983).

Instead, the system halts and its state is irretrievably

lost. The fail stop model, originally developed for

theoretical purposes, appears as a simple and useful

conception supporting the implementation of some

kinds of fail-safe systems. Since any real solution

can only approximate the fail-stop behavior and,

moreover, the halted system offers no services for its

environment, some fault-avoidance techniques must

support all such implementations.

2.1 Safety-Security Relationships

Evidently, design of any safe system requires

deploying security to avoid intentional catastrophic

failures. And vice versa, system’s security can be

attacked using a safety flaw. The greater the

assurance, the greater the confidence that a security

system will protect against threads, with an

acceptable level of risk (Kim, 2006).

The above statement deals with trust, which is

assured reliance on the character, ability, strength, or

truth of someone or something (Li and Singhal,

2007). Trust can be defined as the belief that an

entity is capable of acting reliably, dependably, and

securely in a particular case. In frame of network

systems, trust is a complex subject that should be

managed. Trust management entails collecting the

information necessary to establish a trust

relationship and dynamically monitoring and

adjusting the existing trust relationship.

Principally, security represents the combination

of confidentiality, integrity and availability (Kim,

2006). Obtaining assurance that the system behavior

will not result in unauthorized access is called a

safety problem (McLean, 1994), which is

undecidable in general, see (Harrison et al., 1976),

but essential to solve in concrete situations.

3 EMBEDDED SYSTEM

NETWORKING

Embedded system networking stems from

hierarchically interconnected networks, mostly

Internet, local area wired and wireless networks, and

wireless sensor networks. Internet access to individual

components of distributed embedded systems can be

based on both wired and wireless LAN technologies,

predominantly on IEEE 802.3 and related Ethernet

standards, and on IEEE 802.11b WiFi and associated

wireless LAN protocols. Embedded systems and their

components can be attached directly to Ethernet with

TCP/IP protocol stack, but also indirectly or

exclusively through various wired Fieldbuses or

wireless technologies such as IEEE 802.11b WiFi and

IEEE 802.15.4 with related ZigBee. Sensor networks

bring an important pattern with single base station

connected to a wired network on one side and

wirelessly to smart sensors on the other side. When

sensors are clustered, the base station communicates

ICSOFT 2007 - International Conference on Software and Data Technologies

346

to cluster heads and through them to individual

sensors.

Application dedicated architectures can profit

from IEEE 1451.0, .1, .2, .3, .4 and .5 standards. In

this case, application layer can stem from object-

oriented abstractions introduced by IEEE 1451.1

Network Capable Application Processor (NCAP)

model.

3.1 ZigBee

The ZigBee/IEEE 802.15.4 protocol profile, see

(ZigBee, 2004) and (IEEE 802.15.3, 2003), is

intended as a specification for low-powered wireless

networks. ZigBee is a published specification set of

high level communication protocols designed to use

small low power digital radios based on the IEEE

802.15.4 standard for wireless personal area networks.

The document 802.15.4 specifies two lower layers:

physical layer and medium access control sub-layer.

The ZigBee Alliance builds on this foundation by

providing the network layer and the framework for

application layer, which includes application support

sub-layer covering ZigBee device objects and

manufacturer-defined application objects.

Responsibilities of the ZigBee network layer

include mechanisms used to join and leave a network,

to apply security to frames and to route frames to their

intended destinations. In addition to discovery and

maintenance of routes between devices including

discovery of one-hop neighbors, it stores pertinent

neighbor information. The ZigBee network layer

supports star, tree and mesh topologies. Star topology

network is controlled by one single device called

ZigBee coordinator, which is responsible for initiating

and maintaining devices on the network. Those

devices, known as end devices, directly communicate

with the ZigBee coordinator. In mesh and tree

topologies, the ZigBee coordinator is responsible for

starting the network and for choosing key network

parameters.

Each network may be extended through the use of

ZigBee routers. In tree networks, routers move data

and control messages through the network using a

hierarchical routing strategy. Tree networks may

employ beacon-oriented communication as described

in the IEEE 802.15.4 specification. Mesh networks

allow full peer-to-peer communication. ZigBee

routers in mesh networks shall not emit regular IEEE

802.15.4 beacons.

The ZigBee application layer includes application

support sub-layer, ZigBee device objects and

manufacturer-defined application objects. The

application support sub-layer maintains tables for

binding, which is the ability to match two devices

together based on their services and their needs, and

forwards messages between bound devices. The

responsibilities of the ZigBee device objects include

defining the role of the device within the network

(e.g., ZigBee coordinator or end device), initiating

and/or responding to binding requests and

establishing a secure relationship between network

devices. The ZigBee device object is also responsible

for discovering devices on the network and

determining which application services they provide.

3.2 IEEE 1451

The IEEE 1451 package consists of the family of

standards for a networked smart transducer interface

that include (i) a smart transducer software

architecture, 1451.1 (IEEE, 2000), targeting

software-based, network independent, transducer

applications, and (ii) a standard digital interface and

communication protocol, IEEE 1451.2, for accessing

the transducer or the group of transducers via a

microprocessor modeled by the 1451.1 standard.

The next three standard proposals extend the original

hard-wired parallel interface 1451.2 to serial multi-

drop 1451.3, mixed-mode (i.e. both digital and

analogue) 1451.4, and wireless 1451.5 interfaces

(Sveda, 2005).

The 1451.1 software architecture provides three

models of the transducer device environment: (i) the

object model of a network capable application

processor (NCAP), which is the object-oriented

embodiment of a smart networked device; (ii) the

data model, which specifies information encoding

rules for transmitting information across both local

and remote object interfaces; and (iii) the network

communication model, which supports client/server

and publish/subscribe paradigms for communicating

information between NCAPs. The standard defines a

network and transducer hardware neutral

environment in which a concrete sensor/actuator

application can be developed.

The object model definition encompasses the set

of object classes, attributes, methods, and behaviors

that specify a transducer and a network environment

to which it may connect. This model uses block and

base classes offering patterns for one Physical

Block, one or more Transducer Blocks, Function

Blocks, and Network Blocks. Each block class may

include specific base classes from the model. The

base classes include Parameters, Actions, Events,

and Files, and provide component classes.

All classes in the model have an abstract or root

class from which they are derived. This abstract

class includes several attributes and methods that are

common to all classes in the model and provide a

definition facility for the instantiation and deletion

of concrete classes including attributes.

TOWARDS A UNIFIED SECURITY/SAFETY FRAMEWORK - A Design Approach to Embedded System Applications

347

Block classes form the major blocks of

functionality that can be plugged into an abstract

card-cage to create various types of devices. One

Physical Block is mandatory as it defines the card-

cage and abstracts the hardware and software

resources that are used by the device. All other block

and base classes can be referenced from the Physical

Block.

The Transducer Block abstracts all the

capabilities of each transducer that is physically

connected to the NCAP I/O system. During the

device configuration phase, the description of what

kind of sensors and actuators are connected to the

system is read from the hardware device. The

Transducer Block includes an I/O device driver style

interface for communication with the hardware. The

I/O interface includes methods for reading and

writing to the transducer from the application-based

Function Block using a standardized interface.

The Function Block provides a skeletal area in

which to place application-specific code. The

interface does not specify any restrictions on how an

application is developed. In addition to a State

variable that all block classes maintain, the Function

Block contains several lists of parameters that are

typically used to access network-visible data or to

make internal data available remotely.

The Network Block abstracts all access to a

network employing network-neutral, object-based

programming interface supporting both client-server

and publisher-subscriber patterns for configuration

and data distribution.

3.3 Client-Server and

Publisher-Subscriber Patterns

In case of sensor communications, the client-server

pattern covers both configuration of transducers and

initialization actions. If the client wants to call some

function on server side, it uses a command execute.

On server side, this request is decoded and used by

the function perform. That function evaluates the

requested function with the given arguments and,

after that, it returns the resulting values to the client.

The client-server pattern corresponds to remote

procedure call (RPC), which is the remote

invocation of operations in a distributed context

(Eugster, et al., 2003). To be more precise, the RPC

interaction considered in this paper provides a

synchronous client-server communication, i.e. the

client is waiting for a server’s response before

completion the RPC actions related to the current

call.

The subscriber-publisher style of communication

(Eugster, et al., 2003) can provide the efficient

distribution of measured data. All clients, wishing to

receive messages from a transducer, register

themselves to the group of its subscribers using the

function subscribe. After that, when this transducer

generates a message using the function publish, this

message is effectively delivered to all members of

its subscribing group. Transducers in the role of

publishers have also the ability to advertise the

nature of their future events through an advertise

function.

The interaction publish-subscribe relates to point-

to-multipoint or multipoint-to-multipoint

asynchronous message passing. Of course, it can be

implemented using multiple unicast communication

transactions. On the other hand, to satisfy the

requirement of efficiency, it is necessary to utilize

elaborate multicast techniques encompassing

multicast addressing and, namely, multicast routing.

The basic principles of the network layer multicast

in the Internet environment are discussed in the

following section.

3.4 Multicasting

Traditional network computing paradigm involves

communication between two network nodes.

However, emerging Internet applications require

simultaneous group communication based on

multipoint configuration propped e.g. by multicast

IP, which saves bandwidth by forcing the network to

replicate packets only when necessary. Multicast

improves the efficiency of multipoint data

distribution by building distribution trees from

senders to sets of receivers (Miller, 1999).

The functions that provide the Standard Internet

Multicast Service can be separated into host and

network components. The interface between these

components is provided by IP multicast addressing

and Internet Group Management Protocol (IGMP)

group membership functions, as well as standard IP

packet transmission and reception. The network

functions are principally concerned with multicast

routing, while host functions can also include

higher-layer tasks such as the addition of reliability

facilities in a transport-layer protocol.

IP multicasting is the transmission of an IP

datagram to a host group, a set of hosts identified by

the single IP destination address of class D.

Multicast groups are maintained by IGMP (IETF

RFC 1112, RFC 2236). Multicast routing considers

multicasting routers equipped with multicast routing

protocols such as DVMRP (RFC 1075), MOSPF

(RFC 1584), CBT (RFC 2189), PIM-DM (RFC

2117), PIM-SM (RFC 2362), or MBGP (RFC 2283).

For Ethernet-based Intranets, the Address Resolution

Protocol provides the last-hop routing by mapping

class D addresses on multicast Ethernet addresses.

ICSOFT 2007 - International Conference on Software and Data Technologies

348

3.5 Secure Multicast

In frame of a trust management in distributed

systems (Li and Singhal, 2007), multicast security

should provide assurance about disclosure (privacy)

and authenticity of sender/recipient. The key

exchange protocols used between unicast hosts do

not scale well to groups. Re-keying is required to

maintain confidentiality as group membership

changes. The IETF Multicast Security and IRTF

Group Security working groups developed a

building block approach to solve the problem. The

blocks encompass data security transforms, group

key management and security association, and group

policy management. Any application may use

different blocks together to create a protocol that

meets its specific requirements.

4 CASE STUDY

The case study, based on a real-world application,

which was introduced in more detail but from

distinct perspectives by (Sveda and Vrba, 2003) and

(Sveda and Vrba, 2006), is used in this paper to

demonstrate basic features of safety and security

conception of the application architecture.

4.1 Application Architecture

The application architecture comprises several

groups of wireless pressure and temperature sensors

with safety valve controllers as base stations

connected to wired intranets that dedicated clients

can access effectively through Internet. The web

server supports each sensor group by an active web

page with Java applets that, after downloading,

provide clients with transparent and efficient access

to pressure and temperature measurement services

through controllers. Controllers provide clients not

only with secure access to measurement services

over systems of gas pipes, but also communicate to

each other and cooperate so that the system can

resolve safety and security-critical situations by

shutting off some of the valves.

Each wireless sensor group is supported by its

controller providing Internet-based clients with

secure and efficient access to application-related

services over the associated part of gas pipes. In this

case, clients communicate to controllers using a

messaging protocol based on client-server and

subscriber-publisher patterns employing 1451.1

Network Block functions. A typical configuration

includes a set of sensors generating pressure and

temperature values for the related controller that

computes profiles and checks limits for users of

those or derived values. When a limit is reached, the

safety procedure closes valves in charge depending

on safety service specifications.

In the transducer’s 1451.1 object model, basic

Network Block functions initialize and cover

communication between a client and the transducer.

The client-server communication style, which in this

application covers configurations of transducers, is

provided by two basic Network Block functions:

execute and perform. The standard defines a unique

ID for every function and data item of each class. If

the client requests to call any of the functions on

server side, it uses command execute with the

following parameters: ID of requested function,

enumerated arguments, and requested variables. On

server side, this request is decoded and used by the

function perform. That function evaluates the

requested function with the given arguments and, in

addition, it returns the resulting values to the client.

Those data are delivered by requested variables in

execute arguments.

4.2 Application Safety and Security

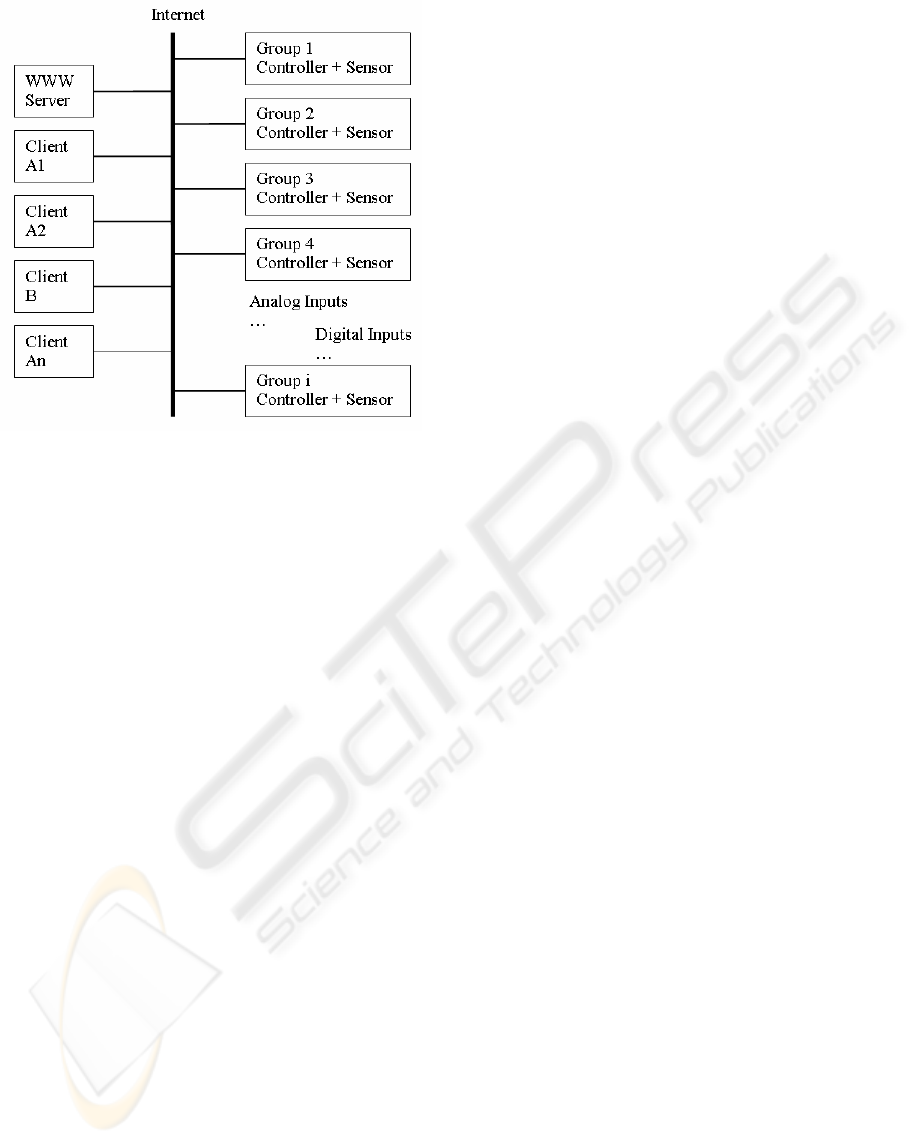

The application architecture comprises several

groups of wireless pressure and temperature sensors

with safety valve controllers as base stations

connected to wired intranets that dedicated clients

can access effectively through Internet, see Figure 1.

The WWW server supports each sensor group by an

active web page with Java applets that, after

downloading, provide clients with transparent and

efficient access to pressure and temperature

measurement services through controllers.

Controllers provide clients not only with secure

access to measurement services over systems of gas

pipes, but also communicate to each other and

cooperate so that the system can resolve safety and

security-critical situations by shutting off some of

the valves.

Each wireless sensor group is supported by its

controller providing Internet-based clients with

secure and efficient access to application-related

services over the associated part of gas pipes. In this

case, clients communicate to controllers using a

messaging protocol based on client-server and

subscriber-publisher patterns employing 1451.1

Network Block functions. A typical configuration

includes a set of sensors generating pressure and

temperature values for the related controller that

computes profiles and checks limits for users of

those or derived values. When a limit is reached, the

safety procedure, which is derived from the fail-stop

model discussed in section 2, closes valves in charge

depending on safety service specifications.

TOWARDS A UNIFIED SECURITY/SAFETY FRAMEWORK - A Design Approach to Embedded System Applications

349

Figure 1: Network configuration example.

Security in frame of Intranet subnets can be

based on current virtual private network concepts.

The discussed application utilizes ciphered channels

based on tunneling between a client and a group of

safety valve controllers. The tunnels are created with

the support of associated authentications of each

client.

5 CONCLUSIONS

The paper presents an approach to embedded system

networking that offers a reusable design pattern for

the considered class of Internet-based applications. It

brings an integrated networking framework

stemming from the IEEE 1451.1 smart transducer

interface standard, which represents an object-based

networking model supporting client-server and

publish-subscribe communication patterns in group

messaging, and from the IP multicast

communication, which mediates safe and secure

access to sensors and actuators in sensor networks

through Internet.

ACKNOWLEDGEMENTS

The research has been supported by the Czech

Ministry of Education in the frame of Research

Intentions MSM 0021630528: Security-Oriented

Research in Information Technology and MSM

0021630503 MIKROSYN: New Trends in

Microelectronic Systems and Nanotechnologies; and

in part by the Grant Agency of the Czech Republic

through the grants GACR 102/05/0723: A

Framework for Formal Specifications and

Prototyping of Information System’s Network

Applications and GACR 102/05/0467: Architectures

of Embedded Systems Networks.

REFERENCES

Eugster, P.T., et al., 2003. The Many Faces of

Publish/Subscribe. ACM Computing Surveys, Vol. 35,

pp.114-131.

IEEE 1451.1, 2000. Standard for a Smart Transducer

Interface for Sensors and Actuators -- Network

Capable Application Processor (NCAP) Information

Model, IEEE, New York, USA.

IEEE 802.15.4, 2003. Wireless Medium Access Control

and Physical Layer Specification for Low-Rate

Wireless Personal Area Networks, IEEE, New York,

USA.

Kim, I.-G., et al., 2006. Formal Verification of Security

Model using SPR Tool. Computeing and Informatics,

Vol.25, No.5, pp.353-368.

Leveson, N.G., 1984. Software Safety in Computer-

Controlled Systems. IEEE Computer, Vol.17, No.2,

pp. 48-55.

Li, H. and M. Singhal, 2007. Trust Management in

Distributed Systems. IEEE Computer, Vol.40, No.2,

pp. 45-53.

Miller, C.K., 1999. Multicast Networking and

Applications, Addison-Wesley, Reading,

Massachusetts, USA.

Schneider, F.B., 1983. Fail-Stop Processors. Digest of

Papers 26th IEEE CS Int. Conf. COMPCON'83

SPRING, pp. 66-70.

Sveda, M. and R. Vrba, 2003. An Integrated Framework

for Internet-Based Applications of Smart Sensors.

IEEE Sensors Journal, Vol.3, No. 5, pp.579-586.

Sveda, M., et al., 2005. Introduction to Industrial Sensor

Networking, A book chapter in: Ilyas, M., and I.

Mahgoub, (Eds.), 2005. Handbook of Sensor

Networks: Compact Wireless and Wired Sensing

Systems, CRC Press LLC, Boca Raton, FL, USA.

Sveda M. and R. Vrba, 2006. Internet-Based Embedded

System Architectures -- End-User Development

Support for Embedded System Applications.

Proceedings of the International Joint Conference on

e-Business and Telecommunications (ICETE 2006,

ICE-B), INSTICC and IEEE, Setúbal, Portugal, 2006,

pp.63-68.

ZigBee Alliance, 2004. ZigBee Specification v 1.0.

ZigBee Alliance Board of Directors, Website

http://www.zigbee.org/

ICSOFT 2007 - International Conference on Software and Data Technologies

350
