TOWARDS A NEW CODE-BASED SOFTWARE DEVELOPMENT

CONCEPT ENABLING CODE PATTERNS

Klaus Meffert and Ilka Philippow

TU Ilmenau, PF 10 05 65, 98684 Ilmenau, Germany

Keywords: Software development, design patterns, architectural patterns, program understanding, annotations.

Abstract: Modern software development is driven by many critical forces. Among them are fast deployment require-

ments and easy-to-maintain code. These forces are contradicted by the rising complexity of the technologi-

cal landscape among others. We introduce a concept aiding in lowering these negative aspects for code-

based software development. Protagonists of our work are explicit semantics in source code and newly in-

troduced code pattern templates, which enable code transformations. Throughout this paper, the term code

pattern includes architectural patterns, design patterns, and refactoring operations. Enabling automated

transformations stands for providing means of executing possibly premature transformations.

1 INTRODUCTION

Observing current software development projects

leads to the conclusion that for a huge number of

these projects working with source code is the main

driver. By accompanying a lot of source code-based

projects, we noticed the difficulties with state-of-

the-art programming techniques. This paper is a

contribution to make software development more

productive in that segment. To accomplish a raise in

software development productivity, we suggest

using what is described as code pattern template

throughout this paper. Such a template is suited for

supporting the usage of architectural patterns, design

patterns, and refactoring operations. To enable such

templates, we introduce explicit semantics to source

code, assigning a deeper meaning, or sense, to a

piece of code. As low-level refactoring operations

are supported by modern IDEs to a reasonable ex-

tent the main focus of this paper lies on design and

architectural patterns.

2 DEFINITIONS

In this section definitions are introduced that are

helpful for understanding the presented approach.

2.1 Semantics

The meaning of a statement or operator of a pro-

gramming language (“program statement”) is its

dedicated function. For example, the Java statement

x++ increases the value of the variable x. The se-

mantics of a statement is its deeper meaning within a

context (sense, intention). The context determines

the meaning of x and thus the meaning of the state-

ment itself. If x represents a number of pieces, then

x++ increases the number of pieces by one. Is it the

number of available or defect pieces? This in turn

depends on the wider context.

2.2 Annotation

To express the semantic meaning of program con-

structs (statements, declarations, blocks) annotations

are introduced in this paper. An annotation as we see

it is a construct that can be put above any valid pro-

gram construct (in contrast to Java’s JSR 175) with-

out changing the behavior of the program. An anno-

tation can also have parameters, which are deter-

mined by the annotation’s definition. To let an anno-

tation express contextual information, a set of prede-

fined senses has to be made available.

363

Meffert K. and Philippow I. (2007).

TOWARDS A NEW CODE-BASED SOFTWARE DEVELOPMENT CONCEPT ENABLING CODE PATTERNS.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 363-366

DOI: 10.5220/0001324903630366

 SciTePress

2.3 Transformation

Here, a transformation defines the process of getting

from a given source to a target code by applying

defined rules. A rule always produces the same

result when applied onto the same source code. At

first, transformations are introduced to obtain a code

pattern template (see next section). At second, they

are helpful to support the developers in applying a

code pattern with tool-support. The latter mentioned

can only be a try because when automatically trans-

forming code the machine executing the transforma-

tions misses what a human would call awareness of

the meaning of source code and its transformation.

That in turn makes it impossible, in our opinion, to

get a machine to transform arbitrary pieces of code

correctly. That is why we suggest a workaround for

this problem. Our suggestion leads to an extended

support for code transformations.

2.4 Code Pattern Template

A code pattern template contains any information

about a pattern necessary for a process like selec-

tion, application, or recognition. This includes static

and dynamic parts, source code as well as semantics.

To use a template effectively it must be connected

with a given source code, the context. This connec-

tion is proposed to be provided by annotations.

The semantic counterpart in the code template is

equivalent to annotations. Also the scope an applied

annotation has is relevant. When comparing the

name and the scope of an annotation in source code

and code pattern template a match can be deter-

mined. The next figure illustrates this.

class Example{

...

void doWork(){

...

/**@@intent..*/

for(int i=...)

...

}

class Example{

...

void doWork(){

...

/**@@intent..*/

for(int i=...)

...

}

Source code

Pattern: X

role: <name>

<semant.elem.>

<scope>

Pattern: X

role: <name>

<semant.elem.>

<scope>

Pattern template

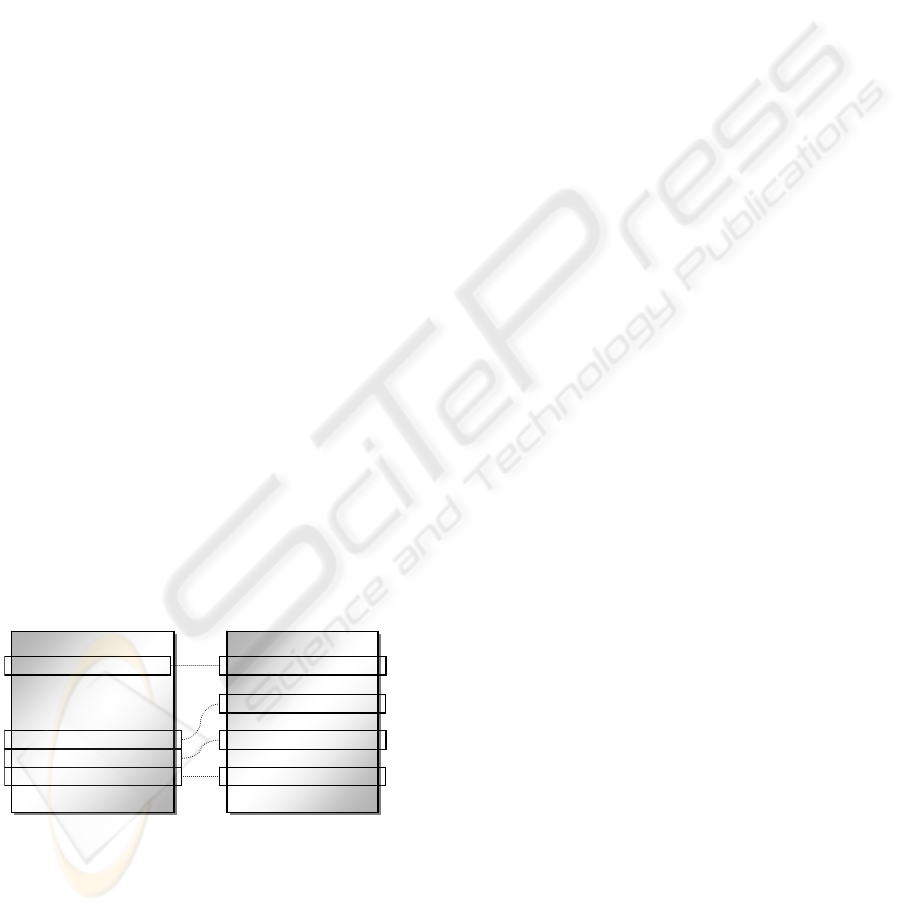

Figure 1: Matching source code with a template via

annotations.

The source code on the left contains annotations

that have a correspondence in the template on the

right.

3 TOWARDS A NEW CONCEPT

Our approach suggests extending common code-

based development scenarios by a semantic layer.

For adding semantics, two perspectives are pro-

posed. The first one is the perspective of code. By

adding explicit semantic information to code, analy-

sis tools have much more possibilities of extracting

information from the code. The second perspective

concerns code pattern templates which are supposed

to be enriched by semantic information, too. The

vehicle for manifesting explicit semantics in code is

the concept of annotations. Adding semantics to

code pattern templates can occur in any satisfying

way, because templates do not have to be compi-

lable.

The result of having explicit semantics in source

code as well as in code pattern templates allows

finding an appropriate template for a given source

code in order to transform it, according to what the

template defines. Matching code and template is

easier with help of explicit semantic information

than by any ordinary AST-based comparison (see

Meffert+, 2006). When working with code patterns,

tool-support for the pattern processes definition,

recognition, selection, and, application is possible

regarding current development environments or

papers like (Taibi+, 2003). Each process can profit

from explicit semantics that would otherwise not be

reasonable by a machine. The next paragraph de-

scribes the idea of introducing explicit semantics to

code and code template in detail.

3.1 Working with Explicit Semantics

As said, there are two sides of the medal, for which

explicit semantic information is relevant, namely

source code and code templates. Code templates are

a newly introduced entity (other papers did this in a

different way already) not significant for a pro-

grammer. However, enriching source code with

annotations is significant for developers following

our approach. As it is not possible reasoning about

the sense of any piece of code and as it is not possi-

ble knowing about the design intentions of develop-

ers, annotations have to be added to source code

manually at least to a certain extent. It may be pos-

sible for a machine to introduced annotations for

cases similar to known ones.

The introduction of semantic information into

code templates is different and more complex than

for source code. Code templates have to be de-

scribed once for a set of similar contexts, whereas

ICSOFT 2007 - International Conference on Software and Data Technologies

364

annotating code depends on the individual motiva-

tions for doing so. Different motivations for annota-

tion source code are plausible, e.g. given the devel-

oper

¾ knows a pattern to apply but wants support in

applying it,

¾ does not now which pattern to select and wants

support in selecting and applying one, or,

¾ wants to know which patterns may exist in the

code respectively to which extent they are exis-

tent.

Depending on the aim a developer has, the pro-

cedure for applying annotations is different. The

easiest case is when a pattern is selected already and

has to be applied. In this case adding annotations to

source code is quite simple because it is known

which annotations are required. Finding a pattern to

apply is more difficult as the source code to be ex-

amined has to be annotated appropriately. In gen-

eral, an annotation has to be added to the code

where an analysis tool is not able to evaluate the

code appropriately to present a qualified suggestion.

4 CODE PATTERN TEMPLATES

The process of obtaining a code template definition,

including annotations, contains the activities:

1. Choose a suitable source code as base for apply-

ing a selected pattern to.

2. Provide a target code where the selected design

pattern is already applied.

3. Transform code from step one to step two and

record the actions undertaken. During this proc-

ess, add annotations for any piece of code that is

significant for the pattern.

4. Obtain a code pattern template, including anno-

tation definitions and transformations, from the

previous step.

5. Verify and improve the generality of the ob-

tained code pattern template by choosing a dif-

ferent source code for step two and proceed from

there.

For the first activity a suitable code can be either

produced by providing a degenerated version of a

design pattern, or a code on which the pattern could

be applied. The target code from activity two con-

tains the applied pattern. In step three, annotations

are added to it. For instance, the Client class of the

Composite design pattern could be marked with an

annotation such as:

/*@@COMPOSITE_CLIENT_CLASS*/

public class Client {...}

The transformations undertaken manually during

activity three must be backed-up by transformation

methods added on demand later on, in case they do

not exist already. These methods include routines

such as “condense a list of parameters into one dedi-

cated parameter”, or “replace a for-loop with Itera-

tor”. At first it should be tried to compose each

needed method from already existent lower-level

ones to enforce reuse of transformations. In the next

paragraph, the procedure for defining code tem-

plates is described deeper.

In activity four, the transformations obtained as

well as the annotated relation between source and

target code is encapsulated under one package.

To validate the overall reusability of the pack-

age, a different source code should be chosen for

which the examined pattern also is applicable and

for which the previously obtained pattern template

should work. That source code should contain com-

mon parts – especially same annotations – with the

initially chosen source code.

In general it should hold that for any annotation

added to the source code, a corresponding annota-

tion in the target code must exist. Also, for any dif-

ference between source and target code a transfor-

mation must be defined.

4.1 Getting a Code Template Definition

The procedure to get to the template involves the

following steps:

1. Consider the target code. For each class:

a. Create a new role section. The name of the

section reflects the role of the class within the

pattern. If the class plays no assigned role in

the pattern, choose a unique role name.

b. Copy the whole target code for the class into

the role section.

c. Determine the context-dependent parts of the

copied code. Here, reflecting on the found

transformations benefits.

d. Introduce a placeholder (called slot) for each

context-dependent part. For context-

dependent sequences of statements introduce

an annotation above any sequence that has a

distinct meaning.

e. For logic that should be kept as the original

from the source code is, add a control tag

with parameters.

f. For logic within a block (e.g. within meth-

ods) that may be extendable, add a documen-

TOWARDS A NEW CODE-BASED SOFTWARE DEVELOPMENT CONCEPT ENABLING CODE PATTERNS

365

tation link. A documentation link references a

description with possibilities to extend the

logic.

2. Add each interface of the target code as is to the

template by putting each code block in a section

identified by the keyword interface plus the

name of the role the interface plays.

3. For any annotation added to the source code (and

thus also to the target code) a definition must be

created or updated. There are two cases:

a. Appropriate Annotation definition not exis-

tent: Create it.

b. Otherwise: Update annotation definition if

changes are necessary and possible.

4. Implement handler routines for

a. extracting information from relevant annota-

tions and providing relating these information

to other annotations,

b. actions for which handlers do not exist, and,

c. executing precondition checks.

Step 3 of the above activities results in annota-

tion definitions. The annotations existent in the

source and target code are equivalent with respect to

their name, but maybe different concerning their

scope. The scope of an applied annotation is the

statement the annotation is applied above.

5 RELATED WORK

Relevant approaches cope with the issues code

transformation, code templates, annotations, and

program understanding. With Java 5 annotations

have been introduced as first-class language con-

structs (JSR 175). These annotations are restricted in

that they cannot be applied to arbitrary scopes (i.e.

single statements are out of the scope). (Jackpot)

browses Java source code for conformance with

generic rules and executes transformations on ASTs

automatically. Each rule contains a Java-statement to

be matched and specifies how to transform the

fragment. (Krahn+, 2006) introduce compilable

code templates to execute automated refactorings for

Java code via code generation. To include directives

into the template, comments are used. The approach

does not consider semantic information. FUJABA

(Niere+, 2006) aims at extending UML for specify-

ing method bodies and generating code from UML

diagrams up to the level of statements. Additionally,

the generation of UML diagrams from source code

is supported.

6 CONCLUSIONS AND FUTURE

WORK

This paper suggested introducing explicit semantics

to source code as a means for identifying the contex-

tual sense of program elements. Using annotations

as a vehicle for transporting semantic information,

an adaptation of current coding practices is pro-

posed. In turn, the definition of code pattern tem-

plates allows obtaining key information about a

pattern, including its structure, preconditions, trans-

formations and annotation definitions.

A code pattern template contains a lot of useful

information and allows recognizing synonymous

pieces of codes. When defining code templates,

variants of a pattern and variations of source code

have to be considered separately to a certain extent.

Reuse is possible but reflecting on the validity of

existing templates is important. There should be a

consolidation feature which puts common parts of

two similar templates into one master template and

adds the different parts by referencing them.

Currently, we are examining complex patterns in

order to demonstrate the practicability of the de-

scribed approach. Especially the capability to reason

about missing information/annotations is focused.

REFERENCES

Gamma, E., Helm, R., Johnson R., Vlissides, J. (1995):

Design Patterns: Elements of Reusable Object-

Oriented Software. Addison-Wesley.

JSR 175: A Metadata Facility for the Java Programming

Language. http://www.jcp.org/en/jsr/detail?id=175

Jackpot. http://jackpot.netbeans.org/index.html

Niere, J., Schäfer, W., Wadsack, J. P., Wendehals, L.,

Welsh, J. (2000): Towards Pattern-Based Design Re-

covery. Proceedings of the 22

International Confer-

ence on Software Engineering, Limerick, Ireland, 241-

251

Krahn, H., Rumpe, B. (2006): Techniques For Light-

weight Generator Refactoring. In: Lämmel, R.,

Saraiva, J., Visser, J.: Proceedings of Summer School

on Generative and Transformational Techniques in

Software Engineering (LNCS 4143), Springer.

Meffert, K., Philippow, I. (2006): Supporting Program

Comprehension for Refactoring Operations with An-

notations. In: Fujita, H., Mejri, M. (eds.): New Trends

in Software Methodologies, Tools and Techniques -

Proceedings of the fifth SoMeT_06, Vol. 147, 48-67.

Taibi, T.; Chek Ling Ngo, D. (2003): Formal Specifica-

tion of Design Patterns – A Balanced Approach. In:

Journal of Object Technology, vol. 2, no. 4, July-

August 2003, S. 127-140.

ICSOFT 2007 - International Conference on Software and Data Technologies

366
