LINKING SOFTWARE QUALITY TO SOFTWARE

ENGINEERING ACTIVITIES, RESULTS FROM A CASE-STUDY

Jos J.M. Trienekens, Rob J. Kusters

University of Technology Eindhoven, Den Dolech 2 5600 MB Eindhoven, The Netherlands

Dennis C. Brussel

Centre for Autonation of Mission-critical Systems (CAMS), Royal Navy

De Ruyghweg 200, Den Helder, The Netherlands

Keywords: Software quality specification and implementation.

Abstract: Specification of software quality characteristics, such as reliability and usability, is an important aspect of

software development. However, of equal importance is the implementation of quality during the design and

construction of the software. This paper links software quality specification to software quality

implementation using a multi-criteria decision analysis technique. The approach is validated in a case-study,

at the Royal navy in The Netherlands.

1 INTRODUCTION

Command frigates (Dutch acronym LCF) are

warships that are used in national and international

task forces to support political decisions. An

important aspect of the power of these frigates are

the so-called guided missiles. The heart of the

command function of such a warship is supported by

the Combat Management System (CMS). This

highly advanced software-intensive system

integrates sensor and missile systems and is the

central operating system of the cruiser. Up to

twenty-two operators are working in the kernel of

the command function on powerful working stations

to identify air attacks and to determine defense

actions. The information that is needed to identify

foreign objects is provided by different types of

sensors, e.g. from radar systems. The various signals

are being collected by the sensors and are tracked

and analysed by the kernel functionality of the CMS,

called Multi Sensor Tracking (MST).

Recently the quality assurance team at CAMS, in

close collaboration with selected user representatives

and representatives of software engineering teams,

have identified quality problems. Users, c.q.

command function operators of the LCF, are not

fully satisfied with the quality of the software, in

particular the reliability and the time-behaviour of

software applications. Also the software engineers

have incrasing 'quality' problems, e.g. caused by the

need to explicitly define distinct software quality

attributes, and to carry out explicit engineering

activities to implement quality into a software

application.

One of the biggest problems is the high degree of

subjectivity in the way quality is dealt with. Both

domain experts, e.g. business context and

information analysts, and software engineers have

their own definitions and interpretations of quality

which often leads to misunderstandings and

confusion. Another problem is the increasing

complexity of the advanced software applications,

due to the extended functionality and the high level

of integration of the different components. Software

engineers often have to deal with conflicting quality

requirements.

The management of CAMS decided to set up a

project in that the concepts and terminology

regarding software quality had to be clarified, and

that had to result in an operational approach for the

specification and implementation of software

quality. The approach should limit subjectivity in the

determination of the quality characteristics of a

particular software application, and should link an

operational specification of quality attributes to

particular engineering activities Key issues in the

project are:

117

J. M. Trienekens J., J. Kusters R. and C. Brussel D. (2007).

LINKING SOFTWARE QUALITY TO SOFTWARE ENGINEERING ACTIVITIES, RESULTS FROM A CASE-STUDY.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 117-122

DOI: 10.5220/0001325501170122

 SciTePress

- the usage of complexity reduction techniques

regarding the specification of quality

requirements;

- the usage of techniques to support close

collaboration between users and engineers

regarding the definition and prioritisation of

quality attributes.

The paper presents results regarding the

decomposition of software quality characteristics,

the determination of their relative importance by

using AHP-techniques, and the determination of the

contribution of particular engineering activities to

the implementation of software quality.

2 BACKGROUND

The International Standard Organization (ISO),

defines quality as ‘the totality of characteristics of an

entity that bear on its ability to satisfy stated and

implied needs’ (ISO/IEC 9126, 2001). ISO 9126

makes a dinstinction between internal and external

quality, and quality in use. Internal quality attributes

reflect e.g. the statical aspects of the software code

of an application. External quality characteristics are

determined by the dynamic aspects of a software

application, and 'quality in use' is determined by the

level to that a software application meets the

expectations of the user. Although ISO9126 offers

clear definitions of the quality characteristics and

attributes, it doesn't offer guidance to the process of

identification and prioritisation of quality

characteristics, and it doesn't support software

engineers in the process of implementing particular

quality attributes (Trienekens and Kusters, 1999). As

a consequence, currently a lot of subjectivity exist in

the way that quality is dealt with. Both the

specification and the implementation of quality into

the software applications are characterised by vague

and often ambiguous decisions of both domain

experts, information analysts and software

engineers.

3 LINKING QUALITY

SPECIFICATION TO QUALITY

IMPLEMENTATION: THE

APPROACH

Specification and implementation of software

quality cover complex decision processes because of

issues such as the high degree of subjectivity,

conflicting needs, weak structuredness of

requirements, etc. Decision processes with these

characteristics are being explored in a research area

called Multi Criteria Decision Analysis (MCDA)

(Roy, 1996). The objective of MCDA is to provide

practitioners with a rationale for the ordering and

rating (i.e. prioritisation) of different aspects of a

process or product by using different types of

criteria. At CAMS it has been concluded that

MCDA could offer support in the specification and

prioritisation of quality characteristics and attributes,

and also regarding the selection of appropriate

engineering activities to implement particular quality

attributes into a software-intensive system.

Analytical Hierarchy Process (AHP) makes use of a

set of techniques that offer support to reduce the

complexity of a problem, and to determine the

relative importances of particular aspects of a system

(Saaty, 2001). This set of techniques offer domain

experts and engineers the opportunity to clarify and

motivate their decisions in complex engineering

processes.

The first step in applying AHP in our case study is

the specification of quality characteristics (i.e. the

external quality) and quality attributes (i.e the

internal quality). Based on the ISO9126 standard on

software quality a hierarchical well-specified

structure of quality characteristics and attributes has

been developed

In the second step AHP is used to determine the

weights to specify the relative importances of the

various quality characteristics and attributes. AHP is

a hierarchical method of pairwise comparisons of

each quality (sub)-attribute against one another with

respect to a higher level quality characteristic or

attribute. Preferences among quality characteristics

and attributes are converted into numerical weights,

see for a clear report of an AHP application (Weil

and Apostolakis, 2001).

In the third step the engineering activities are being

determined that are needed to implement the

particular quality attributes into the software

application. For these engineering activities so-

called contribution functions are being determined.

A contribution function reflects the contribution of a

particular engineering activity to the implementation

of particular quality attributes.

In the fourth step, the performance index (PI) of

each quality (sub)-attribute is calculated which

expresses the relative contribution of a software

quality (sub)-attribute to the overall quality of a

software application. The following section presents

the application of the stepwise approach in a case

study.

ICSOFT 2007 - International Conference on Software and Data Technologies

118

4 VALIDATION OF THE

APPROACH: A CASE STUDY

The case study has being executed on the Multi

Sensor Tracking (MST) application which covers

the kernel functionality of the Combat Management

System of a frigate. To limit complexity in this

paper a selection has been made from the kernel

functionality, repectively the sub-function localising

signals and the data objects set of signals and

location of signal data.

Step 1: Development of the software quality

hierarchy.

The hierarchical structure is in fact the result of the

complexity reduction of a decision problem. It

clarifies different types of decisions that have been

made, such as the decision on the type of quality

characteristics and attributes that should be

recognised, and the decision in what way these

characteristics and attributes are interrelated. Figure

1 shows that the total system quality is splitted up

into three quality characteristics, respectively

timeliness, reliability and user friendliness These

quality characteristics are decomposed further into

quality attributes and sub-attributes. For example

reliability is decomposed into availability and

operational reliability and the latter is decomposed

further into failure rate and overload prevention. At

CAMS for this task several domain experts have

been selected, in conformance with (Karydas en

Gifun, 2006). These experts have a broad experience

regarding the type of functionality of the software to

be developed. The 'time box' teams consist of both

software developers and users representatives. In the

team sessions various techniques are being used

such as brainstorming and peer reviews. Different

sources of information are used, respectively

historical information, quality standards such as

ISO/IEC 9126, and the current functional

specification of the Combat Management System.

Step 2: Determination of the relative importance of

quality characteristics and attributes

A weigth reflects the importance of a particular

quality characteristic or attribute, to a particular

characteristic or attribute at a higher level. Note, in

Figure 1, that reliability has received the highest

weigth, or the highest level of importance regarding

the 'overall' quality of the system. Three sub-

attributes of reliability, respectively overload

prevention, redundancy and failure rate have

received the highest weigths in the whole set of

quality attributes and sub-attributes.

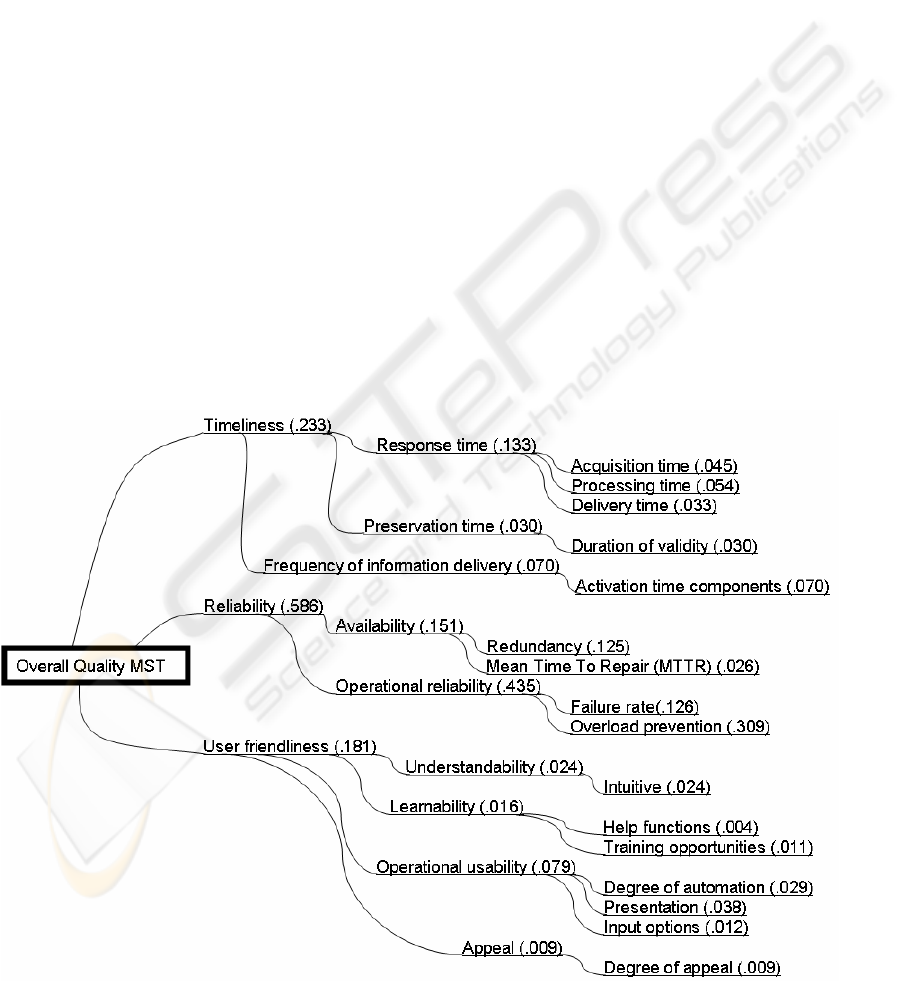

Figure 1: A software quality hierarchy.

LINKING SOFTWARE QUALITY TO SOFTWARE ENGINEERING ACTIVITIES, RESULTS FROM A

CASE-STUDY

119

Step 3: Determination of the quality contribution of

engineering activities

To be able to implement quality (sub)-attributes into

a software system appropriate engineering activities

have to be determined. In order to reflect the distinct

contributions of the particular engineering activities

to the implementation of a quality attribute, again

AHP is used. In the following we give an example of

the way engineering activities are being specified

and contribution factors are being determined.

In this example we take the quality (sub)-attribute

‘overload prevention’ which has the heighest weigth

of the four attributes of the quality characteristic

reliability. 'Overload prevention' of a particular

software functionality is defined as the degree to that

a particular software functionality prevents, that the

maximum number of system tracks that a software

functionality can handle, is reached. The objective of

'overload prevention' is to apply in a structured and

well-defined way so-called graceful degradation.

Regarding the particular engineering activities that

are needed to implement 'overload prevention' two

engineering aspects have to be recognised,

respectively the 'detection of the overload threat' and

the 'prevention of overload'. Different engineering

activities have been specified by the engineering

experts and it has been made clear what type of

engineering activities are complementary or

mutually exclusive. For example regarding an

overload that cannot be detected it is also not

possible to prevent it. Or, in case an operator has

detected an overload threat, it is not possible to carry

out an automated prevention algoritm. Subsequently

the contribution factors have been determined for

each of the engineering activities. These factors

reflect the relative contribution of each of the

distinct engineering activities to the implementation

of the quality sub-attribute 'overload prevention'.

Table 1 presents the result.

Table 1: Engineering activities and their contribution factors.

Software System

Quality

Characteristic C1

Quality

Characteristic Cj

WCj

Quality Attribute A1j

Quality Attribute Aij

WAij

Engineering Activity

Contribution Factor

Uij

Software System

Quality

Characteristic C1

Quality

Characteristic Cj

WCj

Quality Attribute A1j

Quality Attribute Aij

WAij

Engineering Activity

Contribution Factor

Uij

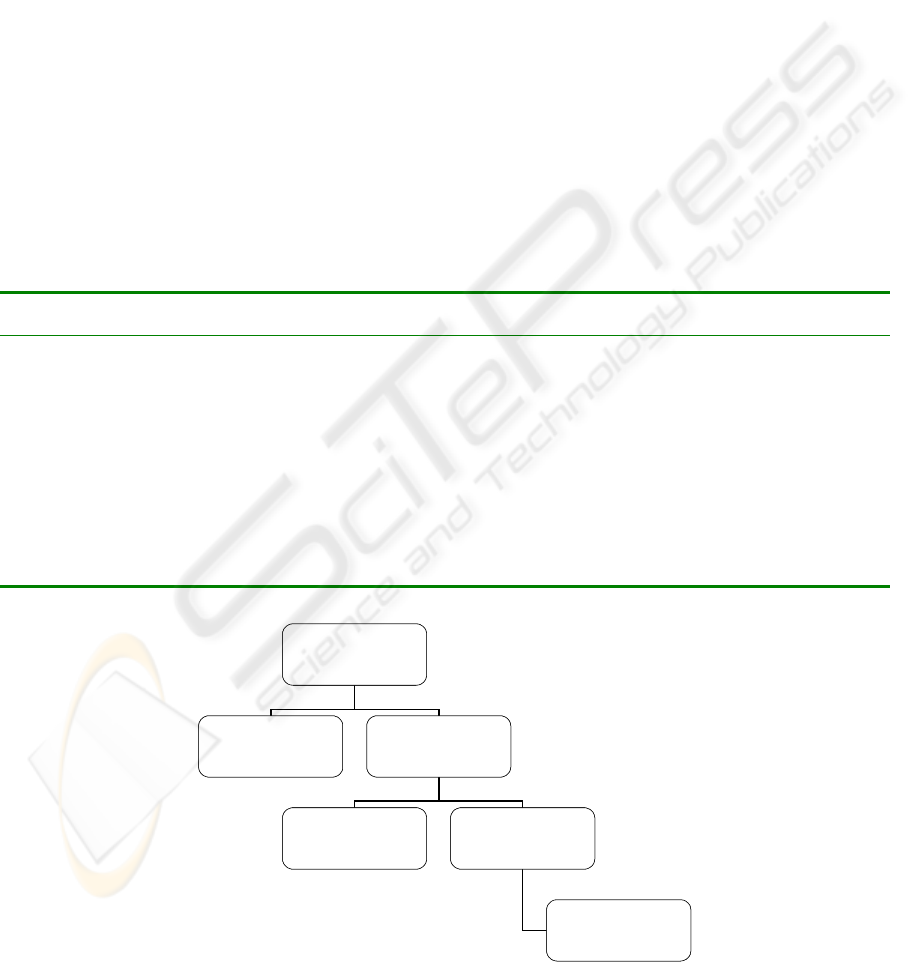

Figure 2: Hierarchical structure of quality characteristics and quality attributes.

Engineering

Activity

Description

Contribution

factors

An overload threat will not be detected and will not be prevented. As a consequence not

any track is being processed by the functionality.

0,07

An overload threat will be detected by an operator, but cannot be prevented.

Subsequently all tracks are being processed by the functionality with quite some delay.

0,17

An overload threat will be detected by an operator but is not prevented in an automated

way. The consequence is that alle low priority tracks are being deleted by the operator

and all high priority tracks are processed by the functionality.

0,4

An overload threat will be detected in an automated way but will not be automatically

prevented. Subsequently all low priority tracks have to be deleted by the operator and

all high priority tracks can be processed by the functionality.

0,94

An overload threat will be detected automatically and prevented automatically so that

all high priority tracks are being processed by the functionality.

ICSOFT 2007 - International Conference on Software and Data Technologies

120

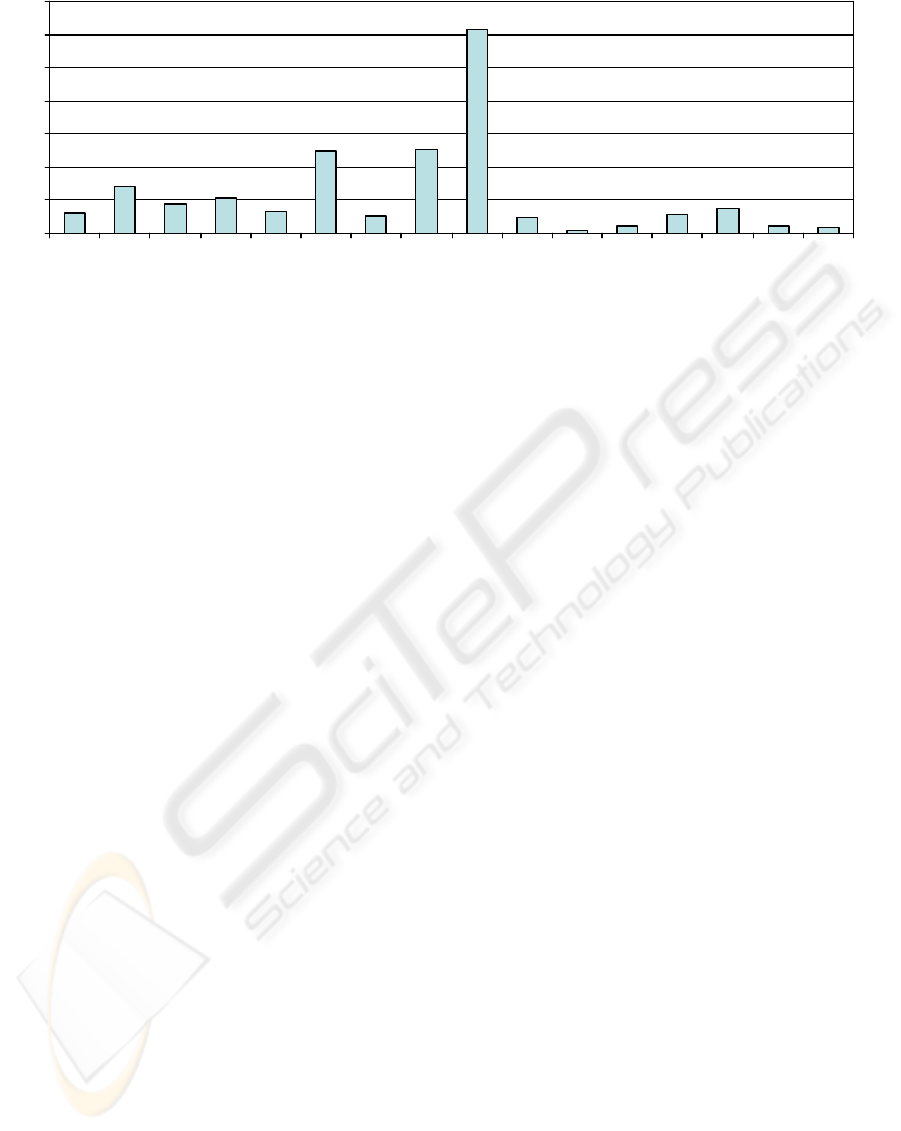

Figure 3: The relative contribution of attributes to 'overall' software quality.

Step 4: Determination of the performance index (PI)

of the quality attributes

For each quality (sub)-attribute a so-called

performance index (PI) is being calculated. The PI

reflects the level to that particular quality attributes

are being implemented, by carrying out particular

engineering activities. The PI of a quality sub-

attribute is the sum of the multiplications of the

weights of the sub-attributes by the contribution

factors of the particlar specific engineering

activities.

PICj= (Σ ( WAij * Uij))/ WCj)) * 100%

i=1

n = number of attributes per quality characteristic.

PICj = Performance Index of quality characteristic Cj.

WCj = Weight factor of quality Characteristic Cj

WAij=

Weight factor of quality (sub)-Attribute Ai of

quality characteristic Cj.

Uij =

contribution factor of engineering activity to quality

attribute Aij of quality characteristic Cj.

In Figure 3 the relative contribution to the 'overall'

quality of a particular software functionality is

shown. The 'overall' quality is the result of particular

engineering activities that have been carried out to

implement the quality (sub)-attributes. Figure 3

clarifies the effectiveness of the engineering

activities. The bar chart expresses the contribution of

the different quality attributes to the total quality of

the software system. Based on this information,

engineers can predict the effects of particular

engineering activities and it becomes easier for them

to calculate the effort that is needed to reach a

certain level of quality. Also via recalculations it

becomes possible to predict the effects of an

increase or decrease of particular engineering efforts

regarding the implementation of particular quality

attributes. For example it became clear that chosing

engineering activities with 'average' contribution

factors still resulted in a satisfactory level of

particular quality (sub)-attributes, and a satisfactory

'overall' quality level of the software application.

5 LESSONS LEARNED

Although ISO9126 offered a useful quality basis,

some of the quality attribute definitions had to be

reinterpreted and/or translated to the specific

technical context of the software-intensive system.

During the project it was still necessary to redefine

particular quality attributes as a result of brainstorm

sessions and peer reviews. An interesting result of

the case study was that some quality (sub)-attributes

have been identified and defined that have not been

discovered in previous projects at CAMS.

However, also some restrictions and shortcomings

have been identified. First of all the time aspect.

Both the collection of information in the beginning

of the project, the brainstorm sessions, the peer

reviews to develop the quality hierarchy, including

the weigths took much time. This problem of

applying MDCA and AHP in practice has also been

recognised by (Weil en Apostolakis, 2001). In the

case study only one piece of the software

0,05

0,1

0,15

0,2

0,25

0,3

0,35

Duration of validity

activation time

acquisition time

processing time

delivery time

redundancy

MTTR

failure rate

overload prevention

intuitive

help functions

training opportunities

degree of automation

presentation

input options

degree of appeal

LINKING SOFTWARE QUALITY TO SOFTWARE ENGINEERING ACTIVITIES, RESULTS FROM A

CASE-STUDY

121

functionality of the Multi Sensor Tracking (MST)

has been investigated, and only with regard to a

particular quality characteristic, i.e. 'overload

prevention', which is one of the sub-attributes of the

quality characteristics 'reliability'. Therefore it is

suggested to determine first the critical parts of a

complex software application and subsequently to

apply then for only the critical parts of the software

application the approach presented in this paper.

To solve the time problem it has been suggested to

develop a database with information about the

various type of software applications, their quality

profiles (quality characteristics, attributes), and

experiences from earlier work such as experiences

regarding the interpretation and the redefinition of

ISO9126 quality terminology. Also the contribution

of the distinct engineering activities that are needed

to implement particular quality (sub)-attributes

should be defined and stored. This type of

knowledge management should improve the

efficiency of the engineering of software quality.

6 CONCLUSIONS

The CAMS department of the Dutch Department of

Defense has investigated an approach to deal in a

formal and systematic way with the quality of

software. Software quality can be specified in a

precise and formal way. The importance of the

distinct quality attributes can be determined by

applying AHP techniques.

A quality hierarchy forms a basis for software

engineers to build in quality into a software

application. Also regarding the determination of

appropriate engineering activities, and their relative

importances, AHP can be used. Contribution factors

reflect the relative contribution of particular

engineering activities to the 'overall' quality of a

software application

A major drawback that has to be mentioned is the

time aspect of applying MDCA and AHP. To solve

this problem the reuse of previous work is stressed.

A knowledge repository has been defined that

captures quality profiles of software components and

applications, best practices in quality specification

and implementation, sets of weights and contribution

factors, that can be reused in future projects.

REFERENCES

ISO/IEC 9126 Software engineering - Software Product

quality, 2001. International Organization for

Standardization,

Karydas D.M., J.F. Gifun, 2006. A method for the effcient

prioritization of infrastructure renewal projects,

Reliability Engineering and System Safety.

Roy B., 1996. Multicriteria Methodology for Decision

Aiding, Kluwer Academic Publishers.

Saaty T.L., 2001. Models, methodes concepts and

applications of the Analytic Hierarchy Process,

Kluwer academic publishers.

Trienekens J.J.M. and R.J. Kusters, 1999. Identifying

embedded software quality, two approaches, Quality

and Reliability Journal, Addison Wesley.

Weil R., G.E. Apostolakis, 2001. A methodology for the

prioritization of operating experience in nuclear

power plants, Reliability Engineering and System

Safety.

ICSOFT 2007 - International Conference on Software and Data Technologies

122
