LARGE SCALE RDF STORAGE SOLUTIONS EVALUATION

Bela Stantic, Juergen Bock

Institute for Integrating and Intelligent Systems, Grifﬁth University, Brisbane, Australia

Irina Astrova

Institute of Cybernetics, Tallinn University of Technology, Tallin, Estonia

Keywords:

Resource Description Framework - RDF, RDF storage, Sematic Web.

Abstract:

The increasing popularity of the Semantic Web and Semantic Technologies require sophisticated ways to store

huge amounts of semantic data. RDF together with the rule base RDF Schema have proved themselves as

good candidates for storing semantic data due to the simplicity and high abstraction level. A number of large

scale RDF data storage solutions have been proposed. Several typical representative have been discussed and

compared in this work, namely Sesame, Kowari, YARS, Redland and Oracle’s

RDF MATCH

table function. We

present a comparison of those approaches with respect to consideration of context information, supported

access protocols, query languages, indexing methods, RDF Schema awareness, and implementation. We also

identify applicability as well as discuss advantages and disadvantages of particular approach. Furthermore,

an overview of storage requirements and performance tests has been presented. A summary of performance

analysis and recommendations are given and discussed.

1 INTRODUCTION

Originally designed for storing meta-data on the web,

the Resource Description Framework (RDF) became

increasingly popular for storing all different sorts of

data. This is due to the simple but expressive triple

structure, in which RDF data is organised. Typi-

cal RDF documents scale to millions of triples in

RDF representations of data, such present in Word-

Net (WordNet, 2007), UniProt (UniProt, 2007), or

Wikipedia3 (Wikipedia3, 2007).

Accessing large scale RDF data requires highly ef-

ﬁcient storage and query management. There have

been a number of solutions presented in the litera-

ture for storing RDF data. While the majority of

presented methods have performance evaluation con-

ducted in isolation, not enough attention was directed

to compare different methods. In this work we eval-

uate the open-source solutions Sesame (Jeen Broek-

stra and Arjohn Kampman and Frank van Harme-

len, 2002), YARS (Andreas Harth and Stefan Decker,

2005), Kowari (David Wood and Paul Gearon and

Tom Adams, 2005), Redland (Dave J. Beckett, 2001)

as well as the commercial Oracle Spatial 10g Re-

lease 2 table function (Eugene Inseok Chong and

Souripriya Das and George Eadon and Jagannathan

Srinivasan, 2005) for RDF storage. In order to iden-

tify strengths and shortcomings of particular method

and future research direction we compare methods

with respect to low-cost solutions, space usage, repos-

itory independence and efﬁciency.

The remainder of this paper is organised as fol-

lows. Section 2 recalls some basic introduction of

RDF and RDF Schema. In section 3 several typical

representative of RDF storage systems are presented.

In section 4 we compare different approaches while

in section 5 we present experimental results and anal-

ysis. Finally, in section 6, we present our conclusions

and discuss possible future work.

2 BACKGROUND

The Resource Description Framework (RDF) has

been a key concept in Semantic Web technologies and

a W3C Recommendation since February 2004 (Frank

Manola and Eric Miller, 2004). It is based on

XML (Sperberg-McQueen et al., 2004) and designed

103

Stantic B., Bock J. and Astrova I. (2007).

LARGE SCALE RDF STORAGE SOLUTIONS EVALUATION.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 103-108

DOI: 10.5220/0001329001030108

 SciTePress

to represent resources on the web in a triple struc-

ture. A triple consists of subject, predicate and ob-

ject, where subject and predicate must be Uniform

Resource Identiﬁers (URIs), and objects can be URIs

or values (RDF literals). This structure allows graph

representation of resources, if the object is used as an-

other subject.

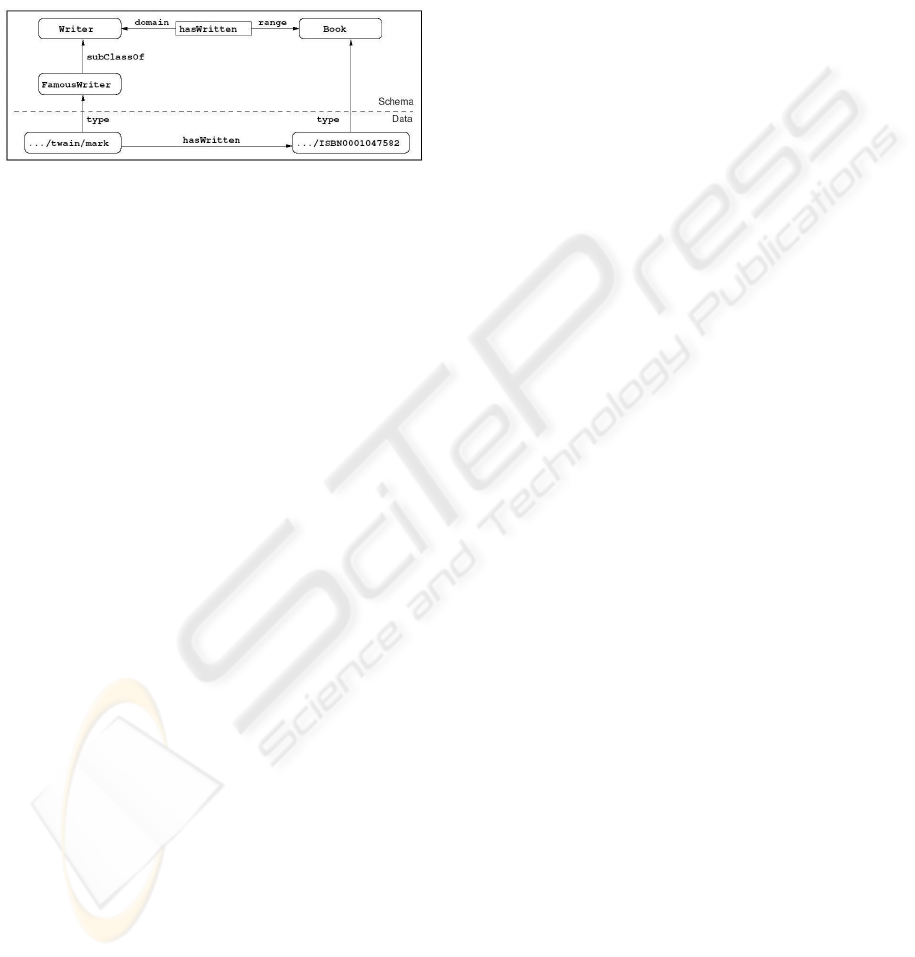

Figure 1: RDF Schema.

RDF does not deﬁne reserved terms or a vocab-

ulary for the information represented. RDF Schema

overcomes these shortcomings by introducing classes

with sub-class relations, properties with domain and

range restrictions, amongst others. An RDF sample

with underlying Schema can be seen in Figure 1.

3 RDF STORAGE SOLUTIONS

Signiﬁcant work has been directed towards solving

the problem of storing RDF data. In this section

we present some of the prominent solutions that have

been proposed in the literature.

3.1 Sesame

Sesame has been introduced in (Jeen Broekstra and

Arjohn Kampman and Frank van Harmelen, 2002).

It represents a repository-independent framework for

storing and querying RDF and RDF Schema data.

According to the authors Sesame is the “ﬁrst pub-

licly available implementation of a query language

that is aware of the RDFS semantics”. This refers

in particular to the RQL (Gregory Karvounarakis

et. al., 2002) support, which has been designed for

interpreting RDF descriptions with respect to RDF

Schemata. Sesame exists in several variations, repre-

senting the storage paradigms memory, database, or

native. Sesame Memory manages data only in a ma-

chine’s main memory, where Sesame Database uses

any underlying DBMS to store RDF data persistently.

Sesame Native does not use a database, but its own

proprietary storage system, explicitly tailored to RDF.

The Sesame framework is designed to be inde-

pendent of the underlying database. It encapsulates

functionality to process RDF data manipulation and

querying requests, and handles communication with

multiple clients via HTTP, RMI or SOAP protocols.

The actual repository interface is implemented as

database-speciﬁc in a so-called SAIL (Storage And

Inference Layer).

Sesame incorporates three different modules for

dealing with RDF data. The Query Module, which

handles queries in the supported query languages, the

Admin Module to manipulate data, such as insertion

or deletion, and the Export Module, which renders the

data as proper XML/RDF ﬁles. These modules are in-

voked by the Request Handler, which itself commu-

nicates with the Protocol Handlers for client interac-

tion.

3.2 Kowari

Kowari Metastore was introduced to handle large-

scale storage of RDF and OWL (David Wood and

Paul Gearon and Tom Adams, 2005). Instead of the

original RDF triple structure, the system provides a

native quad-store, where the fourth element in ad-

dition to the basic RDF triples represents a meta-

element indicating which RDF model the triple be-

longs to. Kowari stores RDF data in two tables, called

“Node Pool” and “String Pool”, where the former

contains IDs only, and the latter according mapping

to URIs, RDF Literals and XML Datatypes.

Query access to RDF data in the Kowari Metastore

is provided via a number of query languages. Apart

from Kowari’s native query language iTQL, other

access methods, such as SOFA (Simple Ontology

Framework API) (Alishevskikh, A., 2007), Java RDF,

Jena (Jena, 2007), RDQL (Andy Seaborne, 2004) and

SOAP are supported.

Kowari is designed to store hundreds of millions

of RDF triples while providing reasonably short re-

sponse time for queries, due to the the hybridisation

of indexing structure, more precisely, AVL trees and

∗

-trees. The main advantage of AVL trees is, though

they are binary and hence deeper, they contain less

overhead and therefore ﬁt more likely in the memory

of adequate machines.

3.3 YARS

The main contribution of Harth and Decker intro-

duced an index structure tailored to RDF data (An-

dreas Harth and Stefan Decker, 2005). They further

proposed the RDF native storage framework YARS

(Yet Another RDF Store) which implements this in-

dex structure.

ICSOFT 2007 - International Conference on Software and Data Technologies

104

Storage in the YARS system is done similarly

to Kowari, where full string representation of RDF

graphs is provided by a lexicon, where the actual

quads are stored as IDs in a quad table. For index-

ing a B

-Trees are used, adopted from JDBM (JDBM,

2007). The indexes cover all combinations of possible

access patterns to the quad store, and are combined to

reduce the actual number of indexes.

3.4 Redland

The Redland Framework was designed to be accessi-

ble from a number of applications with different in-

terfaces (Dave J. Beckett, 2001). It provides API ac-

cess for various languages, such as Perl, Python, or C.

Redland itself is implemented in C. The latest version

does not support access via HTTP, however, the inten-

tion is, that any web application could be developed

for its particular need and use Redland as an RDF

storage backend by API access.

The Redland RDF storage framework supports

RDQL (Andy Seaborne, 2004) and SPARQL (Eric

Prud’hommeaux and Andy Seaborne, 2006) query

languages. Internal storage in Redland is indexed

by three Hash indexes. Although Redland translates

RDFS vocabulary in proper RDF triples it does not

support any reasoning with RDFS rules.

3.5 RDF Support in Oracle

Oracle Spatial 10g provides sophisticated means to

store and query RDF data. The main contribution is

the newly introduced

RDF MATCH

table function (Eu-

gene Inseok Chong and Souripriya Das and George

Eadon and Jagannathan Srinivasan, 2005) with the

following signature:

RDF_MATCH (

Pattern Varchar,

Models RDFModels,

RuleBases RDFRules,

Aliases RDFAliases

)

RETURNS AnyDataSet;

Pattern

is an RDF Graph pattern in a

SPARQL-like syntax (Eric Prud’hommeaux and

Andy Seaborne, 2006),

Models

is a list of RDF

Models, where an RDF Model represents a “view”

to a triple table according to some user privileges.

RuleBases

is an optional argument stating some user

deﬁned rule bases. Note that RDF Schema is implic-

itly available as a rule base. Lastly,

Aliases

option-

ally include user deﬁned namespace aliases. How-

ever, the

RDF

namespace is implicitly available. The

return value of

RDF MATCH

is of type

AnyDataSet

since the number and types of the columns in the re-

turn table vary according to the graph pattern.

Similarly as for Kowari and Yars RDF data are

stored in two relational database tables. This general

approach has the advantage of storage efﬁciency for

repeatedly occurring URIs. Furthermore, simple IDs

can be indexed easier than bulky URIs. Oracle en-

sures high efﬁciency in querying RDF data, by chang-

ing its table function infrastructure to allow complete

translation of the

RDF MATCH

function into an SQL

query prior to execution.

4 COMPARISON

In this section we identify main factors that inﬂuence

quality and efﬁciency of any approach and discuss ad-

vantages and disadvantages of particular approach.

Context Information: Context information is im-

portant, when RDF data from different sources are

involved or user privileges have to be considered.

Kowari and YARS operate on quads, which is an aug-

mentation of the original RDF triple structure. The

additional component refers to this context. Oracle

provides RDF models to accommodate the idea of

contexts, and Redland provides an option, to enable

context information on demand. In contrast context

information is not supported in Sesame approach.

Query Languages: YARS only supports methods

to formulate queries by two extensions to the N3

notation. Kowari introduced the iTQL query lan-

guage, which accommodates features for Kowari’s

OWL support, as well as traditional RDF query fea-

tures. Kowari further implements subsets of RDQL

and SPARQL, which are also supported by Redland.

Oracle provides seamless integration of its table func-

tion in SQL, where the table function uses SPARQL-

like syntax to specify graph patterns. Sesame cur-

rently supports RQL, RDQL, and Sesame’s SeRQL

query language.

Access: The Kowari introduction paper (David Wood

and Paul Gearon and Tom Adams, 2005) somehow

does not distinguish between access protocols and

query languages. They are treated equivalently in so-

called Access APIs. These access methods include

SOAP, SOFA (Simple Ontology Framework API),

JRDF (Java RDF, an API to access RDF data from

within Java

applications), Jena, a Java Server Pages

tag library and RDFS JavaBean. YARS supports only

HTTP as an access method, while Sesame provides

HTTP, SOAP and Java RMI. Oracle’s table function

LARGE SCALE RDF STORAGE SOLUTIONS EVALUATION

105

can be used by any means provided to access the

Oracle database, like the Oracle Application Server,

OBDC, etc. The Redland framework is not designed

as a standalone solution, which accepts common ac-

cess methods. It rather provides API interfaces for use

from within other applications.

Indexing method: Oracle implements two three-

column B

∗

-Tree indexes on the triple table, based on

typical query patterns. The ﬁrst one is Predicate, Sub-

ject, Object, the second one is Predicate, Object, Sub-

ject. While Sesame DB uses the underlying database

in an abstract manner, all storing and indexing issues

are handled by this database. However, Sesame’s na-

tive version uses separate indexes on subject, predi-

cate, and object respectively. Kowari uses a combi-

nation of AVL trees and B

∗

-Trees to incorporate ad-

vantages of both approaches. Frequently used subsets

of graph patterns are indexed directly. Redland uses

three Hash indexes, each mapping two triple elements

to the third one. YARS implements B

-Tree indexes

for all combinations of quad patterns.

Implementation: Sesame, Kowari, and YARS are

all implemented in Java

, where Redland is imple-

mented in C. The Oracle table function, however, is

seamlessly integrated in the table function interface

of the Oracle Kernel.

RDFS Semantics: YARS does not support RDFS se-

mantics or other rule bases for reasoning on the RDF

data. Oracle implicitly supports RDF Schema rules,

but is able to load user deﬁned rule bases in addition.

Kowari further supports OWL constructs. The Red-

land framework supports RDF Schema only in terms

of translation of speciﬁc vocabulary into pure RDF,

and does not support any RDFS reasoning.

In Table 1 we show an overview of the features

discussed in this section for all RDF large scale stor-

age approaches considered in this study.

5 PERFORMANCE EVALUATION

For testing RDF representation of UniProt data

(UniProt, 2007) are used, which scales up to 80 mil-

lion triples. Oracle’s

RDF MATCH

function (Eugene In-

seok Chong and Souripriya Das and George Eadon

and Jagannathan Srinivasan, 2005) has been tested

and demonstrated reasonable performance on large-

scale RDF data. The tests showed that the query per-

formance is highly scalable, since query runtime does

not change signiﬁcantly for scaling the data size from

10 to 80 million triples. In fact, the longest runtime

in these tests took a query, matching 6 triples with

5 variables and results limited to 15,000 rows, which

returned the answer in about one second.

Testing of YARS, Sesame and Redland was per-

formed on 4 different queries representing typical

query patterns. The results show, that YARS gen-

erally outperforms the other approaches, except for

queries when simple Hash lookup is possible. In this

case, Redland has better performance, due to its Hash

indexing method. That means, that Redland is opti-

mised for getting the sources, getting the targets, or

getting the arcs in an RDF graph, provided all other

information. Note that only triples are considered in

this test, although YARS and Kowari operate on a

quad structure. This, however, only adds context in-

formation and can be regarded as constant for these

test purposes.

Because Kowari could not be implemented, per-

formance analysis can only be discussed in isolation

based on the authors’ testing results (David Wood

and Paul Gearon and Tom Adams, 2005). The test

consisted of building data and index structures for

up to 235 million triples, as well as simultaneous re-

quests by 250 simulated clients. The authors state

that Kowari compares with MySQL using a simplistic

schema. Apart from that, no comparison to competing

systems, and no qualitative query performance results

are given.

5.1 Analysis

Large scale testing has been carried out using the

UniProt (UniProt, 2007) data of about 80 million

triples. Oracle’s

RDF MATCH

function, YARS, Red-

land, Sesame MySQL, and Sesame Native were com-

pared. In Table 2 we present index space require-

ments for different approaches to store and manage

large scale RDF data. A reason for those differences

is that Sesame Native uses 4 byte IDs, where Kowari

and YARS uses 8 byte IDs. Redland does not use IDs

at all, and operates directly on URIs, which results in

a relatively large index.

All discussed approaches for large scale RDF stor-

age but Redland use variations of the B-Tree as an

index structure. Redland uses three Hashes for fast

lookup of graph patterns with only one variable in the

triple. In the comparison Redland performed best in a

query, where only the subject was requested for con-

stant predicate and object, which Redland carries out

as a simple Hash lookup. Since Redland only pro-

vides three Hash indexes, all other queries involv-

ing more complex graph patterns need cumbersome

joins and combinations make Redland’s performance

ICSOFT 2007 - International Conference on Software and Data Technologies

106

Table 1: RDF storage and querying features of Oracle’s

RDF MATCH

table function, Sesame, Kowari, YARS, and Redland.

Oracle Sesame Kowari YARS Redland

Context yes no yes yes yes

Access Application HTTP SOAP HTTP APIs

Server, SOAP APIs

ODBC, etc. RMI

Query SQL RQL iTQL N3 RDQL

Lang. (graph RDQL RDQL SPARQL

patterns SeRQL SPARQL

SPARQL-like)

Index B-Tree DBMS hybrid B

-Tree Hash

(2 indexes) speciﬁc (AVL, (6 indexes) (3 indexes)

∗

-Tree)

(6 indexes)

Impl. Oracle-Kernel Java

Java

Rules RDFS RDFS RDFS – –

user deﬁned OWL

Table 2: Index size space requirements for 80 millions

triples.

RDF Storage Size

Method (MB)

YARS 2, 857

Sesame MySQL 9, 068

Sesame Native 1, 095

Redland 57, 141

Oracle 4, 915

worst. Sesame Native maintains three indexes on

each, subject, predicate, and object. Query patterns,

specifying a single triple element perform quite well.

For queries, that specify more than one triple element,

a join must be performed, which results in poor run-

time results for those kinds of queries. Since YARS

keeps all possible combinations indexed, it performs

well for all kinds of query patterns. However, it also

runs slightly faster in those test cases, where proper

indexes are available for Sesame Native. Sesame with

underlying DBMS relies heavily on the internal stor-

age and optimisation mechanisms of those databases.

However, a comparison of Sesame using the Ora-

cle SAIL and Oracle itself is not appropriate, since

Sesame uses the Oracle

RDF MATCH

table function,

and just adds additional overhead. Therefore, Sesame

DB can be seen as the preferred RDF storage system,

when database independence is an important aspect.

Comparing the actual response time, Oracle was

able to deliver 15,000 rows out of 80 million triples

for a moderately complex graph pattern of 6 triples

and 5 variables, in roughly one second. In contrast

to that, the YARS testing results show a runtime of

about 10 seconds. Redland’s fastest result for a sim-

ple query with only one triple and one variable in

the query pattern, returned about 160,000 rows in

about 10 seconds. Oracle’s table function returned

same query result in almost same time like Redland,

however with respect to the more complex query pat-

terns, Oracle seems likely to outperform all other ap-

proaches.

The choice of a particular RDF storage solu-

tion may heavily depend on factors, such as cost

(commercial vs. open-source), access methods, sup-

ported query language, OWL support, context sup-

port, portability (platform and database), or general

performance. (Refer to table 1 for details.) While Or-

acle seems to perform best in a number of aspects, it

is only commercially available. However, YARS is

a reasonable alternative with respect to performance,

but currently does not support popular query lan-

guages.

If (future) OWL support is important, Kowari may

be a reasonable consideration. Redland performs well

for queries with limited query patterns (and where

proper adjustments are made due to speciﬁc applica-

tions). The biggest advantage of Sesame is that it is

database independent. However, using Sesame with

the Oracle SAIL imposes additional overhead, and

one should consider using Oracle directly for RDF

storage.

LARGE SCALE RDF STORAGE SOLUTIONS EVALUATION

107

6 CONCLUSION AND FUTURE

WORK

In order to meet the growing requirements of large

scale semantic data storage, which are often repre-

sented in RDF and RDF Schema, a number of ap-

proaches have been developed. Several of these RDF

storage solutions have been presented, namely Or-

acle’s

RDF MATCH

table function, Sesame, Kowari,

YARS, and Redland. Although they all strive for

the same goal, there are some differences in terms

of database storage, supported query languages, ac-

cess protocols, indexing methods, implementation,

and reasoning support. In this work we present a com-

parison of those approaches with respect to supported

access protocols, supported query languages, index-

ing methods, RDF Schema awareness, and implemen-

tation and we identify applicability of particular ap-

proach as well as advantages and disadvantages. Fur-

thermore, an overview of storage requirements and

performance tests has been presented. Depending on

the feature comparison presented in Table 1, a certain

storage system may be chosen according to use-cases,

application, or knowledge bases.

We intend to further compare large scale RDF

storage solutions on more complex queries and large

scale RDF data in order to reveal strengths and weak-

nesses of particular approach. This will help us to

identify the applicability of particular approach and

the need for distinct research directions to rectify

shortcomings.

REFERENCES

Alishevskikh, A. (2007). SOFA Simple Ontology Frame-

work API.

https://sofa.dev.java.net/

Andreas Harth and Stefan Decker (2005). Optimized Index

Structures for Querying RDF from the Web. In LA-

WEB, pages 71–80.

Andy Seaborne (2004). RDQL - A Query Lan-

guage for RDF. W3C Member Submission,

W3C.

http://www.w3.org/Submission/2004/

SUBM-RDQL-20040109/

Dave J. Beckett (2001). The Design and Implementation of

the Redland RDF Application Framework. In WWW,

pages 449–456.

David Wood and Paul Gearon and Tom Adams (2005).

Kowari: A Platform for Semantic Web Storage and

Analysis. In Proceedings of xtech.

Eric Prud’hommeaux and Andy Seaborne (2006).

SPARQL query language for RDF. W3C work-

ing draft, W3C.

http://www.w3.org/TR/2006/

WD-rdf-sparql-query-20061004/

Eugene Inseok Chong and Souripriya Das and George

Eadon and Jagannathan Srinivasan (2005). An Efﬁ-

cient SQL-based RDF Querying Scheme. In VLDB

’05: Proceedings of the 31st International Conference

on Very Large Data Bases, pages 1216–1227, Trond-

heim, Norway. VLDB Endowment.

Frank Manola and Eric Miller (2004). RDF Primer. W3C

Recommendation, W3C.

http://www.w3.org/TR/

2004/REC-rdf-primer-20040210/

Gregory Karvounarakis et. al. (2002). RQL: A Declarative

Query Language for RDF. In WWW, pages 592–603.

JDBM (2007).

http://jdbm.sourceforge.net

Jeen Broekstra and Arjohn Kampman and Frank van

Harmelen (2002). Sesame: A Generic Architecture

for Storing and Querying RDF and RDF Schema. In

International Semantic Web Conference, pages 54–68.

Jena (2007).

http://www.hpl.hp.com/semweb/jena.

htm

Sperberg-McQueen, C. M., Maler, E., Yergeau, F., Paoli,

J., and Bray, T. (2004). Extensible Markup Lan-

guage (XML) 1.0 (Third Edition). W3C Recom-

mendation, W3C.

http://www.w3.org/TR/2004/

REC-xml-20040204

UniProt (2007).

http://www.isb-sib.ch/

ejain/rdf/

Wikipedia3 (2007).

http://labs.systemone.at/

wikipedia3

WordNet (2007).

http://www.semanticweb.org/

library/

ICSOFT 2007 - International Conference on Software and Data Technologies

108
