WEB-BASED DATA MINING SERVICES

A Solution Proposal

Serban Ghenea and Cornelia Oprean

Omnis Group, 6 Barbu Vacarescu, Bl. 2, Apt. 1, Bucharest 020281, Romania

Keywords: Data mining, web utilities, SQL Server 2005

Abstract: The paper presents the results obtained in building a web-based solution that provides to registered users,

accessing a portal on the Internet, the possibility to perform complex business analysis tasks, using data

mining algorithms and services implemented by Microsoft SQL Server 2005 Analysis Services. The

database platform sustains the web operation of a complete ERP system, offering support for back-office

management and establishing a B2B environment that automates collaborative business processes.

1 INTRODUCTION

The large-scale evolution of the Internet and of web-

related technologies made possible the creation and

deployment of innovative tools that turn once

sophisticated and extremely complex software

solutions into ubiquitous resources, accessible as

traditional pay-per-use utilities.

The vast majority of B2B portals and e-

marketplaces available toda

y on the Internet are

configured to span every segment of one specific

industry (vertical eMarkets) or are able to connect

buyers and sellers across many industries (horizontal

eMarkets). Existing solutions give users the

possibility to publish general information and trade

leads, facilitating business contacts that may

generate commercial transactions, further to be

sustained and managed using external IT system

support.

The paper describes the capabilities of a web-

based pl

atform that advances this concept, with the

purpose to establish a unique solution that supports

marketing operations and commercial

transactioning, providing also integration with the

ERP back-office support. Users may access, over the

web, solutions for the management of the following

enterprise activities: financial-accounting,

procurement, sales and invoicing, fixed assets,

human resources, documents workflow, legal

reporting to authorities, on top of standardized

catalogs of partners, activities and products.

ERP operational data can further be analysed

usin

g SQL Server 2005 data mining algorithms and

services, implemented under the same concept of

web utilities.

The solution is able to draw businesses away

from

managing their own IT infrastructures and

enables them to subscribe to information services,

under a concept similar to clasic utilities

consumption (water, electricity, gas, cable TV),

saving time and money, reducing administrative

overhead and answering to the lack of IT specialists.

2 SOLUTION ARCHITECTURE

The platform, hosted in a Data Center, may be

accessed on the web by any Internet user. Following

the registration process, according to the profile of

each registered company, a company database is

created and specific configuration settings are

automatically generated and applied.

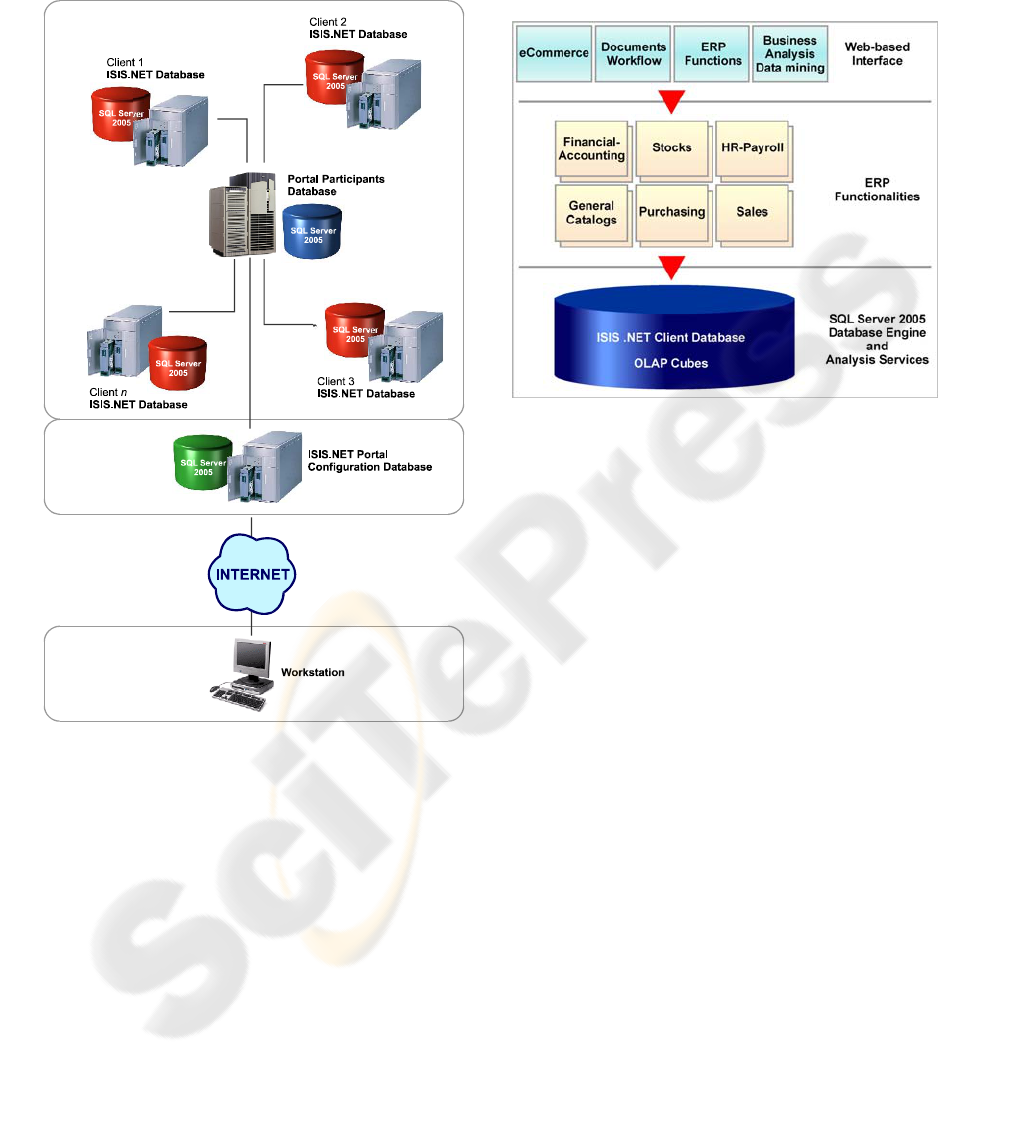

Figure 1 shows a possible configuration of the

solu

tion platform, that contains several SQL Server

2005 database servers and one or more Windows

2003 Web Servers, working together in a failover

clustering architecture.

The Participants database holds index

info

rmation on all registered companies, whereas the

Configuration database stores the personalized

profiles that are created by the participants in the

portal, after registration. One client ISIS .NET

database is created for each company that subscribes

to the ERP services.

The solution benefits from a service-oriented

architecture, im

plementing services that can further

203

Ghenea S. and Oprean C. (2007).

WEB-BASED DATA MINING SERVICES - A Solution Proposal.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 203-208

 SciTePress

be used by other services or other applications. The

solution includes units of service-oriented

processing logic, such as products-catalog services,

marketplace offers services, purchase order services.

Figure 1: Platform Infrastructure Configuration.

2.1 Available Services

An anonymous user on the Internet is able only to

browse the general information stored in the portal –

company profiles, product and service offers.

A registered company may use the B2B portal

marketing services, may act as a buyer or seller on

the eMarket, may employ workflow services and

manage the flow of commercial documents, may

access ERP specific functionalities, may carry on

business analysis tasks or may operate any

combinations of the above.

The web interface allows access to the entire set

of available services. The platform core is

represented by the ERP engine, that sustains all

operations. There are separate solution sections in

the interface for each service category, as shown in

Fig. 2. The data mining services work directly with

the database, while all the other services make use of

the business layer built around ERP functionalities.

Figure 2: Solution Configuration and Available Services.

2.2 Solution Implementation

The equipment used in experiments consisted of:

• client computer Intel Pentium III at 1.13 GHz

with 512 MB RAM, running Windows XP

Professional with SP2;

• server running SQL Server 2005 on 2 X Xeon

3GHz, with 4GB RAM and 2 X 160 GB

mirrored hard disks, under Windows 2003

Server.

The solution was developed using the Microsoft

latest technologies: Windows Server 2003, Windows

Vista, SQL Server 2005 Database Engine and

Analysis Services (SSAS), Visual Studio 2005,

ASP.NET 2.0, Net Framework 3.0 (Windows

Workflow Foundation, Windows Communication

Foundation, Windows CardSpace).

The user interface benefits from the user

experience innovations introduced by Windows

Vista, such as:

• Aero Theme and System Font (Segoe UI);

• Windows SideBar gadgets;

• Windows Vista tone in all UI text.

On the B2B section of the portal, the workflow

services ensure the management of the documents

flow between the portal participants, taking

ICSOFT 2007 - International Conference on Software and Data Technologies

204

advantage of the following benefits offered by the

Windows Workflow Foundation framework:

• The workflow scheme is graphically designed in

a workflow designer, the administrator being

able to dynamically configure the workflow

process;

• The workflow is created as a state machine

workflow, based on defined events;

• The solution allows usage of rule conditions in

workflows and ensures dynamic update of these

rule conditions;

• The solution benefits from using transactions and

fault handling for workflow management.

In order to implement the service-oriented

architecture (SOA) concepts, the solution uses the

Windows Communication Foundation (WCF)

framework. The solution implements services for

products, offers, requests-for-quotes, order and

tender documents, using a layered service

architecture.

The Service Interface Layer defines the

operations provided by the service, the messages

required to interact with each operation, and the

patterns by which these messages interact.

The Business Layer incorporates components

that implement the business logic of the service.

The Data Access Layer contains the logic

necessary to access data, as well as specific service

agents.

To secure SOAP messages that flow between the

service and the client, the solution uses Windows

CardSpace technology, in order to replace the

password-based authentication, thus eliminating the

“phishing” threat, specific to Internet

communication.

3 DATA MINING SERVICES

The solution offers access to ERP services

(commercial, stocks, financial, accounting, payroll,

transportation management) for the registered

companies that subscribe to these services. After the

registration is validated by a general administrator, a

client ISIS .NET database is created for the accepted

company. The data mining services provide

advanced business analysis capabilities, based on

data mining algorithms implemented in SQL Server

2005. The data subject to analysis resides in the ISIS

.NET client databases.

3.1 Data Source

The examples shown in detail below are obtained

from the client databases of two companies that

operate in the hospitality industry. Users having

access to the Data Mining Services of the portal are

able to select the type of data analysis to be applied

and the appropriate viewer solution.

3.2 Data Preparation

During the testing phase, appropriate data cleansing

and modification processes were applied, in order to

eliminate records with zero quantities, to solve data

inconsistencies due to the text representation of the

Country field (duplicates and misspelling) and to

decompose the Date field in 3 separate fields – year,

month, day. In the production phase, the data

preparation process will be automatic.

New Analysis Services projects were created

using Business Intelligence Development Studio and

appropriate data source were added in order to

connect to the ISIS .NET client databases. The data

mining algorithms were run on views created for

testing purposes. The views include only the tables

that store sale documents, customers and profit

center data. The analysis was limited to the period

2004-2007. In total, 43,050 records were processed,

among which 23,519 records in the documents table

of one database and 19,434 records in the documents

table of the second database. An OLAP cube was

created in each database, defined on the dimensions

Customer_Country and Date, using the measure

Amount, representing the value specified on the sales

document.

3.3 Data Mining Results

The SQL Server 2005 Analysis Services generated a

set of results that were displayed using Microsoft

Excel and the viewers that are provided by SQL

Server 2005 Analysis Services for each distinct data

mining method that was applied: OLAP cube

processing, time series, clusters, association rules.

3.3.1 OLAP Cube

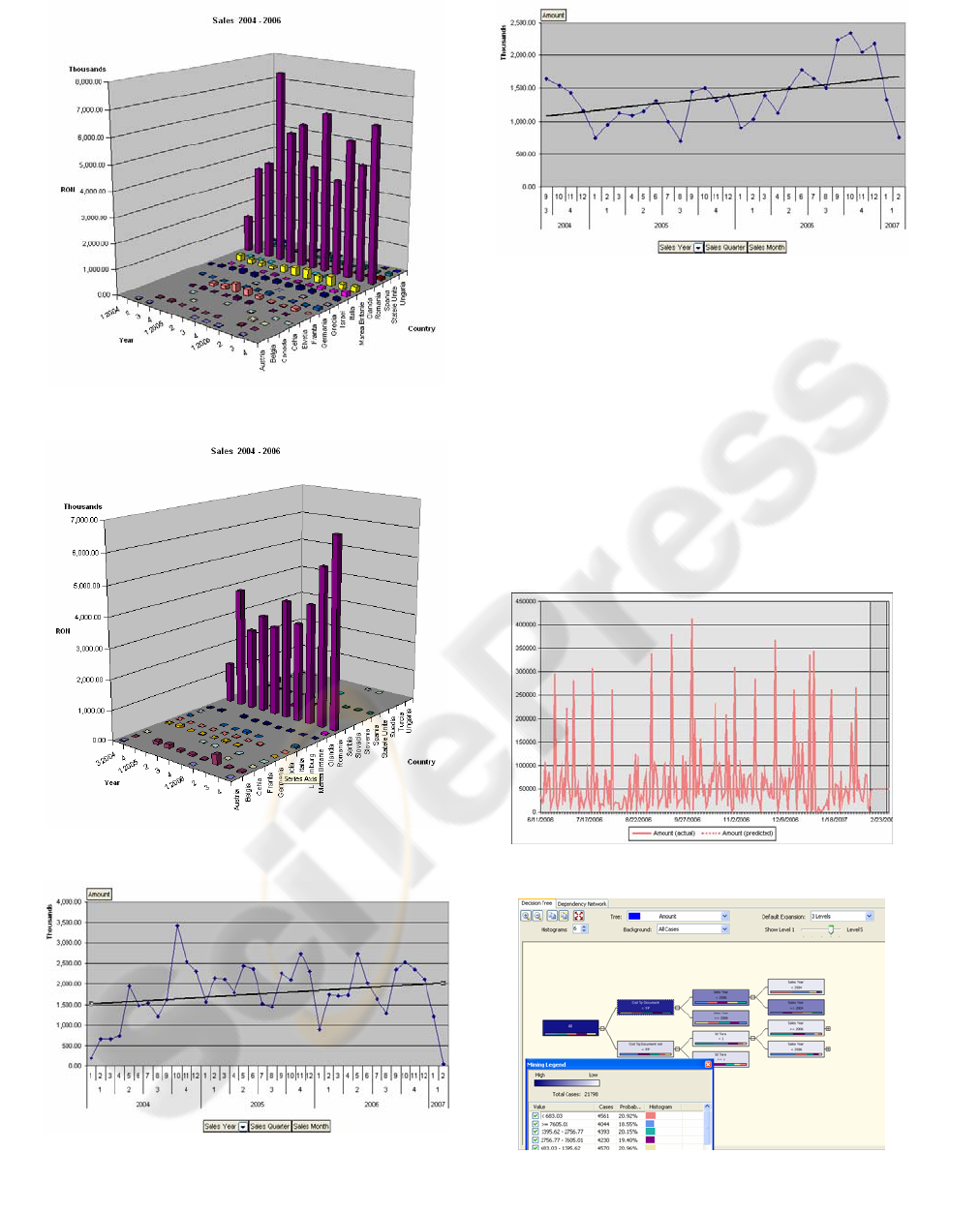

The cube views shown in Fig. 3-6 were generated in

Microsoft Excel, using a pivot table built based on

the cube definition.

WEB-BASED DATA MINING SERVICES - A Solution Proposal

205

Figure 3: Sales Chart per Country, Client1.

Figure 4: Sales Chart per Country, Client2.

Figure 5: Sales Trend Line, Client1.

Figure 6: Sales Trend Line, Client2.

3.3.2 Time Series

The SSAS Time Series Viewer displays models that

are built with the Time Series algorithm. This is a a

regression algorithm for use in creating data mining

models to predict continuous columns, such as

product sales, in a forecasting scenario. The results

obtained on the two databases are shown below. The

chart in Fig. 7 display the behavior of the time

series, together with the predicted values for the

future. Fig. 8 shows the decision tree built based on

the predictable attributes.

Figure 7: Sales Time Series Chart.

Figure 8: Decision Tree.

ICSOFT 2007 - International Conference on Software and Data Technologies

206

3.3.3 Clusters

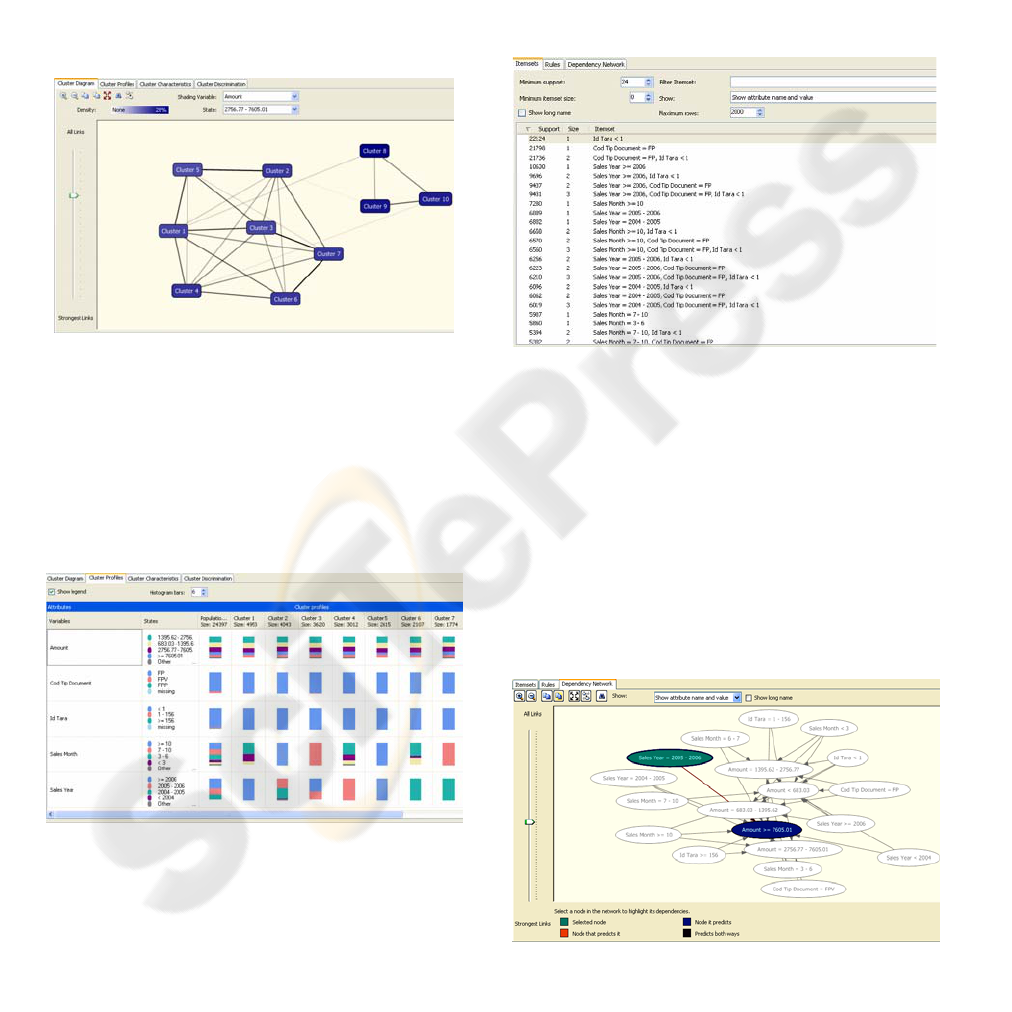

The Sequence Clustering algorithm is a sequence

analysis algorithm for use in exploring data that

contains events that can be linked by following

paths, or sequences. The Microsoft Sequence

Cluster Viewer displays all the clusters identified in

a mining model. The shading of the line that

connects one cluster to another represents the

strength of the similarity of the clusters. If the

shading is light or nonexistent, the clusters are not

very similar. As the line becomes darker, the

similarity of the links becomes stronger.

Figure 9: Sales Clusters Diagram.

The viewer provides, in Fig. 10, an overall view

of the clusters built in the model. Each column that

follows the Population column in the grid represents

a cluster discovered by the algorithm. The rows

show the composition of the clusters for each

attribute in the model. Distinct ranges of attribute

values are represented in distinct colors.

Figure 10: Sales Clusters Profile.

3.3.4 Association Rules

The Microsoft Association algorithm is an

association algorithm for use in creating data mining

models that can be used for market basket analysis.

The algorithm finds itemsets that describe items that

are typically found together in a transaction and

discovers rules that predict the presence of other

items in a transaction, based on existing items. The

viewer displays the list of itemsets that the model

identified as frequently found together. The tab

displays a grid with the following columns: Support,

Size, and Itemset. In Fig. 11, the largest itemsets

include the records indicating sales to Romanian

customers (Country_ID=1) with support value

22,124 and records corresponding to sales invoices,

with support value 21,798.

Figure 11: Association Itemsets.

The dependency network viewer displays nodes,

each node representing an item. The arrow between

nodes represents the association between items. The

direction of the arrow dictates the association

between the items according to the rules that the

algorithm discovered. For example, in Fig. 12, an

arrow points from the node SalesYear=2005-2006

towards the node Amount>=7,600. The slider at the

left of the viewer acts as a filter that is tied to the

probability of the rules. Lowering the slider shows

only the strongest links.

Figure 12: Association Dependencies.

WEB-BASED DATA MINING SERVICES - A Solution Proposal

207

4 CONCLUSION

The ISIS .NET platform provides a web-based

solution that includes a B2B portal for collaborative

business processes and an ERP system for specific

back-office operations. Installed in a data center, the

platform offers to registered users the possibility to

administrate their complete business environment

using advanced technology, with minimum costs.

The operation of an unique ERP solution ensures

that all data are consistently stored in the same

database structures. The solution developers are

therefore able to create an unique set of business

analysis tools, based on Microsoft SQL Server 2005

Analysis Services, that can further be operated

similarly by all system users.

The data mining platform must further be

developed to provide distinct sections for the

analysis of data subject to the operation of various

ERP modules: financial-accounting, stock

management, transportation, human resources, etc.

No matter the business specifics, companies that

administrate stocks using the ISIS .NET Stock

Management module - that stores data in the ISIS

.NET client database - will be able to share the same

business analysis tools, included in the solution

platform. As the databases grow and the models

develop in time, it will become necessary to embed

in the platform industry-strength data mining

facilities. For better efficiency, at clients’ requests,

the system will generate separate data warehouses,

starting from the ISIS .NET client databases, that

will support the data mining tasks. The platform will

include all the tools for the back-office management

of the data warehouses: periodic data loading, data

preparation, back-up and archiving, administration

and interpretation of data mining results.

The described solution architecture complies to

the current trends of establishing powerful nodes

that provide modern utilities and services using

standardized delivery networks, similar to the

situation of traditional utilities. Water, electricity,

gas, cable TV, Internet access, games, music and

movies, office and application software, data and

knowledge will follow similar distribution flows,

built using consistent standards. Concentration and

consolidation will be improved, to allow sharing out

at a global scale.

REFERENCES

Cornelia Oprean, Serban Ghenea, 2007. Delivering IT

Services as Web Utilities. In Proceedings of 16

International Conference on Control Systems and

Computer Science, vol. 2, pag. 169-174.

Serban Ghenea, 2007. Application Tool for Experiments

on SQL Server 2005 Transactions. In WSEAS

Transactions on Computers, issue 2, vol. 6, pag. 223-

228.

Ian H. Witten, Eibe Frank, 2005. Data Mining: Practical

Machine Learning Tools and Techniques, Morgan

Kaufmann, Second Edition.

Margaret H. Dunham, 2003. Data Mining, Introductory

and Advanced Topics, Prentice Hall.

Thomas Erl, 2005. Service-Oriented Architecture –

Concepts, Technology and Design, Prentice Hall.

Thomas Erl, 2004. Service-Oriented Architecture – A

Field Guide to Integrating XML and Web Services,

Prentice Hall.

ZhaoHui Tang, Jamie MacLennan, 2005. Data Mining

with SQL Server 2005, Wiley.

Laurence Moroney, “The Windows Communication

Foundation: A Primer”,

http://www.devx.com/dotnet/Article/29414/0

Juval Lowy, “What You Need To Know About One-Way

Calls, Callbacks, And Events”,

http://msdn.microsoft.com/msdnmag/issues/06/10/

WCFEssentials /default.aspx.

Aaron Skonnard, “Serialization in Windows

Communication Foundation”,

http://msdn.microsoft.com/msdnmag/issues/06/08/

ServiceStation/default.aspx.

ICSOFT 2007 - International Conference on Software and Data Technologies

208
