MODEL-DRIVEN DEVELOPMENT OF GRAPHICAL TOOLS

Fujaba Meets GMF

Thomas Buchmann, Alexander Dotor and Bernhard Westfechtel

University of Bayreuth, Universitaetsstrasse 30, 95440 Bayreuth, Germany

Keywords:

Model Driven Development, Rapid Prototyping, Story Driven Modeling, Graphical Modeling Framework.

Abstract:

In this paper we describe and evaluate our combination of the Fujaba CASE-Tool with the Graphical Modeling

Framework (GMF) of the Eclipse IDE. We created an operational model with Fujaba and used it as input for

a GMF editor generation process. This allows us to introduce a new approach for generating fully operational

models including graphical editors for model representation and transformation. By making our developement

process explicit this paper acts as a guide for applying this approach to other projects as well.

1 MOTIVATION

Model-driven software development has gained in-

creasing attention during the last years. Executable

models promise to improve the productivity of soft-

ware engineers signiﬁcantly. In particular, in the con-

text of object-oriented software engineering numer-

ous approaches have been developed to generate exe-

cutable code from higher-level models.

Model-driven software development may be ap-

plied to different parts of a software system. The ap-

plication logic is concerned with the structure and be-

havior of the data on which the system operates. In

an interactive system, the operations provided by the

application logic are invoked through a user interface

which presents the data of the application in various

ways.

In this paper, we address the integration of the

Graphical Modeling Framework (GMF) with the

object-oriented CASE tool Fujaba. GMF allows the

fast generation of graphical editors for any object-

oriented data model based on the Eclipse Modeling

Framework (EMF) and the Eclipse Graphical Edit-

ing Framework (GEF) (ecl, 2006d). Fujaba supports

model-driven development by generating executable

code from object-oriented models which are com-

posed of class, state, and story diagrams (combina-

tions of activity and communication diagrams).

With GMF, graphical editors may be generated

rapidly. However, their functionality is restricted to

predeﬁned elementary graph operations such as inser-

tion and deletion of single nodes and edges. This re-

striction is due to the fact that EMF focuses on struc-

ture and lacks support for generating behavioral mod-

els, i.e., method bodies must still be implemented

manually. Fujaba closes this gap since it generates

fully operational models.

Thus, combining both approaches supports

model-driven development of interactive systems,

covering both user interface and application logic.

Below, we demonstrate step by step the development

process for the combined application of Fujaba and

GMF, and show that the execution of this process sig-

niﬁcantly reduces the development time for interac-

tive systems with a graphical user interface.

2 TECHNOLOGY OVERVIEW

Before introducing the main features of GMF it is

necessary to get an overview of EMF and GEF ﬁrst.

Please note that due to the space limitations of this

paper it is not possible to give an full overview of

all three frameworks. Readers who are interested in

a more detailed and complete introduction to EMF,

GEF and GMF we propose a further reading of

(ecl, 2006b), (ecl, 2005b) and (ecl, 2006c) as well

425

Buchmann T., Dotor A. and Westfechtel B. (2007).

MODEL-DRIVEN DEVELOPMENT OF GRAPHICAL TOOLS - Fujaba Meets GMF.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 425-430

DOI: 10.5220/0001332604250430

 SciTePress

as (Z

undorf, 2001) to learn more about Fujaba and

SDM.

2.1 Eclipse Modeling Framework

EMF is a framework for Eclipse that allows the spec-

iﬁcation of models based on the Ecore

metamodel

(ecl, 2005a).

Based on the Ecore model deﬁnition it is possi-

ble to generate a (non-operational) model implemen-

tation. The model implementation consists of inter-

faces only, so if we had not used Fujaba for generat-

ing our model we would still have to implement all

complex methods or - in Ecore terminology - all in-

stances of

EOperation.

But in either case we must

still create a graphical editor both to view our model

as a graph and to call our

EOperation

instances for

model transformations.

2.2 Graphical Editing Framework

GEF is an Eclipse framework that provides support

for the uniform implementation of graphical edi-

tors. GEF is based on the

Model View Controller

(MVC) pattern (Freeman et al., 2004) which is widely

used for object oriented GUI implementations. But

most GUIs implement MVC in a non-uniform way,

which limits the extensibility and accessibility of

complex GUIs. GMF provides the necessary data

structures for designing and implementing complex

graphical editors. As suggested by the MVC pat-

tern GEF separates the data model from its graphi-

cal representation - the view. Data model and view

are linked by the controller - called editpart in GEF

- which both updates the view if the data model

changes and passes change requests from the view to

the data model (ecl, 2005b).

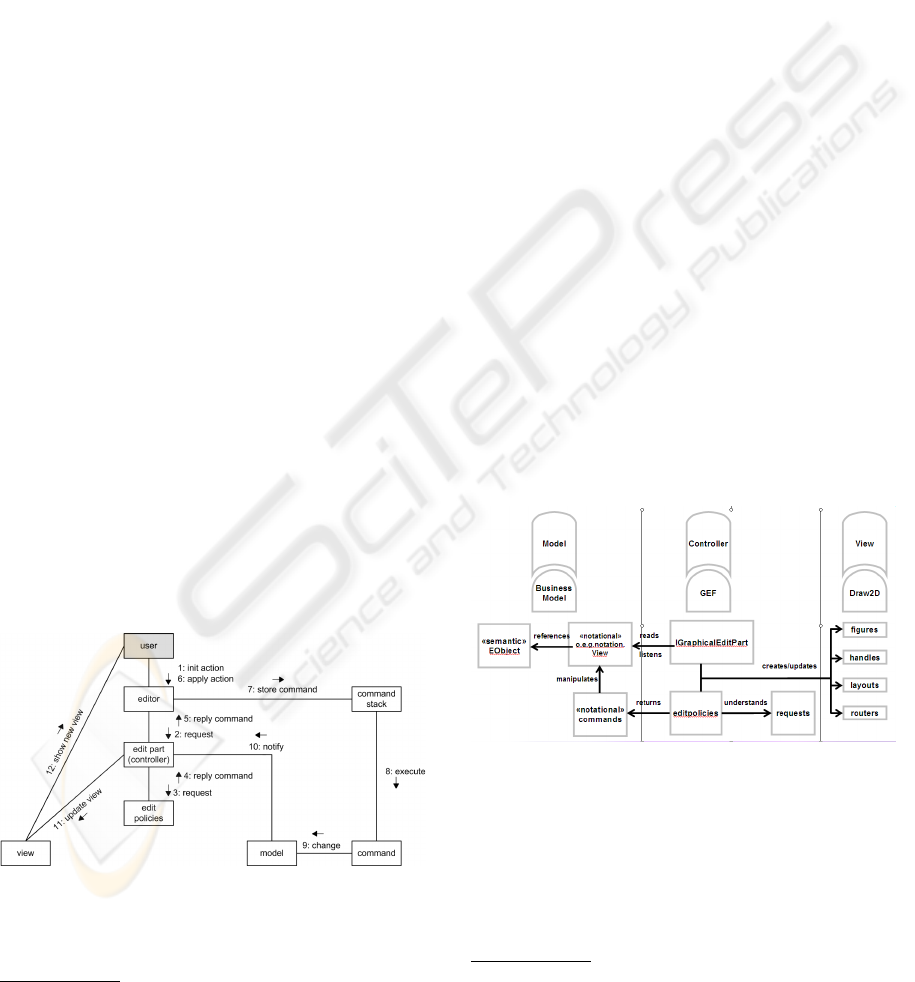

Figure 1: Communication diagram of a GEF editor interac-

tion.

Figure 1 shows a communication diagram of a

user-editor interaction: Once the user initiates an ac-

an UML-dialect and a variant of the OMG proposal for

Essential Meta Object Facility (EMOF)

tion via the GUI (1) the editor sends a request to all

edit parts (2). Each edit part forwards the request to

its edit policies (3). If a policy is responsible for the

request it returns a command (4) that is propagated to

the editor (5). Once the user applies the command (6)

it is stored on the command stack (7) for undo/redo-

functionality and ﬁnally executed (8). During execu-

tion the command applies its changes to the model

(9). Affected model elements notify their edit part

about the changes (10), so each notiﬁed edit part can

update its view element (11). Finally the updated

view presented to the user (12).

With the help of GEF, graphical editors may be

developed quite rapidly. However, this still requires

a signiﬁcant amount of manual implementation (see

Section 6).

2.3 Graphical Modeling Framework

GMF

combines both EMF and GEF for a generative

approach to create graphical editors. GMF is sepa-

rated into two components: a runtime component

and a generator component. The runtime compo-

nent provides facilities for viewing and manipulating

a graphical model. The generator component takes

an Ecore-based model – any EMF-model – and maps

it onto the runtime component. Therefore two models

exist in GMF: the Ecore-based data model – called se-

mantic model – and the GMF-internal runtime model

– called notational model. The runtime component

synchronizes both models (ecl, 2006d).

Figure 2: Components of the GMF and their relationships

(ecl, 2006a).

Figure 2 (ecl, 2006a) gives a rough overview about

the various components of GMF and its relationships.

As depicted by the rounded boxes GMF is split ac-

cording to the MVC pattern into Business Model,

GEF-Controller and Draw2D-View. The Business

Model is separated into an Ecore-based semantic

GMF was released in June 2006 and counts as work in

progress, so the only publications available are slides and

website-articles (ecl, 2006c).

ICSOFT 2007 - International Conference on Software and Data Technologies

426

model and a notational model. Furthermore the no-

tational model is GEF-compliant

by separating no-

tational commands from notational data. The GEF-

Controller listens via GraphicalEditPart to notational

data model changes and updates the Draw2D-View

accordingly. Additionally every GraphicalEditPart

reacts on requests and provides the corresponding no-

tational commands if responsible.

We continue now with showing how to generate a

simple editor with GMF for a sample model. The ex-

ample provides more insight into the GMF but please

note that due to its complexity an extensive descrip-

tion of GMF is out of the scope of this paper. Please

refer to (ecl, 2006d) or (ecl, 2006c) for further read-

ing.

2.4 Fujaba

Fujaba (Z

undorf, 2001) is a powerful environment for

developing executable models with the help of class,

story, and state diagrams. Fujaba has been used in

numerous research projects and is being developed

jointly at multiple sites; work on Fujaba is presented

in a workshop series (Giese and Westfechtel, 2006).

The most distinctive feature of Fujaba are story di-

agrams, which combine activity and communication

diagrams. Fujaba generates executable code from

story diagrams. By default, the code generator pro-

duces plain Java code. While GEF does not constrain

the model to be used, GMF requires an EMF model.

To make the integration of Fujaba and GMF work,

the Fujaba development team (located at Kassel, Ger-

many) extended the code generator in order to pro-

duce EMF models.

3 CREATING A FUJABA MODEL:

DYNAMIC TASK NETS

Before we can start the generative process of GMF we

have to create a model ﬁrst. Figure 3 depicts an UML

class diagram of our sample model: a Dynamic Task

Net (DTN) (Heimann et al., 1997). A DTN is a model

used for keeping track of tasks and their relation-

ships in development process management systems.

Instances of class

DTNDynamicTaskNet

represent a

complete DTN. Each DTN consists of tasks (class

DTNTask

) and relationships (class

DTNConnection

Additionally we have three types of relationships:

To provide undo/redo functions, GEF requires the sep-

aration of data and operations. Therefore each operation in

the notational model has an associated notational command

class (see:Command Pattern (Freeman et al., 2004))

1. a control ﬂow relationship (class

DTNControl-

Flow

) to represent temporal dependencies, i.e.

“Task A must ﬁnish before Task B begins”.

2. a subtask relationship (class

DTNSubtask-

Hierarchy

) to represent compositions, i.e. “Task

A consists of two tasks: Task A1 and Task A2”.

3. a feedback relationship (class

DTNFeedbackFlow

)

to represent backward dependencies, i.e. “Execu-

tion of Task B suggests a rework of Task A due to

new insights into the problem”.

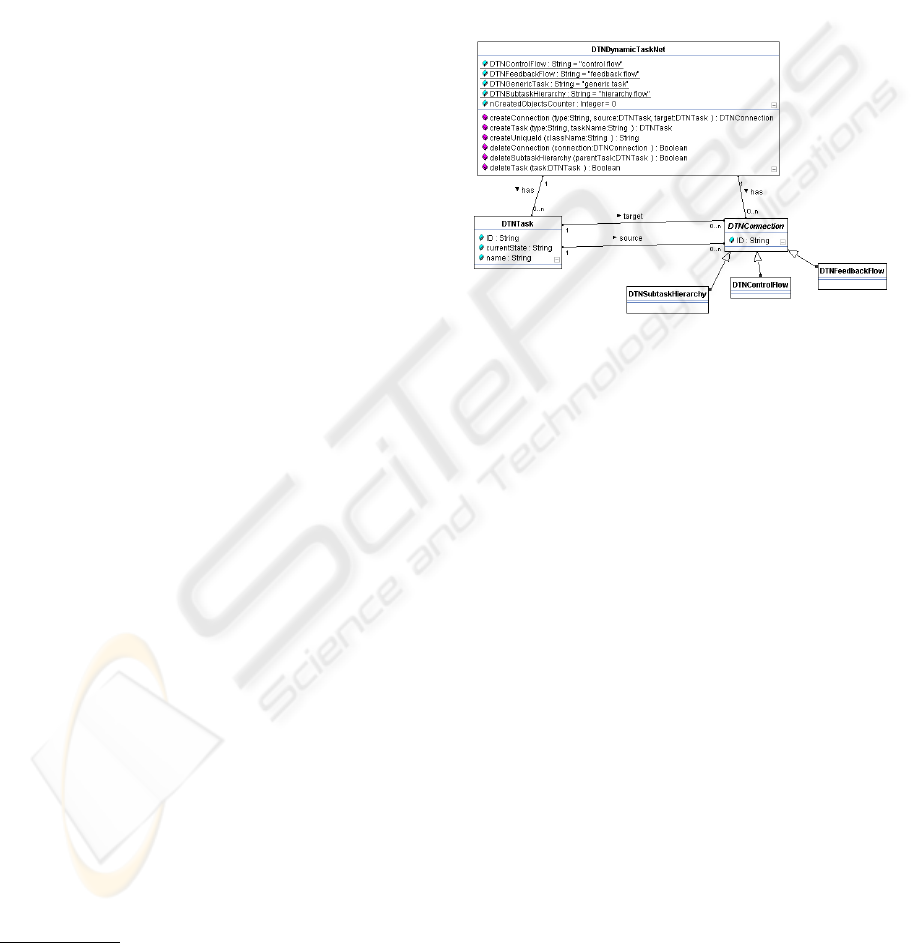

Figure 3: Class diagram of the Dynamic Task Net (DTN)

model.

It is important to notice that the application stud-

ied here signiﬁcantly goes beyond just a standard

graphical editor. The process management system

supports seamless interleaving of editing and execu-

tion of dynamic task nets. All operations have to

maintain numerous consistency constraints, and in

general they affect subgraphs of the DTN rather than

just single nodes, edges, and attributes. The behav-

ior of DTNs is speciﬁed with a comprehensive set of

story diagrams, which, however, cannot be presented

here due to the lack of space.

4 GENERATING A SIMPLE GMF

EDITOR

Once we have created our model in Fujaba, we are

able to generate both the Ecore-based model and the

implementation of our complex methods. Now we

can start generating our ﬁrst prototype by executing

the following seven steps (ecl, 2006d):

1. Create/Generate model: In this step the model

is created with Fujaba ﬁrst. Then its implemen-

tation is generated both by Fujaba and the EMF

code generation. Instead of creating an Ecore-

based model deﬁnition manually we generate the

model deﬁnition and the method implementation

MODEL-DRIVEN DEVELOPMENT OF GRAPHICAL TOOLS - Fujaba Meets GMF

427

with Fujaba. Note that only the method imple-

mentation is generated by Fujaba – not the inter-

faces. We use the ability of the EMF code gener-

ation to merge already existing implementations

into the EMF code generation process and gen-

erate the interfaces from the Ecore-based model

deﬁnition. Now we have a fully operational EMF

model.

2. Create Graphical Deﬁnition: In this step the el-

ements of the notational model (i.e. node ﬁgure,

labels, etc.) are deﬁned.

3. Create Tooling Deﬁnition: In this step the palette

entries of the editor are deﬁned.

4. Create Mapping Deﬁnition: In this step infor-

mation from the model, graphical and the tooling

deﬁnition are combined. For each model element

a graphical element (if any) is chosen as well as

a tooling element. Examples are a class from the

model which is depicted as circle or an attribute

that is shown by a label.

5. Create Generator Model: In this step the map-

ping deﬁnition is translated into a generator

model.

6. Adjust Generation Parameters: In this step var-

ious parameters for the plug-in generation can be

manipulated, i.e. class names of selected plug-in

classes.

7. Generate Diagram Plug-in: This is the ﬁnal step

of the generation process. It produces a fully op-

erable graphical editor as Eclipse plug-in.

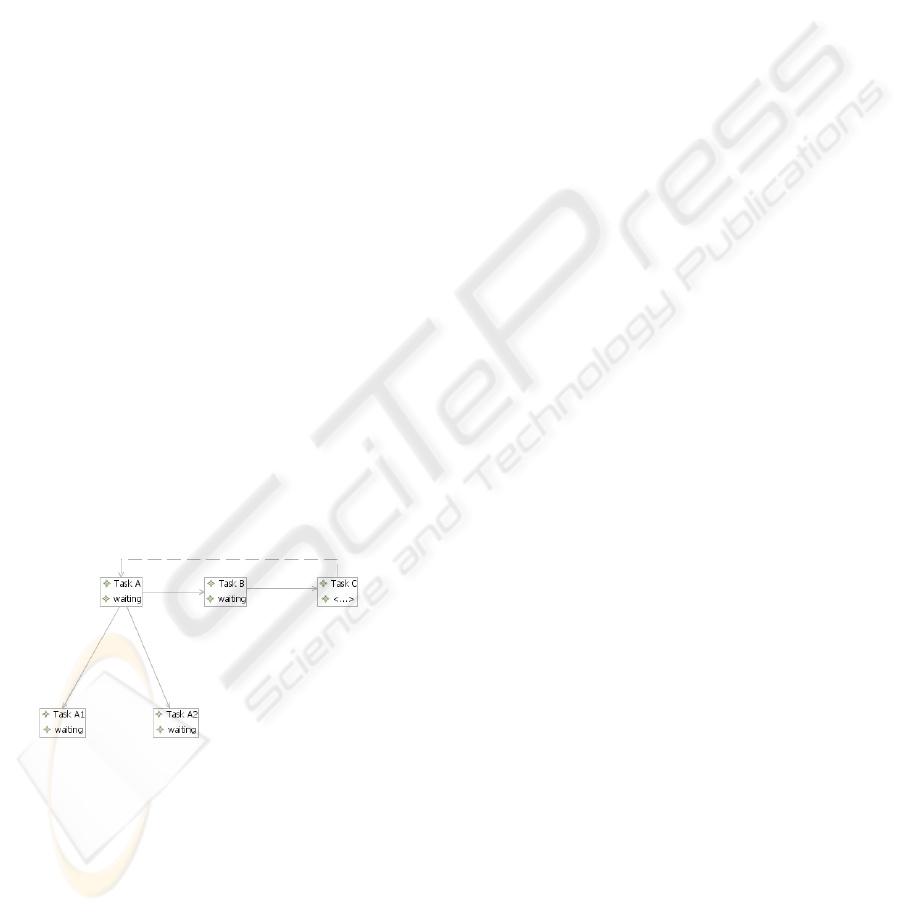

Figure 4 shows a sample DTN instance in a GMF

editor.

Figure 4: GMF diagram of a simple DTN instance.

5 EXTENDING THE EDITOR

Once the editor has been generated it turns out that it

is missing typical functionality that is expected from

any generated tool – like support for calling the gen-

erated complex model operations. In the following

section the solution to several problems is presented

ﬁrst, discussing the open ones afterward.

5.1 Solved Problems

The editor generated so far does not yet provide the

functionality we expect from the ﬁnal graphical tool.

Executable code has been generated from the Fu-

jaba model, but the corresponding operations cannot

be called via the generated editor. As mentioned,

these operations have to preserve the consistency con-

straints of the DTN model and may affect large parts

of the task net (e.g., suspension of all active tasks in

some task hierarchy).

To support the call of

EOperations

of a semantic

model element via the editor we want to have a con-

text menu. This menu must only show up if the ﬁg-

ure associated with the model element is selected. To

support this behavior we have to customize the gener-

ated editor. Luckily GMF is designed for extensibil-

ity (ecl, 2006d) so we must create only another plug-

in-project. First we have to design our menu struc-

ture and actions as described in (Clayberg, 2006). We

want to relate speciﬁc menus to speciﬁc ﬁgures so we

have to chose the right

EditPart

-class to attach the

menu to. Note that the menus are related to the con-

troller (an

EditPart

) and not the model (a semantic

or notational model element).

Second we have to implement the actions for the

menu entries. Each action must gather all neces-

sary parameters from the user before it calls its corre-

sponding method in the semantic model. So a dialog

for every action has to be implemented. But simply

calling the appropriate method in the semantic model

fails: GMF uses the EMF Transaction framework to

access the semantic model. So we have to implement

subclasses of

AbstractTransactionalCommand

wrapper for each method call. Additionally the

operation has to be registered in the current

TransactionalEditingDomain

or it will be rejected

by the EMF Transaction framework.

Last but not least we have replaced the gen-

erated default commands for basic model trans-

formations (i.e. adding or deleting a node) with

our own basic commands. We can reuse the

TransactionalCommands

we implemented for the

menu actions above. GMF allows us to attach a

so called

EditHelper

to any type of our seman-

tic model. An

EditHelper

receives every request

that is generated due to the users actions and is

affecting the appropriate type. Our implementa-

tion of the

EditHelper

replaces the default com-

mand associated with the request with our appropri-

ate

TransactionalCommand

. Whenever the default

command would have been executed our command is

executed instead.

ICSOFT 2007 - International Conference on Software and Data Technologies

428

5.2 Open Problems

We encountered several problems with the default be-

havior of the synchronization of the semantic and the

notational model. Whenever a semantic model ele-

ment gets deleted or moved the view is not updated

accordingly. This led to two manually implemented

workarounds in the generated model, various bug re-

ports and a discussion in the GMF-developer forum.

For us it is obvious that a view has to be deleted by

default if it is not existing in the semantic model any-

more. Problems due to multi user access to a model

do not have to be solved by the synchronization mech-

anism but must be addressed separately. Up to date

there has been no decision if this should be default

behavior in GMF or not.

6 EVALUATION

In (Buchmann and Dotor, 2006) we created a pro-

totype of a graphical process management tool with

GEF. In table 1 we compare the lines of manually im-

plemented code of the GEF-based tool and the GMF-

based tool of this paper. Additionally we compare the

implementation effort as an indicator for ease of work

and we count the number of class ﬁles – both imple-

mented manually or generated – as an indicator for

framework-induced complexity.

Table 1: Comparison of effort and complexity of GEF- and

GMF-based editor creation.

GEF editor GMF-editor

LOC manually 4330 618

#classes manually 80 15

#classes overall 103 111

development time ≈ 160h ≈ 12h

The development time of our GMF-based tool is

more than ten times smaller than the development

time of our GEF-based tool: Seven times less code

has to be implemented in six times fewer classes. Sur-

prisingly the number of overall classes in the GMF-

based tool is roughly the same as in the GEF-based

tool. One might expect to have more classes in the

more complex framework.

When it comes to default functionality and exten-

sibility of the GMF editor it turned out that the editor

is easily extensible if the developer is familiar with

the GMF. The familiarization with GMF is a labori-

ous task due to the lack of documentation and publi-

cations. Table 2 gives an overview of the expenditure

of time in hours for the generation and the customiza-

tion step – both for a developer familiar and unfamil-

iar with GMF.

Table 2: Comparison of expenditure of time for developers

familiar and unfamiliar with GMF.

unfamiliar familiar

Generation ≈ 16h ≈ 8h

Customization ≈ 40h ≈ 4h

Familiarity with GMF and its related technologies

speeds up development time dramatically. Especially

the customization of the graphical tool was approx-

imately ten times faster once the ﬁrst prototype has

been created.

These results lead to the conclusion that the de-

velopment of Fujaba and GMF-based prototypes de-

creases the development time dramatically. But like

any large framework GMF requires some time to be-

come familiar with it. Once the ﬁrst tool has been

developed and extended development time decreases.

Even when the developer changes the project he can

keep up the pace as GMF does not change.

7 RELATED WORK

The Fujaba environment includes Dobs (Geiger and

undorf, 2002), a dynamic object browser for visual-

izing object structures at run time and for executing

operations on these object structures. As part of Fu-

jaba4Eclipse, Dobs may be run as an Eclipse plug-in

(eDobs). Both Dobs and eDobs serve as debugging

tools and have not been designed as graphical editors.

UPGRADE (B

ohlen et al., 2002) is a univer-

sal platform for graph-based development which

has originally been used PROGRES-based models

(Sch

urr et al., 1999). Recently, it has been integrated

with Fujaba, as well. With UPGRADE, graphical

editors may be generated for arbitrary graph models

which operate as stand-alone tools. In contrast, our

work exploits technology developed in the context of

Eclipse. Since our graphical editors may be run as

Eclipse plug-ins, we may beneﬁt from the function-

ality provided by the Eclipse infrastructure and inte-

grate smoothly with other tools based on Eclipse.

The TIGER project (Ehrig et al., 2005) is based on

AGG, an approach to graph transformations based on

category theory. It is dedicated to the automatic gen-

eration of GEF editors using graph transformations,

in contrast to our work, which uses GMF for editor

generation. Therefore we may beneﬁt from further

developments for GMF, i.e. design tools for graphical

elements and sophisticated wizards for the generation

process. Furthermore our editors are extensible like

MODEL-DRIVEN DEVELOPMENT OF GRAPHICAL TOOLS - Fujaba Meets GMF

429

any other GMF-editor.

8 CONCLUSION

We have demonstrated model-driven development of

graphical tools using Fujaba and GMF. While GMF

lacks support for behavioral models, Fujaba closes

this gap by generating executable code from story di-

agrams. The tables given in Section 6 indicate that

the development effort following our process is fairly

small, i.e., productivity is increased signiﬁcantly. On

the other hand, there are still several problems to be

solved by ongoing and future work. The most im-

portant problem concerns the implementation of more

complex commands than the basic add and delete

commands: Even with the planned enhancement of

the GMF tooling deﬁnition to support the generation

of menus and actions is it necessary to implement di-

alogs, actions and

TransactionalCommands

to allow

sophisticated transformations of the semantic model.

We will evaluate whether it is possible to enhance Fu-

jaba to generated dialogs and actions. Furthermore

we plan to investigate whether it is worth the effort to

override the proposed GMF generation process, de-

veloping some kind of Fujaba graphical editor gener-

ation plug-in.

ACKNOWLEDGEMENTS

We would like to thank the whole Fujaba community

for developing and extending the CASE-tool but es-

pecially Leif Geiger from the University of Kassel for

implementing the EMF code generation.

REFERENCES

(2005a). The Eclipse Modeling Frame-

work (EMF) Overview. Eclipse Foun-

dation.

http://dev.eclipse.org/-

viewcvs/indextools.cgi/*checkout*/-

org.eclipse.emf/doc/org.eclipse.emf.doc/-

references/overview/EMF.html

– last visited:

27/10/2006.

(2005b). GEF Programmer’s Guide. IBM Corporation.

http://help.eclipse.org/

(2006a). Creating your own Domain Speciﬁc Modeler us-

ing GMF. Borland, IBM.

http://eclipsezilla.-

eclipsecon.org/attachment.cgi?id=175

– last

visited: 21/03/2007.

(2006b). EMF - Eclipse Modeling Framework. Eclipse

Foundation.

http://www.eclipse.org/emf

– last

visited: 21/03/2007.

(2006c). GMF - Graphical Modeling Framework. Eclipse

Foundation.

http://www.eclipse.org/gmf

– last

visited: 21/03/2007.

(2006d). Introduction to the Eclipse Graphi-

cal Modeling Framework. Borland, IBM.

http://eclipsezilla.eclipsecon.org/-

php/attachment.php?bugid=1

– last visited:

21/03/2007.

ohlen, B., J

ager, D., Schleicher, A., and Westfechtel, B.

(2002). Upgrade: A framework for building graph-

based interactive tools. Electronic Notes in Theoreti-

cal Computer Science, 72(2):113–123.

Buchmann, T. and Dotor, A. (2006). Building graphical

editors with gef and fujaba. In FUJABA Days 2006

proceedings, pages 47–51, Paderborn, Germany. Uni-

versitt Paderborn.

Clayberg, E. (2006). Eclipse. Building Commercial-Quality

Plug-Ins. Addison-Wesley Professional.

Ehrig, K., Ermel, C., H

ansgen, S., and Taentzer, G. (2005).

Generation of visual editors as eclipse plug-ins. In

ASE ’05: Proceedings of the 20th IEEE/ACM in-

ternational Conference on Automated software engi-

neering, pages 134–143, New York, NY, USA. ACM

Press.

Freeman, E., Freeman, E., and Sierra, K. (2004). Head First

Design Patterns, volume 1 of Head First. O’Reilly

Media, Sebastopol (CA), USA.

Geiger, L. and Z

undorf, A. (2002). Graph based debugging

with fujaba. Electronic Notes in Theoretical Computer

Science, 72(2):124–131.

Giese, H. and Westfechtel, B., editors (2006). FUJABA

Days 2006 proceedings, Paderborn, Germany. Univer-

sitt Paderborn.

Heimann, P., Krapp, C.-A., and Westfechtel, B. (1997).

Graph-based software process management. Interna-

tional Journal of Software Engineering and Knowl-

edge Management, 7(4):431–455.

Sch

urr, A., Winter, A., and Z

undorf, A. (1999). The PRO-

GRES approach: Language and environment. In

Ehrig, H., Engels, G., Kreowski, H.-J., and Rozen-

berg, G., editors, Handbook on Graph Grammars and

Computing by Graph Transformation: Applications,

Languages, and Tools, volume 2, pages 487–550.

World Scientiﬁc: Singapore.

undorf, A. (2001). Rigorous Object Oriented Software De-

velopment. PhD thesis, University of Paderborn, Ger-

many.

ICSOFT 2007 - International Conference on Software and Data Technologies

430
