TURNING CONCEPTS INTO REALITY

Bridging Requirement Engineering and Model-Driven Generation of Web

Applications

Xufeng (Danny) Liang, Christian Kop

School of Computing and Mathematics, University of Western Sydney, Sydney, Australia

Alpen-Adria-Universitaet Klagenfurt, Klagenfurt, Austria

Athula Ginige, Heinrich C. Mayr

School of Computing and Mathematics, University of Western Sydney, Sydney, Australia

Alpen-Adria-Universitaet Klagenfurt, Klagenfurt, Austria

Keywords:

Requirements engineering, web engineering, conceptual modeling, rapid development, model driven software

development.

Abstract:

Today web application development is under the pressure of evolving business needs, compressed timelines,

and limited resources. These dynamics demand a streamlined set of tools that turns concepts into reality and

minimises the gap between the original business requirements and the ﬁnal physical implementation of the web

application. This paper will demonstrate how this gap can be reduced by the integration of two techniques,

KCPM (Klagenfurt Predesign Conceptual Model) and SBO (Smart Business Object), allowing fully functional

web applications to be auto-generated from a set of glossaries.

1 INTRODUCTION

One of the major challenges in developing web ap-

plications is to minimise the requirement and time

gap between the development domain and the actual

problem domain. End users tend to express their re-

quirements using natural language. They are neither

capable nor willing to understand conceptual models

that reﬂect the vocabulary of concepts of the comput-

ing domain within which the solution needs to be pro-

vided. On the other hand, system designers can easily

understand the requirements as well as to identify any

missing requirements by looking at conceptual mod-

els. In the absence of a coherent conceptual model,

i.e. a way for system designers to express the con-

cepts that end users could also understand, the ﬁrst

opportunity end users get to verify whether their re-

quirements have been properly understood by the de-

signers and the developers is when they see the imple-

mented system.

Several methodologies have been developed so

far which focus on different concepts and techniques

to improve the communication and to automate the

web application development. Some of these are goal

modeling (Mylopoulos et al., 1999) , scenario based

approaches (Sutcliffe et al., 1998; Rolland et al.,

1998; Diaz et al., 2005), story boarding (Schewe

et al., 2004), tasks (Valderas et al., 2005), template

based approaches, navigation approaches (Escalona

et al., 2004), speciﬁc use cases for web development

(Koch et al., 2006; Koch, 2006), as well as user ser-

vices approaches (de Castro et al., 2004). Further-

more the need for a controlled natural language is pro-

posed in (Hoppenbrouwers et al., 2005) as a meeting

point between natural and formal languages.

Between the original concepts and the ﬁnal phys-

ical implementation, often there is a requirement gap

and a time gap. A requirement gap can arise due to

different levels of communication loss, for example,

between end users and designers, or between design-

ers and developers. It also can arise due to end users

not being able to identify all the requirements at the

beginning. There is also a time gap, which is the

time required to turn the original concept into the ﬁnal

physical implementation. Minimising the time gap

can effectively reduce the requirement gap, since end

users can quickly experience the system, identify any

gaps (missing information) in relation to their require-

ments, and request necessary changes. Therefore, in

this paper, we propose an approach that minimises

these gaps by integrating Klagenfurt Predesign Con-

ceptual Model (KCPM) (Mayr and Kop, 2002) and

109

(Danny) Liang X., Kop C., Ginige A. and C. Mayr H. (2007).

TURNING CONCEPTS INTO REALITY - Bridging Requirement Engineering and Model-Driven Generation of Web Applications.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 109-116

DOI: 10.5220/0001333601090116

 SciTePress

Smart Business Objects (SBO) (Liang and Ginige,

2006).

KCPM is aimed to minimise the requirement gap.

It provides a glossary representation of the natu-

ral language requirements that can be directly used

to verify with end users and to identify any miss-

ing information immediately. In last year’s ICSOFT

conference, we have proposed the SBO concept to

effortlessly generate web applications by modeling

business objects using high level modeling language

called SBOML (Smart Business Object Modelling

Language) (Liang and Ginige, 2006). By encap-

sulating common web behaviors and characteristics,

SBO understands high-level concepts, such as email,

photo, URL, document, video etc. Consequently,

SBO is capable of directly generating a rich set of

ready-to-use web views (user interfaces) for the mod-

eled business objects, allowing web applications to be

developed within an extremely condensed timeframe.

In this paper, we further reduce the requirement gap

and the time gap by introducing a rule-based engine

to automate the process of converting the KCPM glos-

saries into a conceptual model of the business objects

in SBOML.

Web applications can be developed in several

ways, such as by navigation, tasks (Liang and Ginige,

2006), or user services (Koch, 2006; de Castro et al.,

2004). In order to fully understand the requirements

of the required application, a business analyst needs

to understand the terms and concepts in the target do-

main and the relationships among them. A glossary

is commonly used to maintain a list of the terms as

well as their meanings. Thus, in practice, business

analysts do not always follow the rule tasks ﬁrst in

requirement analysis, apart from the initial tasks to

obtain a broad, high-level understanding what the in-

tended application should do. Since it is natural for

end users to use jargon to express concepts in their

domain (e.g. customer, product, icd10), business an-

alysts will soon confront the underlying data model

of the intended application during a detailed analy-

sis. From this point on, in practice, domain analysis,

or the analysis of the underlying end users ontology,

must go hand in hand with task analysis.

Existing approaches in deriving the data model

(i.e. the conceptual modeling of data) from user re-

quirements, such as the template mechanism used in

(Koch et al., 2006; Escalona et al., 2004), requires

business analysts to make decisions for the structure

of the required data model (such as which concepts

should become classes or attributes) at a very early

stage of the development process. On the contrary,

since KCPM is capable of using a rule-based engine

(explained in section 5) to systematically derive the

required data model based on the terms and relation-

ships stored in its glossaries (explained in section 2),

the laborious work of manually constructing the data

model is alleviated from business analysts or system

designers. Additionally, KCPM has an extensible

structure to support the need for collecting additional

information about the domain speciﬁc concepts.

The integration of KCPM and SBO leads to an ap-

proach where functional web applications can be gen-

erated purely by collecting information about data.

This is a data-driven approach to develop web appli-

cations. Existing web modeling techniques, such as

WebML (Ceri et al., 2000) and OOHDM (Rossi et al.,

2000), use a similar data-driven approach. However,

the starting point of existing data-driven approaches is

the conceptual modeling of data (using ER diagrams

or UML class diagrams), from which web applica-

tions can be generated or developed. The integra-

tion of KCPM and SBO allows us take a step further.

We take user requirements (domain speciﬁc terms and

concepts) in the form of KCPM glossaries as our start-

ing point, where the conceptual model can be derived

automatically and web applications can be then gen-

erated.

The paper is structured as follows: We will intro-

duce the concept of KCPM and SBO in sections 2 and

3 respectively. In section 4, we will explain our data-

driven approach to generate web applications from re-

quirements. Section 5 explains how the KCPM glos-

saries are mapped to SBOML expressions. We will

then demonstrate the tools we have developed to fa-

cilitate the generation process in section 6. Section 7

describes the future directions.

2 KCPM

An important aim for the development of KCPM was

to provide both developers and end users with an in-

terface for their mutual understanding. The most im-

portant modeling notions for modeling the structural

(data) aspects of a software system are: thing-type,

connection-type and perspective. In this section, we

will explain, via examples, these notions and their as-

sociated meta-attributes in the glossaries.

A thing-type is a generalisation of conceptual no-

tion classes (entity type or entity set, respectively) and

attributes. Thus, typical things (instances of thing-

types) are:

• Natural or juridical persons (e.g. author),

• Material or immaterial objects (e.g. book, prod-

uct, idea),

• Abstract notions (e.g. contract), as well as,

ICSOFT 2007 - International Conference on Software and Data Technologies

110

• Descriptive characteristics of the abovementioned

examples (e.g. a customer name, a product num-

ber, a product description)

It is insufﬁcient to collect only the names of the thing-

types, such as author, ISBN, book, etc. KCPM also

use a set of meta-attributes to deﬁne thing-types:

• Description - a semantic description of the thing-

type

• Examples- a list of examples for the speciﬁc

thing-type.

• Synonyms - a list of alternative names to describe

the same thing-type

• Value Constraint - a description about the con-

straints of a value (e.g. the value should be be-

tween 4 and 10)

• Format Constraint - a description for the format of

the value (e.g. YYYY-MM-DD).

• Quantity Description - a description for the possi-

ble amount of instances of a particular thing-type

(e.g. 1000 customers, 3 colors)

• Requirement Source - the references to the

sources (documents) from which the particular

thing-type was derived.

All these information can be derived by analysing

the textual requirements or by asking the end users

(Figure 1). The advantage of this approach is that sys-

tem designers can immediately identify any inconsis-

tent or missing information, for example, if end users

have speciﬁed two different format constraints, “YY-

MM-DD” and “DD-MM-YYYY”, for the same thing

type.

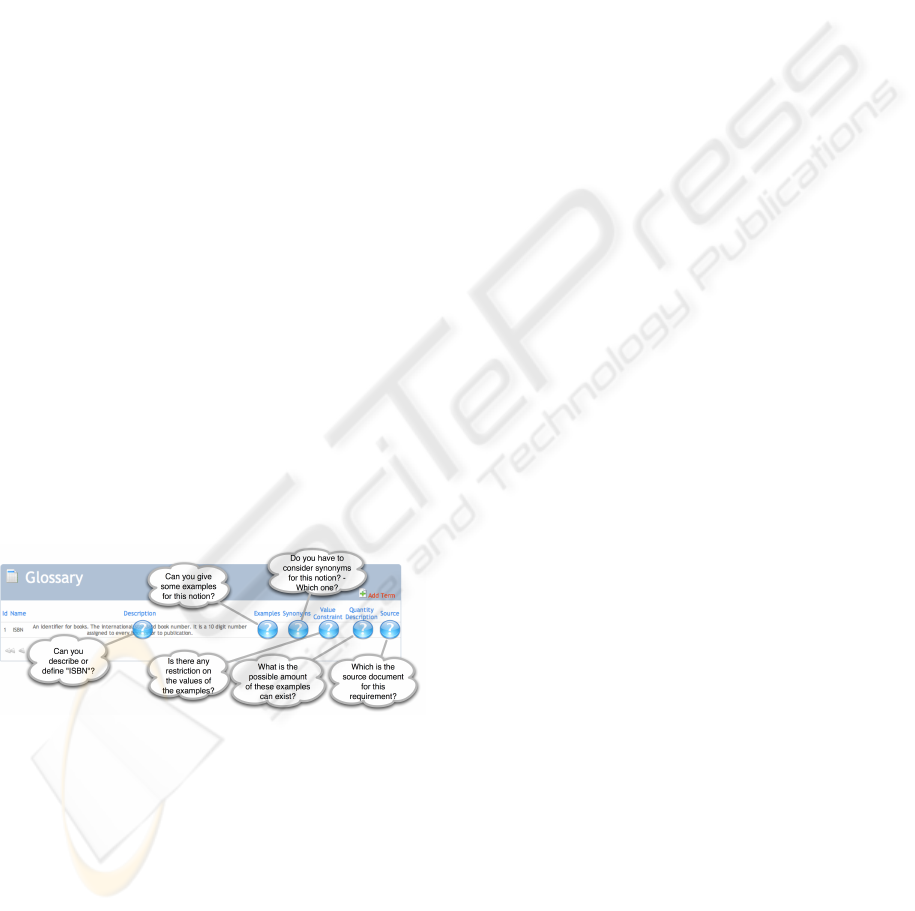

Figure 1: Completing the Glossary.

Things in the real world are related. To capture

the relationships between things, KCPM also intro-

duces the notion of connection-type. Two or more

thing-types can be connected via a connection-type.

To completely deﬁne a connection-type, we must

specify the viewpoint (perspective) of all of the in-

volved thing-types. This corresponds to the NIAM

Object/Role Model (Nijssen and Halpin, 1989). It is

possible to specify the cardinalities of a connection-

type within a perspective. Natural language sentences

can lead to connections (and perspectives), for exam-

ple:

• “An Author writes many books.” - from the per-

spective of an author

• “A Book is written by many authors.” - from the

perspective of a book

KCPM also allows special connection-types with spe-

ciﬁc semantic meanings to be deﬁned. These special

connection-types can be mapped to conceptual mod-

els. Typical semantic connection-types are:

• Identiﬁcation - speciﬁes that the instances of

a thing-type identiﬁes the instances of another

thing-type (e.g.: An ISBN number identiﬁes a

book)

• Generalisation (“is-a”) - a set inclusion on the in-

stance level

• Has Property (“has”) - a generic connection-type

can lead to different semantic relationships. In

this way, systems designer can express that a

thing-type has some “properties” without speci-

fying whether the “property” is an attribute or a

class (in OO terms). For example, an address is a

typical property of a person. However, the address

may not necessarily become an attribute of per-

son. The address itself may consist of other rela-

tionships with other information, such as city, zip

code, and street, which enforce the address to be

a class. Thus, further information about the thing-

type address is required to determine whether it

should become an attribute or not. This strategy

is based on (Storey, 1993), where the word “has”

have different semantic meanings.

There are three methods for end users to specify

connection-types in KCPM:

• Adding new connection-types directly in the glos-

saries

• Generating connection types along with their as-

sociated thing-types via a graphical editor

• Using on sentence patterns of a controlled lan-

guages (Hoppenbrouwers et al., 2005) to deﬁne

connection-types, as well as their cardinalities.

For example, “A Book is written by many author”,

“An ISBN number identiﬁes a book”, etc.

If the third method is adopted and assuming the sen-

tences in the requirements conform to the sentence

patterns of a control language, then we can use an in-

terpreter (a tool) to translate those sentences to KCPM

connection-types.

3 SMART BUSINESS OBJECT

Smart Business Object (SBO) is built on early

work done by Reenskaug in MVC (Model-View-

TURNING CONCEPTS INTO REALITY - Bridging Requirement Engineering and Model-Driven Generation of Web

Applications

111

Controller): a modeling approach to bridge the gap

between users’ mind and computer data (Reenskaug,

1979b; Reenskaug, 1979a). The aim of SBO is to

raise the level of abstraction in modeling business ob-

jects, as well as auto-generating “web-ready” views

of the modelled business objects for web-based busi-

ness applications.

In building web-based business applications, we

need to develop web user interfaces (UIs). In order to

accelerate the development of web-based business ap-

plications, higher-level, semantic-rich Abstract Data

Types (ADTs) that embrace web characteristics and

behaviours is desirable. For example, an email data

type should be by default rendered as a mailto hy-

pertext link for view operations, while both server

side and client-side validation are enforced on update

operations. Similarly, an photo data type should be

by default rendered as an image on the web browser,

while uploading facilities are automatically provide

on update options. In other words, these Abstract

Data Types also need to be also context-aware, in

terms of the web user interfaces they are to gener-

ate for different operations (such as CRUD). We call

these Web-Oriented Abstract Data Types.

In order to represent the attributes of common

business objects, SBO is designed to support Web-

Oriented Abstract Data Types, such as email, docu-

ment, photo, video, etc. Thus SBO greatly reduce

the laborious and repetitive work in building web user

interfaces for business objects. SBO not only con-

sider the database schema level semantics (i.e. data

types in the database) for determining the most suit-

able web user interfaces, but also maintains a global

schema for representing Web-Oriented Abstract Data

Types. This schema maintains the additional aspects,

such as presentation logic, validation logic, and con-

tent handling mechanism, for customising or creating

new Web-Oriented Abstract Data Types. SBO main-

tains a global schema for deﬁning Web-Oriented Ab-

stract Data Types.

The direct support for Web-Oriented Abstract

Data Types in SBO enables the construction of a for-

mal modeling language for modeling business object

at a very high level of abstraction. The proposed mod-

eling language is called Smart Business Object Mod-

eling Language (SBOML). The syntax keywords of

SBOML are based on the English lexicon, allowing

users to model their domain speciﬁc business object

using near-natural language syntax. A detailed expla-

nation of the SBOML syntax can be found in (Liang

and Ginige, 2006).

An example would be the use of the “has” and

the “many” keyword. According to Storey (Storey,

1993), the word “has” can be used to describe sev-

eral types of semantic relationships, including “one

thing connected to another” and “a property or char-

acteristic of something”. In order to make the syn-

tax more generic, SBOML use the “has” keyword for

deﬁning both “object-object” relationships (composi-

tion) and “object-attribute” relationships. For exam-

ple, the expression “employee has position” implies

an “object-attribute” relationship if “position” is not

a known business object. Otherwise, the same ex-

pression will be considered as an establishment of

a composition relationship between the “employee”

and the “position” business object. To specify the

cardinality in relationships between business objects,

SBOML uses the “many” keyword in combination

with the “has” keyword. For example, assuming that

“car” is a known business object, then the expression

“employee has many car” will imply a cardinality of

[1..*]. SBO is also capable of making logical in-

ferences about the attribute types of business objects

based on a set of rules. This eliminated the need for

explicitly specifying the Web-Oriented Abstract Data

Types for attributes when deﬁning business objects,

allowing the SBOML syntax to be closer to the natu-

ral language.

Following is an example using SBOML to model

business objects:

in organisation, employee has first name,

last name, gender, date of birth, photo,

email address, home phone, hobby (which

could be reading and skiing and coding),

position (has title, description)

The above expression literally deﬁned an “employee”

business object and a “position” business object in the

“organisation” namespace, where “employee” has a

“position” (establishing a composition relationship).

This expression is sufﬁcient for SBO to automati-

cally generate the necessary physical implementation

to represent the two business objects to the web. In

other words, we can directly generate the necessary

web user interfaces (views) for the “employee” busi-

ness object, such as web forms for adding new em-

ployees or listing all the existing employees in web

tables.

SBO embraces a rich set of rendering APIs for

generating commonly used web user interfaces in

business web applications, such as tables, forms,

charts, and menus. Thus, by modeling business ob-

jects using SBOML and using the SBO toolkit (illus-

trated in section 6), we can effortlessly generate fully

functional web applications without any coding.

Figure 2 is an example of rendering the both the

“employee” and the “position” business objects as

web tables within a tab menu. According to the deﬁni-

tions of the Web-Oriented Abstract Data Types stored

in the SBO global schema, in the generated web user

ICSOFT 2007 - International Conference on Software and Data Technologies

112

interface automatically:

• Displays Photos as images,

• Formats Email addresses as email hypertext links,

• Utilises Google maps to show the location of the

Addresses,

• Presents Date of Births in a format based on the

users’ locale.

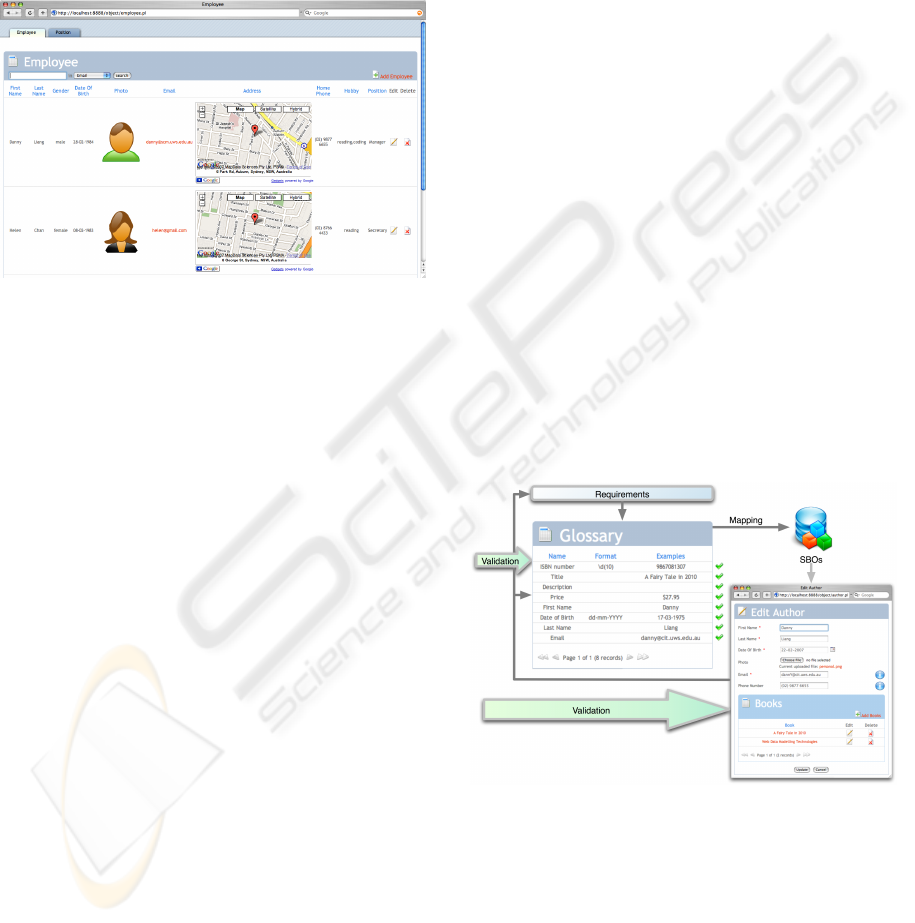

Figure 2: Example of an Auto-Generated Web User Inter-

face.

The auto-generated user interfaces implies an im-

plicit navigation model for performing various opera-

tions to the business object. For instance, in Figure 2,

once the user clicks on the “Add Employee” link, the

web table will hide and a form is then shown. There

are different methods to customise or enhance the de-

fault navigation behaviours:

• By customising the parameters passed to the cor-

responding rendering API to make ﬁne adjust-

ments, such as whether to hide or show a web

form on certain events,

• By specifying custom web templates to the corre-

sponding rendering API to incorporate additional

navigation paths, or

• By deﬁning custom controllers (refers to the con-

trollers in MVC architecture) in the current user

interface to trigger the rendering of another user

interface, and thus, different user interfaces are se-

quenced.

Due to the scope of this paper, we will not focus on the

details of customising the implicit navigation model

of the rendering APIs.

To generate web applications using SBO, how-

ever, requires a middle person, usually system de-

signers, to manually interpret the end user require-

ments and manually construct the SBOML expres-

sions (i.e. conceptual modeling). As previously men-

tioned, end users are neither capable nor willing to

understand conceptual models. Despite the fact that

SBOML has a near-natural syntax, it still assumes the

understanding of prerequisite Object Oriented con-

cepts, for example, the differences between objects-

attribute relationships and object-object relationships,

as well as their implications to the ﬁnal implemen-

tation. These OO concepts are beyond the capabil-

ity of normal end users. Since KCPM is capable of

automatically deriving objects-attribute relationships

and object-object relationships between thing-types,

integrating KCPM and SBO is a plausible approach

to even eliminate the manual process of conceptual

modeling using SBOML expression.

4 A DATA-DRIVEN APPROACH

A complete web application is composed of many as-

pects, such as data (business objects), view, naviga-

tion, presentation, access control, personalisation and

so on. In business web applications, most of the other

aspects are either depended on the data or inﬂuenced

by the data. Understand data in the target domain is

indispensable for business analysts to have a better

understanding of the associated business processes or

tasks. Thus, data modeling is inevitable even if busi-

ness analysts prefer to start with task modeling in de-

veloping web applications. In developing business

web applications, we believe it is plausible to begin

with data modeling in parallel with task modeling.

Figure 3: From User Requirements to Implementations.

Figure 3 illustrates the process used in the pro-

posed approach. Natural language speciﬁcations are

ﬁrst ﬁltered and classiﬁed manually. This step is to

populate the KCPM glossaries, which contain impor-

tant domain speciﬁc terms (concepts) and the relation-

ships among them. Then system designers can use

the KCPM glossaries to verify the completeness of

the requirements with end users by iterating through

each collected term, for example, whether a particular

TURNING CONCEPTS INTO REALITY - Bridging Requirement Engineering and Model-Driven Generation of Web

Applications

113

term requires a format description (e.g. “YYYY-MM-

DD”) or a quantity description. Once this process is

completed, we can convert the terms and relationships

stored in the KCPM glossaries (using the conver-

sion mechanism is explained in section 5) to SBOML

speciﬁcations via tools, from which web applications

can be quickly generated. End users can then expe-

rience fully functional applications, allowing them to

pinpoint incorrect or missing requirements and reﬁne

the KCPM glossaries. We can effortlessly regener-

ate the web application if necessary using the reﬁned

KCPM glossaries until end users are satisﬁed. Once

end users are satisﬁed with the generated version of

web application, system developers can then take on

and further reﬁne the application, allowing the appli-

cation to evolve into the ﬁnal production-ready sys-

tem.

The advantage for integrating KCPM and SBO, is

that it allows end users, who are the real experts of the

problem domain, to have two checkpoints to validate

the solution in the computer domain:

• By validating the KCPM glossary, and

• By validating the generated application from

SBO.

As a result, both the requirement gap and the time gap

between the concept and the ﬁnal physical implemen-

tation are minimised.

5 CONVERTING KCPM

GLOSSARIES TO SBOML

We utilise a conversion algorithm that is based on

the KCPM to UML mapping developed in (Mayr and

Kop, 2002) to convert the terms and relationships in

the KCPM glossaries into SBOML expressions. The

goal of the conversion algorithm is automate the con-

version process, i.e. the process of creating a con-

ceptual model in SBOML from user requirements in

the form of KCPM glossaries, as much as possible.

To ensure all terms and relationships are considered,

those that cannot be converted automatically using the

algorithm are forwarded to system designers for their

decisions.

The conversion algorithm uses two types of rules,

laws and proposals, to derive classes and attributes

from the terms and relationships stored in the KCPM

glossaries. The rules are orthogonal in the sense that

each rule analyses another piece of information about

a concept. When rules are applied to a term, not

only possible conversions are derived, but also con-

tradicting results are detected. While a proposal may

suggest the suitable concept that a thing-type should

be converted (mapped) to, a law will always force a

thing-type to be converted to a particular concept for

the target conceptual model. Since our target con-

ceptual model is SBOML, classes and attributes are

the two possible concepts that thing-types can be con-

verted to. Laws are here to ensure the syntactical cor-

rectness of the ﬁnal conceptual model. Therefore, by

deﬁnition, laws override proposals.

Moreover, rules are also further classiﬁed as:

• Direct rules - Direct rules are rules that rely only

on existing information (terms and relationships)

in the KCPM glossaries. An example of a direct

rule would be:if two thing-types are connected

by an “is-a” relationship, then both thing-types

should be mapped (converted) to classes. This di-

rect rule is based on the fact that “is-a” relation-

ships can only exist between classes, according to

Object Oriented design principles. A similar rule

would be:if there exists a relationship between two

thing-types, X and Y, such that X “has” Y, then X

must be a class. However, using this rule alone,

we cannot make any conclusions for Y yet, until

further information is available.

• Indirect rules - Indirect rules are rules that require

information about thing-type(s), which have been

mapped (converted) to some concepts by apply-

ing direct rules. For example, assuming that a

thing-type A has been mapped to an attribute and

a thing-type E has been mapped to a class, both

due to some direct rules. Assuming that the tar-

get conceptual model does not support nested at-

tributes, then an indirect rule can be applied to

conclude that the thing-type D, by having relation-

ships (connection-types) to both E and A, must be

a class.

The conversion algorithm is a two-step process. The

ﬁrst step is to apply all the direct rules to each thing-

type. The second step is to apply all the indirect

rules to the result (output) of the ﬁrst step. Af-

ter the execution of the mapping procedure, all the

connection-types are associated with at least two or

more classes, which are derived from the correspond-

ing thing-types. Due to space limit, we are unable to

include the actual logic of the mapping procedure in

this paper.

6 GENERATING WEB

APPLICATIONS FROM

REQUIREMENTS

In this section, we will demonstrate the tools we have

developed to streamline the web application genera-

ICSOFT 2007 - International Conference on Software and Data Technologies

114

tion process from KCPM glossaries. Based on the

mechanism described in section 5, we have developed

a prototype tool called the KCPM2SBO Converter,

which can convert the terms and relationships in the

KCPM glossaries into SBOML expressions. Given

the following user requirements (in a controlled lan-

guage) to populate the KCPM glossaries:

“A book is written by many authors. An author

writes many books. A book has an ISBN number,

title, description, and price. An ISBN number iden-

tiﬁes a book. An author has a ﬁrst name, last name,

email address, photo, and a phone number.”

<sbo>

<business_objects>

<business_object>

in publisher, author has first name,

last name, photo, email, phone number

</business_object>

<business_object>

in publisher, book has ISBN number, title,

description, price

</business_object>

<business_object>

in publisher, book author has author(id),

book (id)

</business_object>

</business_objects>

publisher book has publisher author

via publisher book author

</relationship>

</relationships>

</sbo>

We can then use the XML output to generate web

applications using the SBO toolkit that we have previ-

ously developed (Liang and Ginige, 2006). The SBO

toolkit is designed to streamline the creation (mod-

eling) and consumption (execution) of SBOs for de-

veloping web applications on the CBEADS



(Ginige

et al., 2005) web framework. CBEADS



consists of

a user management module and an application devel-

opment module that enable developers to easily create

and manage web applications within the framework

itself. The SBO Builder allows users to model and

create SBOs and relationships among them using the

SBOML. The SBO User Interface Generator allows

users to easily create applications on the CBEADS



framework by rendering SBOs using the SBO render-

ing APIs.

Once the generated XML ﬁle is uploaded to the

SBO Builder (Figure 4), all the business objects

(classes) as well as the relationships among them are

generated. Based on the created business objects us-

ing the SBO Builder, we can deﬁne new UI deﬁni-

tions using the SBO UI Generator tool shown in Fig-

ure 5. Each UI deﬁnition keep track of the business

Figure 4: Uploading SBOML Deﬁnition using SBO

Builder.

object used, the UI type (e.g. form, table, navigation

menu, etc.), and various options based on the selected

UI type (e.g. the order of the form ﬁelds). Then, we

can assign the UI deﬁnition to a CBEADS



function

(i.e an application code ﬁle in CBEADS



). The SBO

UI Generator will generate the necessary codes for the

appointed CBEADS



function to render the business

object (Figure 6).

Figure 5: Creating UI Deﬁnitions.

Figure 6: The Generated Application.

TURNING CONCEPTS INTO REALITY - Bridging Requirement Engineering and Model-Driven Generation of Web

Applications

115

7 CONCLUSION AND FUTURE

WORK

In this paper, we have demonstrated how web ap-

plications can be rapidly generated from the ini-

tial concepts to the ﬁnal system: ﬁrst capture user

requirements using the KCPM glossaries, then use

the KCPM2SBO converter to generate a conceptual

model in SBOML speciﬁcations, from which web ap-

plications can be generated on CBEADS



framework

via the SBO toolkit. We are currently working on the

validation of our proposed approach in several indus-

trial web application development projects.

Data is one of the many core aspects of complex

business web application we have today. KCPM is

capable of deriving conceptual models beyond data

while SBO is architected to support complex navi-

gation, ﬁne-grained access control mechanism, and

modern workﬂow engine. This integration of KCPM

and SBO is only a starting point, which primarily

focuses on generating essential web user interfaces

purely based on the conceptual modeling of data. The

automated generation of other aspects, such as com-

plex behavior and navigations, dynamic access con-

trol, and user preferences, while are not considered in

this paper, are to be explored. Our ultimate goal is to

support as much as possible the generation of com-

plete web applications from natural language spec-

iﬁcations. This requires further work on extracting

and transforming other aspects of the web applica-

tion from the KCPM glossaries into conceptual mod-

els from which web applications can be generated.

REFERENCES

Ceri, S., Fraternali, P., and Bongio, A. (2000). Web mod-

eling language (webml): a modeling language for de-

signing web sites. WWW9 Conference.

de Castro, V., Marcos, E., and C

aceres, P. (2004). A user

service oriented method to model web information

systems. In WISE 2004. International Conference on

Web Information Systems Engineering (WISE 2004).

Diaz, I., Moreno, L., Pastor, O., and Matteo, A. (2005).

Interaction transformation patterns based on seman-

tic roles. In NLDB 2005, pages 239–250. 10th Inter-

national Conference on Applications of Natural Lan-

guage to Information Systems (NLDB 2005).

Escalona, M., Reina, A., J.Torres, and M.Mej

ıas (2004).

Ndt: a methodology to deal with the navigation as-

pect at the requirements phase. In OOPSLA 2004.

OOPSLA Workshop: Aspect-Oriented Requirements

Engineering and Architecture Design.

Ginige, J. A., Silva, B. D., and Ginige, A. (2005). Towards

end user development of web applications for smes: A

component based approach. In ICWE, Sydney, Aus-

tralia. International Conference on Web Engineering

(ICWE 2005).

Hoppenbrouwers, S., H.A, P., and van der Weide Th.P.

(2005). A fundamental view on the process of concep-

tual modeling. In ER 2005. 24th International Confer-

ence on Conceptual Modeling (ER 2005).

Koch, N. (2006). Transformation techniques in the model-

driven development process of uwe. In MDWE

2006. 2nd Model-Driven Web Engineering Workshop

(MDWE 2006).

Koch, N., Zhang, G., and Escalona, M. J. (2006). Model

transformation from requirements to web system de-

sign. In ICWE 2006, pages 281–288. 6th Internation al

Conference on Web Engineering (ICWE 2006).

Liang, X. and Ginige, A. (2006). Smart business object - a

new approach to model business objects for web appli-

cations. In ICSOFT, volume 2, pages 30–39. Interna-

tional Conference on Software and Data Technologies

(ICSOFT 2006).

Mayr, H. C. and Kop, C. (2002). A user centered approach

to requirements modeling. In Modellierung in der

Praxis, pages 75–86.

Mylopoulos, J., Chung, L., and Yu, E. (1999). From object

oriented to goal oriented requirements analysis. Com-

munications of the ACM, 24(1).

Nijssen, G. and Halpin, T. (1989). Conceptual Schema and

Relational Database Design - A Fact Oriented Ap-

proach. Prentice Hall.

Reenskaug, T. (1979a). Models - views - controllers.

Reenskaug, T. (1979b). Thing-model-view-editor: an ex-

ample from a planning system.

Rolland, C., Souveyet, C., and Achour, C. B. (1998). Guid-

ing goal modeling using scenarios. IEEE Transaction

on Software Engineering, 24(12):1055–1071.

Rossi, G., Garrido, A., and Schwabe, D. (2000). Navigat-

ing between objects. lessons from an object-oriented

framework. ACM Computing Surveys (CSUR), 32(1).

Schewe, K., Thalheim, B., and Zlatkin, S. (2004). Mod-

elling actors and stories in web information systems.

In ISTA 2004, pages 13–23. 3rd International Confer-

ence on Information Systems Technology and ist Ap-

plications (ISTA 2004).

Storey, V. C. (1993). Understanding semantic relationships.

The VLDB Journal - The International Journal on

Very Large Data Bases, 2(4):455–488.

Sutcliffe, A., Maiden, N. A., Minocha, S., and Manuel,

D. (1998). Supporting scenario-based require-

ments. IEEE Transactions on Software Engineering,

24(12):1072–1088.

Valderas, P., Fons, J., and Pelechano, V. (2005). Transform-

ing web requirements into navigational models: An

mda based approach. In ER 2005, pages 320–336.

24th International Conference on Conceptual Model-

ing (ER 2005), Springer.

ICSOFT 2007 - International Conference on Software and Data Technologies

116
