A SPACE-EFFICIENT ALGORITHM FOR PAGING

UNBALANCED BINARY TREES

Rui A. E. Tavares and Elias P. Duarte Jr

Federal University of Paraná, Dept. Informatics, P.O. Box 19018, Curitiba, PR, Brazil

Keywords: Binary Trees, Paging, Bin Packing, Computational Biolog

Abstract: This work presents a new approach for paging large unbalanced binar

y trees which frequently appear in

computational biology. The proposed algorithm aims at reducing the number of pages accessed for

searching, and at decreasing the amount of unused space in each page as well as reducing the total number

of pages required to store a tree. The algorithm builds the best possible paging when it is possible and

employs an efficient strategy based on bin packing for allocating trees that are not complete. The

complexity of the algorithm is presented. Experimental results are reported and compared with other

approaches, including balanced trees. The comparison shows that the proposed approach is the only one that

presents an average number of page accesses for searching close to the optimal and, at the same time, the

page filling percentage is also close to the optimal.

1 INTRODUCTION

Binary trees are data structures popular for allowing

efficient data searching (Gonnet and Baeza-Yates,

1991). A binary tree can get very large, and in this

case it may be impossible to keep the whole tree in

primary memory. A similar situation occurs when

the tree is stored remotely and is accessed through a

network. Many practical applications involve large

unbalanced trees, particularly computational

biology, in which trees are employed for string

processing (Cohen, 2004). Such trees are

constructed from biological sequences, which cannot

be messed with, i.e. these trees cannot be balanced,

so B-trees, for instance, cannot be employed

(Pedersen, 2000). In such cases, it is necessary to

define an efficient strategy to transfer the tree either

from secondary memory or from the remote

computer to primary memory where the search is

executed. Instead of transferring one data item at a

time, data collections called pages are usually

employed to improve the transfer latency.

As the time required to obtain a page is much

larger th

an the time required to process that page

once it is allocated in primary memory, the criteria

for allocating data in pages are essential for the

efficiency of executing search procedures. The

smallest the number of pages transferred, the fastest

the search procedure is executed.

This work presents a new algorithm for paging

binary trees. The algorithm

aims at reducing the

number of pages accessed for searching, and at the

same time decreasing the amount of unused space in

each page as well as reducing the total number of

pages required to store a tree. In this way, the

algorithm avoids wasting space to store a paged tree.

The algorithm obtains the best possible tree paging,

when it is possible, i.e. when the tree is complete

and information is not only stored at the leaves.

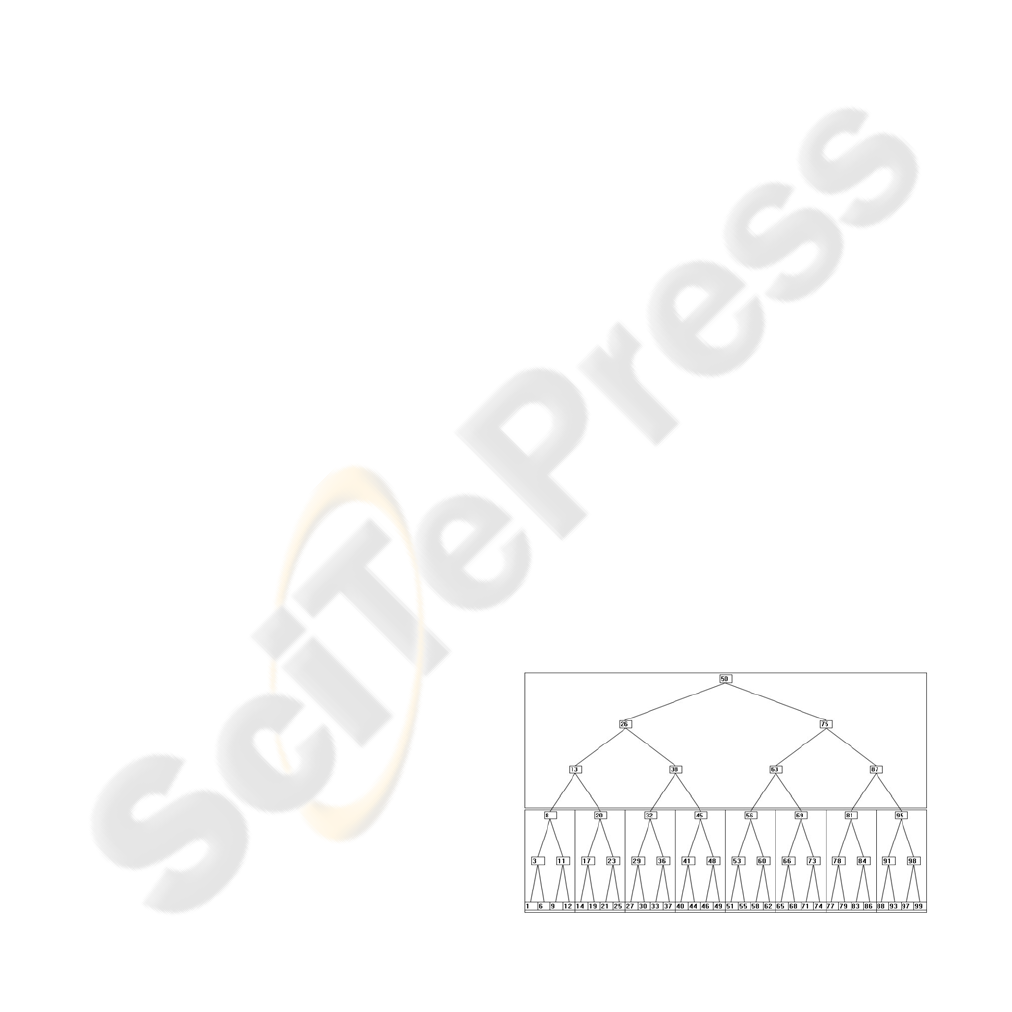

Figure 1 shows an example of the ideal paging for a

tree with 63 nodes grouped in pages of 7 nodes.

Besides that, an efficient strategy for allocating non-

complete trees based on bin packing (Garey and

Johnson, 1979) is presented.

Figure 1: The ideal tree paging.

The algorithm starts at the root of the tree to be

paged, allocating to the first page a subtree large

A. E. Tavares R. and P. Duarte Jr E. (2007).

A SPACE-EFFICIENT ALGORITHM FOR PAGING UNBALANCED BINARY TREES.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 38-43

 SciTePress

enough to completely fill the page. Next, every

subtree that completely fills a page is allocated to a

new page. The other subtrees that do not fill one

page completely are collectively called the fringe of

the tree. The algorithm allocates these subtrees in

pages using bin packing.

Packing, in this case, consists of the allocation of

a set of subtrees into a set of pages each with a

previously known amount of available space. The

number of pages required is minimized with this

strategy. Furthermore, each subtree is guaranteed to

be allocated in only one page, in order not to

increase the number of pages accessed for searching.

An alternative data structure used to organized

data in secondary memory is the B-tree (Gonnet and

Baeza-Yates, 1991). We show through experimental

results that our strategy is equivalent to B-trees in

terms of the average number of pages accesses for

searching. On the other hand our approach produces

a page filling percentage by more than 30% in

comparison with B-trees. Thus the total amount of

space required to transfer a tree from a remote site is

30% better when our approach is used, in

comparison with B-trees.

The rest of the paper is organized as follows. In

section 2 we give preliminary definitions. In section

3 the algorithm is described, its specification is

given as well as the complexity analysis. Section 4,

contains experimental results. Section 5 points to

related work, and section 6 concludes the paper.

2 PRELIMINARY DEFINITIONS

Binary trees are defined recursively as follows

(Gonnet and Baeza-Yates, 1991):

i) A binary tree T

of zero nodes is a binary tree.

ii) A binary tree T

of n > 1 nodes is a tuple (T

left

R, T

right

), where R is a single node called the root of

. T

left

and T

right

are binary trees, respectively called

left and right subtrees of the root. Considering that

left

has left nodes and T

right

has right nodes, then left

>= 0, right >= 0 and left + right = n − 1.

When it is not possible or desirable to keep the

whole tree in main memory, the tree nodes are

grouped in pages which are transferred to the main

memory one at a time. Each page is formed by cells,

each tree node is stored in a cell. As the time

required to process a page is mainly the time

required to transfer that page, the performance of

tree manipulation algorithms is strictly related to the

number of transferred pages.

Consider a binary tree with n nodes. Consider

that a page stores a maximum of p nodes. The

allocation of nodes to pages must be done so that

when a search algorithm or a tree traversal algorithm

are executed, the number of accessed pages is as

small as possible.

This work introduces a new algorithm for paging

binary trees. The algorithm initially allocates

subtrees which completely fill a page. The

remaining subtrees are collectively called the fringe

of the tree. The algorithm employs bin packing to

allocate the fringe to as small a number of pages as

possible, also keeping each subtree in only one page.

The bin packing problem is defined as follows.

Given a constant C and a finite list of items L = p

, ..., p

, where each item p, is associated to a w(p

)

value satisfying 0 < w(p

) < C, find the smallest

integer m such that L may be partitioned in m lists

, L

, ...,L

where each list L

, satisfies

∑

∈

≤=

CpwLw )()(

, i = 1,..,m.

In other words, the bin packing problem is

expected to partition of a list of items into sublists in

order to minimize the number of partitions

considering the capacity of each sublist.

In this work bin packing is employed to allocate

a set of subtrees to a set of pages. The algorithm

determines both the sizes of the subtrees to be

allocated, and the amount of space available in the

pages. The subtrees, with sizes s

, s

, ..., s

must be

allocated into C sized pages. By employing bin

packing, the algorithm obtains an allocation that

minimizes the number of pages required.

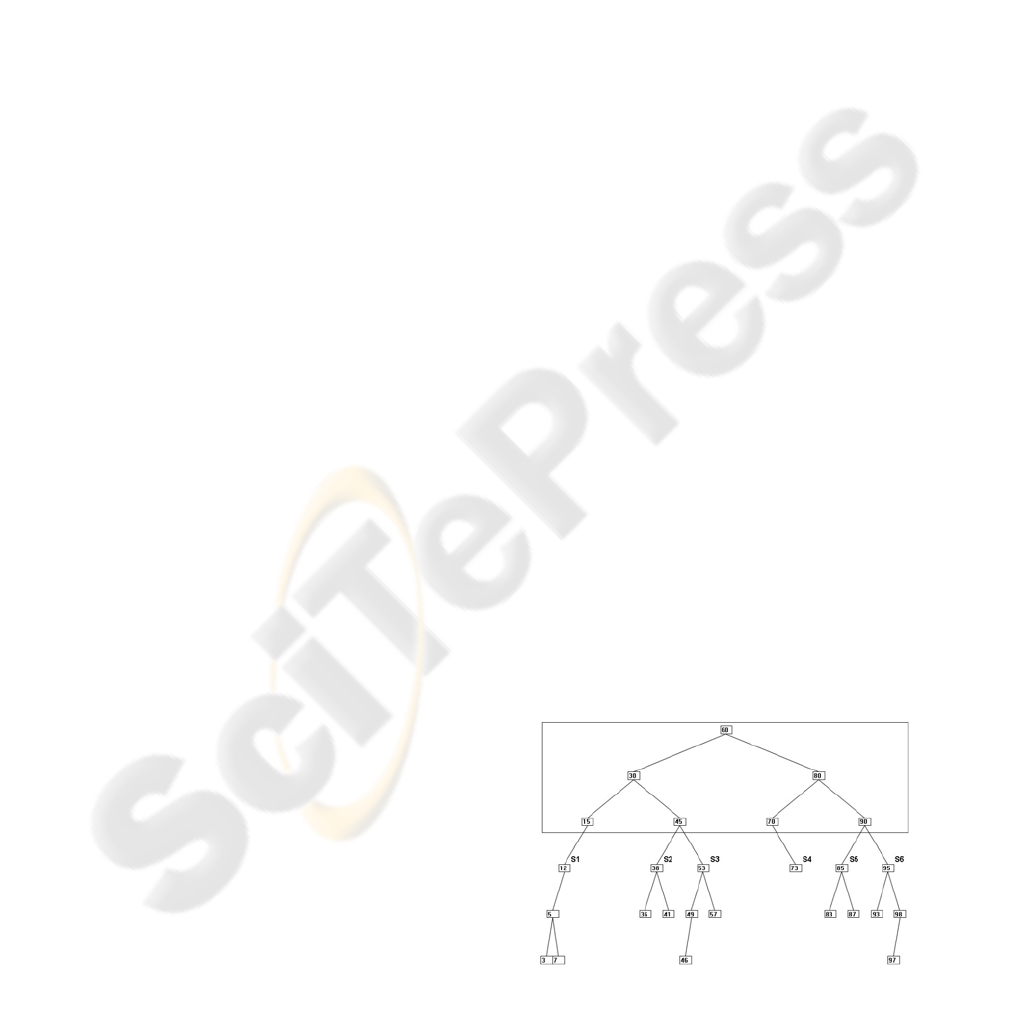

As an example, consider figure 2; subtree s

formed by nodes 3, 5, 7 and 12; s

is formed by

nodes 36, 38 and 41; s

is formed by nodes 46, 49,

53 and 57; s

is formed by node 73; s

is formed by

nodes 83, 85 and 87 and s

is formed by nodes 93,

95, 97 and 98. These subtrees must be allocated in

the smallest possible number of pages. So the sizes

of subtree’s are 4, 3, 4, 1, 3 and 4, respectively.

Consider that the page size is 7.

Figure 2: Bin packing: application example.

A SPACE-EFFICIENT ALGORITHM FOR PAGING UNBALANCED BINARY TREES

An optimal paging solution results in a high

filling page percentage, allocating subtrees s

and s

to page 1, subtrees s

and s

to page 2 and subtrees s

and s

to page 3, as illustrated on figure 3.

Figure 3: Paging by using bin packing.

The bin packing problem is a NP-hard

combinatorial optimization problem (Garey and

Johnson, 1979). Among the feasible alternatives for

bin packing implementation, several approximation

algorithms based on heuristics have been proposed

(Garey and Johnson, 1979). In those cases, there is

no guarantee that the optimal solution will be

obtained, but the execution time is polynomial. The

implementation used to obtain the experimental

results found in section 5 of this work is based on a

greedy approximation algorithm, that searches the

best allocation for each current page.

3 PRELIMINARY DEFINITIONS

This section presents the proposed algorithm for

paging binary trees. The algorithm can be applied

when the information set to be treated is static, the

access frequencies are not known and the storage is

remote or secondary.

3.1 Overview of the Algorithm

The proposed algorithm initially tries to group nodes

in pages such that the nodes in one page are as close

to each other as possible in the original tree. The

algorithm reaches the ideal paging when the binary

tree is complete and the number of nodes is a

multiple of the page size. Furthermore, it establishes

an efficient policy to page non-complete trees.

Before describing the algorithm, it is necessary

to give the definition of a patriarch. A patriarch is

the root of a subtree that is the first node of that

subtree to be allocated in a new page. As many

descendants of the patriarch as possible will be

allocated in that page. Consider that a page stores up

to x levels or generations of a tree, where x is a

positive integer, and the patriarch is at the first level.

The algorithm stores in one page 2

− 1 nodes.

The algorithm starts allocating the root of the

tree as the patriarch of the first page. The

descendants of the patriarch in the next x − 1 levels

are then allocated to the same page. At this point, if

unused space was left in this page, it is filled with

subtrees of the subsequent levels. If the page is

completely filled, a new patriarch is chosen for a

new page, and the process is repeated. If the subtrees

of the subsequent levels do not completely fill the

unused space, they belong to the fringe of the tree.

The algorithm later uses bin packing to allocate all

fringe subtrees.

3.2 Algorithm Specification

The proposed algorithm uses two data structures

called SQ (Stack-Queue) and FL (Fringe List). FL is

a linear list (Gonnet and Baeza-Yates, 1991) that

keeps the roots of the subtrees that belong to fringe.

SQ is a linear list SQ = (a

, a

, ..., a

) in which

insertions and removals are possible at one end,

called either rear or top, while at the other end,

called front, only removals can be executed. The

operations defined for SQ are the following:

create(SQ), initializes SQ as an empty data structure;

enqueue(x, SQ), inserts an element x at the rear of

SQ, returning the resulting structure; dequeue(SQ),

removes the element at the front end of SQ,

returning the element and the resulting structure;

pop(SQ), removes an element from the top of SQ,

returning the element and the resulting structure;

empty(SQ), returns true when SQ is empty and false

otherwise.

The algorithm is now described in terms of these

data structures. Initially, the root of the tree is

enqueued in SQ. The patriarch of a new page is

dequeued from SQ. The patriarch descendants in the

next x − 1 levels are then allocated to this page.

If the page is completely filled, every element of

the subsequent level is enqueued in SQ if it is the

root of a subtree that has size greater than of equal to

the page size; otherwise it is inserted in FL.

When a page is not completely filled, i.e. there is

available space, every element of the subsequent

level that is the root of a subtree that has size greater

than or equal to the available space in the current

page is enqueued in SQ; otherwise it is inserted in

FL.

The algorithm proceeds as follows. The last

element enqueued in SQ is popped and stored in the

page. Its sons are enqueued in SQ. If there is still

available space in the current page, and SQ is not

ICSOFT 2007 - International Conference on Software and Data Technologies

empty, again the last element enqueued in SQ is

popped and stored in the page, and its sons are

enqueued in SQ. This process is repeated until the

current page is completely filled or SQ is empty.

When the current page is completely filled, that

is, with no available space, the algorithm starts

filling a new page. The patriarch of this new page is

dequeued from SQ. The process above is repeated in

order to fill the page.

When SQ is empty, the algorithm starts to

allocate the fringe subtrees. The algorithm considers

both the sizes of these subtrees, the available space

in the last page, as well as the page size. The

algorithm employs bin packing to determine the

smallest number of pages that allocates those

subtrees.

The proposed algorithm is specified in high level

pseudocode in figure 4.

A Space-Efficient Algorithm for Paging

Binary Trees

Let the page size be 2**x-1

BEGIN

create(SQ);

enqueue(the tree root, SQ);

REPEAT

create a new page;

patriarch <- dequeue(SQ);

allocate to current page the patriarch and

its descendants of the next x-1 levels;

IF (the page is completely filled)

THEN

FOR-ALL nodes at the subsequent level

IF (node is root of subtree with size >=

page size)

THEN enqueue(node, SQ);

ELSE insert node in FL;

ELSE

/* there is space available in current page

FOR-ALL nodes at the subsequent level

IF (node is root of subtree with size >=

available space)

THEN enqueue(node, SQ);

ELSE insert node in FL;

WHILE (there is available space in current

page)and (not empty(SQ)) DO

node <- pop(SQ);

allocate node to current page;

FOR-ALL sons of the allocated node

enqueue(son, SQ);

END-WHILE;

UNTIL empty(SQ);

IF (FL is not empty)

THEN

apply bin packing for paging the fringe

subtrees;

Figure 4: The proposed algorithm.

3.3 Algorithm Complexity

The complexity analysis is performed considering

the algorithm divided in two phases. The first phase

allocates the whole tree in pages, except the fringe.

The second phase allocates the fringe using bin

packing.

Let f be a worst-case complexity function, such

that f(n) is the largest number of node accesses that

the algorithm requires when the total number of

nodes is n.

The complexity of the algorithm’s first phase is

linear, actually 4n. Such linearity can be confirmed

as follows. To compute the number of descendants

of each node n accesses are required. To store all

nodes of the tree in pages, 2n accesses are required:

n accesses to allocate the nodes themselves and n

accesses to record the page address at the node’s

parent. Finally, at most n accesses are required in

order to insert and remove nodes from the data

structures employed, SQ and FL; less than n nodes

are ever inserted in one of these data structures. A

node that is inserted in one of them, is not inserted in

the other. Once a node is removed from the

structure, it is not inserted again.

The algorithm’s second phase depends mainly on

the bin packing algorithm employed. Consider g the

complexity of such algorithm, where g(n) describes

the number of node accesses required to allocate the

fringe subtrees. A number of practical

approximation algorithms with quadratic complexity

function are reported in the literature (Garey and

Johnson, 1979). In this case, the algorithm

complexity is quadratic.

4 EXPERIMENTAL RESULTS

This section presents experimental results. The

implementation used to obtain the experimental

results is based on a greedy approximation

algorithm, that searches the best allocation for each

current page. The metrics used to measure the

algorithm performance are described. Results are

compared to those of other approaches, including

sequential allocation, breadth-first allocation, depth-

first allocation, theoretical optimal paging of

balanced trees and B-trees.

Experiments were performed with random

sequences of keys. The trees had from 10 to 2000

nodes, in intervals of 10 nodes. The experiments

were divided according to the page size, considering

the values 3, 7 and 15. For each page size 100

experiments were performed.

A SPACE-EFFICIENT ALGORITHM FOR PAGING UNBALANCED BINARY TREES

4.1 Evaluation Metrics

To evaluate the proposed algorithm’s performance,

two metrics were defined: the amount of unused

space left in the pages, and the number of pages

accessed when searching is executed.

4.2 Evaluating the Number of Pages

Accessed for Searching

The first experiment reported refers to the total

number of pages accessed for searching all nodes.

Table 1 shows the comparison.

Table 1: Average number of accessed pages in different

strategies.

Strategies

Page Size

= 3

Page Size

= 7

Page Size

= 15

Sequential 1495,99 3313,30 7410,69

Breadth-First 1681,04 3981,23 9309,85

Depth-First 1198,61 2500,61 5471,75

Proposed

Algorithm

969,69 1726,17 3365,44

B-trees 841,04 1644,62 2914,78

Theoretical

Optimum

771,45 1383,10 2760,65

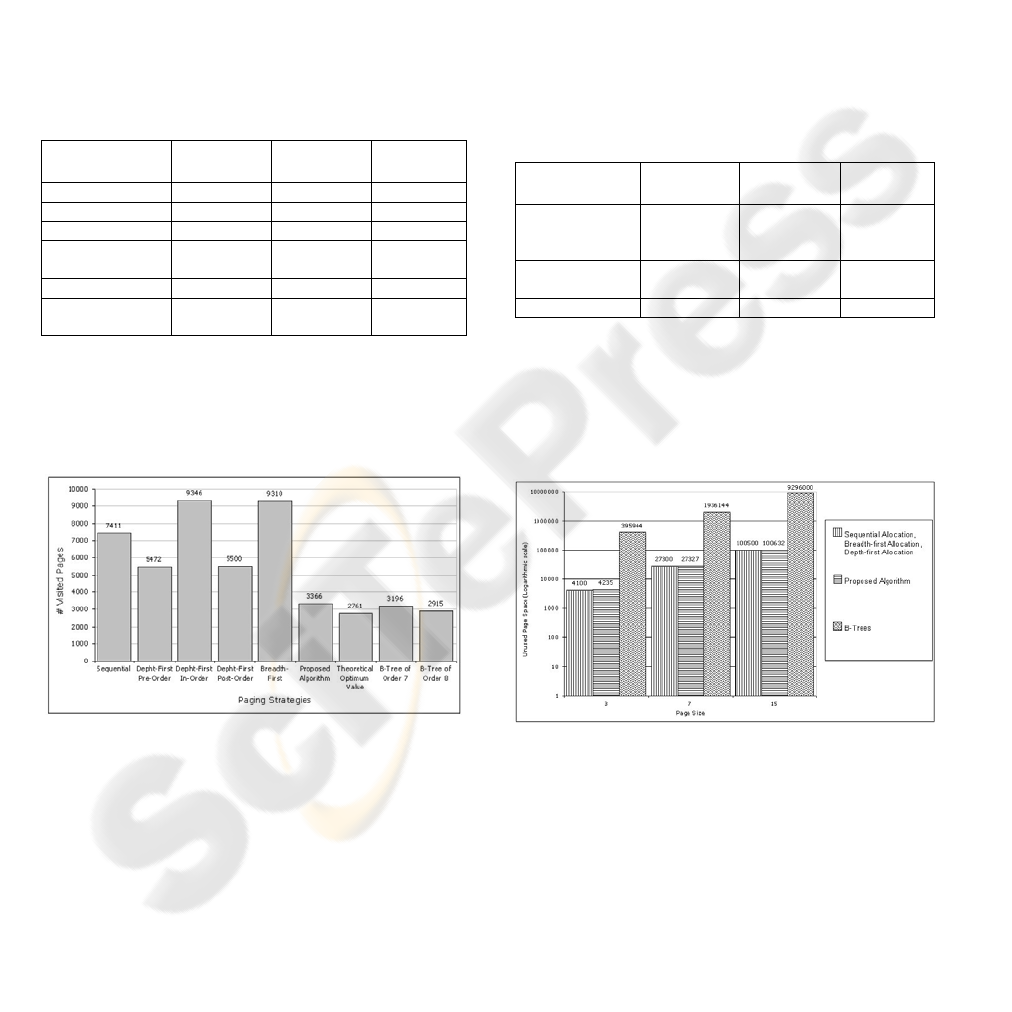

Figure 5 presents the average number of

accessed pages considering page size equal to 15. As

shown in the figure, results were compared to those

produced by the usage of other approaches.

Figure 5: Average number of accessed pages; page size =

15.

Considering the presented results, the proposed

algorithm is always better than sequential, breadth-

first and depth-first allocation and worse than the

theoretical optimal value, being however much

closer to the optimal results than to others

approaches.

In comparison with B-trees, the number of pages

accessed for searching is similar. However, as

presented in the next subsection, the proposed

approach is much more efficient than B-trees in

terms of space efficiency.

4.3 Space-Efficiency Analysis

Another experimental result refers to the unused

space left in the pages. Table 2 shows the average

page filling percentage obtained in different

strategies.

In the performed experiments it was observed

that B-trees present a page filling percentage of

67.52% for randomized trees. On the other hand, the

proposed algorithm presents an average page filling

percentage of 98.62%, near to the optimal obtained

with sequential paging.

Table 2: Page filling percentage in different strategies.

Strategies

Page Size

= 3

Page Size

= 7

Page Size

= 15

Sequential,

Breadth-First,

Depth-First

98.82% 98.42% 98.69%

Proposed

Algorithm

98.77% 98.42% 98.68%

B-trees 67.15% 67.30% 67.75%

Figure 6 shows the total amount of unused space

produced by the different approaches. Considering

B-trees the total bandwidth required to transfer a

complete tree is proportionally larger than that

required to transfer a tree paged with the proposed

algorithm.

Figure 6: Amount of unused space measured

experimentally.

5 RELATED WORK

Many algorithms and data structures have been

proposed for treating massive data stored in external

memory (Frakes and Baeza-Yates, 1992; Baeza-

Yates and Ribeiro-Neto, 1999; Vitter, 2001),

including the allocation of trees. A technique for

allocating a binary tree partially paged using

ICSOFT 2007 - International Conference on Software and Data Technologies

external balancing is presented in (Henrich, SIX and

Widmayer, 1990). Algorithms for maintaining a

suffix tree structure in secondary storage are

presented in (Clark and Munro, 1996). A clustering

algorithm generating optimal worst-case external

path length mapping of tree structures is described in

(Diwan, Rane, Seshadri and Sudarshan, 1996). An

efficient dynamic programming algorithm to pack

trees is presented in (Gil and Itai, 1999). Another

approach to pack trees in hierarchical memory using

approximate algorithms is proposed in (Bender,

Demaine and Farach-Colton, 2002).

6 CONCLUSION

This work described an efficient algorithm for

paging unbalanced binary trees. The algorithm can

be particularly applied for computational biology, in

which large trees constructed from biological

sequence, that cannot be balanced, are frequently

found. The algorithm obtains the best possible

allocation of nodes to pages when it is possible and

proposes an efficient policy for filling pages of non-

complete trees, based on the application of bin

packing to the fringe of the tree. The complexity of

the algorithm is given, which depends on the

packing algorithm’s complexity. The algorithm was

implemented and experimental results were

presented.

Considering the average number of accessed

pages per search, the algorithm produces a page

allocation up to 55% better than sequential

allocation, up to 64% better than breadth-first and

depth-first allocation, and results that are very close

to those obtained with B-trees. On the other hand,

considering the amount of unused space per page,

and the total number of pages required, the

algorithm presents an average page filling

percentage of 98.62%. The comparison shows that

the proposed approach is the only one that presents

an average number of page accesses for searching

close to the optimal and, at the same time, the page

filling percentage is also close to the optimal.

Future work includes investigating

experimentally the behavior of the algorithm

considering other approximation algorithms for

packing the fringe, and comparing those results to

those obtained with variations of B-trees. Another

topic left as future work is the evaluation of the

behavior of the algorithm considering dynamic data,

with frequent insertions and removals of nodes, as

well as the impact of concurrent data access. The

evaluation of the algorithm considering real data

instead of random data is also left as future work.

REFERENCES

Gonnet, G. H. ; Baeza-Yates, R. Handbook of Algorithms

and Data Structures: in Pascal and C. Addison-

Wesley, 1991, 424 p.

Cohen, J. Bioinformatics - An Introduction for Computer

Scientists. ACM Computing Surveys, v. 36, n. 2, p.

122-158, 2004.

Pedersen, C. N. S. Algorithms in Computational Biology.

PhD Dissertation, University of Aarhus, Denmark,

2000, 210 p.

Garey, M. R. ; Johnson, D. S. Computers and

Intractability: A Guide to the Theory of NP-

Completeness. W. H. Freeman and Company, 1979,

338 p.

Frakes, W. B. ; Baeza-Yates, R. Information Retrieval

Data Structures and Algorithms. Prentice Hall, 1992,

464 p.

Baeza-Yates, R. ; Ribeiro-Neto, B. Modern Information

Retrieval. Addison-Wesley, 1999, 513 p.

Vitter, J. S. External Memory Algorithms and Data

Structures: Dealing with Massive Data. ACM

Computing Surveys, v. 33, n. 2, p. 209-271, 2001.

Henrich, A. ; SIX, H.W. ; Widmayer, P. Paging Binary

Trees with External Balancing. Proceedings of the

15th International Workshop on Graph-theoretic

Concepts in Computer Science, p. 260-276,

Netherlands, 1990.

Clark, D. R. ; Munro, J. I. Efficient Suffix Trees on

Secondary Storage. Proceedings of the 7th Annual

ACM-SIAM Symposium on Discrete Algorithms, p.

383-391, Atlanta, 1996.

Diwan, A. A. ; Rane, S. ; Seshadri, S. ; Sudarshan, S.

Clustering Techniques for Minimizing External Path

Length. Proceedings of the 22nd VLDB Conference,

p. 342-353, India, 1996.

Gil, J. ; Itai, A. How to Pack Trees. Journal of Algorithms,

v. 32, n. 2, p. 108-132, 1999.

Bender, M. A. ; Demaine, E. D. ; Farach-Colton, M.

Efficient Tree Layout in a Multilevel Memory

Hierarchy. Proceedings of the 10th Annual European

Symposium on Algorithms, p. 165-173, Italy, 2002.

A SPACE-EFFICIENT ALGORITHM FOR PAGING UNBALANCED BINARY TREES
