A DATA-DRIVEN DESIGN FOR DERIVING USABILITY METRICS

Tamara Babaian, Wendy Lucas and Heikki Topi

CIS Department, Bentley College, Waltham , MA 02452, USA

Keywords:

Enterprise information systems, data modeling, user input logs, usability.

Abstract:

The complexity of Enterprise Information Systems can be overwhelming to users, yet they are an often over-

looked domain for usability research. To better understand the ways in which users interact with these systems,

we have designed an infrastructure for input logging that is built upon a data model relating system compo-

nents, user inputs, and tasks. This infrastructure is aware of user representations, task representations, and

the history of user interactions. The interface components themselves log user inputs, so that timing data and

action events are automatically aligned and are linked to speciﬁc tasks. The knowledge gained about user

interactions at varying levels of granularity, ranging from keystroke analysis to higher-level task performance,

is a valuable resource for both assessing and enhancing system usability.

1 INTRODUCTION

Enterprise systems link processes from across the or-

ganization under one umbrella. While one of the

deﬁning characteristics of these systems is the large

and well-documented set of structured tasks that they

support, users can be overwhelmed by the variety of

available options and the multiple paths through the

system for completing processes composed of several

subtasks (Topi et al., 2005). Despite being employed

extensively for critical business functions, these sys-

tems often suffer from poor usability and can be very

difﬁcult to learn. In this paper, we describe our ap-

proach to leveraging information that can be derived

from user input logs generated from interactions with

such a system. This research is motivated by the goal

of improving the design of user-system interactions

and, consequently, the usability of enterprise-wide in-

formation systems.

Most of the tasks in an enterprise system are im-

plemented as sequences of input forms. In the ex-

perimental system we have developed for studying

users’ interactions with enterprise systems, we explic-

itly represent the relationships between system tasks

and the interface pages that implement them. This

experimental system and the data collected from its

use is exploited for high-level reasoning about sys-

tem usage and usability. We show how this improved

understanding of system use can also lead to various

interface enhancements.

Our infrastructure enables automatic logging of

user interactions with the interface and makes the log

data available to the system. Input-aware components

are used to track input data and associate it with the

user who entered it. The model underlying this in-

frastructure represents and links users, tasks, interface

components, application domain data, and user input

logs. The input log data can be used for a variety

of purposes, including deriving user proﬁles, model-

ing tasks, assessing the usability of the system, and

supporting interface adaptation. Contributions of the

research presented here include:

• a model that relates user interface components,

user input, task structure and domain data, and

• an approach to automated analysis of system

use that can be applied to systems ranging from

single-user to enterprise-wide applications.

In the following sections, we describe how users

and tasks performed with a system are modeled in our

infrastructure and detail our component-enabled ap-

proach to user input logging. We then discuss how

user proﬁles and models of the relationships between

users and tasks can be formed from the input logs. We

154

Babaian T., Lucas W. and Topi H. (2007).

A DATA-DRIVEN DESIGN FOR DERIVING USABILITY METRICS.

In Proceedings of the Second International Conference on Software and Data Technologies - Volume ISDM/WsEHST/DC, pages 154-159

DOI: 10.5220/0001334701540159

 SciTePress

also show how the logged data can be used for deriv-

ing usability assessments and personalizing the user

experience.

2 RELATED WORK

User input logging for subsequent log analysis was

introduced a long time ago and has been used in mul-

tiple contexts. A known but infrequently used beneﬁt

from the collected data is the usability measures that

can be derived from the logs without the need for any

special equipment or experiments. Ivory and Hearst

(Ivory and Hearst, 2001) present a review of a wide

variety of usability evaluation automation techniques

and discuss the challenges of these types of evalua-

tion as well as the characteristics of the surveyed ap-

proaches. As a step towards enabling applications to

automatically collect usage data, Olsen and Harversen

(Olsen and Halversen, 1988) present a User Interface

Management System that augments each user inter-

face component with the capability to log user input.

KALDI (Al-Qaimari and McRostie, 2006) is a graph-

ical toolkit for automatic recording and visualization

of the usage data. An implentation of the detailed

tracking of users’ interactions with a website via an

HTTP proxy that intercepts client-server communi-

cations and extends the client application with us-

age logging capabilities is presented in (Atterer et al.,

2006).

Usage data has been used almost exclusively for

extending the functionality of automated tutoring,

recommender, and adaptive hypermedia applications

(e.g. (Linton et al., 2000; Brusilovsky and Cooper,

2002)). Within these types of systems, the user-

system interaction data is used for tracking and as-

sessing the competency of the user with a topic or task

and adjusting the scope, content or presentation of the

material based on this assessment. Some of these sys-

tems employ a direct representation of the tasks and

their hierarchical decomposition (e.g. (Brusilovsky

and Cooper, 2002)) in order to relate the user model

to particular tasks and their components.

The approach presented in this paper takes advan-

tage of user logging for usability assessment and for

application enhancements in the domain of enterprise

systems. What distinguishes our research is the ex-

plicit representation of the task model as a composi-

tion of interface components within the system’s data

model. The presented model links users, tasks, inter-

face components and the application’s domain data,

enabling sophisticated reasoning about the history of

system usage on different levels: from focusing on a

single input mechanism, to discovering user roles as

a combination of frequently co-occurring tasks. An

important aspect for the domain of enterprise systems

is the ability afforded by this infrastructure to trace

back the content of the application’s domain data to

the particular set of users who entered it.

3 THE MODEL

Users of Enterprise Resource Planning (ERP) sys-

tems and other enterprise systems enter text into text

ﬁelds, select items from menus and list structures,

mark check boxes, and click on links. In order to

capture such inputs to a system, we have deﬁned an

experimental infrastructure in which all components

that accept user input are based on a common archi-

tecture that implements logging of that input. The

logged data is accessible to the system and provides a

full history of the users’ interactions.

Figure 1 illustrates the relationships between the

users, the data they enter, the input controls be-

ing used and their groupings into task-related pages,

the tasks being performed with those pages, and the

domain-speciﬁc process related to those tasks. We

have developed a prototype that uses this model in

the implementation of a Purchase Requisition Process

from an ERP system. The major components in the

model are deﬁned as follows. Domain data is the

part of the model that stores the business data. User

represents the user information. UI Concept includes

entities representing the user interface components,

their grouping on interface pages, and their relation-

ship to the domain data. The Task Concept compo-

nent represents tasks as named collections of interface

pages. The Tracking component contains the entities

that record the interaction history: which tasks and in-

put controls were enacted, when, and what data was

entered.

User, Task and UI Concepts form the static com-

ponents of the model, i.e., they represent the data that

does not change during system use. The Domain and

Tracking modules are dynamic.

3.1 Domain, User, Task and Ui Concept

The Domain data portion of the model represents

the business data, such as the description of materi-

als, vendors, purchase requisitions and other relevant

entities. This is the standard part of any information

system that stores and manipulates data in support of

business operations.

Multiple users are represented in the User entity.

The UI Concept module deﬁnes the composition

of the interface and its connection to the domain data.

The most basic entity of this module is the InputCon-

trol, which provides a speciﬁcation for a user-input

A DATA-DRIVEN DESIGN FOR DERIVING USABILITY METRICS

155

Entryfield

PK efID

instanceNbr

FK1 SessionID

FK2 TaskInstanceID

Group

PK GroupID

repeat_number

display

FK1 PageID

InputControl

PK IC_ID

ItemName

Columns

ValueType

Size

SQL

SelectorField

Description

TargetTable

TargetField

DefaultValue

FK1 GroupID

PurchaseRequisition

PK PRID

PRDesc

DeliveryDate

FK1 VendorID

User

PK UserName

FullName

UserSession

PK SessionID

SessionStart

SessionEnd

UserEntry

PK UserEntryID

BeforeData

Keystrokes

BeginTimeStamp

EndTimeStamp

AfterData

FK2 efID

Page

PK PageID

Description

TaskPage

PK,FK1 TaskID

PK,FK3 PageID

SequenceNbr

TaskInstance

PK TaskInstanceID

startTime

endTime

FK1 TaskID

Task

PK TaskID

TaskName

Vendor

PK VendorID

VendorName

VendorDesc

VendorMaterial

PK,FK1 VendorID

PK,FK2 MaterialID

Material

PK MaterialID

MaterialName

MaterrialDesc

User

Tracking

Task Concept

UI Concept

Domain Model

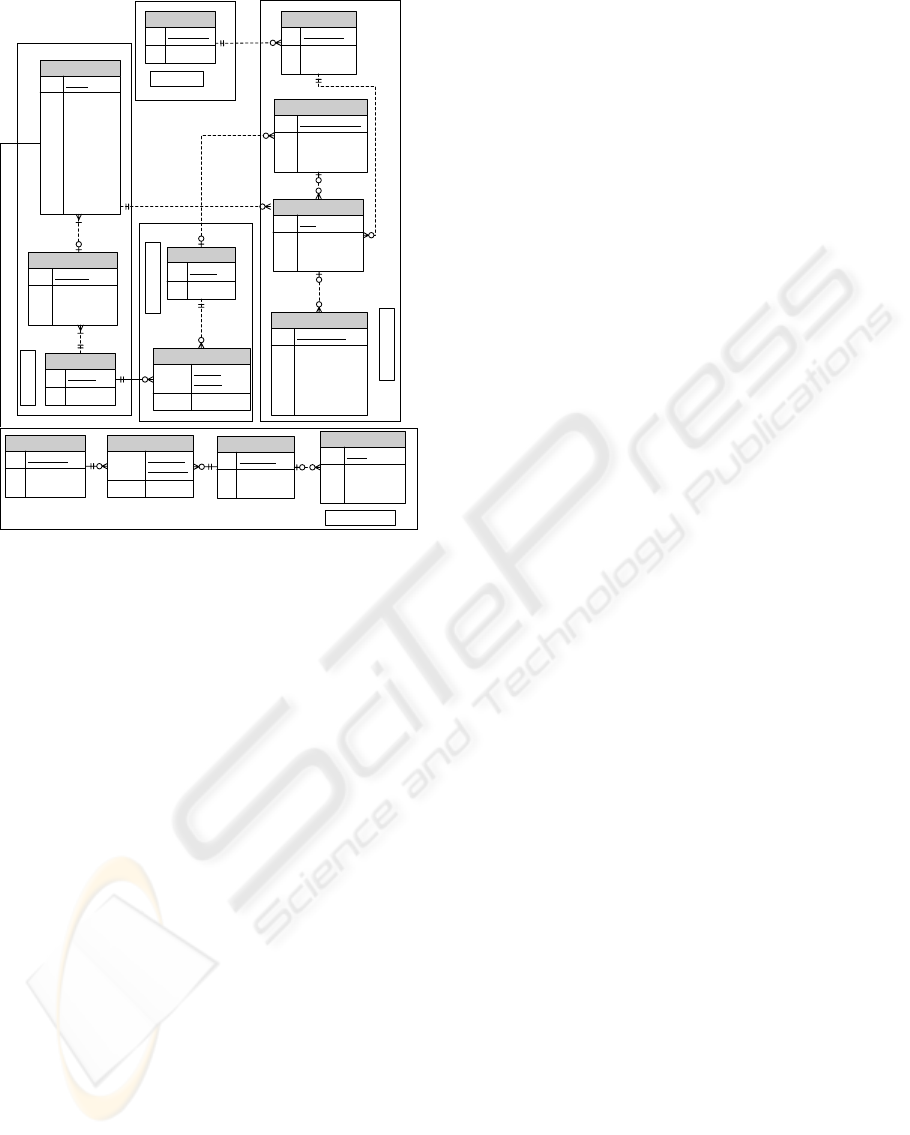

Figure 1: Components of the data model.

component. It contains attributes that deﬁne the for-

mat of the input control (ItemName, Columns, Value-

Type, Size, e.g.) and the way by which it is connected

to (a) the domain data and (b) the task in which it is

used.

To establish a relationship with the domain data,

InputControl table entries specify where the data that

is displayed by or entered into the component is stored

in the Domain model. For example, the SQL attribute

speciﬁes the SQL code for retrieving the set of possi-

ble values for this input control, while the TargetTable

and TargetField attributes specify where the values

from the instances of this InputControl will be saved.

Data values that are not retrieved from or stored in the

Domain data, such as calendar dates, are handled as

special cases.

To describe the higher level composition of the in-

terface, InputControls form collections at two levels:

Groups and Pages (i.e., distinct interface screens). In-

putControls are linked to Tasks through the Groups

and Pages collections.

A Task Concept lists the tasks implemented by

the system and describes their composition in the

form of a numbered sequence of interface pages.

Each page can potentially be associated with multi-

ple tasks; therefore, the entity TaskPage is required to

identify the speciﬁc tasks associated with a page.

3.2 Tracking

The Tracking module contains the data that is dy-

namically collected each time the system is invoked.

It represents the history of the users’ interactions with

the system. Below we describe the entities of the

Tracking module and the way they are populated with

data when the system is being used.

When a user logs into the system, a new UserS-

ession record is created. It records the identity of the

user as well as the start time of the session in the Ses-

sionStart attribute. The end time of the session will be

captured upon the log off in the SessionEnd attribute.

After the user declares his intention to work on

a particular task by selecting it from a menu, the sys-

tem creates a new record in the TaskInstance table that

references the selected task’s record in the Task table.

Each TaskInstance is associated with the correspond-

ing UserSession that links it to the user.

The system simultaneously determines the ﬁrst

TaskPage of the task’s interface and renders the con-

tent of the page based on the speciﬁcation of groups

of input controls, which it obtains from the associ-

ated records in the UI component. When a widget

described in the InputControl associated with the cur-

rent page is created and added to the displayed inter-

face, the system creates a record of the new instance

of that InputControl in the EntryField table. This dis-

tinguishes the multiple instances of the same Input-

Control that can be created in the course of a single

session.

Each input component created from an InputCon-

trol speciﬁcation has the capability of logging user

keystroke and mouse button press data directed to it.

This data is periodically saved in the UserEntry ta-

ble. A record in the UserEntry table speciﬁes the time

when the input component gained the focus of user in-

put in the BeginTimeStamp attribute, the keystrokes

(or mouse events) that were made (Keystrokes at-

tribute) until the time when the widget lost focus

(EndTimeStamp), and the content of the widget upon

gaining and losing focus (BeforeData, AfterData).

The redundancy in replicating the content of the ﬁeld

is deliberate and supports more efﬁcient reasoning:

instead of trying to deduce the content upon the end

of the recorded interaction, we save it explicitly in the

AfterData ﬁeld.

To summarize, the Tracking module records user

input in the form of key strokes and mouse presses in

the UserEntry table, which is connected through the

EntryField to speciﬁc TaskInstances and InputCon-

trols. UserEntry is also related to a particular User

through EntryField and UserSession.

ICSOFT 2007 - International Conference on Software and Data Technologies

156

4 USING LOG DATA

A well-known challenge in utilizing the data collected

via logging information at the keystroke level is the

problem of aggregating it in order to relate that data

to higher level tasks (Ivory and Hearst, 2001). The

meta-model presented above allows the grouping of

speciﬁc data entry events along a variety of dimen-

sions, including users, tasks, and various interface

components. These groupings are possible because

of the richness of the model, which links individual

data entry records to interface pages, thereby provid-

ing a description of the context of each record. Fur-

thermore, the provided description of the composition

of individual tasks from user interface components al-

lows one to derive and analyze usage patterns related

to tasks. Such analysis can be extended to logged data

from a group of users, providing even more informa-

tion about the way the system is utilized. The results

from this analysis can be applied to assessing the us-

ability of the system and improving its design.

4.1 Usability Metrics

The ISO (ISO, 1998) deﬁnes usability as the effective-

ness, efﬁciency, and satisfaction with which speciﬁed

users achieve speciﬁed goals using a particular inter-

face. Effectiveness refers to the accuracy and com-

pleteness with which the users achieve their goals.

Efﬁciency refers to resources expended in relation to

the accuracy and completeness of goals achieved, and

satisfaction denotes the comfort and acceptability of

the system to its users and other people affected by its

use.

In the domain of enterprise systems, individual

tasks represent a part of a larger business process. For

example, a purchase requisition is part of the larger

ordering process. A business process may span across

multiple human participants and extend over multiple

days. The individual tasks performed as part of a pro-

cess are connected, in that the completion of one may

be a prerequisite for the completion of another. There-

fore, it is often useful to analyze usage data over not

just one task, but over a sequence of tasks.

Once a sequence of tasks has been identiﬁed, the

database structure allows us to retrieve information

regarding the entire sequence of interest (based on

StartTime and EndTime attributes from TaskInstance)

and its individual components. The time between the

component tasks can also be estimated. This allows

for the detection of users suffering from navigation

problems, as indicated by a large amount of time spent

moving from one user interface component to another.

A detailed analysis of the rows in the UserEntry

table can help identify which input components are

particularly prone to erroneous data entries, correc-

tions, extra keystrokes, and other similar user actions

that indicate confusion or difﬁculty in understanding

the requirements of a particular element of a task. An

analysis at the keystroke level can also reveal inefﬁ-

cient methods for entering data.

4.2 Enhancements for Imporoving

Usability

The log data provides information related to the user’s

familiarity and competency with the system at several

levels of detail. At the lowest level, it is possible to

observe how many times a person has interacted with

a particular input ﬁeld. At a higher level, the log data

can reveal how many times a user has worked on a

particular task or on a sequence of tasks. The number

of times measure is an approximation for familiarity.

Furthermore, a more competent user is expected to

make fewer changes to an entry ﬁeld and to complete

a task in a shorter period of time. This information

can be derived by relating data regarding user entries

to particular entry ﬁelds as well as to task instances

and task sequences.

Such information can then be used to dynami-

cally personalize the system to more effectively meet

the needs of the user. For example, users who typ-

ically have difﬁculties with particular tasks could be

directed to more detailed help instructions, while ex-

perienced users could be provided with shortcuts and

tips commensurate with their abilities.

The knowledge gained by analyzing an individ-

ual user’s behavior can be even more valuable if aug-

mented with knowledge of all users of the system. For

example, by considering the sequences of tasks per-

formed by a group of users, we can identify the roles

of those users and determine the types of difﬁculties

they are encountering. This will provide additional in-

formation on those parts of the interface that require

attention and how the system can be enhanced to ben-

eﬁt users in particular roles.

As with the information on individual users, data

from groups of users can be dynamically derived from

the user logs. Components can then be designed to

provide more (or less) assistance based on the amount

of time users typically spend interacting with them.

Sequences of tasks can be grouped in the interface

based on paths typically followed by one user or by

groups of users. Tasks that are found to be difﬁcult for

many users can have more assistance options offered

with them in the short term and be redesigned in the

longer term.

A DATA-DRIVEN DESIGN FOR DERIVING USABILITY METRICS

157

4.3 Illustrative Examples

To validate our approach to automated input logging

and analysis of log data, we have developed a pro-

totype system that uses the model from Figure 1 to

store domain, task, interface and user input tracking

data. Four people who had never used this prototype

were asked to work on a typical ERP task of creating

a purchase requisition. The users were given a man-

ual describing the functions of the system. The data

for four purchase requisitions of relatively similar size

was also provided in textual form.

Based on the log data obtained from this experi-

ment, we can automatically derive a variety of useful

views and usage measurements. For example, Figure

2 depicts the timeline that shows the sequence of sub-

task instances as performed by one of the users. For

demonstration purposes, the ﬁgure is limited to about

70% of the actual subtask sequence. The subtasks

are listed on the left-hand side in chronological order.

Horizontal bars depict the timing and duration of user

interactions with a particular task interface via mouse

clicks and keystrokes. Horizontal gaps between the

bars represent the transition time between consecutive

subtasks. This visualization was created with MS Ex-

cel charting tools using data derived by aggregating

and querying the tables in the UI, Task, and Tracking

modules of the data model (Fig. 1).

0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500

Select Task

PReq. Defaults

PReq. Line items

Select Task

PReq. Defaults

PReq. Line items

Select Task

PReq. Defaults

PReq. Line items

Add Material

Add Vendor

Add Material

Select Task

PReq. Defaults

PReq. Line items

. . .

Time (sec)

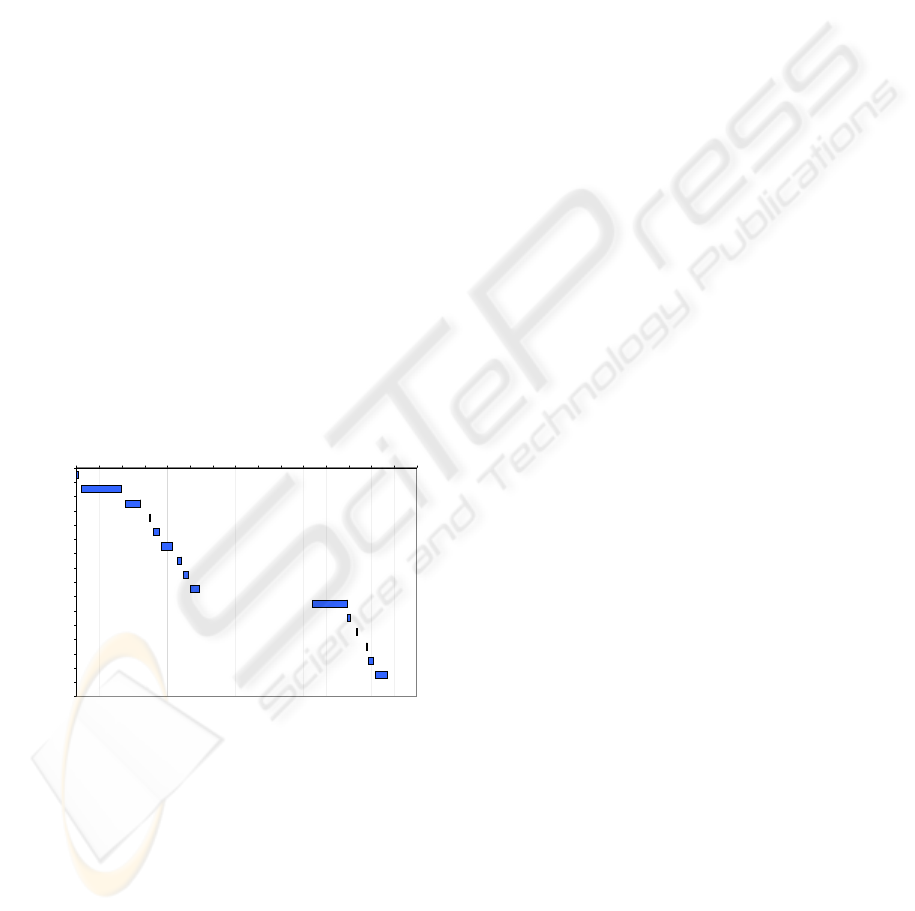

Figure 2: Chronological history of tasks performed by one

of the users.

The data in the graph shows the user’s interactions

in creating four purchase requisitions, each beginning

with a PReq. Defaults subtask. The user’s ﬁrst inter-

action with each subtask involved in the purchase req-

uisition task tends to take longer than subsequent in-

teractions with the same subtasks. The transition time

between subtasks also follows this pattern, with that

time gradually decreasing as the user gains more ex-

perience with the interface. The transition to a newly

encountered requirement involving a new set of sub-

tasks takes a signiﬁcant amount of time, as evidenced

by the large gap in the middle of the chart where the

user moves from PReq. Line Items to Add Material.

The availability of more detailed usage data al-

lows us to zoom in on this transition episode to fur-

ther investigate what occurred during that time pe-

riod. Figure 3 presents the details of the interaction

around the time of this transition. The table shows the

name of the subtask (TaskName column), the name

of the input ﬁeld to which user input was directed

(ItemName column), and the ﬁeld’s id (efID column).

The entries in the Keystrokes column designate the

sequence of keystrokes or mouse press and release

events. Each hpressi event for an input ﬁeld triggers

the display of a list of possible values from which the

user can select an entry for the ﬁeld. A hreleasei item

corresponds to the closing of this list of values. For

each row in the table in Figure 3, BeginTime and End-

Time designate the beginning and ending timestamps

for keyboard or mouse invocations. The content of

the ﬁeld upon the end of an interaction is shown in

the AfterData column.

The data in this table allows us to reconstruct the

likely sequence of events: As the user was specify-

ing a value for the Vendor ﬁeld of PReq. Line Items

task interface, she invoked the display of possible val-

ues and selected a value of 3, as evidenced by en-

tries in the second and third row containing hpressi

and hreleasei events, respectively. The user subse-

quently tried to add a new vendor (Ofﬁce Max) by ac-

cessing the Add Material and then the Add Vendor

task interfaces. The data indicates some confusion on

the part of the user: before proceeding to the speciﬁ-

cation of the New Vendor Name in the Add Vendor

task interface as prescribed by the user manual, she

tried to enter the information regarding the new ven-

dor through the Vendors ﬁeld of the Add Material

interface, as captured by row number 4 of the table.

Since the Vendors input ﬁeld is not designed for en-

tering new values, the data was invalidated by the sys-

tem and erased from the content of the Vendors ﬁeld

with efID 116. That is why the next row in table in

Figure 3 (row number 5) shows an empty string in

the AfterData column following a press of the mouse

button.

Figure 4 is a simple illustration of the ability to

aggregate data from multiple users, as afforded by

our approach. It presents the breakdown of the total

time spent by each of the four users on keyboard en-

try within the interface pages implementing the pur-

chase requisition task versus the time spent in selec-

tion of possible values and transitions from one inter-

face component to another. It is interesting to note

that usr3, who spent the least amount of time on key-

board input, was the only one to not complete the task

successfully. Even from this small set of values, one

ICSOFT 2007 - International Conference on Software and Data Technologies

158

# TaskName ItemName efID Keystrokes ElapsedTime BeginTime EndTime Afterdata

. . .

1 PReq. Line items Delivery Date 86 hreleasei 0 527 527

2 PReq. Line items Vendor 88 hpressi 0 540 540 3

3 PReq. Line items Vendor 88 hreleasei 0 542 542 3

4 Add Material Vendors 116 Ofﬁce Max 21 1041 1062 Ofﬁce Max

5 Add Material Vendors 116 hpressi 0 1120 1120

6 Add Material Vendors 116 hreleasei 0 1124 1124

7 Add Material Vendors 116 hpressi 0 1131 1131

8 Add Material Vendors 116 hreleasei 0 1137 1137 9

9 Add Material Vendors 116 hBKihBKi10 6 1137 1143 10

10 Add Material Vendors 116 ofﬁce max 25 1173 1157 ofﬁce max

11 Add Vendor New Vendor Name 121 ofﬁce max 12 1195 1207 ofﬁce max

12 Add Material Vendors 116 hpressi 0 1233 1233

13 Add Material Vendors 116 hreleasei 0 1239 1239

. . .

Figure 3: Details of chronological history. All time values are speciﬁed in seconds.

User Total Time DataEntry Time Difference

usr1 2216 221 (10%) 1995 (90%)

usr2 1561 45 (3%) 1516 (97%)

usr3 1415 101 (7%) 1314 (93%)

usr4 1815 136(7%) 1679 (93%)

Figure 4: Statistics of time spent on keyboard data entry

compared to the rest of the activities involved in completing

the entire task by each of the four users.

can see how useful estimates of the percentage of time

spent on keyboard input can be derived. In a similar

fashion, we can obtain measures estimating the transi-

tion times between tasks or between individual input

ﬁelds within a given task interface.

While the examples presented here are based on a

very small dataset, they illustrate the types of infor-

mation that can be gleaned from user input logs that

are linked via components to tasks.

5 CONCLUSIONS

We have described an infrastructure that supports the

tracking of user input data via input-aware compo-

nents and the automatic association of that data with

the user who entered it, the task that required it, and

the changes to the domain data resulting from it. The

declarative manner in which we deﬁne the interface

supports logging of user input and the subsequent at-

tribution of that data to speciﬁc interface pages. This

results in the automatic collection of usability-related

data that highlights the difﬁculties users face in work-

ing with this type of system, the types of problems

most commonly encountered, how users address their

own user entry errors, and the most commonly fol-

lowed navigational paths.

The next stage in this research is to conduct ex-

perimental studies using our prototype. The resulting

user logs will be evaluated using the metrics described

in this paper. Such assessments can then be applied to

addressing shortcomings in the design, personalizing

the interface, and providing better support to the user.

For enterprise systems in particular, which require

substantial investments in user training, an additional

beneﬁt is the ability to focus training on those areas

identiﬁed by the automated usability assessments as

being most problematic for users.

REFERENCES

ISO 9241-11 (1998). Ergonomic requirements for ofﬁce

work with visual display terminals (VDTs) – part 11:

Guidance on usability.

Al-Qaimari, G. and McRostie, D. (2006). Evaluating user

performance using KALDI: A computer-aided usabil-

ity engineering tool. In Proceedings of the IASTED

Conf. on Software Engineering, pages 242–251.

Atterer, R., Wnuk, M., and Schmidt, A. (2006). Knowing

the user’s every move: user activity tracking for web-

site usability evaluation and implicit interaction. In

WWW, pages 203–212.

Brusilovsky, P. and Cooper, D. W. (2002). Domain, task,

and user models for an adaptive hypermedia perfor-

mance support system. In IUI ’02: Proceedings of the

7th international conference on Intelligent user inter-

faces, pages 23–30, New York, NY, USA. ACM Press.

Ivory, M. Y. and Hearst, M. A. (2001). The state of the art

in automating usability evaluation of user interfaces.

ACM Comput. Surv., 33(4):470–516.

Linton, F., Joy, D., Schaefer, H.-P., and Charron, A. (2000).

Owl: A recommender system for organization-wide

learning. Educational Technology & Society, 3(1).

Olsen, D. R. and Halversen, B. W. (1988). Interface usage

measurements in a user interface management system.

In UIST ’88: Proceedings of the 1st annual ACM SIG-

GRAPH symposium on User Interface Software, pages

102–108, New York, NY, USA. ACM Press.

Topi, H., Lucas, W., and Babaian, T. (2005). Identifying

usability issues with an ERP implementation. In Pro-

ceedings of the International Conference on Enter-

prise Information Systems (ICEIS-2005), pages 128–

133.

A DATA-DRIVEN DESIGN FOR DERIVING USABILITY METRICS

159
