ON DIGITAL SEARCH TREES

A Simple Method for Constructing Balanced Binary Trees

Franjo Plavec, Zvonko G. Vranesic and Stephen D. Brown

Department of Electrical and Computer Engineering, University of Toronto, 10 King’s College Road, Toronto, ON, Canada

Keywords:

Data structures, Binary trees, Balanced trees, Digital search trees.

Abstract:

This paper presents digital search trees, a binary tree data structure that can produce well-balanced trees in the

majority of cases. Digital search tree algorithms are reviewed, and a novel algorithm for building sorted trees

is introduced. It was found that digital search trees are simple to implement because their code is similar to the

code for ordinary binary search trees. Experimental evaluation was performed and the results are presented. It

was found that digital search trees, in addition to being conceptually simpler, often outperform other popular

balanced trees such as AVL or red-black trees. It was found that good performance of digital search trees is

due to better exploitation of cache locality in modern computers.

1 INTRODUCTION

Binary trees are a well-known data structure with ex-

pected access time O(log

n), where n is the number of

nodes (elements) stored in the tree. However, worst-

case time is O(n) if the elements are added to the tree

in a speciﬁc order, which makes the tree unbalanced.

To avoid this, many techniques for balancing binary

trees have been proposed. Since most operations on

binary trees run in the worst case in O(h) time, where

h is the height of the tree, keeping the tree balanced is

the key to good performance.

Most balancing techniques do not keep the tree

perfectly balanced, but only impose a limit on the

maximal height of the tree (Cormen, 1998). We will

use this relaxed deﬁnition of balanced trees through-

out this paper. Two well-known balanced trees are the

red-black trees and the AVL trees (Cormen, 1998).

These trees maintain additional information in each

node (color or node height) and manipulate the tree

to keep it balanced as nodes are added to or removed

from the tree.

Both of these techniques are fairly complex; they

require keeping additional information in the nodes,

such as the node color, and performing fairly com-

plex ”rotation” operations when the nodes are inserted

or deleted. The same is true for most other tree bal-

ancing techniques, which makes them unpopular in

practice. According to (Andersson, 1993), even al-

gorithms taught in introductory university courses are

not used in practice if they are too complex. This pro-

vides a motive for ﬁnding simple data structures and

algorithms that are easy to understand and code. In

this light, we believe that digital search trees (DSTs),

a data structure ﬁrst described in (E. Coffman, 1970),

represents such a simple data structure for balancing

binary trees.

In an ordinary binary tree a decision on how to

proceed down the tree is made based on a comparison

between the key in the current node and the key being

sought. DSTs use the values of bits in the key be-

ing sought to guide this decision. This approach has

many desirable properties. First, the algorithms for

node placement and search are conceptually simple

and intuitive; implementing insert and search meth-

ods for DSTs requires only a few modiﬁcations to the

corresponding routines for ordinary binary trees. The

delete routine for DSTs is conceptually simpler than

that for ordinary binary trees. Second, this approach

does not require keeping additional information in the

nodes to maintain the tree balanced, which removes

the space overhead of the other two approaches. The

tree is balanced because the depth of the tree is limited

by the length (number of bits) of the key.

DSTs have not been popular for several rea-

sons. According to Flajolet and Sedgewick, ”digi-

tal search trees are easily confused with radix search

tries, a different application of essentially the same

idea” (F. Flajolet, 1986). As a consequence, most

programmers are not even aware of their existence,

Plavec F., G. Vranesic Z. and D. Brown S. (2007).

ON DIGITAL SEARCH TREES - A Simple Method for Constructing Balanced Binary Trees.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 61-68

DOI: 10.5220/0001336100610068

 SciTePress

and tend to associate advantages and drawbacks of

tries with those of DSTs. For instance, at the time of

writing of this paper, Wikipedia does not even list the

DSTs as one of the tree data structures, while many

other structures, including AVL trees, AA trees, splay

trees, tries, etc. are listed (Wikipedia, The Free Ency-

clopedia, 2007).

The second reason for low popularity of DSTs is

that they are sensitive to bit distribution. Namely,

these trees will be skewed if the probability of occur-

rence of 0 and 1 digits is not equal (Knuth, 1997).

In this paper we show that although this is true, the

worst case performance is still satisfactory, primarily

because of the effects the cache hierarchy has on the

performance of modern computers.

The third reason is associated with limited use of

DSTs. At ﬁrst, it was thought that these trees can

only be used when all the keys in the tree have equal

length, or with variable length keys when no key is a

preﬁx of another. Later, a simple method for storing

arbitrary keys of variable lengths into DSTs was de-

vised (Nebel, 1996). Another limitation is due to the

fact that DSTs require access to individual bits of the

key, which is not easily achievable in some high-level

languages. This is a valid concern, but it should not

be a reason to prevent the use of these trees by the

programmers in languages, such as C, where bit-level

data manipulation is not an uncommon task.

Believing that their advantages may outweigh

their disadvantages, in this paper we experimentally

evaluate the performance of DSTs and compare their

performance with alternate approaches. The rest of

the paper is organized as follows. The next sec-

tion gives a description of DSTs and associated algo-

rithms. Experimental evaluation is presented in sec-

tion 3, and conclusion in section 4.

2 DST ALGORITHMS

A digital search tree (DST) is a binary tree whose or-

dering of nodes is based on the values of bits in the

binary representation of a node’s key (Knuth, 1997).

The ordering principle is very simple: at each level

of the tree a different bit of the key is checked; if the

bit is 0, the search continues down the left subtree, if

it is 1, the search continues down the right subtree.

The search terminates when the corresponding link in

the tree is NIL. Every node in a DST holds a key and

links to the left and right child, just like in an ordinary

binary search tree. In contrast, a trie does not store

keys in internal nodes, only in leaves.

Let us deﬁne some terms that are used in this pa-

per. A node x has the height h

, which is equal to

the number of edges on the longest downward path

from the node to a leaf. The height of the tree, h, is

equal to the height of its root. A node x has the depth

, which is equal to the number of edges on the path

from the node to the root. The depth of the tree, d, is

equal to the depth of the leaf with the greatest depth,

and is equal to the tree height, h.

In the following sections we only give intuitive

descriptions of algorithms for DSTs. Exact algo-

rithms can be found in (Knuth, 1997) and (Sedgewick,

1990).

2.1 Creating and Searching Dsts

Let us build a tree with the following elements: 1001,

0110, 0000, 1111, 0100, 0101, 1110. Since we start

with an empty tree, the ﬁrst element, 1001, becomes

the root of the tree. The next key to be inserted is

0110. First, we have to check whether this key is

equal to the key of the root node. Since it is not, we

continue traversal down the tree. To decide where to

place the node, we look at the ﬁrst bit from the left.

Since this bit is 0, we take the path down the left sub-

tree and ﬁnd that the left pointer is NIL. Therefore, we

create a new node, which is the left child of the root

node, as shown in Figure 1a. The next element to be

inserted is 0000. Since the root of the tree is not NIL

(and its key is not equal to the key being inserted),

we look at the ﬁrst bit (from the left) of the key to be

inserted. Since this bit is 0, we take the path down

the left subtree. Since the next node is not NIL either,

we look at the next (second) bit of the key to be in-

serted. The bit is 0, so we take the path down the left

subtree. At this point we encounter a NIL pointer and

place the new node in its place, as depicted in Figure

1b. We continue the procedure until all nodes have

been added, and the tree in Figure 1f is obtained. Bits

used to make the decisions while progressing down

the tree are shown in bold in the ﬁgure. It is worth

noting that scanning the bits from left to right, when

making search decisions, is an arbitrary choice. The

tree can be built in the same manner by scanning the

bits from right to left.

The insertion method for DSTs is nearly identical

to the insertion method for binary search trees. We

ﬁrst compare the key to be inserted with the key in

the current node, except that for DSTs we test only for

equality. In addition, DST algorithms test the corre-

sponding bit of the new key to choose the next move.

To search for an element, we traverse the tree in

the same way the insert procedure does. If along the

way we ﬁnd that the current node’s key matches the

key we are looking for, the search completes success-

fully. If during the traversal we reach a NIL node, this

ICSOFT 2007 - International Conference on Software and Data Technologies

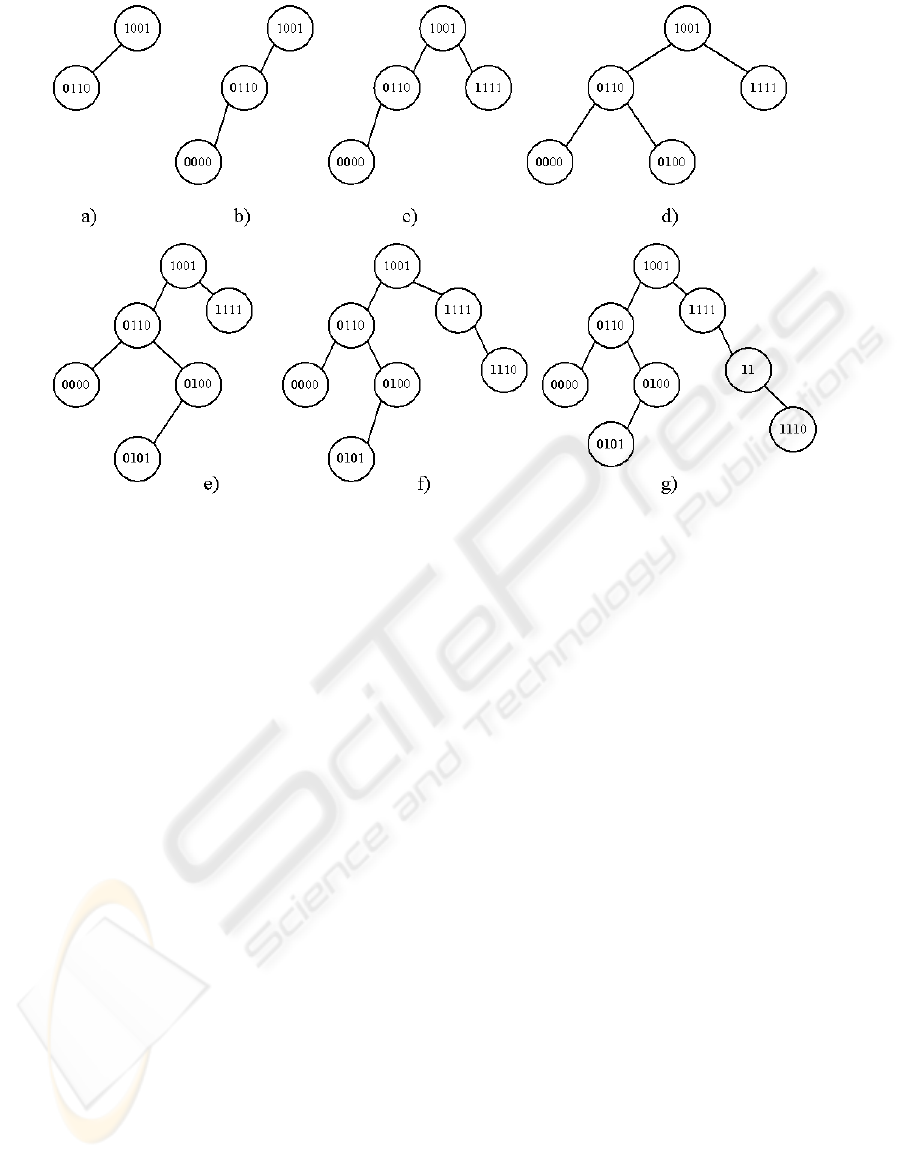

Figure 1: Creating a digital search tree.

means that the search key does not exist in the tree.

The above discussion deals with the case where

all keys are of equal length, which happens in many

applications (e.g. when the keys are integers). The al-

gorithm requires only a minor modiﬁcation to handle

variable length keys. Consider, for example, how the

key 11 can be added to the tree in Figure 1f. As be-

fore, we follow the right link twice, because the ﬁrst

two bits are 1. At this point we have run out of bits to

analyze. In such a case, it is obvious that the node we

are currently at has to have a key with a preﬁx equal

to the new key, and has to be longer than the new key

(otherwise the two keys are the same). Therefore, we

can place the new key (11) in place of the existing

node (1110), and continue by inserting the existing

node (1110) further down the tree. Since the third bit

of 1110 is 1, we go to the right, and place the new

node there because we have reached a NIL link. The

resulting tree is shown in Figure 1g.

Searching trees with keys of variable length is also

simple. If we run out of bits to analyze, the search

is terminated because the key sought does not exist

in the tree. The algorithms for dealing with keys of

variable length were originally presented in (Nebel,

1996).

2.2 Deleting Nodes From Dsts

Procedure to delete a node in the DST simply replaces

the node with any leaf node in either of the node’s

subtrees (E. Coffman, 1970). If the node to be deleted

does not have any children, it is simply removed and

replaced by a NIL pointer. For instance, removing the

node 0110 from the tree in Figure 1g can be done by

replacing it with either node 0000 or 0101. It is obvi-

ous that this method is similar, and in fact simpler than

the deletion method for ordinary binary trees, which

has to consider three distinct cases (Cormen, 1998)

2.3 Sorted Dsts

A DST is not a binary search tree, i.e. printing a DST

in-order will not produce a sorted sequence of tree’s

elements. This is not a major concern, because there

are many applications that do not require trees to be

sorted. However, algorithms for DSTs can be modi-

ﬁed to produce a sorted digital search tree, providing

that all the keys are of the same length, and that the

key’s binary representation directly deﬁnes the order-

ing. This is the case for unsigned numbers, but not for

signed numbers. The most signiﬁcant bit of a signed

number denotes the sign, and does not contribute to

the value according to its weight. Therefore, signed

numbers cannot be directly organized into a sorted

DST. Instead, two sorted DSTs could be created, one

for positive and one for negative numbers. Care must

be taken to order negative numbers appropriately.

Sorted DSTs can also be implemented when the

keys are strings of variable length, by padding all the

keys to the same length, either by explicitly padding

any unused characters with a terminating character

(’\0’ in C), or by constructing the algorithm to be-

ON DIGITAL SEARCH TREES - A Simple Method for Constructing Balanced Binary Trees

have as if the terminating characters were there. To

the best of our knowledge, no other publication has

discussed a technique to sort DSTs.

The following algorithm for constructing sorted

DSTs uses an idea similar to the one used in (Nebel,

1996). For the algorithm to work, the bits have to be

scanned from the most-signiﬁcant to the least signiﬁ-

cant as the tree is traversed. The procedure takes two

arguments, T and x, where T is a (possibly empty)

sorted DST, and x is a node to be inserted into the tree,

containing a key k

, and pointers left and right set to

NIL. It is assumed that the key k

can be represented

as a sequence of bits k

[n-1], k

[n-2],..., k

[0].

Algorithm 2.1: INSERT(T, x)

y ← root(T)

z ← NIL

i ← n

while y 6= NIL











i ← i− 1

c ← k

− k

if c = 0

then return

if (c > 0 and k

[i] = 0) or (c < 0 and k

[i] = 1)

then











temp ← k

← k

← temp

z ← y

if k

[i] = 0

then y ← left(y)

else y ← right(y)

if z = NIL

then root(T) ← x

else if k

[i] = 0

then left(z) ← x

else right(z) ← x

At each step down the tree, we analyze the corre-

sponding bit of k

to choose the appropriate path down

the tree and compare the new key k

with the current

key k

. If the corresponding bit is 0, and k

< k

, we

continue down the left branch, because this preserves

both the digital search tree structure and the binary

search tree structure. Conversely, if the correspond-

ing bit is 1 and k

> k

, we continue down the right

branch. However, if the corresponding bit is 0, and

> k

, it is impossible to satisfy both properties by

proceeding with the node x. Instead, we insert the

node x in place of the node y, and continue the inser-

tion down the left branch, now inserting the node y.

The node y has to go into the left branch, because k

lower than k

. Also, its corresponding bit has to be 0,

because the bits are ordered from the most signiﬁcant

to the least signiﬁcant, and since k

has the bit equal

to 0, and k

< k

, k

’s bit in the same position has to

be 0. This ensures that both the digital search tree and

the binary search tree structure is preserved. The pro-

cedure is similar when the corresponding bit of k

1, and k

< k

; we insert x in place of y, and proceed

down the right branch to insert y into an appropriate

spot. This process eventually terminates when a NIL

link is reached.

Sorted DSTs can be searched using the search pro-

cedure for either binary search trees or digital search

trees, because the sorted DSTs are binary search trees.

On the other hand, the delete procedure has to be con-

structed as follows. If a node x is to be deleted from

the tree, we locate the lowest element in the right sub-

tree (x’s successor), or the highest element in the left

subtree (x’s predecessor) if there is no right subtree.

Let us call that node d. We now move d in place of

x, and continue the process by deleting d from its old

place using the same procedure. The process termi-

nates once the selected node d does not have any chil-

dren, at which point its deletion is a trivial matter. We

can move d in place of x because d is either x

′

s prede-

cessor or successor, so the binary search tree structure

will be preserved. The digital search tree structure is

preserved because a node can be replaced by any of

its descendants, because they lie in the same subtree,

so the appropriate bits have to match (Knuth, 1997).

2.4 Properties of Digital Search Trees

The idea of DSTs can be extended to consider more

than one bit at a time. For instance, in an M-ary tree

(M ≥ 2), each node can have more than two chil-

dren (Knuth, 1997).

A DST with node keys of length |k| (|k| >0) has

the height h at most equal to |k| (Sedgewick, 1990).

Since all the algorithms described in the previous sec-

tions run in O(h) time, and the height of the tree is

limited by the binary length of the key |k|, all the al-

gorithms run in O(|k|) time in the worst case. On

average, if the keys are distributed uniformly across

all possible binary values, these algorithms require

O(log

n), according to (Sedgewick, 1990). For most

other tree data structures the worst-case performance

is expressed in terms of the number of elements in the

tree. For DSTs the worst case performance is given

in terms of the key length, so these expressions are

not directly comparable. Therefore, we believe that

experimental evaluation is the best way to compare

DSTs with other tree structures. We present our ex-

perimental evaluation in the following section.

3 EXPERIMENTAL EVALUATION

In this section we compare the effectiveness of digital

search trees, binary search trees, AVL trees and red-

black trees. To make the comparison fair, we used an

ICSOFT 2007 - International Conference on Software and Data Technologies

existing implementation of binary search trees, AVL

and red-black trees. We chose the GNU libavl (Pfaff,

2006) library of binary tree routines implemented in

C, because of its completeness and extensive docu-

mentation. The code for binary search trees, AVL and

red-black trees was used as provided in the library.

We used the code versions without parent pointers be-

cause they were not needed in any of our experiments.

DST code was based on the libavl code for binary

search trees. Only the necessary changes were made,

and all function prototypes were kept the same. In-

sert and search procedures for DSTs are very similar

to those for binary search trees; the only difference is

how the choice of the next direction down the tree is

made. As a consequence, only a few lines of code for

these methods differ between the binary search tree

and digital search tree implementation. For instance,

for trees that store integer key values, the source code

for the insert routine differs in only three lines of

code, while the search routine differs in ﬁve lines of

code.

In libavl, a node contains left and right pointers,

and a data pointer, which points to user data, in-

cluding the key. For the red-black and AVL trees,

each node also contains additional data (one charac-

ter) to implement balancing. We used this default

node structure in all our implementations, with the

data pointer pointing to the key. No other data was

stored in our experiments.

3.1 Experimental Setup

All program code is written in C, and compiled with

Microsoft’s 32-bit C/C++ Optimizing Compiler Ver-

sion 14.00.50727.42, which ships with the Microsoft

Visual C++ 2005 Express Edition. All programs were

compiled using the default settings for a Release ver-

sion (/02 optimization level).

The experiments described in this section were

run on a dedicated personal computer with Intel Pen-

tium 4 processor, with 8 Kbytes L1 cache and 512

Kbytes on-chip L2 cache, running at 2GHz, with 1GB

memory, and running Windows XP Professional Ver-

sion 2002, SP2. Each experiment was repeated ﬁve

times, and the average execution times are reported.

Two groups of experiments were performed. In

the ﬁrst group of experiments integers were used as

keys in the binary tree, while character strings were

used in the second group. A summary of settings in

these experiments is given in Table 1. The columns

in the table indicate the data type used in different ex-

periments, and the order in which the elements were

inserted into the tree (random, ascending or descend-

ing). The ordering refers to the ordering of the keys.

Table 1: List of experiments performed.

Data type Ordering

Experiment Int String Rand. Asc. Desc.

I1 X X

I2 X X

I3 X X

S1 X X

S2 X X

S3 X X

S4 X X

Ordered insertion tests the performance of tree struc-

tures for the case that is normally the worst-case sce-

nario for the binary search trees.

In all experiments other than S4, the keys were

generated randomly, with uniform distribution, and

were all of equal length. For experiments I1-I3,

the number of elements in the tree was varied from

100,000 to 10,000,000, increasing the number of el-

ements 10 times in each experiment. For experi-

ments S1-S3, the number of elements was varied from

10,000 to 1,000,000 in the same manner. For these ex-

periments we also used three different string lengths:

12, 20 and 40 characters. However, since we did not

observe a signiﬁcant variation in performance trends

for different string lengths, we present only the per-

formance results for strings of length 20.

In I1-I3 and S1-S3, two input ﬁles with mutually

disjoint key sets were used in each experiment. The

keys in the ﬁrst ﬁle are used to create a binary tree,

and the time required to create the tree is measured.

All the keys were brought into a memory array be-

fore being added to the tree or any searches being

performed. Therefore, the reported execution times

do not include any disk accesses initiated by our pro-

grams.

Next, a search is performed for every key in the

ﬁrst ﬁle, which veriﬁes that all keys have been added

and can be located in the tree; search time is measured

and recorded. Then, a search for the keys in the ﬁrst

ﬁle and the keys in the second ﬁle is performed. Since

the keys in these ﬁles are mutually disjoint, this mea-

sures the performance of searches when half the keys

sought do not exist in the tree. Next, a search for the

keys in the second ﬁle is performed, which provides

the execution time of searches for keys that do not ex-

ist. The keys in the second ﬁle were not sorted in any

of the experiments, which means that a search for the

elements was performed in random order.

Finally, the nodes in the tree are deleted, one by

one, in the same order they were inserted in. The time

for this operation is measured as well. To make sure

that the delete operation does not leave the tree un-

balanced, another experiment was performed, where

ON DIGITAL SEARCH TREES - A Simple Method for Constructing Balanced Binary Trees

a search for the keys from the ﬁrst ﬁle is executed at

several checkpoints during the deletion process, and

the total search time is measured.

Experiment S4 stores a dictionary of strings of

variable length, with the maximal length of 24 char-

acters. The dictionary was The Gutenberg Webster’s

Unabridged Dictionary (Project Gutenberg, 2007)

with 109,327 words, 93,468 of which were unique.

Only the words, not their explanations, were added

to the tree. The second ﬁle was a novel (English

translation of Les Miserables, by Victor Hugo) down-

loaded from the same website, with 567,616 phrases,

489,431 of which were found in the dictionary. Ex-

periment S4 represents a near-worst-case for DSTs,

because the keys are of variable length, and many of

the keys are preﬁxes of other keys.

3.2 Search Tree Implementations

We implemented several different versions of the pro-

gram code. For DSTs storing integer keys, we used

three different versions: scanning bits from left to

right (most-signiﬁcant to least-signiﬁcant) while pro-

gressing down the tree (DSTL), scanning bits from

right to left (DSTR), and a sorted digital search tree

(DSTS). Performance of these variants is compared

to that of binary search trees (BST), AVL trees (AVL),

and red-black trees (RB).

For algorithms for storing strings we used libavl

implementation of binary search trees, AVL and red-

black trees. We only had to modify the comparison

function, which originally compared integers. We

used the standard C library strcmp function for this

purpose. We refer to these implementations as SBST,

SAVL and SRB to distinguish them from the corre-

sponding implementations using integer keys.

We also tested three different implementations of

DSTs storing character string keys. First, we used

a straightforward implementation, where individual

characters in a string are scanned in order, from left to

right, and analyzed bit-by-bit, also from left to right as

we progress down the tree. Keys of variable lengths

are handled using the algorithm described in (Nebel,

1996). We call this implementation SDSTC.

Next, we tried to optimize the performance by ob-

serving that most computers perform logical opera-

tions (such as bit extraction) on integers, not charac-

ters. Therefore, we can look at the string of characters

as an array of bits, which can be cast into an arbi-

trary data. We cast characters into integers, moving

along the character array from left to right, four char-

acters at a time. However, we scan the individual inte-

gers (after the cast) from right to left. This is because

the computer we ran the experiments on has the little-

endian memory organization, so this order of analyz-

ing bits corresponds well (though not completely) to

the ordinary left to right scanning order of SDSTC. In

this implementation we also cast characters into in-

tegers in the comparison function, which speeds up

the comparison, compared to the implementation us-

ing the strcmp function. The number of characters in

the string has to be divisible by 4 for this to be pos-

sible, which is not a severe limitation. We call this

implementation SDSTL.

Finally, we implemented a sorted version of dig-

ital search trees for strings. This implementation is

called SDSTS; it scans the input string character-by-

character from left to right to preserve ordering.

We observed that the keys being analyzed by the

algorithms share a common preﬁx with the key being

sought, inserted or deleted from the tree. This com-

mon preﬁx becomes longer as we progress down the

tree. Therefore, we can skip these bits when the al-

gorithms check for string equality. If this is done at

the character granularity (i.e. only skip 8, 16, 24,...

bits once that many tree levels have been traversed),

it is easy to implement and reduces the comparison

time. We call this technique reduced comparison.

This technique was employed for SDSTC and SDSTS

implementations, but not for SDSTL, because it is

more complicated to implement in that implementa-

tion, and does not beneﬁt performance.

For SDSTL and SDSTS implementations, we pad

any unused characters with the terminating character

’\0. The padding is done at insertion time, as well

as when searching for or deleting a node. To make

the comparisons fair, we include the time to pad the

unused characters in our measurements.

3.3 Results

3.3.1 Average Node Depth and Tree Depth

Aside from execution time, we use two metrics to

evaluate different algorithms: average node depth and

tree depth. The average node depth is relevant be-

cause it determines the expected number of steps the

algorithms have to perform. The tree depth is deﬁned

by the depth of the leaf with the greatest depth. There-

fore, it deﬁnes the worst case for operations on binary

trees.

The average node depths and tree depths for

various experiments relative to the performance of

AVL/SAVL tree are shown in tables 2 and 3. The re-

sults are averages over all tree sizes, because in most

cases the relative results do not differ much as the tree

size grows. For several experiments we do not give

values for BST/SBST, because not all experiments

ICSOFT 2007 - International Conference on Software and Data Technologies

Table 2: Average node depth relative to AVL and SAVL.

RB BST DSTL DSTR DSTS

I1 1.00 1.34 1.01 1.00 1.01

I2 1.02 N/A 1.04 1.01 1.04

I3 1.02 N/A 1.04 1.01 1.04

SRB SBST SDSTL SDSTC SDSTS

S1 1.00 1.35 1.14 1.23 1.24

S2 1.03 N/A 1.16 1.27 1.26

S3 1.03 N/A 1.16 1.26 1.26

S4 1.00 889 2.17 2.38 2.39

Table 3: Tree depth relative to AVL and SAVL.

RB BST DSTL DSTR DSTS

I1 1.00 2.09 1.04 1.04 1.07

I2 1.88 N/A 1.31 1.24 1.30

I3 1.88 N/A 1.32 1.23 1.30

SRB SBST SDSTL SDSTC SDSTS

S1 1.00 1.97 1.20 1.29 1.29

S2 1.85 N/A 1.41 1.59 1.52

S3 1.85 N/A 1.44 1.57 1.52

S4 1.71 1443 4.35 4.47 4.76

with BSTs were completed because of excessive run-

time.

In experiments I2, I3, S2 and S3, the tree depth

of red-black trees is signiﬁcantly higher than that of

AVL trees, which is expected, because the red-black

trees do not achieve as good balancing as the AVL

trees (Cormen, 1998). These results show that the

DSTs, including the sorted DSTs, do a good job of

keeping the tree balanced, with average node depth

comparable to that of AVL and red-black trees, and

tree depth between that of AVL and red-black trees,

for all but the last experiment (S4). Our experiments

showed that these large differences for S4 do not

translate into large performance differences.

3.3.2 Performance of the Insert Procedure

Table 4 presents the performance of the insert proce-

dure for the largest dataset in each experiment.

DSTL and SDSTL provide the best performance

in all cases except for S4. This was the case for all tree

sizes, although the ratio becomes smaller as the tree

size shrinks. (S)AVL and (S)RB exhibit poorer per-

formance because of complicated rotations they have

to perform to keep the tree balanced.

RB and DSTR give much lower relative perfor-

mance for experiments I2 and I3, which is surprising

considering that the tree depth and the average node

depth do not vary drastically for these experiments

(see tables 2 and 3). The reason is the effect proces-

sor caches have on performance; the other algorithms

experience improved performance due to cache local-

ity when the inputs are sorted, while RB and DSTR

do not. For example, for DSTL, where the bits are

Table 4: Insertion performance relative to AVL and SAVL

for largest datasets.

RB BST DSTL DSTR DSTS

I1 1.01 1.08 0.82 0.76 1.05

I2 3.00 N/A 0.89 4.19 0.94

I3 2.41 N/A 0.86 3.44 1.03

SRB SBST SDSTL SDSTC SDSTS

S1 1.04 1.11 0.65 0.82 1.00

S2 1.66 N/A 0.75 0.91 1.14

S3 1.65 N/A 0.76 0.91 1.11

S4 1.53 587 1.11 1.40 1.75

scanned from left to right, elements are repeatedly in-

serted into the same branch of the tree. This means

that the whole chain of pointers leading to the place

for a new node are already in the cache in many cases.

Since DSTR analyzes the bits from the right, where

the bits vary more often, it is likely to insert a new

element into a different branch of the tree most of the

time, so it has poor cache locality. Therefore, DSTR

is a poor choice for a scanning method and should not

be used.

The most interesting result is the one for experi-

ment S4. Although the three digital search trees have

an average node depth more than twice the depth of

the AVL trees, the SDSTL is only 11% slower than

SAVL, and faster than SRB. Even the straightforward

implementation, SDSTC, or the sorted version, SD-

STS, do not suffer performance penalties proportional

to the difference in node depth. This can be explained

through better utilization of cache locality. Digital

search trees exhibit better cache locality than the red-

black and AVL trees for two reasons. First, the nodes

in digital search trees are never (or only sometimes

for SDSTS) moved from their initial position, thereby

better preserving spatial locality. Also, the nodes in

digital search trees are smaller because they do not

include balancing information, so more can ﬁt into a

cache. Consequently, a node and its children are more

likely to reside in the same cache line, thus improving

the performance. For these reasons, the digital search

trees are well suited for execution on modern com-

puters. Although other methods for exploiting cache

locality in binary trees exist (Oksanen, 1995), they ex-

plicitly manage memory allocation and/or tree struc-

ture, which makes the algorithms even more complex.

In contrast, digital search trees exhibit good locality

implicitly, based on their structure.

We have not shown the results for all tree sizes, but

the general trend is that the performance gap between

different algorithms, as presented in Table 4, tends to

grow linearly as the number of elements in the tree

grows exponentially.

ON DIGITAL SEARCH TREES - A Simple Method for Constructing Balanced Binary Trees

3.3.3 Search Performance

We do not present all the results for search routines

because they are similar to the results for the insert

routine. This is not surprising, because these two rou-

tines are similar in structure.

We observed a general trend that digital search

trees tend to perform better when fewer elements

sought are actually found in the tree. One interest-

ing case where this is particularly evident is experi-

ment S4. Table 5 gives the performance results rel-

ative to SAVL, as the number of elements that were

actually found decreases. The FA and FS rows de-

note Found All and Found Some, respectively, and

correspond to searching for all the words in the dic-

tionary, and searching for the words from the book, as

described in section 3.1.

Table 5: Performance for two different searches in experi-

ment S4.

SRB SBST SDSTL SDSTC SDSTS

FA 1.01 960 1.39 1.95 2.24

FS 1.05 308 0.90 1.07 1.37

The FA search, in which all the elements sought

are found, is the worst case we found for the digital

search trees. Even then, only the sorted (SDSTS) and

the straightforward implementation (SDSTC) suffer

penalties proportional to the average node depth. A

more clever implementation, SDSTL, which is still

much simpler to implement than the other balanced

tree algorithms, suffers a modest penalty of 39% in

the worst case. When the elements sought are found

less often, the relative performance of all DST trees

improves signiﬁcantly.

3.3.4 Delete Performance

We do not present the results for delete routines for

experiments I1-I3 and S1-S3, because they show sim-

ilar trends as the insert routine. For the experiment

S4, we found that SRB, SDSTL, SDSTC and SDSTS

have 15%, 46%, 69%, and 34% worse performance

than SAVL, respectively. At the same time, SBST

performs 12% better than SAVL when deleting the

nodes.

We also checked the search performance at sev-

eral checkpoints throughout the deletion process, and

found that SRB, SDSTL, SDSTC and SDSTS achieve

6%, 20%, 59%, and 79% worse search performance

than SAVL, respectively. SBST takes 180 times

longer than SAVL in this case. These results resemble

the search performance in Table 5.

4 CONCLUSIONS

We discussed the digital search trees (DSTs), which

use the values of bits in the key to determine the key’s

position in the tree. We believe that these trees are

easier to understand conceptually, and easier to im-

plement in practice than other known balanced trees.

We found that only small modiﬁcations to algorithms

for ordinary binary search trees are needed to imple-

ment the digital search trees.

Our experiments show that performance of digi-

tal search trees is often as good or better than AVL or

red-black trees. The digital search trees can be rec-

ommended for use whenever the keys stored are in-

tegers, or character strings of ﬁxed width. We found

that these trees are also suitable in many cases when

the keys are strings of variable length.

We believe that these trees deserve renewed atten-

tion. Novel techniques may be discovered that im-

prove the performance even further. Also, new ap-

plications may be discovered that could beneﬁt from

using the digital search tree as a data structure.

REFERENCES

Andersson, A. (1993). Balanced search trees made sim-

ple. In WADS, 3rd Workshop on Algorithms and Data

Structures, pages 60–71. Springer Verlag.

Cormen, T. H. (1998). Introduction to Algorithms. MIT

Press, Cambridge, Mass, 2nd edition.

E. Coffman, J. E. (1970). File structures using hashing func-

tions. Communications of the ACM, 13(7).

F. Flajolet, R. S. (1986). Digital search trees revisited. SIAM

Journal on Computing, 15(3).

Knuth, D. E. (1997). The Art of Computer Programming,

volume 3. Addison-Wesley, Reading, Mass., 2nd edi-

tion.

Nebel, M. E. (1996). Digital search trees with keys of vari-

able length. Informatique Theorique et Applications,

30(6):507–520.

Oksanen, K. (1995). Memory Reference Locality in Binary

Search Trees. Master’s thesis, Helsinki University of

Technology.

Pfaff, B. (2006). Gnu libavl. http://adtinfo.org.

Project Gutenberg (2007). The Guten-

berg Webster’s unabridged dictionary.

http://www.gutenberg.org/etext/673.

Sedgewick, R. (1990). Algorithms in C. Addison-Wesley,

Reading, Mass.; Toronto.

Wikipedia, The Free Encyclopedia

(2007). Category:trees(structure).

http://en.wikipedia.org/wiki/Category:

Trees

%28structure%29.

ICSOFT 2007 - International Conference on Software and Data Technologies
