AN IMPROVEMENT TO THE MIXED MDA-SOFTWARE

FACTORY APPROACH: A REAL CASE

Gustavo Muñoz Gómez and Juan Carlos Granja

Grupo de Investigación de Lenguajes y Sistemas Informáticos e Ingeniería del Software (GILSIIS)

Escuela Técnica Superior de Ingenierías Informática y de Telecomunicacion, Universidad de Granada

C/ Periodista Daniel Saucedo Aranda s/n 18071 Granada, Spain

Keywords: MDA-software factories; product line requirement engineering; state-subsidized healthcare service.

Abstract: In this article, we will offer a solution to the mixed MDA–software factory model which enables greater

satisfaction of the requirements of a product line based on work by Gary Chastek’s team with the

application of the required transformations for generating the three components necessary for the creation of

product families using the mixed approach. In order to validate the chosen representation and

transformations, we will focus on a real case which appeared in a previous article by Muñoz et al. (2006).

Interesting option is to explore in greater depth the requirements of the family of programs that we want to

create and to obtain the product line, framework and specific language from these. For this purpose, we will

use Chastek et al.’s representation system (2001) which allows us to represent the requirements using three

CIM models and a dictionary of specific terms. The mixed MDA–software factory approach (Muñoz, J.,

Pelechano, V.) enables the advantages of both approaches to be enjoyed using the PIM models as a starting

point.

1 INTRODUCTION

MDA (Millar, J., Mukerji, J., 2003) is a software

development framework which defines a new way of

constructing software in which system models are

used on different levels of abstraction to guide the

entire development process from system analysis

and design to system maintenance and its integration

with future systems. The mixed MDA–software

factory approach (Muñoz, J., Pelechano, V., 2005)

enables product lines to be created and the

variability of the different products comprising a

family to be maintained. As the same in the GECAC

practical case (Muñoz, G., Granja, J.C., Sempere, C.,

2006), this approach is perfectly valid for resolving

the problem presented in the article: that of solving

the problem of financially managing state-subsidized

places in healthcare centres (Diputación de

Granada). We also the same that it was necessary to

obtain a product line, a framework and a specific

programming language that would provide the

variability necessary for creating the different

products.

2 CURRENT SITUATION

Product line analysis is equivalent to requirement

engineering for the product lines of an intensive

software system and involves eliciting, analyzing,

specifying and verifying the requirements of a

product line. This is the perspective of the

requirement analysis of the requirement engineering

rules in the development of a product line as

presented by Chastek et al. (2001).

2.1 Model Driven Architecture (MDA)

MDA attempts to separate the specification of a

system’s operations and data on one side from the

details of the platform on which the system will be

constructed on the other. In this way and in general,

software development with MDA can be divided

into four stages: construction of a computation

independent model (CIM); transformation into one

or several platform independent models (PIM);

transformation of the previous model into one or

several platform-specific models (PSM); and code

generation from each PSM.

387

Muñoz Gómez G. and Carlos Granja J. (2007).

AN IMPROVEMENT TO THE MIXED MDA-SOFTWARE FACTORY APPROACH: A REAL CASE.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 387-392

DOI: 10.5220/0001336703870392

 SciTePress

3 PROBLEMS CONSIDERED

As we have seen in previous sections, there are two

solutions: Chastek et al.’s system of models and data

dictionary (2001) enabling the requirements of a

product line to be represented and validated, and

Muñoz & Pelechano’s mixed MDA-software factory

model allowing source code to be generated from a

framework and specific language. The

“shortcoming” of the first option is that it does not

allow source code to be generated since it goes no

further than representing and validating the

requirements; the “shortcoming” of the second

option, on the other hand, is that while it does

generate source code, it does not solve requirement

representation and validation.

We are therefore faced with the following question:

Would it be possible to create a system which would

enable the requirements of a product line to be

represented and validated and also for the source

code of this family to be generated? Would it be

possible to combine the previously mentioned

solutions for such a purpose? In the following

section, we will present a solution to both of these

questions.

4 OUR PROPOSED

IMPROVEMENT TO THE

SOLUTION

As we have seen in previous sections, there are two

lines of work: a system of models and data

dictionary enabling the requirements of a product

line to be represented and validated (Chastek, G.,

Donohoe, P., Kang, K.C., Thiel, S., 2001) and the

mixed MDA-software factory model (Muñoz, J.,

Pelechano, V.) which allows source code to be

generated but does not consider requirement

representation.

We offer the following contribution: to connect

these two lines of work in order to cover everything

from requirement representation and validation of

the product family to source code generation. In

order to resolve this problem, we aim to combine the

output of Chastek et al.’s work (i.e. requirement

object model, feature model, use case model and

dictionary of specific terms) with the input of the

mixed MDA-software factory model (i.e. product

line, framework and specific use language as

indicated by its authors, Muñoz & Pelechano).

We will structure the solution in the following way:

4.1. Methodological contribution

4.2. Consideration of the practical study case

4.3. Practical study case

4.4. Validation and assessment of the practical

study case

We will validate our proposal on the basis of the real

case presented in the Diputación Provincial de

Granada’s Community Centres (Muñoz, G., Granja,

J.C., Sempere, C., 2006).

4.1 Methodological Contribution:

Connection between the Output of

One Systems and the Input of the

Other

As we mentioned in the previous section, the way to

connect a product line’s requirement representation

with the mixed MDA-software factory system is to

connect the output of the first with the input of the

second; in this way, we will obtain a product line, a

framework and a domain-specific language.

We present our proposal for finding this input

below:-

PRODUCT LINE: Given that the product line is the

information compiled about the product family to be

developed, this is clearly established according to

the requirements and the dictionary of specific

terms, represented in both the feature and object

models, and validated by means of use case

diagrams for the different views held by the

advanced users/collaborators.

FRAMEWORK: The framework for the programme

family is a design object diagram which represents

the product line, and an initial view of this comes

from the requirement object model. In order to

achieve the framework (since it is a design object

model), it is necessary to compile the set of design

objects (their names), and these are obtained from

the STATE objects obtained in our requirement

object model. The names of the design objects are

given by the state objects of the requirement model.

DESIGN OBJECT ATTRIBUTES: These will be

extracted from the object description and

responsibilities, as shown in the object definition

table.

DESIGN OBJECT METHODS: These will be

obtained by means of the BEHAVIOR objects

relating to the state object in question and the

requirement object responsibilities.

RELATIONS BETWEEN THE OBJECTS: Initially,

those existing between the state objects of the

requirement object model will be taken but it will be

necessary to typify each in accordance with the ones

indicated for the design object models according to

the description and responsibilities.

ICSOFT 2007 - International Conference on Software and Data Technologies

388

SPECIFIC DOMAIN LANGUAGE: The starting

point for this will be the dictionary of specific terms,

and in our case, the ones we are interested in are

those which provide our product family with

variability. These terms will correspond to the

classes (primitives) of our specific domain language.

The classes can be completed with the requirement

objects associated to the specific terms which we

have previously selected, and we would do this in

the following way:

ATTRIBUTES: These would be given by the state

objects. Initially these would be defined with

information from the object definition table: object

description and responsibilities. In order to continue

completing the classes, we will again focus on the

requirement object model: the BEHAVIOR objects

will provide us with some of the messages

associated with these classes.

METHODS: These will be obtained from the

BEHAVIOR object responsibilities which will

provide some of the messages associated with these

classes.

4.2 Consideration of the Practical

Study Case

The idea is to automatically obtain the product line,

framework and specific domain language from a

series of requirements. We will use product line

requirement engineering techniques to represent the

problem presented in the work by Muñoz et al.

(2006).

In this way, we will show the representation of the

two requirements in the following order: definition

of the specific environment terms; definition of the

feature model (adding the name of the feature, its

description, and the description of its semantics to

the dictionary); definition of the object model

(adding the name of the object, its description and

object responsibilities to the dictionary ); definition

of the use cases, which will enable us to validate

both the object and feature diagrams.

And finally, we will transition from our three models

and Chastek et al.’s dictionary (2001) to the product

line, framework and specific domain language which

are necessary for initiating the mixed MDA–

software factory approach.

4.3 Validation of the Methodological

Contribution: Practical Study Case

We will first show the requirements of the program

family to be constructed in our study case.

4.3.1 Requirements of the Problems

Considered by the Financial

Management of State-subsidised

Residential Centres (GECAC)

The requirements which our system must fulfil come

from a real problem. We have grouped the

requirements according to function, behaviour and

interface (Muñoz, G., Granja, J.C., Sempere, C.,

2006).

4.3.2 Representation and Validation of

GECAC Requirements

In this section, we will use models to represent and

validate the requirements.

Definition of Specific Environment Terms. In

order to define the terms relating to this

environment, we have a used a two-column table

with the name and description of the term.

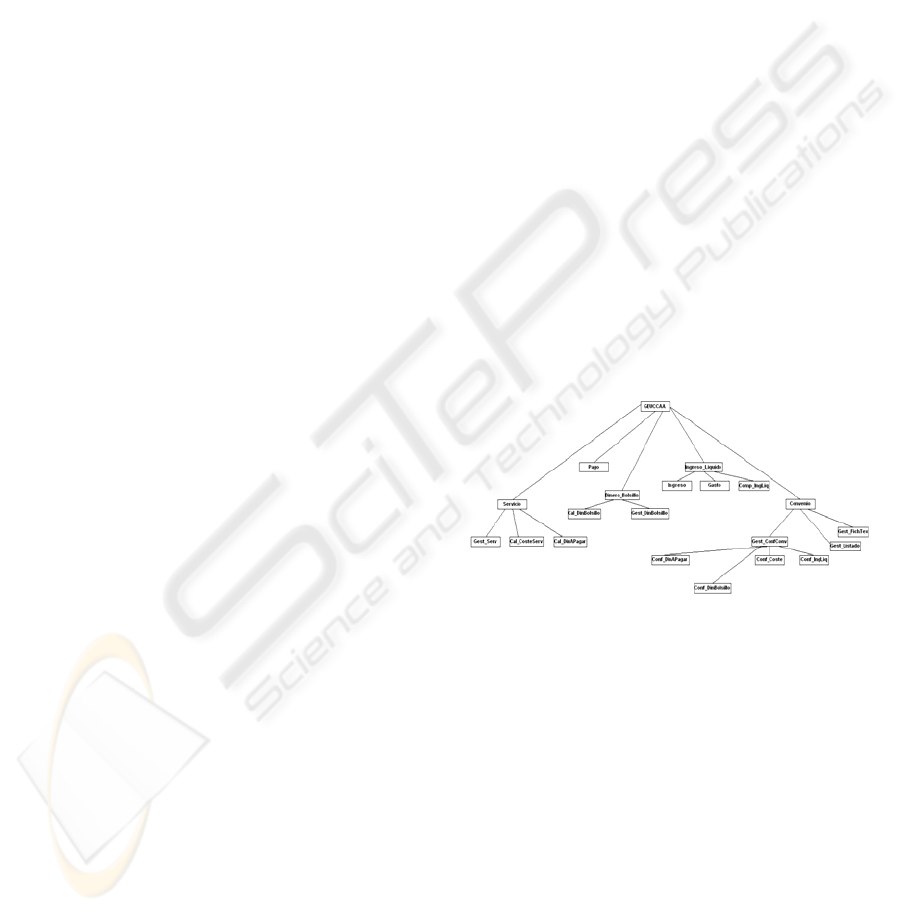

Definition of Feature Model. In Figure 1, we show

the feature model. We have also compiled a table

with the name, description and semantics of each

feature (although this does not appear in this article).

Figure 1: Feature model.

Definition of Requirement Object Model. We will

first show the object model and the part of the

dictionary referring to the name, description and

responsibilities for each requirement object.

AN IMPROVEMENT TO THE MIXED MDA-SOFTWARE FACTORY APPROACH: A REAL CASE

389

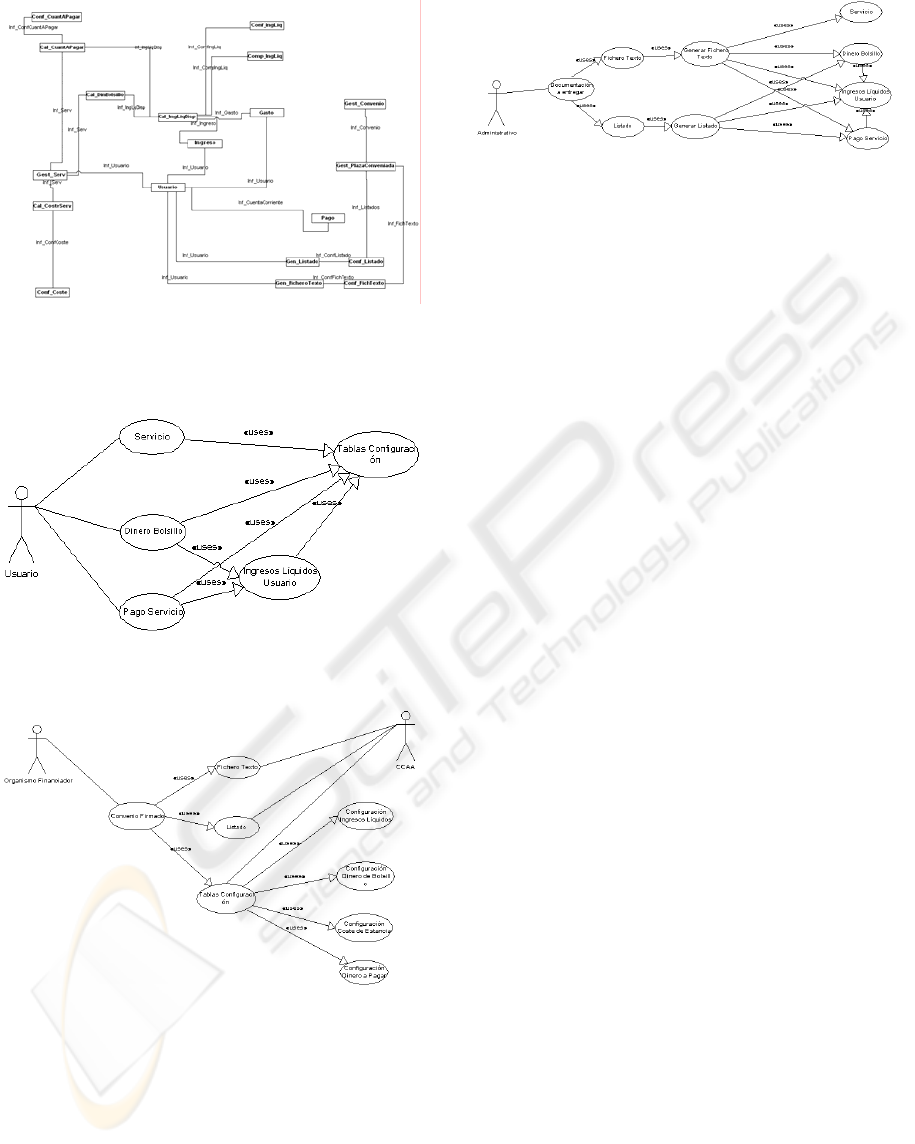

Figure 2: Requirement object model.

Definition of Use Case Model. We will examine the

different models.

Figure 3: Use case showing the relation between the user

and healthcare centre.

Figure 4: Use case for the form of agreement between the

financing organization and healthcare centre.

Figure 5: Use case showing the financial management

from the administrative agent’s point of view.

As we can see, any use case can be executed by

means of the constructed object model, and this

would therefore be validated. In this way, Chastek et

al.’s methodology (2001) would be completed for

our practical case to represent and validate the

requirements of this problem.

4.3.3 Obtaining the Initial Point in the

Mixed MDA-software Factory

Approach

As we mentioned above, we will obtain the product

line, framework and primitives of a specific use

language (in that order) from the products obtained

with the three requirement representation models.

Product line. As we indicated in subsection 4.2, we

define a product line as the information which needs

to be compiled for the development of a product or

product family. We can see that the product line in

our case would be established by the requirements

and dictionary of specific terms, represented by

means of both the feature and object models and

validated with use case diagrams.

Framework. As we indicated in subsection 4.2, we

will represent the framework using a design object

model, and we will start to define it from the

requirement object model.

a) Obtain the object names: we would obtain these

from the state objects and they would therefore

be design objects: Gest_Serv, Usuario, Pago,

Ingreso, Gasto, Gest_Convenio,

Gest_PlazaConveniada, Conf._Listado,

Conf_FichTexto, Conf_Coste,

Conf_CuantAPagar, Conf_DinBolsillo,

Conf_CompIngLiq and Conf_IngLiq. Obtain

the design object attributes: we will extract

these from the object description and the

responsibilities attributed to the object in the

object definition table.

Gest_Serv: financing organization, period

agreed, start date, end date, cost of the official

ICSOFT 2007 - International Conference on Software and Data Technologies

390

service, money payable, number of normal stay

days, number of forced stay days; payment

method, payment details and amount payable.

b) Methods: we will obtain these by means of the

behaviour objects with which the state object in

question is related and the requirement object

responsibilities. In this way, Gest_Serv;

Cal_DinBolsillo, Cal_CuantAPagar,

Cal_CosteServ are obtained from the behaviour

objects; and initiation, cessation and

modification of the service from the

responsibilities; Pago: it is possible to deduce

initiation, cessation and modification of

payment from the object responsibilities.

c) Relations between the objects: those existing

between the state objects of the requirement object

model will be taken but each will be typified in

accordance with those indicated for the design object

models according to the description and

responsibilities. All the relations in the following

diagram are association ones (since there is a

semantic dependence between the classes).

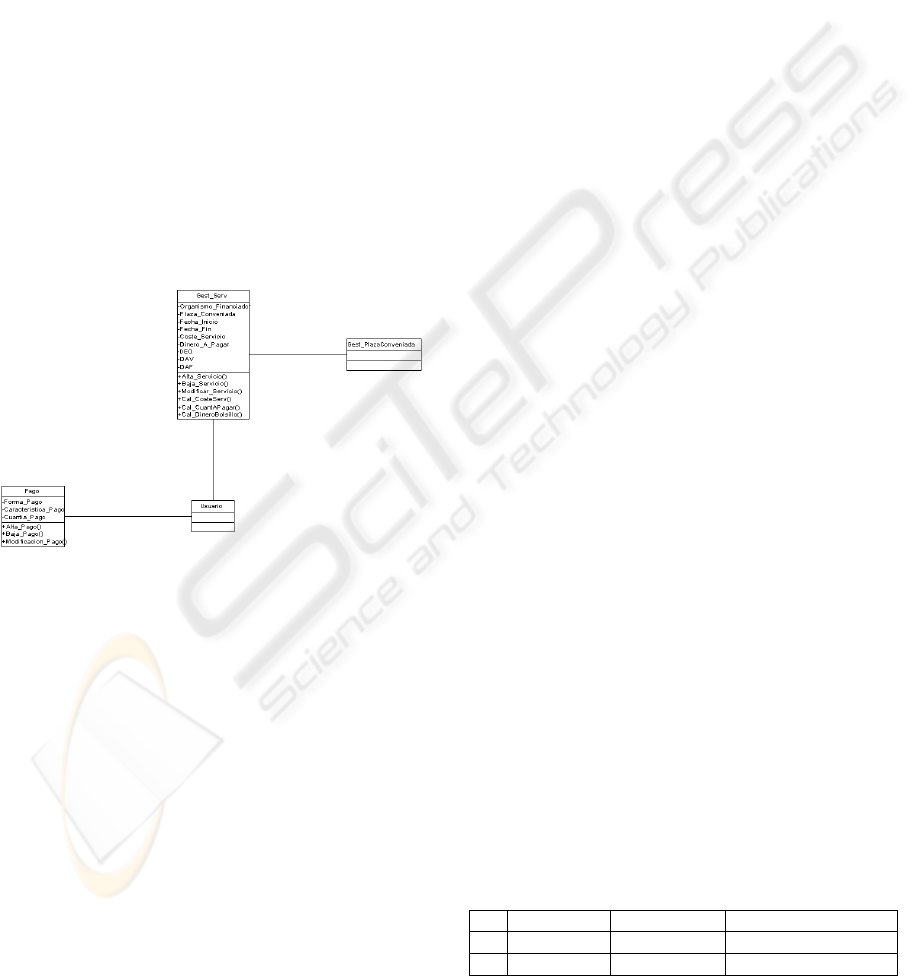

Figure 2: Framework relating to the requirement objects

being studied: Gest_Serv and Pago

When the framework is obtained from the

requirement object model that we have designed, we

can see that we get quite close to GECAC’s design

object model (Muñoz, G., Granja, J.C., Sempere, C.,

2006). Once the automatic transformation has

finished, there is the opportunity to complete the

framework with elements that were not taken into

account or which were initially overlooked. This

transformation therefore enables a subsequent

adjustment once the result has been obtained,

matching it even further to the client’s requirements.

Primitives of a Specific Use Language. This

concerns finding a series of primitives which enable

the variability to be defined in the way that each

financing organization manages every financed

service. Our starting point for this will be the

dictionary of specific terms in which we must

complete these terms paying special attention to

those which define the variability. For this point, we

will define a series of subject matters which will

group the terms.

In our case, the subject matters to be developed

which are associated with the variability of our

problem are: LISTS, TEXT FILES, NET INCOME

(INVOICING PERIODICITY and SHARING OF

NET INCOME), POCKET MONEY, OFFICIAL

SERVICE COST and AGREEMENT (PERIOD OF

TIME WHEN ACTIVE and TYPES OF SERVICES

COVERED). We have developed all these terms

although they are not presented in this article.

We have ascertained that we can obtain information

for the creation of the specific use language from the

dictionary of specific terms and the requirement

objects.

4.4 Validation and Assessment of

Practical Study Case

The quality of the work carried out that we will

adopt is validated and quantified by comparing the

quality of the inputs with (first option) and without

(second option) our proposed mixed system. We will

assess each item below. Product line: using Chastek

et al.’s models and dictionary of specific terms

(2001), we see that the product line definition is

much more complete than if it were not used,

particularly when initial ignorance of the product

family is high. For this reason, we gave a score of 8

(out of 10) to the quality of the product line with

Method A, and a score of 4 to the quality with

Method B. Framework: as we can see in Muñoz et

al. (2006), the framework is complete, mainly due to

the high degree of knowledge that our work team

has of the subject; if we were to start with a problem

that we were unfamiliar with, the framework of

Option A would be much fuller and better suited to

reality than B. In the case concerning us, we gave

Option B a score of 9, and Option A scored 6.

Specific use language: this is a similar case to that of

the framework whereby the language is much better

defined and more complete using Option A than it is

with Option B (although the great difference arises

when we have no prior knowledge of the problem).

Table 1: Comparison.

Product line Framework Specific use language

A 8 9 8

B 4 6 5

AN IMPROVEMENT TO THE MIXED MDA-SOFTWARE FACTORY APPROACH: A REAL CASE

391

5 CONCLUSIONS AND FUTURE

WORK

As we have seen in the practical study case, it is

possible to create a system which enables us to

represent requirements in models and after

consecutive (more or less automatic) transformations

to generate code. In order to do so, advantage is

taken of the output products provided by Chastek et

al. (2001) and these are redirected to the inputs of

the mixed MDA-software factory model by means

of a series of transformations which we have

designed and presented in this article.

From the practical study case, we can deduce that

the application of our proposal is advantageous since

the result of the inputs on the mixed MDA-software

factory systems is more complete than when it is not

used (although the result is much better if there is

high prior ignorance of the family of programmes to

be developed).

We have detected certain negative aspects in terms

of this representational method: both the feature and

requirement object models are not UML models and

therefore the dictionary of specific terms (like the

other three models) has no repository for storing

them, and we could well use this as the basis for

mechanizing the adaptation transformations to the

mixed MDA-software factory model.

After an in-depth study, looking at the products and

documentation generated and the needs facing us,

we can conclude in terms of the transformation of

the requirement object model to the framework

(always aimed at possible automation) that obtaining

the design object names (i.e. the ones which

determine the framework) is direct, although those

relating to completing the attributes and the

messages associated to these objects is complicated

due to the need to extract the description information

in text format. We have seen how this requires the

analyst to complete the missing objects manually

and to deduce the object attributes and messages

from the object description and responsibilities.

With this solution, it would be possible to adjust the

transformations.

Regarding the generation of the specific domain

language, we have seen how the information relating

to the objects to be dealt with comes from the

dictionary of specific terms in which each concept

will be described (including those causing problem

variability). For an automatic generation of the

definition of the specific domain language, we

propose various modifications to the definition

tables for the term dictionary and to the definition

table for the requirement objects shown in the

previous point. With the proposed changes, greater

mechanization may be achieved.

5.1 Future Work

There are two different avenues open for future

research. The first would encompass completing the

requirement representation system with a study to

achieve greater automation of the creation of the

different models, conversion of non-UML models to

other more standardized ones, and the creation of a

repository to store the models, transformations and

dictionary. The second, meanwhile, would

encompass transformations with the definition of the

transformations proposed using a standard language

such as QVT. This work has been carried out under

project PP.2006.

REFERENCES

Aaen, I., Botcher, P., Mathiassen, L., 1997. The Software

Factory: Contributions and Illusions. In Proceedings

of the Twentieth Information Systems Research

Seminar in Scandinavia, Oslo, 1997.

Chastek, G., Donohoe, P., Kang, K.C., Thiel, S., 2001.

Product Line Analysis: A Practical Introduction.

Technical Report CMU/SEI-2001-TR-2001-001,

Software Engineering Institute (Carnegie Mellon),

Pittsburgh, PA 15213.

MDA (Model Driven Architecture). March 12, 2002.

http://www.omg.org/mda

Millar, J., Mukerji, J, 2003. MDA Guide Version 1.0.1.

Muñoz, G., Granja, J.C., Sempere, C., 2006. Sistema mixto

MDA – Factorías de Software: Un caso práctico.

CISTI 2006, Volume II, pág 503-518.

Muñoz, J., Pelechano, V., 2004. MDA a Debate. In I

Taller sobre Desarrollo de Software Dirigido por

Modelos, MDA y Aplicaciones (DSDM’04), pages

pp.1 – 12, 2004.

Muñoz, J., Pelechano, V., 2005. MDA vs Factorías de

Software. II Taller sobre Desarrollo de Software

Dirigido por Modelos, MDA y Aplicaciones (DSDM

2005)

ICSOFT 2007 - International Conference on Software and Data Technologies

392
