ADDING UNDERLAY AWARE FAULT TOLERANCE TO

HIERARCHICAL EVENT BROKER NETWORKS

Madhu Kumar S. D., Umesh Bellur

Indian Institute of Technology Bombay, Mumbai, India

Erusu Kranthi Kiran

National Institute of Technology Calicut, Calicut, Kerala, India

Keywords:

Overlay, Underlay Awareness, Event Broker Networks, Fault Tolerance.

Abstract:

Recent studies have shown that the quality of service of overlay topologies and routing algorithms for event

broker networks can be improved by the use of underlying network information. Hierarchical topologies are

widely used in recent event-based publish-subscribe systems for reduced message trafﬁc. We hypothesize

that the performance and fault tolerance of existing hierarchical topology based event broker networks can be

improved by augmenting the construction of the overlay and subsequent routing with the underlay informa-

tion. In this paper we present a linear time algorithm for constructing a fault tolerant overlay topology for

event broker networks that can tolerate single node and link failures and improve the routing performance by

balancing network load. We test the algorithm on the SIENA event based middleware which follows the hier-

archical model for event brokers. We present simulation results that support the claim that the use of underlay

information can signiﬁcantly increase the robustness of the overlay topology and performance of the routing

algorithm for hierarchical event broker networks.

1 INTRODUCTION

The recent popularity of the publish/subscribe sys-

tems can be attributed to the ﬂexibility and ease of de-

ployment of overlay topologies and their routing algo-

rithms. Extensive research has been done on creating

scalable, highly efﬁcient overlay topologies and rout-

ing algorithms (A. Carzaniga, 2001; L. Fiege, 2002;

Pietzuch, 2004), but the importance of using the un-

derlying physical topology information in their devel-

opment has not been considered in most of the re-

search works. Recent studies (Tang and McKinley,

2004) have shown that the incorporation of underlay

information( i.e information about the ﬁrst four layers

in the network protocol stack) in the overlay topology

and routing algorithms can signiﬁcantly improve their

performance.

We propose that static hierarchical overlay topolo-

gies can be improved by including underlay informa-

tion to make them adaptive to faults. We present a

fault tolerant underlay aware overlay construction and

maintenance algorithm for a hierarchical overlay net-

work. The constructed overlay network is capable of

handling single node and link failures and also pro-

vides the ﬂexibility to balance network load, thereby

improving the routing performance of the event bro-

ker network over the simple hierarchical network that

does not incorporate underlay information. The rest

of this paper is organized as follows: In Section 2 we

present the related work in this area. In Section 3,

the importance and feasibility of use of underlay in-

formation in overlay construction is discussed and our

procedure for underlay aware overlay topology gener-

ation is outlined. In Section 4, algorithms for overlay

topology creation and maintenance are described in

detail, the mechanisms for handling failures are de-

scribed and the proof of correctness for the concept

used in the algorithm is given. Section 5 describes the

experimental setup and presents the implementation

results that demonstrate the improvement in perfor-

mance achieved. Section 6 concludes the paper.

Kumar S. D. M., Bellur U. and Kranthi Kiran E. (2007).

ADDING UNDERLAY AWARE FAULT TOLERANCE TO HIERARCHICAL EVENT BROKER NETWORKS.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 99-105

DOI: 10.5220/0001338000990105

 SciTePress

2 BACKGROUND

Publish/subscribe paradigm is a new communication

paradigm where a set of clients, in a distributed envi-

ronment, communicate asynchronously through a no-

tiﬁcation service. The clients are connected through

an overlay network of broker nodes, and are classiﬁed

as publishers, which publish the notiﬁcation events,

and subscribers, which subscribe those notiﬁcations.

The overlay network of broker nodes and the rout-

ing algorithm used ensure the delivery of notiﬁcations

or publications to appropriate subscribers. There are

different kinds of overlay topologies deﬁned in litera-

ture (Singh and Cao, 2005; A. Carzaniga, 2001; Piet-

zuch, 2004; L. Fiege, 2002; Rowstron and Druschel,

2001). In a static hierarchical topology each event

broker is connected to a single parent event broker,

and every broker receives event notiﬁcations from the

parent broker. This topology is simple but it is not

fault tolerant. We have conducted a survey of the

existing publish/subscribe systems and studied their

topologies and adaptability to failures of nodes and

links and summarized it in Table 1.

Table 1: Adaptation to Failures in Existing EBMs.

EBM Overlay Adaptability

Topology to Failures

SIENA Acyclic Graph Not Adaptable

REBECA Acyclic Graph Not adaptable

HERMES General Graph Adaptable to

Rendezvous Node

Failures

MEDYM General Graph Detects Link Failures

Pastry General Graph Adaptable

3 UNDERLAY AWARENESS

The Need for Underlay Awareness The event

based middleware systems like SIENA (A. Carzaniga,

2001), REBECA (L. Fiege, 2002), HERMES (Piet-

zuch, 2004) are not underlay aware. BICON (Madhu

and Bellur, 2006) overlay provides an algorithm for

the construction of underlay aware availability man-

ifest overlays. Correlation between the underlying

physical topology and the overlay topology is re-

quired for guaranteeing the performance of the rout-

ing algorithm. In an overlay network each node can

be a multi degree node, but in the actual physical net-

work there may be one physical link corresponding

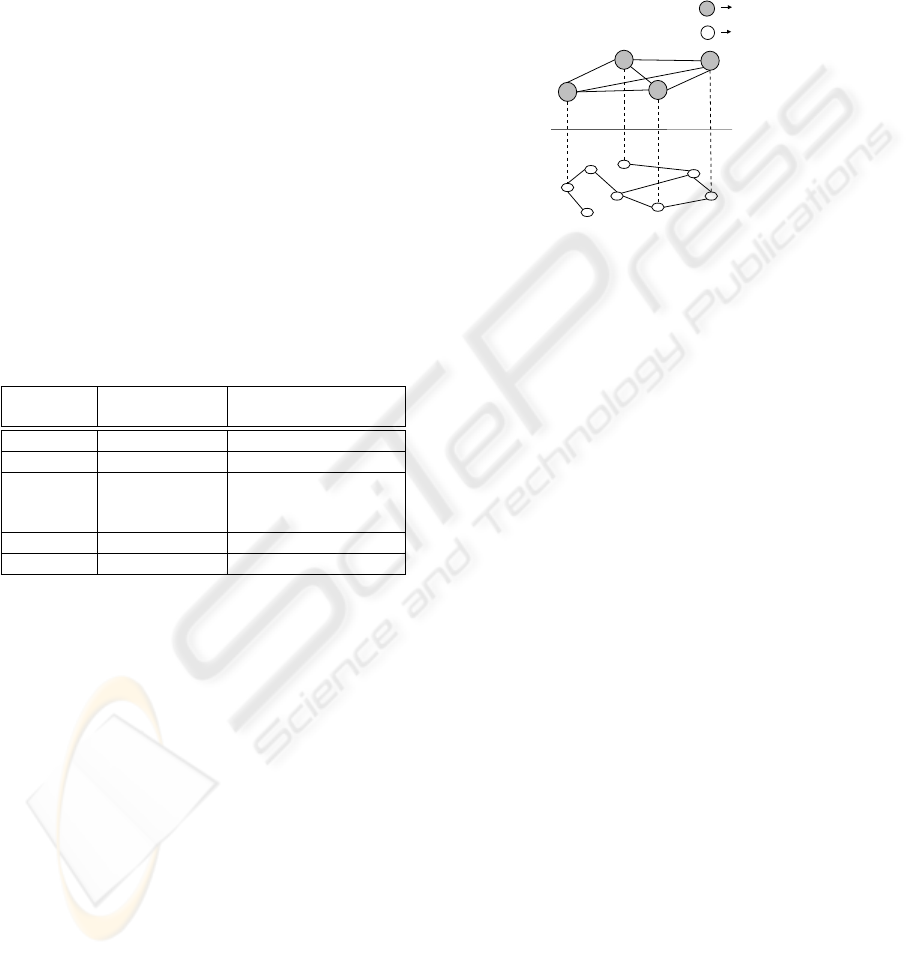

to multiple overlay links. Figure 1 shows an overlay

where each of the broker nodes A,B,C,D have a de-

gree of 3 whereas the corresponding physical nodes

do not. Also if the link between the physical nodes

1 and 2 fails then all the overlay links connecting the

broker node A fail. Without underlay awareness the

routing algorithm would be ignorant of these failures

and hence perform incorrectly. A fundamental chal-

lenge in using large-scale overlay networks is to in-

corporate physical level (IP level) topological infor-

mation in the construction and design of the overlay

to adapt to the node and link failures.

Overlay Topology

Physical Topology

Logical Nodes

Physical Nodes

Figure 1: Overlay topology.

Feasibility The environmental information like node

quality and path quality may change frequently due

to work load and trafﬁc variation, hardware unavail-

ability and software and hardware errors. The overlay

topology should periodically monitor the node capa-

bilities and link qualities. A node can obtain the local

system parameters with the support of the operating

system and the quality of the incident links can be

inferred using network monitoring mechanisms such

as pathload, traceroute, Sprobe (Caida, 2007) which

may be classiﬁed as passive observation or active

probing (Tang and McKinley, 2004). The routing al-

gorithm for the overlay network can be designed to

use the periodically obtained underlay information to

make changes to the overlay topology.

Construction of an Underlay Aware Overlay topol-

ogy We consider the hierarchical or tree structured

overlay topology and incorporate underlay awareness

features to make it capable of handling a single node

and link failure. The resultant topology also provides

the ﬂexibility of balancing the network load. In a tree

structured overlay topology when a broker node joins

the overlay network, it establishes a link with one of

the existing brokers. We enhance this standard tree

topology by making each new broker node establish

two disjoint overlay paths with one of the existing

brokers. Each of these overlay paths are ensured to

be node disjoint in the underlying physical network.

Each overlay link has the information about the phys-

ical path that connects the corresponding nodes in the

physical network, stored in its incident nodes. This

guarantees the existence of a real alternate physical

path even in the context of one overlay link failure.

Each new broker N chooses an existing broker C as its

parent to establish a link. The two disjoint paths con-

ICSOFT 2007 - International Conference on Software and Data Technologies

100

(a) Static Hierarchical Topology

3 2

New Joining Broker

Existing Broker

(b) Proposed Overlay topology

Alternate Path

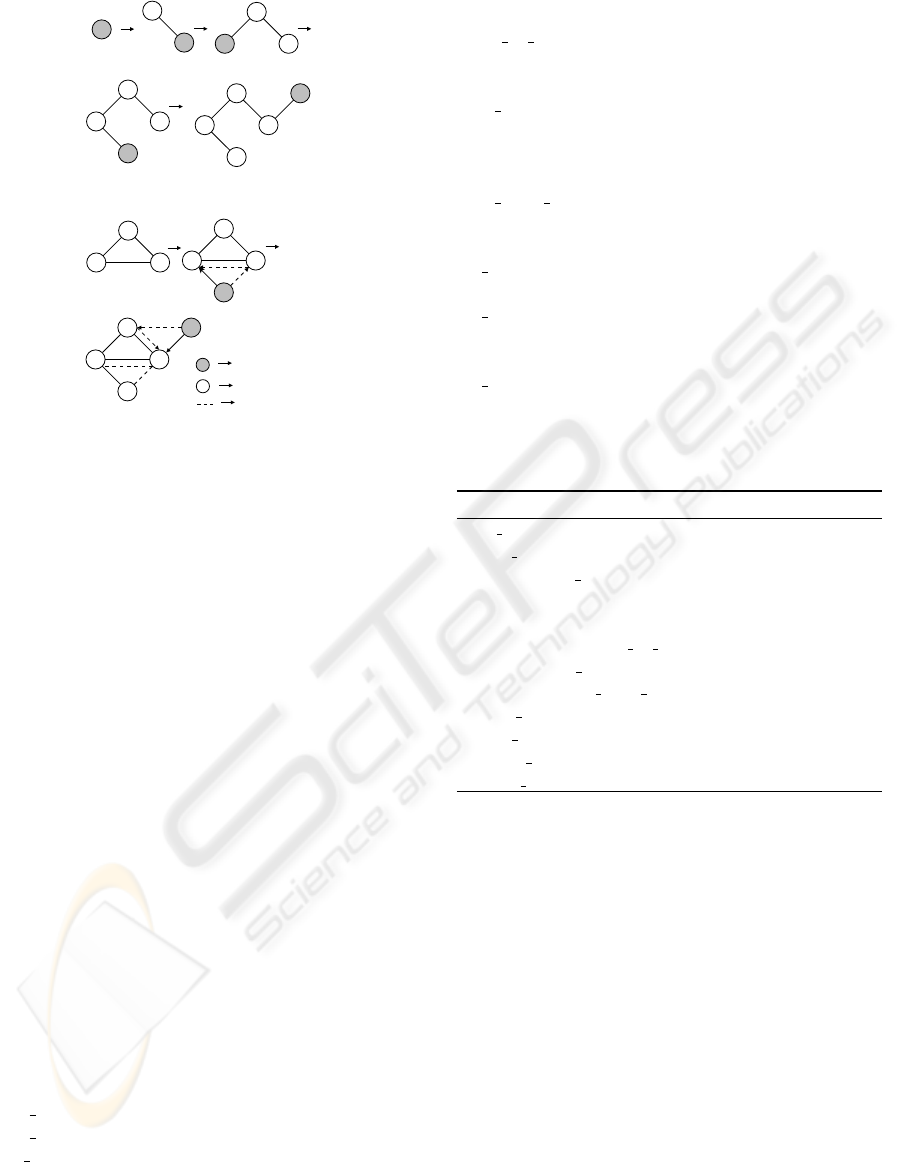

Figure 2: Topology formation.

sist of a direct link from the new broker to the chosen

broker C and an alternate path to the chosen broker

through a neighbor of the chosen broker A. Figure 2

shows a sample topology. These two paths are en-

sured to be node disjoint in the physical network. The

new joining broker N also establishes a link with the

parent broker P of the chosen broker C. The physical

path corresponding to this link does not contain the

chosen broker C. This will allow the the broker N to

reach P when broker C fails. Each broker stores the

replica of the routing table and other information of

all the children. This is used for handling the failure

of child. Also the alternate path from each broker to

its parent broker can be used to distribute the network

load and thereby obtain a better routing performance.

4 ALGORITHMS

The algorithms for overlay network creation and

maintenance are described below. The algorithm

ensures that each overlay node has an alternate path

to its parent broker node which is node disjoint with

respect to the underlying physical network.

Joining of a Broker Node When a new broker node

wants to join the overlay network, it executes the

Node

Join() algorithm. The routines used in this

Node

Join(Node N) algorithm are described below:

Find

Broker(): Finds a broker node which is nearest

to the calling broker node measured in terms of

number of IP hops.

Parent(): Returns the parent of the broker.

Neighbors(): Gives the list of neighbors of the

broker.

Paths

To Neighbors(): Gives the physical paths

associated with each of the overlay links connecting

the neighbors.

Find

Alternate(Neighbors,paths): Finds the neighbor

of the chosen parent broker C through which the

alternate path is established. This broker is termed as

Alternate broker.

Find

Node disjointpath(grandparent P,parent C):

Finds a path to the grandparent P which does not

contain C.

Set

Child(child N, Alternate broker A): Sets N as a

child and sets A is the neighboring broker to reach N.

Set GrandChild(Child N,Parent C, Path P): Sets N as

the Grandchild and P as the path to reach N bypassing

Set

Alternate(child N, Parent C): Sets the broker

as the alternate broker for reaching C form N and

vice-versa.

The new broker node N joining the overlay network

Algorithm 1 Joining of a broker node

Node Join(Node N)

1. trans

ﬂag=true;

2. Node C=Find

Broker();

3. Node P=C.Parent();

4. Node[] Neighbors=C.Neighbors();

5. Path[] paths=C.Paths

To Neighbors();

6. Node A=Find

Alternate(Neighbors,paths);

7. Path path2=Find

Node disjointPath(P,C);

8. C.Set

Child(N,A);

9. P.Set

GrandChild(N,C,path2);

10. A.Set

Alternate(N,C);

11. trans

ﬂag=false;

chooses a broker node C, already in the network. The

choice is based on the proximity with the new broker

node in terms of number of IP hops. The broker

node C replies the new node N with the address of

is parent, set of its neighbors and the IP paths to all

its neighbors. The new node N then establishes two

paths with the chosen broker node C which are node

disjoint in the underlying IP physical network. One

path is the direct path and the other path is through

one of the neighbors, A, of the chosen broker node C.

The choice of the alternate broker is also based on the

proximity in terms of number of IP hops. Finally N

ﬁnds a path to a node P, the parent of C, which does

not contain C. The arrival of new node N is registered

at C,A and P. The parent broker marks N as its child

and A as the alternate broker to reach C if the direct

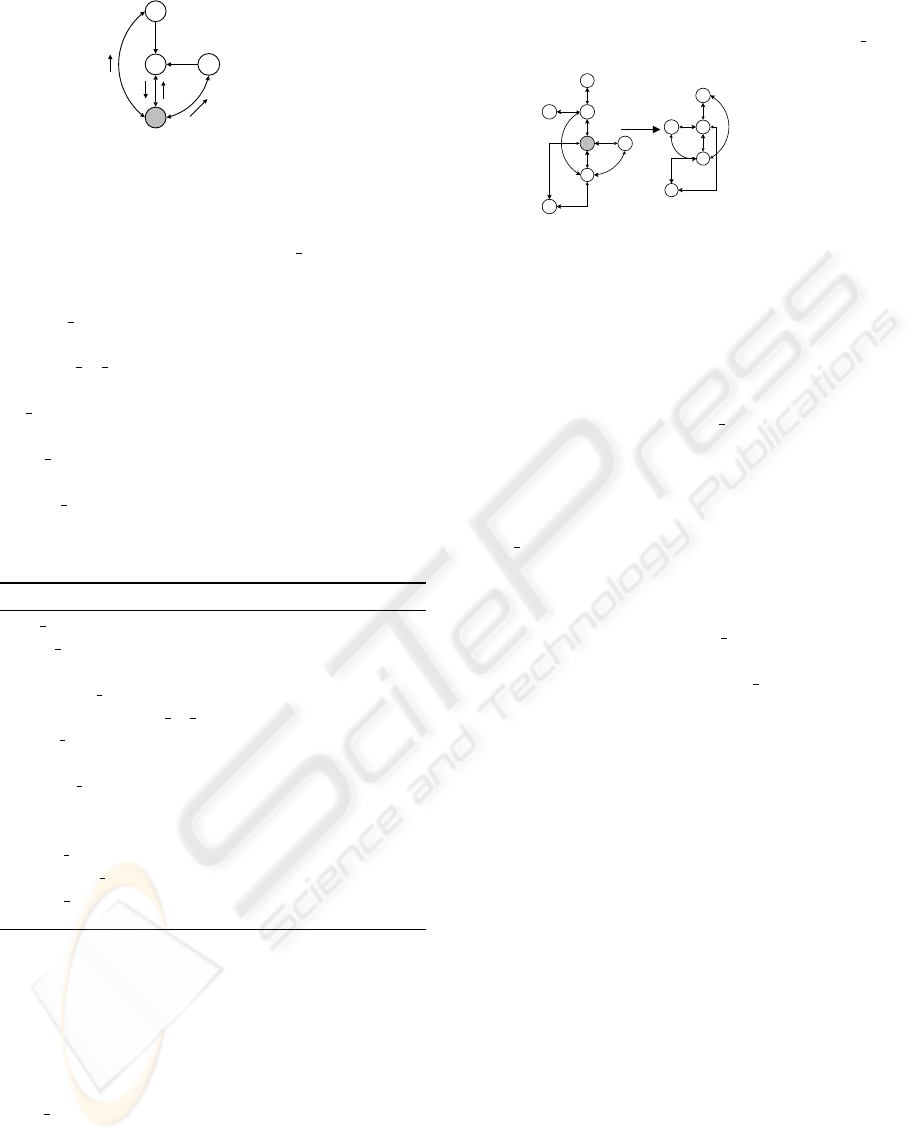

path from C to N fails. Figure 3 shows the sequence

of the operations that occur when a new node joins

the overlay network.

ADDING UNDERLAY AWARE FAULT TOLERANCE TO HIERARCHICAL EVENT BROKER NETWORKS

101

C-Chosen Parent Broker

A- Alternate Broker

P-Parent Broker of C

N-New Joining Broker

1. C sends information

about its neighbors.

2. N establishes links with

C and A.

3. N establishes link with

Figure 3: Joining of Broker node.

Leaving of a Broker Node Node

Leave(Node B)

is performed by a broker when it leaves the overlay

topology . The routines used in this algorithm are:

Connect

To(Node P):Performs node joining of the

calling node with Node P.

Alternate To Child(Child C):Gives the broker node

which forms the alternate broker node to reach C.

Link(Parent B, Child C):Unlinks the alternate

path from B to C.

Reset GrandParent():Resets the grand parent of the

node to the parent node of its parent node.

Choose Alternate():Chooses a new alternate Broker

node to reach the parent node.

When a node leaves the overlay network following

Algorithm 2 Leaving of a broker node

Node Leave(Node B)

1. trans

ﬂag=true;

2. For each child C of B

3. C.Connect To(B.Parent);

4. NodeA=B.Alternate

To Child(C);

5. A.Un

Link(B,C);

6. For each Grand Child C of B

7. C.Reset

GrandParent();

8. For each child C for which B is alternate Node

9. Node P=C.Parent();

10. P.Un

Link(B,C);

11. C.Choose

Alternate();

12. trans

ﬂag=false;

steps are to be taken. The overlay topology needs to

be maintained and the responsibilities of the leaving

broker node needs to be transferred to other nodes

in the overlay network. Each node can be a parent,

a grand parent and also an alternate broker. Each

of the children of the leaving broker node B has to

choose the parent of B as their parent and perform

Node

Join() to the parent of B. Node B notiﬁes all the

alternate brokers of each of its children to unlink with

B and the corresponding child. All the grand children

of B have to choose new grand parents based on the

new parent nodes of their parent nodes. Each node

C to which B is an alternate broker has to choose a

different alternate broker node. Figure 4 represents

the sequence of actions that take place when a broker

node leaves the overlay network. While the trans

ﬂag

After Broker B

Leaves

B-Leaving Broker

C-Child of B

A-Alternate Broker of C

to reach B

X-Grand Parent of C

Y-Neighbor of X chosen as

new alternate broker by C

Z-Child of C

Figure 4: Leaving of Broker Node.

is true the broker does not perform any other opera-

tion like accepting a new broker or any other routing

related operation like forwarding subscriptions etc.

This is to ensure the consistency in a distributed and

asynchronous environment. Any new broker trying to

contact this node, will ﬁnd another alternate path as

this node does not reply. Node

Leave() also includes

a priority based deadlock avoidance mechanism

which allows nodes lower in the hierarchy to leave

ﬁrst.

Complexity Analysis The complexity of the

Node

Join() algorithm is O(degree) where degree

is the maximum degree of any node in the overlay

network. This is because the node joining involves

probing all the neighbors of the parent Broker.

The complexity of the Node

leave() algorithm is

O(degree

). Since this involves all the children of the

leaving node also performing Node

Join().

The Data Structures Every broker node in the

overlay network stores the path to its parent node, al-

ternate node and grand parent. In addition, the rout-

ing table which can be a hash table containing entries

like (event type, children to be forwarded to) is re-

quired. The topology data table which contains the

table containing the list of children and their associ-

ated alternate brokers and the paths to each of them is

also stored. The replicas of the routing table and the

topology data of all its children are also maintained

and used to handle the node failure of its children.

These replicas are updated periodically by the chil-

dren of the node.

4.1 Failure Handling

Handling an Overlay Link Failure The overlay

link failure can be detected by a child while it tries

to send subscription to its parent or by a parent while

it tries to send a notiﬁcation to its child. In case of

failure of the direct link, the alternate link is used and

the parent node monitors the failed link for a time in-

terval τ and if the link is not up in that interval then the

child node has to join its grand parent or the alternate

broker.

ICSOFT 2007 - International Conference on Software and Data Technologies

102

Handling an Overlay Node Failure When a node

is unreachable through both the paths i.e the direct

and the alternate path then it is assumed to be failed.

When a child C detects that it’s parent P has failed

then it sends its grand parent the node failure event

of P. The failure of node P can also be detected by

the parent of P. In both the cases the parent of the

failed node performs the Node

Leave() operation of P

on behalf of P.

4.2 Proof of Correctness

Lemma: (i) In a hierarchical network in which ev-

ery broker node has two node disjoint paths x and y

to its parent node as well as a path z to its parent’s

parent, such that it is node disjoint from x and y and

does not contain the parent node, every node remains

connected to the root node in the event of failure of a

single physical node or link.

(ii) Moreover, if a new broker is added to the hierar-

chical network by forming three physical paths, x’, y’

to its parent and z’ to its parent’s parent such that x’,

y’ and z’ are pairwise node disjoint and z’ does not

contain the parent of the new node, then the resultant

network is also tolerant to single node and link fail-

ures.

Proof: Consider any non root broker node b in the

hierarchical network. We show that it remains con-

nected to the root node r in the event of failure of a

single node s (s6=b) or single link l.

I. If Node s fails

Case 1: s is b’s parent. Node b still has a path z to

node s’s parent, which does not contain node s, and

the network being hierarchical, the path from parent

of s to r does not contain s.

Case 2: Node s is b’s parent’s parent. Node b has

paths x and y to its parent, which is connected to its

own parent’s parent via a path independent of s, and

as the network is hierarchical, all the way to the root.

Case 3: Node s is not a broker node. If node s does

not occur in the physical path from b to r then its fail-

ure cannot affect the connectivity of b to r. If it ex-

ists in the path, then let (b,p

, p

... p

, r), be the path

along parent nodes from b to r. For any overlay edge

, p

i+1

along this path, the failure of s does not affect

the connectivity of p

to p

i+1

, as there is an alternate

physical path which does not contain s.

II. If Link l fails

If link l does not occur in the physical path from b

to r then its failure cannot affect the connectivity of b

to r. If it exists in the path, then let (b, p

, p

... p

, r),

be the path along parent nodes from b to r. For any

overlay edge p

, p

i+1

along this path, the failure of l

does not affect the connectivity of p

to p

i+1

, as there

is an alternate physical path which does not contain

link l.

5 SIMULATIONS

Experimental Setup The experimental setup con-

sists of a simple network simulator for event based

middleware. The Simulator, developed in java, mod-

els all the basic network features like delay, band-

width and loss of data. The application data is con-

verted into simulation events and kept in a simu-

lation event queue and then processed according to

their attached time stamps. The time stamp is as-

signed according to the delay for data to get trans-

ferred from the source to destination in a real net-

work. The Simulator can generate performance data

like the data trafﬁc, control trafﬁc and the process-

ing load. The Simple Event Based System network

Simulator uses BRITE ( Boston university Represen-

tative Internet Topology gEnerator) (Alberto Medina

and Byers, 2001) to generate Internet topology. The

overlay topology is formed from the BRITE gener-

ated physical network topology by choosing the over-

lay nodes from the physical nodes. The delay and

bandwidth are calculated over the physical path that

represents the overlay link. An AS-level physical

topology of 10000 nodes, generated by BRITE using

Waxman generation model is used for overlay topol-

ogy construction. The bandwidths for the links are

uniformly distributed.

Table 2: Simulation Parameters.

Number of events 10000

Number of Event Clients 1000

Number of Event Brokers 100

Distribution of Clients Uniform

Average Message size 50 bytes

Failure distribution random

For experimentally verifying the advantages of

an underlay aware overlay topology we implemented

SIENA( Scalable Internet Event Notiﬁcation Archi-

tecture)(A. Carzaniga, 2001) which has hierarchical

topology and extended it with underlay awareness

using the above discussed algorithms. The percent-

age of messages delivered to subscribers in the face

of increasing number of link and node failures is

monitored for underlay aware SIENA and unmodi-

ﬁed SIENA. The redundant paths between parent and

child node in underlay aware Siena are used to reduce

link stress on heavily loaded links. The experimental

results of this load balancing are plotted for under-

lay aware SIENA from the simulated results. Table 2

shows the simulation parameters.

ADDING UNDERLAY AWARE FAULT TOLERANCE TO HIERARCHICAL EVENT BROKER NETWORKS

103

Implementation Results The results shown here rep-

resent the effect of underlay awareness on fault toler-

ance and the effect of balancing network load in un-

derlay aware SIENA over underlay unaware SIENA.

In SIENA the load on each overlay link increases

when the amount of data trafﬁc thus increasing the

average delay. In Underlay aware SIENA the load is

distributed among the two different paths between a

child node and its corresponding parent node. The

data load considered here is generated only by pub-

lications. The results are plotted by taking the aver-

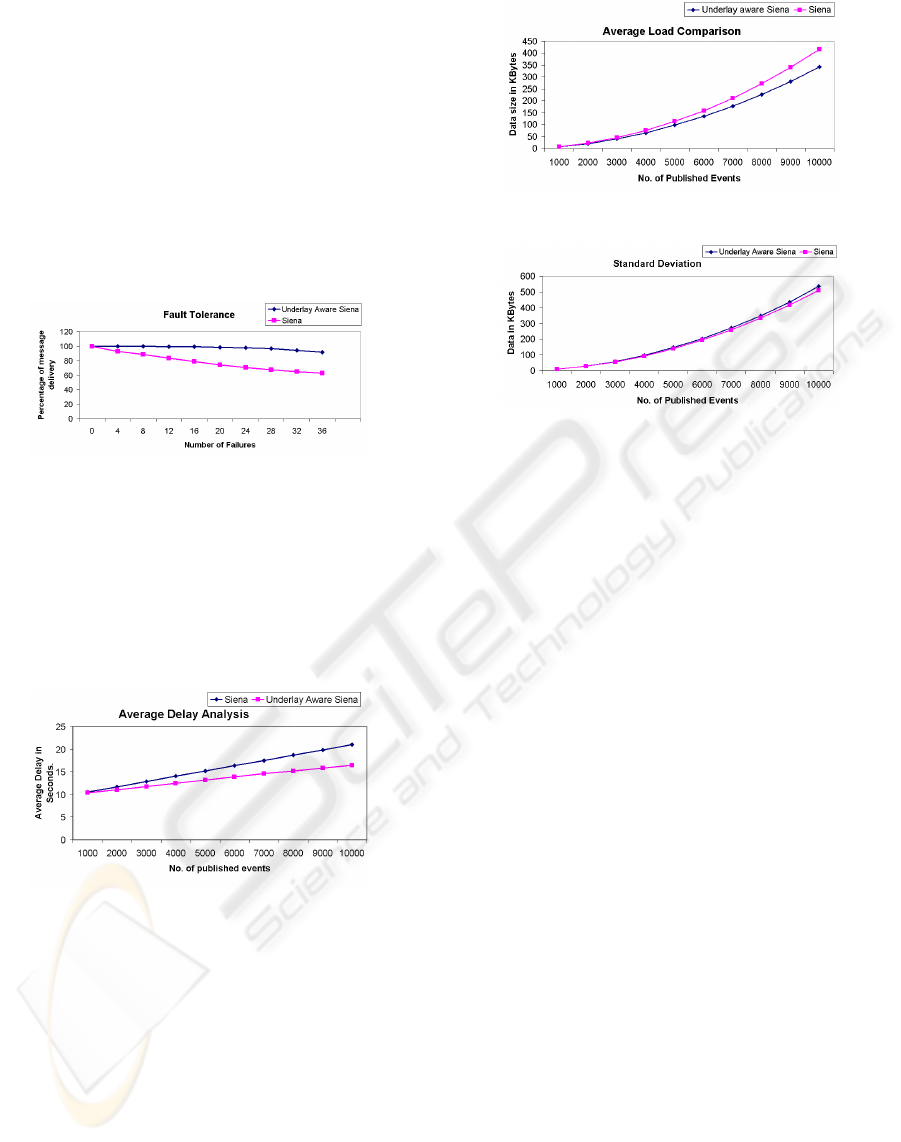

age in twenty simulation runs. Figure 5 shows the

Figure 5: Message delivery in the presence of failures.

percentage of notiﬁcations delivered in the presence

of varying number of faults, for underlay aware and

unmodiﬁed SIENA, and shows that the message de-

livery percentage is higher in underlay aware SIENA

in comparison with unmodiﬁed SIENA, and the dif-

ference between them increases when the number of

failures increase. Figure 6 shows the average delivery

Figure 6: Delivery latencies with increasing events.

latency per event. In underlay aware Siena, the al-

ternate routing paths available are used to reduce the

waiting time for event forwarding. This causes a re-

duction in the message delivery latencies over unmod-

iﬁed Siena. The average stress (load) on the links in

Kilobytes and the standard deviation of the link stress

(load) were studied with increasing number of events

from 1000 to 10000. Figure 7 shows that the average

link loads are less in underlay aware Siena, due to the

load balancing effect of alternate routing paths, and

the increase in the number of overlay links. Figure 8

shows that in underlay aware Siena, the standard de-

viation of the loads on different links is comparable

to that of unmodiﬁed Siena, indicating that the added

Figure 7: Average link stress comparison.

Figure 8: Comparison of standard deviation of Link Stress.

links are also loaded to a degree comparable to exist-

ing links.

6 CONCLUSIONS

In this paper, we demonstrate that hierarchical overlay

networks can be improved by enhancing them with

underlay awareness information. We outlined algo-

rithms to enhance the Siena overlay by adding node

disjoint paths from the newly joined broker to its par-

ent and grandparent, making the overlay tolerant to

single node and link failures and proved our algorithm

to be theoretically correct. We also proposed that the

redundancy in paths so achieved, could be used for

reducing message delivery latencies by using alter-

nate routing paths. The correctness of our hypothesis

is corroborated by our simulation results which show

that with increasing number of faults, underlay aware

Siena shows much better event delivery performance

than unmodiﬁed Siena. The results also show that

with increasing number of messages, underlay aware

Siena gives less message delivery latencies and bet-

ter load balancing than unmodiﬁed Siena. Our future

work includes construction of underlay aware overlay

networks which can tolerate a larger number of node

and link failures for general topologies.

REFERENCES

A. Carzaniga, D. S. Rosenblum, A. L. W. (2001). Design

and evaluation of a wide-area event notiﬁcation ser-

ICSOFT 2007 - International Conference on Software and Data Technologies

104

vice. ACM Trans. on Computer Systems, 19(3):332–

383.

Alberto Medina, Anukool Lakhina, I. M. and Byers, J.

(2001). BRITE: Universal topology generation from a

user’s perspective. Technical Report BUCS-TR-2001-

003, Boston University.

Caida (2007). Performance measurement tools taxonomy.

http://www.caida.org/tools/taxonomy/performance.xml.

L. Fiege, G. M. (2002). Large-Scale Content-Based Pub-

lish/Subscribe Systems. PhD thesis, TU Darmstadt

Germany.

Madhu, K. and Bellur, U. (November 2006). An Underlay

Aware, Adaptive Overlay for Event Broker Networks.

In Proceedings of the 5th International workshop on

Adaptive and Reﬂective Middleware (ARM ’06), Mel-

bourne.

Pietzuch, P. R. (2004). Hermes: A scalable event-based

middleware. Technical Report UCAM-CL-TR-590,

University of Cambridge.

Rowstron, A. and Druschel, P. (2001). Pastry: Scalable, de-

centralized object location and routing for large-scale

peer-to-peer systems. In Proceedings of the 3rd Inter-

national Conference on Middleware, Middleware’01,

pages 329–350, Heidelberg.

Singh, J. P. and Cao, F. (2005). MEDYM: Match-early and

dynamic multicast for contentbased publish-subscribe

service networks. Proceedings of the Fourth Interna-

tional Workshop on Distributed Event-Based Systems

(DEBS) (ICDCSW 05), 4(3):370–376.

Tang, C. and McKinley, P. K. (2004). Underlay-aware

design of overlay topologies and routing algorithms.

Technical Report MSU-CSE-04-09, Department of

Computer Science and Engineering,Michigan State

University, East Lansing, Michigan 48824.

ADDING UNDERLAY AWARE FAULT TOLERANCE TO HIERARCHICAL EVENT BROKER NETWORKS

105
