AUTOMATIC TEST MANAGEMENT OF SAFETY-CRITICAL

SYSTEMS: THE COMMON CORE

Behavioural Emulation of Hard-soft Components

Antonio Grillo, Giovanni Cantone

Dipartimento di Informatica Sistemi e Produzione, Università degli Studi di Roma “Tor Vergata”

Via del Politecnico, 1, 00133 Roma, Italy

Christian Di Biagio, Guido Pennella

MBDA-Italy SpA, Via Tiburtina, Roma, Italy

Keywords: Distributed systems, Model-based testing, Automatic test management technology.

Abstract: In order to solve problems that the usage a human-managed test process caused, the reference company for

this paper - Italian branch of a multinational organization which works in the domain of large safety-critical

systems - evaluated the opportunity, as offered by major technology that the market provides, of using

automatic test management. That technology resulted not sufficiently featured for the company’s quality

and productivity improvement goals, and we were charged for investigating in deep and eventually

satisfying the company’s test-management needs of automation. Once we had transformed those goals in

technical requirements and evaluated that it was possible to realize them conveniently in a software system,

we passed to analyze, construct, and eventually evaluate in field the “Automatic Test Management” system,

ATM. This paper is concerned with the ATM subsystem’s Common Core, CC. This allows the behavioral

emulation of hard-soft components - as part of a distributed real components scenario placed under one or

more Unix standard operative systems - once we describe those behaviors by using the Unified Modeling

Language. This paper reports on the ATM-CC’s distinctive characteristics and architecture overview.

Results from a case study show that, in order to enact a given suite of tests by the ATM-CC, the amount of

time required is more or less the same for the first test run, but it becomes around ten times less for the

following test runs, than the time required for managing the execution of those tests by hand.

1 INTRODUCTION

The development of safety critical software in an

industrial environment cannot be apart from the

execution of a careful testing activity. Before

designing a safety-critical real-time distributed

system, a specification of the required behavior of

the whole system should be produced and reviewed

by domain experts.

Additionally, when a test-driven software

process model is assumed, the well-timed planning

and early execution of validation and verification

activities assure a key guidance for the overall

software development process, the initial phases

included (Horgan, 1994).

The goal of the present paper is concerned with:

(i) Expressing the reference company needs of

testing safety-critical distributed systems in terms of

expected behavior (sequence of actions) in response

to a specific stimulus (sequence of inputs); (ii)

Developing an engine subsystem that meets those

needs; (iii) Characterizing that engine, and accepting

it in field by a case study.

In the remaining of the paper, Section 2 sketches

on the Model-Based Testing (MBT). Section 3

transforms the reference organization’s needs and

goals in required features for a testing-support

system. Section 4 presents the philosophy,

architecture, and functionalities of the Automatic

Test Management – Common Core (ATM-CC), our

prototype system, which is based on those features,

and is the focus of this paper. Section 5 shows the

results from a case study, which compares the use of

ATM-CC with the usual manner of enacting

software test at our reference company. Section 6

150

Grillo A., Cantone G., Di Biagio C. and Pennella G. (2007).

AUTOMATIC TEST MANAGEMENT OF SAFETY-CRITICAL SYSTEMS: THE COMMON CORE - Behavioural Emulation of Hard-soft Components.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 150-155

DOI: 10.5220/0001338701500155

 SciTePress

presents some conclusions, and points to the future

work.

2 MODEL-BASED TESTING

The goal of testing is detection of failures, i.e.

observable differences between the behaviors of an

implementation and what is expected on the basis of

the related requirements specification.

Model-Based Testing (Apfelbaum, 1997), MBT,

is a testing approach that relies on explicit behavior

models, which encode the intended behavior of a

system and possibly the behavior of its environment

(Utting, 2007). In the MBT approach, based on

software requirements, it is possible to derive a test

data model, which is made by test tuples, i.e. pairs of

“input” and “output”. The input elements are

interpreted as test cases for the implementation; the

output elements are the expected output of the

system under test (SUT) (Vienneau, 2003).

Our reference organization works in the safety-

critical domain; hence, some kinds of structural

testing have to be applied to products. Because these

are conformant to standard component-based

message-passing only domain architecture, it is

possible to map MBT test cases, as derived from the

system requirements, into test cases concerning the

behaviors of the architectural components, i.e.

related interactions. The application of model based

testing ensures great benefits when the target system

is a complex system (sometimes called with Flow

Testing) (Dalal, 1999).

Let us consider now two types of state-of-the-art

methods and technologies that may be useful in

improving the effectiveness of MBT.

• Formal requirements specification–based

methods and technologies: in this case, testing

experts are requested to provide a formal

specification of some sort of the requirements,

e.g. as simple as a text file, to an MBT

technology. This automatically generates suites

of test cases, i.e. behavioral models of the

application system, and eventually executes

those tests. Hence, test-engineering are involved,

who are able to translate the complexity of the

application system into a text.

• CASE-based methods and technologies: in this

case, testing people are requested to provide a

formal representation of test cases. Formalisms

for such a representation include: Software Cost

Reduction (Hager, 1989), Unified Modeling

Language, UML (Booch, 2000), Specification

and Description Language (SDL, 2007), Entity-

Relationship Diagrams (Bagui, 2003), Extended

Modeling Language, XML (Harold, 2004). The

successful usages of these formalisms are

reported by the staffs of significant projects

(SPEC, 2007), (ConformiQ, 2007), (SAMSTAG,

2007), (Telelogic, 2007), (ASML, 2007). Let us

also note that it is different from those named

above, the formalism that some other projects

utilized, respectively (DTT, 2007), (GOTCHA,

2007), (MulSaw, 2007), (Boyapaty, 2002).

Many of the available CASE tools require a

supplementary activity for writing the test model.

Additionally, few of those tools base themselves on

UML (Offut, 1999), and, in case, often they rely on

a type of diagram for describing a test models,

which belongs to the UML static view: the

Statechart Diagram.

In the remaining of this paper we present a new

model that relate to the CASE-based method.

3 TEST-FEATURES

Based on the expected use cases and the resulting

requirements, a list of test-features follows, which

tries to characterize a MBT subsystem, and is able to

satisfy the needs that our reference organization

expressed: (1)Emulation of the behavior for one or

more hard-software components, as part of a

dynamic scenario. (2)Definition of a basic pattern

for the description of a component to emulate.

(3)Simple definition, for each emulated component,

of its “behavioral chains” (see Section 4.3 for

details). (4)Parallel processing of the emulated

components’ behavioral chains. (5)Sequential

processing of each behavioral chain. (6)Support of

the conversion to a common exchange language of

the languages that the real components utilize for

communicating with their own external world.

(7)Support of the reuse of previous configuration

files in the definition of a new test scenario.

(8)Support for not intrusive recording of meaningful

activities, as carried out during a test. (9)Support for

not intrusive recording of the traffic through

input/output communication links. (10)Creation of

an interface and related protocol for the remote test

execution. (11)Support for communication between

participants to a test scenario upon UDP-IP or TCP-

IP logic links. (12)Support for repetition of single

test cases or set of them (test suites) in order to

confirm previous test results, e.g. following

hard/software changes, or product acceptance tests

to run at any deployment site.

AUTOMATIC TEST MANAGEMENT OF SAFETY-CRITICAL SYSTEMS: THE COMMON CORE - Behavioural

Emulation of Hard-soft Components

151

4 ATM-COMMON CORE

ATM-CC is a complex testing subsystem that deals

with emulating the behavior of a component, as part

of a dynamic scenario.

ATM-CC and ATM-Console compose the ATM

system. The latter subsystem is in the responsibility

of validating each executed test, and works on test

data that the ATM-CC collects from the

communication lines and records into repository.

The ATM-Console is object of another study (Accili

et al., 2007) and is not further considered in the

present paper.

It is a distinctive feature of the ATM-CC MBT

subsystem, the usage, as test model, of a kind of

diagram that should belong to the software

documentation of each component: the UML

Activity Diagram. The lifecycle of an ATM-CC is

composed by the sequence of three states:

• Configuration: the Common Core loads the

set of specific directives that concerns the real

components to test, their communication lines,

and characteristics of the messages exchanged.

• Test: the Common-Core carries out all the

activities needed to emulate the behavior, as

expected by each emulated component, in the

scenario that a set of loadable configuration

files describes.

• Store: the Common-Core manages the

recording of simulation data in a persistent

repository.

This is to allow the reuse of specific test cases or test

suites at a later time for testing one more versions of

the same system, deployments, or other target

system. These data are also utilized for test

validation (Accili et al., 2007).

4.1 Architecture

The ATM-Common Core is build-up by five macro-

units (see Figure 1):

• Core Unit: represents the core of the

subsystem; it is in the responsibility of

processing the behavioral chains, which

describe the behaviors that each emulated

component performs in the test scenario.

• Configuration Unit: for each component to

emulate this unit loads a specific configuration;

in case, it detects lacks of consistency.

• Recorder Unit: records test data; it also

records and manages test related data, allowing

the reuse of test scenarios.

• Communication Unit: is in the responsibility

of enabling and managing communication

between any emulated component and other

components that participate in the test scenario.

• Console Interface Unit: exports services for

the remote control and validation of a test

scenario. Services exported are divided into

two categories:

 Input Services: they allow to load a custom

configuration for the test scenario

execution;

 Output Services: they allow the exporting

of data useful for test scenario monitoring

and validation.

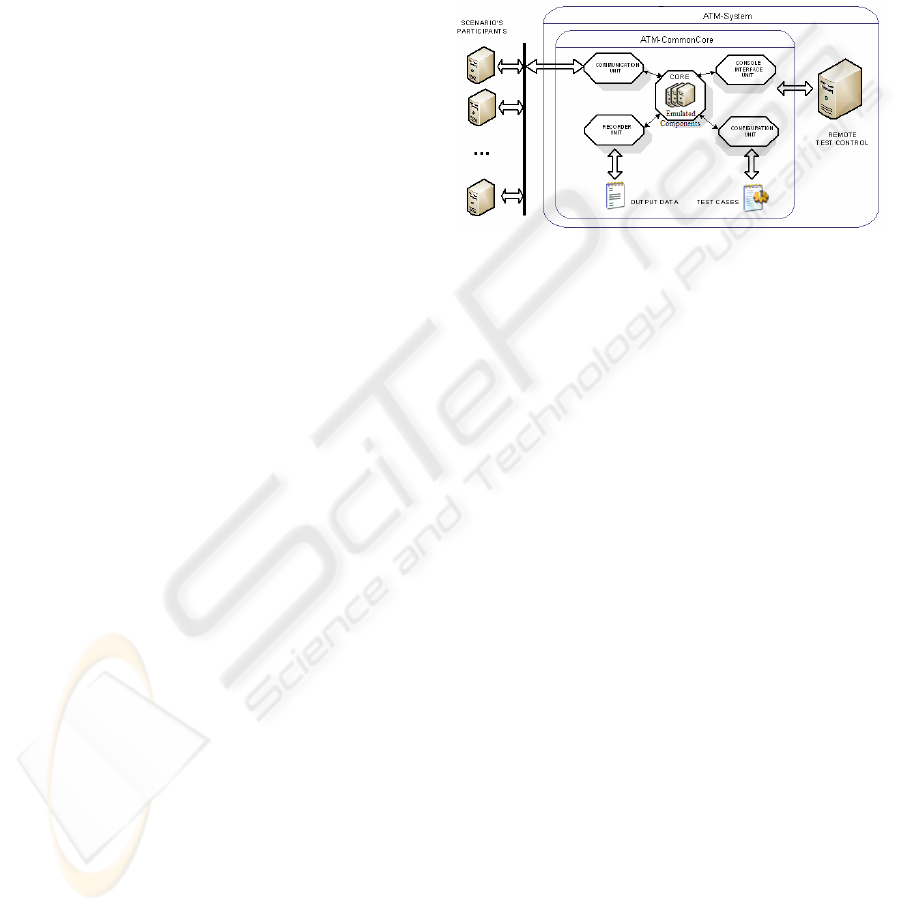

Figure 1: The ATM-Common Core subsystem, and its

architecture and position in ATM-System.

4.2 Description of Hard-Soft

Components for Emulation

It is a novel key feature of the ATM-CC, a new

pattern that we defined for describing hard-software

components for their emulation. This pattern is made

up by three points of view:

• Behavioral perspective: wraps all the

behavioral chains; this perspective concerns the

response of an emulated component to specific

sequences of inputs.

• Semantic perspective: wraps all the

communication languages that any emulated

component is able to use; this perspective

allows interaction between components that

takes place into a test scenario.

• Topological perspective: wraps all the

information assuring the correct localization of

an emulated component into a test scenario;

this perspective also includes the external

world’s knowledge, as owned by each

emulated component.

4.3 Behavioral Perspective

The set of behavioral chains compose the behavioral

perspective. In order to ensure that, in the response

time available, the emulator carries out all the

responsibilities that any emulated component owns,

the emulator has to execute concurrently those

chains, while emulating the component behavior.

ICSOFT 2007 - International Conference on Software and Data Technologies

152

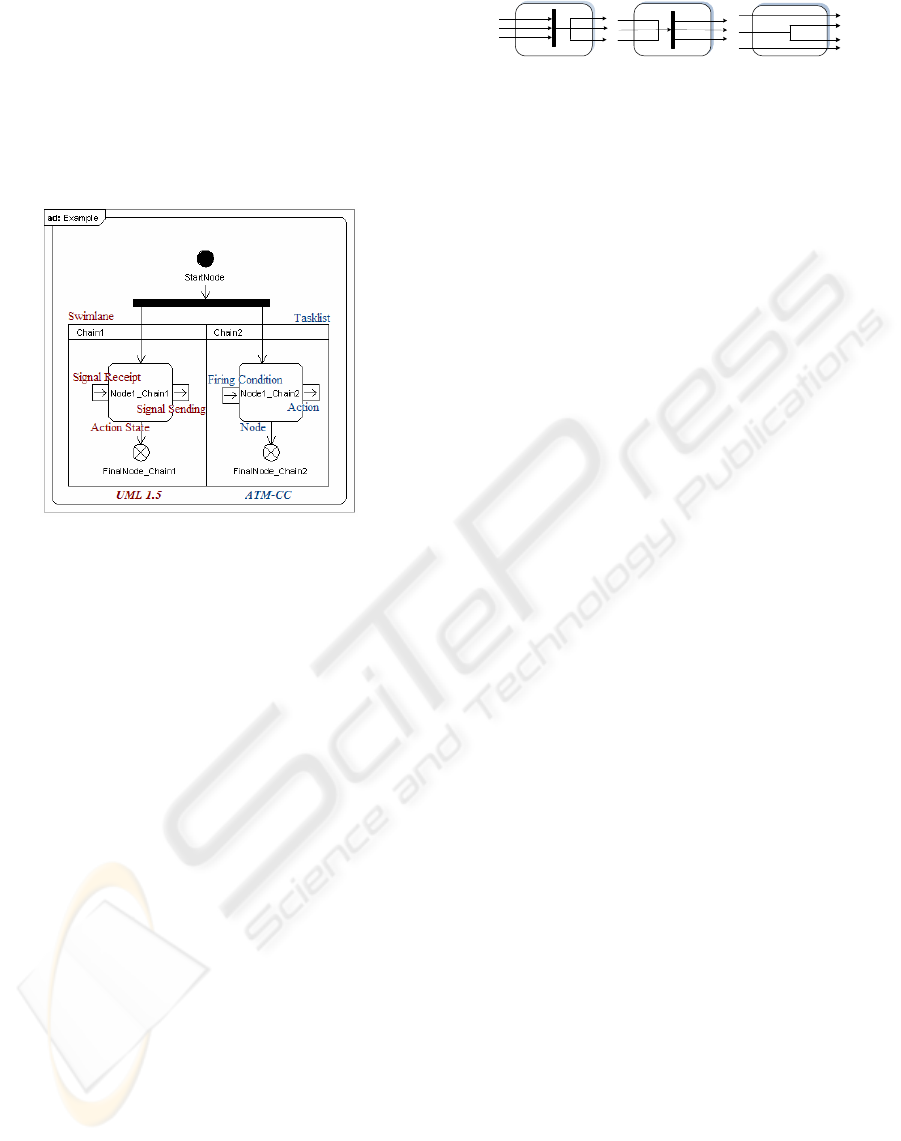

An UML Activity Diagram (Booch, 2000)

represents the behavioral perspective in the

subsystem ATM-CC. Figure 2 shows two very

simple behavioral chains, which are composed of

one node each. Figure 2, left side shows the relevant

elements of a behavioral chain, as it would appear

by using the generic version of UML 1.5. Figure 2,

right side shows the semantic specialization of those

generic elements to the ATM-CC context.

Figure 2: Behavioral Abstraction, a simple example.

The UML1.5’s Swimlane is used to translate an

ATM-CC behavioral chain (or “tasklist”) into UML.

Each chain can be thought as a list of one or more

ATM-CC “nodes” to be processed in a sequential

flow. A node is represented by its “firing conditions”

and “actions”. The UML 1.5’s Action State is used

to express a node.

A firing condition of a node can be viewed as a

clause that enables the node to process its actions

(i.e. Wait for something). Signal Receipt of the UML

Activity Diagram’s formalism is utilized to express

the semantics of an ATM-CC firing condition.

An action can be viewed as a capability to

determine observable effects, like sending messages

to components, tracing a message, starting/stopping

a tasklist, jumping to a node (i.e. Do something). In

the Activity Diagram’s formalism, the UML Signal

Sending is utilized to represent the semantics of an

ATM-CC action.

The ATM-CC semantics considers three kinds of

nodes (see Figure 3): And-node, Or-node, and Cond-

node, which differences are made up by the type of

relationship between the firing condition set and the

action set. The actions, as an “And-node” owns, are

executed when it is completely satisfied (join-bar)

the set of the node’s firing conditions; the actions, as

owned by an “Or-node”, are executed as soon as any

firing condition is satisfied for the node (fork bar).

The semantic hidden by a “Cond-node” is quite

different: there are subsets of firing conditions that

enable subsets of actions, respectively.

Figure 3: Kind of nodes in a behavioral abstraction.

4.4 Semantic Perspective

It composes the semantic perspective of any

emulated component, the set of the communication

languages that such a component is able to use.

A separate XML file provides the definition of

an allowed communication language. This is made

on a set of message patterns. Using an ad-hoc syntax

to fill in XML files allows specifying patterns of

messages. Such a message is structured as: fields

(each typed), iterations (a fixed sequence of fields,

which occurs one or more times in the message), and

variants (a variable sequence fields, which occurs

one or more times in the message).

In order to execute a single test scenario, i.e. a

certain suite of test cases, it is possible to load

different communication languages from the XML

files, so allowing the emulated components to utilize

multiple communication languages.

4.5 Topological Perspective

The topological perspective is represented by a set

of XML files describing the context of the test’s

scenario, and the knowledge that each emulated

component owns. There are separate files for

instructing ATM-CC about (i) connections to set up,

(ii) messages to send on the logical lines, (iii) events

to recognize, (iv) traces to emit, (v) operator-

consents to explicitly ask for, and (vi) triggers to

activate.

The knowledge, as the end-users put into

configuration files, belongs to all the presented

perspectives. That knowledge is requested to be

correct, complete, and consistent. Correctness,

completeness, and consistency are tied by the

information’ syntax, the coverage of all the

necessary aspects and the check of information

reciprocally linked, respectively.

5 CASE-STUDY

Let us present now results from a case study that we

conducted in field to analyze the effectiveness and

the efficiency of the ATM-CC. Because they still

managed tests by hand, there is no technology

already in use at the reference organization that we

might compare with the ATM-CC subsystem.

And-Node Or-Node Cond-Node

AUTOMATIC TEST MANAGEMENT OF SAFETY-CRITICAL SYSTEMS: THE COMMON CORE - Behavioural

Emulation of Hard-soft Components

153

Consequently, in order to evaluate pros and cons

of ATM-CC, our choice was to adopt a very large

distributed safety critical application system,

previously developed and tested by hand at the

reference organization, as the case study object.

The aim of our case study was to compare

performances of hand-made and ATM-CC managed

-based tests for the second and successive test runs.

We did not consider the first test of the application

system because this workflow includes the

production of unique artifacts and the development

of specific activities that do not occur further and

which efforts are reused by all successive tests.

Let us show now what we made in our case

study: (1) interviewing the original testers to get

information about the process enacted to conduct

any test run except the first one for that system, and

collecting data concerning the cumulative time they

spent; (2) interviewing again the original testers to

get information about test cases they had been

running (Topological perspective); (3) choosing a

many use-case of the application system to utilize in

the case study; this use case models the system

bootstrap, and includes a sequence of interactions

between the end-user and the system through the

graphical user interface of the emulated component;

(4) obtaining the Sequence Diagrams-like

description for that use case, which is already

available at the company site (in fact, these diagrams

are artifacts that resulted from the first test run of the

application system, and its subsequent maintenance);

(5) transposing those Sequence Diagrams into the

XML Metadata Interchange (XMI) representation of

an Activity Diagram, and describing the related

instances of messages in XML notation (Behavioral

perspective); (6) using the original design

documentation of the case study system to obtain the

communication languages, as used by the system

components; (7) translating those languages to XML

notation by constructing and eventually using a

proper compiler (Semantic perspective); (8)

representing the emulate component in terms of

components’ 3-views; (9) configuring the ATM-CC,

based on the given XML and XMI files; (10)

running automatic managed test of the application,

and measuring time spent by the operator to execute

the test (Automatic-Test); (11)comparing the testing

times as collected in the first and last points above.

Concerning the hand-made, the testing duration

time (tdt) of the case study’s use case (i.e. tdt

HAND

)

amounted to fifty minutes, while the time needed to

execute the automatically the test for same use case

(i.e. tdt

ATM-CC

) amounts to five minutes.

Expression 1: Ratio between test times without and with

ATM-CC usage.

In order to understand the result that Expression

1 shows, in the remaining we reason on the factors

that affect test management. In particular, we focus

our reasoning on the impact that those factors have

on the duration time of a test session.

The set of factors – both objective, i.e. related to

the object to test, and subjective, i.e. related to the

experience of who performs the test – which mainly

affects the overall testing time it’s quite larger,

including: Inexperience of the tester (I), Number of

Requisites that a test case (i) does cover (NR

Number of Test cases (NT), and the kind (j) of each

requisite, which the current test case impacts on

Let the Complexity index (C) of a test be a

weighted average on those factors:

Expression 2: Complexity index of test.

Let us denote with tdt(C) a function to convert

the Complexity index, as shown by Expression 2,

into the duration time needed to enact the

corresponding test session. We are still conducting

empirical investigations about values to assign to

C’s weights for hand-made and automatic tests,

respectively. Additionally, we are still not ready to

make proposals about the forms that the function

tdt(C) could assume in those cases. However, it is

our conjecture that both the following items depend

on the level of automation that we are able to

provide in support of testing conduction: (i) the C’s

weights, and (ii) the forms of tdt(C).

Concerning the former, some of the C’s weights

tend to zero when ATM-CC is used to support test,

including w

Kij

; indeed, once that the ATM-CC has

been configured for a test suite and launched, it is a

machine rather than a human in control of the test

run; consequently, the test execution tends to

become independent from the human reaction time.

Concerning the tdt(C) forms , the test duration

time depends more than linearly, possibly

exponentially, on the complexity index, in our

expectation: when the test complexity grows, e.g. by

factor of two, the automaton just will have to work

two times as before, because of the growth of

objective factors, while the human effort would

grow more than two times, because of the additional

effect caused by the greater influence both of

human-related factors, like the number, and the

relatively less experience, of the involved people.

In conclusion, concerning tdt(C), our

expectation is that both tdt

ATM-CC

tdt

HAND

ICSOFT 2007 - International Conference on Software and Data Technologies

154

light linearly, while the latter tends to grow

exponentially. Our case study considered an

application that represents the reference company’s

typical products, which means that ATM-CC is

expected to satisfy systematically the reference

organization’s testing needs. However, based on the

considerations above, moving our testing support

system to other organizations should be carefully

evaluated: in fact, there are software products of

many kinds, for which hand-made test management

should still be more convenient than introducing

ATM-CC-like automatisms.

6 CONCLUSIONS AND FUTURE

WORK

This paper first presented the philosophy,

architecture, and features of a subsystem, ATM-CC,

for providing automatic support to test management

of safety-critical systems, and then briefed on the

productivity of ATM-CC in comparison with the

productivity shown by the hand-made approach, as

still adopted at the reference organization for this

study. Thanks to ATM-CC, test management at the

reference organization promises to be no further a

time and resource consuming heavy activity.

Moreover, the adoption of ATM-CC allows reducing

the rate of those many errors, which the involvement

of human testers usually provokes. Furthermore,

ATM-CC showed to be specially indicated for

testing real-time interactive scenarios, where the

target system strongly interacts with one or more

human operators by complex graphical interfaces.

Future works will address: (i) emulation of

multiple components by the execution of a single

ATM-CC instance; (ii) extension of the formalism

for describing component behavior; (iii) introduction

of capabilities for forking and joining the

components’ behavioral chains.

REFERENCES

Accili, V., Di-Biagio, C., Pennella, G., Cantone, G., 2007.

Automatic Test Manager: Console. Submitted for

acceptance to Int. Conference.

Apfelbaum, L., and Doyle, J., 1997. Model-Based Testing.

In Software Quality Week Conference.

Bagui, S., Earp, R., 2004. Database Design using Entity

Relationship Diagram. Auerbach.

Booch, G., Rumbaugh, J., Jacobson, I., 2000. Unified

Modeling Language User Guide. Addison-Wesley, 2

Edition.

Boyapati, C., Khurshid, S., Marinov, D., 2002.

Korat: Automated testing based on Java predicates.

In International Symposium on Software Testing and

Analysis (ISSTA 2002), pp-123-133.

ConformiQ Software Ltd, 2007. ConformiQ Test

Generator. http://www.conformiq.com/, March.

Dalal, S. R., Jain, A., Karunanithi, N., Leaton, J. M., Lott,

C. M., Patton, G. C., Horowitz, B. M., 1999. Model-

Based Testing in Practice. In Proceedings of ICSE’99,

ACM Press.

Hager, J. A., 1989. Software Cost Reduction Methods in

Practice. In IEEE Press Vol. 15, Issue 12, pp. 1638 -

1644

Harold, E. R., Scott Means, W., 2004. XML in a Nutshell.

O’Reilly, 3

Edition.

Horgan, J. R., London, S., Lyu, M. R., 1994. Achieving

Software Quality with Testing Coverage Measures. In

IEEE Computer. Vol.27, No. 9, pp. 60-69.

IBM Research Lab in Haifa, 2007. GOTCHA – TCBeans.

http://www.haifa.il.ibm.com/projects/verification/gtcb/

index.html.

Microsoft, 2007. Abstract State Machine Language

(ASML),http://research.microsoft.com/foundations/As

mL/.

MIT, 2007. MulSaw Project on Software Reliability.

http://mulsaw.lcs.mit.edu/.

Offutt, A. J., 2007. Software Acquisition Gold Practice:

Model Based testing.

http://www.goldpractices.com/practices/mbt/index.php

Offutt, A. J., Abdurazik, A., 1999. Generating Tests from

UML Specifications. In Second International

Conference on the Unified Modeling Language.

SDL Forum Society, 2007. Introduction to SDL.

http://www.sdl-forum.org/.

Software Prototype Technologies 2007. Direct To Test

(DTT). http://www.softprot.com/ (now

http://www.critical-logic.com/).

Telelogic, 2007. Telelogic Tau TTCN Suite.

http://www.telelogic.com/.

University of Fribourg, 2007. SDL And MSC based Test

case Generation (SAMSTAG).

http://www.iam.unibe.ch/publikationen/techreports/19

94/iam-94-005.

Utting, M., Legeard, B., 2007. Practical Model-Based

Testing: A Tools Approach. Morgan-Kaufmann.

Utting, M., Pretschner, A., Legeard, B., 2006. A

Taxonomy of Model-Based Testing, DCS, University

of Waitako, Hailton, New Zeland, Working paper:

04/2006.

Vienneau, R. L., 2003. An Overview of Model-Based

Testing for Software. Data and Analysis Center for

Software, CR/TA 12.

AUTOMATIC TEST MANAGEMENT OF SAFETY-CRITICAL SYSTEMS: THE COMMON CORE - Behavioural

Emulation of Hard-soft Components

155
