AN ONTOLOGICAL SW ARCHITECTURE FOR THE

DEVELOPMENT OF COOPERATIVE WEB PORTALS

Giacomo Bucci, Valeriano Sandrucci, Enrico Vicario

Dipartimento di Sistemi ed Informatica, Universit

a degli Studi di Firenze

Saverio Mecca

Dipartimento Tecnologie dell’Architettura e Design, Universit

a degli Studi di Firenze

Keywords:

SW Architectures, Semantic Web Technologies, Ontologies, Semantic Portals, SW Engineering.

Abstract:

Ontological technologies comprise a rich framework of languages and components off the shelf, which devise

a paradigm for the organization of SW architectures with high degree of interoperability, maintainability and

adaptability. In particular, this ﬁts the needs for the development of semantic web portals, where pages are

organized as a generic graph, and navigation is driven by the inherent semantics of contents. We report on a

pattern-oriented executable SW architecture for the construction of portals enabling semantic access, querying,

and contribution of conceptual models and concrete elements of information. By relying on the automated

conﬁguration of an Object Oriented domain layer, the architecture reduces the creation of a cooperative portal

to the deﬁnition of an ontological domain model. .

1 INTRODUCTION

Technologies for ontological modelling and reason-

ing devise a new paradigm for the organization of

software architectures with high degree of interop-

erability, maintainability and adaptability (M. Fayad,

1996), (ISO, 2004). This potential appears par-

ticularly well suited for consistent development and

management of information architecture, site struc-

ture, and page layout of web portals with weblike

organization, where pages are organized in the pat-

tern of a generic graph, and navigation is driven by

the inherent semantics of contents more than from a

hierarchical upfront classiﬁcation (P.J. Lynch, 2002)

(Franca Garzotto, 1995). In (Schreiber et al., 2006),

a semantic portal based on standard ontological tech-

nologies and SWI-prolog is proposed, which supports

uniﬁed access to cultural heritage resources classiﬁed

according to a public unifying ontology. The portal

supports semantic search and presentation of retrieved

data, while contribution of contents is not considered.

Contribution of contents by a distributed community

based on ontologies is addressed in (Stojanovic et al.,

2001), as a part of a work mainly focused on the de-

termination of a rank of relevance for the result-set of

semantic queries. However, the proposed architecture

only permits contribution of ontology individuals and

does not enables evolution and reuse of the implemen-

tation when the ontology changes in its concepts. In

(Yuhui Jin, 2001), a declarative approach to the con-

struction of semantic portals is proposed, which relies

on the deﬁnition of a suite of ontologies created by

the portal programmer to deﬁne domain concepts and

contents, navigation structure and presentation style.

The work does not address the subject of content con-

tribution neither the personalization of presentation

style by the user. In (Corcho et al., 2006), the declar-

ative approach of (Yuhui Jin, 2001) is enlarged into

a framework based on ontologies supporting the con-

struction of a web application combining information

and services. The framework implements the Model

View Controller architectural pattern (Schmidt et al.,

2000). While the model is declared using ontolo-

gies, views are implemented with existing presenta-

tion technologies, and in particular JSP, which mainly

rely on the OO paradigm. To ﬁll the gap between

the two paradigms (Woodﬁeld, 1997), the developer

is provided with a suite of predeﬁned JSP components

assuming the responsibility of the adaptation.

In this paper, we address the development of a

portal enabling semantic access, querying, and con-

tribution of both domain individuals and concepts. To

Bucci G., Sandrucci V., Vicario E. and Mecca S. (2007).

AN ONTOLOGICAL SW ARCHITECTURE FOR THE DEVELOPMENT OF COOPERATIVE WEB PORTALS.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 48-55

DOI: 10.5220/0001340300480055

 SciTePress

this end, we propose an executable SW architecture

(Kruchten, 2003) based on standard languages and

components off the shelf, which reduces the creation

of a cooperative portal to the deﬁnition of an ontolog-

ical domain model, and which is implemented with

components that can be efﬁciently reused in a vari-

ety of data intensive and knowledge based applica-

tions. The programming model that permits the con-

struction of a portal using the proposed architecture

is illustrated with reference to the case of a coopera-

tive portal, that we call Muddy, supporting distributed

contribution and usage of knowledge about mudbrick

construction practices, that we call Muddy

In the rest of the paper, after a brief overview of

our perspective on the ontological paradigm in SW ar-

chitecture, we introduce the Muddy case and we ana-

lyze its requirements, identifying abstract roles and

use cases (Sect.2). We then expound the architec-

tural design and some salient traits of its implemen-

tation, and we identify the roles involved in its appli-

cation (Sect.3). Finally we describe the Muddy portal

(Sect.4) and draw conclusions (Sect.5).

2 REQUIREMENTS ANALYSIS

Ontological technologies mainly originate with the

intent to contribute to the realization of the Semantic

Web (Berners-Lee, 1998). This denotes an evolution

of the current web, in which information is semati-

cally deﬁned so as to enable automated processing.

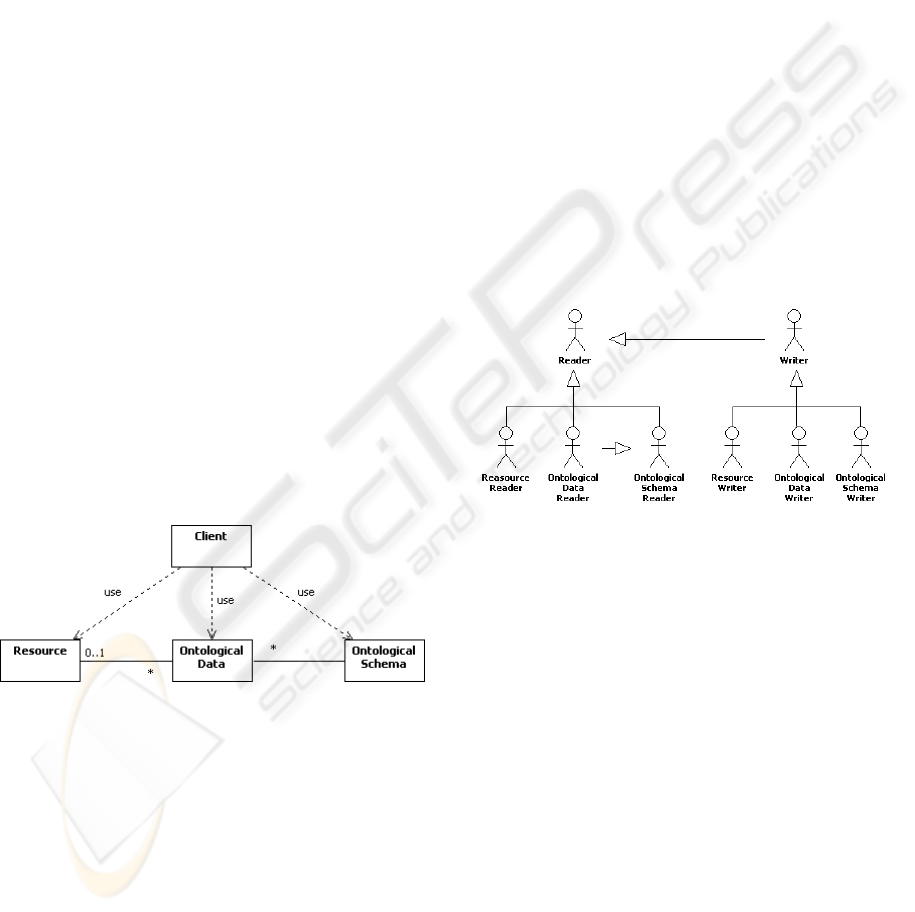

Figure 1: Resources and meta-data relations.

The Semantic Web paradigm thus emphasizes the

relation between information and meta information,

which distinguishes the concepts of Resource, On-

tology Data, and Ontology Schema, as illustrated in

Fig.1. Resources are any information object on the

web: a ﬁle, an HTML page, an image, a movie. In the

semantic web perspective, each Resource will contain

its Semantic Data. The Ontology Schema is a concep-

tualization shared among users, which captures the in-

tensional part of the model, deﬁning types of entities

and their possible relations (concepts). Ontology Data

(individuals), are the extensional part of the model,

classifying Resources as realizations of the concepts

in the Ontology Schema. Client is a Semantic Web

reader and can be a human or an application. In both

the cases, Client is interested to access Resources and

their related semantic data.

2.1 Abstract Roles in a Semantic

Cooperative Portal

The Muddy project aims at supporting explicit and

shared representation of knowledge about construc-

tion practices based on mudbrick. In particular,

the Muddy project aims at developing a web portal

based on ontological models, enabling cooperation

among subjects from different localities and different

domains of expertise, in the development of a shared

model and in the contribution of concrete contents for

it.

In the light of the organization of information of

Fig.1, this identiﬁes roles, users’ needs, and use cases

generalized beyond the limits of the speciﬁc context

of use (ISO, 1998), that are outlined in Fig.2.

Figure 2: Abstract roles in a semantic portal.

Resource Readers correspond to readers in the con-

ventional web. They are interested in accessing infor-

mation, using meta-information to maintain context

and to access resources, through direct links or search

engines. Resource Writers are also enabled to insert,

update and delete resources.

Ontological Schema Readers correspond to the

second-level reader of (Eco, 1994). They are inter-

ested in understanding the organization of concepts

more then their concrete realizations. They need to

navigate in ordered manner and search classes and

properties of an ontological model.

Ontological Schema Writers also modify models,

taking part to the deﬁnition of the strategy of content

organization. In particular, they may be interested in

ﬁxing errors, changing the model to follow some evo-

lution, or extending the model by specialization and

inheritance.

An Ontological Data Writer is a human or a SW

indexing Resources with respect to the concepts of an

AN ONTOLOGICAL SWARCHITECTURE FOR THE DEVELOPMENT OF COOPERATIVE WEB PORTALS

Ontological Schema. Besides, an Ontological Data

Reader is a human or more frequently a SW which ex-

ploits Ontological Data to access concrete resources

in semantic querying (Bonino et al., 2003). Ontologi-

cal data can also be formatted to be easily readable as

well as a resource by human users (Dzbor M., 2004).

2.2 Use Cases in the Muddy Portal

In the speciﬁc context of the Muddy portal, the main

goals of a Reader are browsing of pages derived from

resources and semantic models, navigation of links

corresponding to relations in the ontological model,

execution of semantic queries on the knowledge base

(Fig.3).

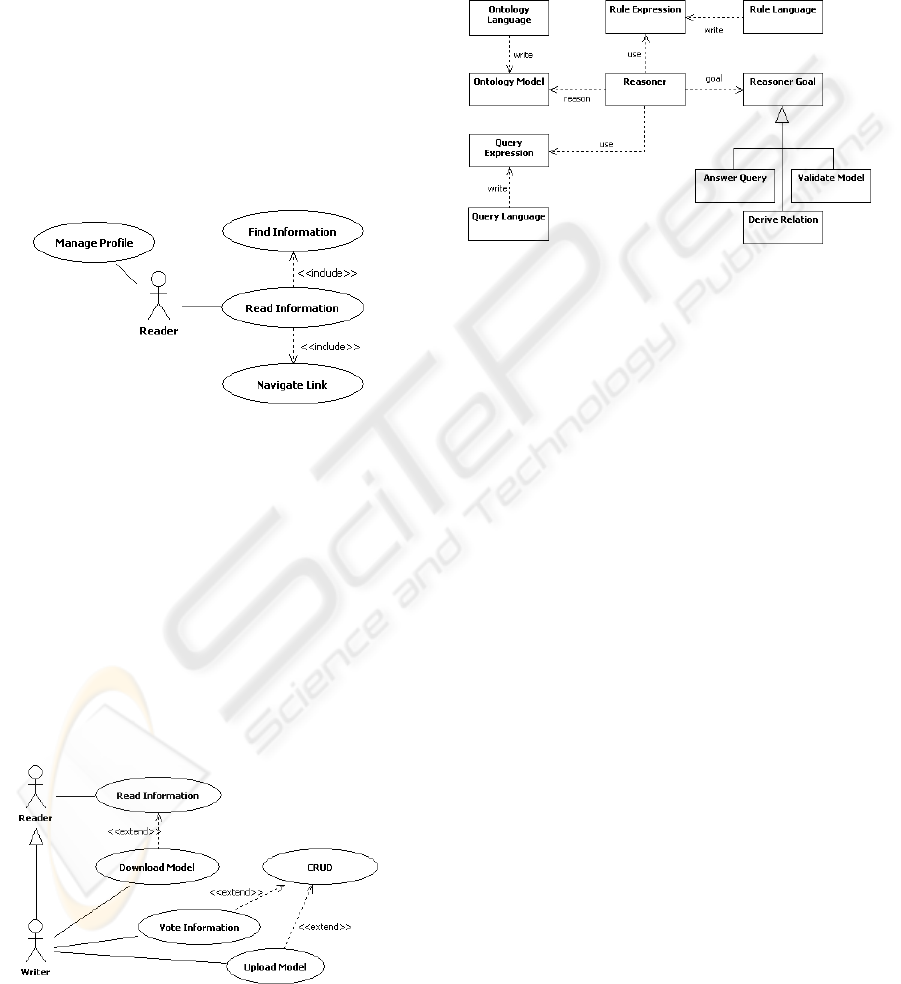

Figure 3: Web portal Reader use cases.

Besides, the Writer (Fig.4), extends the Reader ca-

pability to access information with the capability to

contribute new knowledge in the form of a generic

Ontological Schema or Data. Namely, the enabled

user can contribute either the extensional or the in-

tensional part of the ontological model for the web

portal. Writers can also send/receive feedback and

comments about the ontological model so as to en-

courage collaboration and cooperation among users.

To contribute, writers will upload model ﬁles to ease

the development of a portal prototype.

Figure 4: Web portal Writer use cases.

3 ARCHITECTURE AND

DEVELOPMENT PROCESS

The conceptual architecture of our semantic portal

composes a variety of partecipants that can be effec-

tively assembled using W3C supported speciﬁcations

and components.

Figure 5: Architectural components.

3.1 Ontology Model

The Ontology Model (Fig.5) is the main component

of the architecture, with the main responsibility of

providing representation of the domain model of the

application. It is implemented by composition of the

Ontology Schema and Ontology Data (Fig.1), both

encoded using the W3C standard Ontology Web Lan-

guage (OWL) (W3C, 2004).

In a logic perspective (Fig.6), the ontology model

can be decomposed in three main parts: classes, prop-

erties and individuals. Classes in the Ontology Model

are part of the Ontological Schema and play a role

that can be compared to that of table deﬁnitions in a

relational database. However, as opposed to relational

tables, classes can be composed through delegation

and inheritance. Properties are also part of the Onto-

logical Schema, and they are used to deﬁne relations

among classes. Individuals are realizations of con-

cepts described by classes, and play a role that can be

compared to that of records in a relational database.

3.2 Rules

To form the overall knowledge base, the ontological

model is complemented with Rules that extend the in-

formation explicitly represented with inference rules

that let the system derive new knowledge. In our ar-

chitecture, Rules are represented using the W3C sup-

ported Rule Language SWRL. To circumvent limita-

tions affecting open source reasoners, we internally

ICSOFT 2007 - International Conference on Software and Data Technologies

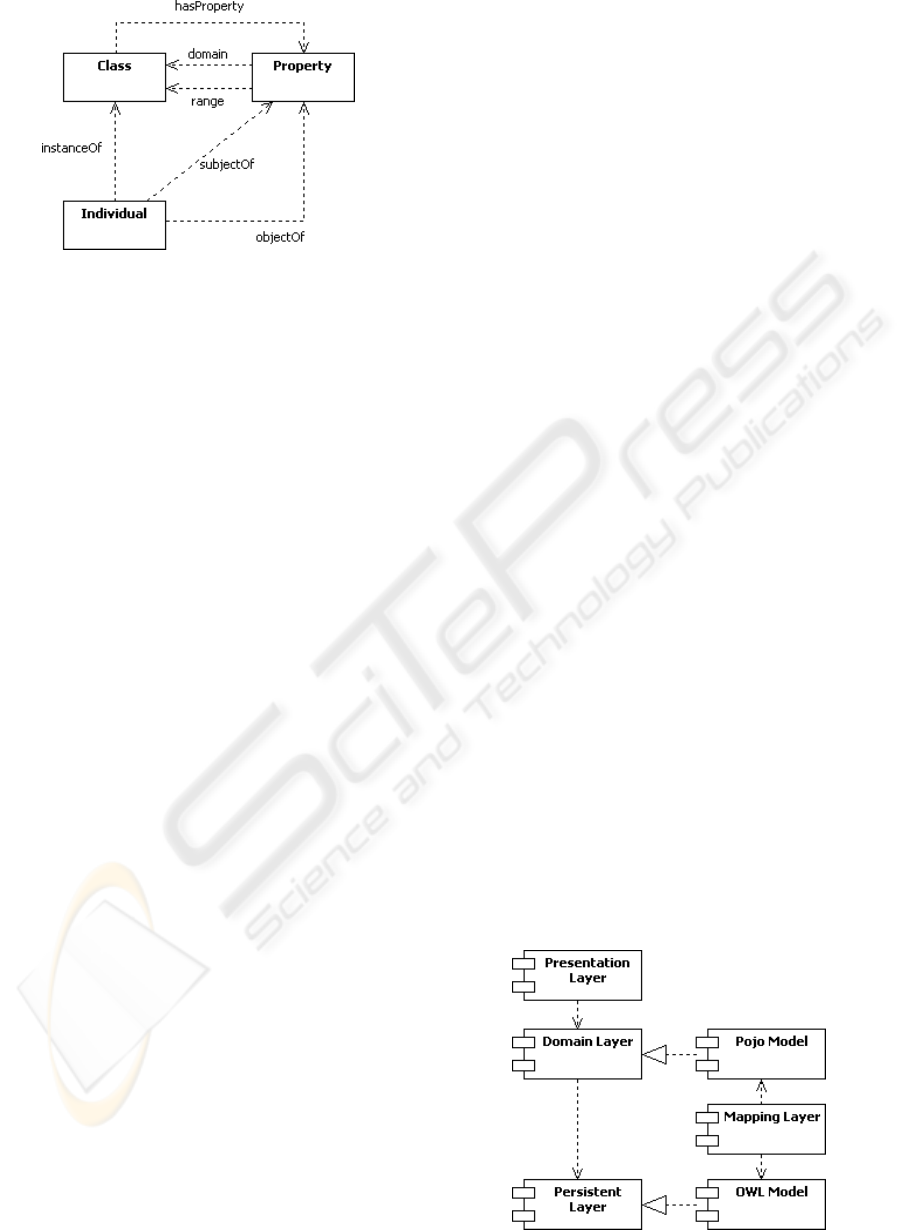

Figure 6: Logical compontents of the ontology model.

represent the language using Jena rules (Company,

2002).

3.3 Querying and Reasoning

Query on the knowlegde base are expressed using the

W3C supported SparQL. While the architecture sup-

ports the full expressivity of SPARQL, for the sake

of usability, and in particular learnability, only a re-

stricted fragment of the language is provided to the

user.

The API Jena is used to drive reasoning and re-

trieve information by deciding SPARQL queries on

the model. The API is also used to validate the on-

tology model and derive new knowledge using OWL

axioms and inference rules. In general, any reasoner

represents a trade-off between power and efﬁciency in

computing. In particular, in the case of our architec-

ture termination of reasoning tasks is guaranteed only

if the model and the rules are encompassed within the

boundaries of OWL-DL and SWRL, respectively.

3.4 Participants in the Development

Process

The proposed SW architecture supports separation of

concerns among four different roles of Domain Ex-

pert, Ontology Expert, Stakeholder, IT Expert. These

naturally ﬁt in a realistic social context of develop-

ment (Cockburn, 1996) and basically correspond to

the roles identiﬁed in (Tempich et al., 2005).

The Domain Expert knows about the domain

of the portal and share partially formalized models

among the community who belongs to. Domain Ex-

perts usually use speciﬁc tools to do their analysis

and produce their research result. It is often the case

that they don’t know anything about ontologies and

also they don’t have opportunity (no time available)

to learn about them.

The Ontology Expert is able to use sematic mod-

elling tools and can describe knowledge contributed

by Domain Experts with an Ontology Model. In

this way the information, that was heterogeneous and

sometimes also tacit or embedded, becomes formal-

ized, explicit, homogeneous and consistent (Krys-

sanov et al., 1998).

The Stakeholder is interested in the domain logic

but he/she is not necessarily expert. For this role, it

is useful to have an ontology model that can be read

and studied and that can be used to navigate through

Domain Experts documents.

Finally, the IT Expert has to develop software

tools needed by other roles so to let them read and

write resources and ontology models (Fig.1 and 2).

3.5 Salient Aspects of the

Implementation

3.5.1 Layering

The source code of the web portal (Fig.7) is organized

in three layers (Schmidt et al., 2000), (Fowler, 2002).

As usual, in SW architecture, layering separates pre-

sentation, domain logic and persistence. In this case,

layering also helps in ﬁlling the gap between onto-

logical and object oriented perspectives (Woodﬁeld,

1997) (Guizzardi et al., 2001), which somehow re-

produces the well known problem of Impedance Mis-

match between Objects and relational databases (Am-

bler, 2003).

The presentation layer contains the logic to han-

dle the interaction between the user and the software,

relying on Java Server Faces (JSF) (Mann, 2004);

the domain layer contains the application logic i.e.

the domain model, implemented with Plain Old Java

Objects (POJO); the persistent layer, is implemented

as an ontology expressed as an OWL model and

presently encoded as an RDF repository.

Figure 7: Web portal layering.

AN ONTOLOGICAL SWARCHITECTURE FOR THE DEVELOPMENT OF COOPERATIVE WEB PORTALS

A Mapping layer is inserted between Domain layer

and Persistent layer to improve decoupling and make

easer testing and concurrent developing (Heumann,

2001), (Beck, 2002). The Mapping layer manages

the mapping between models and meta-models, elab-

orates complex relations (reiﬁcation), hides SPARQL

embedded code and improves performances with

methods like caching and proxying. Last but not least,

only the mapping layer refers to the low level API

Jena (Company, 2002).

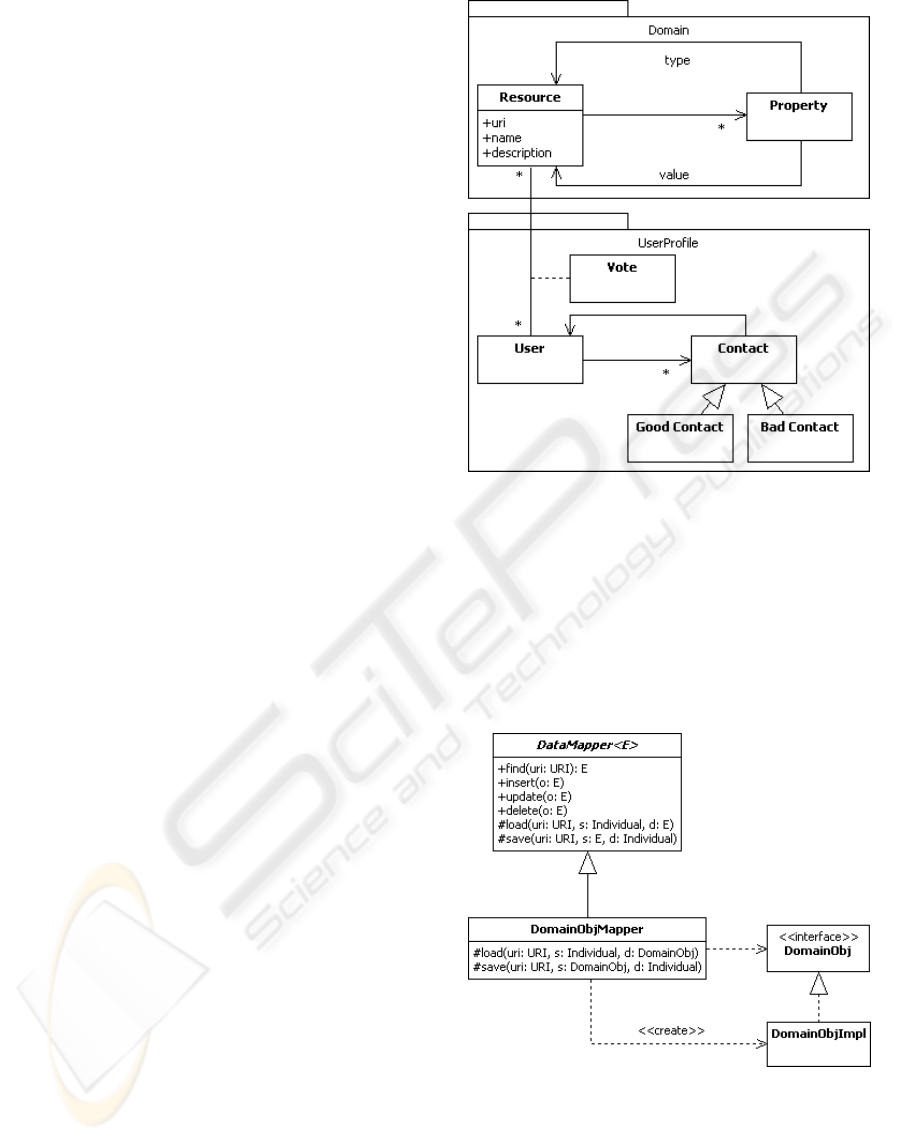

3.5.2 Domain Model

The POJO Model in the domain layer is composed

by two Java packages named Domain and UserPro-

ﬁle. The DataMapper components of the Mapping

layer initialize objects of the POJO model with data

contained in the OWL model which is in turn com-

posed by three submodels named: Domain ontology,

UserProﬁle ontology and Presentation ontology. The

Domain package has responsibility to manage infor-

mation contributed by users and is derived from Do-

main ontology according to the architectural pattern

of reﬂection (Schmidt et al., 2000): classes of the

Domain package are independent from the speciﬁc

types deﬁned in the Domain ontology thus enabling

reuse of the OO layer, deﬁning different evolutions

of a portal or different portals insisting on different

application domains. This is the feature that permits

the cooperative portal to accommodate contributions

not only in the individuals of the extensional part,

but also in the concepts of the intensional part of the

knowledge-base. Derivation of the Domain package

is also affected by the Presentation ontology deﬁning

directives for the presentation of data in the page lay-

out. The individuals of this ontology are used by the

mapping layer to determine the presentation and ﬁl-

tering of concepts deﬁned in the ontological Domain

model. This accomplishes a responsibility which is

much similar to that of ”site view graphs” in the On-

toWebber framework (Yuhui Jin, 2001). The User-

Proﬁle package contains data about proﬁles, users and

related information, and it is automatically derived

from UserProﬁle ontology, so as to map ontology

classes and properties to OO classes and attributes.

3.5.3 Mapping Layer

Mapping between ontological and object-oriented

models of the architecture was implemented fol-

lowing a pattern-oriented design (Fowler, 2002),

(Schmidt et al., 2000) aimed at building an extensi-

ble and reusable framework.

Figure 8: The POJO Model of the web portal.

Mappers The mapping layer includes a mapper

class for each element of the OO domain model

(Fowler, 2002) (Fig.9). Each mapper class can read

information form the ontological model to assign it

to the object-oriented model and vice versa, and it is

implemented as extension of the abstract DataMapper

base class.

Figure 9: Mappers.

Mappers decouple the object-oriented Domain Layer

from the ontological Persistence Layer, so that a client

can ignore how objects are persisted in the ontology.

For the sake of performance and and behavioral ab-

straction, DataMappers implement some speciﬁc pat-

ICSOFT 2007 - International Conference on Software and Data Technologies

terns (Fowler, 2002), (Gamma et al., 1995):

• Identify Map (Cache): mappers have a cache

memory to speed up repeated access to the same

object.

• Proxy: if possible, mappers substitute objects re-

quested by the client with equivalent proxies. This

delays the mapping operations until they are really

needed.

• LazyLoad: mappers load objects of a list when

they are used so the slow mapping operation is

executed for useful objects only.

• UnitOfWork: unit of work class manages

changes to objects that mappers have to persist.

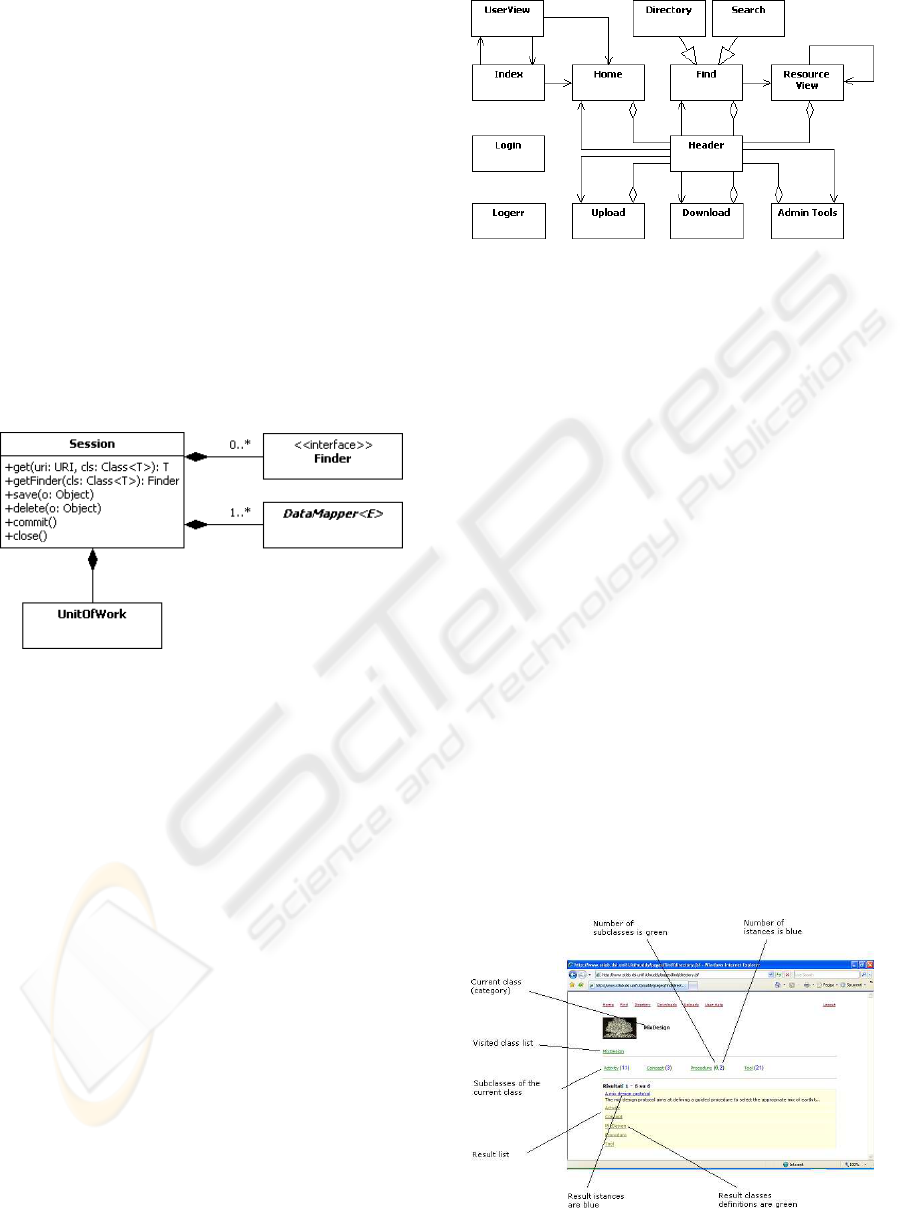

Developers can use an instance of the class Session to

access functions of the mapping framework (Fig.10).

Figure 10: The Seession class.

4 THE MUDDY PORTAL

Muddy is a web-based application implemented as an

instance of requirements and architecture described

so far. It allows reading and writing of concrete

and conceptual information according to an onto-

logical paradigm, providing the following user func-

tions: navigate information following semantic links;

execute semantic queries on the knowledge base;

contribute new knowledge uploading model ﬁles;

read/write feedback about the knowledge base.

As characterizing traits: users know that data

are organized according to an underlying ontological

model; users cooperate in the construction of one or

many ontological models, by creating, retrieving, up-

dating and deleting not only individuals but also con-

cepts.

4.1 The Portal Architecture

Fig.11 depicts the architecture of the portal managed

by the application.

Figure 11: Structure of the Muddy Portal.

Index is the ﬁrst page of the portal with login and reg-

istration, giving access to the Home page and then,

through Header page to the functions of the portal.

Users can be readers, writers and administrators and

they are provided with different functions. A new user

is always classiﬁed as reader and only administators

can give users more privileges.

Find page is used to execute queryies on the

knowledge base by users and it is specialized in

Search and Directory pages. ResourceView page

allows users to read information contained in the

knowledge base. Upload and Download pages allow

users to contribute new knowledge. Admintools page

is for the administrator.

4.2 Find Pages

The Directory page (Fig.12) is used to execute pro-

active search. The system shows to the user a list of

categories that correspond to root classes of the on-

tological model managed by the portal. The user can

select a category to get a page containing the list of

instances of the category and the list of its direct sub-

classes. The user can navigate toward more speciﬁc

classes or can inspect one of the instances found.

Figure 12: The Directory search page.

AN ONTOLOGICAL SWARCHITECTURE FOR THE DEVELOPMENT OF COOPERATIVE WEB PORTALS

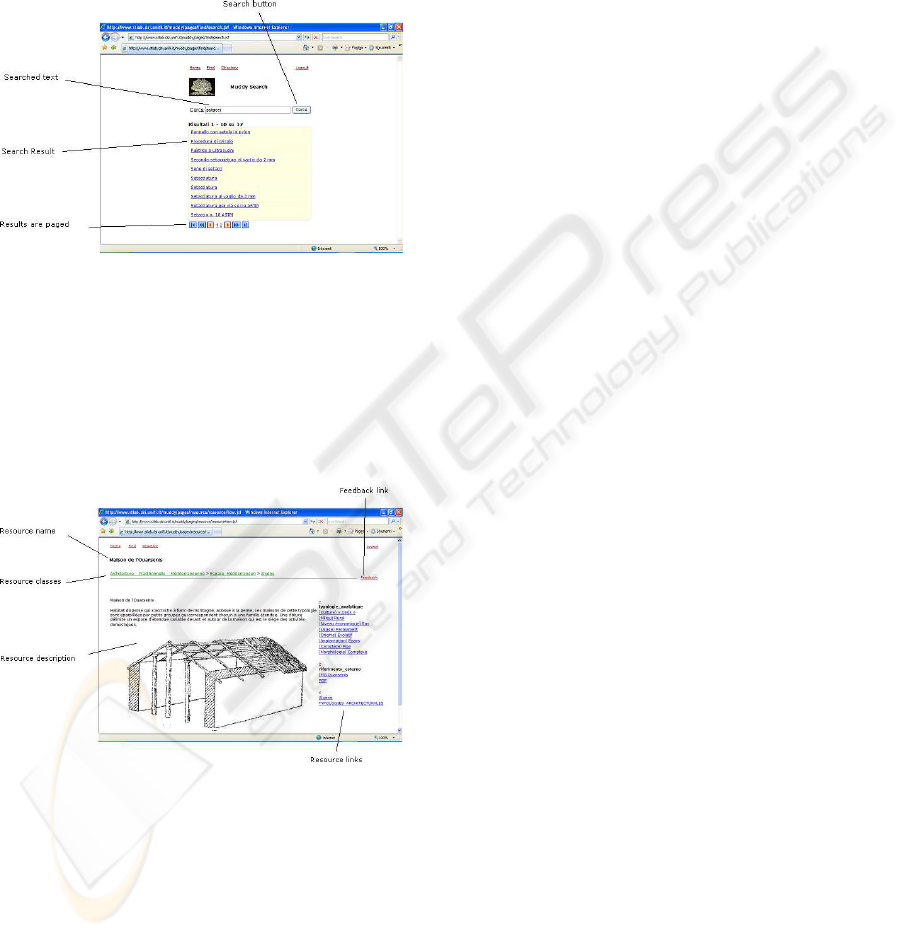

The Search page (Fig.13) implements an extension

of full-text search methods. Users can specify one

or more words that must be contained in desired re-

sources. They can also specify the kind of relations

that link desired resources to speciﬁed words. For in-

stance, the expression ”neededTools = sieve” lets a

user require all resources that has a ”sieve” among

needed ”tools”

Figure 13: The Search page.

4.3 Resource View Page

This page shows information about a resource

(Fig.14), and allows users to speed up navigation to-

wards semantic related resources.

Figure 14: The ResourceView page.

The portal also allows users to give feedback about

accessed resources which is used to calculate appre-

ciation indexes about resources.

5 CONCLUSIONS

We are further developing the portal and its under-

lying architecture, facing various interrelated issues,

that are crucial to tackle the transition phase towards

the context of use:

• a usability cycle has been planned, to evaluate the

capability of the portal to support the user in main-

taining context in the navigation through the web-

like structure of portal contents. This step should

be largely facilitated by the orientation towards

change in the overall architecture, and in partic-

ular by the presentation ontology implemented in

the mapper;

• preliminary performance proﬁling indicates that

performance can be largely improved by the in-

tegration of a more elaborated RDF repository;

• functional extensions are being developed to im-

plement the automated derivation of an editor of

individuals based on the structure of ontology

concepts and a tool for annotation of existing web

resources with reference to the concepts of an on-

tological model.

REFERENCES

Ambler, S. (2003). Agile Database Techniques: Effective

Strategies for the Agile Software Developer. John Wi-

ley & Sons, Inc., New York, NY, USA.

Beck, K. (2002). Test Driven Development: By Example.

Addison-Wesley Professional.

Berners-Lee, T. (1998). Semantic web roadmap. http://

www.w3.org/2001/sw/.

Bonino, D., Corno, F., and Farinetti, L. (2003). Dose: a

distributed open semantic elaboration platform. IC-

TAI 2003, The 15th IEEE International Conference

on Tools with Artiﬁcial Intelligence, November 3-5,

2003, Sacramento, California.

Cockburn, A. (1996). The interaction of social issues and

software architecture. Commun. ACM, 39(10):40–46.

Company, H.-P. D. (2002). Jena a semantic web framework

for java. http://jena.sourceforge.net/.

Corcho, O., Lpez-Cima, A., and Gomez-Prez, A. (2006). A

platform for the development of semantic web portals.

In ICWE ’06: Proceedings of the 6th international

conference on Web engineering, pages 145–152, New

York, NY, USA. ACM Press.

Dzbor M., Motta E., D. J. B. (2004). Opening up magpie via

semantic services. In Proc. of the 3rd Intl. Semantic

Web Conference, November 2004, Japan.

Eco, U. (1994). Six walks in the ﬁctional woods. Harvard

University Press.

Fowler, M. (2002). Patterns of Enterprise Application Ar-

chitecture. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Franca Garzotto, Luca Mainetti, P. P. (1995). Hypermedia

design analysis and evaluation issues. incomm. of the

acm. Communications of the ACM.

ICSOFT 2007 - International Conference on Software and Data Technologies

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design Patterns. Addison-Wesley Professional.

Guizzardi, G., Falbo, R., and Filho, J. (2001). Using objects

and patterns to implement domain ontologies. 15th

Brazilian Symposium on Software Engineering, Rio

de Janeiro, Brazil.

Heumann, J. (2001). Generating test cases from use cases.

The Rational Edge.

ISO (1998). Iso 9241-11 “guidance on usability”.

http://www.iso.org/iso/en/ISOOnline.frontpage.

ISO (2004). Iso 9126 “software engineering – product qual-

ity”. http://www.iso.org/iso/en/ISOOnline.frontpage.

Kruchten, P. (2003). The Rational Uniﬁed Process: An

Introduction, Third Edition. Addison-Wesley Profes-

sional.

Kryssanov, V. V., Abramov, V. A., Fukuda, Y., and Konishi,

K. (1998). The meaning of manufacturing know -how.

In PROLAMAT ’98: Proceedings of the Tenth Inter-

national IFIP WG5.2/WG5.3 Conference on Global-

ization of Manufacturing in the Digital Communica-

tions Era of the 21st Century, pages 375–388, Deven-

ter, The Netherlands, The Netherlands. Kluwer, B.V.

M. Fayad, M. C. (1996). Aspects of software adaptability.

COMMUNICATIONS OF THE ACM.

Mann, K. D. (2004). JavaServer Faces in Action (In Action

series). Manning Publications Co., Greenwich, CT,

USA.

P.J. Lynch, S. H. (2002). Web style guide: Basic de-

sign principles for creating web sites. Yale University

Press.

Schmidt, D. C., Rohnert, H., Stal, M., and Schultz, D.

(2000). Pattern-Oriented Software Architecture: Pat-

terns for Concurrent and Networked Objects. John

Wiley & Sons, Inc., New York, NY, USA.

Schreiber, G., Amin, A., van Assem, M., de Boer, V., Hard-

man, L., Hildebrand, M., Hollink, L., Huang, Z., van

Kersen, J., de Niet, M., Omelayenko, B., van Ossen-

bruggen, J., Siebes, R., Taekema, J., Wielemaker, J.,

and Wielinga, B. J. (2006). Multimedian e-culture

demonstrator. In International Semantic Web Confer-

ence, pages 951–958.

Stojanovic, N., Maedche, A., Staab, S., Studer, R., and

Sure, Y. (2001). Seal: a framework for developing

semantic portals.

Tempich, C., Pinto, H. S., Sure, Y., and Staab, S. (2005).

An argumentation ontology for distributed, loosely-

controlled and evolving engineering processes of on-

tologies (diligent). In Gmez-Prez, A. and Euzenat, J.,

editors, Second European Semantic Web Conference,

(ESWC 2005), volume 3532 of LNCS, pages 241–256,

Heraklion, Crete, Greece. Springer.

W3C (2004). Owl web ontology language.

http://www.w3.org/TR/owl-features/.

Woodﬁeld, S. N. (1997). The impedance mismatch between

conceptual models and implementation environments.

ER’97 Workshop 4 Proceedings.

Yuhui Jin, Stefan Decker, G. W. (2001). Ontowebber:

Model-driven ontology-based web site management.

1st International Semantic Web Working Symposium,

Stanford University, Stanford.

AN ONTOLOGICAL SWARCHITECTURE FOR THE DEVELOPMENT OF COOPERATIVE WEB PORTALS
