THE DEBUGGABLE INTERPRETER DESIGN PATTERN

Jan Vran

Department of Computer Science

Faculty of Electrical Engineering

Technical University in Prague, Czech

Alexandre Bergel

Software Architecture Group

Hasso Plattner Institut, University of Potsdam

LERO & Distributed Systems Group

Trinity College Dublin, Ireland

Keywords:

Program interpretation, debugger, design pattern, programming environment.

Abstract:

The use of Interpreter and Visitor design patterns has been widely adopted to implement programming lan-

guage interpreters due to their expressive and simple design. However, no general approach to conceive a

debugger is commonly adopted.

This paper presents the debuggable interpreter design pattern as a general approach to extend a language

interpreter with debugging facilities such as step-over and step-into. Moreover, it enables multiple debuggers

coexisting and extends the Interpreter and Visitor design patterns with a few hooks and a debugging service.

SmallJS, an interpreter for Javascript-like language, serves as an illustration.

1 INTRODUCTION

A design pattern is a general repeatable solution to a

commonly occurring problem in software design. It is

a description or template for how to solve a problem

that can be used in many different situations. Design

patterns gained popularity after Gamma, Helm, John-

son, and Vlissides compiled and classiﬁed what were

recognised as common patterns (Gamma et al., 1993;

Gamma et al., 1995).

The interpreter and visitor design patterns are

usually described in terms of interpreting grammars.

Given a language, they deﬁne a representation for its

grammar along with an interpreter sentences in the

language (Gamma et al., 1995). Whereas the abil-

ity of the visitor and interpreter patterns to deﬁne

programming language interpreters is widely recog-

nised (Cheong and Jarzabek, 1999; Acebal et al.,

2002; Lorenz, 1997), no approaches to facilitate the

realisation of a debugger are currently available, to

our knowledge.

The Debuggable Interpreter Design Pattern de-

scribes a programming language interpreter that of-

fers debugging facilities. It augments the Interpreter

pattern (Gamma et al., 1995) with some hooks in the

“visiting” methods and employs a debugging service

to model operations (i.e., step-in, step-over, etc...).

The contributions of this paper are the follow-

ing: (i) description of the debuggable interpreter pat-

tern, and (ii) illustration with SmallJS, a subset of

Javascript.

Section 2 illustrates the challenges in implement-

ing a debugger. Section 3 presents the debuggable

interpreter pattern and its illustration with SmallJS,

a minimal procedural language. Section 4 discusses

several points and shows some properties of the pat-

tern. Section 5 provides a brief overview of related

work. Finally, Section 6 concludes by summarising

the presented work.

Vraný J. and Bergel A. (2007).

THE DEBUGGABLE INTERPRETER DESIGN PATTERN.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 22-29

DOI: 10.5220/0001343500220029

 SciTePress

2 INTERPRETING AND

DEBUGGING LANGUAGES

2.1 The Smalljs Interpreter

SmallJS is a JavaScript-subset interpreter written in

ST/X, a dynamically-typed object-oriented program-

ming language

. SmallJS contains the usual language

constructions to deﬁne variables and functions. As an

illustration, the following code describes the factorial

function:

function fact(i) {

if ( i > 0 ) {

return i * fact(i - 1);

} else {

return 1;

};

}

var a;

a = 6;

fact(a);

Visitor

visitAssignmentNode(Node)

visitFunctionCallNode(Node)

visitFunctionNode(Node)

visitMultiplicationNode(Node)

...

Interpreter

context

visitAdditionNode: node

visitFunctionCallNode: node

visitFunctionNode: node

visitMultiplicationNode: node

visitAssignmentNode: node

...

| left right |

left := node leftOperand

acceptVisitor: self.

right := node rightOperand

acceptVisitor: self.

^ left + right

| value |

value := node value

acceptVisitor: self

^ context

at: node variable

put: value

Figure 1: The SmallJS interpreter.

Figure 1 provides an excerpt of a visitor-based in-

terpreter for SmallJS and presents the body of the vis-

itAdditionNode: aNode and visitAssignmentNode: aN-

ode methods

. An addition is realized by running the

visitor on the left operand, then on the right operand,

and to ﬁnally return the sum of these two values. An

assignment is realized by running the visitor on the

value of the assignment, and then storing the value in

the context of the interpreter.

www.exept.de/exept/english/Smalltalk/-

frame uebersicht.html

We adopted the ST/X syntax in UML diagrams to

present a homogeneous notation.

The interpretation of the SmallJS programming

language is realized through a direct application of the

Interpreter and Visitor design patterns (Gamma et al.,

1995).

2.2 Realizing a Debugger

A debugger is a tool that is used to test and debug

programs. Typically, debuggers offer sophisticated

functionalities such as running a program step by step,

stopping (pausing the program to examine the current

state) at some kind of event by means of a break-

point, and tracking the values of deﬁned variables.

The interpreter maintains several registers such as the

program counter (instruction pointer) and the stack

pointer.

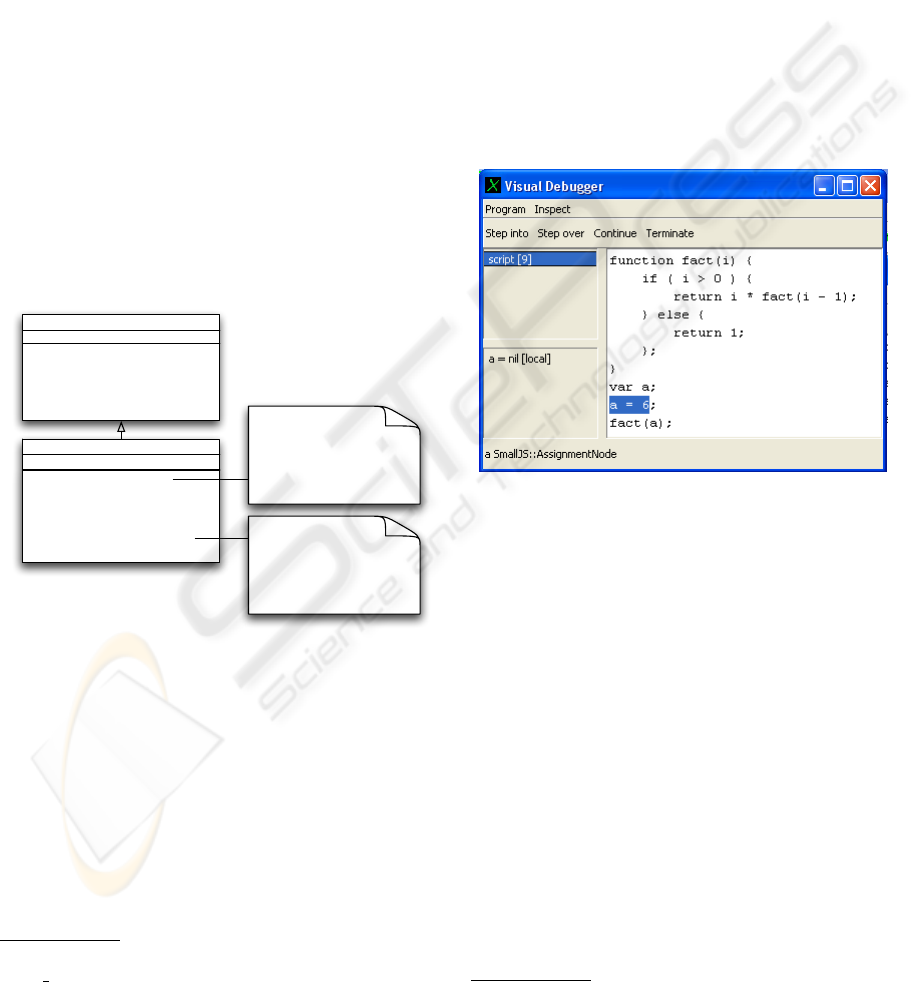

Figure 2: A graphical user interface of a debugger.

Figure 2 shows a debugging session involving the

piece of code given above.

Advanced debugging environments (e.g., ST/X,

VisualWorks

, Dolphin Smalltalk

) enable several de-

buggers and interpreters for the same program code

to coexist. Operations such as opening a new debug-

ger from a debugger, debugging two different pieces

of the same program, or debugging a multi-threaded

program may be performed.

Whereas the state of instruction-based interpreters

is contained in a set of registers, recursive function

invocations deﬁne the state of a visitor-based inter-

preter. The state of the interpreter is determined by

the set of function activation records which are con-

tained in the method call stacks. Local context visual-

isation is achieved by sophisticated reﬂective features,

such as stack reiﬁcation, which might result in a lack

www.cincomsmalltalk.com

www.object-arts.com

THE DEBUGGABLE INTERPRETER DESIGN PATTERN

of performances or raise technical issues difﬁcult to

address.

A visitor-based interpreter allows for breakpoints

to be set and offers a mechanism to perform de-

bugging operations such as step by step instruction

execution.

3 THE DEBUGGABLE

INTERPRETER PATTERN

This section describes a general approach to realize

and implement a debugger for a visitor-based inter-

preter. It augments the visitor interpreter with a set of

hooks inserted in the visit* methods. As part of the

Interpreter design pattern, the dynamic information

needed for a program interpretation is stored in a con-

text. Debugging operations such as step-into, step-by,

and continue are offered by a debugging service.

3.1 Debugging Operations

Before describing the Debuggable Interpreter design

pattern, it is important to outline the different oper-

ations we will use as debuggers traditionally come

with their own set of deﬁnitions.

Setting breakpoints. A breakpoint is a signal that

tells the debugger to temporarily suspend the execu-

tion of a program. A breakpoint is associated with a

node in the abstract syntax tree. The same program

may contains several breakpoints.

When the interpretation of an abstract syntax tree

(AST) reaches a breakpoint, an interactive session

begins during which the operations described below

may be invoked. The state of the debugger is mod-

elled by a context and a reference to a particular node

in the AST, which we call the current node.

Breakpoints are set by a user through an interface.

For example, right clicking on the interface presented

in Figure 2 displays a menu which offers a ’set

breakpoint’ entry.

Step-over. A step-over operation consists of moving

to the following node in the AST after having inter-

preted the current node. The current node is then po-

sitioned on this new node.

Figure 3 illustrates a step-over operation. The

current node is fact(a). By performing a step-over

operation, the current node is then print(fact(a)).

Step-into. A step-into operation consists of moving

to the next node in the AST according to the appli-

function fact(i) {

if ( i > 0 ) {

return i * fact(i - 1);

} else {

return 1;

};

}

var a;

a = 6;

print(fact(a));

Node being interpreted

function fact(i) {

if ( i > 0 ) {

return i * fact(i - 1);

} else {

return 1;

};

}

var a;

a = 6;

print(fact(a));

Step-over

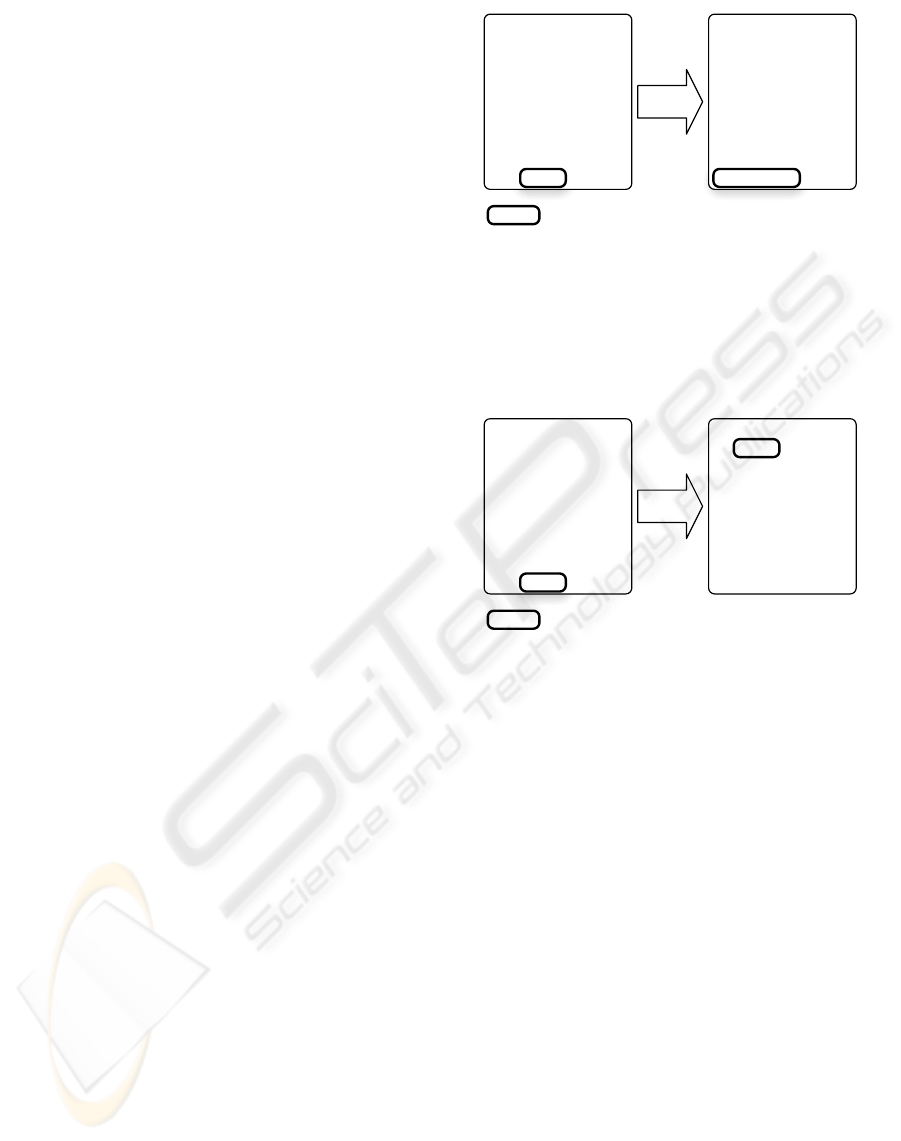

Figure 3: A step-over operation does not go into recursion.

cation control ﬂow. This operation differs from step-

over by entering recursion.

function fact(i) {

if ( i > 0 ) {

return i * fact(i - 1);

} else {

return 1;

};

}

var a;

a = 6;

print(fact(a));

Node being interpreted

function fact(i) {

if ( i > 0 ) {

return i * fact(i - 1);

} else {

return 1;

};

}

var a;

a = 6;

print(fact(a));

Step-into

Figure 4: A step-into operation goes into recursion.

A step-into operation is illustrated in Figure 4. In

this situation, the interpreter halts at the ﬁrst node in

the recursion which is i > 0.

Continue. The execution of an application may be

resumed by continuing it.

Terminate. The program execution might be prema-

turely ended with the terminate operation. As a con-

sequence, no subsequent nodes are evaluated and al-

located resources such as context stack and the inter-

preter are freed.

3.2 Hooks in the Visitor

The ﬂow of a program interpretation stems from the

invocation order of the visiting methods. Suspending

and resuming the interpretation ﬂow and capturing re-

cursion are the basis for the debugging operations.

For the remainder of this paper, the interpreter

class is called Interpreter. As described in Figure 1,

it implements the visiting methods.

Hooks need to be inserted in the Interpreter class

ICSOFT 2007 - International Conference on Software and Data Technologies

to enable step-over and step-in operations. These

hooks inform a debugger service as to which part of

code is being executed. As explained in Section 3.5,

a service is a placeholder for debugging operations.

The method Interpreter.onTracepoint: aNode enables

interpretation of an AST to be driven by a service:

Interpreter. onTracepoint: aNode {

debuggerService onTracepoint: aNode

}

Both methods have to be invoked when visiting

nodes. A visit: method maintains the current node

reference in a context:

Interpreter.visit: aNode {

| value previousNode |

”A reference of the current node is

temporarily stored”

previousNode := context currentNode.

”The node is set as current”

context currentNode: aNode.

”Visit the node”

value := aNode acceptVisitor: self.

”The previous node is restored”

context currentNode: previousNode.

ˆvalue

}

First, visit: aNode gets a reference of the previous

node from the current activation context. This refer-

ence is used to set the current node back when visit:

aNode has completed. Then the interpreter notiﬁes

the new current node to the context. This new current

node is the node being traversed. The interpreter runs

over this node using a double dispatch.

The reference of the current node acts as an in-

struction pointer. It clearly identiﬁes the current exe-

cution location.

However, instead of directly performing a double

dispatch, the visit: aNode has to be used. For example,

in the method visitAdditionNode: aNode the recursion

is obtained from invoking visit: aNode:

Interpreter.visitAdditionNode: aNode {

| left right |

left := self visit: aNode left.

right := self visit: aNode right.

self onTracepoint: aNode.

ˆleft+right

}

Each visit* method must perform a call to onTrace-

point: aNode after traversing all branches and before

synthesising the result.

Compared with the code shown in Figure 1, this

new version of visitAdditionNode: aNode makes the

interpreter aware of breakpoints. When a breakpoint

is reached, the execution of the interpreter is sus-

pended. Subsequent subsections illustrate how break-

points and debugging modes are modelled.

3.3 Context Deﬁnition

Associations between variables and values are stored

within a context object (Gamma et al., 1995). The

debuggable interpreter pattern augments this context

with dynamic information related to the parent con-

text and the current node under execution. Each func-

tion invocation creates a new context.

The class InterpreterContext contains three vari-

ables: sender which refers to the parent context, cur-

rentNode for the node in the abstract syntax tree,

and returnReached indicating if return node has been

reached or not. The interpreter should not evalu-

ate subsequent nodes when a return node has been

reached. Typically, this occurs when a return state-

ment is interpreter. The method visitReturnNode: aN-

ode is therefore deﬁned as follows:

Interpreter.visitReturnNode: aNode {

| value |

value := self visit: expression.

self onTracepoint: aNode.

self returnReached: true.

context returnReached: true.

ˆvalue

}

3.4 Separate Control Flow

An interpreter has to be embedded in a thread. This is

necessary for several reasons:

• Multiple execution of the same program enables

a debugger to launch another debugger. Although

not essential, this feature leads to a better comfort

when debugging.

• If the executed program fails, it should not impact

the enclosing application environment. The inter-

preter cannot run in the same control ﬂow as the

programming environment. The program under

execution and the debugger cannot be executed in

the same thread.

The Interpreter class deﬁnes a variable process

and an evaluate: aNode method to trigger an execu-

tion:

Interpreter.evaluate: aNode {

| value semaphore |

semaphore := Semaphore new: 0.

context := Context new.

process := ([value := self visit: aNode] newProcess)

addExitAction: [semaphore signal];

resume.

THE DEBUGGABLE INTERPRETER DESIGN PATTERN

semaphore wait.

ˆvalue

}

The evaluate: aNode method creates a semaphore.

This is necessary to block the execution of the inter-

preter. A new context is created, followed by the cre-

ation of a new thread (called process in the ST/X ter-

minology) that is intended to execute the code value

:= self visit: aNode. Independently, regardless of

whether an exception is raised or not, once com-

pleted, the exit action is triggered which releases the

semaphore.

3.5 Debugging Service

In addition to keep a reference to a context, an in-

terpreter must also refer to a debugger service. This

service implements the debugging operations such as

step-into, step-over and continue. Figure 5 provides

an overview.

mode:

onTracepoint:

stepInto

stepOver

terminate

runInterpreter

continue

addBreakpointOn:

tracepointReachedFor:

interpreter

breakpoints

mode

DebuggerService

onTracepoint:

continue

stepInto

stepOver

debuggerService

mode

DebuggerMode

continue

onTracepoint:

ContinueMode

stepInto

onTracepoint:

StepIntoMode

stepOver

onTracepoint:

context

StepOverMode

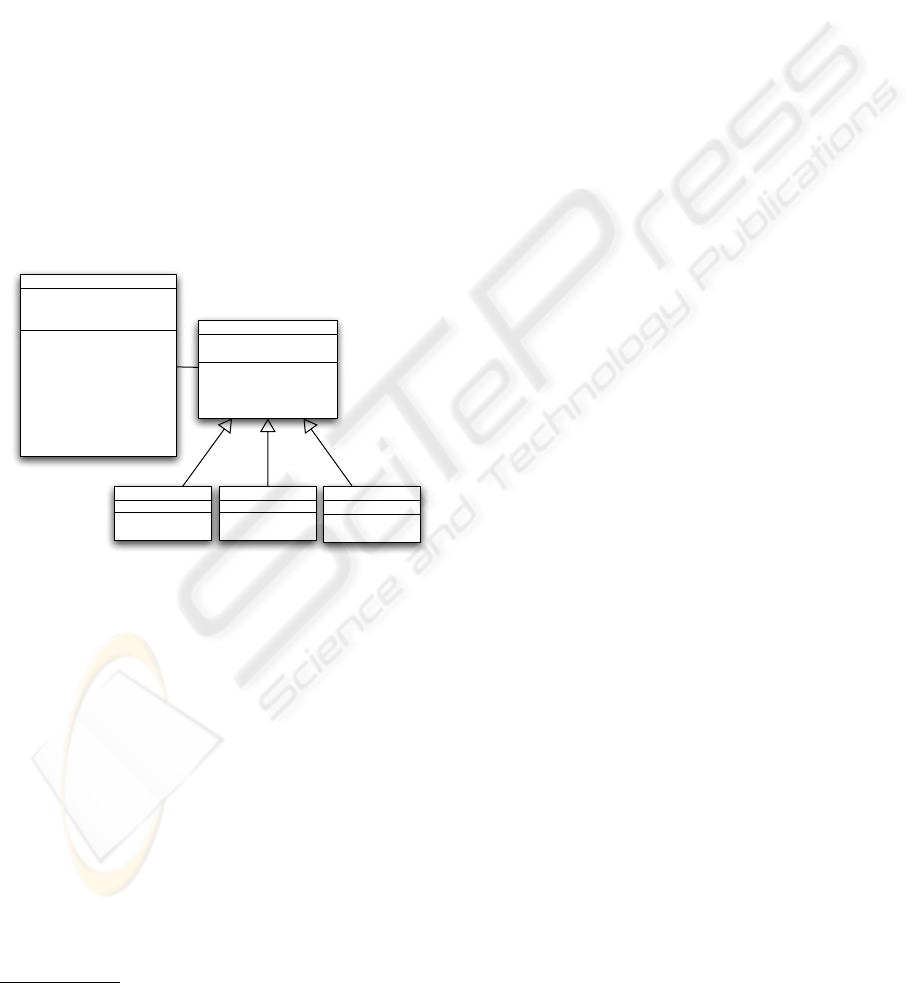

Figure 5: Debugger services deﬁnitions.

The control ﬂow of an application is halted when

it reaches a breakpoint, which identiﬁes a location in

the program

. With the debuggable interpreter pat-

tern, a breakpoint is identiﬁed as a node in the abstract

syntax tree.

When a breakpoint is reached, the interpreter en-

ters an interaction mode, which allow the user to per-

form further operations. The mode in which the ser-

vice is set reﬂects the operation that is currently per-

formed. Each mode represents a debugging operation.

To keep this paper concise, we consider only 3 modes:

continue, step-into, and step-over.

A service maintains a list of breakpoints, accessi-

ble by the modes. A breakpoint is added to a service

Note that advanced deﬁnitions of breakpoints such as

conditional are outside the scope of this paper.

by the user through a user interface.

The methods continue, stepInto, and stepOver de-

ﬁned on DebuggerService are delegated to the current

mode:

DebuggerService.continue {

mode continue }

DebuggerService.stepInto {

mode stepInto }

DebuggerService. stepOver {

mode stepOver }

The tracepointReachedFor : and run methods are

used to steer the process associated with an inter-

preter. tracepointReachedFor: is invoked by the mode

when a breakpoint is reached. This method simply

suspends the process associated with the interpreter:

DebuggerService.tracepointReachedFor: aNode {

interpreter process suspend

}

”Should be instead”

DebuggerService.runInterpreter { interpreter run }

Interpreter.run { process resume }

Setting breakpoints. A debugger service maintains

a list of nodes that represent breakpoints in the pro-

gram.

DebuggerService.addBreakpointOn: aNode {

breakpoints ifNil: [

breakpoints := OrderedCollection new ].

breakpoints add: aNode.

}

The method addBreakpointOn: is invoked by

the debugger user interface. The aNode parameter

corresponds to the node in the abstract syntax tree

that should halt the program interpretation.

Continue mode. The continue mode is the initial

mode of the debugger service. When the debugger

service is in the continue mode the program is exe-

cuted until a breakpoint is reached. When that occurs,

the interpreter thread is suspended and a debugger is

opened. The service can either switch to a step-into or

step-over mode, or a continue mode. The two meth-

ods that deﬁne this mode are:

ContinueMode.onTracePoint: aNode {

(debuggerService isBreakpoint: aNode) ifTrue: [

debuggerService tracepointReachedFor: aNode

}

ContinueMode.continue {

debuggerService runInterpreter

}

ICSOFT 2007 - International Conference on Software and Data Technologies

Step-into mode. When the debugger service is in the

step-into mode the program interpretation is stopped

(and a debugger is opened) when onTracepoint: is in-

voked.

StepIntoMode.onTracePoint: aNode {

debuggerService tracepointReachedFor: aNode

}

StepIntoMode.stepInto {

debuggerService runInterpreter

}

Step-over mode. When the debugger service is in the

step-over mode stepping does not follow recursions

and method calls. The StepOverMode has a context

variable. This variable captures the state of the cur-

rent interpretation and is initialised when the debug-

ger service switches to this mode.

The two methods that deﬁne this mode are:

StepOverMode.onTracePoint: aNode {

((context = debuggerService context) ifTrue: [

debuggerService tracepointReachedFor: aNode]

}

StepOverMode.stepOver {

debuggerService runInterpreter

}

If the current context and the current node match

the ones referenced by the step-mode, then the debug-

ger switches for a step-into mode, so that the execu-

tion will be halted on the node that follows the one

that was stepped over.

4 DISCUSSION

Coexisting debuggers. Since multiple interpreters

can interpret the same program, several debuggers

may be active at the same time. Although this feature

does not ﬁgure as a priority for the Java debugger

, it

greatly enhances the debugging activity.

Breakpoints. The debuggable interpreter pattern

emits a breakpoint signal when the control ﬂow

reaches a particular node in the abstract syntax tree.

Note that this deﬁnition of breakpoint might slightly

diverge from a widely known debugger such as Gdb

where a breakpoint signal may be triggered when the

control ﬂow reaches a particular line of the source

code.

java.sun.com/j2se/1.4.2/docs/jguide/jpda/-

jarchitecture.html.

sourceware.org/gdb/

New operations. New debugging operations can

easily be added by subclassing DebuggerMode and

adding the corresponding methods in DebuggerSer-

vice. For example, a mode that holds a condition

to enable the interpretation can be implemented

in a class ConditionalInterpretationMode in which

the method onTracePoint: aNode checks for the

conditional expression.

Speed and memory overhead. A natural question

to be raised is the cost in terms of speed and mem-

ory consumption. The table below shows the time

in millisecond taken to execute the factorial function

with the debuggable interpreter design pattern (DIDP)

and the classical visitor pattern (VDP). These ﬁgures

are obtained while disabling the just-in-time compiler

(JIT).

Iteration DIDP (ms) VDP (ms) ratio

fac(100) 5.0 2.0 2.50

fac(200) 8.0 5.0 1.60

fac(400) 17.0 12.0 1.41

fac(900) 38.0 20.0 1.90

fac(10000) 973.0 540.0 1.80

fac(70000) 22774.0 19722.0 1.15

100 300 500 700 900 3000 10000 40000 70000

Factorial

Slowdown ratio

0.0 0.5 1.0 1.5 2.0 2.5

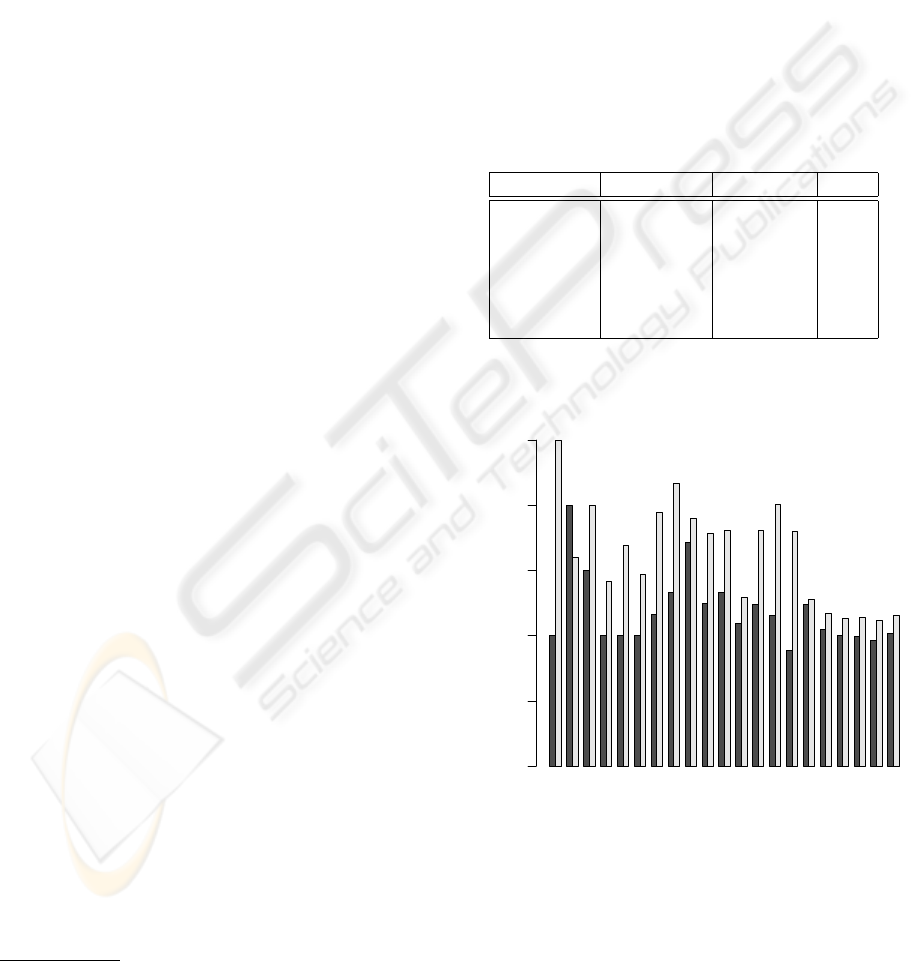

Figure 6: Ratio between a non-debuggable and a debug-

gable interpreter. Use of a just-in-time compiler (JIT) is

denoted in black.

Figure 6 shows the overhead of the DIDP with the

VDP for each factorial expression. It also measures

the beneﬁt of having a JIT. The black bar indicates a

THE DEBUGGABLE INTERPRETER DESIGN PATTERN

measurements obtained with the JIT enabled, whereas

the value denoted by the white bars are obtained with

the JIT disabled.

As a result, we see that the ratio is asymptotic to

1. This means that the cost of the debuggable inter-

preter design pattern compared to the classical visitor

is negligible for deep recursion.

The table below compares the memory consump-

tion of DIDP with VDP. The total number of created

objects is shown for each factorial expression.

Iteration DIDP VDP ratio

fac(100) 102 102 1

fac(200) 202 202 1

fac(400) 402 402 1

fac(900) 902 902 1

fac(10000) 10002 10002 1

fac(70000) 70002 70002 1

During the evaluation of factorial expression, con-

texts are created for each recursion, as well as a mode

and a service. This table shows that the DIDP does

not incur any memory overhead.

The computer used for this experiment is an Intel

Pentium M 1,6GHz, Linux (kernel 2.6.20.1), 512MB

RAM, ST/X 5.2.8.

5 RELATED WORK

Scripting debugging. Marceau et al. (Marceau et al.,

2006) designed a language for a scriptable debug-

ger. The purpose of this debugger is to automatise se-

quences of debugging operations that might be labori-

ous to repeat manually. A classical sequence could be

setting a breakpoint, examining values of some vari-

ables, or resuming execution. Debugging an appli-

cation generally may necessitate repeat this sequence

many times in order to ﬁnd a single bug. Scripting a

debugger helps in automating such a task.

Similar to the debuggable interpreter pattern, the

scriptable debugger provides primitives to capture

the essential functionality of a debugger: observing

a program’s state, monitoring its control path, and

controlling its execution. This is achieved by explicit

commands embedded in the program. In order to

be debugged, a program must contain explicit trace

points. This is a major difference with the debuggable

interpreter pattern for which program do not need to

be annotated.

Trace library. Hofer et al. (Hofer et al., 2006) pro-

pose a backward-in-time debugger. The Unstuck de-

bugger allows one to navigate the history of the ap-

plication. Their implementation uses a trace library

to collect the events and reconstruct the states. To

generate events (method invocation, variable access

and method return), the methods are instrumented us-

ing ByteSurgeon (Denker et al., 2006), a high-level

library to manipulate method bytecode.

Unstuck assumes that a program is interpreted by

a virtual machine, whereas the debuggable interpreter

design pattern relies on an interpretation driven by a

visitor.

AST instrumentation. The Relational Meta-

Language (RML) (Pop and Fritzson, 2005) is a lan-

guage for writing executable Natural Semantics spec-

iﬁcations. It is used to formally specify program-

ming languages such as Java, Pascal, and MiniML.

The RML debugger is based on an abstract syntax

tree instrumentation that captures and records partic-

ular events. A post-mortem analysis tool is then pro-

vided to walk back and forth in time, display variable

values, and execution points.

The AST is instrumented with debugging anno-

tation related to trace generation. From its design,

the programming environment of RML is limited to

one single debugger per session. On the contrary, our

approach allows several debuggers to coexist.

Grammar weaving. Wu et al. (Wu et al., 2005)

claims that debugging is a concern that crosscuts a do-

main speciﬁc language speciﬁcation. They propose to

use AspectJ

to weave the debugging semantics into

the code created by a parser generator.

Their work is restricted to programming lan-

guages that are translated into a general purpose lan-

guage. Our approach is different since it assumes

a program interpretation through a visitor and inter-

preter design pattern.

6 CONCLUSION AND FUTURE

WORK

This paper presents a general approach for imple-

menting and realizing a debugger for a visitor-like in-

terpreter. It extends a visitor with a set of hooks em-

bedded in the visiting methods. The context, primar-

ily used to hold variables bindings, has been extended

with a reference to a parent context, and keeps a refer-

ence to the node currently being interpreted. A debug-

ger service models the different operations available

by means of a set of modes.

To conclude, the Debuggable Interpreter design

pattern offers the beneﬁts of the coexistence of mul-

eclipse.org/aspectj/

ICSOFT 2007 - International Conference on Software and Data Technologies

tiple debuggers, a capacity to accept new debugging

operations, while being easy to implement.

For future work, we plan to assess the scalability

of the debuggable interpreter design pattern by im-

plementing a larger language such as Java, which in-

volves dozens of nodes.

ACKNOWLEDGEMENTS

We gratefully thank the ﬁnancial support of Science

Foundation Ireland and Lero – the Irish Software En-

gineering Research Centre.

We also would like to thank Marcus Denker and

Erin Shoemaker for their valuable comments and re-

views.

REFERENCES

Acebal, C. F., Castanedo, R. I., and Lovelle, J. M. C.

(2002). Good design principles in a compiler univer-

sity course. SIGPLAN Not., 37(4):62–73.

AspectJ. AspectJ home page. http://eclipse.org/aspectj/.

Cheong, Y. C. and Jarzabek, S. (1999). Frame-based

method for customizing generic software architec-

tures. In SSR ’99: Proceedings of the 1999 symposium

on Software reusability, pages 103–112, New York,

NY, USA. ACM Press.

Denker, M., Ducasse, S., and Tanter,

E. (2006). Runtime

bytecode transformation for Smalltalk. Journal of

Computer Languages, Systems and Structures, 32(2-

3):125–139.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison Wesley, Reading,

Mass.

Gamma, E., Helm, R., Vlissides, J., and Johnson, R. E.

(1993). Design patterns: Abstraction and reuse of

object-oriented design. In Nierstrasz, O., editor, Pro-

ceedings ECOOP ’93, volume 707 of LNCS, pages

406–431, Kaiserslautern, Germany. Springer-Verlag.

Hofer, C., Denker, M., and Ducasse, S. (2006). Design

and implementation of a backward-in-time debugger.

In Proceedings of NODE’06, volume P-88 of Lecture

Notes in Informatics, pages 17–32. Gesellschaft f

Informatik (GI).

JDI. Java debug interface (jdi). http://java.sun.com/-

j2se/1.4.2/docs/jguide/jpda/jarchitecture.html.

Lorenz, D. H. (1997). Tiling design patterns a case study us-

ing the interpreter pattern. In OOPSLA ’97: Proceed-

ings of the 12th ACM SIGPLAN conference on Object-

oriented programming, systems, languages, and ap-

plications, pages 206–217, New York, NY, USA.

ACM Press.

Marceau, G., Cooper, G. H., Spiro, J. P., Krishnamurthi, S.,

and Reiss, S. P. (2006). The design and implementa-

tion of a dataﬂow language for scriptable debugging.

Automated Software Engineering Journal.

Pop, A. and Fritzson, P. (2005). Debugging natural seman-

tics speciﬁcations. In AADEBUG’05: Proceedings

of the sixth international symposium on Automated

analysis-driven debugging, pages 77–82, New York,

NY, USA. ACM Press.

Wu, H., Gray, J., Roychoudhury, S., and Mernik, M. (2005).

Weaving a debugging aspect into domain-speciﬁc lan-

guage grammars. In SAC ’05: Proceedings of the 2005

ACM symposium on Applied computing, pages 1370–

1374, New York, NY, USA. ACM Press.

THE DEBUGGABLE INTERPRETER DESIGN PATTERN
