OFF-LINE SIGNATURE VERIFICATION

Comparison of Stroke Extraction Methods

Bence Kővári, Áron Horváth

Department of Automation and Applied Informatics, Budapest University of Technology and Economics

Goldman György tér 3, Budapest, Hungary

Zsolt Kertész, Csaba Illés

Department of Control Engineering and Information Technology, Budapest University of Technology and Economics

Magyar Tudósok Körútja 2, Budapest, Hungary

Keywords: Signature verification, feature extraction, stroke recovery, off-line analysis, curve fitting.

Abstract: Stroke extraction is a necessary part of the majority of semantic based off-line signature verification

systems. This paper discusses some stroke extraction variants which can be efficiently used in such

environments. First the different aspects and problems of signature verification are discussed in conjunction

with off-line analysis methods. It is shown, that on-line analysis methods perform usually better than off-

line methods because they can make use of the temporal information (and thereby get a better perception of

the semantics of the signature). To improve the accuracy of off-line signature verification methods the

extraction of semantic information is necessary. Three different approaches are introduced to reconstruct the

original strokes of a signature. One purely based on simple image processing algorithms, one with some

more intelligent processing and one with a pen model. The methods are examined and compared with regard

to their benefits and drawbacks on further signature processing.

1 INTRODUCTION

Signature recognition is probably the oldest

biometrical identification method, with a high legal

acceptance. Even if handwritten signature

verification has been extensively studied in the past

decades, and even with the best methodologies

functioning at high accuracy rates, there are a lot of

open questions. The most accurate systems almost

always take advantage of dynamic features like

acceleration, velocity and the difference between up

and down strokes. This class of solutions is called

on-line signature verification. However in the most

common real-world scenarios, this information is not

available, because it requires the observation and

recording off the signing process. This is the main

reason, why static signature analysis is still in focus

of many researchers. Off-line methods do not

require special acquisition hardware, just a pen and a

paper, they are therefore less invasive and more user

friendly. In the past decade a bunch of solutions has

been introduced, to overcome the limitations of off-

line signature verification and to compensate for the

loss of accuracy. Most of these methods have one in

common: they deliver acceptable results but they

have problems improving them.

2 RELATED WORK

The biggest limitation of off-line signature

verification methods is the absence of temporal

information. In the on-line case this can be used, to

segment the signature in a semantically meaningful

way and even to define an unambiguous matching

between the parts of two signatures. In the off-line

case no definite matching exists. These methods can

only operate on static image data; therefore they

often try to compare global features like size of the

signature or similarities of the contour (Martinez,

2004) (Miguel, 2005) (Sabourin, 1999). To get a

tractable abstraction of the two dimensional images,

these methods often involve some image

transformation, like the Hough or Radon

270

Kõvári B., Horváth Á., Kertész Z. and Illés C. (2007).

OFF-LINE SIGNATURE VERIFICATION - Comparison of Stroke Extraction Methods.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 270-276

DOI: 10.5220/0001344402700276

 SciTePress

transformations (Touj, 2003) or work on the density

models of the signatures (Mahmud, 2005). Although

these methods almost totally ignore the semantic

information hidden in the signature, combined with

each other they seem to give a good representation

of the signature, allowing the researchers to reach

Equal Error Rates (EER) between 10% and 15%

(Kővári, 2007). The drawback of this methodology

is that loosing the semantic information makes it

almost impossible to improve the algorithm or to

explain the results in detail. Jose L. Camino et al.

take an other approach (Camino, 1999) they try to

guess the pen movements during the signing by

starting at the left and bottom most line-end and then

following it. There are also other approaches trying

to reconstruct the signing process. In (Guo, 2000)

stroke, and sub-stroke properties are extracted and

used as a basis for the comparison. Based on own

experience, these latter approaches seem to be the

most promising, because their results can be

interpreted, explained and therefore improved.

3 STROKE EXTRACTION

By monitoring humans (including experts) during

the verification of signatures, it can be observed that

they always focus on a smaller part on both

signatures, trying to compare them. They examine

the radius of curvature, direction of strokes,

blotches, intensity of strokes, variation patterns in

the intensity etc. To make the automatic comparison

of these features possible, an almost unambiguous

matching must be defined, which is able to pair

features in two signatures, even (and especially)

when they do not look similar. The most

straightforward way to such a matching is the

reconstruction of the original signing process.

Although a perfect reconstruction is not

computationally feasible, some heuristic methods

can be defined, to get acceptable results.

Several approaches can be taken towards

restoring the strokes of the signature and each

approach has advantages and disadvantages. In the

following subsections three methods will be

introduced, which were used with success in our

verification system.

3.1 Morphological Approach

Probably the most obvious way is the morphological

image processing. Using a medial axis

transformation the skeleton of the signature can be

easily extracted, but these skeletons showed to be

highly unusable in our experiments. The most

common problems include misinterpretation of

junctions and false junctions at stroke ends.

Reducing the colour depth and converting the

pen strokes to one-pixel curves always results in an

inevitable information loss, therefore it is essential

to select a thinning algorithm which gives a good

abstraction of the original signature, with a low

noise level. We selected an algorithm, which

removes pixels so that an object without holes

shrinks to a minimally connected stroke, and an

object with holes shrinks to a connected ring

halfway between each hole and the outer boundary

(Lam, 1992), as can bee seen in figure 1.

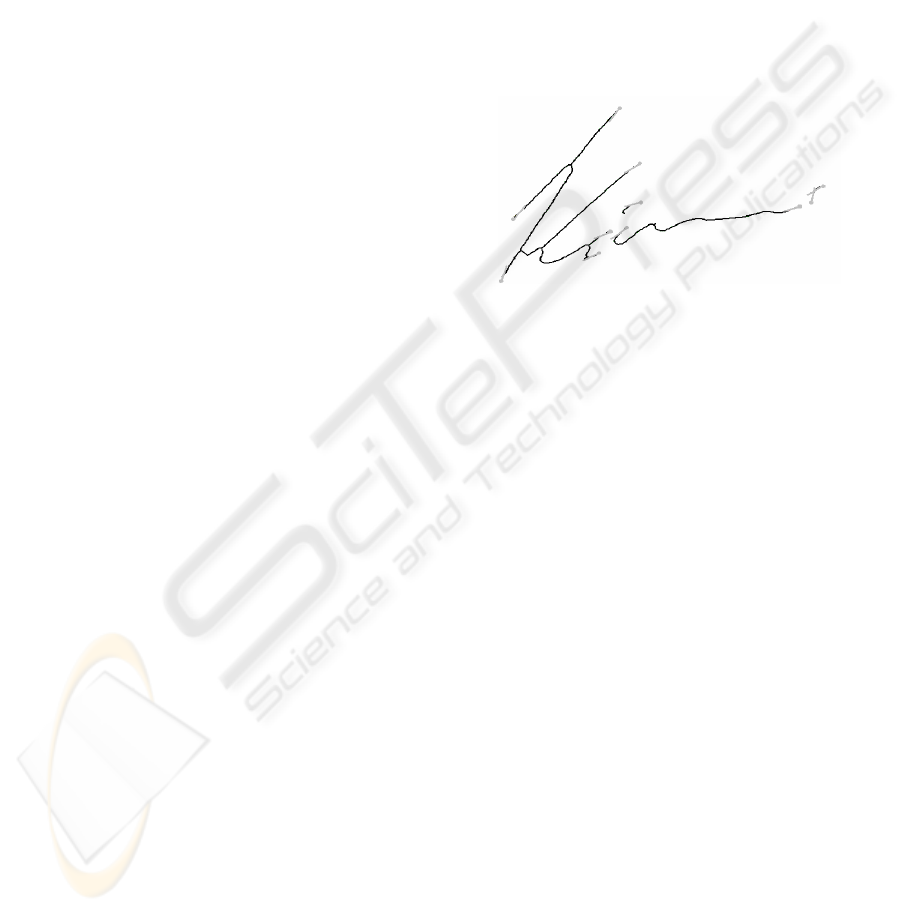

Figure 1: Endpoint extraction on a thinned image.

This approach gives a simple representation of

the original signature. It performs good by finding

endpoints, but has difficulties with overlapping

strokes, and junctions. Although we achieved

promising results (an EER of 20%) with a simple

thinning based system (Kővári, 2007), this

representation does not fulfil the requirement of

giving a good abstraction of the original signature.

3.2 Stroke Extraction and Spline

Fitting

3.2.1 Point Extraction and Stroke

Assignment

During online signing the trajectory of the signature

can be precisely recorded by the many sensors in the

digital table that is used instead of paper. In the

following section a robust algorithm is introduced

with the purpose to identify the way how the signer

wrote his signature. The main goal was to create an

algorithm that performs well on noisy, unprocessed

images; this is why the term robust is used here. In

general, this method traces a signature using the

image of it, extracts control points from it,

determines their order, and finally assigns them to

strokes. This gives a graph representation of the

signature, which can be used for spline fitting.

OFF-LINE SIGNATURE VERIFICATION - Comparison of Stroke Extraction Methods

271

This method is a topological feature extraction

method. A topological method was introduced in

(Lee, 2005), where a general human-like signature

tracing method is described in-depth, using a thinned

signature and heuristic rules for the purpose, and

defining several solutions for removing noise caused

by the thinning process. In (Lau, 2002) a signature

thinned to one pixel width is the input for the stroke

extraction and then several cost functions are

defined for determining the overall stroke sequence.

The main goal was to improve the robustness of

these algorithms, thus the inputs were raw, scanned

images on which no noise filtering or morphological

operators (for the thinning process) were used.

(Currently morphological operators are only used for

obtaining the starting points of the signature

components, but this does not affect the original

image.)

The algorithm is based on the use of simple

virtual bows or with other word, a compass.

Beginning with a start point the pin of the bows is

stuck in it and a circle is drawn. Where this circle

sections the line of the signature, it gives an arc. The

middle point of this arc is selected as a possible

following point, and if it meets the necessary

conditions, it is taken as the new middle point.

Iteratively repeating this step the whole signature

can be traversed, but there are several difficulties to

face.

First of all the radius the bows uses has to be

determined. For this a circle is drawn with a constant

radius. If an adequately large arc is obtained, it is

stored. We start the circle with the first white point

found in order to avoid the loss of an arc, because if

we would start in the middle of the signature, we

could half an arc that is just big enough and we

would throw away its two half. After the first section

is obtained, the distance of the two edge points of

the arc is calculated, and heuristically 1.5-3 times of

its size is used as a radius. Too large values produce

too rough representation and information is lost, too

small values are simply not big enough to make a

section. To decrease the possibility of a wrongly

chosen radius size, it is further normalized in the

next few steps.

Sometimes it is not an obvious task to

differentiate between the points of the signature and

the noise. It is assumed that only blue ink is used

during the signing. With this information the blue

domination can be determined, calculated as the

difference of the blue colour component and the

average of the other two (red and green) colour

components. Splitting this parameter range in three

parts three classes of signature points can be

defined: paper, ink and undefined. In the paper and

ink classes the unambiguous points are categorized

with a heuristic threshold, the rest is put in the

undefined class.

Convexity of the points was first declared as:

two points are convexly connected, if the straight

path between them contains points only over a given

threshold. Later this did not qualify because of the

noisy input, so some undefined and even some paper

point had to be accepted.

To further improve this method, “level

difference” is calculated between the points: the size

of connected points from the same class on the path

is calculated, and where at least two continuous

points of the same kind are found, the average

intensity of the two points is calculated. This way a

quantified path is obtained, and the difference of the

highest and lowest level is calculated. This

difference is a necessary measure when too close

points must be separated, because going off the line

and coming back again can be detected this way.

Another way of path improving comes useful at

junction points. If one of the possible following

points can be reached from another one on a better

path (the maximum and total size of the undefined

and paper points is used for this parameter) than

from the junction point, then the connection of it to

the junction point is replaced with a connection to

the other point.

Loops also have to be detected and handled with

care. A loop is detected if looking ahead from the

actual point for a short distance a previously visited

point can be seen and convexly connected to the

current point. During this search the points are

prioritized in the end, junction, common point return

order (the first one found is returned).

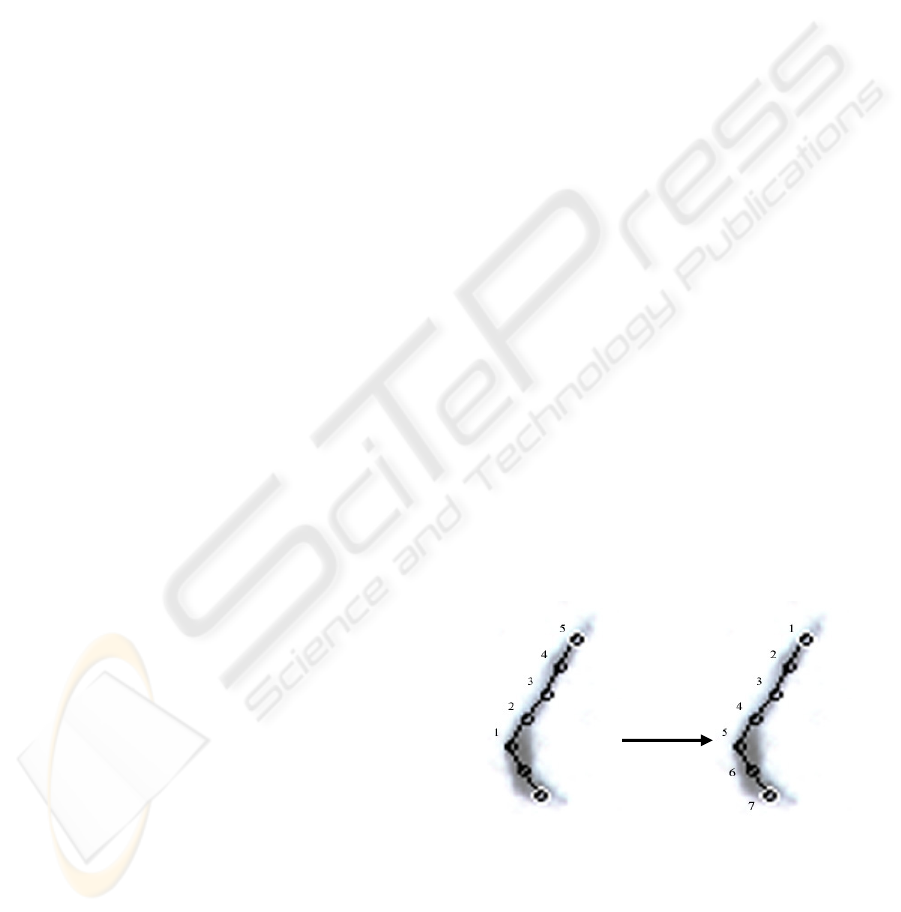

Figure 2: Point reordering at starting junction point.

To trace the signature the algorithm steps on and

over the points determined with the algorithm. If a

point has more than one possible follow-ups (this is

called junction point) then it continues in the

direction leading furthest from the previous point

and stores the other ones. If there is no acceptable

ICSOFT 2007 - International Conference on Software and Data Technologies

272

following point then the stored points are looked up,

and one of them is chosen. If there are no stored

points either, then the algorithm steps on the next

component if available. Otherwise, the algorithm is

finished. If a component starting point is also a

junction point, then the algorithm goes as far as can,

then inverts the order of the points of the stroke and

continue. This is necessary, because a starting

junction point is a fake junction.

A sample run of the algorithm is demonstrated in

figure 3. The algorithm still has some minor flaws,

but we have shown a way to extract stroke point

from noisy signatures. The order of the points should

be handled with greater care, but this tends to be an

easy task based on (Lee 2005) and (Lau, 2002).

Figure 3: Strokes of a signature: extracted points (black)

and end points of the strokes (white).

3.2.2 Spline Fitting

After the point and stroke extraction, the graph

representing the signature can be used as an input to

our decision-making system that fits splines to the

extracted points aiding the reconstructing of the

trajectories.

To compare these curves, the extracted strokes

should be approximated with an analytical form.

Polynomial interpolation is obvious to approximate

functions. However the signatures are sufficiently

varied, spiced with breakpoints and discontinues. If

a general curve is to be approximated on a large

interval, the degree of the approximating polynomial

may be unacceptably large. As an alternative

solution the full interval of signature can be

subdivided into sufficiently small intervals.

Relatively low degree polynomials on each of these

intervals can provide a good approximation to the

signature. Such piecewise polynomial functions are

called splines.

Generally, a function

s is called a spline

(Ahlberg, 1967) of degree

k on

xxx

<< L

[]

xxs ,

∈

(1)

1,,2,1,0,

)(

−= kjs

L are all

continuous functions on

[]

xx ,

where

)( j

s is the j

derivative

(2)

s is a polynomial of degree k≤ on each

interval

[

]

+ii

(3)

The suitable point matching algorithm and the

consequent tracking technique guarantee the

correspondent of the splines to the same signature.

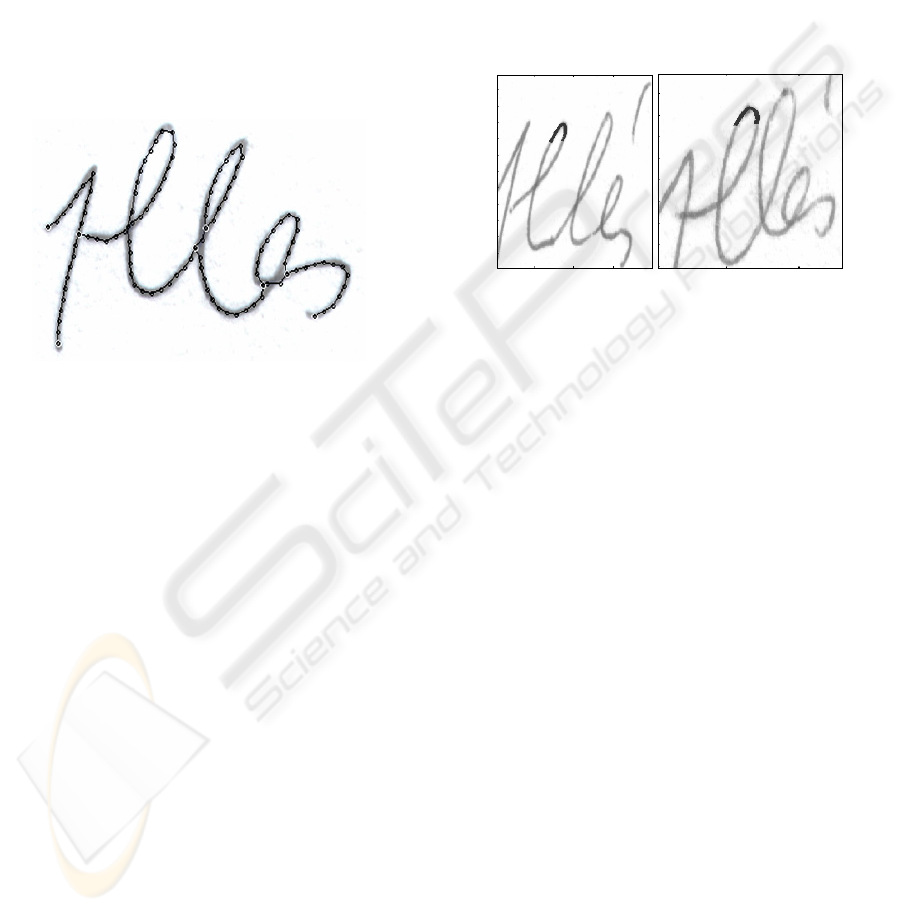

Figure 4: Original and forged signature. The differences

between curves can be extracted by applying the spline

fitting.

Using the correspondent splines, the difference

between the analytical curves can be calculated.

3.3 Pen Model

Our approach tries to capture the motion of the head

of the pen. We regard the head of the pen as a

moving object which has velocity and acceleration.

This object tries to keep these quantities at a

constant level towards minimizing the used energy,

and moving along the trace of the pen. This model

does not exactly agree with the physics of motion. If

the pen keeps its acceleration at a constant level it

does not consume energy. E.g. moving along a circle

does not use up energy, but changing the radius

does. Changing any of these quantities has almost

the same effect on the consumed energy. The cost of

changing these values is an important parameter of

the algorithm.

This model can also be considered in a different

way, which is a more visual approach. Taking a

point of the trajectory, where the foregoing

quantities are given, the aim is to calculate the new

values, which appoint the base for the next

simulation step. The velocity determines a direction,

and the acceleration determines a curvature (figure

5b). Thus a curve can be drawn from this point

approximating the unknown part of the trajectory.

OFF-LINE SIGNATURE VERIFICATION - Comparison of Stroke Extraction Methods

273

Therefore we got to a two dimensional optimization

problem. The curve, which is described by two

parameters, has to be altered in order to get the best

fitting, than the virtual object is moved one step

along this curve to get to the next simulation point.

The measure of coincidence can be derived from

the masked pixels by summarizing the intensity of

them. However this way the curve is not ensured to

be laid along the trajectory of the centre point of the

pen, but some swing around it is done (see figure

5d). To remove this unwelcome phenomenon some

image processing methods are needed. By producing

thinned versions of the track of the pen (figure 5e),

new measures can be introduced, which lead the

virtual object towards the centreline (figure 5c).

The most difficult challenge is to maximize the

fitness whilst the "energy" has to be minimized. If

the curve got too much freedom to change its

properties during one simulation step, it can easily

turn to the wrong direction at a junction (figure 5a),

or it can turn around at the end of the real curve. On

the other hand by restricting this freedom, the curve

tends to leave the centreline, stop at a hard band,

produce loops (figure 5h), or even leave the track of

the pen. There is an additional parameter which

determines the length of the test curve making the

parameter optimization more complex. A longer test

curve enables following even broken traces, but it

may also treat separate curves as one. These are the

questions when this method reaches its bounds.

Further features of the trace have to be taken into

consideration. Some information could be extracted

from the overlapping traces. Although those effect

on the image strongly depends on the type of the pen

used. In some cases nothing can be seen. By

observing the edge of the trace, useful information

can be extracted about the trajectory. As you can see

in figure 5f, it helped solving the problem which was

missed by the original algorithm. But some

preprocessing (figure 5f, figure 5g) is required with

a not trivial parameterization, making this approach

less robust.

A darker or a longer trace can divert the curve.

Like in figure 6, where the two curves run very close

to each other and the darker curve diverts the tracer.

Further development is needed to make the

algorithm keep the arc if it is possible, and alter the

curvature only if there is no choice. Our attempts to

achieve this always produced some intolerable side

effects. Probably there is no optimal

parameterization for this algorithm, thus the

parameters should be modified adaptively.

The last step of the method is still under

implementation. The virtual object has to be placed

on the trajectory and directed correctly. It is quite

simple in most cases, but when too many curves are

crossing each other, or two parallel lines are laying

close to each other it becomes a difficult task. The

letter 'a' of figure 7 depicts this challenge. The whole

trace has to be masked by the extracted curves, so

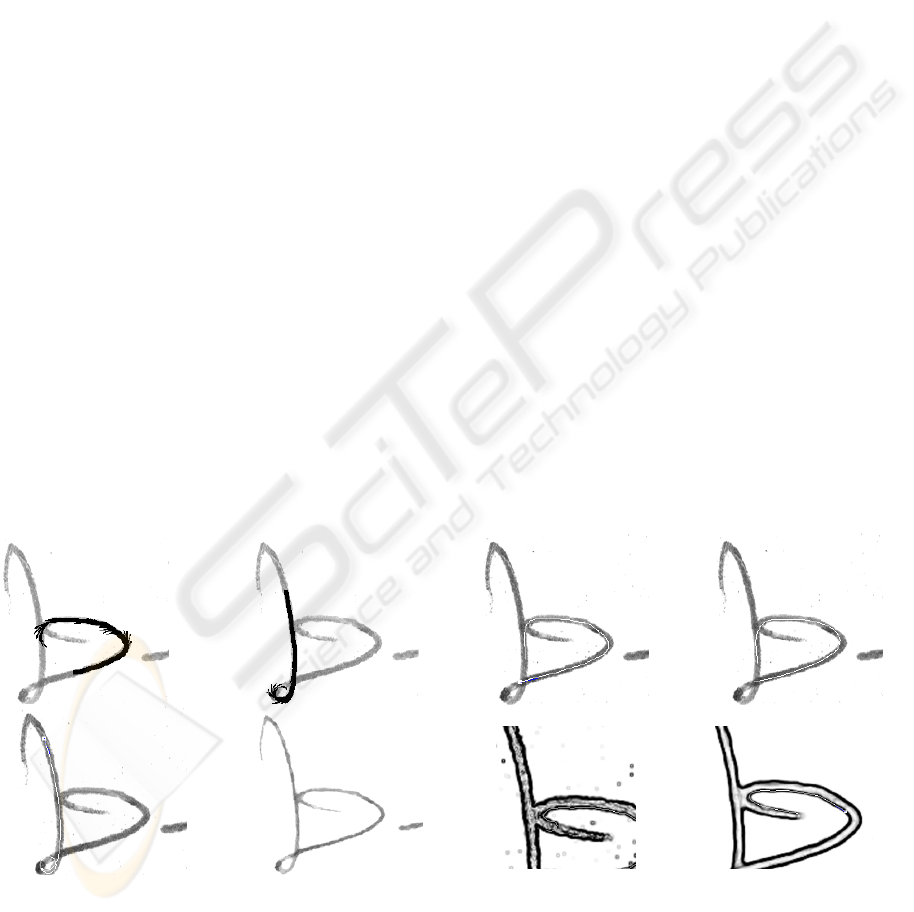

e) f) g) h)

Figure 5: a, b) The thick curve shows the estimated trajectory, the thin curves show the chosen curvature starting from each

simulation point c) the extracted trajectory d) the extracted trajectory without using thinned images e) by applying restricted

freedom for the curve, it may produce loops f) thinned image g) tracing on the edge image fails h) a median filter enhances

tracing on the edge image.

a) b) c) d)

ICSOFT 2007 - International Conference on Software and Data Technologies

274

Figure 6: The algorithm fails at nearly parallel curves.

Both curve follow the better trace.

after putting some initial objects on the trajectory

randomly, the unmasked areas become the target of

the curve starter. After masking the whole trace the

curve fragments have to be joined. Then the

topology can be extracted and all the possible

trajectories can be tested, and the best can be chosen.

To reach this point the original algorithm does not

necessarily have to be improved in most cases

according to our test images, because the logic

needed to process the achieved curves has to be so

general that it must tolerate the above mistakes. But

a more reliable procedure can be achieved in

anyway.

Figure 7: Complex trajectory extracted from a sign-

manual, but a darker area diverted the curve at the end.

4 EXPERIMENTAL RESULTS

The simplest method, presented in 3.1 delivers a

brief representation of an image. The whole

signature can be characterised by 20-30 endpoints,

each having 3 parameters (vertical position,

horizontal position, direction). This allowed us to

build and test a simple signature verification system

(Kővári, 2007) based on these parameters. Although

the efficiency of this system (20% EER) is still

behind the best results of 8,9% (Armand, 2006) or

13,3% (Chen, 2005) or the 9,3% of (Srihari, 2004),

this result is still impressive, compared to the low

number of parameters used, to represent a signature.

The algorithms presented in 3.2 and in 3.3

require a more complex representation. Method 3.2

extracts in average more than 150 stroke points from

a signature, with each point having 4 parameters

(vertical position, horizontal position, next point in

the stroke, previous point in the stroke). This

information is only a partial result of the signature

verification process; therefore there are no public

researches and results to compare them with. In

order to validate the results an on-line signature

database was used (SVC, 2004). The database

already contains the original stroke information,

which could be compared with the results of the

stroke extraction algorithm (see Figure 8).

100

150

200

250

300

350

400

-13

-12

-11

-10

-9

-8

-7

-6

-5

-4

-3

-2

-1

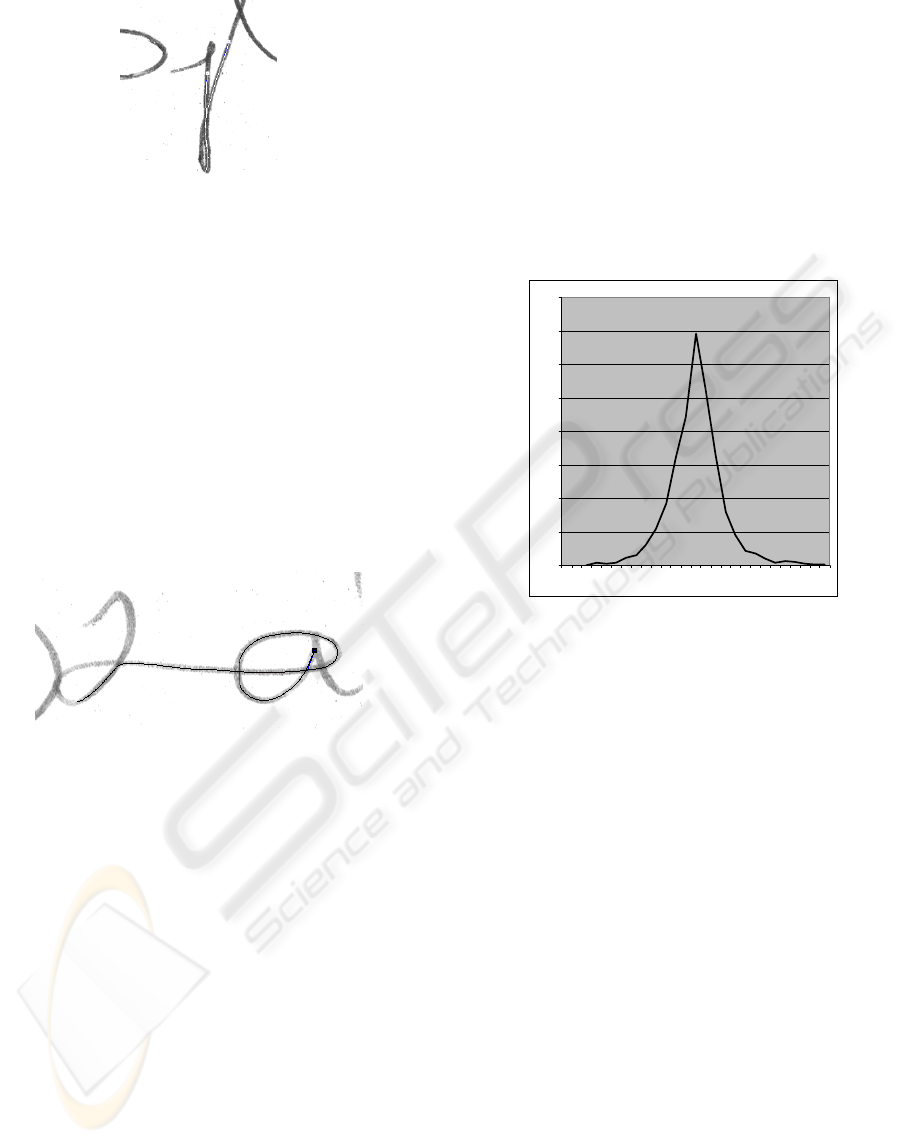

Figure 8: The distribution of the deviance in the number of

strokes of our stroke extraction algorithm compared to the

original strokes. (Y-axis: number of signatures, X-axis:

deviance).

The method, shown in 3.3 delivers probably the

most accurate, but also the most complex

representation of the signature. Each point of the

skeleton is stored with the corresponding position,

“velocity” and “acceleration” information. This

method is still in development; thereby no

comparison to other methods can be given at the

current state of the art.

5 CONCLUSIONS

Three different stroke extraction methods were

introduced. The first one was based on simple

morphological transformations. Although this is the

simplest and fastest way of stroke extraction, the

loss of semantic information is too much even with a

carefully chosen thinning algorithm. It is not

possible to separate overlapping strokes and the

skeleton of junctions is sometimes hard to interpret.

Not so the second approach, which can be modified

to detect changes in the intensity values. It can stay

fast, because it tracks only some key points of the

OFF-LINE SIGNATURE VERIFICATION - Comparison of Stroke Extraction Methods

275

strokes, but also because of that, a further

reconstruction step is necessary involving spline

fitting. This method can give an acceptable

representation of the signature with acceptable low

computational needs (the full execution time for a

signature is under 1 second on a 2GHz processor).

Junctions are the weak point of the algorithm, which

are very hard to trace with this method. To get the

best results, the movements of the pen (and thereby,

the movements of the writer) must be taken in

consideration. The reconstruction rate is impressive.

Even complex junctions could be restored with

success, but a full processing of a signature takes

about 20 times longer, than in the previous cases.

Currently we are also experiencing some

parameterization issues, as noted in section 3.3

ACKNOWLEDGEMENTS

This project was supported by the Innovation and

Knowledge Centre of Information Technology

BME(IT

), the National Office for Research and

Technology (NKTH) and the Agency for Research

Fund Management and Research Exploitation

(KPI)..

REFERENCES

Martinez L.E., Travieso C.M., Alonso J.B., Ferrer M.A.,

2004 Parametrization of a Forgery handwritten

signature verification system using SVM, IEEE,vol. 2,

no. 3, pp. 193_196.

Miguel A. Ferrer, Jesu´s B. Alonso, and Carlos M.

Travieso. 2005, Offline Geometric Parameters for

Automatic Signature Verification Using Fixed-Point

Arithmetic. IEEE Transactions on Pattern Analysis and

Machine Intelligence, vol. 27, no. 6, june 2005 p 993-

997

Robert Sabourin, 1997, J.-P. Drouhard, Etienne Sum Wah:

Shape Matrices as a Mixed Shape Factor for Off-line

Signature Verification. Fourth International

Conference Document Analysis and Recognition

(ICDAR'97), pp. 661

H. A. Sofien Touj, Najoua Ben Amara, 2003, Global

feature extraction of off-line arabic handwriting, IEEE

SMC, vol. 2, no. 4.

Jalal Mahmud and Chowdhury Mofizur Rahman, 2005,

On the Power of Feature Analyzer for Signature

Verification. Proceedings of the Digital Imaging

Computing, Techniques and Applications (DICTA

2005)

Bence Kővári 2007, The Development of Off-Line

Signature Verification Methods, Comparative Study.

Proceedings of microCAD, International Scientific

Conference, 2007

Camino J.L., Travieso C.M., Morales C.R., Ferrer M.A.,

1999, Signature classification by hidden Markov

model, IEEE, no. 5.

Jinhong K. Guo, David Doermann, Azriel Rosenfeld,

2000, Off-Line Skilled Forgery Detection Using Stroke

and Sub-stroke Properties. Proceedings of the

International Conference on Pattern Recognition

(ICPR'00)

Louisa Lam, Seong-Whan Lee, Ching Y. Suen, 1992,

Thinning Methodologies-A Comprehensive Survey

IEEE Transactions on Pattern Analysis and Machine

Intelligence archive Volume 14 , Issue 9 (September

1992) Pages: 869 - 885 ISSN:0162-8828

Bence Kővári, Zsolt Kertész, Attila Major, 2007, Off-Line

Signature Verification Based on Feature Matching

INES, 11th International Conference on Intelligent

Engineering Systems, 2007 [not published yet]

Ahlberg, J. H., Nilson, E. N., Walsh, J. L., 1967, The

theory of splines and their applications. New York:

Academic Press 1967.

Sukhan Lee and Jack C. Pan (Presentted by Michael

Janssen), 2005, Offline tracing and representation of

signatures JC PAN IEEE transactions on systems,

man, and cybernetics 22:44, pp. 755-771, 2005

K K Lau, Pong C Yuen and Yuan Y Tang, 2002, Stroke

Extraction and Stroke Sequence Estimation On

Signatures. Pattern Recognition, 2002. Proceedings.

16th International Conference on pp. 119-122

Stephane Armand, Michael Blumenstein and Vallipuram

Muthukku-marasamy, 2006, Off-line Signature

Verification Based on the Modified Direc-tion

Feature. The 18th International Conference on Pattern

Recognition (ICPR'06)

Siyuan Chen and Sargur Srihari, 2005, Use of Exterior

Contours and Shape Fea-tures in Off-line Signature

Verification

. Proceedings of the 2005 Eight In-

ternational Conference on Document Analysis and

Recognition (ICDAR’05), 2005

Sargur N. Srihari, Aihua Xu and Meenakshi K. Kalera,

2004, Learning Strategies and Classification Methods

for Off-line Signature Verification. Proceed-ings of the

9th Int’l Workshop on Frontiers in Handwriting

Recognition (IWFHR-9 2004)

SVC 2004: Signature Verification Contes

http://www.cs.ust.hk/svc2004/download.html

ICSOFT 2007 - International Conference on Software and Data Technologies

276
