A SOFTWARE TOOL FOR REQUIREMENTS SPECIFICATION

On using the STORM Environment to Create SRS Documents

Sergiu Dascalu*, Eric Fritzinger*

*Department of Computer Science and Engineering, University of Nevada, Reno,USA

Kendra Cooper**, Narayan Debnath***

**Dept. of Computer Science, University of Texas at Dalla

***Dept. of Computer Science, Winona State University,USA

Keywords: Software tool, requirements specification, use case modelling, SRS document, UML, CASE.

Abstract: STORM, presented in this paper, is a UML-based software engineering tool designed for the purpose of

automating as much of the requirements specification phase as possible. The main idea of the STORM

approach is to combine adequate requirements writing with robust use case modelling in order to expedite

the process leading up to the actual design of the software. This paper presents a description of our approach

to software requirements specification as well as an overview of STORM’s design concepts, organizing

principles, and modes of operation. Also included are examples of the tool’s use, a comparison between

STORM and similar CASE tools, and a discussion of needed features for software environments that

support text aspects of requirements and use case modelling.

1 INTRODUCTION

Specification of software is a difficult and complex

activity that requires substantial effort on the part of

the requirements engineer (Endres and Rombach,

2003). There are many Computer Aided Software

Engineering (CASE) tools that help with the

development of software, but they rarely have much

support for text descriptions of requirements, use

cases and scenarios. Existing tools place less

emphasis on text aspects of requirements modelling

and Unified Modelling Language (UML) tools are

largely diagrammatic editors (Booch, 2002; OMG

UML, 2007).

We have created STORM, the Supporting Tool

for the Organization of Requirements Modelling, to

assist requirements engineers in the specification

phase of the software life cycle. STORM is a UML

software tool that incorporates requirements

management and use case creation as outlined in

(Arlow and Neustadt, 2002). This is done in an

effort to help the engineer through the specification

of the software. One of the ways that STORM

assists the requirements engineer is in the automated

generation of several artefacts of the software

specification.

Although initiated in an academic environment,

STORM answers real needs for speeding up the

specification process by supporting the semi-

automated generation of the Software Requirements

Specification (SRS) document (Sommerville, 2006).

STORM has been introduced in a 2006 paper

(Dascalu, 2006) that described its main concepts and

provided excerpts from its software model and

prototype in action. Since then, STORM has

undergone further development and has evolved in

terms of new features, operational capabilities, and

reliability. The current paper provides an overview

of STORM’s functionality and highlights its new

features available. Furthermore, the way we

organize the SRS is used as the structure of the

“target document” to be generated by STORM based

on the requirements engineer’s and system analyst’s

input on requirements, actors, and use cases.

This paper’s contributions are as follows. First,

we provide a description of a new operational tool

for requirements specification that answers real

software specification needs. Because UML contains

no modelling constructs for expressing functional

319

Dascalu S., Fritzinger E., Cooper K. and Debnath N. (2007).

A SOFTWARE TOOL FOR REQUIREMENTS SPECIFICATION - On using the STORM Environment to Create SRS Documents.

In Proceedings of the Second International Conference on Software and Data Technologies - SE, pages 319-326

DOI: 10.5220/0001345303190326

 SciTePress

and non-functional requirements there is lack of

tools that support the process of defining and

managing such requirements. Here is where the

novelty of STORM comes in place, as a solution to

fill in this existing gap in the landscape of CASE

tools. Second, we identify and discuss a set of

needed yet typically overlooked features of

supporting tools in requirements and use case

modelling. Third, through the tool described in this

paper we propose an initial component in a suite of

tools aimed at automating software modelling and

documentation. For example, in future work, within

the traditional (waterfall-like) timeline of the

software process, before using STORM a new

component tool would extract an outline of

requirements from a project concept. At STORM

level, specification patterns and evolved reusable

requirements libraries could be supported by a new

component of the tool suite (or by a future version of

STORM). After using STORM, the artefacts it

creates could be fed into a new component tool that

would guide and support the automated generation

of design models such as interaction diagrams, state-

chart diagrams, and class diagrams (Liu et al, 2003).

The remaining of this paper is organized as

follows: Section 2 provides related background

information and further describes our motivation for

creating STORM; Section 3 presents details of the

SRS document we have used as target document to

be generated by STORM; Section 4 overviews the

tool’s functionality and highlights its new features

and capabilities; Section 5 provides examples of

using STORM for requirements specification and

use case modelling; Section 6 contains a comparison

with related work; finally, Section 7 outlines

directions of future work and presents our

conclusions.

2 BACKGROUND AND

MOTIVATION

Three of this paper’s authors regularly teach, at

different universities, undergraduate and graduate

courses in software engineering. Typically, these

courses include group projects that involve teams of

3 to 6 students each (Dascalu, 2005). At senior and

graduate level courses we aim to emulate as much as

possible an industrial environment in which students

apply sound software engineering practices and

develop in collaboration relatively complex

software-intensive projects. As part of the

educational and development process, the main

phases of the software process (Pressman, 2006;

Sommerville, 2006) are covered and student groups

are required to take their projects from the

successive phases as project concept definition,

requirements specification, analysis, design,

implementation, integration, testing, and delivery.

Due to time constraints, in semester-long courses

only development is covered while in year-long

courses evolution is also involved (in the 2 or 3

iterations of the project).

What struck us from the beginning our teaching

of these courses (about five years ago) was the lack

of CASE tools for capturing requirements as well as

textual descriptions of use cases and scenarios.

Tools such as Rational Rose (IBM Rational, 2007)

and MagicDraw (Magic Draw, 2007) have excellent

capabilities for drawing diagrams and even generate

code from software models but not sufficient

facilities for the above – hence, the students had to

write their project’s SRS using regular text editors

such as Microsoft Word or vi.

To speed up the generation of the SRS, we

started about three years ago the development of

STORM, a tool which has the goal of supporting

requirements engineering and use case modelling

and assist software engineers in generating the SRS

for their software-intensive projects.

Our work on STORM has been initially

materialized in a 2005 version of the tool (Dascalu,

2006). Further work has been done continuously

since then on improving STORM and a second,

2006 version has been developed as part of a Master

thesis in Computer Science successfully defended in

June 2006 by one of this paper’s authors (Fritzinger,

2006). This version, with its significant new

enhancements, is discussed in this paper. Currently,

work involving a couple of graduate students is

ongoing on developing of a web-based version of

STORM that will be likely made publicly available,

as open source software, around the end of 2007.

Beyond its immediate scope and utility, we

believe the STORM project is a worthwhile

endeavour for several reasons. First, it is at the core

of our research interests, focused on software

specification. In fact, in terms of research STORM

provides an excellent groundwork for investigating

the principles of Model-Driven Development

(MDD) and advancing work in this area (Stahl et al,

2006). Second, the tool’s potential for application in

practical, real-world applications is high (we are

working to achieve this goal). Third, it constitutes a

powerful educational tool that not only illustrates the

significance of supporting tools in software

engineering but also serves the requirements

ICSOFT 2007 - International Conference on Software and Data Technologies

320

specification and (partially) analysis phases of the

software process. Furthermore, it helps the students

create software models and generate documentation

(the SRS) in a more effective way. In other words,

STORM is placed at the confluence of methods

(ways of performing software process activities that

it supports), models (that it helps create), and tools

(itself being a representative of this category), three

fundamental pillars of software engineering.

3 OUR SPECIFIC SRS

Before looking at STORM’s current features it is

necessary to briefly describe the typical structure of

the SRS used in our projects. As shown in Table 1,

this structure has been kept to several minimal but

essential sections in order to be suitable for a rather

short, streamlined software engineering process

applied in projects involving 3 to 6 developers over

a period of 4 or 8 months.

Table 1: Structure of the target SRS document.

Section # Section contents

0 Table of contents

1 Abstract / executive summary

2 Introduction

3 Requirements modelling:

- functional requirements;

- non-functional requirements.

(prioritized on 3 levels)

4 Use case modelling:

- use case diagram;

- use cases using templates and text

descriptions;

- sample scenarios (primary scenario and

most important secondary scenarios)

5 Requirements traceability matrix

6 Initial snapshots of the user interface

7 Glossary of terms

8 Resources and references

9 Contributions of team members

10 Appendices

Notably, the most substantial items in this SRS

structure (sections 3, 4, and 5, which account for

about 70% of the SRS size) are covered in STORM,

as described next in the paper. All other items, such

as the glossary of terms and the initial snapshots of

the software system’s planned user interface can be

appended by the requirements engineer in the

document file generated by STORM. Also, future

needed extensions to the SRS will be implemented

in STORM–diverse software modelling practices,

including details of extended SRS documents are

planned to be covered by new versions of the tool.

4 OVERVIEW OF STORM

STORM’s main goal was to create a user friendly

CASE tool capable of improved handling of text

aspects of requirements specification and use case

modelling, an area mostly neglected by the currently

available CASE tools. Primarily, STORM provides

support for managing requirements, use cases, use

case diagrams, scenarios, and traceability matrix.

This section briefly describes how each of these

aspects is handled within the STORM environment.

4.1 Main Functionality

Requirements management. STORM supports

software requirement management as outlined by

(Arlow and Neustadt, 2002). The requirement

statements are broken down into functional and non-

functional requirements, and are sequentially

numbered, e.g., R1, R2, R3, etc. This method allows

the creation of the traceability matrix to be less

tedious than it would be with other methods of

requirements writing.

One of the other functions within this context is

the ability to import and export requirements from/to

a particular file format. Currently, STORM is

compatible with the RUT (RUT, 2007), a

requirements tool created by other authors in parallel

with STORM. This feature is especially important

when dealing with large projects that may borrow

functionality from previous projects.

Actor management. The actors in STORM can

be associated with use cases and can even inherit

each other. An inheriting actor is automatically

associated with all of the use cases associated with

the inherited actor.

Use case management. Use case management in

STORM was designed from the beginning to allow

for automated generation of the use case diagram as

well as of the primary and secondary scenarios. The

goal of the use case form (template) is to structure

everything so that it can do so. The interface

changes as necessary to accommodate sequential

actions, branching, and looping. One can even

“collapse” particular branches to make the viewing

of the use case easier.

Some of the functions included are the ability to

inherit, extend, and include other use cases, denoted

by the

<<inherit>>, <<extend>>, and <<include>>

stereotypes, respectively.

A SOFTWARE TOOL FOR REQUIREMENTS SPECIFICATION - On using the STORM Environment to Create SRS

Documents

321

Misuse case management. Misuse cases

(Alexander, 2003) are use cases that attempt to

destabilize the system and cause havoc among its

internal workings. These misuse cases add two new

stereotypes for use case creation:

<<threatens>> and

<<mitigates>>. The idea is to find weak areas in the

system and attempt to find use cases to mitigate the

potential threats to the system.

Requirements tracing. The traceability matrix

provides a mapping of requirements to use cases. In

the form of a table, it shows what requirements are

captured in what use cases. It is a good tool for

tracing and verification, as well for showing at a

glance which use cases are critical to the success of

the system.

Scenario generation. STORM’s scenario

generation facility automatically creates the

scenarios, both primary and secondary, based on the

data entered via the use case template. This

automated generation is done by taking all branches

as separate scenarios and compiling them into a list.

The user specifies the primary scenario on the use

case form via radio buttons located at each branch.

Use case diagram generation. The use case

diagram is also automatically generated based on the

information input in the actor forms and use case

form. The user can click and drag all of the

individual components of the diagram in order to

position them to the user’s liking. In order to keep a

clean look to the diagram all connections and system

boundaries will auto-adjust to the movements. The

only objects that need to be moved are the actors and

use cases.

SRS document export. In addition to the

features listed here, STORM can also export the

software requirements specification document to

either HTML or rich-text format (RTF). This is

major feature, developed in an effort to allow the

requirements engineer to generate and show the

specification outside of STORM’s interface and

allows for a printable version of the specification.

4.2 Summary of New Features

As compared with the initial version of the

environment, the last standalone edition of STORM

provides the following major additions and

enhancements:

 Requirements reuse via import and export

facilities;

 Capability to generate the use case diagram

from use cases;

 Capability to generate scenarios from use

cases;

 Facility to generate SRS as an RTF document;

 Facility to generate SRS as an HTML

document;

 Further tested software, packaged for use,

applied in student projects.

5 EXAMPLES OF USE

In this section, samples of STORM uses are

provided to illustrate the environment’s main

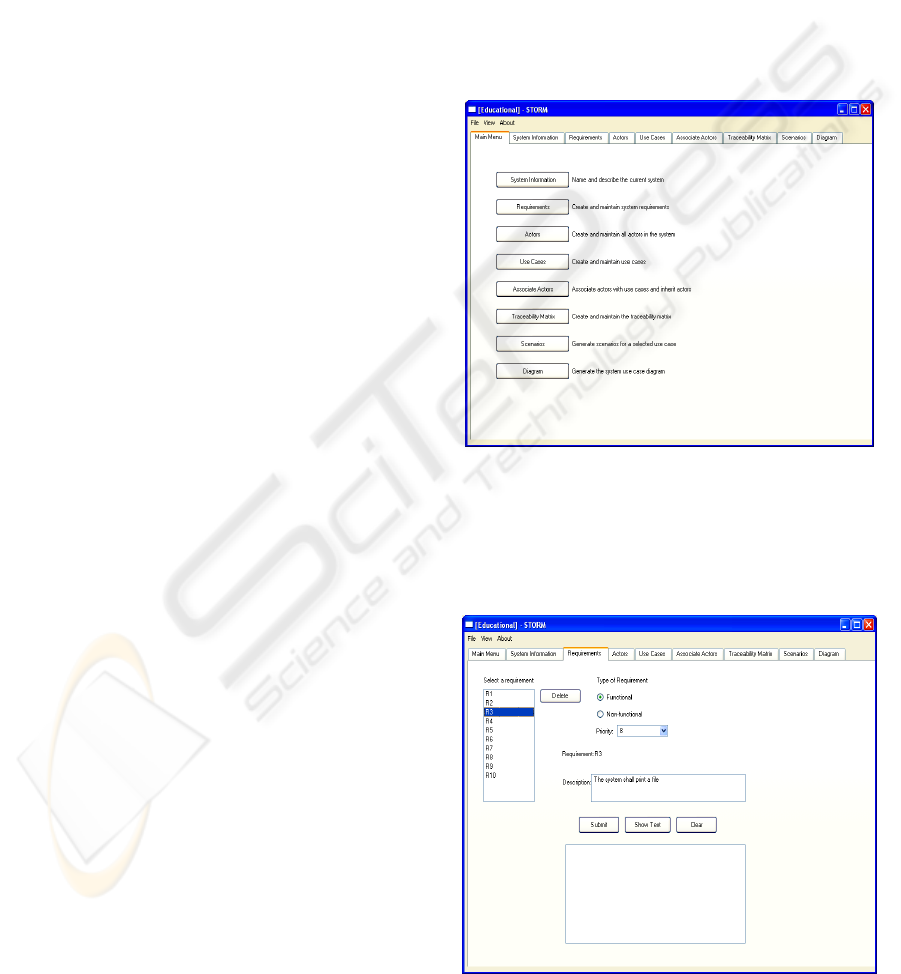

functions described in the previous section. Figure 1

shows the main menu of STORM, allowing the

requirements engineer to select any part of the

specification he or she might want to work on.

Figure 1: Main user interface of the STORM tool.

Figure 2 displays the requirements entry form,

which in essence allows the user to specify if the

requirement is functional or non-functional and

select its priority.

Figure 2: STORM requirements form.

ICSOFT 2007 - International Conference on Software and Data Technologies

322

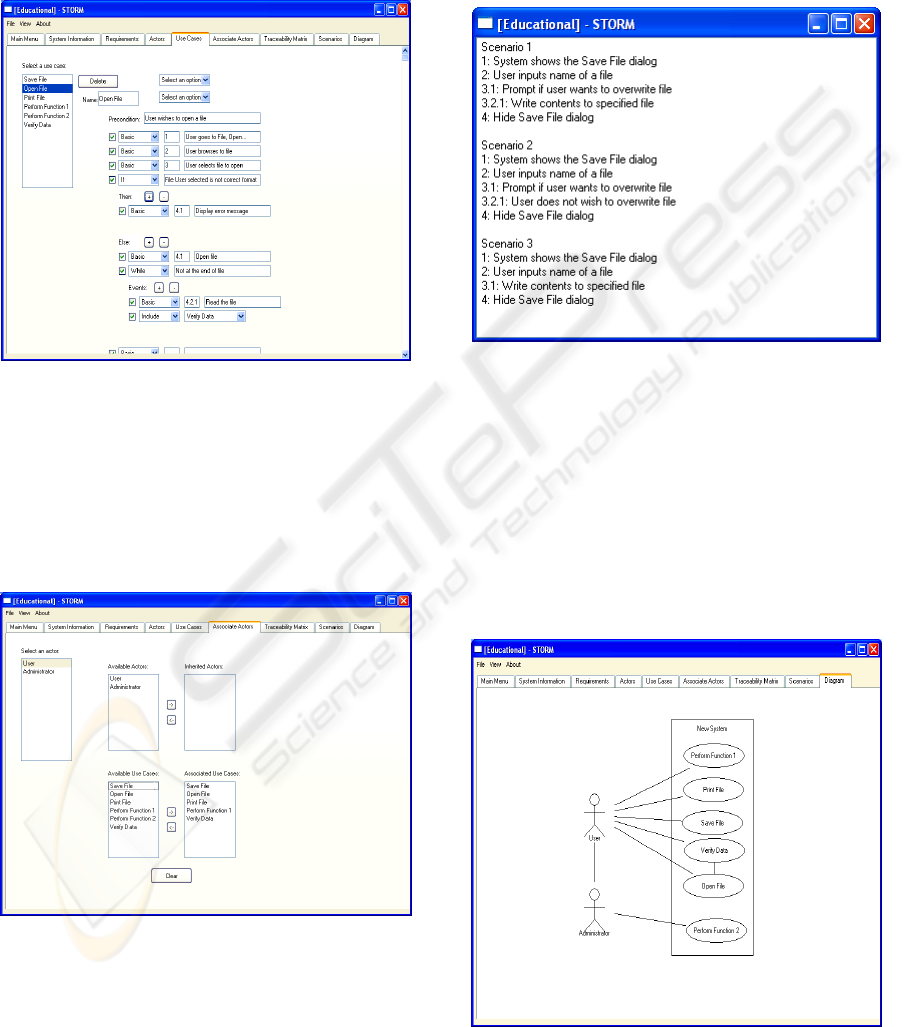

Figure 3 presents the use case form (template),

which allows the user to input use cases. A use case

template contains preconditions, post-conditions,

main flow of events, and alternative flow of events.

Each statement in the main flow of events can be a

basic statement, an if-statement, or a while-

statement (loop).

Figure 3: STORM use case form.

Figure 4 displays the associate-actors-to-use

cases form. This form allows the developer to

associate actors with use cases in addition to

allowing the designer to make actors inherit other

actors. This form allows the automated generation of

connections between actors and other components of

the use case diagram.

Figure 4: STORM form for associating actors with use

cases.

Figure 5 shows how from the use case created in

Figure 3 several scenarios were generated based on

the information entered into the use case template.

The primary and secondary scenarios are outlined,

and the steps are shown as they would appear in an

execution of the use case. One thing to note is how

the loop is handled in the primary scenario. In

general, it is difficult if not impossible to determine

how many loops it would take to complete a task, so

at this moment this aspect of scenario generation is

handled only superficially in STORM.

Figure 5: Example of generated scenarios in STORM.

Figure 6 contains a snapshot of the generated use

case diagram. Here, the user can click and drag the

components of the diagram to improve its graphical

presentation and make it more “structured”. This

diagram was generated based on the information

garnered from the use case form, the actors form,

and the associate-actors-to-use cases form. All

connections are created through the UML

stereotypes (e.g.,

<<extend>> and <<include>>)

specified on the associations made.

Figure 6: Example of generated use case diagram in

STORM.

A SOFTWARE TOOL FOR REQUIREMENTS SPECIFICATION - On using the STORM Environment to Create SRS

Documents

323

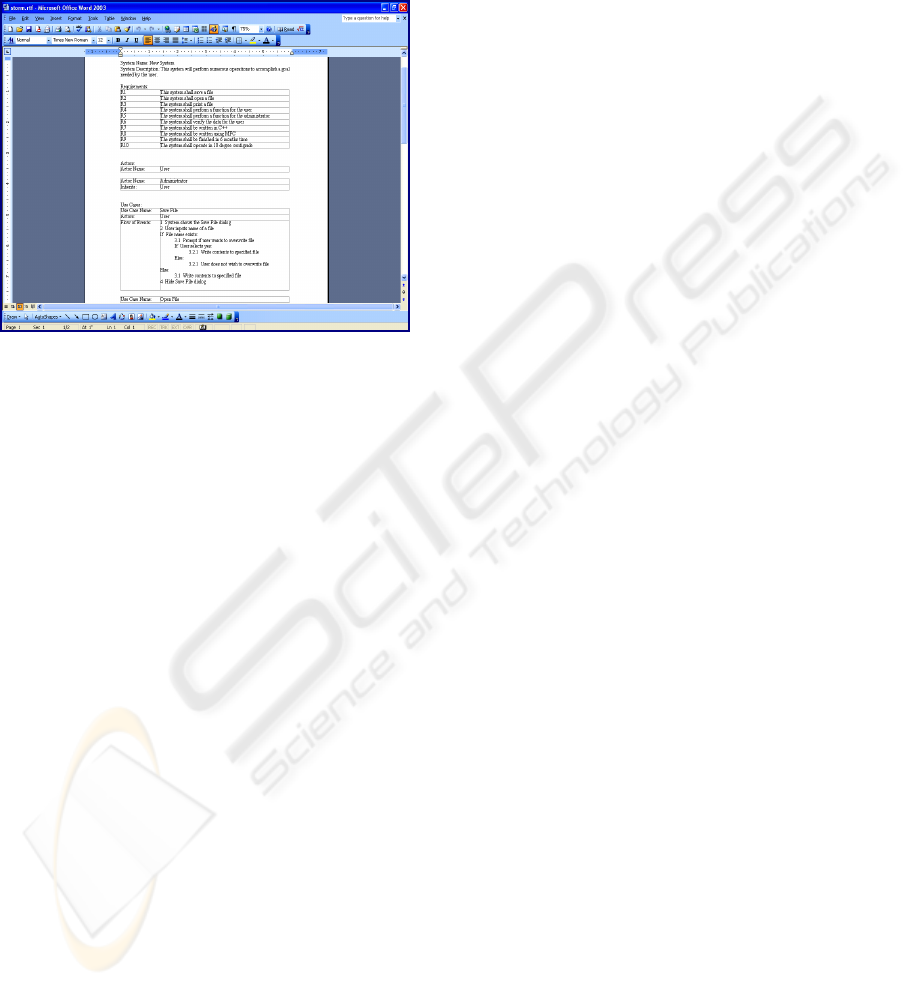

Finally, Figure 7 presents an excerpt of the

generated SRS document as an RTF (Word) file.

Due to space limitations, other features of STORM

such as generation of the SRS as an html file or

reuse of requirements using import and selection

facilities, are not illustrated in the paper.

Figure 7: Excerpt from a generated SRS document as an

RTF file in STORM.

6 COMPARISON WITH

RELATED WORK

While STORM also incorporates support for

graphical representations (use case diagrams), the

defining feature of the tool is its ability to handle the

text aspects of requirements specification and use

case modelling. There are very few programs or add-

ons on the market that support text in the way that

STORM does, and none of them provide all features

that STORM has to offer.

Among the closest related tools, DOORS is a

requirements tool capable of handling very large

commercial projects (DOORS, 2007). Scenario Plus

is an add-on for DOORS which adds support for use

cases and a use case diagram (Scenario Plus, 2007).

Together they provide a powerful combination for

managing and tracking requirements. This

combination also allows for dealing with misuse

cases and exporting generated documents to

Microsoft Word. The main difference that sets

STORM apart is the automatic generation of

scenarios from use case templates, which STORM

supports, but DOORS does not. Furthermore,

STORM allows use case and scenario descriptions

using the practical templates proposed by Arlow and

Neustadt (2002), while DOORS does not.

The Open Source Requirements Management

tool is a powerful open source requirements tool

(OSRMT, 2006). It is available for download on

sourceforge.net and has many features similar to

DOORS’. This tool allows for prioritization of

requirements and includes a traceability matrix but

lacks support for use cases, scenarios, and use case

diagrams. It is a good open source solution for

requirements management, but compared to

STORM it does not handle the use case modelling of

a software system.

EventStudio is a CASE tool mainly concerned

with the graphical representations of a system

(EventStudio, 2006). It incorporates a scripting

language called FDL that allows for dynamic

generation of diagrams, including automatic

generation of scenarios. Further, EventStudio can

create images that can be scaled to different paper

sizes and can export documents. However, it does

not handle text aspects of requirements, use cases,

and scenarios.

RUT is a use case tool developed by NASA’s

Software Assurance Technology Center (RUT,

2007). It is a web-based system that allows users to

create projects, actors, and use cases much in the

same way that STORM does. It is based on PHP and

MySQL and performs text analysis to look for

keywords that may add ambiguity to the use case

text. RUT is a much focused tool that handles use

cases very specifically. Nevertheless, STORM has a

broader scope, providing support for managing

requirements, use case diagrams, use cases, and

traceability matrix.

Diagramming editors represent an important

category of CASE tools that includes Microsoft’s

Visio (Microsoft Visio, 2003), MetaMill (MetaMill,

2007), and IBM’s Rational Rose (IBM Rational

Rose, 2007). These tools provide excellent support

for diagrams and visual aids to assist in the

development of software. They are some of the most

popular CASE tools on the market.

The difference

between them and STORM is significant in that

STORM’s main focus is on the text aspects of

software specification while the diagramming tools

only truly support its visual aspects. While the

visual aspects are very important, some specification

depths are lost when only dealing with diagrams.

As a example of this class, Microsoft Visio is a

diagramming tool among the most accessible and

popular on the market. It handles only diagrams, and

so is quite powerful when it comes to making

graphical representations of a software system.

However, there is little emphasis on text for

specification of the system. There are workarounds

for the lack of text support, for example use case

objects having a “comments” field which can be

used to list the steps in that use case, but this has no

ICSOFT 2007 - International Conference on Software and Data Technologies

324

Table 2: Comparison with similar CASE tools.

CRITERIA →

TOOL ↓

Requirements

modelling

Use case

text

description

Use case

diagram

generation

Automated

scenario

generation

Misuse

case

support

Export to

document

format

Full

diagram

capabilities

STORM

√ √ √ √ √ √

DOORS + SP

√ √ √

√ √

OSRM

√

× × × ×

√

EventStudio

× × ×

√

√ √

RUT

√

× × × × ×

MS Visio

× × × × × ×

√

functionality other than that for textual design.

STORM was designed mostly for text aspects of

requirements specification, which significantly

distinguishes it from Visio.

The above are summarized in Table 1, which

contains a chart comparing STORM to the CASE

tools mentioned in this section.

7 FUTURE WORK AND

CONCLUSIONS

There has been much accomplished in the STORM

project to create a CASE tool capable of handling

the text aspects of requirements and use case

modelling. However, there is still more work that

can be done to make the tool more complete and

robust. The capabilities of STORM currently are

sufficient to specify a system, but there is plenty of

room for expanding it into other phases of the

software process. In the long run, STORM could be

the first component of a suite of tools capable of

handling most of the software engineering process.

On a shorter timeframe, one major improvement

to the environment can be to allow for the exporting

and importing of more file formats. In particular, it

will be useful to import and export to the XMI

special file format, which is an XML-based diagram

format that many of the commercial CASE tools

support. Exporting and importing entities using this

format would allow for more interoperability

between STORM and other CASE tools.

Another enhancement is to allow for more robust

scenario generation. As it stands, the scenario

generation is handled almost completely by the tool.

Allowing the user to pick which paths (i.e. prune the

scenario tree) of a use case to generate related

scenarios would be useful. Further, allowing the user

to have control over loops in a use case which are

rather superficially handled at present is another

item of future work.

Collaboration can be a great asset, especially when it

comes to designing software. One of the ways

STORM could be applied to this is to create a web-

based version, one that could be used to work with

people all over the world in the specification and the

design of a software system. In fact, a web-based

version of STORM has already been started, with

the related goal of using the open source software

paradigm to allow for a repository of specifications

that other requirements engineers could browse and

use in software development.

There are yet more areas of STORM

development. The following is a list of some more

additions to the tool that can increase its utility:

 Enhanced requirements description and reuse,

for example by supporting additional templates

for requirements definition;

 More customization features to adapt STORM

utilization to specific user preferences (e.g.,

choices of font types, font size, colors, etc.);

 Expanded scope of the tool by including

support for more diagrams, particularly for

analysis and design (e.g., class diagrams,

activity diagrams, interaction diagrams) as well

as for code generation;

 New features for integrating other SRS

document figures and data (e.g. screenshots of

the user interface, glossary of terms, and

references).

STORM has a strong enough base in UML to be

expanded in many different ways. Being text-

oriented in nature, the tool would be complemented

by having additional diagrams added to its

functionality.

The goal of the STORM project was to create a

CASE tool for the specific purpose of supporting the

requirements and specification phases of software

engineering (Dascalu, 2006). It has been designed as

a tool to be used in an academic setting, in particular

for supporting the way specification is done at the

University of Nevada, Reno, USA. STORM is using

A SOFTWARE TOOL FOR REQUIREMENTS SPECIFICATION - On using the STORM Environment to Create SRS

Documents

325

techniques garnered mostly from (Arlow and

Neustadt, 2002) book, along with some further

modifications from this paper’s authors, who has

also relied on some of Ian Sommerville’s software

engineering approaches and guidelines

(Sommerville, 2006). There are few text-oriented

CASE tools because generally the primary focus is

on diagrams, charts, and pictures. The diagrams are

important, but how the system functions is more

important, which is often described also in the text

of the specification, not exclusively in its diagrams.

The need for text-oriented CASE tools is clear, but

they are not as prevalent in the industry as

diagramming tools. It has been shown, though, that

reducing errors earlier in the software process will

reduce time and cost of the project as a whole

(Lauesen, 2002; Endres and Rombach, 2003). That

is why it is important to specify the system with

more than just diagrams.

In summary, the primary contributions of the

STORM environment consist of the handling of

textual aspects of requirements and use cases

modelling, including via requirements reuse, as well

as of the automated facilities of the tool. In

particular, the generation and the exporting of a

STORM project (SRS document) to rich-text format

and HTML are useful from a practical point of view.

We see STORM as a promising component of a

set of future interrelated tools that will incorporate

MDD principles and will get closer to the ideal

“software factory,” where practically in no time

desires (software requirements) are expressed by

users and running code to achieve them is generated

by the factory’s suite of tools. From a general and

realistic perspective on software development, this is

still largely a utopian thought, but perhaps only for a

limited time. In the past, advances in computing,

including in software engineering, proved capable to

exceed our expectations.

REFERENCES

Alexander, I., 2003. Misuse cases: use cases with hostile

intent. In IEEE Software 20(5): 58–66.

Arlow J. and Neustadt, I., 2002. UML and the Unified

Process: Practical Object-Oriented Analysis and

Design. Addison-Wesley.

Dascalu, S., Fritzinger, E., Debnath, N., and Akinwale, O.,

2006. STORM: Software Tool for the Organization of

Requirements Modeling, in Procs. of the 6th IEEE

Intl. Conf. on Electro/Information Technology (EIT-

2006), IEEE Computer Society Press, pp. 250-255.

Dascalu, S., Varol, Y., Harris, F., and Westphal, B., 2005.

Computer Science capstone course Senior Projects:

From project idea to prototype implementation, Procs.

of the IEEE FIE-2005 Frontiers in Education

Conference, pp. S3J/1-6.

Fritzinger, E., 2006. STORM: Software Tool for the

Organization of Requirements Modeling, Master

thesis, University of Nevada, Reno, USA.

Booch, G., Rumbaugh, J., and Jacobson, I., 2002. The

Unified Modeling Language: User Manual, Addison-

Wesley, 2

edition.

DOORS, 2007. Telelogic’s DOORS. Requirements

management traceability solutions. Available online as

of March 31, 2007 at http://www.telelogic.com/

products/doorsers/index.cfm

Endres, A., Rombach, D., 2003. A Handbook of Software

and Systems Engineering, Addison-Wesley.

EventStudio, 2006. EventHelix, EventStudio System

Designer 2.5 – sequence diagram based system design.

Available online as of July 5, 2006 at http://www

eventhelix.com/EventStudio/.

IBM Rational Rose, 2007. Available online as of April 11,

2007 at http://www-306.ibm.com/software/rational/

Lauesen, S., 2002. Software Requirements: Styles and

Techniques, Addison-Wesley.

Liu, D., Subramaniam, K., Far, B.H., and Eberlein, A.,

2003. Automating transition from use cases to class

model. In Procs. of the 2003 Canadian Conference on

Electrical and Computer Engineering, pp. 831-834.

Metamill Software, 2007, Metamill – The UML CASE

tool, model UML diagrams, and engineer Java, C,

C++, and C# code,” Available online as of April 1,

2007 at http://www.metamill.com/

Microsoft Visio, 2003. Microsoft Office Online: Visio

2003 Home Page. Available online as of June 1, 2006

at http://www.visio.com/

OMG UML, 2007. Object Management Group – UML,

Available online as of April 11, 2007 at www.omg.org

OSRMT, 2006. Requirements Management Tool. News.

Available online as of July 1, 2006 at

http://www.osrmt.com/

Pressman, R.S., Software Engineering: A Practitioner’s

Approach, McGraw-Hill, 6

edition.

RUT, 2007. Requirements Use Case Tool. NASA.

Assurance tools and techniques. Available online as of

February 19, 2007 at http://satc.gsfc.nasa.gov/

Scenario Plus, 2007. Scenario Plus – templates & tools for

scenario-based requirements engineering. Available

online as of March 20, 2007 at

http://www.scenarioplus. org.uk/index.html

Sommerville, I. 2006. Software Engineering, Addison-

Wesley, 8

edition.

SourceForge, 2006. SourceForge.net: Use Case Editor.

Available online as of July 1, 2006 at:

http://sourceforge.net/projects/uced

Stahl, T., Voelter, M., Czarnecki, K., 2006. Model-Driven

Software Development: Technology, Engineering,

Management, Wiley & Sons.

ICSOFT 2007 - International Conference on Software and Data Technologies

326
