Architectural Models for Client Interaction on

Service-Oriented Platforms

Luiz Olavo Bonino da Silva Santos, Luís Ferreira Pires and Marten van Sinderen

University of Twente, Architecture and Services of Network Applications Group

P.O. Box 217, 7500 AE Enschede, the Netherlands

Abstract. Service oriented platforms can provide different levels of functional-

ity to the client applications as well as different interaction models. Depending

on the platform’s goals and the computing capacity of their expected clients the

platform functionality can range from just an interface to support the discovery

of services to a full set of intermediation facilities. Each of these options re-

quires an architectural model to be followed in order to allow the support of the

corresponding interaction pattern. This paper discusses architectural models for

service-oriented platforms and how different choices of interaction models in-

fluence the design of such platforms. Service platforms’ functionality provi-

sioning can vary from a simple discovery mechanism to a complete set, includ-

ing discovery, selection, composition and invocation. This paper also discusses

two architectural design choices reflecting distinct types of functionality provi-

sioning namely matchmaker and broker. The broker provides a more complete

set of functionality to the clients, while the matchmaker leaves part of the func-

tionality and responsibility to the client, demanding a client platform with more

computational capabilities.

1 Introduction

Service-Oriented Architecture (SOA) is a paradigm for software architectures that

fosters the creation of complex systems by using distributed pieces of functionality

(services) accessible through a set of standards. In this architecture, services are pro-

vided to clients by services providers. Clients search for services by browsing a list of

available service descriptions stored in registries. A service description contains in-

formation about a service, such as what the service does, how to access the interface,

and which information should be supplied in order to use the service properly, among

others. After discovering a suitable service, the client invokes the service interface in

accordance with the information contained in the service description.

In this scenario, each client should be able to search in the available registries, de-

cide which service best fits its needs and invoke the service using the published inter-

faces. To facilitate these tasks, service platforms can play an intermediation role be-

tween client applications and service providers. On the provider’s side, a service plat-

form can be beneficial by providing a mechanism for rapid creation, deployment and

advertisement of services. Examples of facilitators for these activities can be found in

Olavo Bonino da Silva Santos L., Ferreira Pires L. and van Sinderen M. (2007).

Architectural Models for Client Interaction on Service-Oriented Platforms.

In Proceedings of the 1st International Workshop on Architectures, Concepts and Technologies for Service Oriented Computing, pages 19-27

DOI: 10.5220/0001349100190027

 SciTePress

[9] and [10]. On the client’s side, the platform can offer support for discovery, selec-

tion, composition and invocation of services, amongst others.

Focusing on the client’s side, platform designers should choose the set of activities

to be supported by the platform from the activities mentioned above. This choice

influences the behavior of the platform and the interaction model between the plat-

form and the clients. Therefore, an investigation of the possible platform behaviors

concerning those interactions is necessary to identify platform requirements and ar-

chitectural components. As a consequence, the platform roles in the interaction with

the clients are identified.

In this paper we consider that the roles played by the service platform describe be-

havioral patterns followed by the platform regarding its interaction with client appli-

cations. Platform designers have at their disposal a variety of platform role’s choices

depending on what they intend the platform to support. A service platform acts simi-

larly to the middle agents described in [5], in which the authors define several possi-

ble roles for the middle agents depending on how they solve the intermediation prob-

lem. In this paper we focus on two possible roles that illustrate opposite levels of

functionality support: the matchmaker, which offers a simple discovery mechanism

and, the broker, which offers more complete set of functionality, including discovery,

selection, composition and invocation.

This paper is structured as follows: section 2 gives an overview of platform roles

regarding client interaction, section 0 details the matchmaker role while section 4

details the broker role and section 5 concludes and points some future directions for

this work.

2 Platform Roles

The architecture of service platforms can be defined in terms of the type of interaction

to be offered to the client. Following this approach, the level of support to be offered

and the choice of the platform role to be played determine the requirements for the

service platform. Among the activities supported by service platforms we can include:

discovery, selection, composition and invocation [1]. Here, we define as level of sup-

port the subset of aforementioned activities offered by the platform.

Among the different possible types of roles for a service platform we present in

this paper two alternatives, namely broker and matchmaker. While the former offers a

high level of support the later operates in a simpler way and leaves more responsibili-

ties to the client application.

Fig.

1 shows the different interaction patterns applied in three service architectures.

Architecture 1 is the basic architecture for Web Services where the service provider

publishes the service descriptions in a registry, the client queries the registry for the

descriptions of available services and, after selecting an available service, the client

invokes the appropriate service. Architecture 2 places a matchmaker between the

client and the registry. In this way the client sends the criteria of the desired service to

the matchmaker, which searches the available registries for service descriptions

matching these criteria. In the case of a positive match, the matchmaker returns the

description of the discovered service to be invoked by the client. Architecture 3 pre-

sents an example of the broker role. In this example, the platform not only provides

matchmaking facilities but also invokes the discovered services on behalf of the cli-

ent. If necessary, the platform also performs transformations on the results received

from the invoked services to comply with the data format requested by the client.

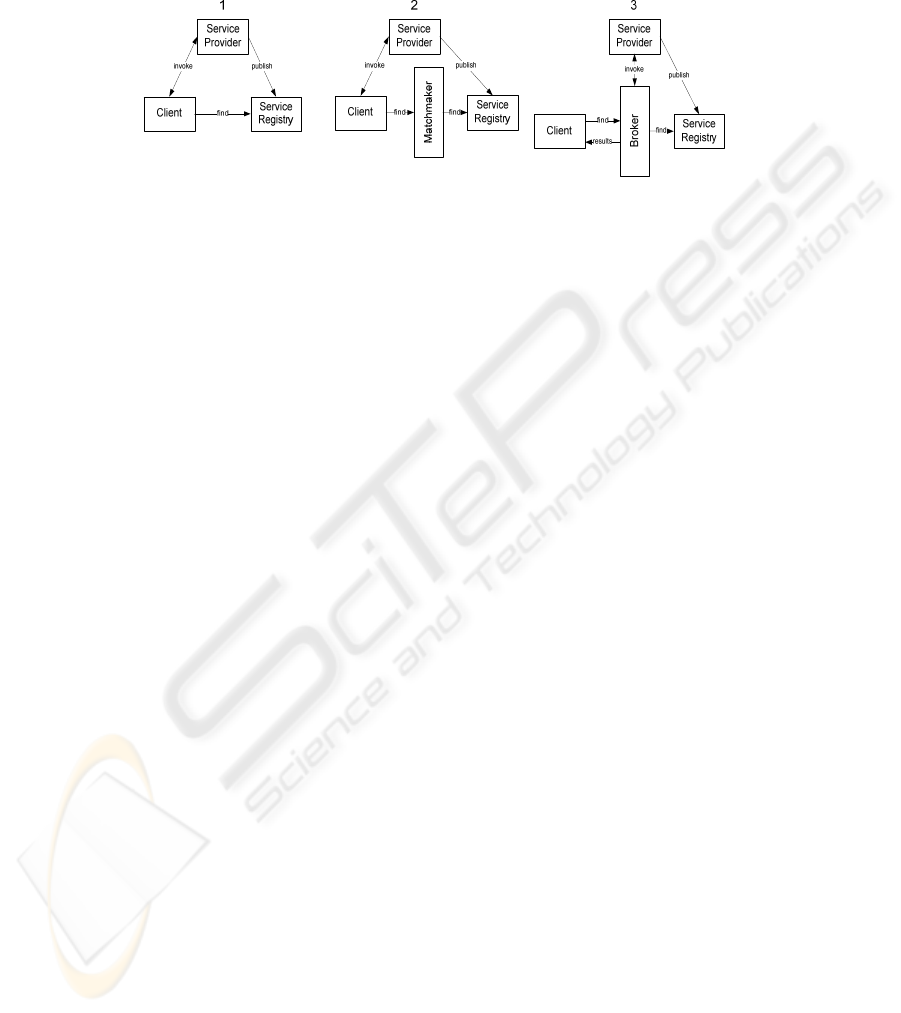

Fig. 1. Platform roles.

The matchmaker and the broker roles are discussed in more detail in the sequel.

3 Matchmaker

In the service matchmaking activity we have three distinct roles: a requester, a mat-

chmaker and a provider [12]. The requester aims at finding services that offer the

capabilities dictated to by criteria provided in terms of the desired service interfaces

and properties [15]. The matchmaker has access to a set of services descriptions made

available by providers and provides facilities to discover services based on the re-

quester’s criteria.

Early computational directories offer matchmaking facilities that provide mappings

between names and addresses similarly to the white pages in telephone directories.

Later on, a more advanced form of matchmaking emerged that supports search based

on an entries’ attributes allowing matches based on certain desired characteristics.

This form of matchmaking resembles the yellow pages in telephone directories. One

shortcoming of this approach is that the selection criteria are completely supplied by

the requester, providing an asymmetric form of selection [13]. Work such as [14]

suggests the introduction of symmetry in the selection process, in which the requester

provides a description of the requested service and its capabilities as a client. The

provider specifies its demand to the potential clients of its services. This allows the

provider to select clients just as clients select services. This symmetrical matchmak-

ing allows dynamic update of service descriptions at matchmaking time rather than at

advertisement (publication) time.

A matchmaker acts like as if it were a provider of services of different providers.

The requester does not have to interact with several providers or several service regis-

tries querying them for the descriptions of their services and then try to match the

descriptions with the needed criteria. In a matchmaking environment, the requester

sends the criteria to the matchmaker, which searches the services descriptions it has

access to for a positive match. Having found services that comply with the given

criteria, the matchmaker sends the service descriptions back to the client. The client

then analyzes the services descriptions and selects suitable ones. After that, the client

directly interacts with the services by invoking the service operations and receiving

results.

Fig.

2 depicts a sequence of interactions between the client, the service provider

and the matchmaker platform.

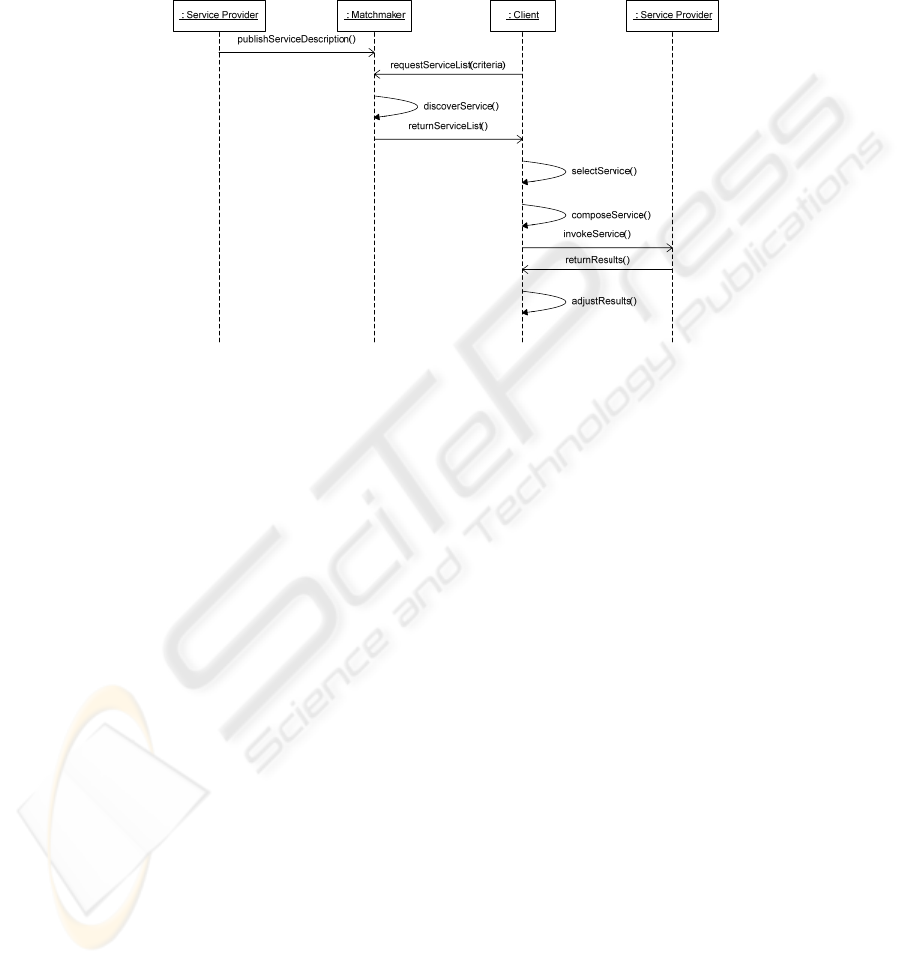

Fig. 2. Interactions in a matchmaking environment.

The level of support of the matchmaker indicates the architectural components of

the platform. In case some functionality is not supported by the matchmaker, other

applications or the client itself have to cover this functionality. Fig. 3 depicts a possi-

ble architecture for both the matchmaker and the client complying with the sequence

diagram presented in Fig.

2. The matchmaker supports service publishing by the ser-

vice provider through the Service Publisher component. The Service Publisher sends

the received service description to the Content Manager component, which is respon-

sible for storing it in an available registry (omitted in Fig. 3). The Content Manager

shields the internal components from interactions with registries. The Content Man-

ager can have access to several registries as well as acting as a client to other match-

makers.

A client requests the discovery of a service by calling the Service Finder compo-

nent. The Service Finder requests a list of candidate services to the Content Manager.

After receiving the list, the Service Finder tries to match the client’s criteria against

the candidate services to find the positive matches. If positive matches are found, the

service descriptions are sent back to the client.

Since in this example the matchmaker does not support service composition, this

task is expected to be performed by the client. Therefore, it is possible that the

matches have been obtained by the partial satisfaction of the criteria, i.e., some of the

properties given by the client have been satisfied but not completely by a unique ser-

vice. In this case, the client needs to perform service composition by calling a Service

Composer component. In Fig. 3 this component is internal to the client. The Service

Composer tries to find a service composition that fully matches the criteria.

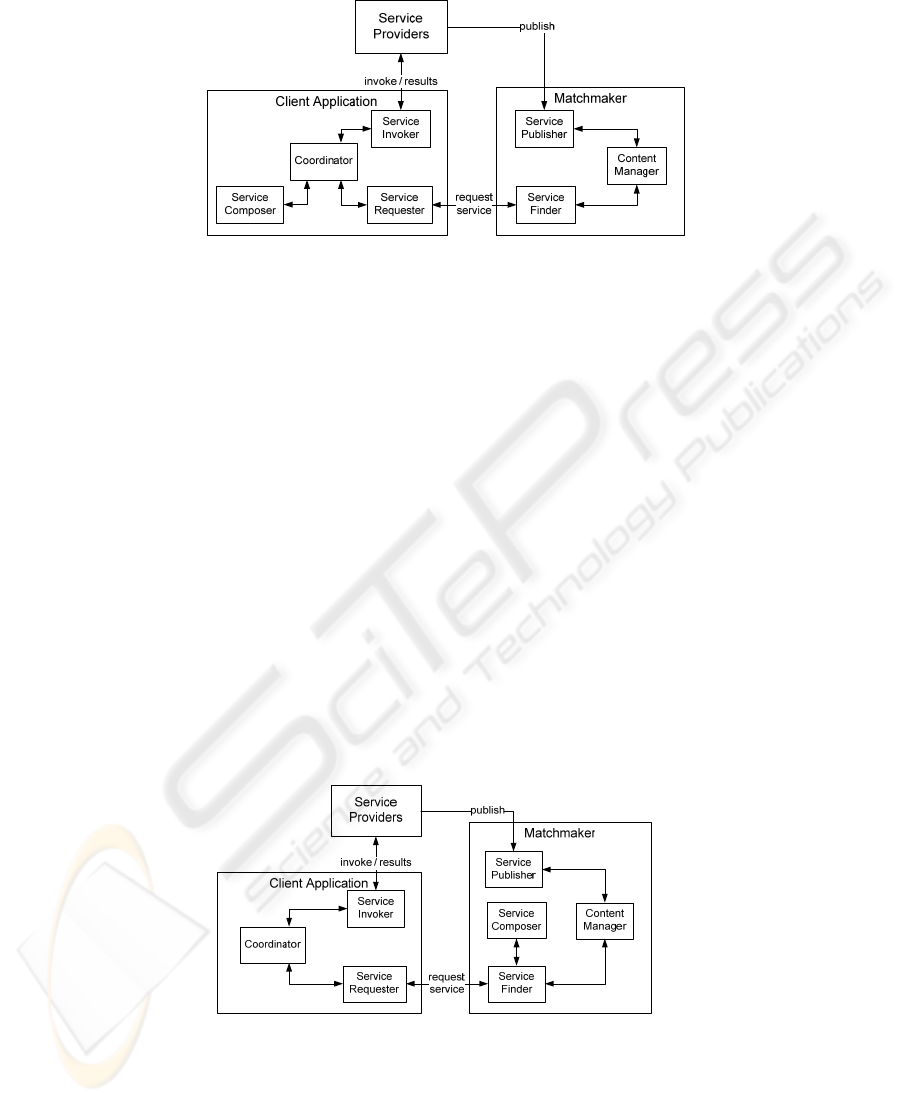

Fig. 3. Example of service composition performed by the client.

We consider now another example of matchmaker with a higher level of support

than the one in Fig. 3. In this example, the service composition functionality is pro-

vided by the matchmaker. As it can be seen in Fig.

4, the Service Composer compo-

nent has been moved from the client to the matchmaker but its functionality remains

the same. The Service Composer still tries to compose the services that partially

match the criteria into a service composition that fully matches the criteria. In case

additional component services are required to complete the composition, the Service

Composer needs to request the new services by providing other criteria. In the exam-

ple where the service composition is performed by the client, the Service Composer

requests the additional services to the Coordinator component. The Coordinator

forwards the request to the Service Requester component which calls the Service

Finder of the matchmaker with the new criteria. In the example shown in Fig. 4 where

the composition is performed by the matchmaker, the criteria are passed by the Ser-

vice Composer directly to the Service Finder.

The flexibility to assign functionality to the matchmaker or to the client shown in

the example of service composition also holds for other functional components, such

as the Content Manager or the Service Finder. Therefore, generic components can be

developed to support these functions and the desired level of support for the service

platform dictates where those components should be allocated.

Fig. 4. Example of service composition performed by the matchmaker.

4 Broker

The following definitions of broker can be found:

• “An individual who gets buyers and sellers and helps in negotiating contracts

for a client”, Mortgage Magazine [2];

• “An agent who negotiates contracts of purchase and sale”, Merriam Webster

[3];

• “A person who buys and sells goods or assets for others”, Oxford Dictionary

[4].

Moreover, information brokerage can be loosely defined as a set of mediation ca-

pabilities and functions aiming to help sellers to broadcast or disseminate information

about their products and services, and, at the same time, to assist the end users in

order to better retrieve, select and compare the offered information about producers,

products and services.

Mapping the definitions above to service-oriented computing we can define a bro-

ker service platform as a platform that acts on behalf of a client application by dis-

covering, selecting, composing and invocating services. In this role, the platform

offers a service selection mechanism, invokes the services on behalf of the client

application, monitors the service execution and parses the results, possibly translating

the output to client’s required format. The broker can also perform service composi-

tion based on the client’s service requirements and the service descriptions available

to the platform.

Additional functionality can be assigned to the broker. For instance, if the service

description contains semantic annotations, the platform should be able to perform a

set of complex reasoning tasks [7], which includes interpreting service provider capa-

bilities (service descriptions) and client applications’ requirements. Moreover, the

interpretation of the terms used in message exchanges can be performed by the plat-

form.

Considering the broker role, an example usage scenario is the one in which the

platform is available to clients that may request immediate provisioning of a service.

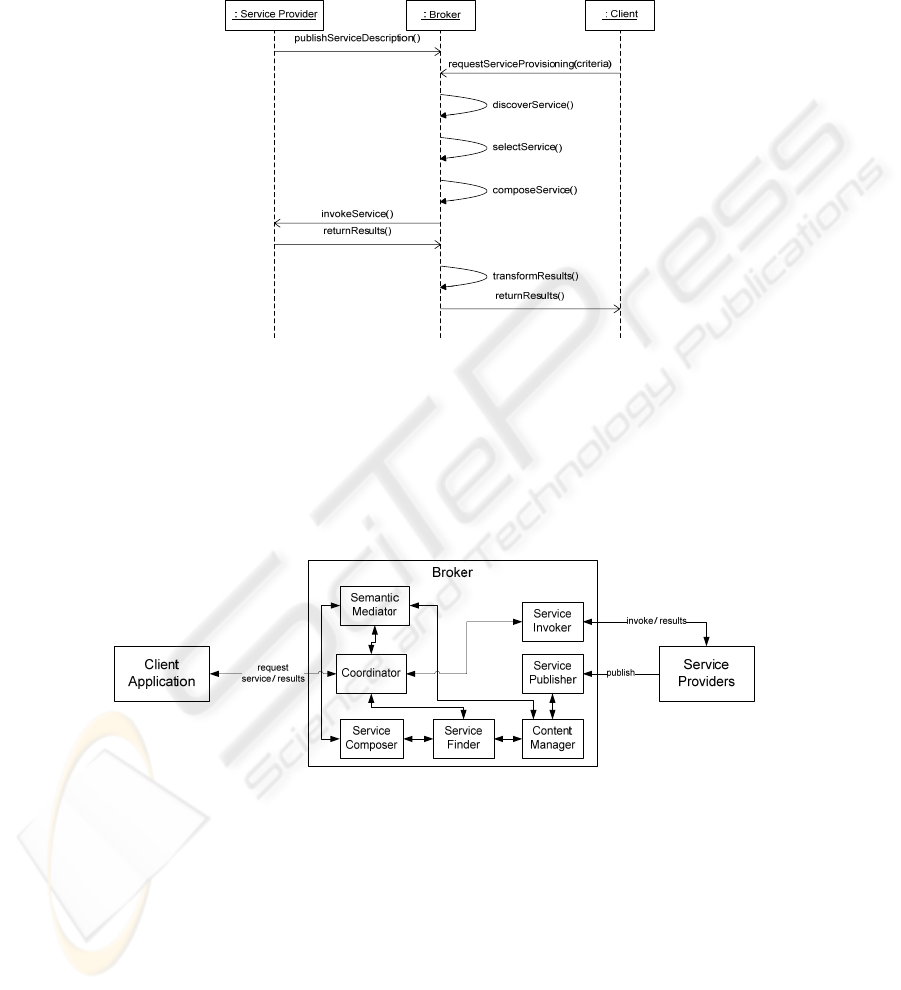

The sequence diagram in Fig. 5 shows the interaction pattern between clients, service

providers and the broker platform. Similarly to the matchmaker, the broker provides

facilities for service publishing by the service providers. A critical difference between

the matchmaker and the broker is that the latter acts as a surrogate of the client, i.e.,

the client requests the provisioning of a given service and the broker performs the

necessary steps until the final result of the service, on the client’s behalf. Even if the

output request by the client is somewhat different from the output received by the

broker after the invocation of the necessary services, the broker can perform a trans-

formation to comply with the client’s requirements. Examples of transformations are:

1. The client requests a service that returns the current temperature in Celsius

for a given city. The broker finds a service that provides current temperatures

of cities, but the output is in Fahrenheit instead of Celsius. In this case the

broker can perform the output transformation by composing this service with

another one that takes a temperature value in Fahrenheit and returns the val-

ue in Celsius;

2. The client requests a service that produces a given value in long number

format. The broker finds the appropriate service but the output is in integer

number format. The broker can perform the transformation of the output by

simply parsing the integer value into long and returning the transformed val-

ue to the client.

Fig. 5. Interaction pattern for the broker role.

Fig. 6 presents an example architecture of a broker. Here we see the components

responsible for the functionality provided by the platform, namely the Service Pub-

lisher (service publishing), the Content Manager (service registry access and semantic

repository access), the Service Finder (service discovery), the Service Composer

(service composition) and the Semantic Mediator (semantic mediation).

Fig. 6. Example architecture of a broker platform.

Additional characteristics of the broker platform role can be identified, such as:

• Fault tolerance and robustness: if a service becomes unavailable, the plat-

form can try to find another suitable provider;

• Privacy, security and billing: since we assume that clients and service pro-

viders have agreed to trust the platform, the platform is the trusting central

point for these entities. Therefore, clients do not have to directly interact

with services providers and vice-versa, and the platform can provide ano-

nymization for both parties.

Nonetheless, being a centralized coordinator the platform can become a single

point of failure as well. Techniques such as redundancy and clustering, among others,

can be used to increase the platform’s availability.

Unlike the matchmaker, the broker role has less room for exchanging functionality

between the client and the platform. Although some auxiliary functionality, such as

results transformations, could be placed on the client side, most of the functionality

should remain on the platform side in order to preserve the surrogate characteristic of

the broker.

5 Conclusions and Future Directions

In this paper we discuss the roles played by service platforms and the impact on the

design of such platforms. To illustrate the discussion we present two choices of plat-

form roles, namely the matchmaker and the broker. The main characteristics of each

platform role are presented together with examples of architecture designs containing

an overview of components providing the required functionality.

In this paper we identify the impact of the choice of platform role in the architec-

tural design of the platform. In other words, the designer’s choice of interaction pat-

tern and the level of support of this platform implies in different assignments of archi-

tectural components to the clients and the platform. This paper addresses this impact

for the matchmaker and broker platform roles. A platform design of the broker role

for context-aware applications has been defined and proposed in [16].

Future directions of this work include the implementation of the suggested compo-

nents and the instantiation of scenarios demonstrating the use of the presented plat-

form roles. The exchange of functionality between client and the service platform, as

suggested in the matchmaker examples, should be carried out and evaluated. More-

over, the requirements specification of both platforms (matchmaker and broker roles)

should be detailed, in order to provide general guidelines for the design of such plat-

forms.

Acknowledgements

The present work is co-funded by the Freeband Communication project A-Muse

(http://a-muse.freeband.nl) and the Amigo Project. A-Muse is sponsored by the Dutch

government under contract BSIK 03025. The Amigo project is funded by the Euro-

pean Commission as an integrated project (IP) in the Sixth Framework Programme

under the contract number IST 004182.

References

1. Preist, C.: A Conceptual Architecture for Semantic Web Services. In Proceedings of the

International Semantic Web Conference 2004 (ISWC 2004), pp. 395-409, November 2004.

2. Mortgage Magazine - http://www.mortgages-magazine.com/mortgage-glossary.htm.

3. Merriam Webster Dictionary – http://www.m-w.com.

4. Oxford Dictionary – http://www.askoxford.com.

5. Decker, K., Sycara, K., Williamson, M.: Middle-Agents for the Internet. In Proceedings of

the 15

International Joint Conference on Artificial Intelligence (IJCAI’97), pp. 578-584,

Nagoya, Japan, August 1997.

6. Chi Wong, H., Sycara, K.: A Taxonomy of Middle-Agents for the Internet. In Proceedings

of the 4

International Conference on MultiAgent Systems (ICMAS 2000), pp. 465-466,

Boston, MA, USA, July 2000.

7. Sycara, K., Paolucci, M., Soudry, J., Srinivasan, N.: Dynamic Discovery and Coordination

of Agent-Based Semantic Web Services. IEEE Internet Computing, Vol. 8, n. 3, pp. 66-73,

May/June 2004.

8. Piedad, F., Hawkings, M.: High Availability: Design, Techniques and Processes, Prentice

Hall PTR, 1

Edition, December 2000.

9. Agarwal, V., et al. A Service Creation Environment Based on End to End Composition of

Web Services. In Proceedings of the 14

International Conference on World Wide Web

(WWW 2005), pp. 128-137, Chiba, Japan, 2005.

10. Srinivasan, N., Paolucci, M., Sycara, K., CODE: A Development Environment for OWL-S

Web services. Technical Report CMU-RI-TR-05-48, Robotics Institute, Carnegie Mellon

University, October, 2005.

11. Kawamura, T., et al, Web Services Lookup: A Matchmaker Experiment. IEEE IT Profes-

sional, vol. 7, n. 2, March/April 2005.

12. Decker, L., Williamson, M., Sycara, K., Matchmaking and Brokering. In Proceedings of the

International Conference in Multi-Agent Systems (ICMAS’96), Kyoto, Japan, Decem-

ber 1996.

13. Facciorusso, C., et al, A Web Services Matchmaking Engine for Web Services. In Proceed-

ings of the 4

International Conference on e-Commerce and Web Technologies, Prague,

Czech Republic, September 2-5 2003.

14. Hoffner, Y., Facciorusso, C., Field, S., Schade, A., Distribution Issues in the Design and

Implementation of a Virtual Market Place. Computer Networks: The International Journal

of Computer and Telecommunications Networking, vol. 32, issue6, pp. 717-730, Elsevier

North-Holland, New York, USA, May 2000.

15. Vausdevan, V., Augmenting OMG traders to handle service composition. Object Services

and Consulting Inc., September 15 1998.

16. Bonino da Silva Santos, L.O., Semantic Services Support for Context-Aware Platforms,

Master Dissertation, Universidade Federal do Espírito Santo, Vitória, Brazil, September

2004.
