Applying Component Concepts to Service Oriented

Design: A Case Study

Balbir Barn and Samia Oussena

Thames Valley University, Computing Department

Wellington Street, Slough, SL1 1YG, UK

Abstract. This paper argues that appropriate modeling methods for service

oriented development have not matured at the same pace as the technology

because the conceptual underpinning that binds methods and technology has not

been sufficiently articulated and developed. The paper describes an adaptation

and enhancement of component based techniques to support the development of

a service oriented method. As a result of the evaluation of using component

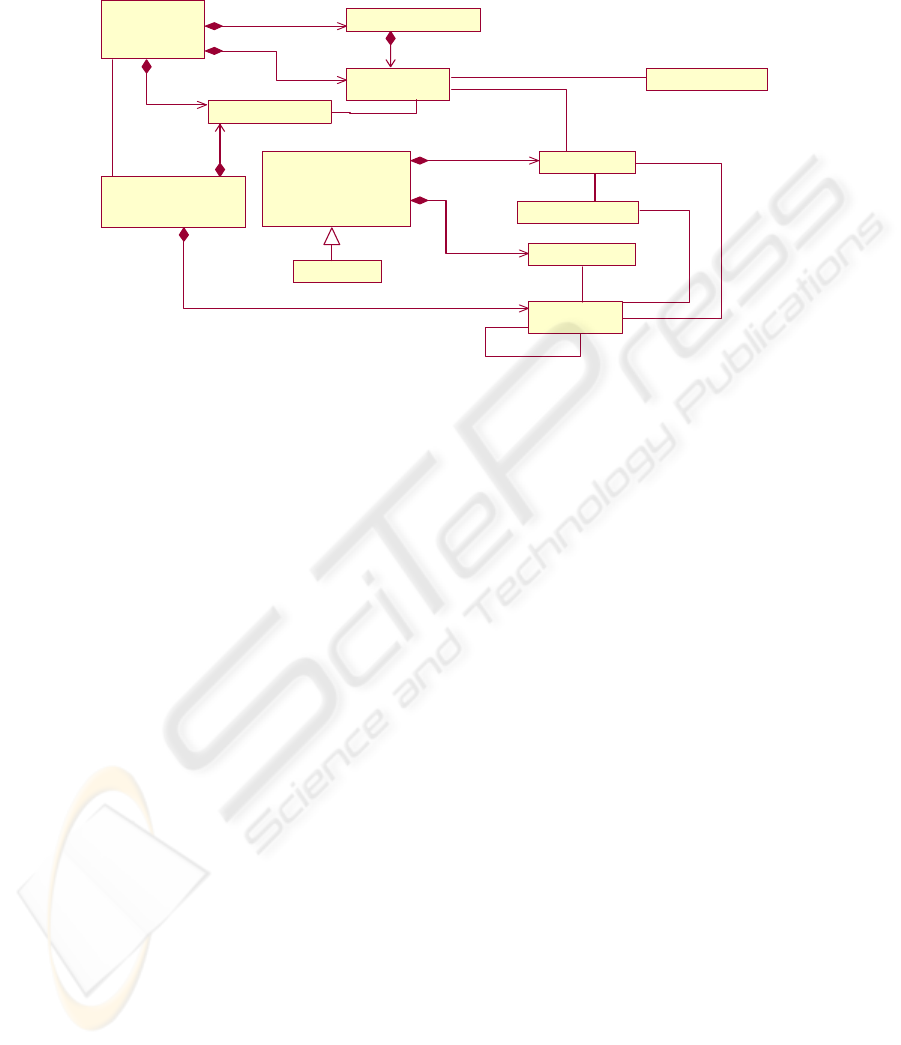

concepts to support service oriented design, an integrated conceptual model

describing how concepts from services and components are related is presented.

The experimental data derives from a complex case study from the Higher

Education Enterprise arena.

1 Background

Currently there is a focus on enterprise application integration using distributed

architecture principles and in particular, there is a convergence to so-called Service

Oriented Architecture (SOA) for application design and integration [19]. While

enterprise systems have attained a degree of technical integration in many cases, the

full benefits of business integration that could be gained from seamless support of

business processes may only be partially realized. The developing principles around

SOA are placing importance on a solid understanding of business processes and

aligning developed or procured services to support those processes [11]. Thus

methodologies that can support process led application development and assembly

will acquire greater utility.

1.1 The Problem

Service Oriented Architecture is a disruptive technology because of the opportunity it

provides to rethink the way systems are created and evolved. However there is still a

relative lack of robustly applied and practical methodology support for such an

approach. This observation has also been noted by Quartel et al [22] where they

observe that technological developments should be supported by modeling methods

and languages to support service-oriented design. One example where the

methodology issues have been addressed to some extent is the recent work by Erl

where there has been an effort to recognize that service-oriented analysis is an

Barn B. and Oussena S. (2007).

Applying Component Concepts to Service Oriented Design: A Case Study.

In Proceedings of the 1st International Workshop on Architectures, Concepts and Technologies for Service Oriented Computing, pages 31-41

DOI: 10.5220/0001349200310041

 SciTePress

important element in the design of effective SOA [9]. However, here, the focus has

been to derive services from a business process orchestration specification.

In contrast, Component Based Development (CBD) has reached a level of maturity

where there is a significant body of knowledge addressing methodology requirements

as well as technological issues. Given this, the research question addressed in this

paper is:

“Can component based development concepts, methods and techniques support

service oriented design?”

A service based architecture presents multiple concerns or architectural viewpoints.

Consequently, the focus of the research question is further refined to address the

functional viewpoint – that is, what an application (based on SOA) must do in order

to support the business requirements of the user. Thus example areas that are not

addressed in this paper are: the issues that arise at the boundaries between design and

deployment of service-centric systems; and binding of services based on run-time

monitoring of service-centric systems.

1.2 The Contribution of this Paper

This paper outlines an approach to service oriented design by drawing on the lessons

learnt and the best practices from component based practices. The focus of this paper

is on service identification and partitioning of applications into services and how such

techniques can be captured in model based form. Further, the paper proposes an

approach to business process partitioning that provides a model based migration

strategy to process implementation using technologies such as Business Process

Execution Language (BPEL). The paper also contributes an integrative view of

services, components and business processes to further emphasize the benefits of

pursuing this particular approach. Some of the observations and evaluation of

software tools applied in the methods outlined also indicate that there are issues of

tool usage which can help to inform tool selection and deployment.

The remainder of this paper is structured as follows: The reader is introduced to the

background case study informing this research in section 2. Section 3 addresses the

core of the paper and focuses on the comparison of concepts underpinning both

component modeling and service oriented architecture with reference to relevant

literature. Section 4 provides an evaluation of some of the results in the context of the

case study and provides further details on the integrated conceptual model. Section 5

concludes the paper and outlines areas for further work.

2 Case Study

This section provides a short description of the context of the case study for which the

business process modeling and subsequent application design was performed.

The e-Framework [16] is an initiative by the U.K's Joint Information Services

Committee (JISC) and Australia's Department of Education, Science and Training

(DEST) to build a common approach to Service Oriented Architectures for education

and research. As part of this initiative, in 2005, JISC requested projects to develop

reference models for a number of domain areas. The work described in this paper is

derived from one of the projects.

The Course Validation (CV) process is one of the most important business

processes within Higher Education Institutions (HEIs) and between HEIs and other

institutions. New courses and the continuation of existing courses are the direct

outputs of this process.

Further, the process is case-based, knowledge centric and highly collaborative.

Each instance of the process is a case and will focus typically on different subject

domains and therefore require different knowledge bases and experts to support the

process. Only the essential framework (the rules and governance) of the process

remain standardized.

The scope of the application domain is as follows. Course Validation can include

the specification of new courses at various levels (e.g. undergraduate and

postgraduate). Course Specifications address areas such as rationale, appropriateness,

justification, marketing analysis, resources required, economic viability of the

courses, and detailed descriptions of the courses in terms of outcomes, aims and

objectives and so on. Much of the scope of course validation is determined by local

institutional constraints (e.g. relationship to other courses and university regulations)

but there are wider requirements that impose a significant overhead on the

developmental process for validating new courses. These wider requirements are

determined by the UK national bodies such as the Quality Assurance Agency (QAA)

[21].

Even though HEIs may differ in the implementation of business processes to

support course validation the constraints imposed by external bodies such as the QAA

provide some standardization for the validation process and its outputs. These

constraints are a basis for defining a canonical business process for supporting course

validation.

A case study approach to the problem was adopted as there are several examples in

IS research where there is evidence that case study based methodologies are well

suited for exploring business processes in an organizational setting. Examples include

those described in Huang et al [12] and Sedora et al [23]. Case studies provide an

opportunity to take an interpretivist stance on how the systems and structures in place

are based on the meanings of concepts and how people use those concepts. A case

study also allows in-depth exploration of issues. However, given the nature of the

course validation process it was important to get an understanding of how different

types of institutions implemented their own course validation processes.

Consequently we explored in depth, the course validation processes at four

institutions.

After a period of business analysis, process models of course validation processes

at each of the institutions were constructed. Accompanying information and data

supporting these processes were also modeled. All modeling at this stage was

performed using the IBM Rational XDE Toolset. The visual models were evaluated

and an approach to synthesizing the models from each institution into a single

canonical model was developed and then applied. This approach includes rules for

identifying variances between processes and is described in more detail elsewhere [3].

The result was a pair of canonical models for the process and the information

which were used as input to the software design and implementation stages to develop

a set of software services that allowed us to automate part of the business process.

The remainder of the paper focuses on how the canonical process and information

models were partitioned into a set of services to support the software design phase

using a component based design approach.

3 Related Work and Approach

The approach taken in this research is based on three key principles: Firstly, the

importance of systemizing the relationship between Component Based Development

(CBD) and Services; secondly, to consider application partitioning from the

perspectives of both business process partitioning and data partitioning; and finally

the requirement to articulate a unifying conceptual model that addresses methods,

business processes, components and services. Also critical to the approach taken in

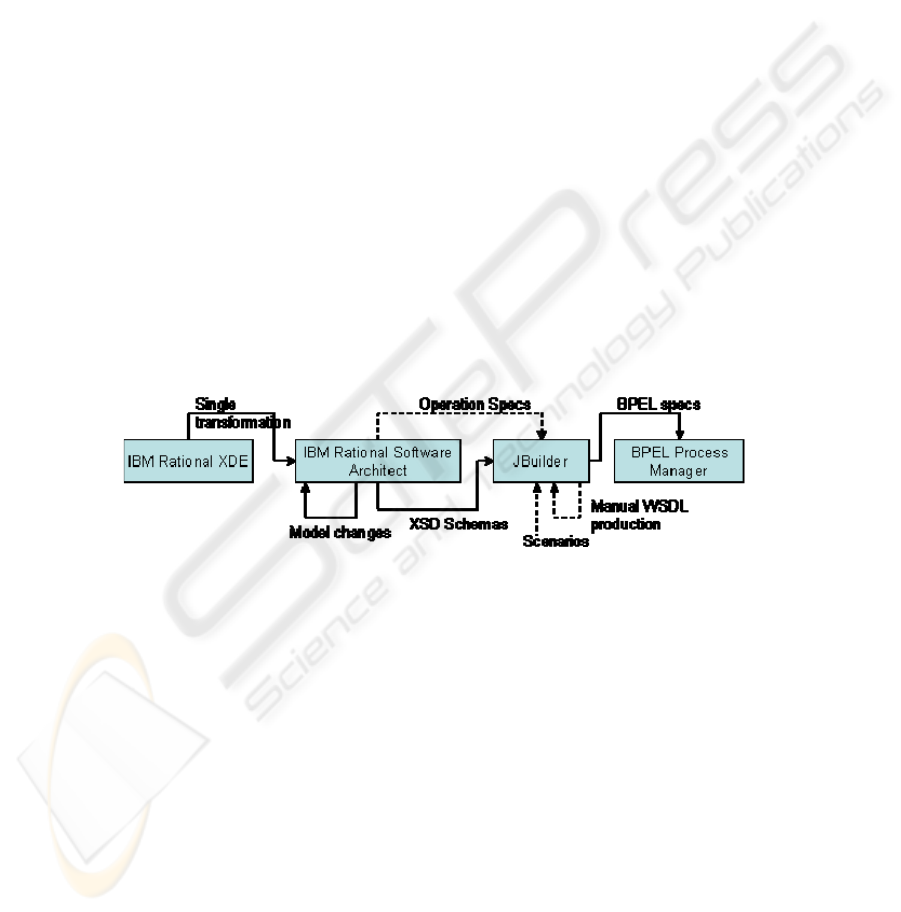

this paper, was the need to ensure that a model driven approach was followed. This

was accomplished by, ensuring as far as possible, that all activities, artifacts and

transformations were performed within one or more software tools. As the evaluation

section indicates issues emerged during this process.

The central thesis of the paper argues that Component Based Development (CBD)

provides a natural evolution to service oriented architectures because of the

conceptual similarities and overlaps between the two software architecture

approaches. In this section, the conceptual mappings between components and

services are presented based on review of existing work. These mappings indicate the

strong correlation between these two approaches thus indicating that it is instructive

to look to CBD for appropriate methods and techniques to apply to SOA.

One important strategic distinction between the two approaches is the focus of

integration strategies to address heterogeneous application architectures. While CBD

at least, conceptually can be used to provide an application architecture that makes it

possible to mix different implementation technologies, the evidence to date has

indicated that this capability has not really been taken advantage of. For example,

there are software component libraries for the Microsoft platform and similar libraries

for the J2EE platform. SOA, on the other hand, has at its heart, standards and

technologies that support interoperability. The use of XML based standards and

protocols such as XML, SOAP, WSDL and UDDI allows services to be implemented

in a particular technology while allowing access to the service from varying technical

platforms using the so-called “wire” standards. A core common concept underpinning

both CBD and service oriented design is the notion of an interface specification – a

precise description of the behaviour of a software implementation. Interfaces can be

used to provide wrappers to existing applications / modules such that it is possible to

continue to use legacy applications in new technological environments. SOA is

particularly suited to this approach and is potentially the most significant benefit

arising from adopting a SOA strategy by an organization.

However, while a component can conceptually support more than one interface, a

service has only one interface (in WSDL 1.1). Additionally, WSDL does not provide

a mechanism for representing detailed behavioural semantics such as pre/post

condition pairs. In separate work Estier et al demonstrate similar mappings and

observations and in fact also use similar terminology such as “core”. Their focus was

on providing a “Contract” basis to service design rather than model based

specification and generation [8]. Other work has developed a UML profile for

describing WSDL (and therefore Web Services) to support WSDL generation from

UML models – although the reported work proposes that implementation of add-ins

for WSDL generation to commercial products such as Rational Rose is part of

planned work [18]. Nonetheless this work while mapping to UML and not

components would appear to further substantiate the validity of looking to CBD

practice for methodology support.

The mappings indicate that we can leverage approaches and maturity of CBD

practice to the design and implementation of web services by tailoring existing

methods for software development.

Probably the most refined and detailed articulation of a component based method is

work done by D’Souza and Wills in their description of Catalysis [7]. This method

was later used to underpin the development of Cool:Spex [1, 2] (an early product to

focus explicitly on application design using component based principles) and also

other CBD methods [5]. Some of the CBD techniques from Catalysis and their

derivatives that we can use include: component identification (or application

partitioning), component specification, and component dependency management.

Application partitioning – the act of identifying discrete pieces of functionality into

independent chunks of software is core to notions of component based development.

However, CBD assumes a data centric view of partitioning. For example Erl describes

such components as Entity Services. One proven approach to component partitioning

and therefore service partitioning is that described by Cheesman and Daniels [5].

Their approach is based on using the information model (business concept model) as a

starting position from which to make application partitioning decisions using an

algorithm based on identifying core types and other types related to the core type.

However, despite the detail, complexity and scope available in the Catalysis

method (and its variants), there has been relatively light attention to process

modeling. This lesser emphasis is critical as process modeling is a crucial element for

SOA where the orchestration of services to support an application is central to

application assembly. The substantial standardization effort in business process

execution (BPEL4WS) and prevalence of tools for choreographing applications from

a set of services provides an indication of its importance.

This paper proposes that while data centric partitioning is one concern, it is also

necessary to have a parallel and equivalent view of process partitioning. When

processes are long, complex and require significant human intervention at various

stages then the need for process decomposition is even more transparent. The case

study used in this paper illustrates this point.

The Rational Unified Process (RUP) [14, 15] provides some guidance to this vis a

vis the distinction business use cases standard use cases. This is an example of

process decomposition. However, there is in-sufficient guidance and somewhat

ambiguous rules for how business use cases map to use cases. Other ways of

managing the modeling of process complexity for example to use roles – i.e. focusing

only on the activities and their collaborations performed by specific roles [20] were

considered inappropriate because the underlying process model was based on

transformation (that is: input transformed by activity to output) rather than more

communication/coordination views of processes.

One established approach is the use of “Event Consequences” – that is a business

event is a trigger to a sequence of activities that are performed in response to the

event. There is a rich body of knowledge which supports the notion of business

process understanding using this approach for example [6, 24]. The set of activities

that are triggered can then be viewed as a sub-process of the overall business process.

Such a sub-process provides a better level of granularity for describing analysis

scenarios for support the design and implementation stages of a software development

process. An additional benefit of using events to partition a business process is the

potential direct modeling transformation into BPEL specifications where there are

modeling concepts for supporting events and their subsequent triggering of

consequences of actions.

Summarizing, CBD practice provides a useful conceptual toolbox that need to be

enhanced with a more detailed treatment of process modeling techniques in order to

be useful to application development using SOA.

4 Case Study Example and Evaluation

Much of the anticipated benefits of a SOA approach are assumed to be the rapid

assembly via orchestration of applications comprising one or more services. A pre-

requisite for orchestration is a detailed understanding of the business process to be

supported and the (ideally) model based specification. Thus the starting premise of the

project approach is to precisely describe the business process using an appropriate

modeling toolset.

The business analysis phase for the Course Validation (CV) domain produced two

complex models – the process model and the information model.

4.1 Process Partitioning

Given the CV process complexity in particular, a way for decomposing the process

into more manageable sub-processes was required. The CV process already had

natural groupings of activities (these were distinct stages in the process) however,

even these groupings were difficult to manage and it was necessary to define smaller

sub-processes.

When a business process is a type of collaborative case process such as Course

Validation then an especially useful form of partitioning is to identify situations in the

business process where there is delay in the process because there is a need for an

external event to occur. Once the event has arisen, new activities are undertaken.

These groupings of activities are treated as sub-processes.

To support these sub-processes user scenarios were also developed. A user

scenario is an evocative way of instantiating a route through a part of the business

process. User scenarios are effective in extracting requirements because they express

functionality in the language of users [4, 25] and for the implementation phase in this

project they also provided additional context to development staff who were not

involved in the original analysis stages of the project. During the development phase

– the implementation team found the scenarios useful but still needed to elaborate

additional sequence diagrams to further identify operation requirements.

Thus, in our process modeling we introduced the notion of sub-process scenarios.

A sub-process scenario comprising one or more activities is triggered by an event

such as a time or data event. This scenario and its accompanying user story can then

be analyzed by the software designer to identify operations and allocate them to

specific components/services.

4.2 Service Identification

Identification and modeling of services is the core of what is presented in this paper.

It is argued that there is lack of methods and techniques to support service

identification and modeling and currently most effort is focused advice and guidance

on programming issues. It would appear that modeling advice is largely derived from

object oriented analysis. Here it is proposed that given the conceptual closeness

between services and components, it is possible to utilize techniques from CBD. In

essence, the domain model or information model in our example is partitioned into

“components” by firstly identifying types which are deemed to be core – that is

business types or objects which are essential to the organization and then traversing

associations to other types that are detailing – that are providing additional details to

the core type. This subsetting provides a natural component boundary. Each

component identified is then allocated an interface type which will house the

operations for the component. This model thus corresponds to the service as follows:

Component Interface is equivalent to Service; Core Type and detailing type are

equivalent to the Port Types with their associated Messages and subsequently the

elements and their schema. This approach bears comparison with Estier et al. who

have similarly used CBD principles in their work on service contracts.

During the service partitioning activity a number of rules / hints emerged – the use

of which has the potential for better quality component / service models. For example

if two core types are related by a mandatory association (at both ends) it is still better

to treat the core types as housed in separate components.

Often, components have a cross-relational dependency manifested via an

intersecting detailing type. When this pattern occurs, one relationship is often

“specifying” and the other is a “usage”. In such situations, the intersecting type should

always become the detailing type in the component that owns the “specifying”

relationship. We anticipate further useful rules and hints as we continue to refine the

component models.

4.3 Process Led Application Assembly

Once the components / services have been identified in this manner, the sub-process

scenarios and their accompanying textual narratives are used to map activities from

the process to an operation on a service. Service responsibility is based primarily on

determining the types (information) being manipulated in the process and then

allocating the service behaviour to the component/service that owns that type. The

results of applying this technique to each of the sub-process scenarios is a set of

components/services with behaviour allocated to them. In theory, then each

component/service model can then be used to generate the required WSDL

specification to support the web service.

In practice, this is where the violation of core model driven development principles

unfolded. As intimated earlier, our key goal was to take a model driven approach to

specify a business process and the accompanying information model; partition the

models into a set of services; and then assemble services together to implement the

business process. In order to do this, we would use software tools to model and

generate the required elements. During the specification and design work toolset

issues meant that the domain modeling (business analysis) was done using IBM

Rational XDE as it was clear that the preferred toolset IBM Rational Software

Architect (RSA) was not yet mature enough with its support for UML 2.0. However,

the RSA implementation environment was considered to be superior to XDE so when

the business analysis modeling and the partitioning into components/services was

completed, the XDE models were imported without loss of data into RSA. Further

modeling refinements were undertaken within RSA.

Issues during the design modeling phase also made it clear that it would have been

better to create separate RSA models of each component (within the same overall

project) as it made generation of WSDL and other XML easier and less error prone.

On generation to WSDL services, it became apparent that while the model

structure to represent a component/service was correct (in that, all the required

information to generate a WSDL spec was present), WSDL generation was not

possible and the only generation of data that was achieved was the XSD schemas for

the data requirements of the services. This represented a significant drawback to our

proposed approach and the team is currently investigating alternative methods of

WSDL generation with RSA..

Fig. 1. Toolsets and transformations of models.

JBuilder was selected as the preferred toolset for designing the BPEL processes as

again RSA and the Eclipse Plugin for BPEL process design did not fully support the

design requirements. In this case the user interactions (user tasks) were not supported

by the Eclispe Plugin. Within JBuilder, WSDL was handcrafted using further data

from the text based user stories.

5 An Integrated Model for Component and Service Method

Concepts

Having described the methodology for identifying and describing services from a

business process basis, this section now proposes how the methodology and concepts

need to be integrated to produce an overarching conceptual model which can be used

to provide a basis for method refinement, tool construction and good practice.

Process

Model

Event Scenario

Activity Activity Type

Operat ion

Inf or ma t ion

Model

Component

Specifica t ion

Service

Type Model

Pre-Post Pair

- _Event Scenario

- _Activit

- expresses

- Interface Spec

- _Type Model

Type

- _Type

related To

owns

refers to

parameter type

refers To

Business Rule

- _Business Rule

- _Business Rule *

Fig. 2. SOA Integrated model.

The diagram above provides a UML model of the principal concepts involved. The

Process model is decomposed into a set of Event Scenarios which are themselves a

grouping of activities which have an ordering defined ultimately by UML semantics

for activity modeling. An Event Scenario or Sub-Process provides a natural mapping

to BPEL workflows.

In parallel, the domain information model is partitioned into a set of Services using

CBD practice. A service has a set of operations which may or may not be specified by

pre/post specification pairs. The types used by the operations of a service are grouped

by the notion of an interface type model. These types can be used as the XSD schema

for a WSDL specification. Activities are mapped to operations on the services via the

Service/Activity matrix (or sequence diagram). Activities are classified as either

manual (therefore not implemented, but their interfaces are specified), event receipt or

normal. This classification is modeled by the Activity Type concept. This paper has

not discussed business rules (constraints or invariants), in detail. In general, during the

analysis phase, business rules were captured using Constraint annotations in the

various models. However, we are planning further work to more formalize the capture

of business rules using technologies such as XRules.

A further benefit of using an underlying meta model to describe methods is that

development of techniques and concepts can be engineered allowing tailoring of

method elements to support specific project requirements [13].

6 Conclusions and Further Work

This project set out to explore the interaction between SOA and model driven

development. The case study and modeling approach has demonstrated that there is

sufficient conceptual equivalence between component based approaches and service

oriented architecture to warrant the use of CBD methods to identify and model

services. From a complex process model, it was possible to partition the process into

manageable sub-processes which could be orchestrated as BPEL workflows (albeit

handcrafted).

The selection and deployment of the particular set of tools used in the project have

been used to implement services and their process definitions with some success –

with the primary problem centred around the model based generation to WSDL specs.

The overheads and risks incurred by the use of such tools for bespoke application

development using SOA remain significant and it is not clear how successful such a

tool deployment strategy would be. It is possible that further investigation and

increased expertise in tools such as RSA could help mitigate these risks.

Consequently, the project team is minded to conclude that SOA remains a

significant challenge and perhaps best suited to application integration rather than

bespoke development. As a result of this experiment, further work is being planned on

the use of Business Process Management Toolsets such as Intalio Designer. One

potential use of the conceptual model (after further research and validation) presented

in figure 1 could be its use as a evaluation tool for the selection of tools (single or

combined) However, SOA does require an emphasis on a business process modeling

and research presented in this paper provides some enhancements to process modeling

to ease the move from CBD to SOA. As we continue to develop services from new

sub-process scenarios it is likely that we will refine our component partitioning

strategy and the rules and hints to support the strategy. The use of the sub-process

scenarios as model based input to Business process execution (BPEL) will also be the

subject of further evaluation and study.

References

1. Barn, B.S., Brown, A.W., Cheesman, J.: Methods and Tools for Component Based

Development. In Tools 98: Technology of Object-Oriented Languages and Systems,

(1998)

2. Barn B.S., Brown A.W. Enterprise-Scale CBD: Building Complex Computer Systems from

Components. In: 9th International Conference on Software Technology and Engineering

Practice (STEP'99), Pittsburgh, Pennsylvania, USA (1999)

3. Barn, B.S., Dexter, H., Oussena, S., Petch, J. An Approach to Creating Reference Models

for SOA from Multiple Processes In: IADIS Conference on Applied Computing, Spain

(2006)

4. John Carroll. “Five Reasons for Scenario-Based Design” in Proceedings of the 32nd Hawaii

International Conference on System Sciences – 1999.

5. Cheesman, J., Daniels, J. UML Components. Addison-Wesley (2001)

6. Cook, S., Daniels, J. Designing Object Systems: Object-oriented Modelling with Syntropy.

Prentice Hall (1994)

7. D'Souza, D. F., Wills, A. C. Objects, Components, and Frameworks with UML: The

Catalysis Approach. Object Technology Series. Addison Wesley, Reading Mass., (1999)

8. Estier, T., Michel, B., Reinhard, O. Modeling Services using Contracts: Identifying

dependencies in Service-Oriented Architectures. In: EMMSAD 2006 Workshop – CAISE

(2006).

9. Erl, T. Service Oriented Architecture – Concepts, Technology and Design. Prentice-Hall,

USA (2005).

10. Frankel, D. Model Driven Architecture, OMG Press (2004)

11. Frankel, D.: Business Process Trends. BPTrends http://www.bptrends.com/

publicationfiles/07%2D05%20COL%20BP%20Platform%20%2D%20Frankel%2Epdf

(2005)

12. Huang J.C., Newell S., Poulson B., Galliers R.D. Deriving Value from a Commodity

Process: a Case Study of the Strategic Planning and Management of a Call Center. In:

Proceedings of the Thirteenth European Conference on Information Systems (Bartmann D,

Rajola F, Kallinikos J, Avison D, Winter R, Ein-Dor P, Becker J, Bodendorf F, Weinhardt

C eds.), Regensburg, Germany. (2005)

13. Henderson-Sellers, B. Method engineering for OO systems development. Comm.. ACM 46,

10 (Oct. 2003), 73-78. DOI= http://doi.acm.org/10.1145/944217.94424

14. IBM-Rational: The Rational Unified Process (RUP),http://www-

306.ibm.com/software/awdtools/rup/ (2001)

15. Kruchten, P. Rational Unified Process, Addison Wesley (1999)

16. E-learning Framework: http://www.elframework.org/ (2006)

17. Low, G. C., Rasmussen, G., Henderson-Sellers, B. Incorporation of distributed computing

concerns into object-oriented methodologies; Journal of Object-Oriented Programming.

(1996) Vol. 9, no. 3, pp. 12-20

18. Esperanza Marcos, Valeria de Castro, and Belén Vela (2003) “Representing Web Services

with UML: A Case Study”. In M.E. Orlowska et al. (Eds).: IC-SOC 2003, LNCS 2910,

pp.17-27, 2003.

19. Ort, E. “Service-Oriented Architecture and Web Services: Concepts, Technologies, and

Tools” http://java.sun.com/developer/technicalArticles/WebServices/soa2/ (2005)

20. Ould, M. A.: Business Process Management: A Rigorous Approach, BCS, ISBN: 1-

902505-60-3 (2005)

21. QAA: http://www.qaa.ac.uk/

22. Dick Quartel, Remco Dijkman and Martin van Sinderen. “Methodology Support for

Service-oriented Design with ISDL”, ICSOC, 2004.

23. Sedera W., Rosemann M., Doebeli G. A process modelling success model: insights from a

case study. In Proceedings of the Eleventh European Conference on Information Systems

(Ciborra CU, Mercurio R, de Marco M, Martinez M, Carignani A eds.), Naples, Italy.

(2003)

24. Texas Instruments. A guide to Information Engineering using the IEF™. TI Part Number:

2739756-0001. (1990)

25. Van Helvert, J & Fowler, C.J.H. (2004) Scenario-based User Needs Analysis. In Ian

Alexander and Neil Maiden (eds) Scenarios & Use Cases Stories through the System Life

Cycle. Wiley: London
