A PARAMETERIZED GENETIC ALGORITHM IP CORE DESIGN

AND IMPLEMENTATION

K. M. Deliparaschos, G. C. Doyamis and S. G. Tzafestas

School of Electrical and Computer Engineering, National Technical University of Athens

Iroon Polytechneiou 9,15780, Zographou Campus, Athens, Greece

Keywords: Genetic Algorithm (GA), Travelling Salesman Problem (TSP), Field Programmable Gate Array (FPGA)

chip, Very High–speed Integrated Circuits Description Language (VHDL), Intellectual Property (IP) core.

Abstract: Genetic Algorithm (GA) is a directed random search technique working on a population of solutions and

based on natural selection. However, its convergence to the optimum may be very slow for complex

optimization problems, especially when the GA is software implemented, making it difficult to be used in

real time applications. In this paper a parameterized GA Intellectual Property (IP) core is designed and

implemented on hardware, achieving impressive time–speedups when compared to its software version. The

parameterization stands for the number of population individuals and their bit resolution, the bit resolution

of each individual’s fitness, the number of elite genes in each generation, the crossover and mutation

methods, the maximum number of generations, the mutation probability and its bit resolution. The proposed

architecture is implemented in a Field Programmable Gate Array Chip (FPGA) with the use of a Very-High-

Speed Integrated Circuits Hardware Description Language (VHDL) and advanced synthesis and place and

route tools. The GA discussed in this work achieves a frequency rate of 92 MHz and is evaluated using the

Traveling Salesman Problem (TSP) as well as several benchmarking functions.

1 INTRODUCTION

Genetic Algorithms (GAs), initially developed by

Holland (Holland 1975), are based on the notion of

population individuals (genes/chromosomes), to which

genetic operations as mutation, crossover and elitism

are applied. Genetic algorithms obey Darwin’s natural

selection law i.e., the survival of the fittest. GAs have

been successfully applied to several hard optimization

problems, due to their endogenous flexibility and

freedom in finding the optimal solution of the problem

(Mitchell 1996, Goldberg 1989).

However, the most serious drawbacks of software-

implemented GAs are both the vast time and system

resources consumption. Keeping that in mind, a

multitude of hardware-implemented GAs have been

evolved mainly during the last decade, exploiting the

rapid evolution in the field of the Field Programmable

Gate Arrays (FPGAs) technology and achieving

impressive time-speedups.

This paper deploys the design and hardware

implementation of a parameterized GA Intellectual

Property (IP) core (Semiconductor intellectual property

core n.d.) on an FPGA chip. The genetic operators

applied to the genes of the population are crossover,

mutation and elitism, whose employed method is

parametrically selected. The designed selection

algorithm is the “Roulette Wheel Selection Algorithm”.

The FPGA chip used in this work is a Xilinx

XC3S1500–4FG676C Spartan-3 FPGA (Xilinx 2003).

A software implementation of the designed GA using

the Matlab Platform has also been developed to

produce input and output test vectors for the

performance evaluation of the hardware implemented

GA using several benchmark functions, described

below. Finally, after adapting the proposed hardware

implemented GA to the Traveling Salesman Problem

(TSP), a successful solution to it has been found.

2 GA HARDWARE

ARCHITECTURE

This section describes and explains analytically the

various hierarchical modules of the presented GA

architecture.

417

M. Deliparaschos K., C. Doyamis G. and G. Tzafestas S. (2007).

A PARAMETERIZED GENETIC ALGORITHM IP CORE DESIGN AND IMPLEMENTATION.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 417-423

 SciTePress

2.1 System Overview

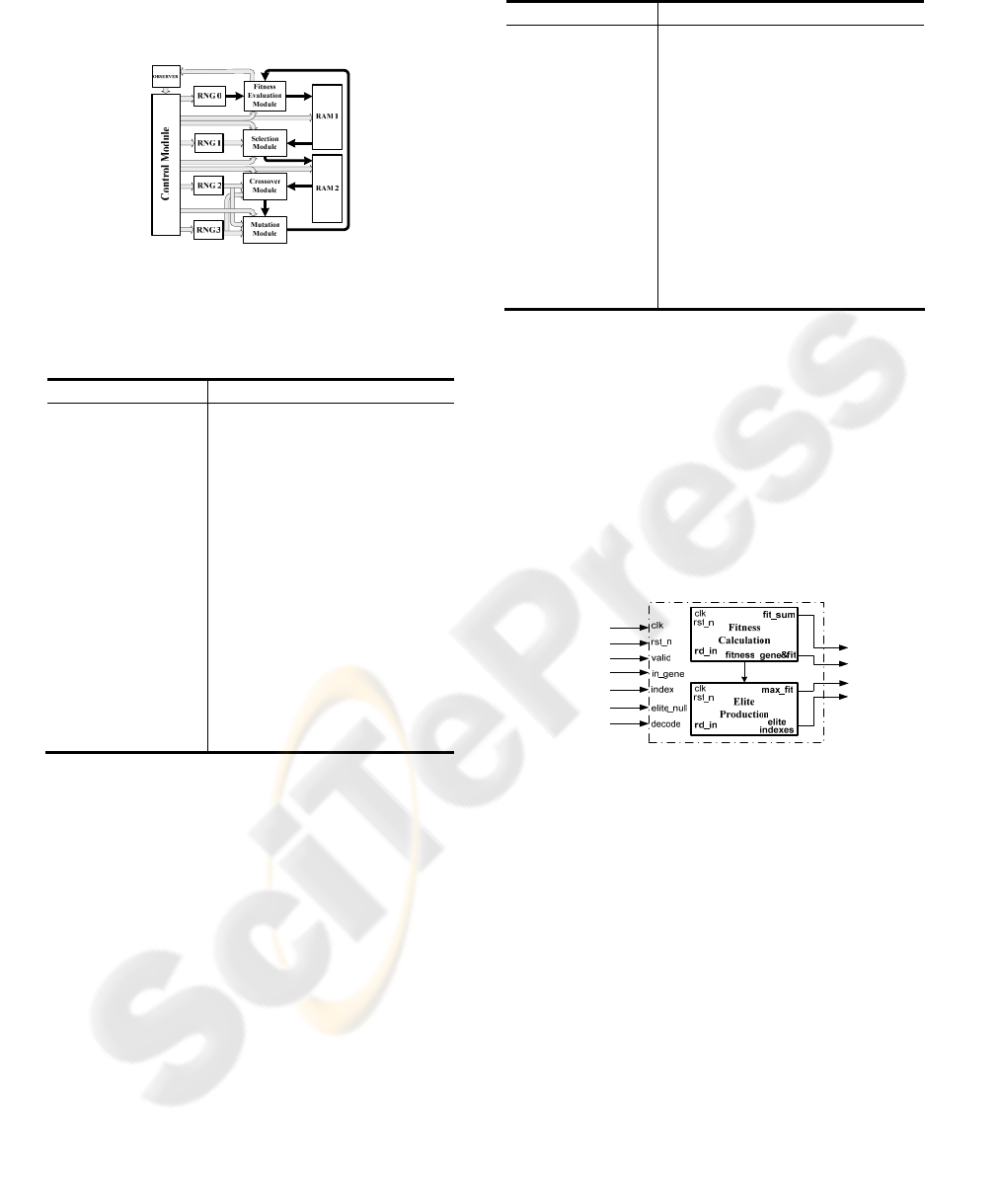

A high level architectural structure of the system is

shown in Figure 1.

Figure 1: High level architectural structure.

2.2 GA Characteristics

Table 1: GA Characteristics.

Parameter name Description

genom_lngt Chromosome length in bits

score_sz Fitness value bit resolution

pop_sz Population size

scaling_factor_res

Bit resolution of the random

number used in RWS

algorithm

elite Number of elite offsprings

mr Mutation rate

mut_res

Bit resolution of the random

number used in mutation

fit_limit Fitness limit

max_gen Maximum generations number

inv_type

Type of the inversion of

the fitness value

(used only in TSP)

1: division 2: subtraction

2.3 GA Architecture

As shown in Figure 1, the architecture is broken into

separate blocks each one of which performs a

particular task, coordinated by the control block.

Moreover, they send back signals to the control

module notifying their state i.e., ready out signals.

2.3.1 Control Module

In order to assure, control and synchronize the order

of execution of the several hardware implemented

modules of the proposed GA architecture, a control

module has been implemented for that reason. This

block produces and feeds all other modules with the

needed control signals using a nine-state Mealy state

machine (Zainalabedin 1998). The task performed

by each of the nine states, is described in Table 2.

Table 2: Diverse states of the implemented state machine.

State Description

clear_ram Clear RAM 1

fill_ram

Fill RAM 1 with a random gene

to create the initial population

fit_eval

Fitness evaluation of the input

gene and generation of the elite

offsprings’ indexes

sel

Selects one parent among the

genes of the current population

cross Apply crossover operation

mut Apply mutation operation

done Check of the termination criteria

read_write_ram_1 Read/write RAM 1

read_write_ram_2 Read/write RAM 2

2.3.2 Fitness Evaluation Module

This section describes the fitness evaluation module,

which functions every time a new population of

individuals is formed. This block performs two

separate tasks; on the one hand it calculates the

fitness of each individual according to the given

fitness function and, on the other, it performs elitism

on the current population producing the elite genes

for the next generation. Having that in mind, the

structural architecture of this module consists of two

sub-modules as shown in Figure 2.

Figure 2: High level architectural structure.

The one is used for fitness calculation and the

other for performing elitism. The above mentioned

modules are externally connected to the remaining

GA architecture, so as to allow any further fitness

functions without affecting the rest of the design.

Furthermore, the module outputs both the sum of

fitnesses and the maximum fitness of the current

population as well as the RAM indexes of the elite

genes. The number of elite genes is parametrically

set. In order for an individual to become an elite

gene of the next generation, i.e., to survive in the

next generation, it has to be the fittest among the rest

individuals.

2.3.3 Selection Module

This section describes the selection module, which

operates after the fitness evaluation of the individuals

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

418

of the current population has ended and is controlled by

the control module. The selection block, connected to

both RAMs, implements the Roulette Wheel Selection

Algorithm (RWS) (Koza et al. 1999, Mitchell 1996).

The selection block will keep on selecting parents

till the number of them suffices to produce a new

population with an equal number of individuals like the

one in the current population.

2.3.4 Crossover Module

This section describes the crossover module, which

runs after the selection module has completed its task

and applies the crossover operation to the selected

parents. The crossover method to be implemented is

parametrically employed. There are diverse crossover

strategies reported in literature (Koza et al. 1999,

Tzafestas 1999). The present implementation includes

three different crossover methods, i.e., single point, two

point and uniform crossover.

The crossover module needs a couple of random

numbers (random crossover points, random mask),

according to the method employed, in order to apply

the desired crossover operation. As a result two random

number generators are used for that reason. The former

produces the crossover points and the other the mask

needed for the application of uniform crossover to the

parents. The crossover block outputs one offspring in

each execution, produced by two of the selected

parents.

2.3.5 Mutation Module

This section describes the mutation module, which

functions after the crossover module has completed its

task and applies the parametrically employed mutation

method to the crossovered offsprings, i.e., the

offsprings produced by crossover module. Various

mutation strategies are reported in literature (Koza

1999, Tzafestas 1999). The proposed design includes

three different mutation methods, i.e., single point,

masked and uniform mutation.

The mutation module requires a couple of random

numbers (random mutation points, random mask,

random numbers p

r,i

), according to the method

employed so as to apply the desired mutation operation.

For this reason two random number generators are

needed. The former produces the mutation points and

the other a random binary mask. The latter RNG also

generates the necessary random number p

, in order to

decide if mutation operation will be applied, i.e., only if

its value is less or equal to the parametrically set

mutation probability p

, will mutation be applied to the

offsprings. If the mutation method employed is uniform

mutation, it also generates the essential random

numbers for uniform mutation. The mutation block

outputs one offspring in each execution produced by

processing one offspring, result of crossover, each time.

2.3.6 Observer Module

This section describes the observer module, which

executes each time a new population has been

formed. This block determines the continuation of the

algorithm, checking if the parametrically set stopping

criteria, i.e., maximum generations, fitness value

limit, have been met.

2.3.7 Random Number Generators

This section describes the random number generator

modules, which feed most of the described modules

above with random numbers. This block implements

a Linear Feedback Shift Register (LFSR) generator,

whose sequence length is parametrically set. Four

random number generators (RNG) are used to

produce both the initial random generation and the

necessary random numbers. The maximum length of

the random generated sequence is 128 bits, while the

specific characteristics of the four RNGs used in our

design are shown in Table 3.

Table 3: Characteristics of the used RNGs.

RNG LFSR length

RNG 0 genom_lngt

RNG 1 scaling_factor_res

RNG 2 genom_lngt + mut_res

RNG 3 2•log2(genom_lngt)

2.3.8 Random Access Memory (RAM)

This section describes the Random Access Memory

(RAM) modules, RAM 1 and RAM 2, which store

the current population and the selected parents

respectively. Both the address and data widths are

parametrically set, as shown in Table 4.

Table 4: Parameters of RAM 1 and RAM 2.

RAM Address width Data width

RAM 1

(population RAM)

genom_lngt

+ score_sz

RAM 2

(parents RAM)

2•(pop_sz-elite) genom_lngt

3 DESIGN FLOW FOR THE GA

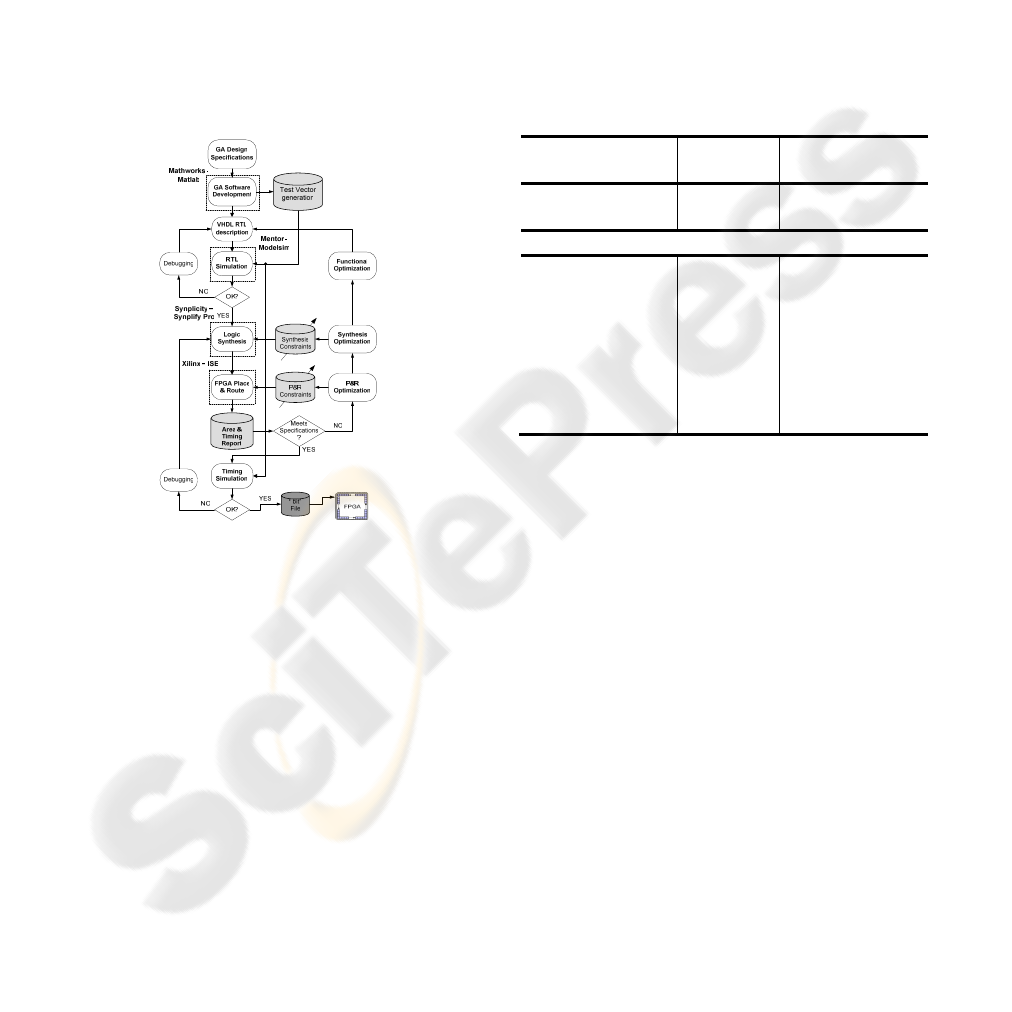

This section presents the design flow, illustrated in

Figure 3, in a top-down manner (Deliparaschos et al.

2006), followed in our design. In a top-down design,

one first concentrates on specifying and then on

A PARAMETERIZED GENETIC ALGORITHM IP CORE DESIGN AND IMPLEMENTATION

419

designing the circuit functionality (Sjoholm et al.

1997). The starting point of the design process is the

system level modelling of the proposed GA, so as to

evaluate the proposed model and to extract valuable

test vector values to be used later for RTL and timing

simulation. Special attention has been paid on the

coding of the different blocks, since we aim at writing

a fully parameterized GA code. An RTL simulation

has been performed to ensure the correct functionality

of the circuit. Next, logic synthesis has been done,

where the tool first creates a generic (technology-

independent) schematic on the basis of the VHDL

code and then optimizes the circuit to the FPGA

specific library chosen (Spartan-3 1500-4FG676). At

this point, area and timing constraints and specific

design requirements must be defined as they play an

important role for the synthesis result.

Figure 3: Design Flow.

Following, the Xilinx ISE place and route (PAR)

tool accepts the input netlist file (.edf), generated with

Synplify Pro synthesis tool, translates and maps our

design on the FPGA device. Finally, it places and

routes the FPGA producing output for the bitstream

generator (BitGen). The latter program generates a

bitstream (.bit) for Xilinx device configuration.

Before programming the FPGA file, a timing

simulation is performed to ensure that the circuit

meets the timing requirements set and works

correctly.

4 IMPLEMENTATION RESULTS

This section describes the implementations results of

the designed GA. After the synthesis of the design,

ISE translates, maps, and places and routes our design

to the FPGA device. The FPGA utilization for both

the GA and the GA adapted to the TSP produced by

ISE are shown in Table 5.

The hardware implementation of the proposed GA

achieves an internal clock frequency rate of 92 MHz

(10,8 ns) while the adapted GA to the TSP achieves

an internal clock frequency rate of 91 MHz (11 ns).

Moreover, 2.450 ns (2,4 μs) and 14.391 ns (14,3 μs)

are required to form a new generation of 8 individuals

in the former and latter version of the GA

respectively. Finally, the VHDL codes for the GA

models presented here are fully parameterized,

allowing us to generate and test the GA models with

different specification scenarios.

Table 5: FPGA Utilization for the implemented GAs.

Logic Utilization GA

(adapted to TSP)

Slice flip flops 681 (2%) 1045 (3%)

4 – Input LUTs 1086 (4%) 1630 (6%)

Logic Distribution

Occupied slices 892 (6%) 1305 (9%)

4 – Input LUTs 1116 (6%) 1686 (6%)

Used as logic 1086 1630

Used as route-thru 6 4

Used as 16x1 ram 24 52

Bonded IOBs 59 (12%) 53 (10%)

MULT 18x18s 1 (3%) 3 (9%)

GCLKs 1 (12%) 1 (12%)

5 EVALUATION RESULTS

The evaluation of the system performance has been

made both by solving the TSP problem and by

optimizing several benchmark functions (Digalakis

et al. 2000, Zhang and Zhang 2000), which are

noted in section 5.2.2. In order to evaluate the

performance of the implemented GA using the TSP,

we firstly have to adapt the hardware to the TSP

(section 5.1) and secondly to write a software

version of the hardware implemented GA, which

will also be adapted to the TS problem. Both the

software version of the GA and the one adapted to

the TSP have been developed on Matlab Platform.

5.1 GA Hardware Adaptation to the TSP

According to the definition of the TSP (Pham and

Karaboga 2000), each city should be visited only

once. So every gene of the population, which contains

the towns to be visited in sequence, must contain each

town only once. Since our genes are unique, we

cannot possibly use the above mentioned crossover

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

420

and mutation techniques, but new crossover and

mutation methods must be developed (explained

below) (Martel 2006).

The crossover operator uses a pool of indices of

the towns. In order to keep the uniqueness of the

visited cities used indices will be removed from the

pool. The offspring produced after the application of

crossover to the parents, is formed via the following

procedure: In the beginning a random crossover

point is generated and then the town indices of the

first parent are added to the offspring starting from

the crossing site, to the head of the gene. The afore-

mentioned indices are removed from the pool.

Afterwards the right side of the gene is filled by

checking whether the town indices in the right side

of the second parent are contained in the pool. If a

town index is still free, i.e. exists both in the pool

and the second parent, we place it in the offspring

and remove it from the pool; otherwise we skip it

and leave its place in the offspring empty till we

reach the tail of the gene. Finally empty places of the

offspring are randomly filled with the town indices

remaining in the pool. The developed mutation

operator utilizes two random generated mutation

points and simply swaps the town indices stored at

these points of the gene. The described methods for

8 cities are depicted in Figure 4.

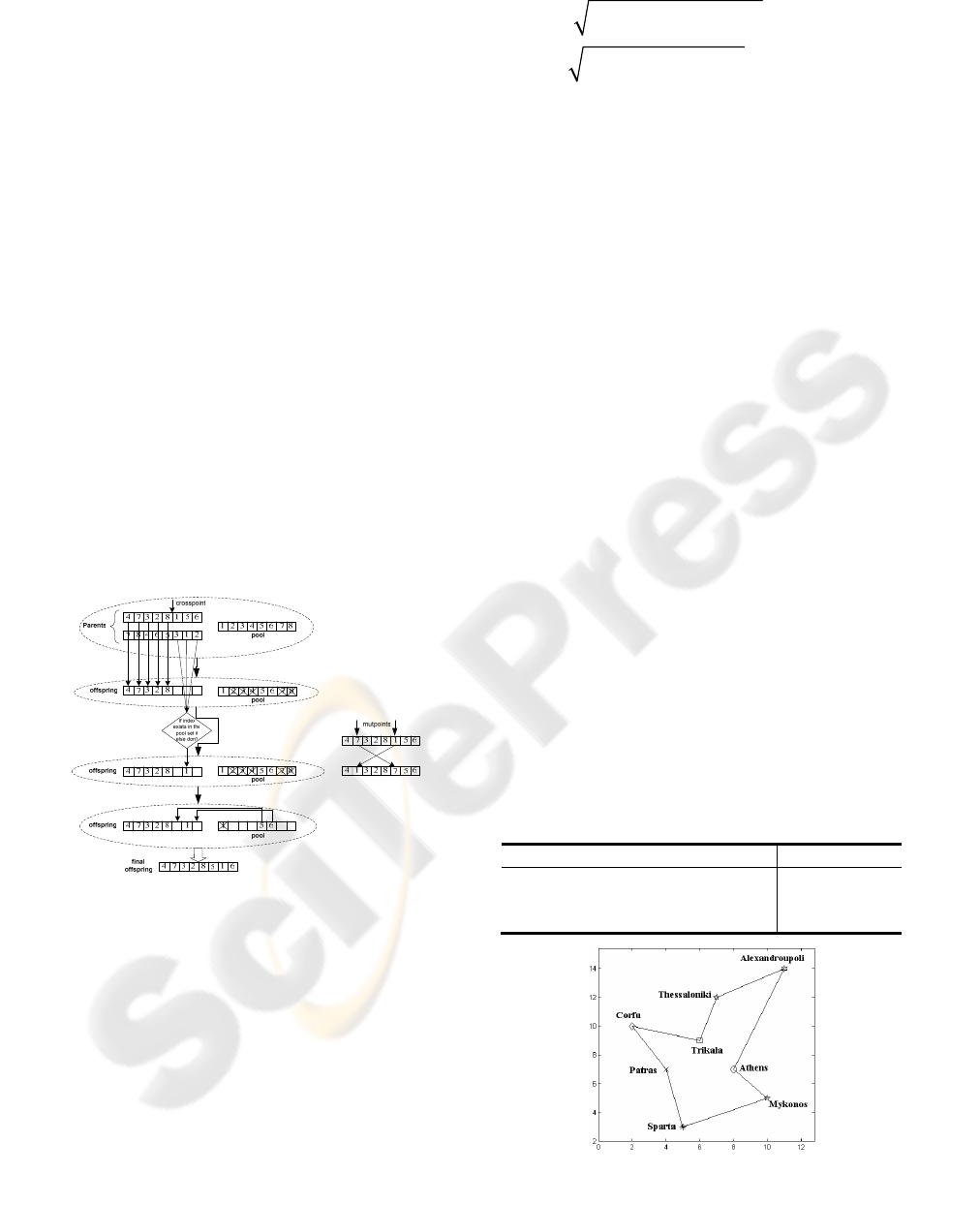

Figure 4: Crossover and mutation operations for TSP.

The fitness evaluation function implemented here, is

the computation of the sum over the number of

towns (N) of the square of the Euclidean distances

between two adjacent towns according to the

computed tour, as shown in equation (1). We

compute the square of the Euclidean distance in

order to avoid the hardware implementation of the

square root, since it is not necessary as we do

nothing but merely compare the fitnesses among the

chromosomes.

()()

(

)

()()

()

][1,

jiiii

fit x x y y

x y y j pop sz

−

=−+−

−+− ∈

∑

(1)

Since we seek the optimal minimum path

connecting the given towns and the GA is designed to

result in the gene with the maximum fitness instead,

i.e., with the maximum sum of Euclidean distances,

we have either to invert the computed fitness or to

subtract the fitness from its highest value, according

to the resolution of bits adopted for the binary coding

of it, i.e. 2

score_sz

-1 (See Table 1), in order to get higher

values for smaller path lengths. The method for the

inversion of the fitness to be implemented is selected

through a generic in the VHDL code (inv_type).

5.2 Results

The performance evaluation of the proposed GA using

the TSP and various benchmark functions follow.

5.2.1 TSP

The performance evaluation of the proposed GA

using the TSP has been performed by comparing the

time needed for the software version developed and

the one needed for the hardware implementation to

find the optimal solution. The results for eight cities,

60 generations and 32 individuals are summarized in

Table 6, where an impressive speedup ratio of 11.035

can be observed. Figure 5 depicts the map of the 8

cities used, which are existing cities of the greek

territory. The algorithm was also tested using the

benchmark burma14 derived from the TSPLIB

(Gerhard n.d.), and the result is depicted in Figure 6.

Table 6: Software vs. Hardware GA.

GA version Time (msec)

Hardware (11 nsec) 1,702

Software

(Pentium 4 3,2 GHz 1Gb RAM )

18.783

Figure 5: Map of the cities used in the TSP.

A PARAMETERIZED GENETIC ALGORITHM IP CORE DESIGN AND IMPLEMENTATION

421

Figure 6: TSP solution of burma14 benchmark.

5.2.2 Benchmark Functions

Several benchmark functions are known in the

literature (Digalakis and Margaritis 2000, Zhang et

al. 2000) for evaluating the performance of a GA,

i.e. its ability to reach the optimum of an objective

function. In our case we have tested the proposed

GA using the following functions, which are noted

in Table 7 and depicted in figures 7–9.

Table 7: Benchmarking functions.

Name Function type

F1:

Zhang Zhang

() ( )

()

sin sin

ππ

−+

∈

20 20

12 3 20

F2:

Rastrigin

()

cos

−−

−≤≤

∑

100 10 2

512 512

F3:

Easom

()

cos

−−

⎛⎞

∑

−≤ ≤

⎛⎞

⎜⎟

∈

⎝⎠

∏

10 100

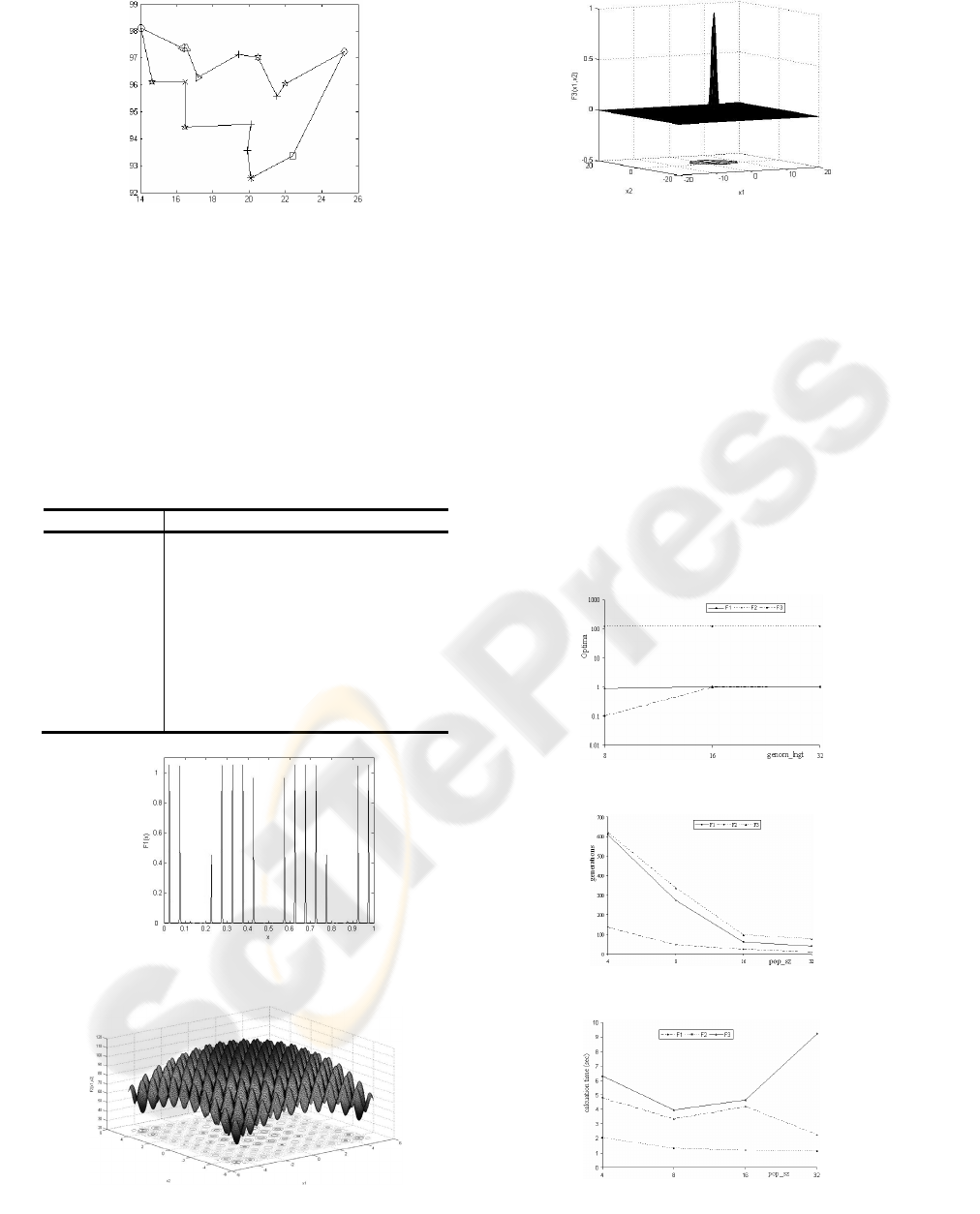

Figure 7: Zhang Zhang function (F1).

Figure 8: Rastrigin function (F2).

Figure 9: Easom function (F3).

In the following figures the results of a number of

experiments using the above mentioned functions are

presented. Figure 10 shows the effect of the

chromosome length (genom_lngt) on the optimal

solution found, while Figure 11 depicts the effect of the

population size (pop_sz) on the generations needed by

the algorithm to converge. Finally the influence of the

population size on the calculation time is shown in

Figure 12. We also have to note that the precision of the

optimum value found by the proposed GA depends on

the chromosome length adopted in each experiment. A

length of 16 and 32 bits for evaluating one and two-

variable benchmark functions, respectively, is observed

to give high accuracy on the result in relatively low

calculation times.

Figure 10: Estimated optima vs. chromosome length.

Figure 11: Estimated generations vs. population size.

Figure 12: Estimated calculation time vs. population size.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

422

6 CONCLUSION

In this work we presented a fully parameterized

Genetic Algorithm IP in terms of the number of

population individuals (pop_sz) and their resolution in

bits (genom_lngt), resolution in bits of the fitness

(score_sz), number of elite genes in each generation

(elite), method used for crossover (cross_method) and

mutation (mut_method), number of maximum

generations (max_gen), mutation probability (mr) and

its resolution in bits (mut_res), as well as the resolution

in bits of the scaling factor used by the RWS algorithm.

This parameterization allows the adaptation of the GA

to any problem specifications without any further

change to the developed VHDL code. Furthermore, the

proposed hardware implemented GA operates at a

clock rate of 92 MHz (10,8 ns) and achieves a

noteworthy speedup when compared to its software

version. Additionally, the hardware area required for

the implementation and the requirements of RAM are

kept small according to the PAR report (see Table 5).

Compared to other GAs hardware implementations

(Zhu et al. 2006, Aporntewan and Chongstitvatana

2001, Lei et al. 2002, Tang and Yip 2002), our design

operates at a clock frequency up to five times faster and

implements more than one crossover and mutation

methods, which can be changed during its execution.

Moreover, our design utilizes more parameters and is

evaluated not only by using benchmarking functions

but also by solving the NP-complete Travelling

Salesman Problem.

REFERENCES

Aporntewan, C., Chongstitvatana, P., 2001. A hardware

implementation of the Compact Genetic Algorithm.

Proceedings of the 2001 Congress on Evolutionary

Computation, 1, pp. 624–629.

Deliparaschos, K.M., Nenedakis, F.I., Tzafestas, S.G.,

2006. Design and implementation of a fast digital

fuzzy logic controller using FPGA technology.

Journal of Intelligent and Robotics Systems, 45, pp.

77–96.

Digalakis, J.G., Margaritis, K.G., 2000. An experimental

study of benchmarking functions for genetic

algorithms. in: 2000 IEEE Int. Conference on Systems,

Man, and Cybernetics, 5, pp. 3810–3815.

Gerhard, R., TSP libraries. Department of Computer

Sciences, University of Heidelberg. Available from:

http://www.iwr.uniheidelberg.de/groups/comopt/softw

are/TSPLIB95/

Goldberg, D.E., 1989. Genetic Algorithms in Search

Optimization and Machine Learning. Reading, MA:

Addison-Wesley.

Holland, J.H., 1975. Adaptation in Natural and Artificial

systems: An Introductory Analysis with Application to

Biology, Control, and Artificial Intelligence. Ann

Arbor, MI: University of Michigan Press.

Koza, J.R., 1992. Genetic Programming: On the

programming of computers by means of natural

selection. Cambridge, MA: MIT Press.

Koza, J.R., Bennett III, F.H., Andre, D., Keane, M.A.,

1999. Genetic Programming III: Darwinian Invention

and Problem Solving. San Francisco, CA: Morgan

Kaufmann Publishers.

Lei, T., Zhu M.-C., Wang J.-X., 2002. The hardware

implementation of a genetic algorithm model with

FPGA. in: 2002 IEEE International Conference on

Field–Programmable Technology (FPT), pp. 374–377.

Mitchell, M., 1996. An Introduction to Genetic

Algorithms. Cambridge, MA: MIT Press.

Martel, E., Solving Travelling Salesman Problems using

Genetic Algorithms. Available from: http://ai-

depot.com/Articles/51/TSP.html

Pham, D.T., Karaboga, D., 2000. Intelligent Optimization

Techniques: Genetic Algorithms, Tabu Search,

Simulated Annealing and Neural Networks. London,

UK: Springer.

Sjoholm, S., Lindh, L., 1997. VHDL for Designers.

London, UK: Prentice Hall.

Tang, W., Yip, L., 2004. Hardware implementation of

genetic algorithms using FPGA. in: MWSCAS '04, The

2004 47th Midwest Symposium on Circuits and

Systems, 1, pp. 549–552.

Tzafestas, S.G., 1999. Soft Computing in Systems and

Control Technology. 18, London, UK: World

Scientific.

Wikipedia, Semiconductor intellectual property core.

Available from:

http://en.wikipedia.org/wiki/Semiconductor_intellectu

al_property_core

Xilinx, 2003. Spartan-3 FPGA Family: Complete Data

Sheet - DS099.

Available from:

http://www.xilinx.com/bvdocs/publications/ds099.pdf

Zainalabedin, N., 1998. VHDL: Analysis and Modeling of

Digital Systems. NY: Mc Graw-Hill International.

Zhu, Z., Mulvaney, D., Chouliaras, V., 2006. A novel

genetic algorithm designed for hardware

implementation. Int. Journal of Computational

Intelligence, 3, number 4.

Zhang, L., Zhang, B., 2000. Research on the mechanism

of genetic algorithms. Journal of Software, 11(7),

pp.945–952.

A PARAMETERIZED GENETIC ALGORITHM IP CORE DESIGN AND IMPLEMENTATION

423
